Bellini BR903AX Installation instructions

GSM Retail Australia Pty Ltd ABN: 53 007 582 475
For Warranty and technical queries: 1300 373 199 Aust OR0800 764 912 NZwww.belliniappliances.com.au
Model: BR603AX FINELINE: 5102305 AUS ONLY BR903AX FINELINE:5102306 60cm/90cm Auto Slide out Range hood
INSTALLATION & OPERATION
INSTRUCTIONS
60cm/90cm Automatic Slide
Out Range hood
Model No
BR603AX FINELINE: 5102305 AUS ONLY
BR603AX-F
BR903AX FINELINE: 5102306 AUS ONLY
BR903AX-F
V14 Sep20

GSM Retail Australia Pty Ltd ABN: 53 007 582 475
For Warranty and technical queries: 1300 373 199 Aust OR0800 764 912 NZwww.belliniappliances.com.au
Model: BR603AX FINELINE: 5102305 AUS ONLY BR903AX FINELINE:5102306 60cm/90cm Auto Slide out Range hood
Thank you
Thank you for choosing Bellini Appliances.
Bellini prides itself on ‘affordable living’ making sure there is
no compromise in your favourite room … The Kitchen
All Bellini appliances carry a 3 year In Home warranty,
be sure to retain your installation and user manual and
receipt.
For all warranty and technical queries please contact
1300 373 199

Content
Safety instructions----------------------------- 2
Product description---------------------------- 4
Operation Mode --------------------------------5
Installation----------------------------------------6
Start using your Range hood-----------------11
Maintenance and cleaning -------------------12
Warranty------------------------------------------ 13
GSM Retail Australia Pty Ltd ABN: 53 007 582 475
For Warranty and technical queries: 1300 373 199 Aust OR0800 764 912 NZwww.belliniappliances.com.au
Model: BR603AX FINELINE: 5102305 AUS ONLY BR903AX FINELINE:5102306 60cm/90cm Auto Slide out Range hood

Safety instructions
This manual explains the proper installation and use of your oven, please read it carefully
before using even if you are familiar with the product. The manual should be kept in a
safe place for future reference. In case of failure, only the Authorised Technical Service
may repair this range hood. Otherwise the guarantee will be null and void. All Bellini
Appliances are for domestic use only.
Never to do:
zThis appliance is not intended for use by persons
(including children) with reduced physical, sensory
and mental capabilities, or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.

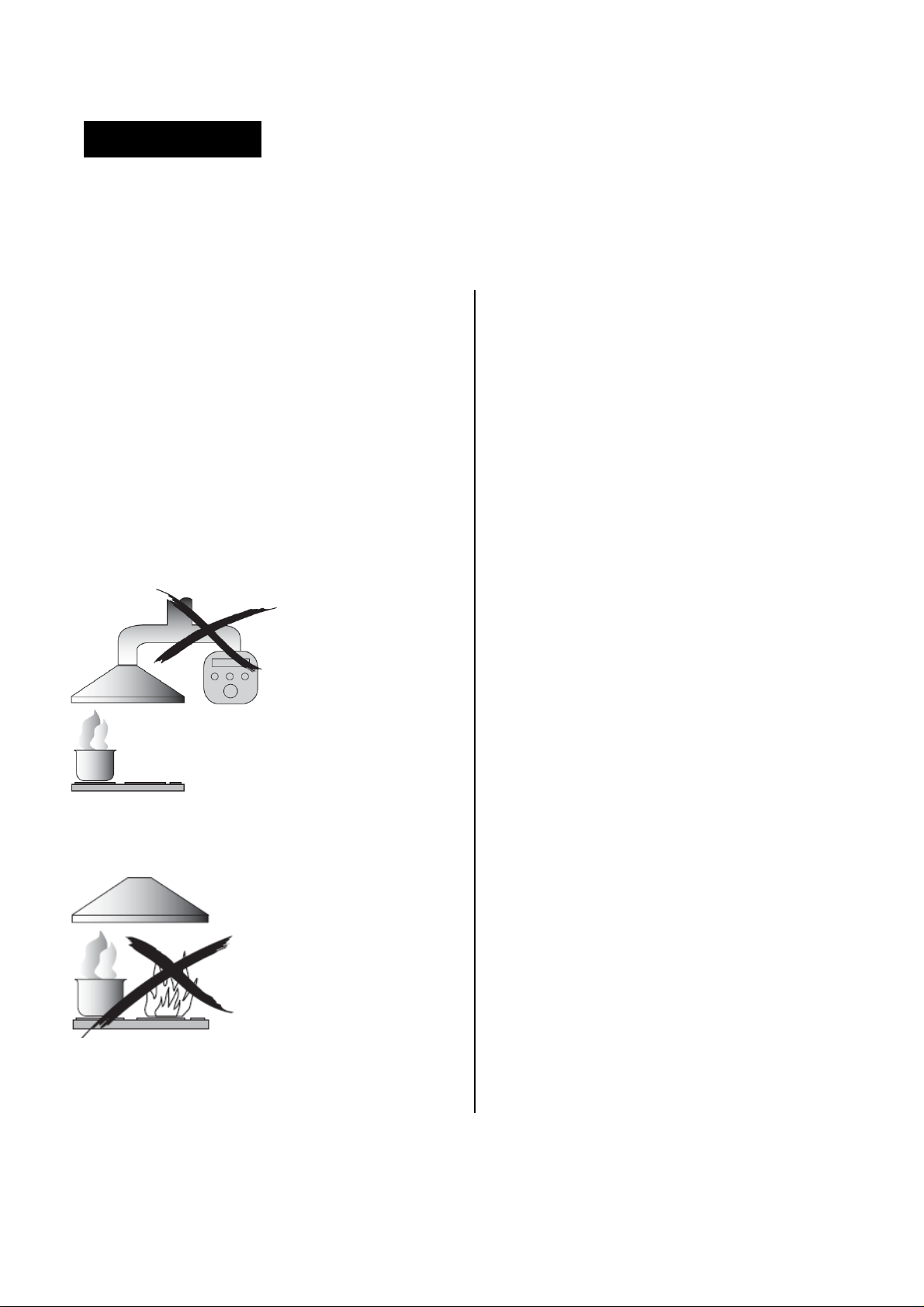

zNever carry out flamable cooking under the
appliance
zThe exhaust from the range hood must not be
discharged into any heating flue, which may carry
combustion products from other sources.
zDo not leave lit gas burners exposed due to the risk
of fire.
zThis range hood is not recommended for
barbecues.
Always to do:
zPackaging materials (eg; polystyrene and
plastic items) must be kept out of reach of
babies or young children at all times due to
risk of suffocation.
zYoung children should be supervised to
ensure that they do not play with the
appliance.
zEnsure the range hood is switched off before
carrying out maintenance, to avoid any
possibility of electric shock.
zGrease filters must be removed every four
weeks (maximum) for cleaning to reduce the
risk of fire.
zThere must be adequate ventilation of the
room when the range hood is used at the
same time as appliances burning gas or other
fuels.
zAlways cover lit gas burners with pots or pans
when range hood is in use.
zAlways switch off gas burners before you
remove pots or pans.
zIf the supply cord is damaged, the cord must
be replaced by the manufacturer, its service
agent or similarly qualified persons in order to
avoid a hazard
zPlug must be accessible after installation.
2

Safety instructions
Never to do:
zThis range hood cannot be installed for outdoor use.
zIt is prohibited to fit the range hood over a solid fuel
stove
zThis appliance must not be connected to a chimney
or vent flue which is in use.
zThis appliance is not to be vented into the roof
cavity, must exit into open air.
zExhaust air must not be discharged into a wall
cavity, unless the cavity is designed for the purpose.
zThis appliance should not be connected to ducting
which ventilates rooms with fire places.
Always to do:
zAttention should be given to ensure that any
applicable regulations concerning discharge
of exhaust air are fulfilled.
zThis appliance should be installed and
maintained by a suitably qualified and
competent person in accordance with the
relevant safety regulations.
zBefore connecting the appliance to the mains
supply, ensure that the voltage and frequency
details on the rating plate are consistent with
the source of supply.
3
This product must not be disposed together
with domestic waste. This product has to be
disposed at an authorised place for recycling
of electrical and electronic appliances.
By collecting and recycling waste, you help save natural
resources, and make sure the product is disposed in an
environmental friendly and healthy way.

4
Product description
Component list:
1. Upper chimney retaining bracket
2. Upper decorative chimney (Inner)
3. Lower chimney retaining bracket
4. Flexible exhaust duct
5. Lower decorative chimney (outer)
6. Hood mount bracket
7. Outlet (diameter 150mm)
8. Main body
9. Grease mesh filter for BR603/903AX(-F)
Technical data:
Power supply: 220 – 240v, 50Hz
Motor: 190W
Lights: 2x20W Halogen lamp
Length of power cord: 2m
Air outlet diameter: 150mm
Accessories bag
Description Picture QTY
User Manual 1
1:1 installation guide template 1
Upper chimney retaining bracket 1
Lower chimney retaining bracket 1
Hood mount bracket 1
Outlet ( diameter 150mm) 1
Dry wall anchors plugs 9
Screw (ST4x8mm) 8
Screw (ST4x40mm) 7
Screw (ST4x30mm) 2

5
Operation Mode

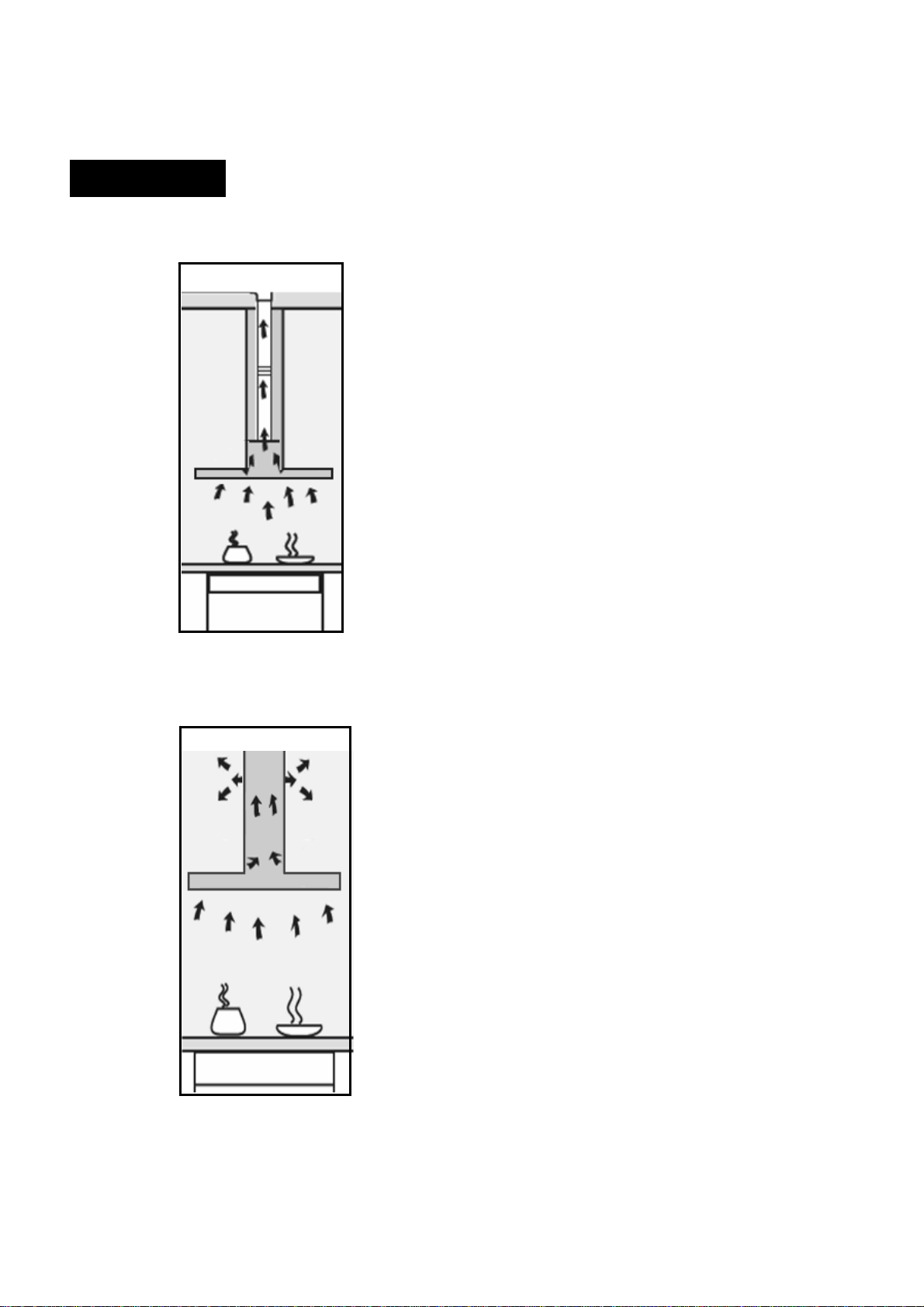

Your range hood can be operated in two modes, choose the mode suitable for your kitchen before installation.
Air Extraction
Air Recirculation
To outside
To inside
For air extraction mode, a ducting kit is required, the air
is drawn in and cleaned by the grease filters and via the
ducting must be directed to the outside atmosphere.
Ducting must be vented to outside atmosphere
For air recirculation mode, charcoal filter (Optional
Accessory) must be installed to eliminate cooking
smells.
The air is drawn in and cleaned first by the grease filters
and then charcoal filter. The cleaned air is then
re-circulated back into kitchen through vents in the
Upper Decorative Chimney.

6
Installation

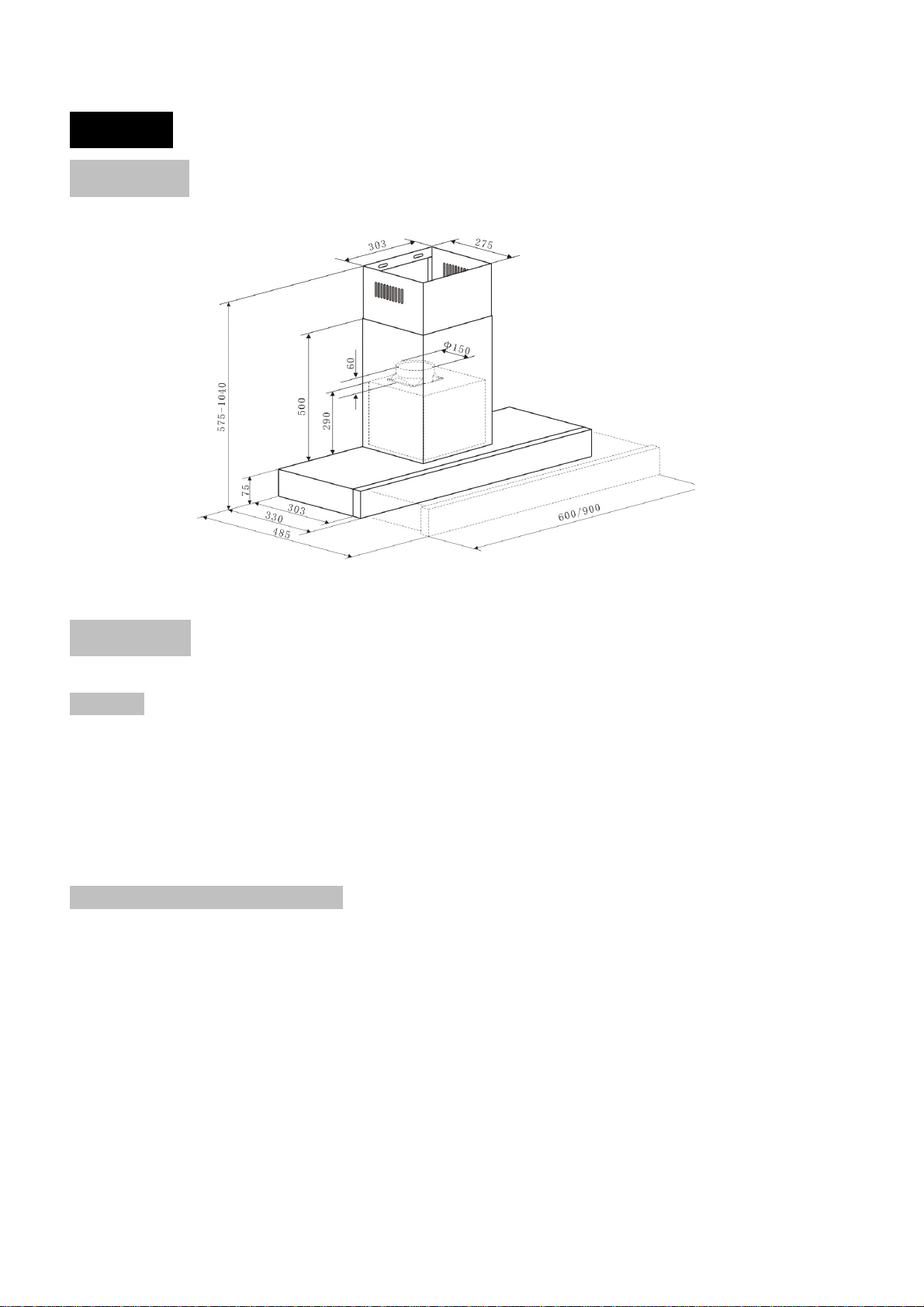

Dimensions:
BR603AX(-F)/BR903AX(-F)
*Width of BR603AX(-F) is 600mm, width of BR903AX(-F) is 900mm
Installation:
Warning:
Check that the installation complies with the standards of local building, gas and electrical authorities. Before
connecting to the mains supply ensure the mains voltage corresponds to the voltage on the appliance rating
plate inside the range hood.
When installing the range hood, make sure you adhere to the minimum and maximum distances from the range
hood base to the cooktop hob surface.
Hints for exhaust duct installation
The following rules must be strictly followed to obtain optimal air extraction
•Keep exhaust duct short and straight
•Do not reduce the size or restrict exhaust duct
•When using flexible duct always install the duct pulled taut to minimize pressure loss
•Failure to observe these basic instructions will reduce the performance and increase noise levels of the
range hood
Ensure the exhau st ducting selected for installati on complies with relevant standards and is fire
retardant.

7
1. Using a spirit level, mark a vertical line on the wall (Central to the cook top installed below) to indicate the
centre location of the hood and a horizontal line where the hood base will be positioned.
NOTE: The distance from the horizontal line to an electrical cooktop underneath must be minimum
of 600mm & 650mm Free space to the gas cook top and a maximum height of 800mm (refer to table
below).
*If the instructions of the hob specify a greater distance than the minimum above, then that shall be the minimum height for installation
2. Use the installation guide template to determine where screw mount holes should be located. Make sure
vertical and horizontal lines on the installation guide template superimpose with the lines just drawn on the
wall.
3. According to the positions just marked as per installation guide template, drill holes in the wall and fit dry wall
anchor plugs into holes.
4. Fit the outlet on the top of range hood body and retain with 4pcs ST4x8mm screws.
Hood base Horizontal line
Vertical centre line
Top of hob/Trivet
Minimum:
Electric 600mm
Gas 650mm
Maximum:
800mm

8

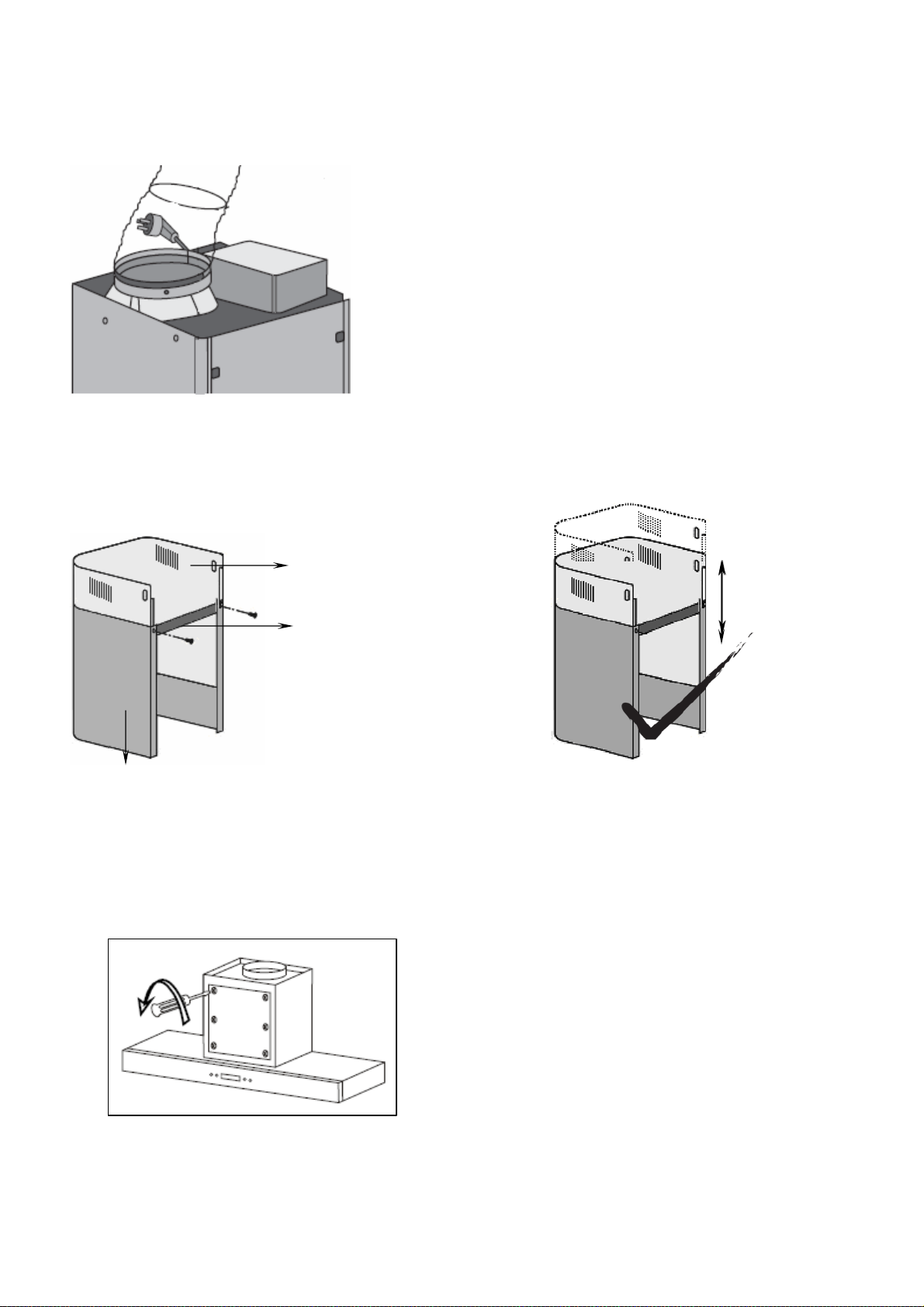

5. Fit the flexible exhaust duct onto outlet. ( Air Extraction mode only )
Note : For the Air Circulation Mode option , skip step 5 and proceed with step 6.
6. Place Upper Decorative Chimney inside the Lower Decorative Chimney.
Connect the Lower Chimney retaining bracket to the Lower Decorative Chimney with 2 x ST4x8mm screws,
do not fully tighten, allowing for sufficient clearance to telescopically adjust the Upper Decorative Chimney to
the desired position when installation is completed.
Lower decorative chimney (Outer)
7. Install active Charcoal Filters ( Air Recirculation Mode only )
Note: For Air Extraction Mode option, skip Step 7 and proceed with Step 8.
Upper decorative chimney (Inner)
Lower Chimney retaining bracket

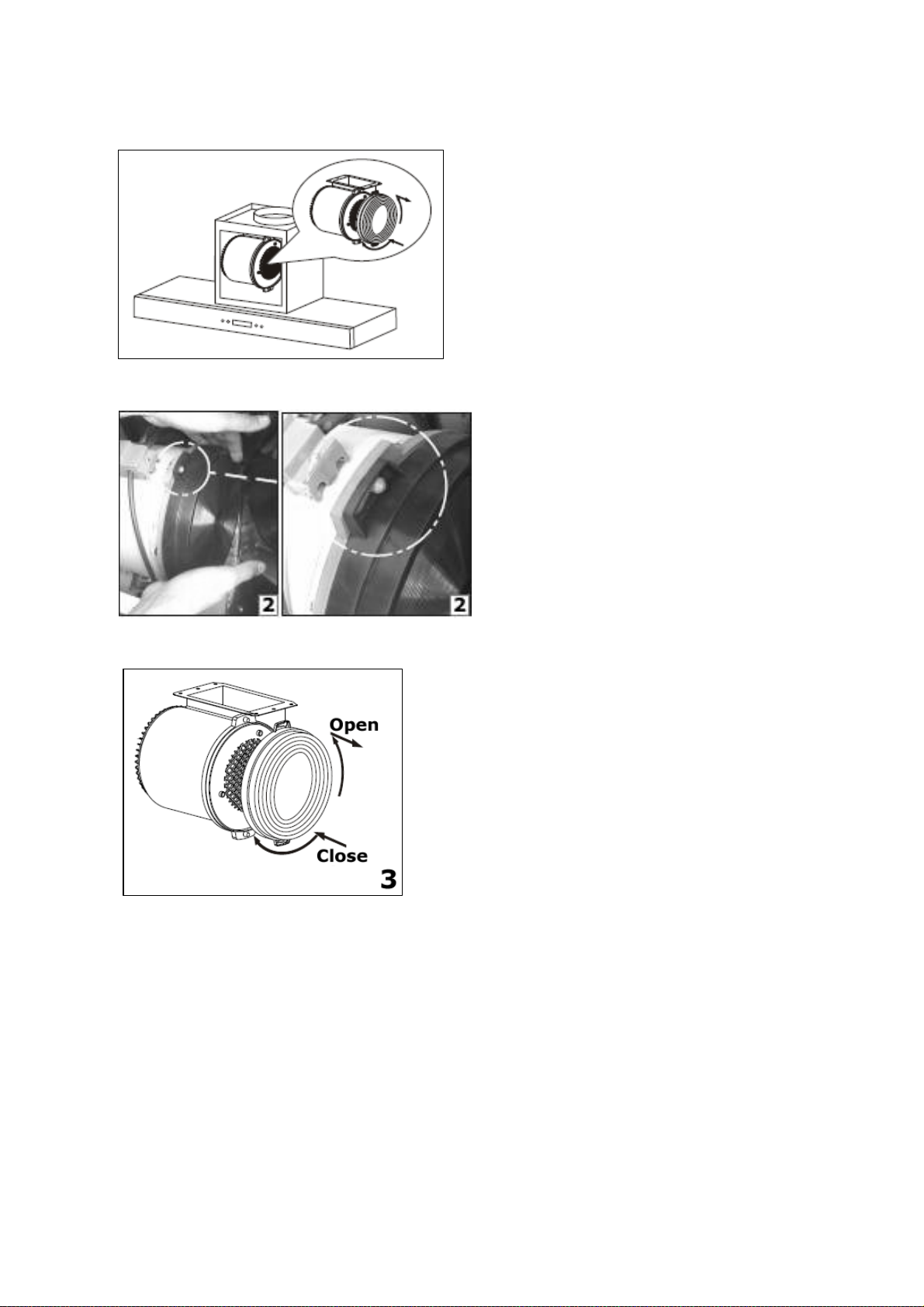

1) Remove the lower and upper chimney sections from the main body of the hood.
2) Use a screwdriver to undo the screws that hold the motor access panel in place.

3) Once the motor access panel is removed, you will be able to see the motor.
4) Hook the carbon filter over the pins that are located at the end of the motor.
5) Turn the carbon filter anticlockwise, until you feel it click into place.
oRepeat this process for the second carbon filter. You need to place a carbon filter at either end of the motor.
oRefit the motor access panel and fully tighten the screws that you removed previously.
oRefit the lower and upper chimney sections to the main body of the hood.
oThe carbon filters should be replaced every 3 - 6 months, if they show signs of damage or if you start to
smell cooking odours returning into the kitchen through the vent at the top of the chimney section.
9
Charcoal Filters are available at your local Bunnings
Part Number: CF160 Fineline:5103075

8. Secure the hood mount bracket onto wall with 3 x ST4x40mm screws, making sure screws are securely
tightened.
9. Position the hood assembly onto the Hood Mount Bracket, ensuring that bracket hooks are securely
interlocking into the mounting slots of the hood assembly.
10. Secure the base of the hood with 2 x ST4x30mm anti -tilt screws to ensure unit is installed level , mounting
holes for the screws are accessible via the fan motor chamber.
11. Fasten the Lower Chimney retaining bracket to the wall with 2 x ST4x40mm screws.
12. Plug into the main power supply.
13. Position the Upper Chimney retaining bracket at the extended height of the decorative chimney and secure to
the wall with 2 x ST4x40mm screws.
* Total maximum extension height of BR603AX and BR903AX is 980mm, each chimney height is 500mm.
14. Extend the Upper decorative chimney to the desired height and secure it with 2 x ST4 x 8mm screws to the
chimney retaining bracket.
15. Remove all blue protective film on chimney and cooker hood, the installation is now finished.
10

11
Start using your range hood
Timer – Clock time setting, auto off
Clock time setting
1. Depress “Timer” for 2 to 5 second, hour digit segment will flash, depress “Speed” to increase and “Lamp” to
decrease hour digit until current clock hour time appears.
2. Depress “Timer” again, minute digit segment will flash, depress “Speed” to increase and “Lamp” to decrease
minute digit until current clock minute time appears.
3. Depress “Timer” again to confirm and finalize clock time setting
Auto off duration setting
At the end of cooking if the timer is switched on, the range hood will continue to run for an additional duration as
you set up to remove any odors that remain at the completion of cooking. After the set up duration the range
hood will turn itself OFF. This function is available only when range hood motor is running.
1. Depress “Timer” to enter into this function, default setting is 5:00 min, you can depress “Speed” to increase
and “Lamp” to decrease and adjust the duration from 1:00 to 60:00 min.
2. Depress “Timer” again to confirm and finalize auto off duration setting
*Your range hood can remember the last setting, so if no new settings next time, the function will be on according to the last setting.
Lamp – Turn on/off light, decrease digit in timer setting
Speed –select speed to suit cooking conditions, increase digit in timer setting
Low – light frying/boiling
Medium – frying/wok cooking/heavy boiling
High – grilling, intensive frying and wok cooking
Power – Turn on/off the range hood.
* For BR603AX(-F)/903AX(-F), turn on the range hood, drawer will slide out automatically; turn off the
range hood, drawer will slide in automatically.

12
Maintenance and cleaning
Caution:
• Before maintenance or cleaning is carried out, the
range hood should be disconnected from the main
power supply. Ensure that the range hood is switched
off at the wall socket and the plug removed.
• External surfaces are susceptible to scratches and
abrasions, so please follow the cleaning instructions
to ensure the best possible result is achieved without
damage.
GENERAL
Cleaning and maintenance should be carried out with
the appliance cold especially when cleaning
Avoid leaving alkaline or acid substances (lemon
juice, vinegar etc.) on the surfaces
STAINLESS STEEL
The stainless steel must be clea ned regularly (e.g.
weekly) to ensure long life expectancy.
Dry with a clean soft clot h. A speci alized stainless
steel cleaning fluid may be used.
NOTE: Ensure that wipin g is done al ong with the
grain of the stainless steel to preve nt any
unsightly crisscross scratching patterns from
appearing.
CONTROL PANEL SURFACE
The inlay control panel can be cleaned using warm
soapy water. Ensure the cloth is clean and well wrung
before cleaning. Use a dry soft cloth to remove any
excess moisture left after cleaning.
Important
Avoid using harsh cleaning chemicals, strong
household detergents or products containing
abrasives as this will affect the appliance
appearance and potentially remove any printing
of artwork on the control panel and will void
manufactures warrantee
GREASE MESH FILTERS
The mesh filters can be cleaned either by hand or in
the dishwasher. After cleaning ensure that the filters
are completely dry before refitting.
- By hand: Soak in warm water and a neutral
washing up liquid. For stubborn grease stains use a
soft nylon brush or sponge to help remove these
stains. (Leave to dry naturally out of direct sun light)
- In a dishwasher: Ensure that placement of the
filters is made so as to not impede the function of the
spray arm. Washing the filters in a dishwasher may
cause discoloration of the aluminum inner mesh over
time although it will not affect their performance.
Filters should be washed separately to crockery and
kitchen utensils. it is advisable not to use rinse aid.

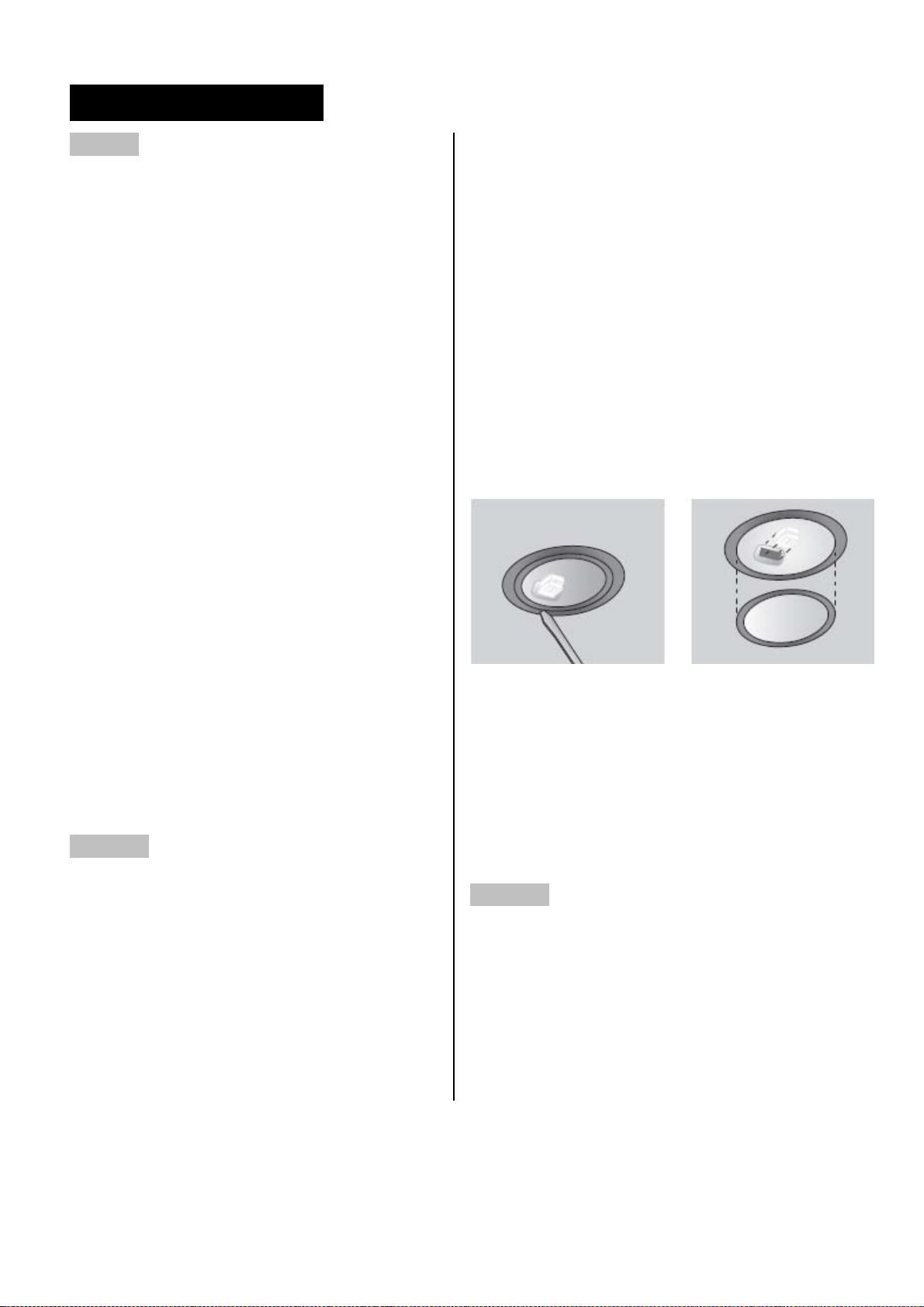

Replace Lamp
Using a small flat blade screwdriver remove the inner
stainless steel ring to obt ain access to the halo gen
globe.
When removing the inner ring, do so ca refully so not
damage the range hood, as the gla ss lens could
easily fall out of the inner ring. Remove halogen globe,
whilst cool, and re place carefully with a new globe.
The range hood take s 2 x 20W, 12 volt haloge n
globes.
Important
When handling globes hold with a cloth or gloves to
ensure perspiration does not come in contact with the
globe as this can reduce the life of the globe.

WARRANTY
1.1 In this warranty:
1.1.1 Australian Consumer Law means the law as set out in Schedule 2 of the Competition and
Consumer Act2010;
1.1.2 Company means GSM Retail Australia Pty Ltd ABN 53 007 682 475 of 142-144 Fullarton Road, Rose
Park SA5067. Telephone [phone]. Email [e-mail];
1.1.3 Consumer means a “consumer” as that term isdefined in Section 3 of the Australian Consumer
Law as the original purchaser of a Belliniproduct;
1.1.4 Consumer Guarantees means the guarantees under the Australian ConsumerLaw;
1.1.5 You means the Consumer.
1.2 Nothing in this warranty affects any person’s rights under the Australian Consumer Law. The benefits to
any Consumer under this warranty are in addition to the rights and remedies available under any
Consumer Guarantees.
1.3 Subject to the other clauses of this warranty, the Company warrants to the Consumer that the Bellini
product will be free of manufacturing defects and will perform to the Company’s specifications.
1.4 The benefit of this warranty extends only to the Consumer as original purchaser of a Bellini product which
is installed in a domestic household area.
*The in Home warranty does not apply to Commercial and or industrial usage. *Please See 1.7.7 for additional
information
1.5 This warranty commences on the date of purchase of the Bellini product by the Consumer and
continues for the benefit only of the Consumer until the expiry of three (3) year (Warranty Period).
1.6 If within theWarranty Period a manufacturing defect is discovered in the Bellini product or it fails to perform
to the Company’s specifications as a result of some defect in materials, components or workmanship
(Defect) then the Company will, at its option, repair the Bellini product or supply a replacement Bellini
product free of charge. A replacement Bellini product maydiffer from the original product purchased bythe
Consumer.
1.7 This warranty will not apply to any Bellini product:
1.7.1 Installed by any person other than a qualified tradesperson;or
1.7.2 Subjected to misuse, neglect, negligence or accidental damage;or
1.7.3 Operated in any way contrary to any operating or maintenance instructions;or
1.7.4 Improperly handled, installed or maintained;or
1.7.5 Altered or modified prior to or after installation; or
1.7.6 Damaged directly or indirectly bypower surges, electrical storm damage or connection to incorrect
power supply
1.7.7 Industrial and or Commercial usage is inclusive of staff areas in office/ shop environments, hotel/
motel or other similar accommodation or rental type properties including Bed and Breakfast
establishments.
IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY THE CONSUMER
MUST CALL 1300 373 199 (AUSTRALIA) OR0800 764 912
(NEW ZEALAND) TOCONNECT TOTHE NEAREST AUTHORISED CENTRE
The Australian Consumer Law requires the inclusion of the following
statement with this warranty:
Our goods come with guaranteed that cannot be excluded under the Australian Consumer Law. You are entitled to a
replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage.
You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure
does not amount to a major failure.

1.8 You must provide proof of your purchase of the Bellini product and the date of purchase in order toobtain
the benefit of thiswarranty.
1.9 If you live outside the service area of the Company or one of its service agents, this warranty does not
cover the cost of transport of the Bellini product for service nor the service agent’s traveling costs to and
from your home.
1.10 If you are required to transport the Bellini product to the Company or its service agent, you must ensure it is
safely disconnected by a qualified tradesman and securely packed and insured. The Company does not
accept anyresponsibility for loss or damage of the Bellini product prior to it being received bythe Company or
its serviceagent.
1.11 You will be responsible for all costs of returning a Bellini product to the Company and for redelivery of the
Bellini product by the Company (whether it is the original or a repaired and/or a replacement Bellini product)
and for any other expenses you incur in claiming under this warranty.
1.12 The Company or its service agent will examine any Bellini product and if the Company determines that it is
defective through no fault of the Owner and is otherwise undamaged, the Company will repair or replace the
Bellini product in accordance with thiswarranty.
DO NOTSEND IN THIS WARRANTY
Fill out the following details and file with your purchase invoice.
RETAIN & FILE WITH YOUR RECEIPT
Your Purchase Receipt/Invoice isproof of date of purchase. Ifyou are unable to establish the date of purchase, or if
the fault isnot covered by this warranty, or if the product isfound to be in working order, you will be required to bear
all service call charges.
GSM Retail Australia Pty Ltd reserves the right to discontinue items, modify designs and change specifications
without incurring obligation.
Whilst every effort ismade to ensure that descriptions, specifications and other information in this publication is
correct, no warranty is given in respect thereof and the company shall not be liable for anyerrors therein.
Purchased from:
Co. Name:
Address:
Date of Purchase:
Serial number:
NOTE: Consistent with our continuing product development policy, improvements may have been made
which render the contents of this packaging slightly different to that shown.
FOR WARRANTY SERVICE CALL 1300 373 199 (AUSTRALIA)
OR 0800 764 912 (NEW ZEALAND) TOCONNECT YOU TO THE NEAREST
AUTHORISED SERVICE CENTRE
