Bellini CRHR6W01 User manual

60cm
Retractable
Rangehood
CRHR6W01

2
Important Safeguards
When using electrical appliances, in
order to reduce the risk of fi re, electric
shock and/or injury, these basic safety
precautions should always be followed:
For Your Safety
Read all instructions carefully, even if you are
familiar with the appliance.
• This appliance is not intended for use by
persons (including children) with reduced
physical, sensory and mental capabilities, or
lack of experience and knowledge, unless they
have been given supervision or instruction
concerning use of the appliance by a person
responsible for their safety.
• Young children should be supervised
to ensure that they do not play with the
appliance.
•
Packaging materials (eg; polystyrene and
plastic items) must be kept out of reach of
babies and young children at all times due to
risk of suffocation.
• Do not use outdoor.
• Keep these instructions in a safe place for
future reference.
• There shall be adequate ventilation of the
room when the rangehood is used at the same
time as appliances burning gas or other fuels.
• There is a fi re risk if cleaning is not carried out
in accordance with the instructions.
• Do not fl ambé under the rangehood.
• The air must not be discharged into a fl ue that
is used for exhausting fumes from appliances
burning gas or other fuels.
NOTE: The minimum safety distance
between the top of the oven and the
underside of the rangehood must be
650mm.
Compulsory Warning
If the supply cord is damaged, the cord must be
replaced by the manufacturer, its service agent
or similarly qualifi ed persons in order to avoid a
hazard.
This product has not been designed for any uses
other than those specifi ed in this booklet.
Plug must be accessible after installation.
Installation
•
Always adhere to the minimum safety distance
between the top of the cooker / hob and the
under-side of the rangehood:
•
600mm for electric hobs and cookers
•
650mm for gas hobs and cookers
•
It is prohibited to fi t a rangehood over a solid
fuel stove.
•
This appliance must not be connected to a
chimney or vent fl ue which is in use.
•
This appliance is not to b vented into the roof
cavity, must exit into open air.
•
Professional advice should be sought if
ducting this appliance into a chimney or vent
fl ue which is no longer in use.
•
This appliance should not be connected to
ducting which ventilates rooms with fi replaces.
•
Attention should be given to ensure that any
applicable regulations concerning discharge of
exhaust air are fulfi lled.
•
This appliance should be installed and
maintained by a suitably qualifi ed and
competent person in accordance with the
relevant safety regulations.
•
Before connecting the appliance to the mains
supply, ensure that the voltage and frequency
details on the rating plate are consistent with
the source of supply.
•
Always disconnect the appliance from the
mains supply before any cleaning and
maintenance
.

3
Operation (Extraction
Mode Only)
• Care should be taken if operating the
rangehood at the same time, and in the same
vicinity, as other heating appliances which
depend on air for their operation. This may
include such appliances as wood, oil, gas or
coal-fi red boilers and heaters, gas ovens, hobs
and cookers, and continuous fl ow or other
water heaters.
• In addition, harmful gases from the appliance
may be drawn from the chimney / ducting
back into the room with potentially fatal
consequences.
•
Adequate ventilation can be maintained by:
•
The use of air inlets by means of
windows, doors and external wall vents
•
E
nsuring none of the ventilation openings
are blocked
•
U
sing either the rangehood or heating
appliance in isolation

4
Modes of Operation
This rangehood is designed to be installed for air
extraction or air recirculation. For air extraction,
a ducting kit is required. For air recirculation
charcoal fi lters are required (Ducting kit and
charcoal fi lters are not supplied).
Air Extraction:
Ducting must be vented to outside atmosphere.
The air is drawn in and cleaned by the grease
fi lters and directed outside.
If the on-site ventilation system does not have a
non-return fl ap, the non-return fl ap supplied with
the appliance must be fi tted in the exhaust socket
in the motor unit (see installation instructions).
Having a non-return fl ap fi tted to the ducting
ensures that air, once ducted to the outside,
cannot get back into the room again.
The fl ap is closed when the rangehood is
switched off.
When the rangehood is switched on, the non-
return fl ap opens for the cooking vapours to be
ducted away.
Air Recirculation:
The air is drawn in and cleaned fi rst by the grease
fi lters and then by a charcoal fi lter. The cleaned
air is then recirculated back into the kitchen
through grilles in the top of the rangehood.
Before using the rangehood in recirculation mode,
ensure that the charcoal fi lter is in place.
FIG.1
FIG.2

5

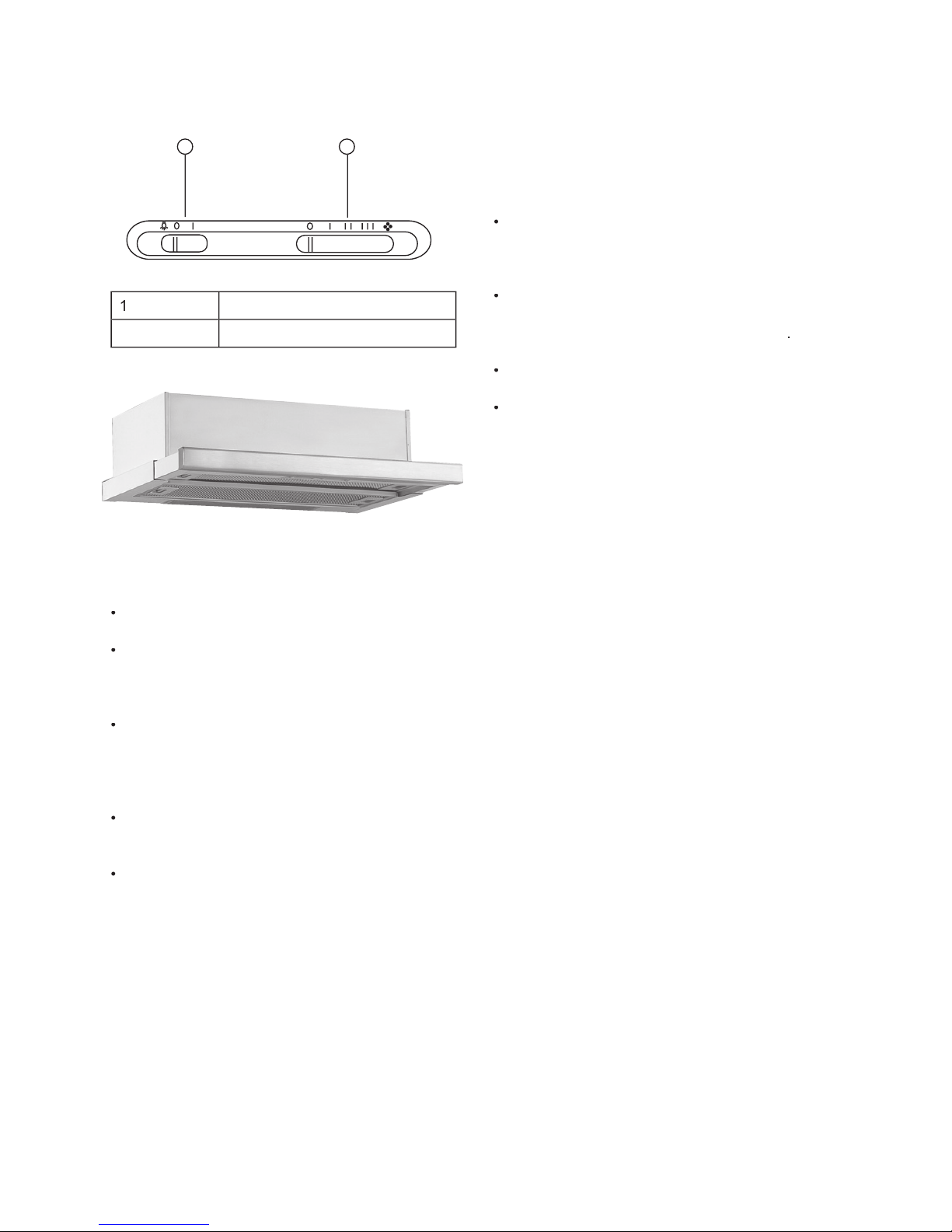

Key Features of Your
Rangehood
1
LIGHT BUTTON
2
LEVELS OF EXTRACTION
To operate your rangehood:
•
The hood is operated using the sliding switch.
•
The motor will automatically operate/turn off
by sliding out/in the front face panel as long as
the switch is set accordingly.
•
To switch on, slide the switch to the required
setting; depending on the intensity of the
cooking vapours, you can choose a low,
medium or high setting.
•
To switch the fan off, slide the switch to
position”0”
•
The fan should be allowed to run for a few
minutes after cooking to allow any remaining
odours to be neutralised.
Cleaning and
Maintenance
Disconn
ect the rangehood from the mains supply
before any cleaning or maintenance work is
carried out.
•
External surfaces and controls can be cleaned
using a warm damp sponge or soft cloth with a
little washing up liquid.
•
Always use a well wrung out cloth for cleaning
the controls as too much water can penetrate
the electronics and may cause damage
.
•
Wipe the surfaces dry using a soft cloth.
•
Never use aggressive / abrasive cleaners or
solvents as these may damage the surface.
1 2

6
Fitting and Replacing
the Active Charcoal
Filter
If the rangehood is used in recirculation mode,
an active charcoal fi lter must be inserted. These
charcoal fi lters are designed to absorb cooking
odours and should be located in the canopy
above the acrylic grease fi lter.
Before fi tting or replacing the charcoal fi lters, the
aluminium grease fi lters must fi rst be removed.
Refer procedure below.
Aluminium Grease
Filters
The re-usable aluminium fi lters supplied with this
appliance should be cleaned every 3 – 4 weeks to
avoid a build up of grease.
•
To remove the grease fi lters, release the
locking mechanism at the front of the fi lters,
lower the fi lters slightly and unhook it at the
back taking care to hold the fi lters securely at
all times.
•
To clean the fi lters, place them into a bowl
of warm Soapy water and soak for about 2-3
minutes.
•
Clean the mesh with a soft brush.
•
Do not apply too much pressure as the mesh
is delicate and will damage easily.
•
Do not use a corrosive detergent.
•
Whilst the fi lters are removed, clean off any
residual grease from the housing unit to avoid
the risk of fi re.
•
After cleaning, leave the fi lters to dry before
replacing them in the appliance.
•
When replacing the grease fi lters, ensure that
the locking mechanism is facing down.

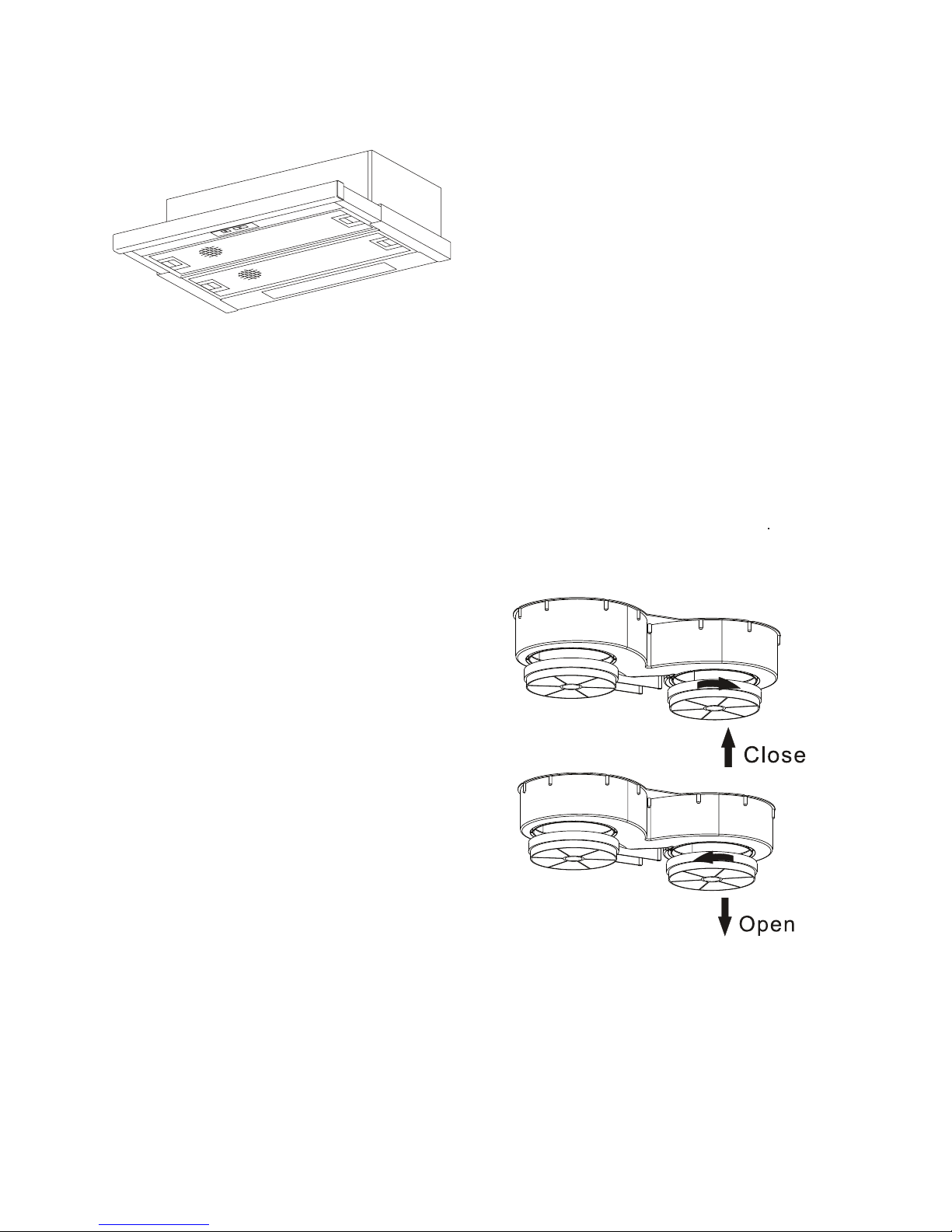

Instrution for Charcoal
Filter Assembling /
Replacement
1.
Remove the AI
. fi l
ter from
the unit.
2.
Twist the charcoal fi lter from the unit
.
3.
Rep
lace the AI
. fi lter.
The charcoal fi lter is not washable and should
be replaced when it no longer absorbs kitchen
odours effectively. Under normal use, this would
be approximately every 4 months or more
frequently for particularly heavy usage.
Used charcoal fi lters can be disposed of with
normal household waste.

7

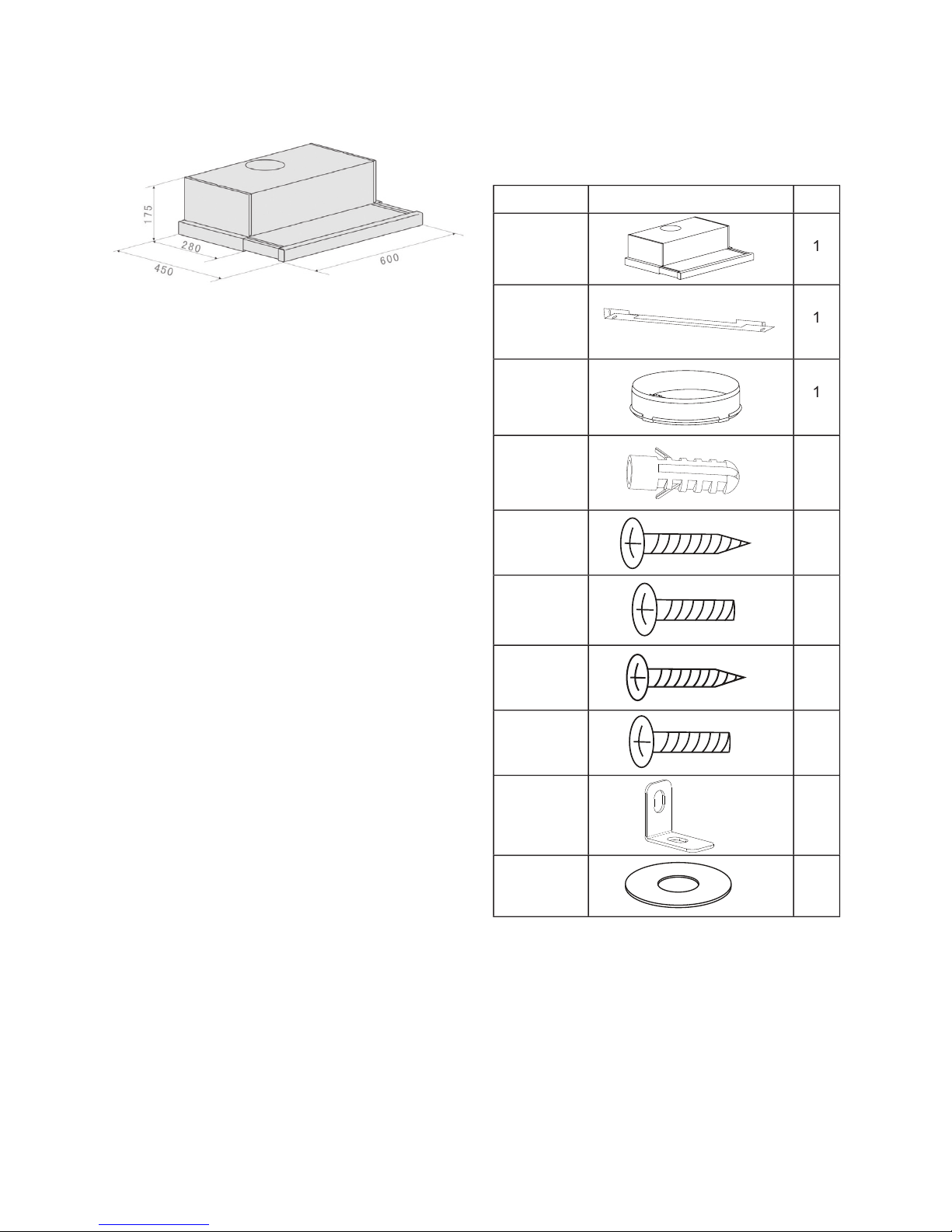

Appliance Dimensions
Installation Instructions
Before installation, unpack rangehood and check
contents.
You should receive:
Description
Illustration
Qty.
Body
1
Metal Plate
1
120mm
Outlet
1
Dry Wall
Anchors
4
Screw
(ST4mm
x30mm)
4
Screw
(M4mm
x10mm)
2
Screw
(ST3mm
x12mm)
2
Screw
(M4mm
x35mm)
6
L Bracket
2
Washer
6
There are two installation methods available.

8
Option 2:
Drill 6 holes of 4mm diameter at the bottom of the
hanging cupboard.
Place the one way valve onto the rangehood,
then install the rangehood on the bottom of the
cupboard. Tighten the rangehood with the 6
enclosed screws.
Install the adjusted board on the bottom of the
rangehood in order to keep out the gap between
the rangehood back and the cupboard.
Option 1:
The rangehood should be placed at a distance
of 600-650mm from the cooking surface for best
results.
To install onto the wall, drill 4 holes of 8mm
diameter on a suitable place according with
the centre distance of hole in the back of the
rangehood.
Insert the nut into the holes.
Insert the screws into the nuts and tighten.
Put up the rangehood onto the fi xed screws.
As per Image A fi x the rangehood onto the wall.
Place the one way valve onto the rangehood.

9
Notes

10
Notes

11
8. This warranty does not apply to damage
caused if your appliance has been dismantled,
repaired or serviced by any person other than
someone authorised by the Company.
9. If you live outside the service area of the
Company or one of its service agents, this
warranty does not cover the cost of transport
of the appliance for service nor the service
agent’s travelling costs to and from your home.
10. If you are required to transport the appliance
to the Company or its service agent, you must
ensure it is securely packed and insured. The
Company does not accept any responsibility for
loss or damage of the appliance prior to it being
received by the Company or its service agent.
11. This warranty does not cover loss, damage
or expense to this appliance caused directly
or indirectly by power surges, electrical storm
damage or incorrect power current.
12. The Company (and any company related to
the Company) will not be liable for any special,
incidental or consequential damages or for
loss, damage or expense or for personal injury
or loss or destruction of property arising directly
or indirectly from the use or inability to use this
appliance or any of its parts.
13. This warranty applies only to the original buyer.
14. Access must be granted within normal working
hours and our Company or service agents must
have easy access to the appliance. Charges
will be the responsibility of the purchaser where
the service technician cannot obtain easy
access to remove the appliance for inspection
prior to repair.
15. Proof that the product was installed by a
licenced electrician ( as per State & territory
legislation) must be produced to obtain in-home
warranty service.
16. At the completion of the initial installation an
electrical safety certifi cate must be obtained
from the Installer.
Warranty
The benefi ts conferred by this warranty are in
addition to all implied warranties, other rights and
remedies in respect of the product which the
consumer has under the Trade Practices Act and
similar State and Territory Laws.
The original purchaser of this Bellini product is
provided with the following warranty, subject to
the following conditions.
This product is warranted for a period of 2 years
from the date of purchase for all parts defective in
workmanship or materials.
PRIVACY
You acknowledge that in the event that you make
a warranty claim, it will be necessary for GSM
Sales Pty Ltd and its Authorised Service Centres
to exchange information in relation to you to
enable GSM Sales Pty Ltd to meet is obligations
under this warranty.
WARRANTY CONDITIONS
1. This warranty is only valid for appliances used
according to the manufacturer’s instructions.
2. This appliance must not be modifi ed or
changed in any way.
3. Connection must be to the voltage
requirements as specifi ed in the ratings label
located on the product.
4. The manufacturer does not accept liability for
any direct or consequential damage, loss or
other expense arising from misuse or incorrect
installation and operation of the appliance.
5. Warranty will only be given where proof of
purchase is provided, e.g. original invoice.
6. Not designed or warranted for industrial or
commercial use.
(Commerical use applies to
shops, offi ces, schools, factories & workshops,
etc.)
7. This warranty applies only for mainland
Australia and Tasmania.

12











DO NOT SEND IN THIS WARRANTY
Fill out the following details and fi le with your
purchase invoice.
RETAIN & FILE WITH YOUR RECEIPT
GSM Sales Pty Ltd
reserves the right to
discontinue items, modify designs and change
specifi cations without incurring obligation. Whilst
every effort is made to ensure that descriptions,
specifi cations and other information in this
publication is correct, no warranty is given in
respect thereof and the company shall not be
liable for any errors therein.
PLEASE NOTE:
Fill out the following details and fi le with your
purchase invoice.
Proof of purchase date must be presented to the
service technican prior to warranty service.
Document as per warranty conditions (15 & 16)
are also required by State & National authorities.
Whilst every effort is made to ensure that
descriptions, specifi cations and other information
in this publication is correct, no warranty is given
in respect thereof and the company shall not be
liable for any errors therein.
For warranty service contact 1300 373 199
to connect you to your nearest Authorised
Service Centre.
Purchased from:
Co. Name:
Address:
Date of Purchase:
NOTE: Consistent with our continuing
product development policy,
improvements may have been made
which render the contents of this
package slightly different to that shown.
Model
No.
CRHR6W01
April
2009
