Bellini BRA603SX User manual

1
啊哈
Installation and User manual
Content
Safety instructions---------------------------------- 2
Product description--------------------------------- 4
Operation mode-------------------------------------- 5
Installation--------------------------------------------- 6
Start using the range hood------------------------ 10
Maintenance and cleaning-------------------------11
Warranty------------------------------------------------ 12
Slim Line Range Hood
BRA603SX
BRA903SX
BRA603SX-F
BRA903SX-F
BRA603SW
BRA903SW
BRA603SW-F
BRA903SW-F
For warranty service call 1300 373 199(Australia)
or 0508 123108(New Zealand) to connect you to
the nearest authorised service centre
20150318 issue 2

2
Safety Instructions
This manual explains the proper installation and use of your range hood, please read it
carefully before using even if you are familiar with the product. The manual should be kept
in a safe place for future reference.
Never to do:
This appliance is not intended for use by persons
(including children) with reduced physical, sensory
and mental capabilities, or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.
Never carry out flamable cooking under the
appliance
The exhaust from the range hood must not be
discharged into any heating flue, which may carry
combustion products from other sources.
Do not leave lit gas burners exposed due to the risk
of fire.
This range hood is not recommended for
barbecues.
Always to do:
Packaging materials (eg; polystyrene and
plastic items) must be kept out of reach of
babies or young children at all times due to
risk of suffocation.
Young children should be supervised to
ensure that they do not play with the
appliance.
Ensure the range hood is switched off before
carrying out maintenance, to avoid any
possibility of electric shock.
Grease filters must be removed every four
weeks (maximum) for cleaning to reduce the
risk of fire.
There must be adequate ventilation of the
room when the range hood is used at the
same time as appliances burning gas or other
fuels.
Always cover lit gas burners with pots or pans
when range hood is in use.
Always switch off gas burners before you
remove pots or pans.
If the supply cord is damaged, the cord must
be replaced by the manufacturer, its service
agent or similarly qualified persons in order to
avoid a hazard
Plug must be accessible after installation.

3
Safety Instructions
Never to do:
This range hood cannot be installed for outdoor use.
It is prohibited to fit the range hood over a solid fuel
stove
This appliance must not be connected to a chimney
or vent flue which is in use.
This appliance is not to be vented into the roof
cavity, must exit into open air.
Exhaust air must not be discharged into a wall
cavity, unless the cavity is designed for the purpose.
This appliance should not be connected to ducting
which ventilates rooms with fire places.
Always to do:
Attention should be given to ensure that any
applicable regulations concerning discharge
of exhaust air are fulfilled.
This appliance should be installed and
maintained by a suitably qualified and
competent person in accordance with the
relevant safety regulations.
Before connecting the appliance to the mains
supply, ensure that the voltage and frequency
details on the rating plate are consistent with
the source of supply.

4

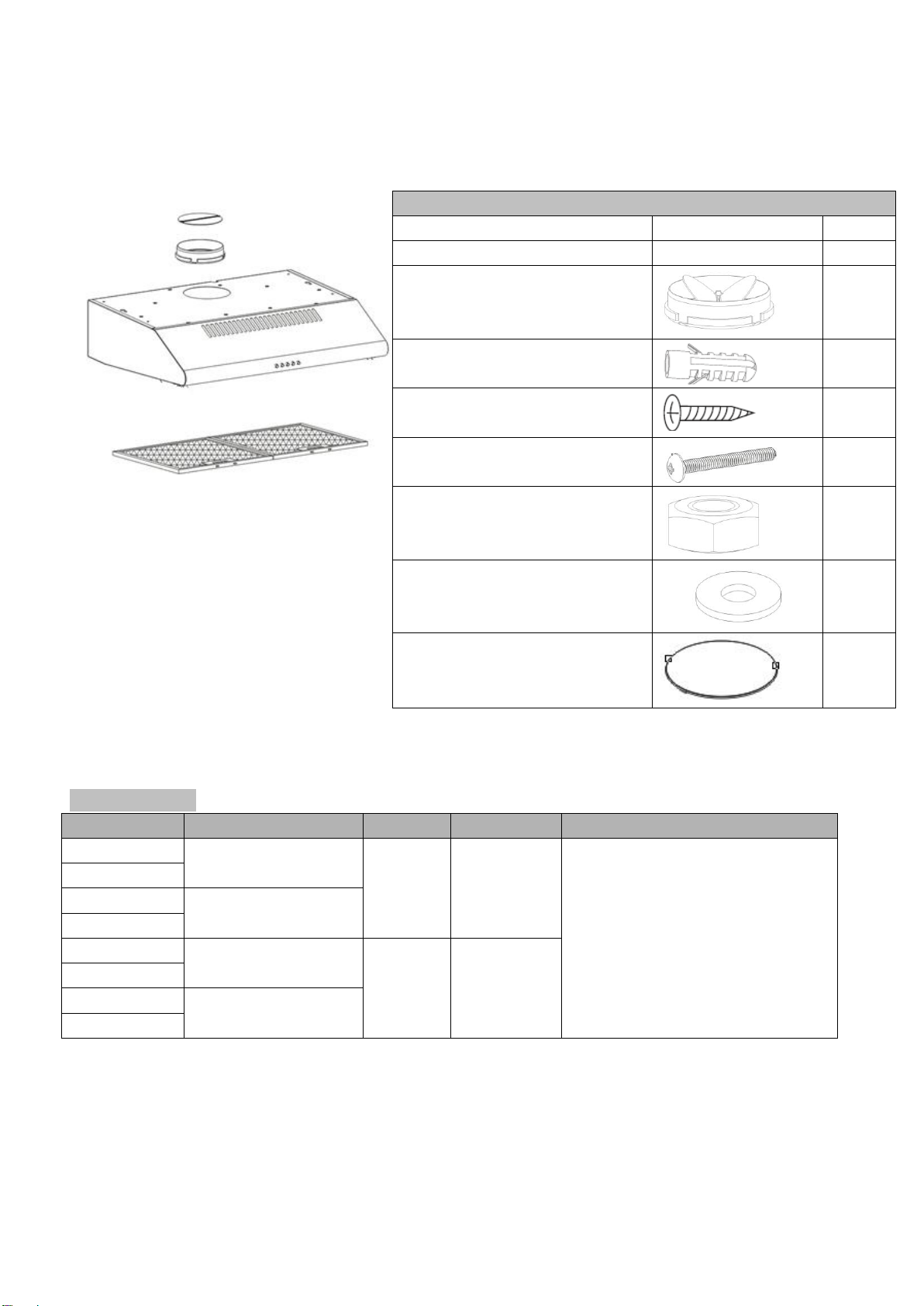

Product Description
Component list:
1. Outlet(diameter 120mm)
2. Main body
3. Grease mesh filters*
*2pcs for 60cm, 3 pcs for 90cm range hood
Technical data:
Model
Description
Motor
Width
Others
BRA603SX
60cm slim line stainless
steel range hood
2x100W
600mm
Power supply: 220 –240v, 50Hz
Lights: 2x40W incandescence
Length of power cord: 1.5m
Air outlet diameter: 120mm
BRA603SX-F
BRA603SW
60cm slim line painted
white range hood
BRA603SW-F
BRA903SX
90cm slim line stainless
steel range hood
2x100W
900mm
BRA903SX-F
BRA903SW
90cm slim line painted
white range hood
BRA903SW-F
Accessories
Description
QTY
Installation & User Manual
1
Outlet( diameter 120mm)
1
Dry wall anchors plugs
4
Screw (ST4x30mm)
4
Screw (M4*35mm)
4
Nut (M4)
4
washer
8
Outlet cover
1

5
Operation Mode
Your range hood can be operated in two optional modes, choose the mode suitable for your kitchen before
installation. Air ([WUDFWLRQ
Air Recirculation
You can shift between above 2 modes by turning the shifter
Air ([WUDFWLRQ Mode
Air Recirculation Mode
For air ex 󰾡 󰾡mode, a
ducting kit is required, the
air is drawn in and cleaned
by the grease filters and
directed outside.
Ducting must be vented to
outside atmosphere.
Your range hood can duct
from back(A) or top(B).
For air recirculation
mode, charcoal filter
is a must to
eliminate cooking
smells.
The air is drawn in
and cleaned first by
the grease filters
and then charcoal
filter. The cleaned air
is then re-circulated
back into kitchen
through holes above
front panel.
traction

6
Installation

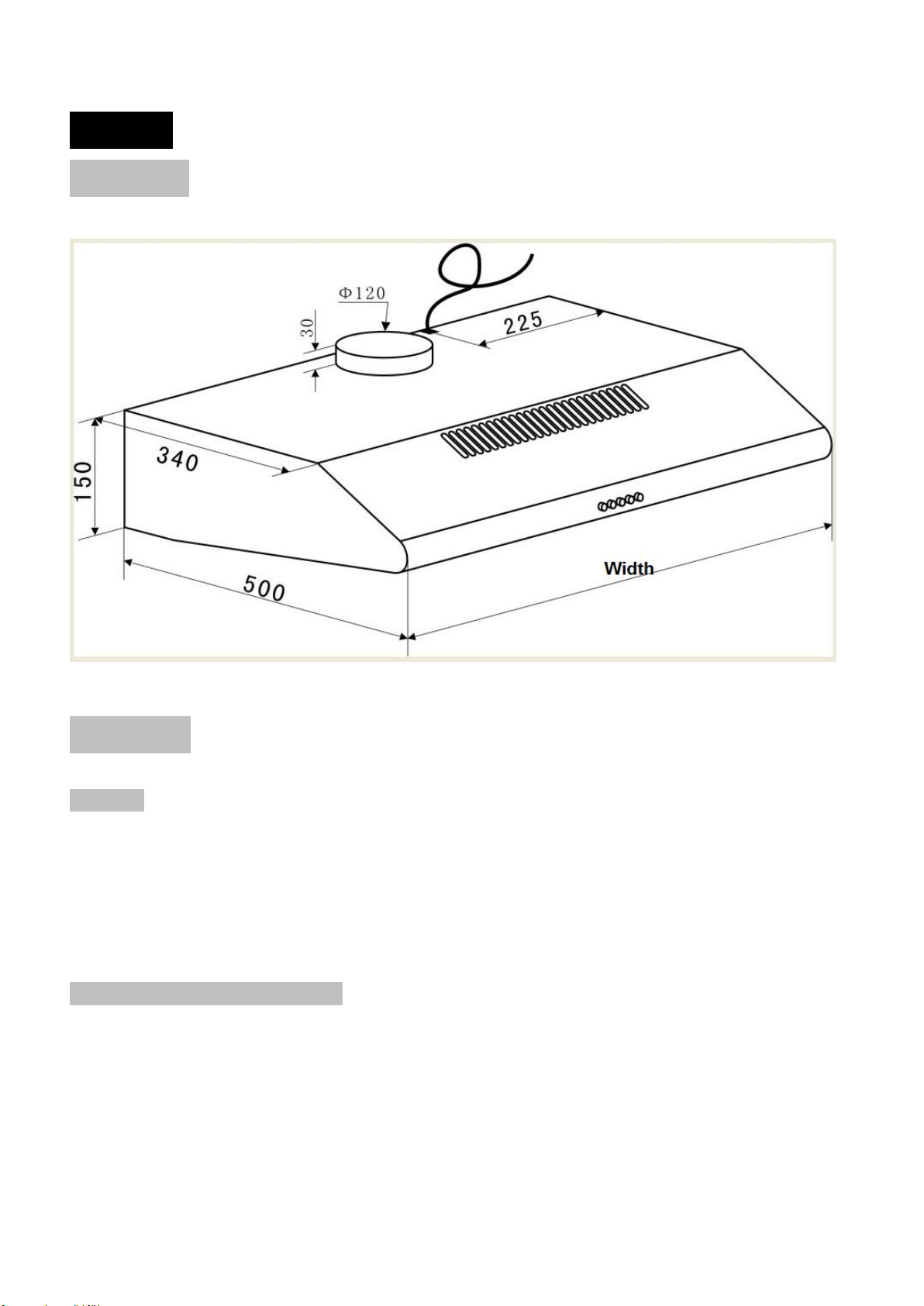

Dimensions:
*Width data please refer to page 4
Installation:
Warning:
Check that the installation complies with the standards of local building, gas and electrical authorities. Before
connecting to the mains supply ensure the mains voltage corresponds to the voltage on the appliance rating
plate inside the range hood.
When installing the range hood, make sure you adhere to the minimum and maximum distances from the range
hood base to the cooktop hob surface.
Hints for exhaust duct installation
The following rules must be strictly followed to obtain optimal air extraction
Keep exhaust duct short and straight
Do not reduce the size or restrict exhaust duct
When using flexible duct always install the duct pulled taut to minimize pressure loss

7
Failure to observe these basic instructions will reduce the performance and increase noise levels of the
range hood
Ensure the exhaust ducting selected for installation complies with relevant standards and is fire retardant.
We provide two options to install your range hood, against wall (method A) or into cabinet (method B), choose
what kind of method you want and then follow up corresponding instruction.
A: Install against wall

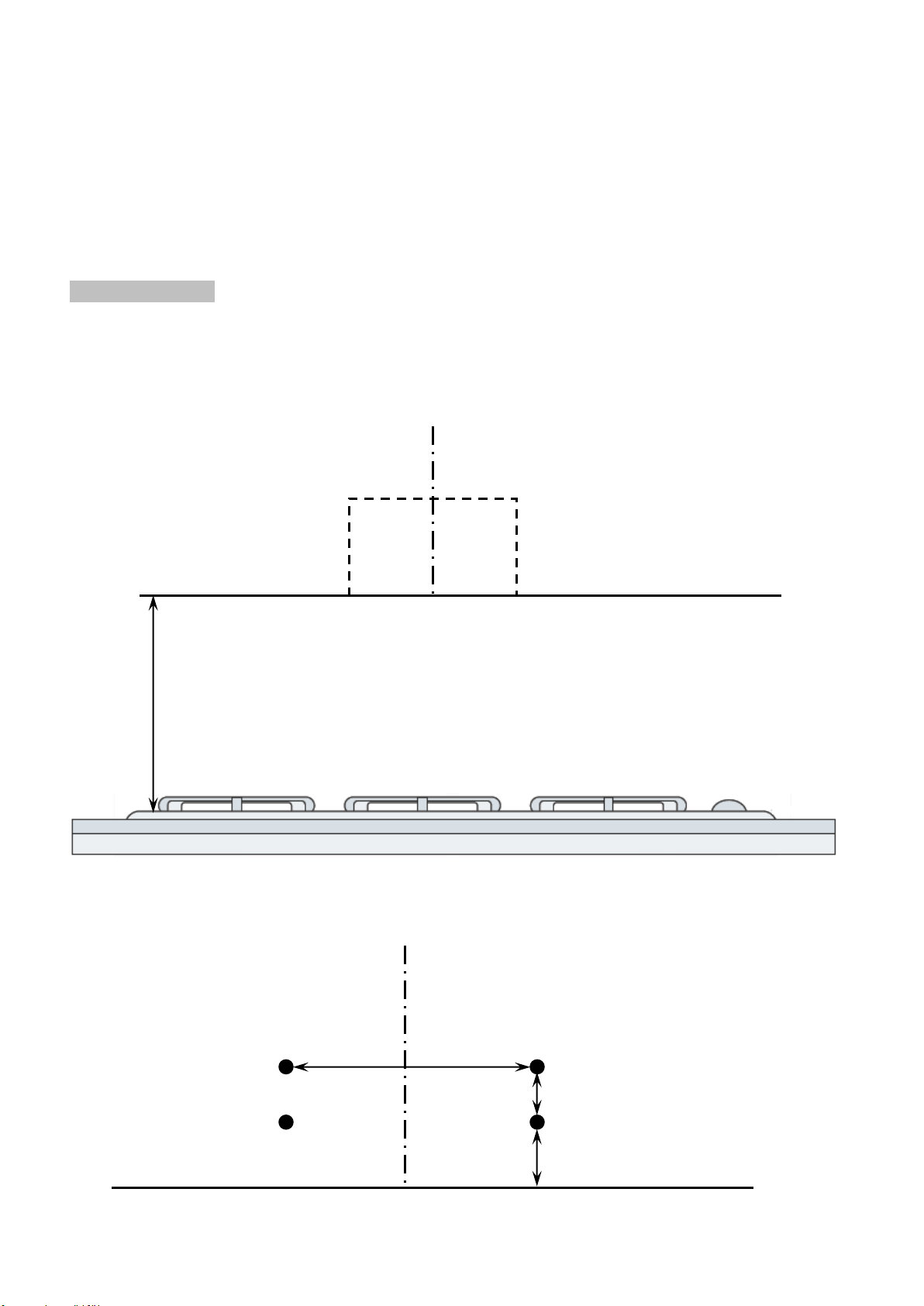

1. Using a spirit level mark a vertical centre line on the wall where the hood is to be positioned, and a horizontal
line where the hood base will be.
NOTE: The distance from the horizontal line to an electrical cooktop underneath must be minimum of
600mm & 650mm to a gas cook top and a maximum height of 750mm.
*If the instructions of the hob specify a greater distance than the minimum above, then that shall be the minimum height for installation
2. Drill 4 holes of 8mm diameter on the wall according to below drawing.
Hood base
Horizontal line
Vertical centre line
Top of hob
Minimum:
Electric 600mm
Gas 650mm
Maximum:
750mm
Where the range hood will be
Hood base
Horizontal line
Vertical centre line
92mm
543mm (60cm hood), 840mm(90cm hood)
42mm

8
3. Hammer dry wall anchor plugs into holes. Insert 2pcs Screw(ST4x30mm) into the 2 holes at the top and
fasten, hang the range hood onto the two screws, screw another 2pcs Screw(ST4x30mm) into the 2 holes at
the bottom inside the range hood.
Warning: Failure to install the screws or fixing device in accordance with these instructions may result in
electrical hazards
Fit the outlet and flexible exhaust pipe* on top of range hood body**
Secure Flexible Exhaust Pipe to outlet with zip tie or duct tape ( Not supplied )
*Flexible exhaust pipe is not included in this packaging
** if you choose air recirculation mode, no need to install the exhaust pipe
Warning: Failure to install the screws or fixing device in accordance with these instructions may result in
electrical hazards
60cm range hood 90cm range hood

9

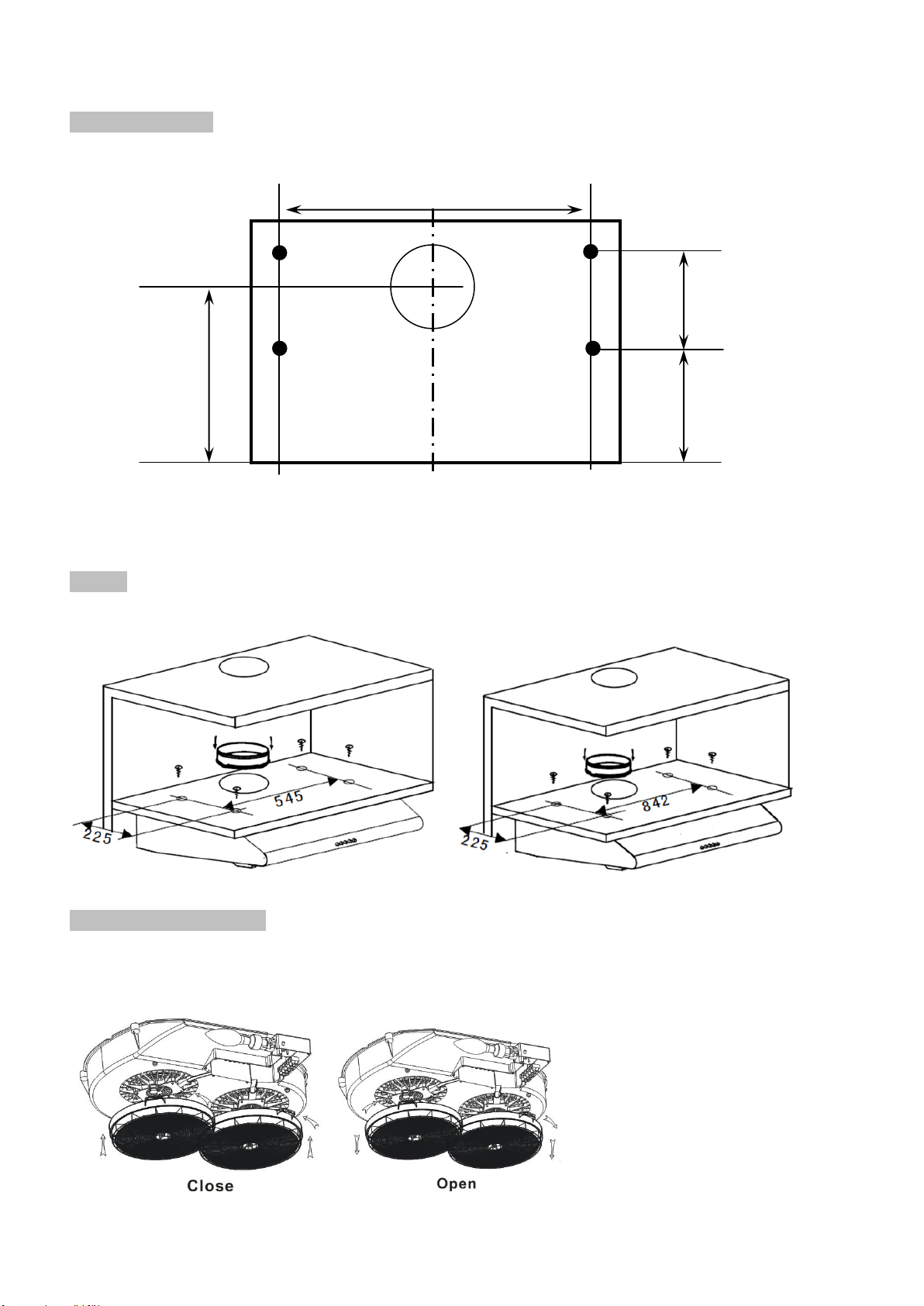

B: Install into cabinet
1. According to below drawing to determine where want to place the range hood, and drill 4 holes with 4mm
diameter at the hanging board of your cabinet.
2. Fit the outlet on top of range hood body.
3. Install the range hood onto the bottom of cabinet board, insert 4pcs Screw(M4x35mm) with the nuts and
washers into the holes and fasten.
Warning: Failure to install the screws or fixing device in accordance with these instructions may result in
electrical hazards
60cm range hood 90cm range hood
Installation of charcoal filters
When you choose front recirculation mode, charcoal filter is a must to be installed. Charcoal filter is optional
accessory. To install charcoal filter, you will need to fit outlet cover firstly, remove grease mesh filters and fit
charcoal filter on.
240mm
225mm
410mm
545mm(60cm hood), 842mm(90cm hood)

10
Start Using Your Range Hood
Push button
0 Off button
It’s used for turning off the fan.
Low Speed button
It’s used for Ventilation on the kitchen. It is suitable for simmering and cooking which do not
make much steam.
Medium Speed button
Airflow speed is ideally for ventilation in standard cooking operation.
High Speed button
When high density of smoke or steam produced, press high-speed button for highest effective
ventilation.
Light button
Turn on or off the light

11
Maintenance and cleaning
Caution:
• Before maintenance or cleaning is carried out, the
range hood should be disconnected from the main
power supply. Ensure that the range hood is switched
off at the wall socket and the plug removed.
• External surfaces are susceptible to scratches and
abrasions, so please follow the cleaning instructions
to ensure the best possible result is achieved without
damage.
GENERAL
Cleaning and maintenance should be carried out with
the appliance cold especially when cleaning
Avoid leaving alkaline or acid substances (lemon
juice, vinegar etc.) on the surfaces
STAINLESS STEEL
The stainless steel must be cleaned regularly (e.g.
weekly) to ensure long life expectancy.
Dry with a clean soft cloth. A specialized stainless
steel cleaning fluid may be used.
NOTE: Ensure that wiping is done along with the
grain of the stainless steel to prevent any
unsightly crisscross scratching patterns from
appearing.
CONTROL PANEL SURFACE
The inlay control panel can be cleaned using warm
soapy water. Ensure the cloth is clean and well wrung
before cleaning. Use a dry soft cloth to remove any
excess moisture left after cleaning.
Important
Avoid using harsh cleaning chemicals, strong
household detergents or products containing
abrasives as this will affect the appliance
appearance and potentially remove any printing
of artwork on the control panel and will void
manufactures warrantee
GREASE MESH FILTERS
The mesh filters can be cleaned either by hand or in
the dishwasher. After cleaning ensure that the filters
are completely dry before refitting.
-By hand: Soak in warm water and a neutral
washing up liquid. For stubborn grease stains use a
soft nylon brush or sponge to help remove these
stains. (Leave to dry naturally out of direct sun light)
-In a dishwasher: Ensure that placement of the
filters is made so as to not impede the function of the
spray arm. Washing the filters in a dishwasher may
cause discoloration of the aluminum inner mesh over
time although it will not affect their performance.
Filters should be washed separately to crockery and
kitchen utensils. it is advisable not to use rinse aid.
CHARCOAL FILTERS
When air recirculation mode is chosen, a charcoal
filter is a must. It is not washable and should be
replaced when it no longer absorbs kitchen odors
effectively. Under normal use, this would be
approximately every 3 months or more frequently for
particularly heavy usage.
REPLACE LAMP
Remove two grease mesh filters, twist to remove bulb,
whilst cool, and replace carefully with a new bulb. The
range hood takes 2x40W incandescent bulbs.
Important
When handling bulb, make sure it is completely cool
down before any direct contact to hands.

12
WARRANTY
1.1 In this warranty:
1.1.1 Australian Consumer Law means the law as set out in Schedule 2 of the Competition and
Consumer Act 2010;
1.1.2 Company means GSM Sales Pty Ltd ABN 53 007 682 475 of 142-144 Fullarton Road, Rose
Park SA 5067. Email adm[email protected];Australia 1300 373 199 or New Zealand 0508
123 108.
1.1.3 Consumer means a “consumer” as that term is defined in Section 3 of the Australian Consumer
Law as the original purchaser of a Bellini product;
1.1.4 Consumer Guarantees means the guarantees under the Australian Consumer Law;
1.1.5 You means the Consumer.
1.2 Nothing in this warranty affects any person’s rights under the Australian Consumer Law. The benefits to
any Consumer under this warranty are in addition to the rights and remedies available under any
Consumer Guarantees.
1.3 Subject to the other clauses of this warranty, the Company warrants to the Consumer that the Bellini
product will be free of manufacturing defects and will perform to the Company’s specifications.
1.4 The benefit of this warranty extends only to the Consumer as original purchaser of a Bellini product which
is installed in a residential property.
1.5 This warranty commences on the date of purchase of the Bellini product by the Consumer and continues
for the benefit only of the Consumer until the expiry of one (1) years (Warranty Period).
1.6 If within the Warranty Period a manufacturing defect is discovered in the Bellini product or it fails to perform
to the Company’s specifications as a result of some defect in materials, components or workmanship
(Defect) then the Company will, at its option, repair the Bellini product or supply a replacement Bellini
product free of charge. A replacement Bellini product may differ from the original product purchased by the
Consumer.
1.7 This warranty will not apply to any Bellini product:
1.7.1 Installed by any person other than a qualified tradesperson; or
1.7.2 Subjected to misuse, neglect, negligence or accidental damage; or
1.7.3 Operated in any way contrary to any operating or maintenance instructions; or
1.7.4 Improperly handled, installed or maintained; or
1.7.5 Altered or modified prior to or after installation; or
1.7.6 Damaged directly or indirectly by power surges, electrical storm damage or connection to incorrect
power supply
IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY THE
CONSUMER MUST CALL 1300 373 199 (AUSTRALIA) OR 0508 123 108
(NEW ZEALAND) TO CONNECT TO THE NEAREST AUTHORISED CENTRE
The Australian Consumer Law requires the inclusion of the following statement
with this warranty:
Our goods come with guaranteed that cannot be excluded under the Australian Consumer Law. You are
entitled to a replacement or refund for a major failure and for compensation for any other reasonably
foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods
fail to be of acceptable quality and the failure does not amount to a major failure.

13
1.8 You must provide proof of your purchase of the Bellini product and the date of purchase in order to obtain
the benefit of this warranty.
1.9 If you live outside the service area of the Company or one of its service agents, this warranty does not
cover the cost of transport of the Bellini product for service nor the service agent’s traveling costs to and
from your home.
1.10 If you are required to transport the Bellini product to the Company or its service agent, you must ensure it is
safely disconnected by a qualified tradesman and securely packed and insured. The Company does not
accept any responsibility for loss or damage of the Bellini product prior to it being received by the Company
or its service agent.
1.11 You will be responsible for all costs of returning a Bellini product to the Company and for redelivery of the
Bellini product by the Company (whether it is the original or a repaired and/or a replacement Bellini
product) and for any other expenses you incur in claiming under this warranty.
1.12 The Company or its service agent will examine any Bellini product and if the Company determines that it is
defective through no fault of the Owner and is otherwise undamaged, the Company will repair or replace
the Bellini product in accordance with this warranty.
DO NOT SEND IN THIS WARRANTY
Fill out the following details and file with your purchase invoice.
RETAIN & FILE WITH YOUR RECEIPT
Your Purchase Receipt/Invoice is proof of date of purchase. If you are unable to establish the date of purchase,
or if the fault is not covered by this warranty, or if the product is found to be in working order, you will be required
to bear all service call charges.
GSM Sales Pty Ltd reserves the right to discontinue items, modify designs and change specifications without
incurring obligation.
Whilst every effort is made to ensure that descriptions, specifications and other information in this publication is
correct, no warranty is given in respect thereof and the company shall not be liable for any errors therein.
Purchased from:
Co. Name:
Address:
Date of Purchase:
Serial number:
NOTE: Consistent with our continuing product development policy, improvements may have been made
which render the contents of this packaging slightly different to that shown.
FOR WARRANTY SERVICE CALL 1300 373 199 (AUSTRALIA)
OR 0508 123 108 (NEW ZEALAND) TO CONNECT YOU TO THE NEAREST
AUTHORISED SERVICE CENTRE
