Benchmark USA DOGHOUSE User manual

OWNERS MANUAL
MODEL:
D
DO OG GH HO OU US SE E
Hotdog Cooker/Dispenser
PART NUMBER:
6
60 00 02 24 4
115 volts, 60 hz
WARNING: Handling the cord on this product may expose you to lead, a chemical known to the State Of California to
cause cancer and birth defects or other reproductive harm. WASH HANDS AFTER HANDLING.
1. Electrical ground is required on this appliance.
2. Do not modify the power supply cord plug. If it does not fit the outlet, have a proper outlet installed by a qualified
electrician.
3. Do not use an extension cord with this appliance.
4. Check with a qualified electrician if you are in doubt as to whether the appliance is properly grounded.
SAFETY INSTRUCTIONS
1. Plug electrical cord into a certified electrical outlet with a corresponding voltage rating as listed on the machine
model labels.
2. Always unplug the electric cord when appliance is not in use and before cleaning, adjusting or maintaining this
steamer. Do not operate with a damaged cord or plug or after the machine malfunctions, has been dropped or
damaged. Use authorized service for examination, electrical or mechanical adjustment or repair.
3 This equipment will be HOT during use and for a short time after it is turned off BE CAREFUL. To avoid burns, do
not let bare skin touch hot surfaces. If provided, use handles when moving this appliance. Keep combustible
materials away from appliance.
4. Extreme caution is necessary when any appliance is used by or near children and whenever the appliance is left
operating and unattended.
5. This appliance is not intended for use in wet locations. Never locate appliance where it may fall into a water
container.
Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electrical
shock, fire or damage to the appliance.
CLEANING SAFETY INSTRUCTION
1. Turn control off and unplug the power cord. Avoid splashing water onto control.
2. Do not clean this appliance with a water jet or immerse in water or other liquid.
B
Be en nc ch hm ma ar rk k U US SA A I In nc c. . ● ● 2 25 5- -J J B Br ro oo ok kf fi ie el ld d O Oa ak ks s D Dr r. . ● ● G Gr re ee en nv vi il ll le e, , S SC C 2 29 96 60 07 7 ● ● T T: : 8 86 64 4- -3 31 12 2- -5 55 50 00 0 ● ● F F: : 8 86 64 4- -3 31 12 2- -5 55 50 05 5
WARNING ELECTRICAL SHOCK HAZARD.
FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH.

OPERATING INSTRUCTIONS
1. Install the Drain Valve by threading it onto the outlet located on the front/left of the machine.
(Do not remove the white silicon tape from the threads.)
2. Install the Handles by opening the glass lid and removing the product tray. Then screw the handles
onto the body using the two Phillips screws in each handle.
3. Install the Dispensing Handle to the Round Cam by threading it into the tapped hole. (Note: the
handle will have a slight outward tilt when properly installed.)
4. Install the sign using the two thumb screws on the back panel of the chassis.
5. Attach the assembled machine to the Bun Box by placing it on top of the bun box and installing the
two Phillips screws through the mounting brackets.
6. Plug the machine into a properly grounded 120 volt power supply.
7. Fill the reservoir with 10 quarts of water via the water inlet on the side of the chassis. Using hot water
will speed up the start-up time of the machine.
8. Load the product board with the desired amount of hotdogs by placing the first hotdog on the
dispensing wheel and placing the balance above it. Place the desired amount of buns in the bun
drawer.
9. Turn on the “Master Switch” and set the thermostat to a maximum setting. The machine should be
producing steam in approximately 5-7 minutes (depending on water and room temperature). You can
adjust the thermostat according to your operating conditions.
10. Once Steam is produced adjust the thermostat to High to COOK and Medium to HOLD.
11. Once steam is produced a standard size hotdog should reach serving temperature in approximately 20-
30 minutes. Adjust the thermostat accordingly.
12. To Dispense a hotdog, place an OPEN bun in the serving tray and pull handle forward slowly to
dispense a hotdog into the bun. The handle is spring loaded and will return to the Ready position.
13. When the “Low Water Indicator” goes OFF, the heater will turn off automatically to prevent it from
burning out. Add 6 quarts of water via the water inlet on the left hand side of the machine. The “Low
Water Indicator” will turn ON and the machine will heat again.
CONDENSATION
1. Cool air striking the warm steamer may cause moisture accumulation. Protecting the unit from cool
drafts of air will help prevent condensation.
2. The machine is designed to be sloped slightly towards the rear. This is so that any condensation that
forms on the undersides of the hotdog and juice tray will drain back into the machine. Should you
place the machine on an un-level surface that slopes toward the front you may experience water
pooling around the front of the machine. To prevent this you will need to slightly elevate the front of
the machine.
CLEANING THE MACHINE
1. At the end of day: Turn the machine off using the master switch. Drain any remaining water out of
the reservoir using the drain on the lower right side of the machine (caution: the water will be hot
unless you wait long enough to allow the water to cool before draining!)
2. Remove the top glass cover, product board, drip tray, bun drawer, juice tray and serving tray and clean
them in a sink or dishwasher. Wipe down the inside and outside of the chassis with a soft cloth.
3. After the components have been cleaned, re-assemble the machine as outlined above.
Page 2

ASSEMBLY
(complete parts list on page 7)
Page 3

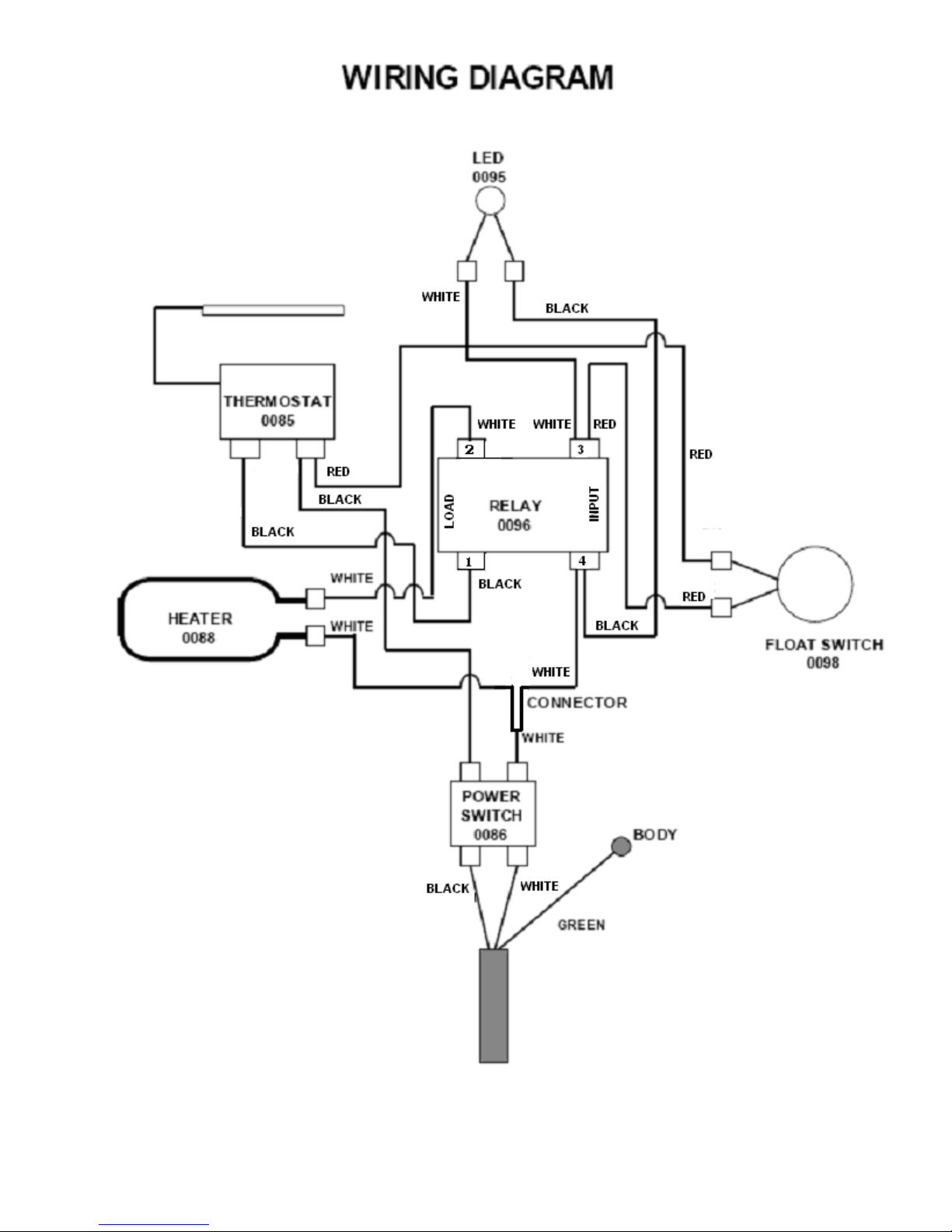

Page 4

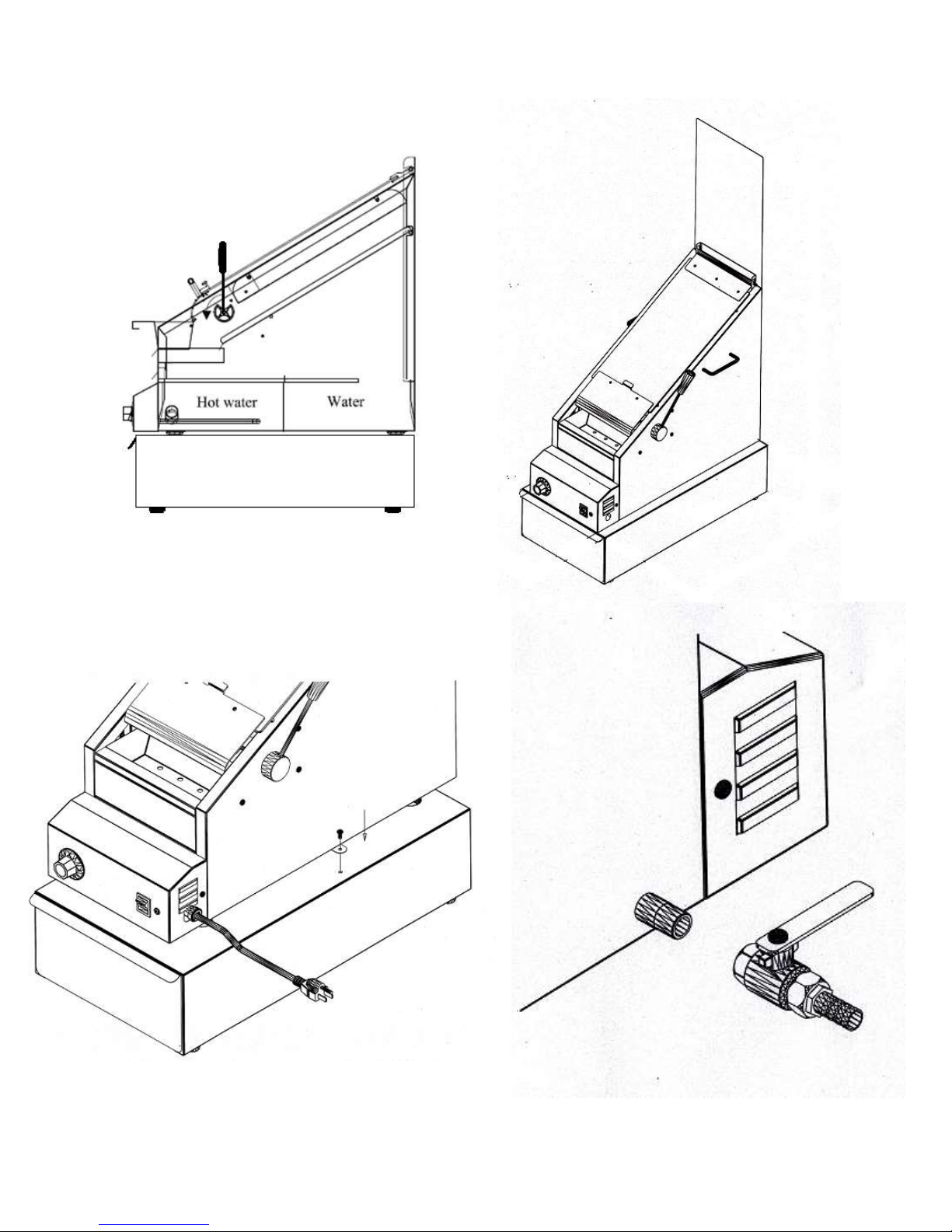

Assembly
Bun Drawer Mounting Bracket Part # 0099 Drain Valve

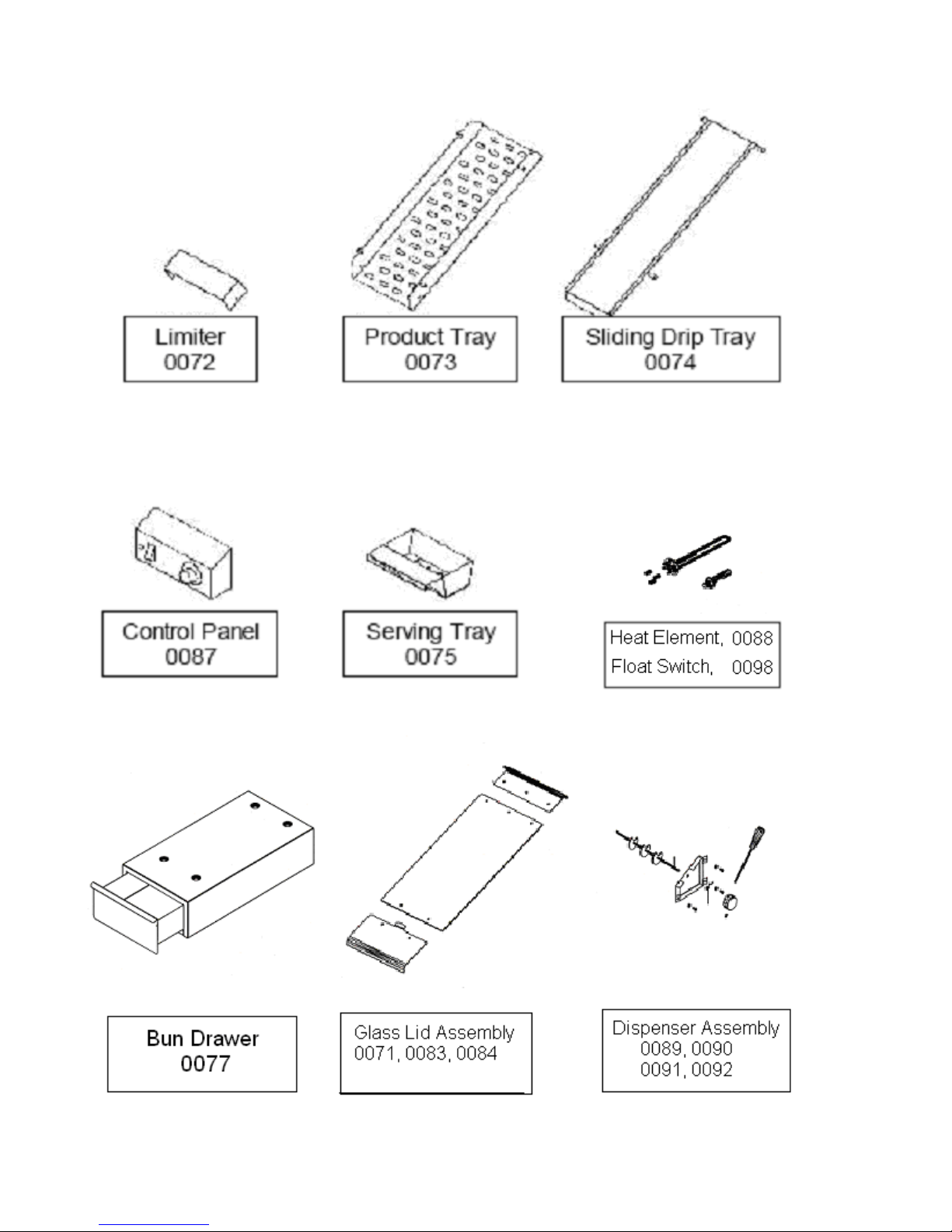

PARTS
Page 6

PARTS LIST
P
P/ /N N
D
De es sc cr ri ip pt ti io on n
0
00 07 71 1
Glass Lid Doghouse
0
00 07 72 2
Limiter
0
00 07 73 3
Product Tray Doghouse
0
00 07 74 4
Drip Tray Doghouse
0
00 07 75 5
Serving Tray Doghouse
0
00 07 77 7
Bun Drawer Doghouse
0
00 07 78 8
Power Cord
0
00 07 79 9
Drain Cap Doghouse
0
00 08 80 0
Foot Assembly Doghouse
0
00 08 82 2
Chassis
0
00 08 83 3
Hinge - Glass lid - Doghouse
0
00 08 84 4
Handle - glass lid - Doghouse
0
00 08 85 5
Thermostat Adjustable Doghouse
0
00 08 86 6
Master Switch lighted Doghouse
0
00 08 87 7
Control Panel
0
00 08 88 8
Heating Element Doghouse
0
00 08 89 9
Dispensing Handle
0
00 09 90 0
Dispensing Wheel Doghouse
0
00 09 91 1
Spring Doghouse
0
00 09 92 2
Crossbar Gear Assembly Doghouse
0
00 09 93 3
Rear Sign Doghouse
0
00 09 94 4
Decal Set Doghouse
0
00 09 95 5
LED Doghouse
0
00 09 96 6
Relay
0
00 09 98 8
Float Switch
0
00 09 99 9
Drain Valve
To Order Parts Contact:
Benchmark USA, Inc.
25-J Brookfield Oaks Dr.
Greenville, SC 29607 USA
Tel: [phone]
Fax: [phone]
Email: [e-mail]
Page 7

T
Th hr re ee e Y Ye ea ar r W Wa ar rr ra an nt ty y
THE WARRANTY:
Benchmark USA warrants the original purchaser of new food equipment manufactured by
Benchmark USA to be free from defects in material or workmanship from the date of the original
purchase for a period of three years.
WHO IS COVERED BY THIS WARRANTY:
The original purchaser who has provided proper proof of the original retail purchase and all other
requested information.
WHAT IS WARRANTIED:
The obligation of Benchmark USA under this warranty is limited to the replacement of any parts
or components that in the opinion of Benchmark USA are defective, F.O.B. the factory, or at any
other location that Benchmark USA may designate.
WHAT VOIDS THE WARRANTY:
1. Any piece of equipment that has been installed, operated or maintained inconsistently
with Benchmark USA operating instructions.
2. Any part or component that has been modified, changed or altered from its original
configuration.
3. Any electrical component that has been damaged due to submergence in any
liquid.
4. Any part or component that has been subject to abuse, misuse, neglect or
accidents.
EXTENT OF WARRANTY:
Any defective component, part or assembly returned to Benchmark USA will be replaced by
Benchmark USA. Benchmark USA will not be responsible for any expenses incurred by the
customer under the terms of this warranty, nor shall it be responsible for any damages either
consequential, special, contingent, or otherwise; or expenses or injury arising directly or indirectly
from the use of a Benchmark USA product. Any component, part or assembly returned to
Benchmark USA must be returned at the customers expense along with proof of purchase.
Benchmark USA reserves the right to determine whether the terms of this warranty have been
properly complied with. In the event that the terms are not complied with, Benchmark USA shall
be under no obligation to honor this warranty.
