Benchmark 1265-001 User manual

WEAR CSA APPROVED
EYE PROTECTION
WEAR EAR
PROTECTION
WEAR A
FACE MASK
JD539020
READ ALL INSTRUCTIONS BEFORE FIRST USE.
KEEP THIS MANUAL FOR FUTURE REFERENCE.
KEEP AWAY FROM CHILDREN.
Maximum initial battery voltage (measured without a load)
is 20 volts. Nominal voltage is 18 volts.
5 Year Limited Warranty
Battery and charger sold separately
20V MAX 6-1/2"
CIRCULAR SAW
E114847

1
PRODUCT SPECIFICATIONS
BENCHMARK 20V MAX 6-1/2" CIRCULAR SAW
Voltage 20 V
No Load Speed 3800 RPM
Max cut at 90° 2" (54mm)
Max cut at 45° 1.5" (40mm)
Max cut at 50° 1-3/8" (35mm)
Blade 6-1/2” (165mm) Thin kerf 24T Carbide Tipped
Arbor 5/8"
Batteries (sold separately) 5350-023 (2.5Ah), 5350-011 (4Ah), 5350-012
(5Ah)
Charger (Sold separately) 5350-010 2.4Amp 5350-022 6A Fast Charger
Weight 5.1lbs (2.3kg)
NEED ASSISTANCE?
Call us on our toll-free customer support line:
1-866-349-8665 (Monday through Friday 9am – 5pm Eastern Standard Time)
• Technical questions
• Replacement parts
• Parts missing from package

1265-001
20V MAX 6-1/2" CIRCULAR SAW
2
TABLE OF CONTENTS
Product Specifications .................................................................................. 1
Table of Contents .......................................................................................... 2
General Safety Warnings ............................................................................ 3-6
Specific Safety Rules .................................................................................. 7-9
Symbols ...................................................................................................... 10
Know your Circular Saw ............................................................................... 11
Assembly and Operating ......................................................................... 12-15
Maintenance ............................................................................................... 16

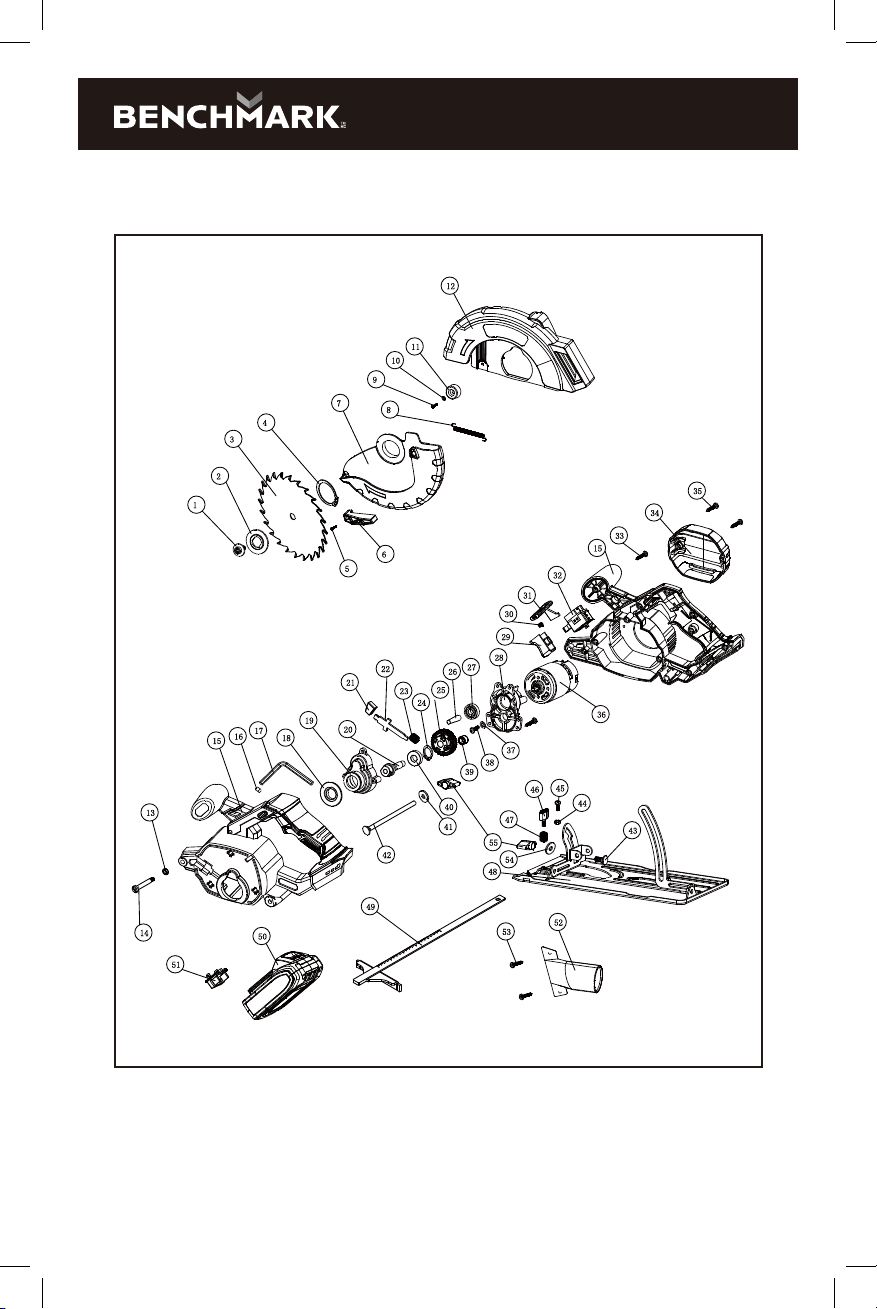

Exploded View ............................................................................................ 17
Parts List ................................................................................................ 18-19
Warranty ..................................................................................................... 20

3
GENERAL SAFETY WARNINGS
CAUTION:
Before using this tool or any of its accessories, read this manual and follow all Safety
Rules and Operating Instructions.
EYE, EAR & LUNG PROTECTION
SYMBOL MEANING
ALWAYS WEAR EYE PROTECTION THAT CONFORMS WITH CSA
Z94.3 or ANSI SAFETY STANDARD Z87.1
FLYING DEBRIS can cause permanent eye damage. Prescription
eyeglasses ARE NOT a replacement for proper eye protection.
Non-compliant eyewear can cause serious injury if broken during
the operation of a power tool.
Use hearing protection, particularly during extended periods of
operation of the tool, or if the operation is noisy.
WEAR A DUST MASK THAT IS DESIGNED TO BE USED WHEN
OPERATING A POWER TOOL IN A DUSTY ENVIRONMENT.
Dust that is created by power sanding, sawing, grinding, drilling, and
other construction activities may contain chemicals that are known
to cause cancer, birth defects, or other genetic abnormalities. These
chemicals include:
• Lead from lead-based paints
• Crystalline silica from bricks, cement, and other masonry products
• Arsenic and chromium from chemically treated lumber.
The level of risk from exposure to these chemicals varies, according to
how often this type of work is performed. In order to reduce exposure
to these chemicals, work in a well-ventilated area, and use approved
safety equipment, such as a dust mask that is specifically designed to
filter out microscopic particles.
To avoid electrical hazards, fire hazards or damage to the tool,
use proper circuit protection.
This tool is wired at the factory for 120 Volts AC operation. It must be
connected to a 120 Volts AC, 15 Amps circuit that is protected by a
time-delayed fuse or circuit breaker. To avoid shock or fire, replace
power cord immediately if it is worn, cut or damaged in any way.
WARNING:
Read all safety warnings and instructions. Failure to follow the warnings and
instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.

1265-001
20V MAX 6-1/2" CIRCULAR SAW
4
WORK AREA SAFETY
Keep work area clean and well lit. Cluttered or dark areas invite accidents.
Do not operate power tools in explosive atmospheres, such as in the presence
of flammable liquids, gases or dust. Power tools create sparks which may ignite
the dust or fumes.
Keep children and bystanders away while operating the tool. Distractions can
cause you to lose control.
ELECTRICAL SAFETY
Power tool plugs must match the outlet. Never modify the plug in any way. Do
not use any adapter plugs with earthed (grounded) power tools. Unmodified
plugs and matching outlets will reduce risk of electric shock.
Avoid body contact with earthed or grounded surfaces such as pipes, radiators,
ranges, and refrigerators. There is an increased risk of electric shock if your body
is earthed or grounded.
Do not expose power tools to rain or wet conditions. Water entering a power tool
will increase the risk of electric shock.
Do not abuse the cord. Never use the cord for carrying, pulling, or unplugging
the power tool. Keep cord away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of electric shock.
When operating a power tool outdoors, use an extension cord suitable for
outdoor use. Use of a cord suitable for outdooruse reduces the risk of electric shock.
If operating a power tool in a damp location is unavoidable, use a residual
current device (RCD) protected supply. Use of a ground fault circuit interrupter
(GFCI) reduces the risk of electric shock.
PERSONAL SAFETY
Stay alert, watch what you are doing and use common sense when operating a
power tool. Do not use a power tool while you are tired or under the influence
of drugs, alcohol, or medication. A moment of inattention while operating power
tools may result in serious personal injury.
Use personal protective equipment. Always wear eye protection. Protective
equipment such as dust mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will reduce personal injuries.
Prevent unintentional starting. Ensure the switch is in the OFF position before
connecting to power source and/or battery pack, picking up or carrying the
tool. Carrying power tools with your finger on the switch or energizing power tools
that have the switch on invites accidents.
Remove any adjusting key or wrench before turning the power tool on. A wrench
or a key left attached to a rotating part of the power tool may result in personal
injury.
Do not overreach. Keep proper footing and balance at all times. This enables
better control of the power tool in unexpected situations.

5
Dress properly. Do not wear loose clothing or jewellery. Keep your hair,
clothing, and gloves away from moving parts. Loose clothes, jewellery or long hair
can be caught in moving parts.
If devices are provided for the connection of dust extraction and collection
facilities, ensure these are connected and properly used. Use of dust collection
can reduce dust- related hazards.
Do not force the power tool. Use the correct power tool for your application.
The correct power tool will do the job better and safer at the rate for which it was
designed.
Any power
tool that cannot be controlled with the switch is dangerous and must be repaired.
Disconnect the plug from the power source and/or the battery pack from the
power tool before making any adjustments, changing accessories, or storing
power tools. Such preventive safety measures reduce the risk of starting the power
tool accidentally.
Store idle power tools out of the reach of children and do not allow persons
unfamiliar with the power tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained users.
Maintain power tools. Check for misalignment or binding of moving parts,
operation. If damaged, have the power tool repaired before use. Many accidents
are caused by poorly maintained power tools.
Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp
cutting edges are less likely to bind and are easier to control.
Use the power tool, accessories, and tool bits etc. in accordance with these
instructions, taking into account the working conditions and the work to be
performed.
result in a hazardous situation.
Hold power tool by insulated gripping surfaces when performing an operation
where the cutting tool may contact hidden wiring or its own cord. Contact with a
"live" wire will make exposed metal parts of the tool "live" and shock the operator.
Use clamps or another practical way to secure and support the workpiece to a
stable platform. Holding the work by hand or against your body leaves it unstable
and may lead to loss of control.

1265-001
20V MAX 6-1/2" CIRCULAR SAW
6
BATTERY TOOL USE AND CARE
Recharge only with the charger specified by the manufacturer. A charger that
is suitable for one type of battery pack may create a risk of fire when used with
another battery pack. Use power tools only with specifically designated battery
packs. Use of any other battery packs may create a risk of injury and fire. When
battery pack is not in use, keep it away from other metal objects, like paper clips,
coins, keys, nails, screws, or other small metal objects that can make a connection
from one terminal to another. Shorting the battery terminals together may cause
burns or a fire. Under abusive conditions, liquid may be ejected from the battery;
avoid contact. If contact accidentally occurs, flush with water. If liquid contacts
eyes, additionally seek medical help. Liquid ejected from the battery may cause
irritation or burns.
SERVICE
Have your power tool serviced by a qualified repair person using only identical
replacement parts. This will ensure that the safety of the power tool is maintained.
SAVE THESE INSTRUCTIONS FOR REFERENCE

7
SPECIFIC SAFETY RULES
WARNING:
Know your circular saw. Do not plug in the charger or install the battery until you
have read and understand this Instruction Manual. Learn the tool’s applications
and limitations, as well as the specific potential hazards related to this tool.
Following this rule will reduce the risk of electric shock, fire, or serious injury.
Always wear eye protection. Any power tool can throw foreign objects
into your eyes and cause permanent eye damage. ALWAYS wear safety
goggles (not glasses) that comply with ANSI safety standard Z87.1.
Everyday glasses have only impact resistant lenses. They ARE NOT
safety glasses.
WARNING:
Glasses or goggles not in compliance with ANSI Z87.1 could cause serious
injury when they break.
Always keep hands out of the path of the saw blade. Avoid awkward hand positions
where a sudden slip could cause your hand to move into the path of the saw blade.
DANGER: Keep hands away from cutting area and the blade. Keep your
second hand on the tool. If both hands are holding the saw, they cannot be cut by
the blade.
Do not reach underneath the workpiece. The guard cannot protect you from the
blade below the workpiece.
Adjust the cutting depth according to the thickness of the workpiece. Less
than a full tooth of the blade teeth should be visible below the workpiece or
approximately 3/8" (10 mm).
Never hold piece being cut in your hands or across your leg. Secure the
workpiece to a stable platform. It is important to support the work properly to
minimize body exposure, blade binding, or loss of control.
Hold power tool by insulated gripping surfaces when performing an operation
where the cutting tool may contact hidden wiring or its own cord. Contact with a
“live” wire will also make exposed metal parts of the power tool “live” and shock the
operator.
When ripping always use a straight edge guide. This improves the accuracy of cut
and reduces the chance of the blade binding.
Always use blades with correct size and shape (diamond versus round) of
arbor holes. Blades that do not match the mounting hardware of the saw will run
eccentrically, causing loss of control.
Never use damaged or incorrect blade washers or bolt. The blade washers and
bolt were specially designed for your saw, for optimum performance and safety of
operation.
CAUSES AND OPERATOR PREVENTION OF KICKBACK
Kickback is a sudden reaction to a pinched, bound, or misaligned saw blade,
causing an uncontrolled saw to lift up and out of the workpiece toward the operator.

1265-001
20V MAX 6-1/2" CIRCULAR SAW
8
When the blade is pinched or bound tightly by the kerf closing down, the blade stalls
and the motor reaction drives the unit rapidly back toward the operator.
If the blade becomes twisted or misaligned in the cut, the teeth at the back edge of
the blade can dig into the top surface of the wood causing the blade to climb out of
the kerf and jump back toward the operator.
Kickback is the result of saw misuse and/or incorrect operating procedures or
conditions and can be avoided by taking proper precautions as given below:
Maintain a firm grip with both hands on the saw and position your arms to
resist kickback forces. Position your body to the left or right side of the blade,
but not in line with the blade. Kickback could cause the saw to jump backwards,
but kickback forces can be controlled by the operator, if proper precautions are
taken.
When the blade is binding, or when interrupting a cut for any reason, release
the trigger and hold the saw motionless in the material until the blade comes
to a complete stop. Never attempt to remove the saw from the work or pull the
saw backward while the blade is in motion or kickback may occur. Investigate
and take corrective actions to eliminate the cause of blade binding.
When restarting a saw in the workpiece, centre the saw blade in the kerf and
check that saw teeth are not engaged into the material. If the saw blades are
binding, it may walk up or kickback from the workpiece as the saw is restarted.
Support large panels to minimize the risk of blade pinching and kickback. Large
panels tend to sag under their own weight. Supports must be placed under the
panel on both sides, near the line of cut and near the edge of the panel.
Do not use dull or damaged blades. Unsharpened or improperly set blades
produce narrow kerf causing excessive friction, blade binding and kickback.
Use extra caution when making a "plunge cut" into existing walls or other blind
areas. The protruding blade may cut into electric wires or objects that can cause
kickback.
Check the lower guard for proper closing before each use. Do not operate the
saw if the lower guard does not move freely and close instantly. Never clamp
or tie the lower guard into the open position. If the saw is accidentally dropped,
the lower guard may be damaged. Raise the lower guard with the retracting handle
and make sure it moves freely and does not touch the blade or any other part in all
depths of cuts.
Check the operation of the lower guard spring. If the guard and the spring are
not operating properly, they must be serviced before use. The lower guard may
operate sluggishly due to damaged parts, gummy deposits, or a build-up of debris.
The lower guard should be retracted manually only for special cuts such as
"plunge cuts" and "compound cuts". Raise lower guard by retracting handle
and as soon as the blade enters the material, the lower guard must be released.
For all other sawing, the lower guard should operate automatically.
Always observe that the lower guard is covering the blade before placing saw
down on the bench or on the floor. An unprotected, coasting blade will cause the
saw to walk backwards, cutting whatever is in its path. Be aware of the time it takes
for the blade to stop after the switch is released.

9
Never operate the saw while it is being carried to another location. The blade guard
may be open and potentially cause serious injury.
If the switch fails to turn the saw ON or OFF properly, stop using it immediately and
have the saw switch repaired.
Always allow the saw to reach full speed before beginning the cut.
Never use the side of the blade for cutting. When making horizontal cuts, make sure
the weight of the tool is not forcing the side of the blade to do the cutting. This will
reduce the risk of kickback.
Make sure there are no nails or foreign objectsinthe area of the workpiece to be cut.
Never lay workpiece on hard surfaces like concrete, stone, etc. The protruding
blade may cause tool to jump.
DANGER: To avoid injury from accidental starting, always remove the battery
before making any adjustments and before installing or removing a saw blade.
When replacing the blade, make sure the replacement blade is 6 1/2" in
diameter and is rated for at least 3,800 RPM. Installing an incorrect blade will
result in possible injury and poor cutting action.
After changing a blade or making adjustments make sure the blade clamp
screw is securely tightened. Loose blades and adjustment devices will be violently
thrown.
Never touch the blade during or immediately after use. After use, the blade is too
hot to be safely touched with bare hands.
SAVE THESE INSTRUCTIONS FOR REFERENCE

1265-001
20V MAX 6-1/2" CIRCULAR SAW
10
SYMBOLS
WARNING: Some of the following symbols may appear on the saw
Study these symbols and learn their meaning. Proper interpretation of these
V Volts n
~
Three-phase alternating
current with neutral
A Amperes Direct current
Hz Hertz noNo load speed
W Watts Alternating or direct current
kW Kilowatts Class II Construction
Microfarads Splash-proof construction
L Litres Watertight construction
kg Kilograms Protective grounding at
terminal, Class I tools
H Hours .../min Revolutions or reciprocations
per minute
N/cm² Newtons per square
centimetre Diameter
Pa Pascals 0
OPM Oscillations per minute Directional Arrow
Min Minutes Warning symbol
S Seconds Wear your safety glasses
~or AC Alternating current
Keep hands away from blade
~
Three-phase alternating
This symbol designates that this tool os listed with U.S. repuirements
by MET Laboratories, Inc.
UL62841-1，UL62841-2-5 CSA C22.2#UL62841-1，UL62841-2-5.
current
E114847
JD539020

11
KNOW YOUR 20V CIRCULAR SAW
Front handle
Blade screw
Blade washer
Rear handle
Battery
(sold
separately)
Knob
Bevel
adjustment
knob
Upper blade
guard
Dust port
Lower blade
guard
Depth adjustment
knob
Spindle lock
Base plate

1265-001
20V MAX 6-1/2" CIRCULAR SAW
12
ASSEMBLY AND OPERATING
INSTALLING THE BLADE
WARNING: Always remove the battery from the saw before installing or
removing a blade or adjusting the saw in any way.
1. Depress the spindle lock button Fig.1.
2. Remove the blade screw by turning it clockwise with the hex key, while keeping
the spindle lock button depressed Fig.2.
3. Remove the blade washer noting which way round it is fitted.
4. Fit the saw blade inside the lower blade guard and onto the spindle ensuring that
the direction of rotation arrow on the blade corresponds with the direction of
rotation arrow on the fixed guard arrow.
NOTE: The saw teeth point upward at the front of the saw.
5. Replace the blade washer. Depress the spindle lock button, then replace the
blade screw. Tighten the blade screw securely by turning it counterclockwise.
NOTE: Check the tightness of the blade securing bolt before, during and after
each use.
Fig. 1 Fig. 2
ATTACHING THE EDGE GUIDE
Before attaching the edge guide, please ensure the battery is removed from the tool.
Place the edge guide through the holes in the base.
Adjust the edge guide to the width needed and then tighten the edge guide locking
knob making sure the guide is secure.
Note: Use the edge guide provided when making long or wide rip cuts with the
saw.
WARNING: Before each use always check the operation of the lower guard
before connecting the battery to the Circular Saw. Do not use the Circular Saw if
the lower guard does not close smoothly over the saw blade and returns fully to the
closed position.
Keep blades clean & sharp.
When handling blades wear gloves.

13
WARNING: For safety reasons, the operator must read the sections of
this Owner’s Manual entitled "GENERAL SAFETY WARNINGS", "POWER
TOOL SAFETY","SPECIFIC SAFETY RULES","EXTENSION CORD SAFETY"
and "SYMBOLS" before using this circular saw.
Verify the following every time the circular saw is used:
1. The blade is tight and sharp.
2. All adjustments are tight.
3. The workpiece is properly secured.
4. Safety glasses and hearing protection are being worn.
Failure to adhere to these safety rules can greatly increase the
chances of injury.
DEPTH OF CUT AT 90°
Always keep correct blade depth setting. The correct blade depth setting for all
cuts should not exceed 1/4 in. below the material being cut. More blade depth will
increase the chance of kickback and cause the cut to be rough. For more depth of
cut accuracy, a scale is located on the upper blade guard.
The Circular Saw has an adjustable depth of cut. To adjust the depth of cut, slacken
the lever located on the side of the machine, Fig.3.
Measure the depth required from the base plate to the highest point of the blade or
use the depth gauge on the fixed guard, Fig.4.
Tighten the depth adjustment knob securely.
ANGLE OF CUT 0-45°
To adjust the angle of cut between0-45° slacken the adjustable angle of cut
locking knob.
The base plate assembly will now pivot between 0-45°. Set the desired cutting angle
by using degree scale at the front of the machine and tighten locking knobs.
At the front of the base plate there are two notches marked 0° and 45°. These
notches are a guide to indicate the position of the blade in relation to the cut being
made in the material.
Fig. 3 Fig. 4

1265-001
20V MAX 6-1/2" CIRCULAR SAW
14
TRIGGER SWITCH AND LOCK OFF
1. To turn the saw ON, press in the
right or left side, then depress and
hold in the trigger, squeeze the
trigger switch (1) (Fig. 5).
WARNING: Never carry the saw
with your finger on the trigger switch.
The saw could be accidentally started
and cause severe personal injury.
2. To turn the saw OFF, release the
trigger switch. Fig. 5
MATERIALS THAT YOU CAN CUT
materials. Some of the materials include:
• Wood productssuch as lumber, hardwood, plywood, composite board, and paneling
• Drywall
• Masonite and plastic
NOTE:
with carbide- tipped teeth cut better and stay sharp longer. Tooth count and
configuration are also important. High tooth counts cut slower and are best suited
for making smooth cuts on thinner materials such as paneling. Use the correct blade
for your application.
GENERAL CUTTING
1. Make any adjustments to the saw before installing the blade. Adjustments
include cutting depth, cutting angle and rip guide (if installed).
2. Clearly mark the workpiece to locate the position of the cut.
3. Hold a smaller workpiece with a vise. Clamp a larger workpiece to a workbench
or table.
DANGER: Any workpiece that is not adequately clamped in place may come
loose and cause serious injury. Never hold the workpiece in your hand.
4. Make sure there are no nails, screws, clamps, or foreign materials in the path of
the saw blade.
5. With both hands firmly gripping the saw, and with the blade NOT in contact with
the surface to be cut, start the saw by squeezing the trigger switch.
6. Once the saw has reached full speed, place the front edge of the sole plate
on the workpiece and gradually bring the moving blade into contact with the
workpiece at the appropriate location.
DO NOT abuse power tools. Abusive practices can damage the tool andthe workpiece.

15
WARNING: DO NOT attempt to modify tools or create accessories. Any
such alteration or modification is misuse and could result in a hazardous
condition leading to possible serious injury. It will also void the warranty.

1265-001
20V MAX 6-1/2" CIRCULAR SAW
16
MAINTENANCE
WARNING: When servicing, use only identical replacement parts. The use
of any other part may create a hazard or cause product damage.
DO NOT use solvents when cleaning plastic parts. Plastics are susceptible to
damage from various types of commercial solvents and may be damaged by their
use. Use a clean cloth to remove dirt, dust, oil, grease etc.
WARNING: Do not allow brake fluids, gasoline, petroleum-based products,
penetrating oils, etc. to come into contact with plastic parts. They contain
chemicals that can damage, weaken, or destroy plastic.
It has been found that electric tools are subjected to accelerated wear and
possible premature failure when they are used on fiberglass boats and sports
cars, wallboard, spackling compounds, or plaster. The chips and grindings from
these materials are highly abrasive to electric tool parts such as bearings, brushes,
commutators, etc. Consequently, it is not recommended that this tool be used for
extended work on any fiberglass material, wallboard, spackling compounds, or
plaster. During any use on these materials, it is extremely important that the tool is
cleaned frequently by blowing it out with an air jet.
WARNING: Always wear safety goggles or safety glasses with side shields
during all cutting operations. It is critical that you also wear safety goggles or
safety glasses with dust out of the circular saw with an air jet. Failure to take
these safety precautions could result in permanent eye or lung damage.
If the motor brushes require replacement, contact the toll-free customer support
line: 1-866-349-8665 Monday – Friday from 9am to 5pm Eastern Standard Time
LUBRICATION
lubricant for the life of the unit under normal conditions.
Therefore, no further lubrication is required.

17
EXPLODED VIEW

1265-001
20V MAX 6-1/2" CIRCULAR SAW
18
PARTS LIST
WARNING When servicing, use only original equipment replacement parts. The
use of any other parts may create a safety hazard or cause damage to the tool. Any
attempt to repair or replace electrical parts on this tool may create a safety hazard
unless repairs are performed by a qualified technician. For more information, call
the Toll-free Helpline, at 1-866-349-8665.
Always order by PART NUMBER, not by key number.
Key # Part # Part Name Quantity
1 2040140053 Screw 1
2 2030030246 Blade washer 1
3 6070030004 Circular blade 1
4 4100020014 Elastic collar 28 1
5 4030010067 ST2.9X10 1
6 3120100063 Lower guard lever 1
7 3160040119 Lower guard 1
8 2050060278 Guard return spring 1
9 4030010106 ST3. 9X19 1
10 4040010025 Flat washer 1
11 3140090025 Guard stop block 1
12 3160040120 Upper blade guard 1
13 4060090001 Nut 1
14 2040140057 Screw 1
15 3010070024 Housing 1
16 3140090015 Rubber sleeve 1
17 6140020006 Wrench 1
18 2010140053 Washer 1
19 3160090098 Gear box cover 1
20 2040050146 Shaft 1
21 3120020141 Lock screw cap 1
22 2030250022 The spindle lock level 1
23 2050060233 Spring 1
24 4100020012 Elastic collar 1
25 2010020018 Big gear 1
26 2040070016 Motor gear 1
27 4010010022 Deep groove ball bearing 2
28 3150070095 Gear box 1
29 3120010101 1
30 2050060218 Switch lock lever spring 1

19
Key # Part # Part Name Quantity
31 3120040080 Switch lock lever 1
32 1060190008 Switch 1
33 4030010106 ST3.9X19 3
34 3160010079 Rear cap 1
35 4030010074 ST3.9X14 20
36 1030240004 Motor 1
37 4040030003 Spring washer 2
38 4020010170 Screw 2
39 4010020044 Needle bearing 1
40 4010010022 Deep groove ball bearing 2
41 2030020116 Gasket 1
42 4050040015 Bolt 1
43 4050040014 Bolt 1
44 4060010005 Nut 1
45 4020010053 Screw 1
46 1180050051 Rotary knob 1
47 2050060228 Spring 1
48 1150020131 Baseplate 1
49 6210040013 Parallel Guide 1
50 1290090019 Battery (not included) 0
51 1180060030 Battery plate 1
52 3180040132 Dust exhaust port 1
53 4030010102 Screws 1
54 2030020017 Gasket 1
55 1180050050 Bevel setting knob 2
