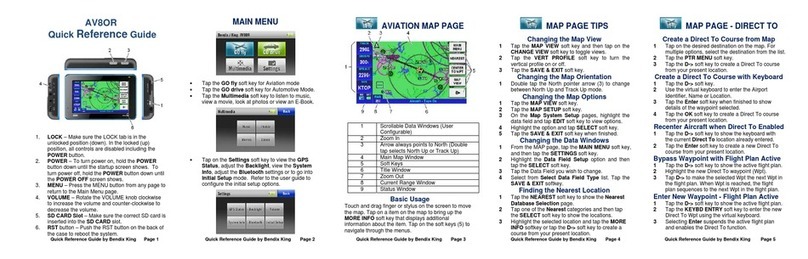

AV8OR™
Portable Multifunction Display
Convenience and Security in a GPS Handheld
For more details on AV8OR portable cockpit
information system, please visit us at
www.bendixking.com.
Bendix/King by Honeywell is a global
provider of avionics, communications and
flight controls for the general aviation segment.
Bendix/King by Honeywell 23500 W. 105th Street, Olathe, KS 66061-1950
Tel [phone] Fax [phone] Toll-Free in U. S. 877. 712. 2386 Web bendixking. com
N61-0953-000-000 © 2010 Bendix/King
Multiple Uses, One Product
You won’t have to worry about packing various media equipment for your next flight.
In addition to its various multimedia applications, the AV8OR is also your communication and information connection.
Conveniently use the included Bluetooth®interface with your cell phone, XM Weather receiver or alternate GPS receiver.
All of the necessary mounting hardware for both your car and aircraft is included.
Technical Specifications
• Size: 5.04" W x 3.23" H
x 0.86" D
• Weight: 7.06 oz
• Screen Diagonal/Display
Size: 4.3" Touch Screen
LCD
• Power: 800 mAh battery
(1600 mAh optional)
• Resolution: 480 x 272 Pixels
• On-screen keyboard for
easy entry of identifiers
• Smart profile view lets you
plan ahead with a vertical
profile view of terrain,
airspaces and obstacles
on your course.
• Touch-and-see feature lets
you identify and get critical
information for objects on
the map with a simple tap
on the screen.
• Touch-and-drag feature
makes panning the map a
simple, one-touch
operation.
• The AV8OR can be easily
connected to your PC for
quick database updates as
well as uploads of flight
plans or multimedia files.
• Upload logged flights to
your home PC for display
on programs such as
Google™Earth.
• 4GB SD Card contains
aviation and automotive
databases for U.S./Canada,
Europe, Southern Africa,
Australia, or Mexico/Brazil.
• Automotive Database
includes more than 10
million POI in the U.S. and
2 million POI in Canada.
• Dual Bluetooth®interfaces
for alternate devices such as
a cell phone, XM Weather
receiver, or alternate GPS
receiver.
• Built-in 20 Channel WAAS
GPS.
• Display Traffic advisories
from the Zaon Portable
Collision Avoidance System
(PCAS™) XRX™.
Multimedia Formats
Images: BMP/JPG/GIF/PNG
Music: MP3/WMA
Video: AVI/WMV/MPG/ASF
Included in the Box:
12V-28V DC Adapter
120/220V AC Adapter
PC/USB Cable
Carrying Bag
Aviation Mount
Automotive Windshield Mount
Earphones
CD of User’s Manual
Printed Quick Reference Guide
4GB SD Card with Automotive
and Aviation Databases

Smart profile view Weather view Traffic view
AV8OR’s innovative features push beyond traditional portable
GPS systems.
AV8OR’s large 4.3 inch diagonal, high brightness touch screen
sets a new standard for portable systems.
AV8OR’s touch-and-see feature lets you identify and get critical
information for objects on the map with a simple tap on the
screen. Obstacle heights, airspace limitations, helipads – they’re
all just a touch away.
AV8OR’s touch-and-drag feature makes panning the map a
simple, one-touch operation. No more holding a cursor button
and waiting to see what’s ahead. Just drag the map to instantly
scan ahead on your course or look to the side for alternate
destinations.
AV8OR’s smart profile view lets you plan ahead with a vertical
profile view of terrain, airspaces and obstacles on your course.
AV8OR’s simple connection to your Bendix/King KDR 610 or
WxWorx™XM satellite receiver delivers true graphical weather
to your cockpit. A full range of Weather products can be
displayed, including: NEXRAD Composite Reflectivity, Lightning,
METARs, AIRMETs, SIGMETs, Convective-SIGMETs, PIREPs,
TFRs and more.
AV8OR’s simple hookup to your Zaon Portable Collision
Avoidance System (PCAS™) XRX™provides a variety of traffic
advisory options. Traffic can be shown as an overlay on the
moving map, or displayed on the dedicated Traffic page. As an
added safety feature, traffic alerts can be enabled to ‘pop up’
the traffic page regardless of what is presently being displayed.
Knowing what’s ahead puts you ahead of the rest. Whether for
business or pleasure, the AV8OR delivers the information you
want, when you want it – all in an easy to use and easy to read,
affordable package.
On the Ground
AV8OR’s built-in automotive
navigation system provides both
2D and 3D navigation views to
get you where you need to go in
the most efficient way possible.
With more than 10 million Points
of Interest (POI) in the U.S. and
two million POI in Canada, you’ll
always be able to find the nearest
shopping, restaurants, gas stations and more. AV8OR’s large, 4GB SD Card
means that it comes to you pre-loaded with both aviation and automotive
databases for the entire region of your choosing; with plenty of room to spare.
If that’s not enough, AV8OR’s built-in speaker provides voice prompts to your
destination, so you won’t have to take your eyes off the road. Available driving
regions include U.S./Canada, Europe, Africa, Australia or Mexico/Brazil.
Visit www.BendixKing.com for detailed coverage maps.
Pilot Focused and Reliable
A product you can trust, AV8OR’s efficient touch screen and exceptional user interface were
derived from the pilot friendly, panel mounted Bendix/King MFD systems. Aviation database
updates as well as flight plan uploads are easily obtained by simply connecting to your PC. Flight
plans created in programs such as FliteStar™can be loaded into the AV8OR. Previously flown and
logged flights can be uploaded to a computer and easily displayed in programs such as
Google™Earth.
Ready to go when you are
The new Bendix/King AV8OR™portable Multifunction Display (MFD) takes you to the airport, provides airborne weather and guidance
en route to your destination, and even provides entertainment along the way. Designed by pilots for pilots, the AV8OR’s exceptional
graphical user interface means that you’ll spend less time entering data and more time piloting.
The AV8OR portable MFD is much more than a simple GPS. It’s the perfect traveling companion with built-in music, picture and
movie playing capabilities. It even interfaces with your Bluetooth®cell phone. Whether for business or pleasure, the AV8OR delivers
the information you want, when you want it – all in an easy-to-use and easy-to-read, affordable package.
Relax at Your Destination
When you’re not flying or driving, sit back,
relax and listen to music, view pictures,
read an electronic book or watch a movie
with AV8OR’s built-in media players. The
standard 4GB SD card has room to spare
to add your own media library. AV8OR
also includes ports for video input and
audio output.
In the Air
SLEEK,
POWERFUL, VERSATILE
Scrollable
Data Fields
(User
Configured)
Removable
4GB SD
Card for
Databases
and
Multimedia
Smart
Profile
View
Large 4.3",
High Bright
Touch
Screen
High
Resolution
Terrain
Status
Window
(GPS, Wx and
Messages)
Front View Side View
(Actual Size)
A Platform for Situational Awareness
