Based on touch design, QTouch is a practical electronic pen and eraser with smooth writing and
accurate annotation effects. It fully supports multi-touch writing and editing for many a person at the
same time. It also supports multi-touch gestures, free dragging, rotating and scaling to any graphics.
QTouch is compatible with PowerPoint and convenient for users to switch from traditional teaching
software. With rich teaching resources, QTouch provides curtain, spotlight and many other
functions. Clear and simple, users can easily stress the key point in multimedia teaching. It is also easy
to use and available for customization.
Operating Environment
Installing and Uninstalling Software
Software Installation
See the detailed explanation on the software installation below. Unload QTouch if you have installed
It before.

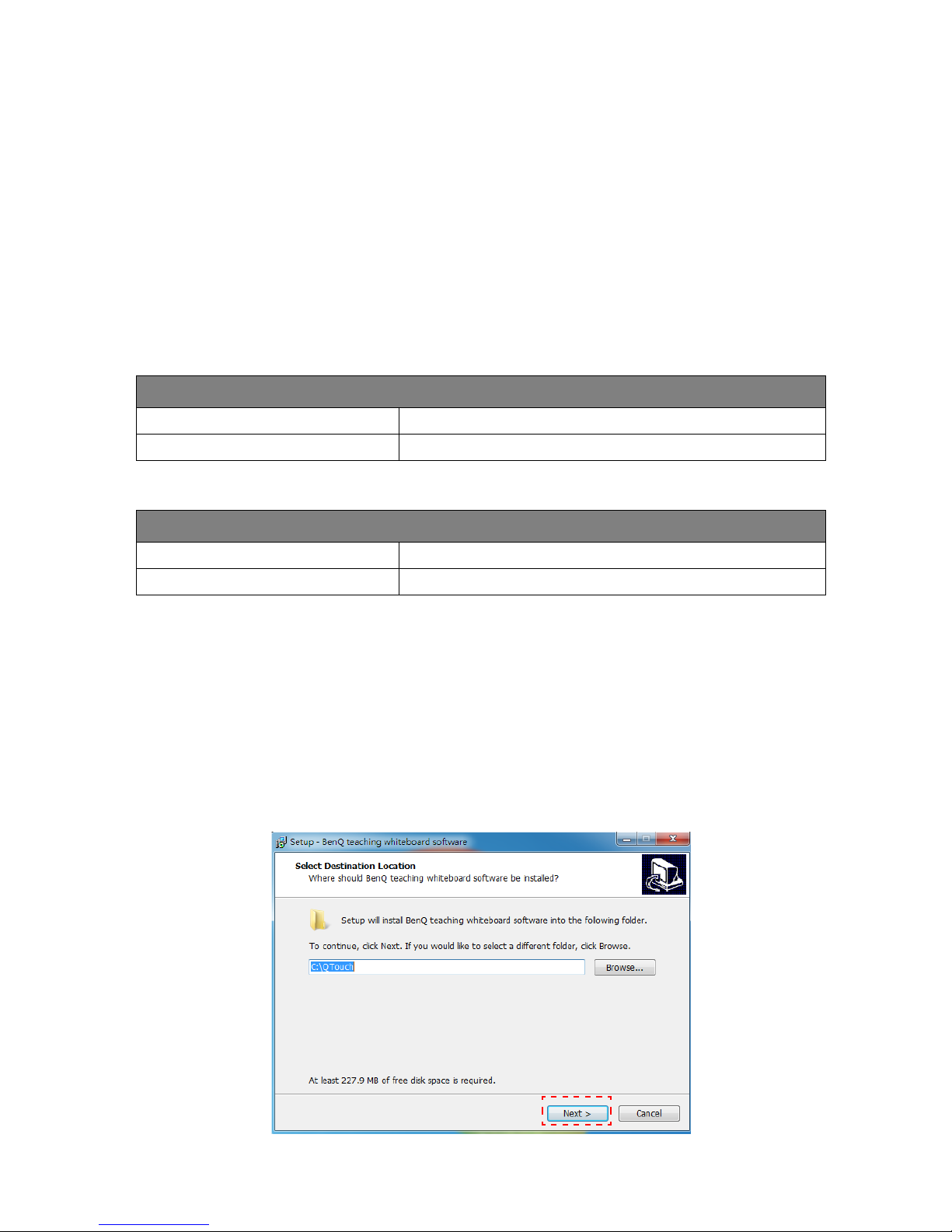

1. Input the disk and open “Touchdev”. Double-click "QTouchSetupVX.X.exe" and select installation
contents as the following dialog box. Alter the information in need and click Next.
Minimum configuration
OS: Windows XP Processor: above Intel G645
RAM: 2G Resolution: 1024×768
Recommended configuration
OS: Windows 7 Processor: above Intel I3
RAM: 4G Resolution: 1920×1080

6 Introduction

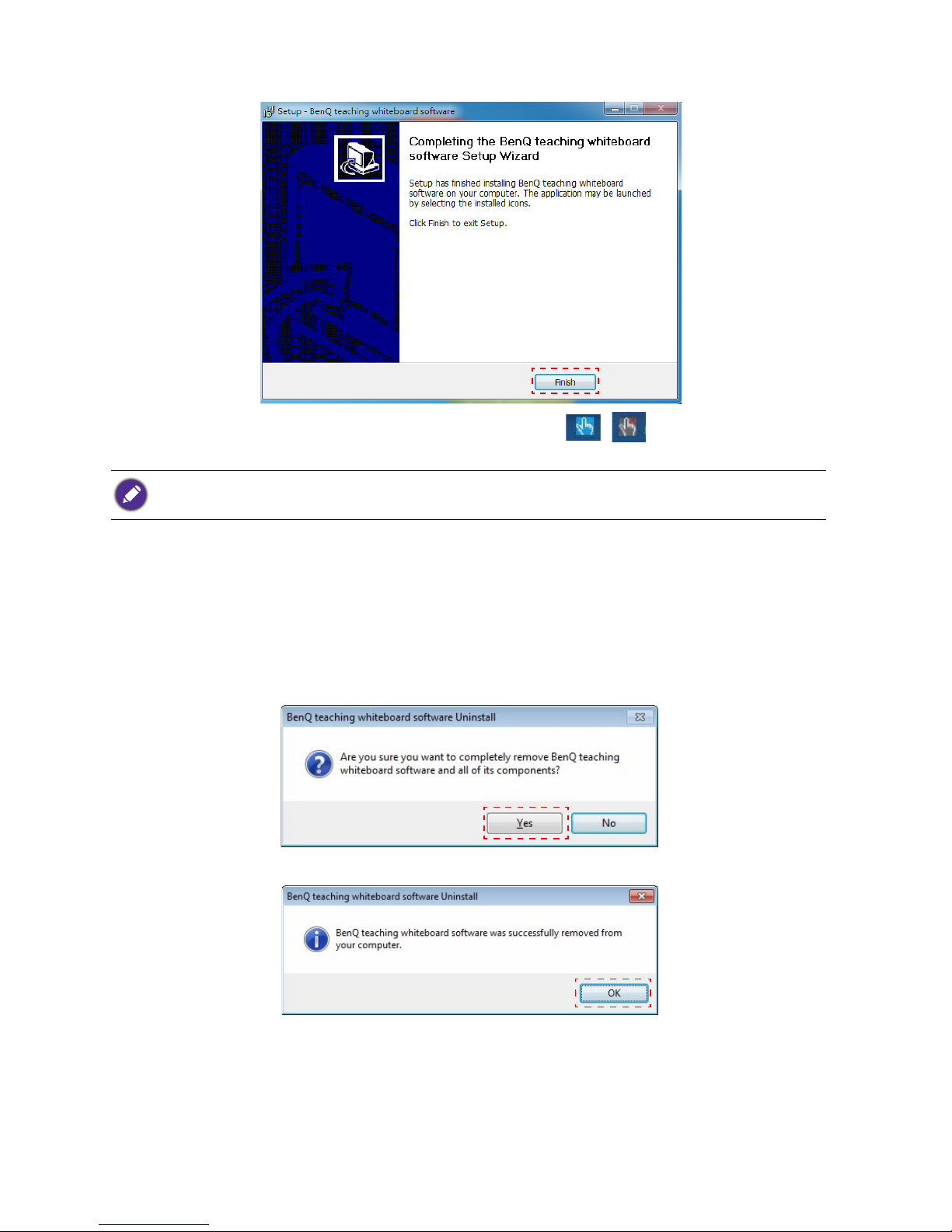

2. Click Finish to end installation.
3. After installation, check if one of the following two gestures is in tray icon. The
installation is successful if you see the icon.
Software Uninstallation
• Exit if “Touchdev” is running. Open “control panel” and select “add or remove programs”. Unload
the program after finding out QTouch.
• Go to Start > all programs > To u c h d e v Fo l d e r > Uninstall to enter into Uninstall interface as
following:
1. A dialog window will pop up. Click Ye s to continue.
2. While seeing a dialog window as follow, click OK to end the uninstalling.
• The blue gesture means that the device has been linked, while the grey one means it hasn't been linked.
• It is recommended that you run Win10 as administrator: right click on the mouse > Run as administrator.

7Introduction
Software Interface Introduction
QTouch Overview

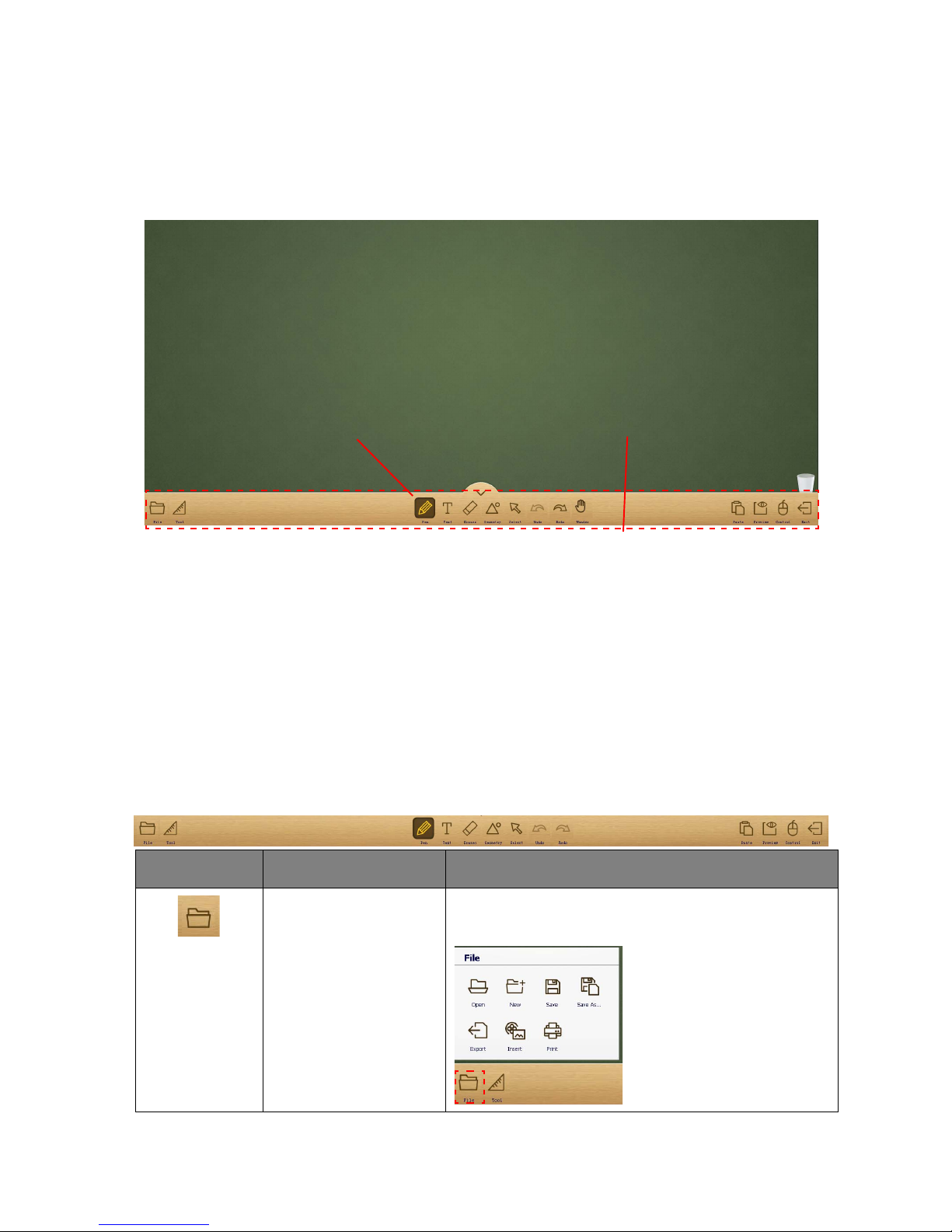

Open QTouch to enter full-screen mode. There are three modules on the display interface, shown as
below.
Operating Area
The green background is the operating area of the current page, and the toolbar interface in
transparency is underneath. The trash can is at the lower right corner. Generally, “Normal brush” is
in the default state, you can directly operate within the green area. In most cases, the operating area
of QTouch is in green. While in the case of the lower resolution as 1024×768, the working area is in
white.
To o l b a r
Start QTouch to enter the main interface. Toolbar is at the bottom of the screen. The level one
toolbar is clean and simple with different function buttons.
Icon Function Description
File
Click to pop up the secondary toolbar to get the
functions.
Toolbar
Operating area

8 Introduction

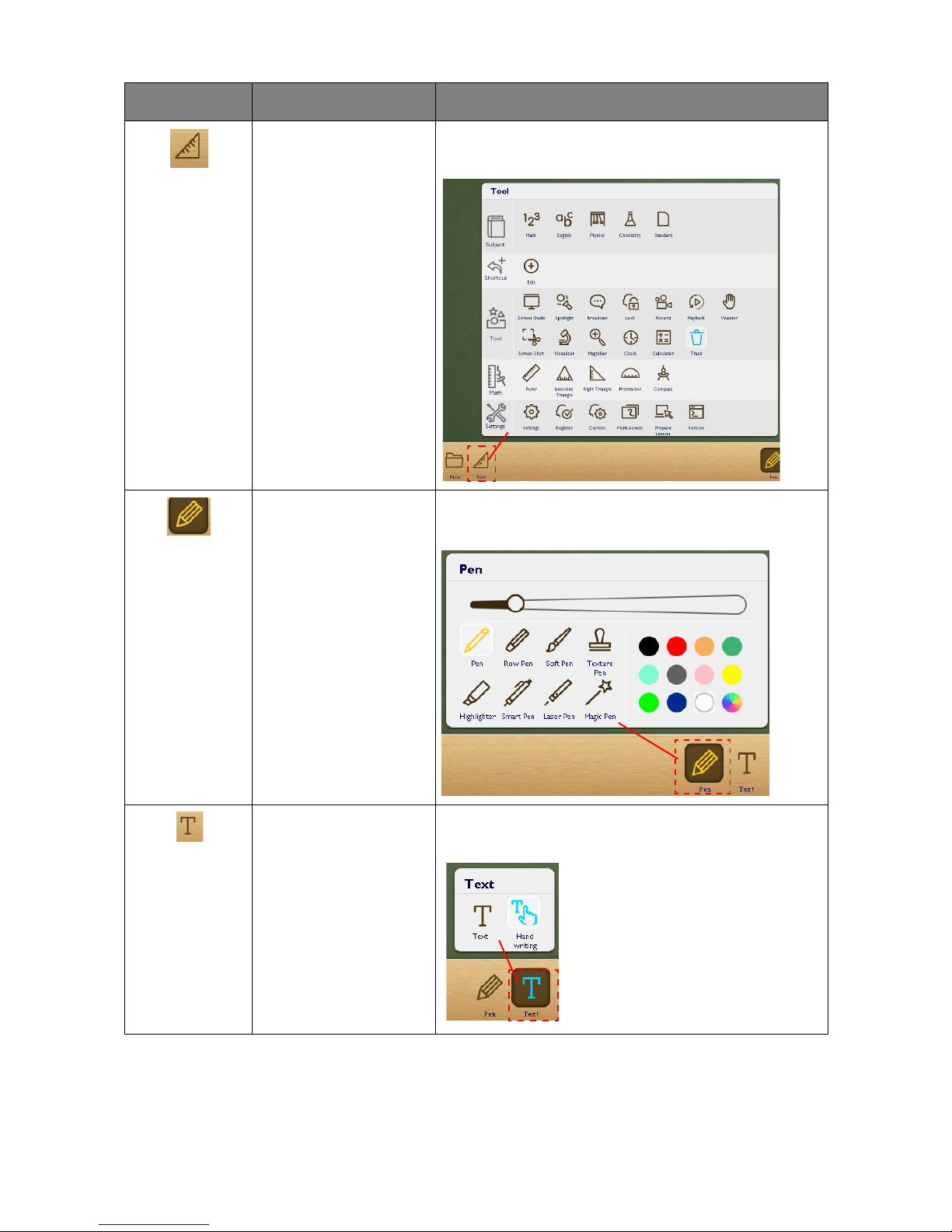

To o l
Combine the tools related with whiteboard software.
Click to pop up the secondary toolbar.
Pen
Click to pop up the secondary toolbar, including pen
types, pen thickness, and colors.
Te x t
With functions of Te x t and Handwriting
recognition.
Icon Function Description

9Introduction
Eraser

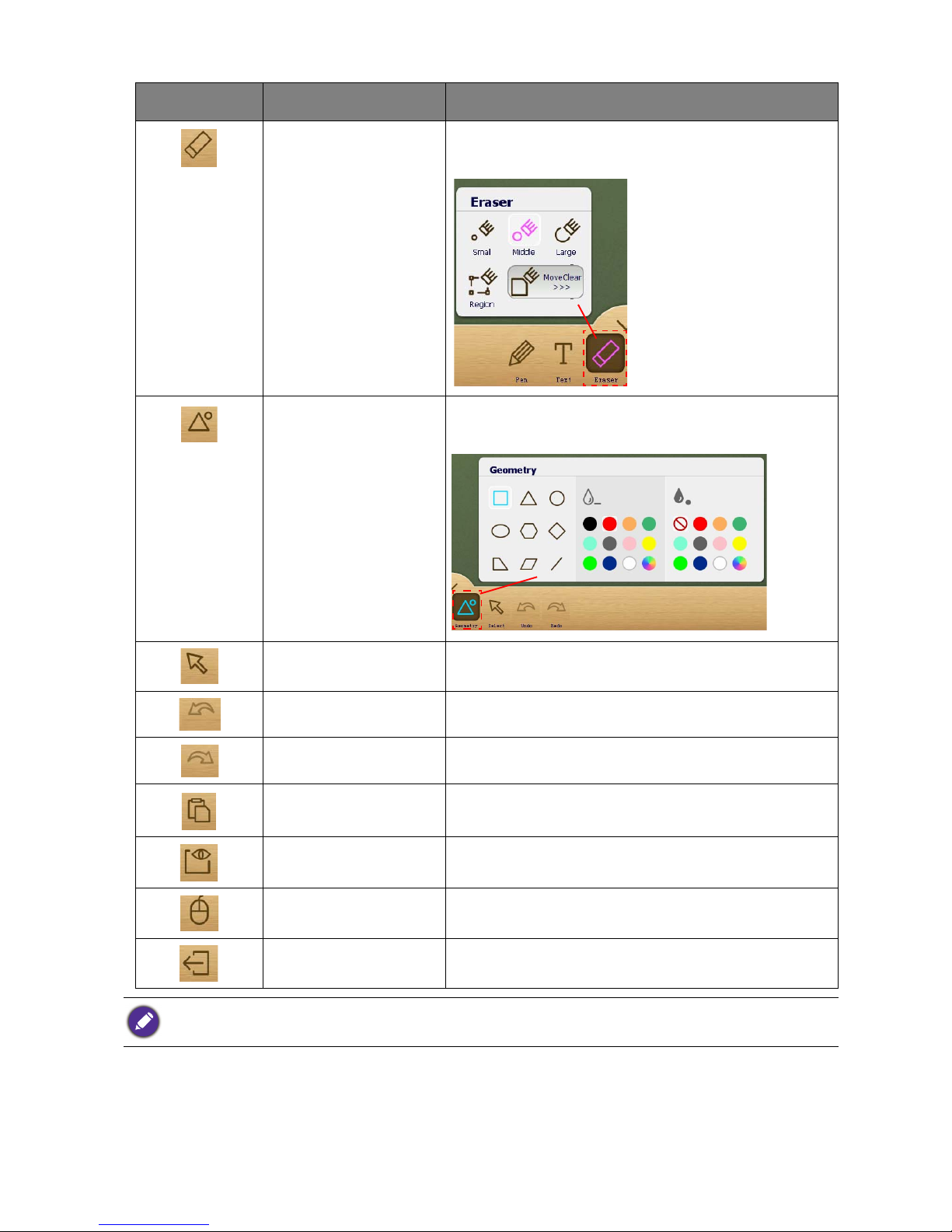

Click to pop up the secondary toolbar, including five
types of erasers.
Geometry
Click to pop up the secondary toolbar, choose from
five different cooperation tools.
Select Click to make choices.
Undo Click to undo the previous operation.
Redo Click to redo the cancelled operation.
Paste Click to perform the paste operation.
Preview Click to pop up/hide the preview window.
Control Click to switch to the control mode.
Exit Click to exit.
You can drag the toolbar to the above or at the below of the screen to suit your use habits.
Icon Function Description

10 Introduction
Floating Toolbar
Floating toolbar is on the right of the screen. Click to switch the interface to the
control mode or transparent page. It is in line with that of the main interface, with clean
and simple design. It has four buttons by default.
Icon Function Description

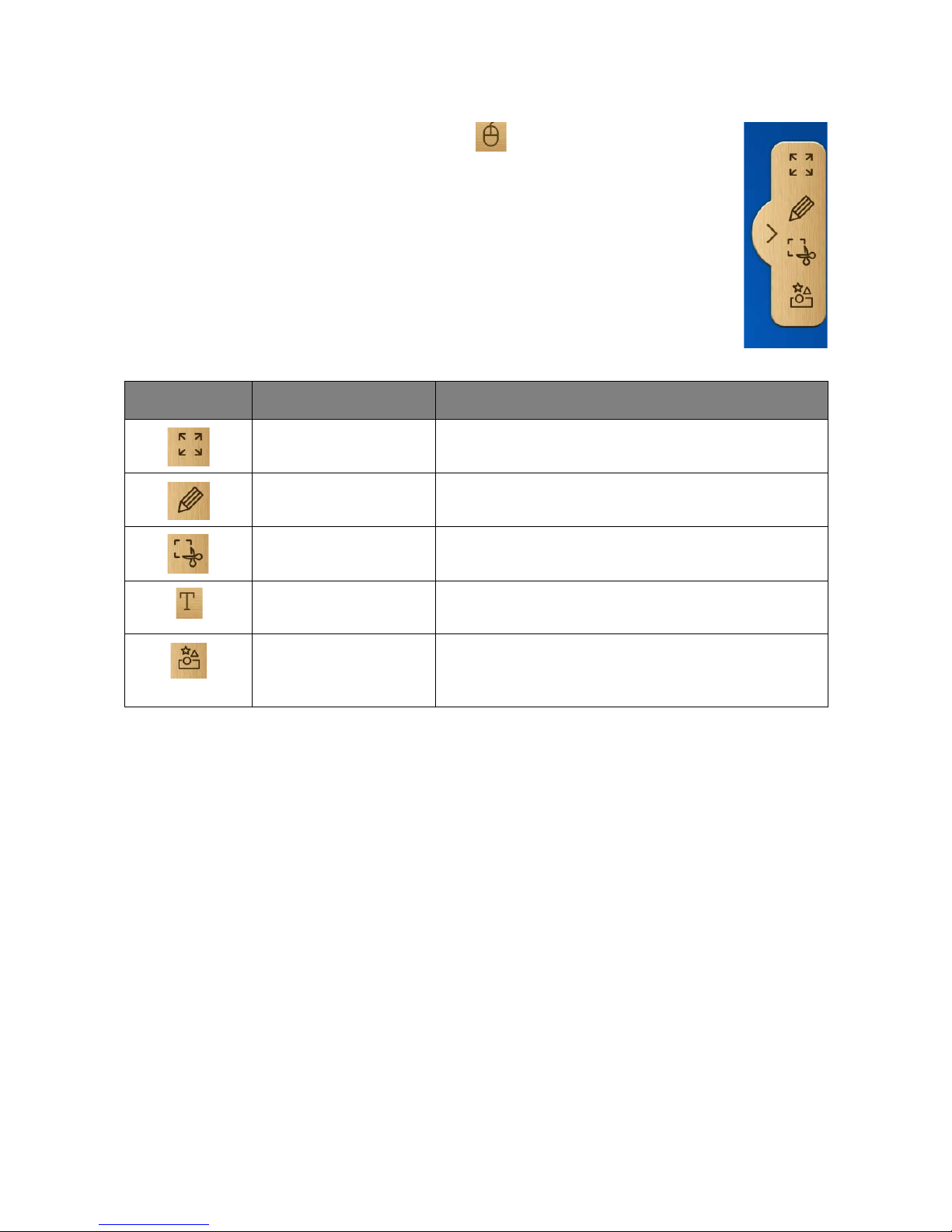

Full Screen Mode Click to switch to the full screen mode.

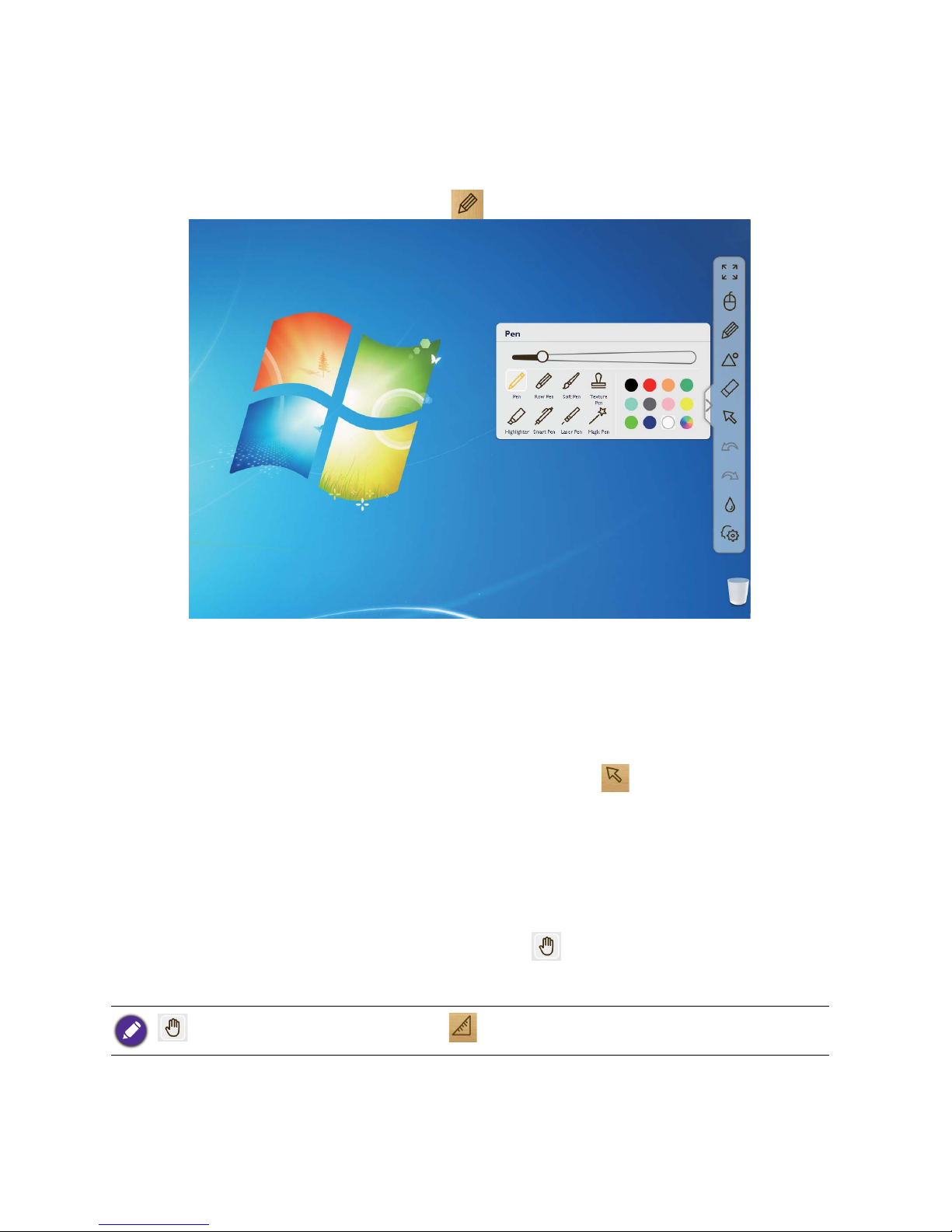

Pen Click to pop up the secondary toolbar, including pen
types, pen thickness, and colors.
Screenshot Click to capture the image on the screen and paste it
on the current page.
Te x t With functions of Te x t and Handwriting
recognition.
To o l
Click to pop up the secondary toolbar, including
Screen Shade, Spotlight, Record, Clock, and
Calculator.

11Introduction
Basic Operation
Operating Mode
Standard (Full screen) Mode
While opening QTouch, the default working mode is mainly used for document editing and
demonstrating. The software is at full screen mode and will not be affected by other software. To
switch from other modes to the standard mode, click in the floating toolbar.
Annotation/Control Mode
The minimum working mode in QTouch is reserved as the floating toolbar. It is easy to make use of
the related functions, such as annotation and marking. To switch from other modes to the control
mode, click in the main toolbar or the floating toolbar.

12 Introduction
Transparent Page Mode
The transparent page mode in QTouch is similar to the control mode, but with a more powerful
function of transparent annotation. Under this mode, you can also use the brush or other functions
to make dynamic annotation to the current operation interface. You can only switch from the control
mode to the transparent page mode by clicking in the floating toolbar.
Selection and Page Roaming State
Selection State
While touching the interface of QTouch, you need to switch between “drawing lines” and “select” to
distinguish whether the touch action is drawing lines or select. Click in the main toolbar or the
floating toolbar, and it is in the select state. In this case, the touch action is not shown as “drawing
lines”, but only as operation to the object.
Page Roaming State
The QTouch page is designed as the “infinite page”. You can move the page randomly by switching to
the roaming state to get a bigger operation interface. Click to enter into the page roaming state
under the full-screen mode.
is not in the default interface. Click to retrieve the function.

13Introduction
Multi-touch Writing
QTouch is designed on the basis of the multi-touch screen input method, fully supporting the
function of the multi touch writing. You can operate multi-point drawing and painting and can even
use erasers at the same time.
Multi-touch Gestures
Based on the multi-touch method, QTouch supports normal touch gestures such as dragging,
zooming, and rotating. By switching to , you can randomly conduct multi-touch function to lines
or images on the display.

14 Detailed Operation
Detailed Operation
Start and Exit
As the software is attached to the interactive whiteboard, QTouch needs the whiteboard support to

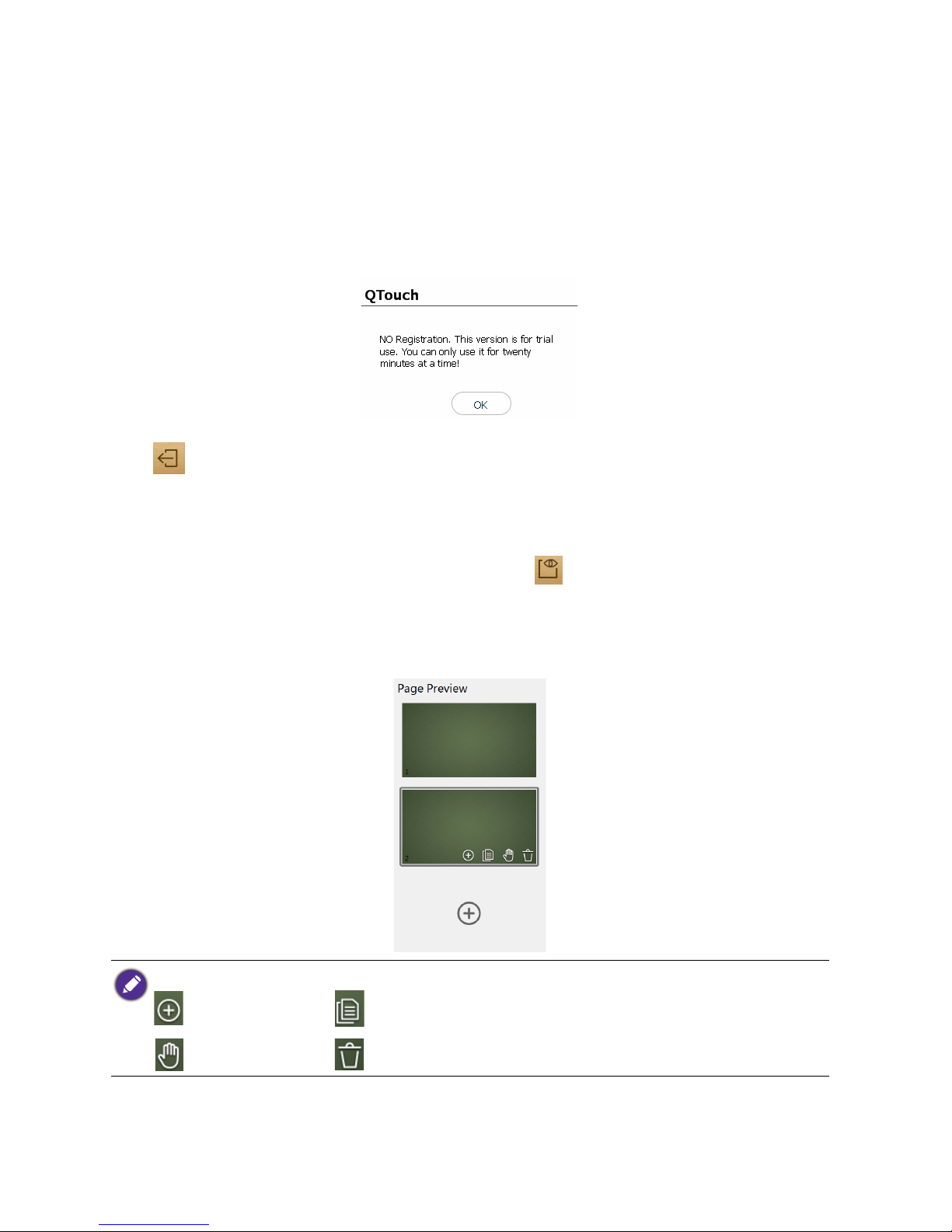

start.The software will be in the restricted state without checking the interactive whiteboard in the
system. In this case, it can only be used in a specific period of time. When the whiteboard support is
confirmed, the software can be used without any restriction.
Click on the right corner of the toolbar to exit the program.
Page Management
Start the software to enter into the full screen mode. Click on the toolbar to display or hide the
preview window. The window can also be dragged to the right boundary of the screen. At the
moment, it will hide automatically. The preview window in the software is designed as the main
interface of the QTouch page management. Comparing with traditional preview windows, it is specific
to the touch input.
Select one preview page, there are four buttons at the lower right corner:
: Insert new page : Clone current page
: Clear to drag the page : Delete the selected

15Detailed Operation
Custom Toolbar

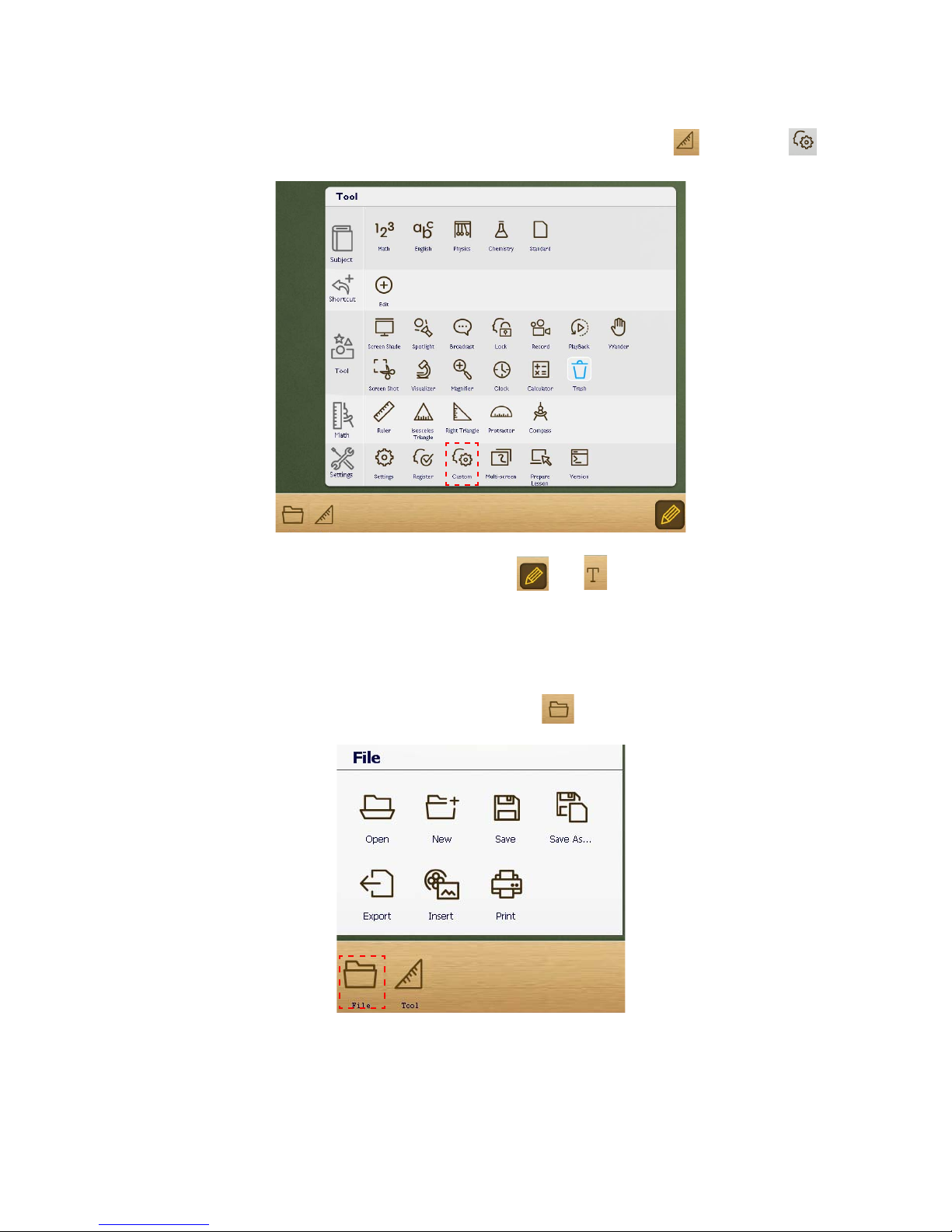

To customize your toolbar buttons, set QTouch to the standard mode. Click and choose
under Settings.
You can add up to 12 icons to the list. Please note that and are default and cannot be
removed.
Document Management
File management facilities of QTouch is realized by clicking . QTouch supports three types of
files: Wbd file, PowerPoint file, and multi-media file.

16 Detailed Operation
Wdb File Management
QTouch is compatible with Wbd files. All images and sounds displayed on the QTouch interface can
be saved. Click to pop up the secondary toolbar. The corresponding wdb file management can
be done with these buttons. To insert and save a Wbd file, click to pop up the secondary
toolbar with and . Click the two buttons to act accordingly.
PowerPoint Management
QTouch is compatible with PowerPoint files in Microsoft Office. Click to pop up the secondary
toolbar. You can export the current file (PowerPoint file or non-PowerPoint file) to a PowerPoint file
by clicking to act accordingly. Supported versions are Office 2003, Office 2007, and Office 2010.
Earlier or later versions may not work.
Print Files
QTouch supports file printing. Click > . A window will pop up.

17Detailed Operation
You can choose to print all pages or select pages by entering page numbers. You can also choose the
Print Mode and Header Setting. Header inserting is optional while printing the selected page.
You can also add Speech Title and Author.
Presenting PowerPoint Files
While presenting PowerPoint files, you can make comments and other operations to PowerPoint files
under the touch mode. Click > and choose a PowerPoint file to be shown.

18 Detailed Operation
While opening the PowerPoint file, you can see pop-up toolbar of QTouch on both sides of the
screen. You can switch between PowerPoint annotation and other functions.
Icon Function Description
Arrow Click to realize the mouse function, right or left
button function of the touch screen.
Pen Click to switch to draw lines and annotation.
Color Click to set pen colors.
Eraser Switch to the eraser function to clear the lines and
annotation on the screen.
Full screen eraser To clear away the lines and annotation on the whole
display.
Previous Click to go back to the previous page.
Next Click to go to the next page.
Refresh
Click to pop up the language dialogue for PowerPoint
file; click the preview page to switch to the
corresponding page.
Exit
Click to save and exit the PowerPoint file. Exit will
also close other PowerPoint files not modified in
Qtouch.
Play background sound Click to play background sound.
Switch to the main
interface
Click to switch to the main interface.
Blank screen Click to enter the blank screen, and click again to exit
the blank screen.

19Detailed Operation
Brush Use
Pen is a frequently used tool in QTouch during presentation. You can present personalized writing or
sketches quickly to your own needs. Click to choose special effects.

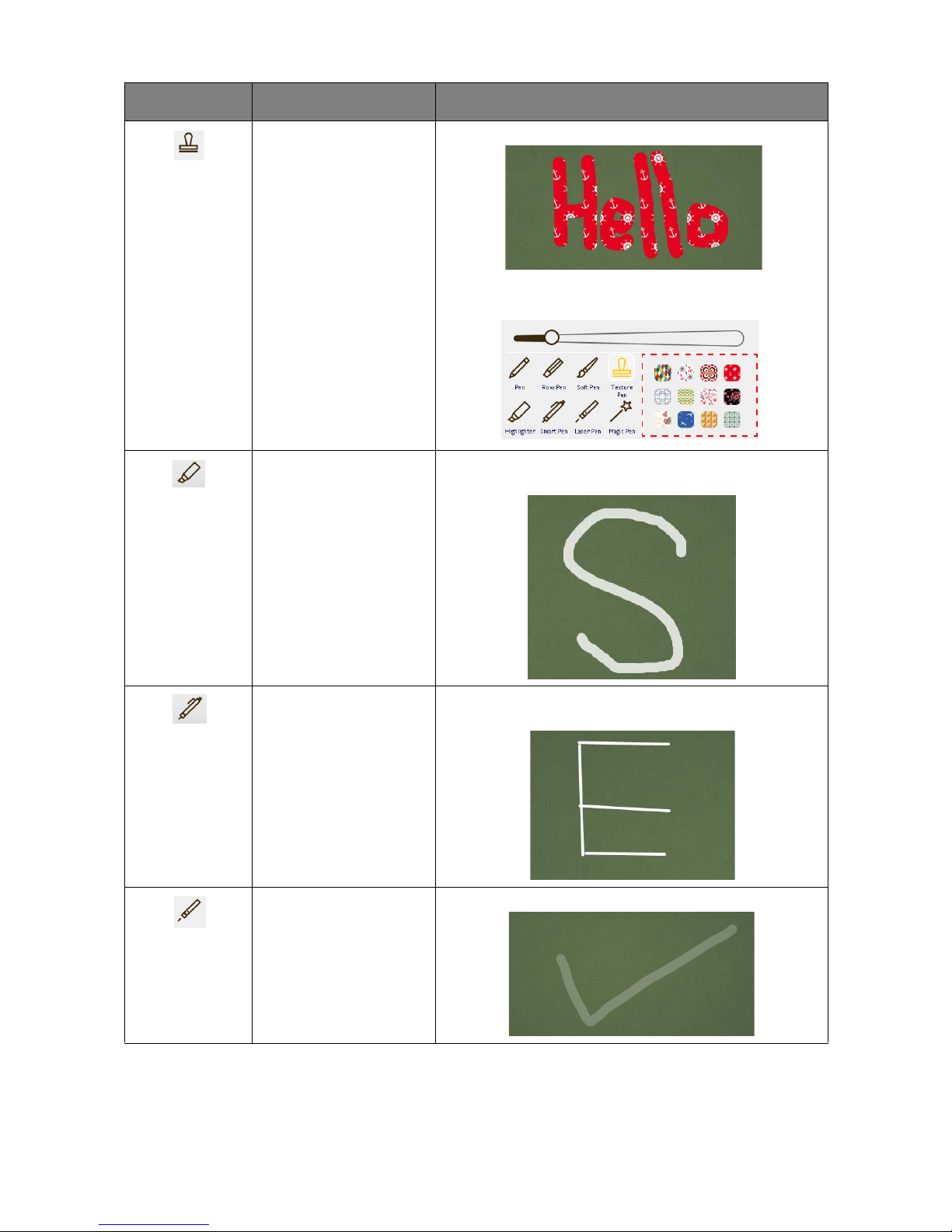

Icon Ty p e Writing effect
Pen
Row Pen
Soft Pen

20 Detailed Operation
Te x t u r e Pe n For Te x t u r e Pe n , there are different options to
choose from.
Highlighter
With Highlighter, the writing will be a bit
transparent and should be used with single touch.
Smart Pen
With Smart Pen, the writing will be automatically
imporved.
Laser Pen
With Laser Pen, the writing will gradually fade away.
Icon Ty p e Writing effect
