BenQ CinePrime Series User manual

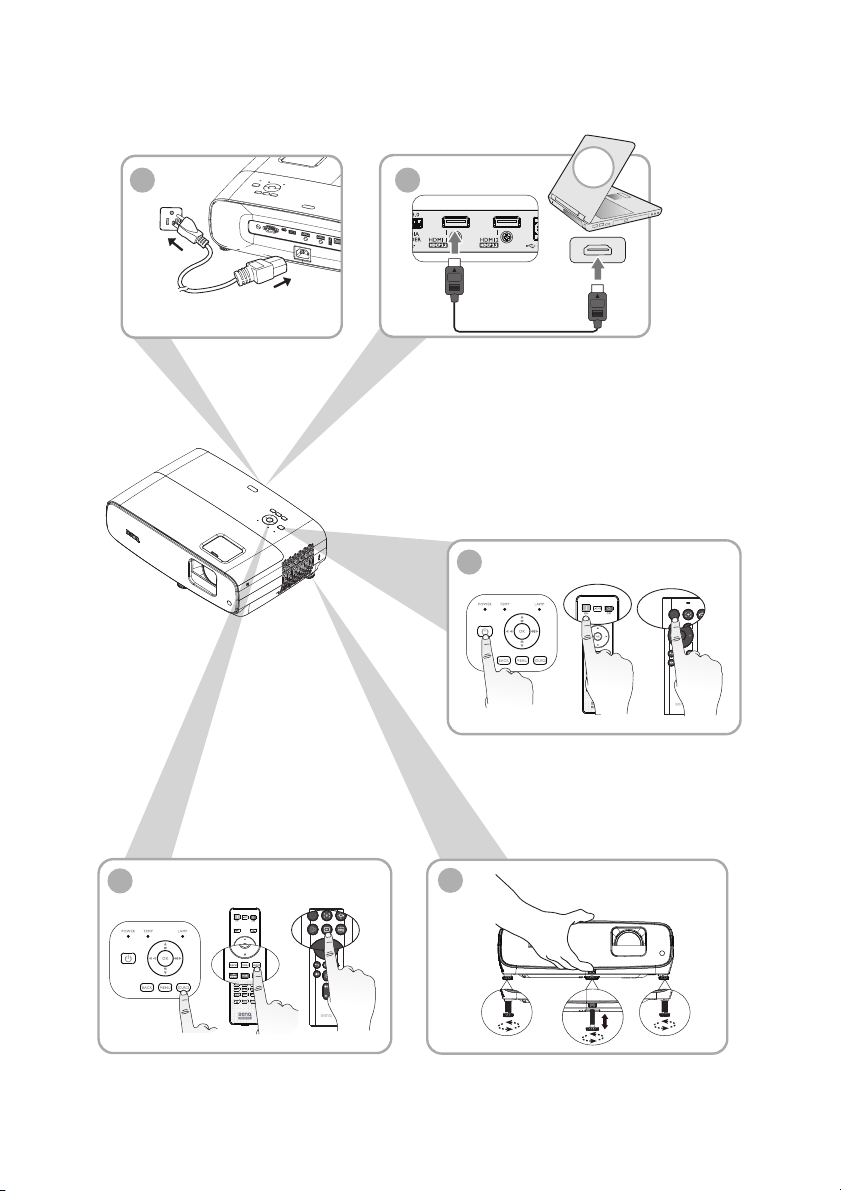

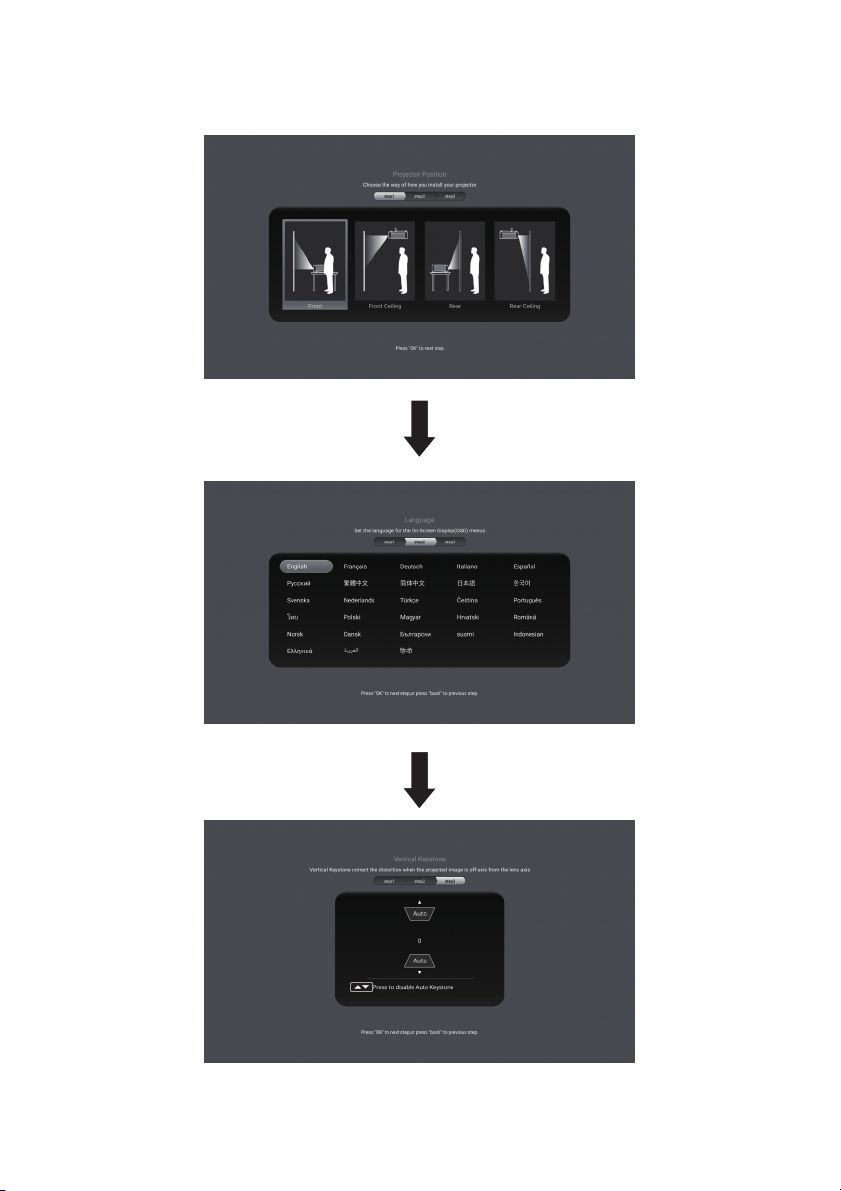

Quick Start Guide
Digital Projector
CinePrime Series l W2700i / HT3550i

1

Product information
Shipping contents

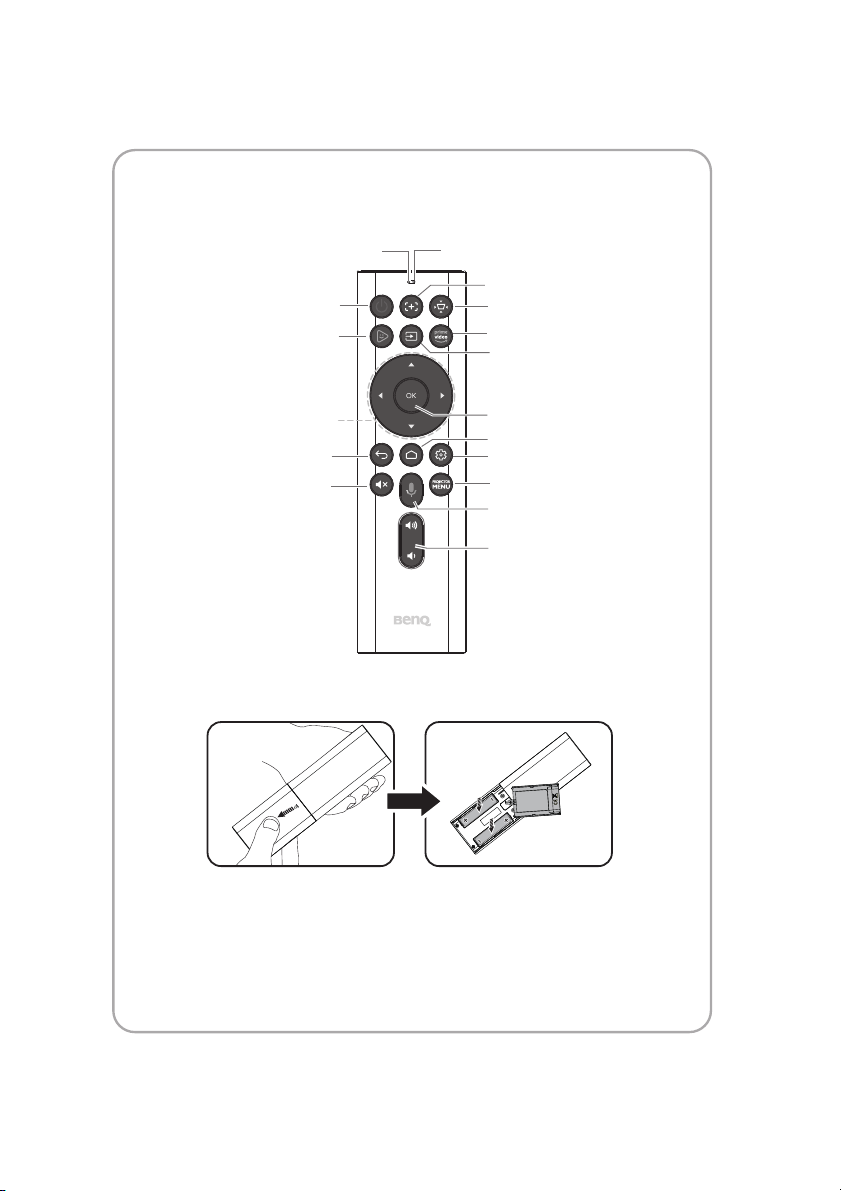

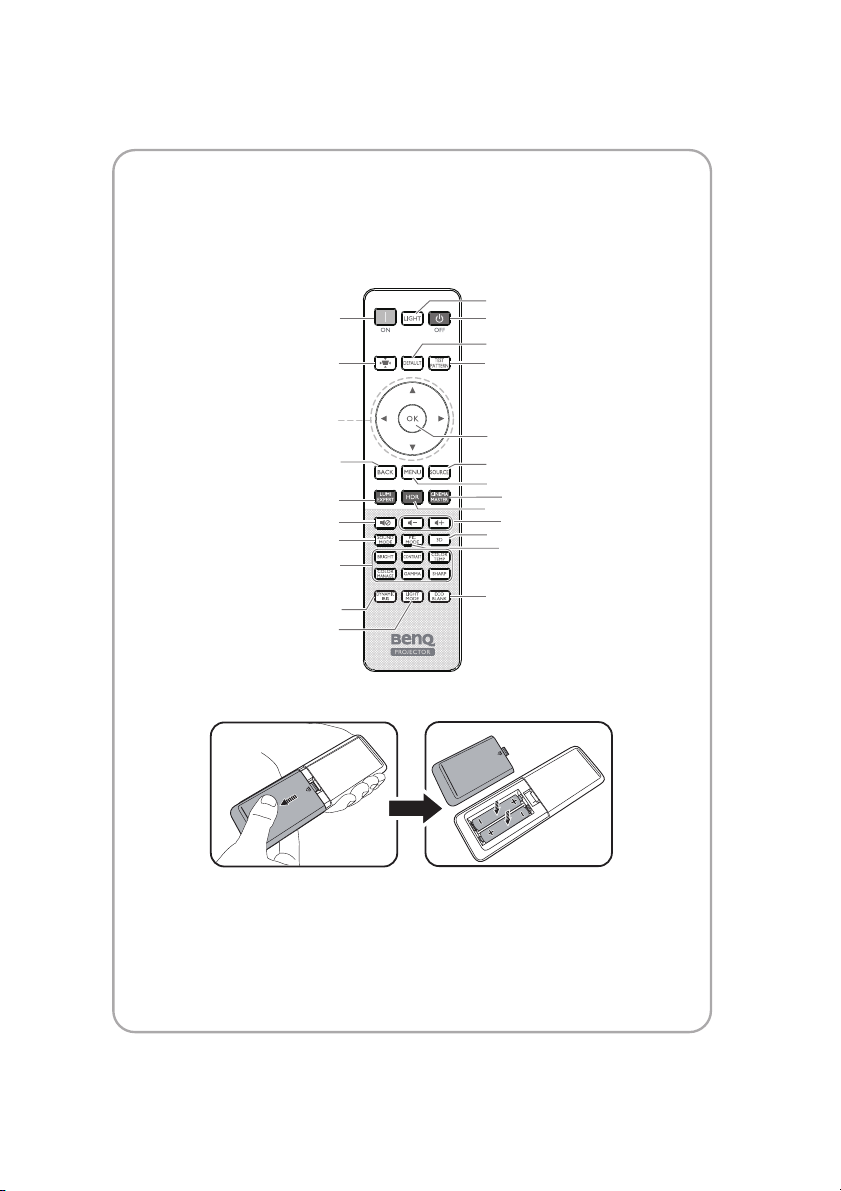

Projector remote control
ON
Keystone correction
Arrow keys
BACK
LUMI EXPERT
MUTE
SOUND MODE
Picture quality adjustment keys
(BRIGHT, CONTRAST, COLOR TEMP,
COLOR MANAGE, GAMMA, SHARP)
DYNAMIC IRIS
LIGHT MODE
LIGHT
OFF
DEFAULT
TEST PATTERN
OK
SOURCE
MENU
CINEMA MASTER
HDR
Volume keys
3D
PIC MODE
ECO BLANK

QS01 Android TV remote control
Power
Kids TV
Arrow keys
Back
Mute
Focus*
Amazon prime video
Source
OK
Android option
Projector menu
Voice search / Voice assistant
Volume keys
LED indicatorMicrophone
Keystone correction
Android TV home screen
*Available on compatible projectors only

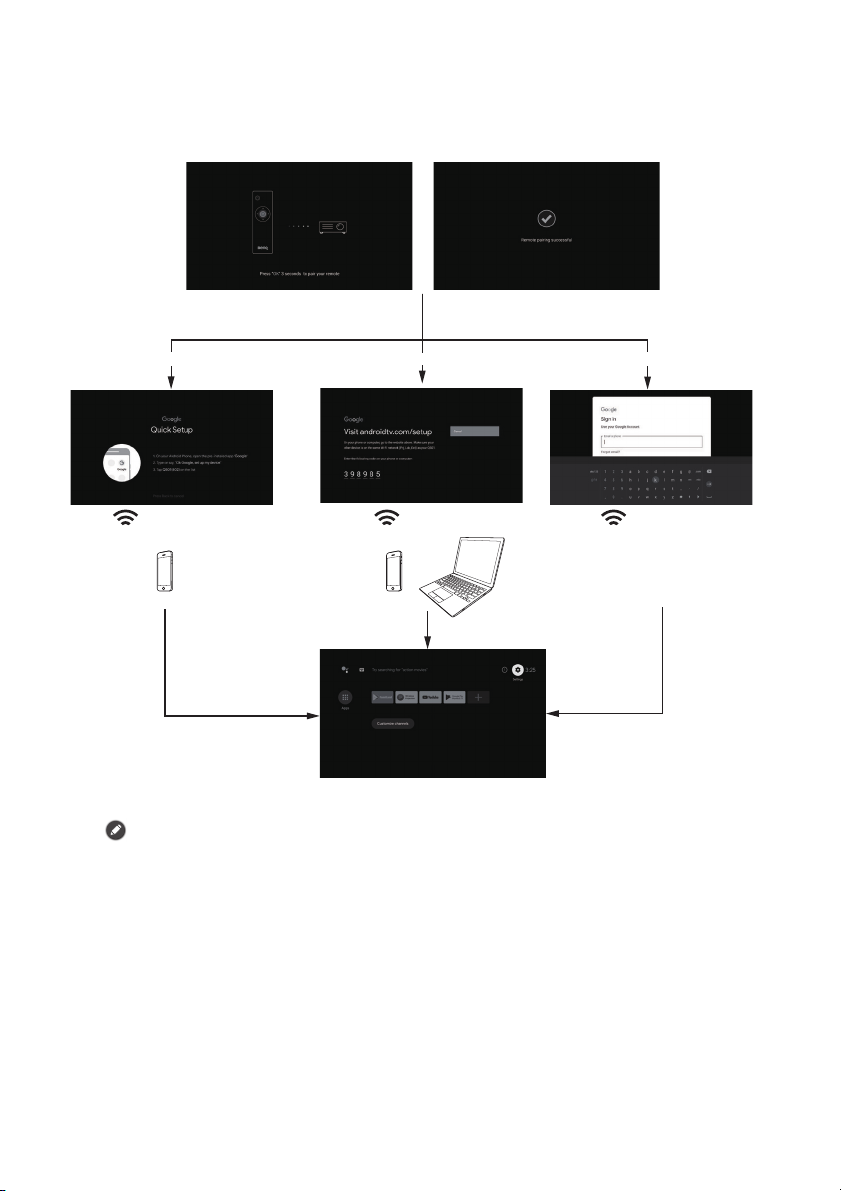

QS01 Android TV Dongle installation
QS01 Android TV remote can also control the projector when QS01 Android TV
Dongle is installed correctly.
2
1
a
a
b
5
6
4
a
b
b
3

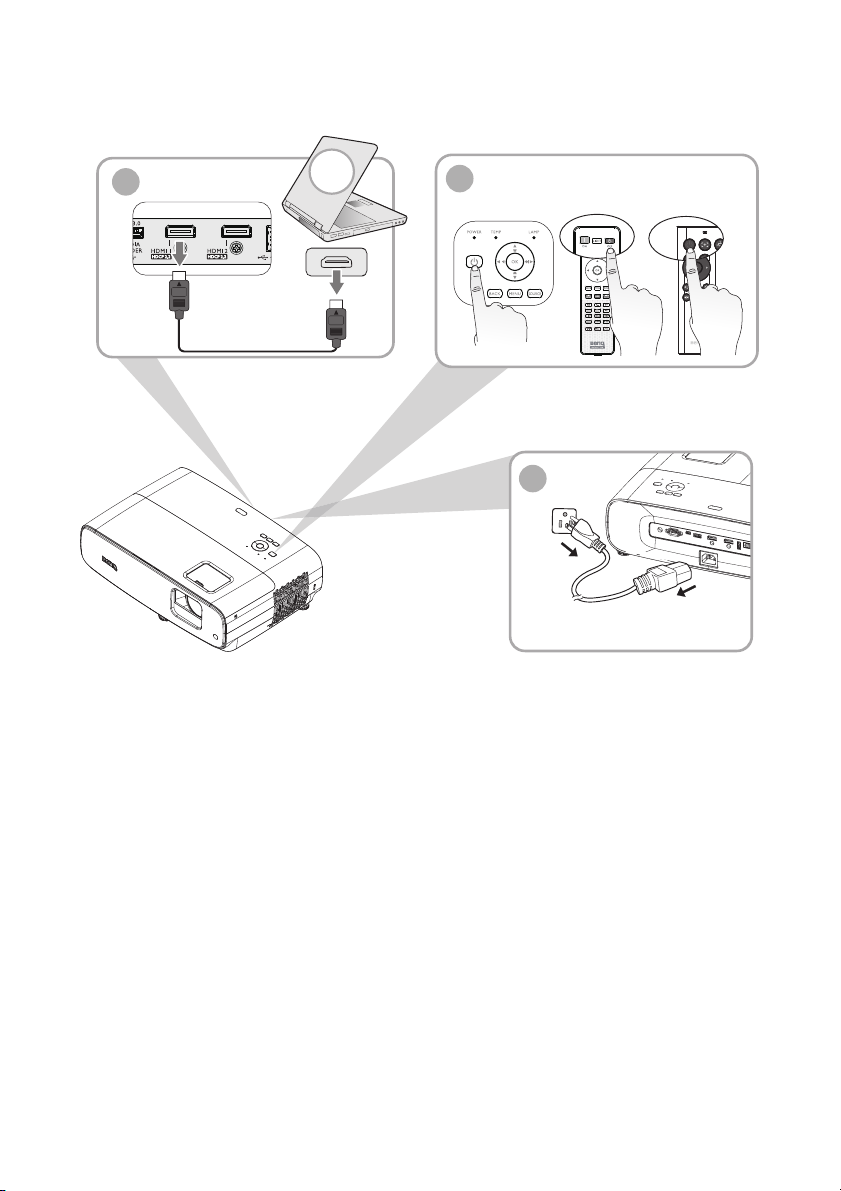

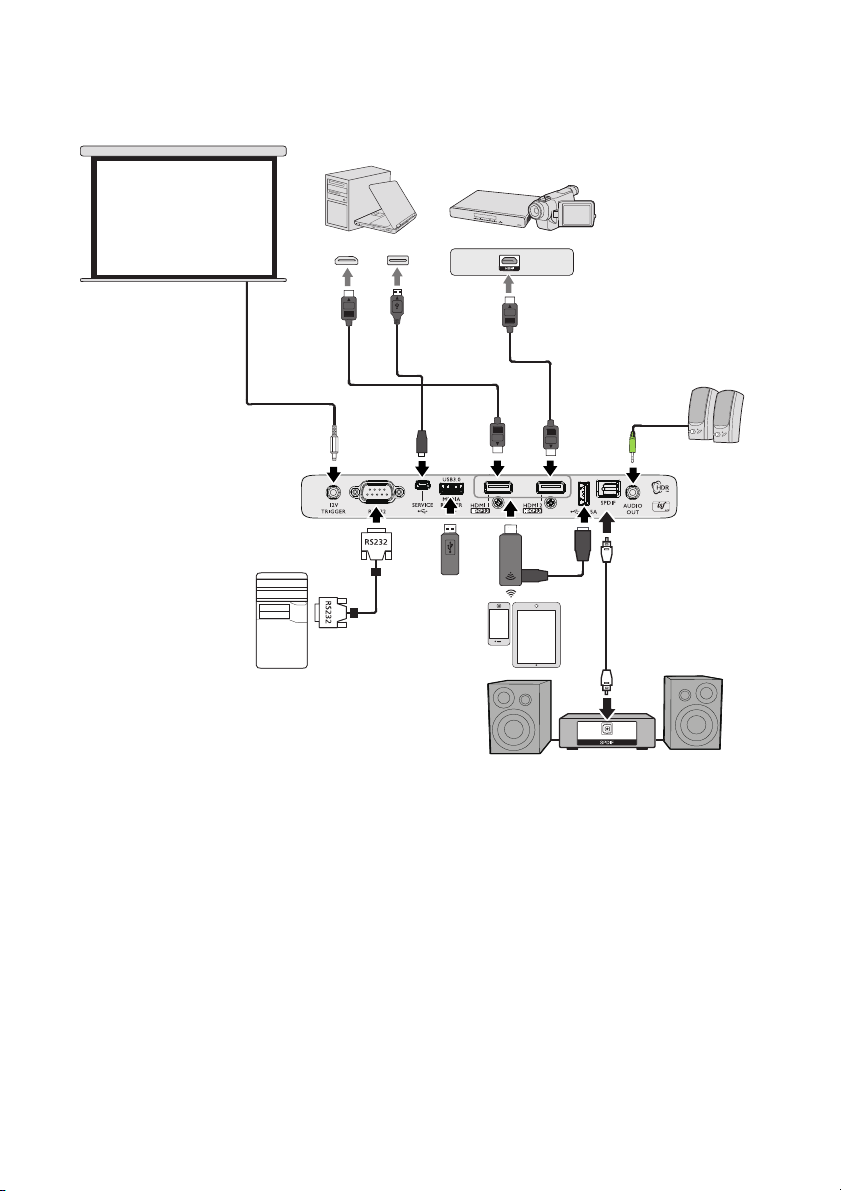

HDMI

Control terminals
2

Installation
Projection dimensions
• The screen aspect ratio is 4:3 and the projected picture is in a 4:3 aspect ratio
H
WProjection distance
Center of lens
Screen
16:9 Screen diagonal
Vertical Offset
Screen size Distance from screen (mm)
Diagonal H
(mm)
W
(mm)
Min
length Average
Max
length
Inch mm (max.
zoom)
(min.
zoom)
30 762 374 664 750 863 976
40 1016 498 886 1001 1151 1302
50 1270 623 1107 1251 1439 1627
60 1524 747 1328 1501 1727 1953
70 1778 872 1550 1751 2015 2278
80 2032 996 1771 2001 2302 2603
90 2286 1121 1992 2251 2590 2929
100 2540 1245 2214 2502 2878 3254
110 2794 1370 2435 2752 3166 3580
120 3048 1494 2657 3002 3454 3905
130 3302 1619 2878 3252 3741 4231
140 3556 1743 3099 3502 4029 4556
150 3810 1868 3321 3752 4317 4881
160 4064 1992 3542 4003 4605 5207
170 4318 2117 3763 4253 4893 5532
180 4572 2241 3985 4503 5180 5858
190 4826 2366 4206 4753 5468 6183
200 5080 2491 4428 5003 5756 6509
210 5334 2615 4649 5253 6044 6834

• All measurements are approximate and may vary from the actual sizes.
• BenQ recommends that if you intend to permanently install the projector, you
should physically test the projection size and distance using the actual projector
in situ before you permanently install it, so as to make allowance for this
projector's optical characteristics. This will help you determine the exact
mounting position so that it best suits your installation location.
• To optimize your projection quality, we suggest doing the projection by following
the values in the non-gray cells.
• The values in the gray cells are for reference only.
Shifting the projection lens
220 5588 2740 4870 5504 6331 7159
230 5842 2864 5092 5754 6619 7485
240 6096 2989 5313 6004 6907 7810
250 6350 3113 5535 6254 7195 8136
260 6604 3238 5756 6504 7483 8461
270 6858 3362 5977 6754 7770 8787
280 7112 3487 6199 7004 8058 9112
290 7366 3611 6420 7255 8346 9437
300 7620 3736 6641 7505 8634 9763
1V
min. 0V
max. 0.1V
Desk-front
projection

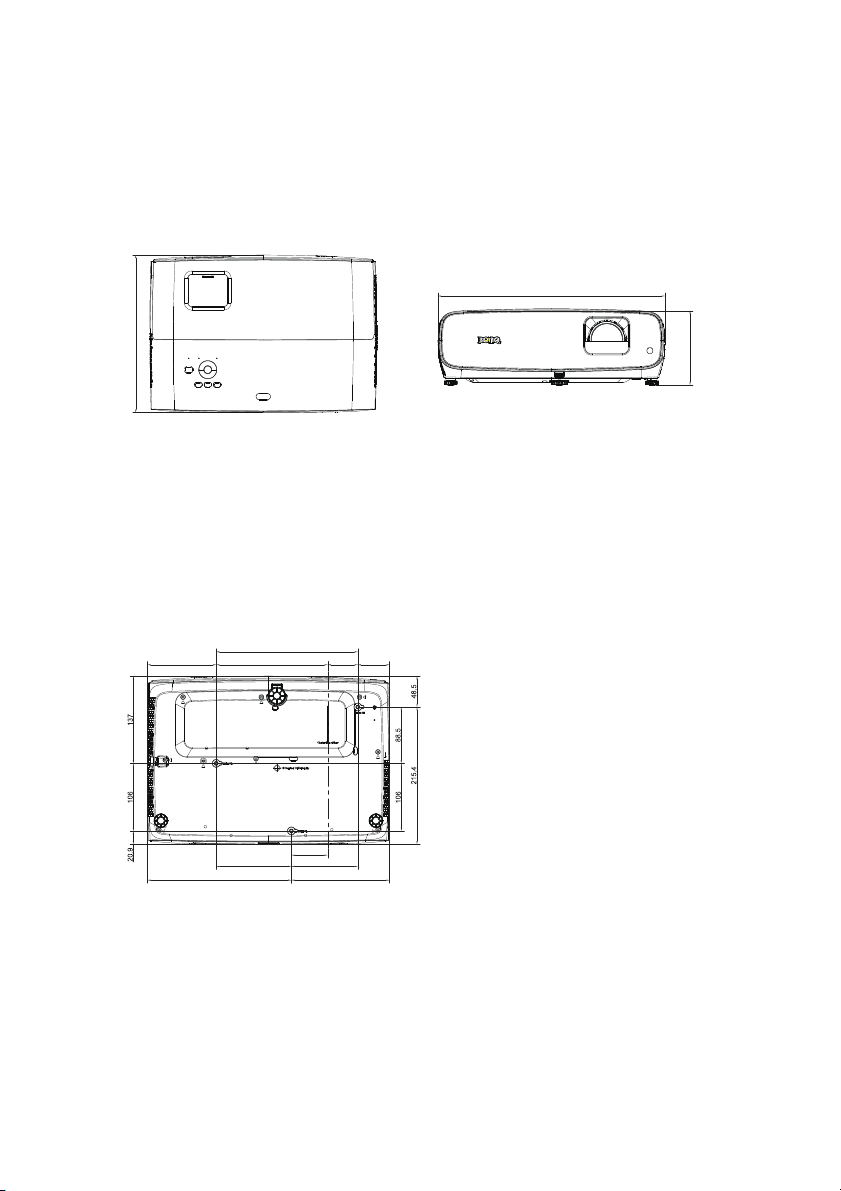

Dimensions
Projector dimensions
380 mm (W) x 127 mm (H) x 263 mm (D)
Unit: mm
Ceiling/Wall mount installation diagram
Unit: mm
380
127
263
Ceiling/Wall mount screw: M4
(Max L = 25 mm; Min L = 20 mm)
49.7175108
118 104.3
226 154
47.3
57
222.3
