Important safety instructions 3
Important safety instructions
Your projector is designed and tested to meet the latest standards for safety of information
technology equipment. However, to ensure safe use of this product, it is important that
you follow the instructions mentioned in this manual and marked on the product.
Safety Instructions

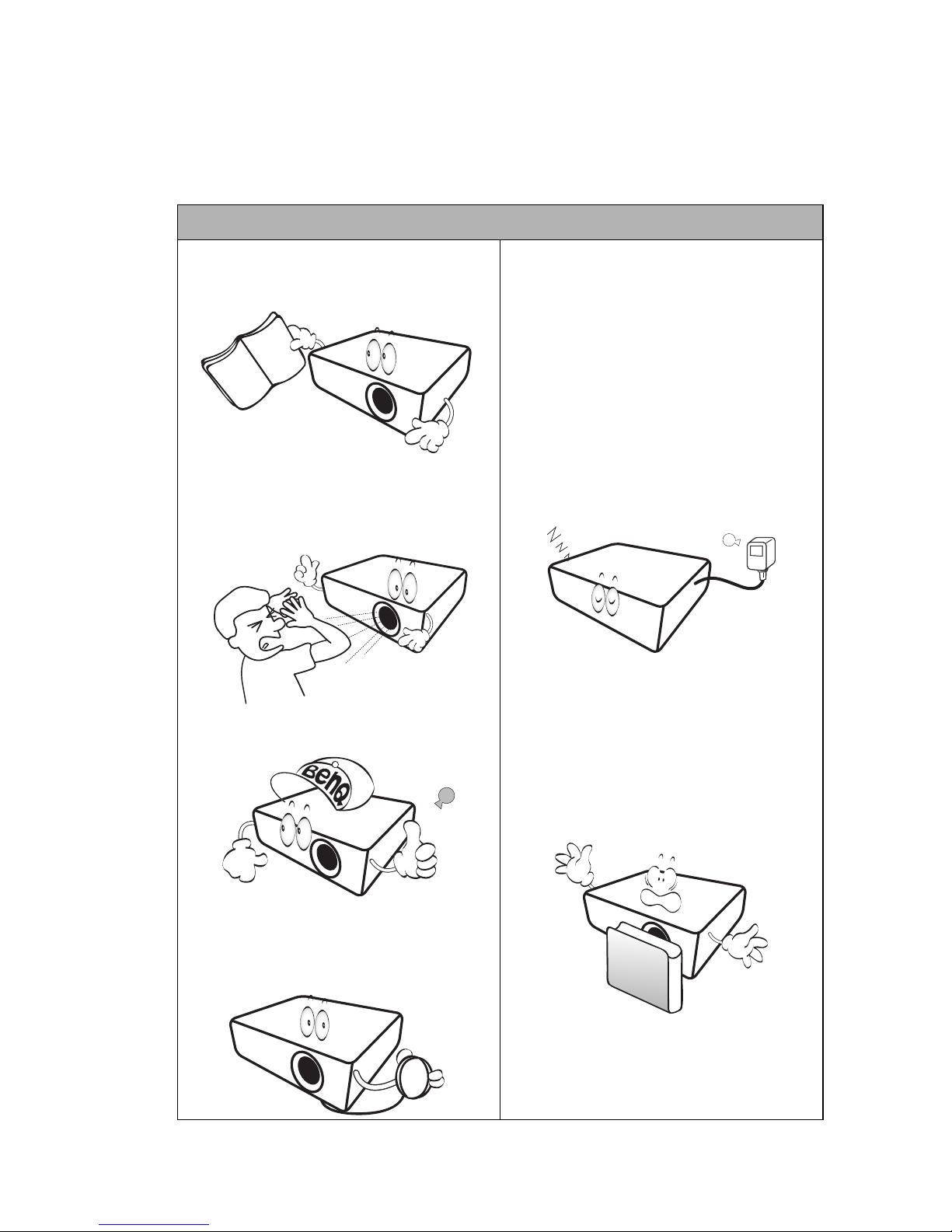

1. Please read this manual before
you operate your projector. Save
it for future reference.
2. Do not look straight at the
projector lens during operation.
The intense light beam may damage
your eyes.
3. Refer servicing to qualified
service personnel.
4. Always open the lens shutter (if
any) or remove the lens cap (if
any) when the projector lamp is
on.
5. In some countries, the line voltage is
NOT stable. This projector is
designed to operate safely within a
mains voltage between 100 to 240
volts AC, but could fail if power cuts
or surges of ±10 volts occur. In
areas where the mains voltage
may fluctuate or cut out, it is
recommended that you connect
your projector through a power
stabilizer, surge protector or
uninterruptible power supply
(UPS).
6. Do not block the projection lens with
any objects when the projector is
under operation as this could cause
the objects to become heated and
deformed or even cause a fire. To
temporarily turn off the lamp, press
ECO BLANK on the projector or
remote control.

Important safety instructions4
Safety Instructions (Continued)

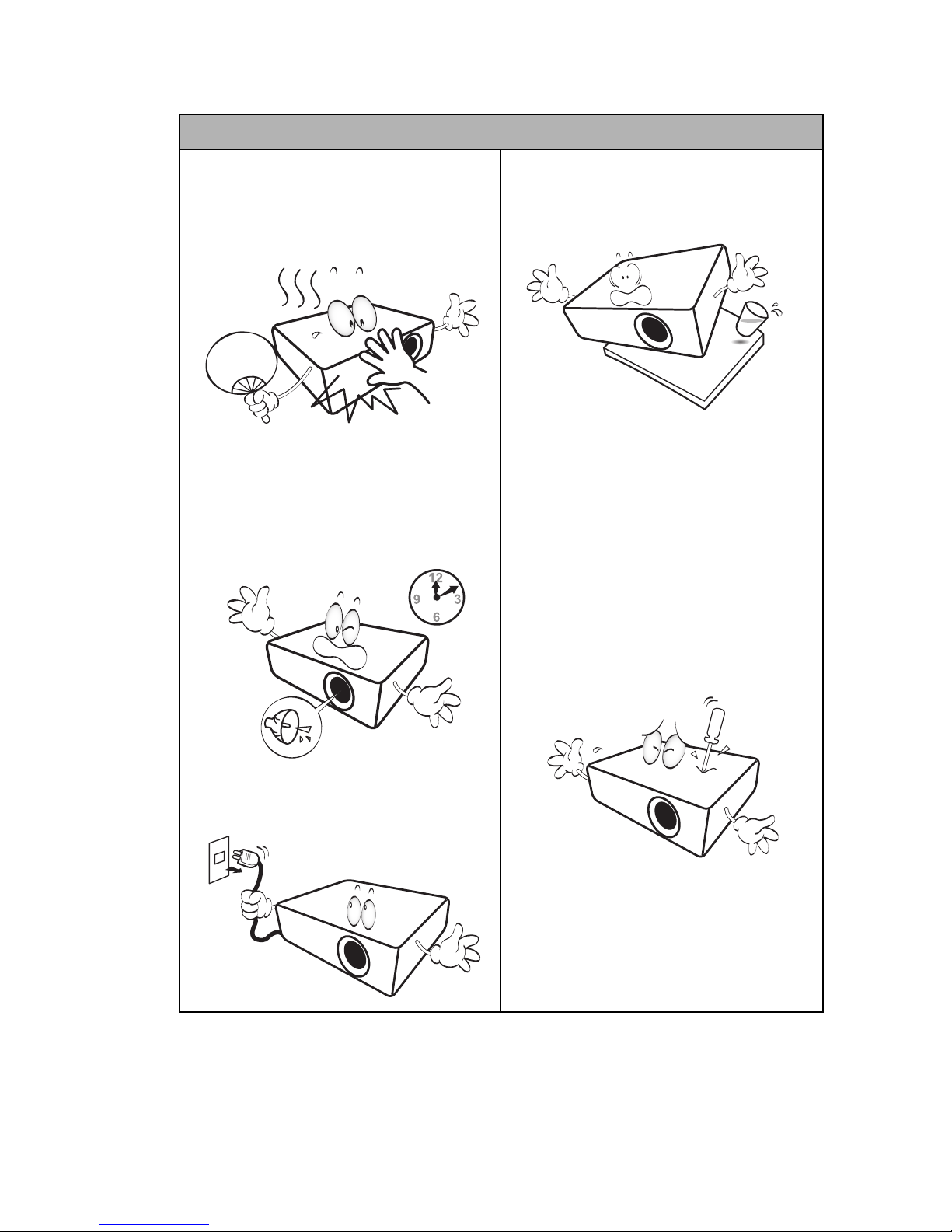

7. The lamp becomes extremely hot
during operation. Allow the projector
to cool for approximately 45 minutes
prior to removing the lamp assembly
for replacement.
8. Do not operate lamps beyond the
rated lamp life. Excessive operation of
lamps beyond the rated life could
cause them to break on rare
occasions.
9. Never replace the lamp assembly or
any electronic components unless the
projector is unplugged.
10. Do not place this product on an
unstable cart, stand, or table. The
product may fall, sustaining serious
damage.
11. Do not attempt to disassemble this
projector. There are dangerous high
voltages inside which may cause death
if you should come into contact with
live parts. The only user serviceable
part is the lamp which has its own
removable cover.
Under no circumstances should you
ever undo or remove any other
covers. Refer servicing only to
suitably qualified professional service
personnel.
12. When the projector is under
operation, you may sense some
heated air and odor from its
ventilation grill. It is a normal
phenomenon and not a product
defect.

Important safety instructions 5
Safety Instructions (Continued)
13. Do not place this projector in any of
the following environments.
- Space that is poorly ventilated or
confined. Allow at least 50 cm
clearance from walls and free flow of air
around the projector.
- Locations where temperatures may
become excessively high, such as the
inside of a car with all windows rolled
up.
- Locations where excessive humidity,
dust, or cigarette smoke may
contaminate optical components,
shorten the projector's life span and
darken the image.
- Locations near fire alarms
- Locations with an ambient temperature
above 40°C / 104°F
- Locations where the altitudes are higher
than 3000 m (10000 feet).

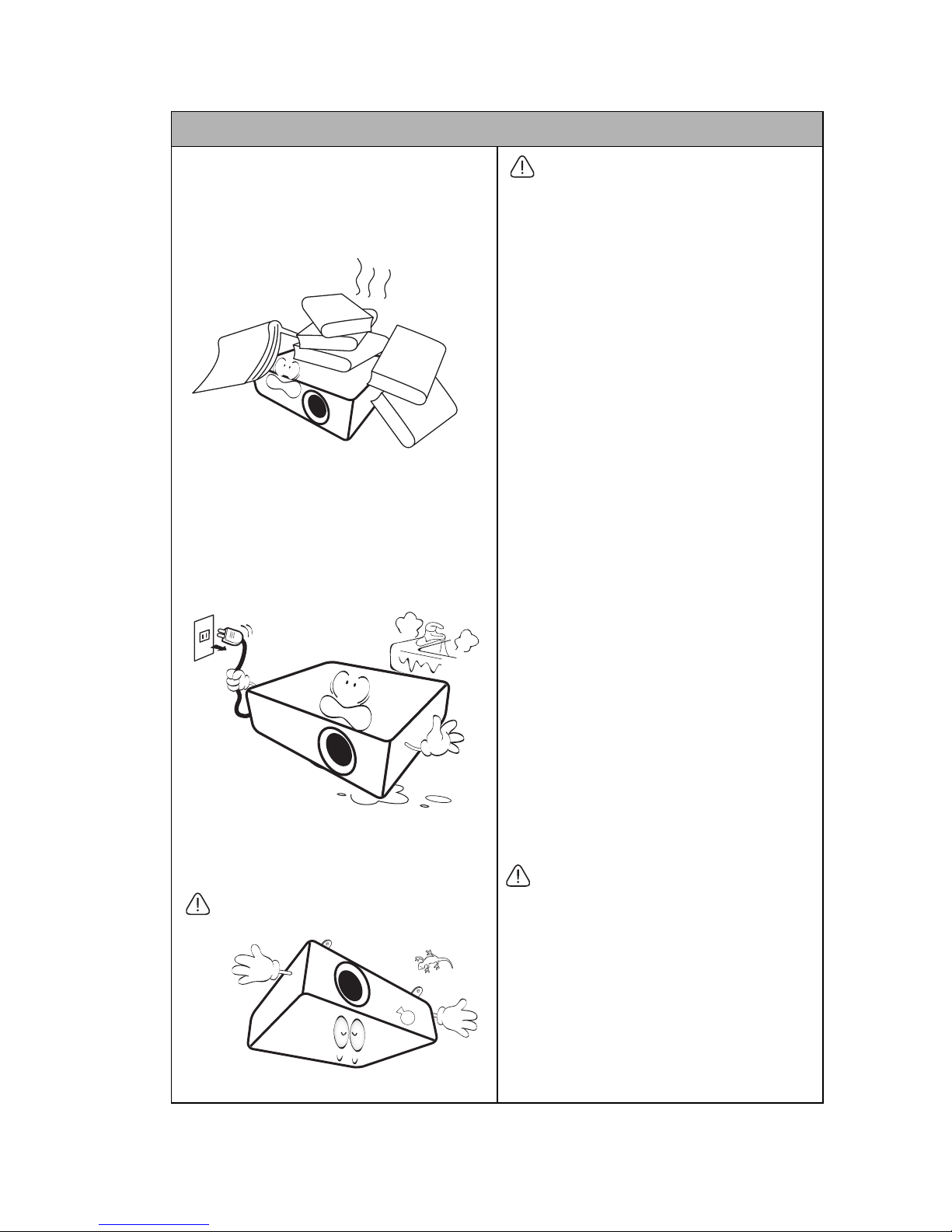

14. Do not block the ventilation holes.
- Do not place this projector on a
blanket, bedding or any other soft
surface.
- Do not cover this projector with a cloth
or any other item.
- Do not place inflammables near the
projector.
If the ventilation holes are seriously
obstructed, overheating inside the
projector may result in a fire.
15. Always place the projector on a level,
horizontal surface during operation.
- Do not use if tilted at an angle of more
than 10 degrees left to right, nor at
angle of more than 15 degrees front to
back. Using the projector when it is not
fully horizontal may cause a malfunction
of, or damage to, the lamp.
16. Do not stand the projector on end
vertically. Doing so may cause the
projector to fall over, causing injury or
resulting in damage to the projector.
3000 m
(10000 feet)
0 m
(0 feet)

Important safety instructions6
Safety Instructions (Continued)
17. Do not step on the projector or place
any objects upon it. Besides probable
physical damage to the projector, doing
so may result in accidents and possible
injury.
18. Do not place liquids near or on the
projector. Liquids spilled into the
projector may cause it to fail. If the
projector does become wet,
disconnect it from the power supply's
power outlet and call BenQ to have
the projector serviced.
19. This product is capable of displaying
inverted images for ceiling mount
installation.
Use only BenQ's Ceiling Mount Kit for
mounting the projector and ensure it is
securely installed.
20. This apparatus must be earthed.
Ceiling mounting the projector
We want you to have a pleasant
experience using your BenQ projector,
so we need to bring this safety matter
to your attention to prevent possible
damage to person and property.
If you intend to mount your projector
on the ceiling, we strongly recommend
that you use a proper fitting BenQ
projector ceiling mount kit and that
you ensure it is securely and safely
installed.
If you use a non-BenQ brand projector
ceiling mount kit, there is a safety risk
that the projector may fall from the
ceiling due to an improper attachment
through the use of the wrong gauge or
length screws.
You can purchase a BenQ projector
ceiling mount kit from the place you
purchased your BenQ projector. BenQ
recommends that you also purchase a
separate Kensington lock compatible
security cable and attach it securely to
both the Kensington lock slot on the
projector and the base of the ceiling
mount bracket. This will perform the
secondary role of restraining the
projector should its attachment to the
mounting bracket become loose.
Hg - Lamp contains mercury. Manage in
accordance with local disposal laws. See
www.lamprecycle.org.

Introduction 7
Introduction
Projector features
The projector offers the following features
• SmartEco™ starts your dynamic power saving
The SmartEco™ technology offers a new way of operating the projector lamp system
and saves lamp power depending on the content brightness level.
• Longest lamp life with SmartEco™ technology
The SmartEco™ technology lowers the power consumption and increases the lamp
life.
• ECO BLANK saves the lamp power
Pressing the ECO BLANK button to hide the image and immediately lower the lamp
power at the same time.
• Less than 0.5W in standby condition
Less than 0.5W power consumption under standby mode.
• Filter Free
Filter free design to lower maintenance and operating costs.
• One-key auto-adjustment
Pressing AUTO on the keypad or remote control to show the best picture quality
immediately.
• Built-in speaker(s)
Built-in speaker(s) providing mixed mono audio when an audio input is connected
• Quick Cooling, Auto Power Off, Signal Power On, Direct Power On
Quick Cooling function speeds up the cooling process when turning off the
projector. Auto Power Off function allows the projector to turn off automatically if
no input signal is detected after a set period of time. Signal Power On function turns
on your projector automatically once detecting the signal input and Direct Power
On boots up the projector automatically when the power is connected.
• Instant Restart
Selectable Instant Restart function enables you to restart the projector immediately
within 90 seconds after turning it off.
• 3D Function supported
Various 3D formats make the 3D function more flexible. By presenting the depth of the
images, you can wear BenQ 3D glassed to enjoy the 3D movies, videos and sporting
events in a more realistic way.
• The apparent brightness of the projected image will vary depending on the ambient lighting conditions,
selected input signal contrast/brightness settings, and is directly proportional to projection distance.
• The lamp brightness will decline over time and may vary within the lamp manufacturers specifications. This
is normal and expected behavior.

Introduction8
Shipping contents

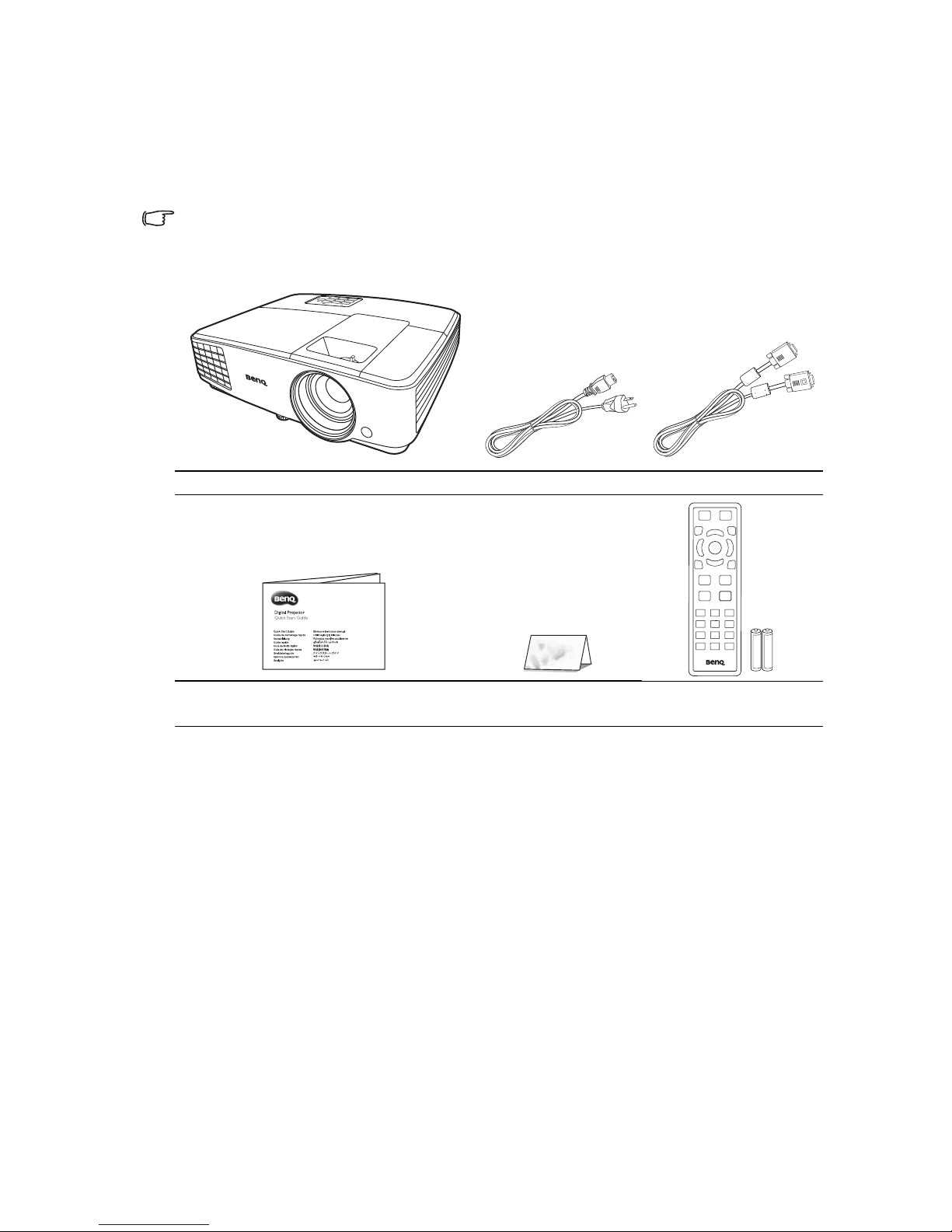

Carefully unpack and verify that you have all of the items shown below. If any of these items
are missing, please contact your place of purchase.
Standard accessories
The supplied accessories will be suitable for your region, and may differ from those illustrated.
*The warranty card is only supplied in some specific regions. Please consult your dealer for detailed
information.
Optional accessories
Projector Power cord VGA cable
Quick start guide Warranty card* Remote control with
batteries
1. Spare lamp kit
2. Ceiling mount kit
3. 3D glasses
4. Carry bag

Introduction 9
Projector exterior view
1. External control panel
(See "Controls and functions" on page 10
for details.)
2. Vent (heated air exhaust)
3. Adjuster foot
4. Focus and Zoom ring
5. Vent (cool air intake)
6. Speaker grill
7. Front IR remote sensor
8. Projection lens
9. AC power jack
10. Audio input jack
Audio output jack
11. S-Video input jack
Video input jack
12. USB port
13. RGB (PC)/Component Video (YPbPr/
YCbCr) signal input jacks
14. RGB signal output jack
15. RS232 control port
16. Ceiling mount holes
17. Kensington anti-theft lock slot
4
5
6
7
8
1
2
3
Front/upper side
9
10 11
17
12 13 14 15
16
Rear/lower side

Introduction10
Controls and functions
Projector
1. Focus ring
Adjusts the focus of the projected image.
2. Zoom ring
Adjusts the size of the image.
3. TEMPerature warning light
Lights up red if the projector's
temperature becomes too high.
4. MENU/EXIT
Turns on the On-Screen Display (OSD)
menu. Goes back to previous OSD menu,
exits and saves menu settings.
5. Left/
Decreases the projector volume.
6. ECO BLANK
Used to hide the screen picture.
7. Keystone/Arrow keys
(/Up, /Down)
Manually corrects distorted images
resulting from an angled projection.
8. LAMP indicator light
Indicates the status of the lamp. Lights up
or flashes when the lamp has developed a
problem.
9. AUTO
Automatically determines the best picture
timings for the displayed image.
10. POWER indicator light
Lights up or flashes when the projector is
under operation.
11. POWER
Toggles the projector between standby
mode and on.
12. Right/
Increases the projector volume.
When the On-Screen Display (OSD)
menu is activated, the #5, #7, and #12
keys are used as directional arrows to
select the desired menu items and to
make adjustments.
13. SOURCE
Displays the source selection bar.
14. MODE/ENTER
Selects an available picture setup mode.
Activates the selected On-Screen Display
(OSD) menu item.
1
2
3
4
5
7
8
9
7
6
11
12
13
14
10

Introduction 11
Remote control
1. POWER
Toggles the projector between standby
mode and on.
2. Info
Shows the status information of the
projector.
3. MENU/EXIT
Turns on the On-Screen Display (OSD)
menu. Goes back to previous OSD menu,
exits and saves menu settings.
4. Left
5. MODE/ENTER
Selects an available picture setup mode.
Activates the selected On-Screen Display
(OSD) menu item.
6. ECO BLANK
Used to hide the screen picture.
7. Keystone/Arrow keys
(/Up, /Down)
Manually corrects distorted images
resulting from an angled projection.
8. SmartEco
Displays the lamp mode selection bar.
9. Aspect
Selects the display aspect ratio.
10. Page Up/Page Down
Operate your display software program (on
a connected PC) which responds to page up/
down commands (like Microsoft
PowerPoint).
11. Digital Zoom (+, -)
Magnifies or reduces the projected picture
size.
12. Timer On
Activates or displays an on-screen timer
based on your own timer setting.
13. Timer Set up
Enters presentation timer setting directly.
14. 3D settings
Enters 3D settings directly.
15. AUTO
Automatically determines the best picture
timings for the displayed image.
16. Right
When the On-Screen Display (OSD) menu
is activated, the #4, #7, and #16 keys are
used as directional arrows to select the
desired menu items and to make
adjustments.
17. SOURCE
Displays the source selection bar.
18. Volume +/-
Adjusts the sound level.
19. Mute
Toggles projector audio between on and off.
20. Freeze
Freezes the projected image.
21. Quick Install
Quickly selects several functions to adjust
the projected image and displays the test
pattern.
22. CC
Displays the video term description on
screen which is provided for hard-of-hearing
viewers.
23. Teaching template
Enters Teaching template setting directly.
2
3
4
8
9
11
12
13
15
17
19
20
21
23
22
16
14
10
6
5
7
7
1
18
18

Introduction12
Remote control effective range
The remote control must be held at an angle within 30 degrees perpendicular to the
projector's IR remote control sensor(s) to function correctly. The distance between the
remote control and the sensor(s) should not exceed 8 meters (~ 26 feet).
Make sure that there are no obstacles between the remote control and the IR sensor(s) on
the projector that might obstruct the infra-red beam.
Replacing the remote control batteries

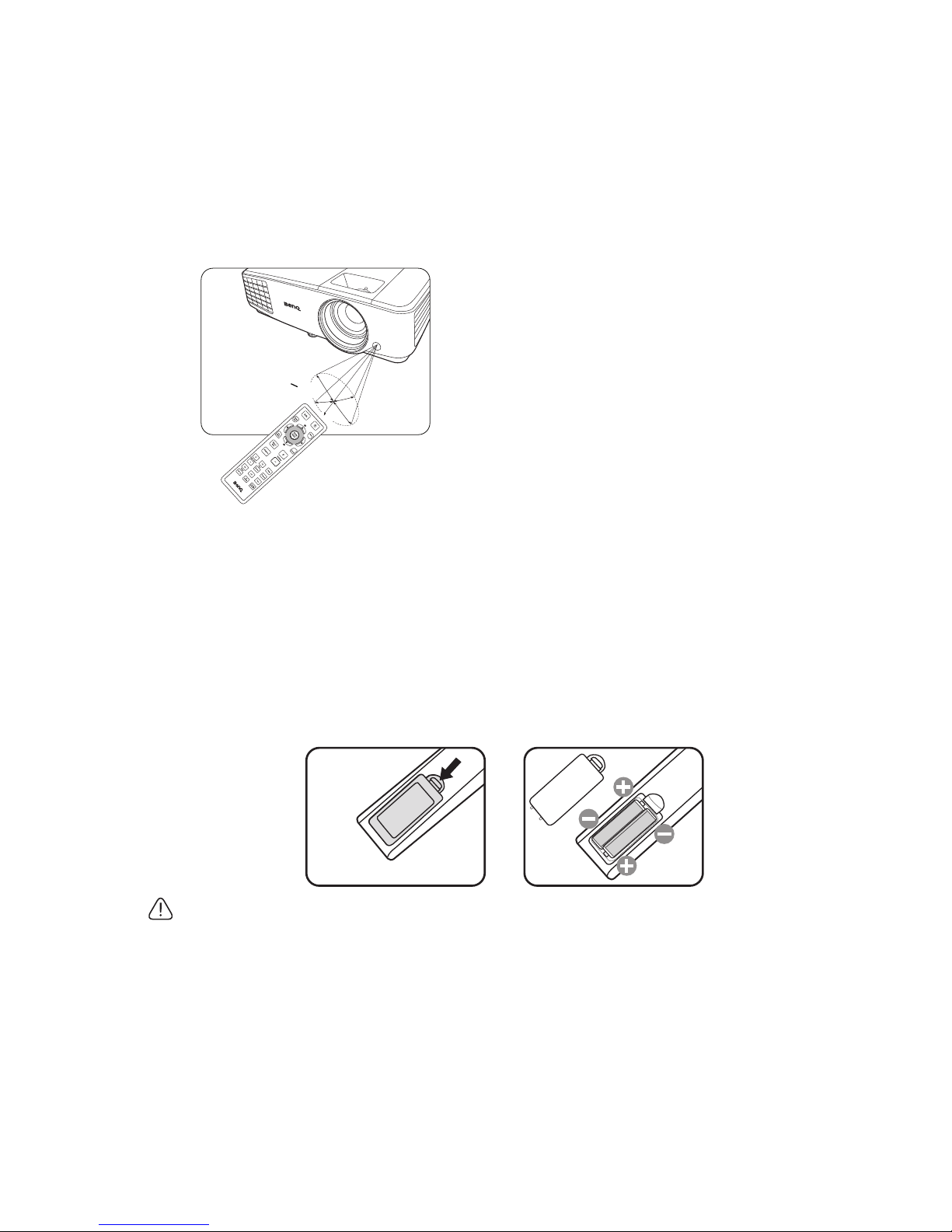

1. To open the battery cover, turn the remote control over to view its back, push on
the finger grip on the cover and slide it up in the direction of the arrow as illustrated.
The cover will slide off.
2. Remove any existing batteries (if necessary) and install two AAA batteries observing
the battery polarities as indicated in the base of the battery compartment. Positive
(+) goes to positive and negative (-) goes to negative.
3. Refit the cover by aligning it with the base and sliding it back down into position. Stop
when it clicks into place.
• Avoid leaving the remote control and batteries in an excessive heat or humid environment like the
kitchen, bathroom, sauna, sunroom or in a closed car.
• Replace only with the same or equivalent type recommended by the battery manufacturer.
• Dispose of the used batteries according to the manufacturer's instructions and local environment
regulations for your region.
• Never throw the batteries into a fire. There may be danger of an explosion.
• If the batteries are dead or if you will not be using the remote control for an extended period of time,
remove the batteries to avoid damage to the remote control from possible battery leakage.
• Operating the projector from the front
Approx.+30º

Positioning your projector 13
Positioning your projector
Choosing a location

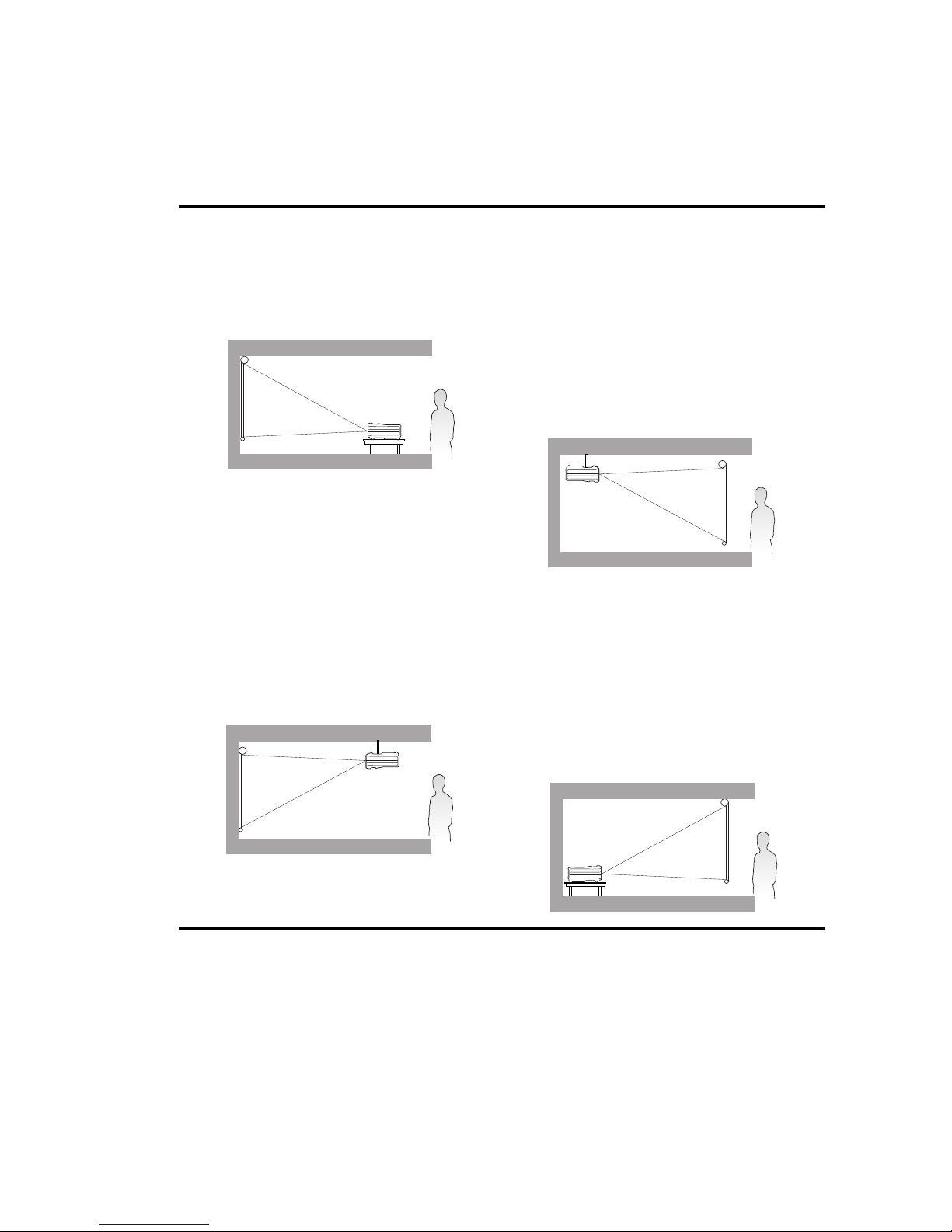

Your projector is designed to be installed in one of four possible installation locations:
Your room layout or personal preference will dictate which installation location you select.
Take into consideration the size and position of your screen, the location of a suitable
power outlet, as well as the location and distance between the projector and the rest of
your equipment.
1. Front Table
Select this location with the projector
placed on the table in front of the screen.
This is the most common way to position
the projector for quick setup and
portability.
2. Front Ceiling
Select this location with the projector
suspended upside-down from the ceiling in
front of the screen.
Purchase the BenQ Projector Ceiling
Mount Kit from your dealer to mount your
projector on the ceiling.
Set Front Ceiling in the SYSTEM
SETUP: Basic > Projector Installation
menu after you turn the projector on.
3. Rear Ceiling
Select this location with the projector
suspended upside-down from the ceiling
behind the screen.
Note that a special rear projection screen
and the BenQ Projector Ceiling Mount Kit
are required for this installation location.
Set Rear Ceiling in the SYSTEM
SETUP: Basic > Projector Installation
menu after you turn the projector on.
4. Rear Table
Select this location with the projector
placed on the table behind the screen.
Note that a special rear projection screen
is required.
Set Rear Table in the SYSTEM SETUP:
Basic > Projector Installation menu
after you turn the projector on.

Positioning your projector14
Obtaining a preferred projected image size
The distance from the projector lens to the screen, the zoom setting, and the video format
each factors in the projected image size.
Projection dimensions
Refer to "Dimensions" on page 52 for the center of lens dimensions of this projector
before calculating the appropriate position.
The screen aspect ratio is 4:3 and the projected picture is 4:3
For example, if you are using an 120-inch screen, the recommended projection distance is
4762 mm and the vertical offset is 183 mm.
If your measured projection distance is 6.0 m (6000 mm), the closest match in the
"Distance from screen (mm)" column is 5953 mm. Looking across this row shows that a
150'' (about 3.8 m) screen is required.
All measurements are approximate and may vary from the actual sizes.
BenQ recommends that if you intend to permanently install the projector, you should physically test the
projection size and distance using the actual projector in situ before you permanently install it, so as to make
allowance for this projector's optical characteristics. This will help you determine the exact mounting position
so that it best suits your installation location.
Screen size Distance from screen (mm)
Ver tical
offset
(mm)
Diagonal
W (mm) H (mm)
Min
length Average
Max
length
Inch mm (max.
zoom)
(min.
zoom)
30 762 610 457 1134 1191 1247 46
40 1016 813 610 1512 1587 1663 61
50 1270 1016 762 1890 1984 2079 76
60 1524 1219 914 2268 2381 2494 91
80 2032 1626 1219 3024 3175 3326 122
100 2540 2032 1524 3780 3968 4157 152
120 3048 2438 1829 4535 4762 4989 183
150 3810 3048 2286 5669 5953 6236 229
200 5080 4064 3048 7559 7937 8315 305
220 5588 4470 3353 8315 8731 9146 335
250 6350 5080 3810 9449 9921 10394 381
300 7620 6096 4572 11339 11905 12472 457
H
W
Projection distance
Center of lens
Screen
Vertical offset
4:3 Screen diagonal

Connection 15
Connection
When connecting a signal source to the projector, be sure to:
1. Turn all equipment off before making any connections.
2. Use the correct signal cables for each source.
3. Ensure the cables are firmly inserted.
• In the connections shown below, some cables may not be included with the projector (see "Shipping
contents" on page 8). They are commercially available from electronics stores.
• The connection illustrations below are for reference only. The rear connecting jacks available on the
projector vary with each projector model.
• Many notebooks do not turn on their external video ports when connected to a projector. Usually a key
combo like FN + F3 or CRT/LCD key turns the external display on/off. Locate a function key labeled CRT/
LCD or a function key with a monitor symbol on the notebook. Press FN and the labeled function key
simultaneously. Refer to your notebook's documentation to find your notebook's key combination.
• The D-Sub output only works when an appropriate D-Sub input is made to the COMPUTER 1 jack.
1. VGA cable
2. VGA to DVI-A cable
3. USB cable
4. Component Video to VGA (D-Sub)
adapter cable
5. S-Video cable
6. Video cable
7. Audio cable
7
7
74 1 2
1
356
Notebook or desktop
computer
Speakers
A/V device
Monitor
(DVI)
(VGA)
or
or

Connection16
• If you wish to use this connection method when the projector is in standby mode, make sure the
Monitor Out function is turned on in the SYSTEM SETUP: Advanced menu. See "Standby Settings"
on page 43 for details.
Connecting video source devices
You need only connect the projector to a video source device using just one of the
connecting methods, however each provides a different level of video quality. The method
you choose will most likely depend upon the availability of matching terminals on both the
projector and the video source device as described below:
Connecting audio
The projector has built-in mono speaker(s) which are designed to provide basic audio
functionality accompanying data presentations for business purposes only. They are not
designed for, nor intended for stereo audio reproduction use as might be expected in
home theater or home cinema applications. Any stereo audio input (if provided), is mixed
into a common mono audio output through the projector speaker(s).
The built-in speaker(s) will be muted (except for the Power On/Off Ring Tone) when
the AUDIO OUT jack is connected.
• The projector is only capable of playing mixed mono audio, even if a stereo audio input is connected. See
"Connecting audio" on page 16 for details.
• If the selected video image is not displayed after the projector is turned on and the correct video source
has been selected, check that the video source device is turned on and operating correctly. Also check
that the signal cables have been connected correctly.
Te r m i n a l n a m e Terminal appearance Picture quality
Component Video Better
S-Video Good
Video Normal

Operation 17
Operation
Starting up the projector
1. Plug the power cord into the projector and into a
power outlet. Turn on the power outlet switch
(where fitted). Check that the POWER indicator
light on the projector lights orange after power
has been applied.
Please use the original accessories (e.g. power cord) only with the
device to avoid possible dangers such as electric shock and fire.
2. Press POWER to start the projector. As soon as the lamp lights up, a "Power
On Ring Tone" will be heard. The POWER indicator light flashes green and
stays green when the projector is on.
The start up procedure takes about 30 seconds. In the later stage of start up, a
startup logo is projected.
(If necessary) Rotate the focus ring to adjust the image clearness.
To turn off the ring tone, see "Turning off the Power On/Off Ring Tone" on page 32
for details.
If the projector is still hot from previous activity, it will run the cooling fan for approximately 90 seconds
before energizing the lamp.
3. If the projector is activated for the first
time, select your OSD language following
the on-screen instructions.
4. If you are prompted for a password, press
the arrow keys to enter a six-digit
password. See "Utilizing the password
function" on page 21 for details.
5. Switch all of the connected equipment on.
6. The projector will start to search for input
signals. The current input signal being
scanned appears in the upper left corner of
the screen. If the projector doesn't detect
a valid signal, the message “No Signal” will
continue displaying until an input signal is
found.
You can also press SOURCE on the
projector or remote control to select your
desired input signal. See "Switching input
signal" on page 23 for details.
• If the frequency/resolution of the input signal exceeds the projector's operating range, you will see the
message “Out of Range” displayed on the background screen. Please change to an input signal which is
compatible with the projector's resolution or set the input signal to a lower setting. See "Timing chart" on
page 53 for details.
• If no signal is detected for 3 minutes, the projector automatically enters ECO BLANK mode.

Operation18
Adjusting the projected image
Adjusting the projection angle
The projector is equipped with 1 adjuster foot. It
changes the image height and projection angle. To
adjust the projector, screw the adjuster foot to fine-
tune the horizontal angle.
To retract the foot, screw the rear adjuster foot in a
reverse direction.
If the projector is not placed on a flat surface or the
screen and the projector are not perpendicular to
each other, the projected image becomes
trapezoidal. To correct this situation, see
"Correcting keystone" on page 19 for details.
Auto-adjusting the image
In some cases, you may need to optimize the picture quality. To do this, press AUTO on
the projector or remote control. Within 3 seconds, the built-in Intelligent Auto
Adjustment function will re-adjust the values of Frequency and Clock to provide the best
picture quality.
The current source information will be displayed in the corner of the screen for 3 seconds.
This function is only available when PC signal (analog RGB) is selected.
Fine-tuning the image size and clarity
Do not look into the lens while the
lamp is on. The strong light from the
lamp may cause damage to your eyes.
Be careful when you press the quick-
release button as it is close to the
exhaust vent where hot air comes
from.
1. Adjust the projected image to the
size that you need using the zoom
ring.
2. Sharpen the image by rotating the
focus ring.

Operation 19

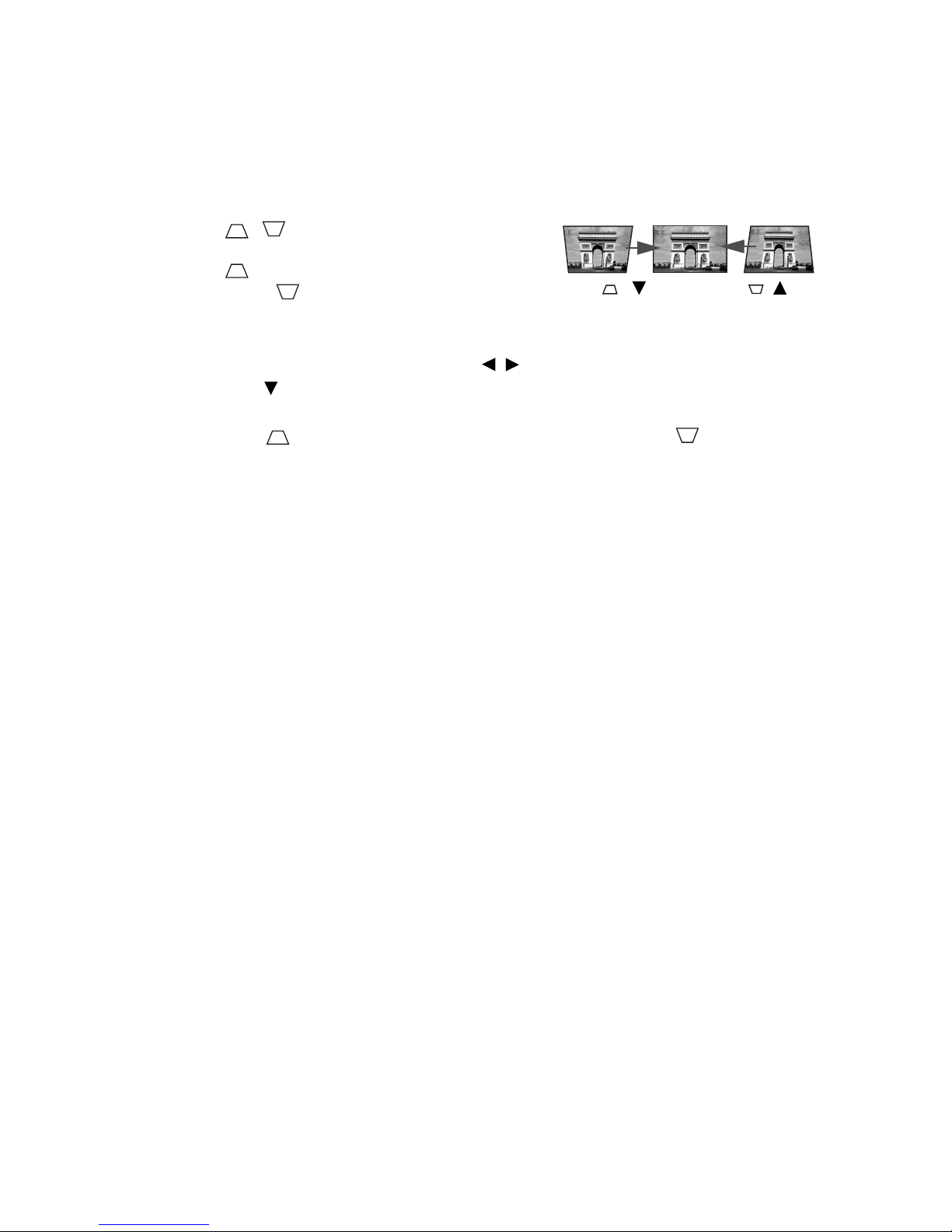

Correcting keystone
Keystoning refers to the situation where the projected image is noticeably wider at either
the top or bottom. It occurs when the projector is not perpendicular to the screen.
To correct this, you will need to manually correct it following ONE of these steps.
• Using the remote control
Press / on the projector or remote
control to display the Keystone correction page.
Press to correct keystoning at the top of the
image. Press to correct keystoning at the
bottom of the image.
• Using the OSD menu
1. Press MENU/EXIT and then press / until the DISPLAY menu is highlighted.
2. Press to highlight Keystone and press MODE/ENTER. The Keystone
correction page appears.
3. Press to correct keystoning at the top of the image. Press to correct
keystoning at the bottom of the image.
Press /.
Press /.

Operation20
Using the menus

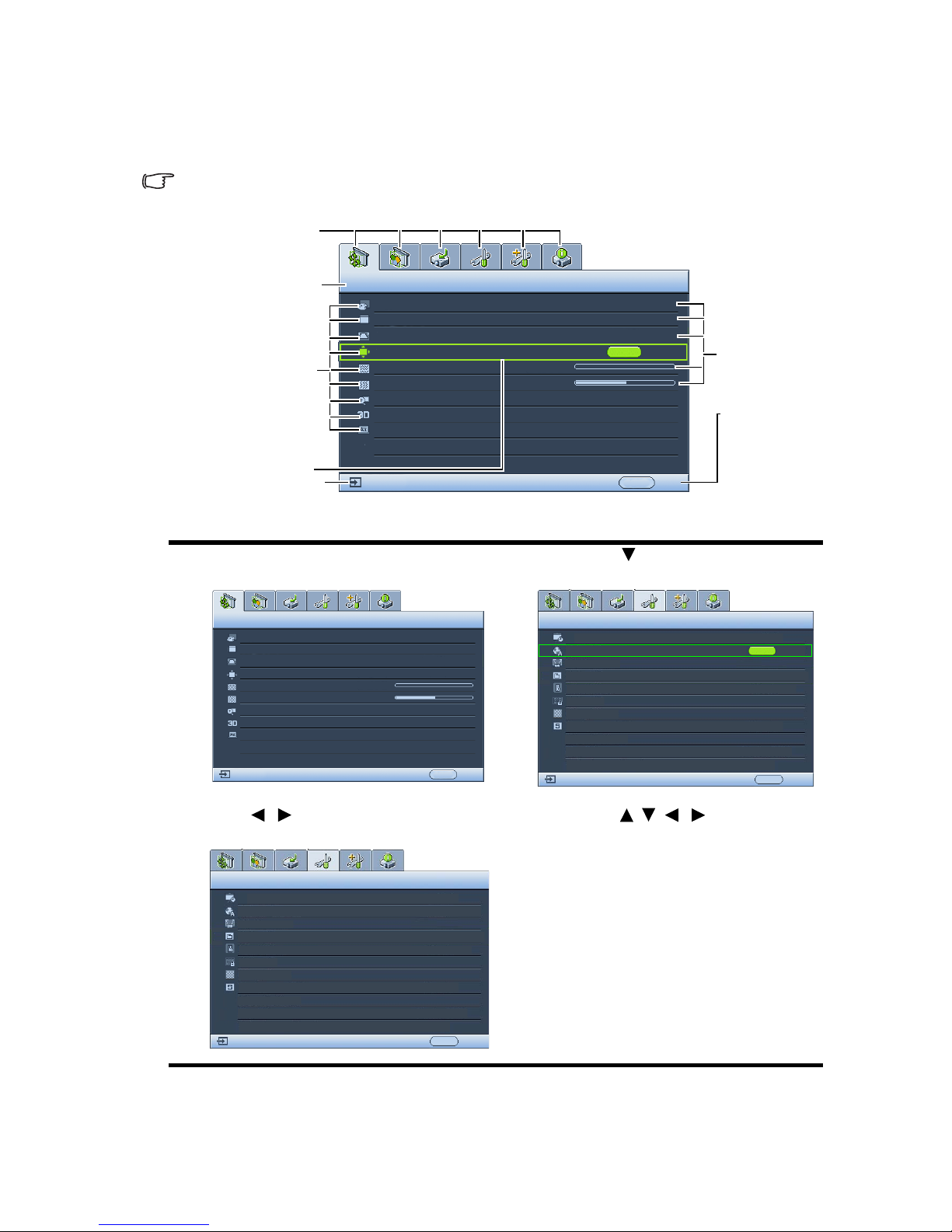

The projector is equipped with On-Screen Display (OSD) menus for making various
adjustments and settings.
The OSD screenshots below are for reference only, and may differ from the actual design.
Below is the overview of the OSD menu.
The following example describes how to set the OSD language.
1. Press MENU/EXIT on the projector or
remote control to turn the OSD menu on.
3. Press to highlight Language
and press MODE/ENTER.
2. Use / to highlight the SYSTEM
SETUP: Basic menu.
4. Press / / / to select a
preferred language.
5. Press MENU/EXIT on the
projector or remote control to
leave and save the settings.
Current input signal
Main menu icon
Main menu
Sub-menu
Highlight
Press MENU/
EXIT to the
previous
page or to
exit.
Status
DISPLAY
Wall Color
Aspect Ratio
Keystone
Position
Phase
H. Size
Digital Zoom
Off
Auto
0
0
ENTER
MENU Exit
Analog RGB
3D
Teaching Template
DISPLAY
Wall Color
Aspect Ratio
Position
Phase
H. Size
Digital Zoom
Keystone
Analog RGB
Off
Auto
0
0
MENU Exit
3D
Teaching Template
SYSTEM SETUP: Basic
Presentation Timer
Language
Projector Installation
Operation Settings
Panel Key Lock
Splash Screen
Background Color
Analog RGB
MENU Exit
Front Table
Off
BenQ
BenQ
Menu Settings
ENTER
SYSTEM SETUP: Basic
Presentation Timer
Language
Projector Installation
Operation Settings
Panel Key Lock
Splash Screen
Background Color
Analog RGB
MENU Exit
Front Table
Off
BenQ
BenQ
Menu Settings
