BERG BENOMIC S 350 User manual

Technical Manual
BENOMIC S 350
Berg Hortimotive
Burg. Crezeelaan 42a
2678 KZ De Lier
The Netherlands
Tel: [phone]
Email: [e-mail]
Internet: www.berghortimotive.com

Translated user manual (EN-V3) BENOMIC S 350 2 / 53

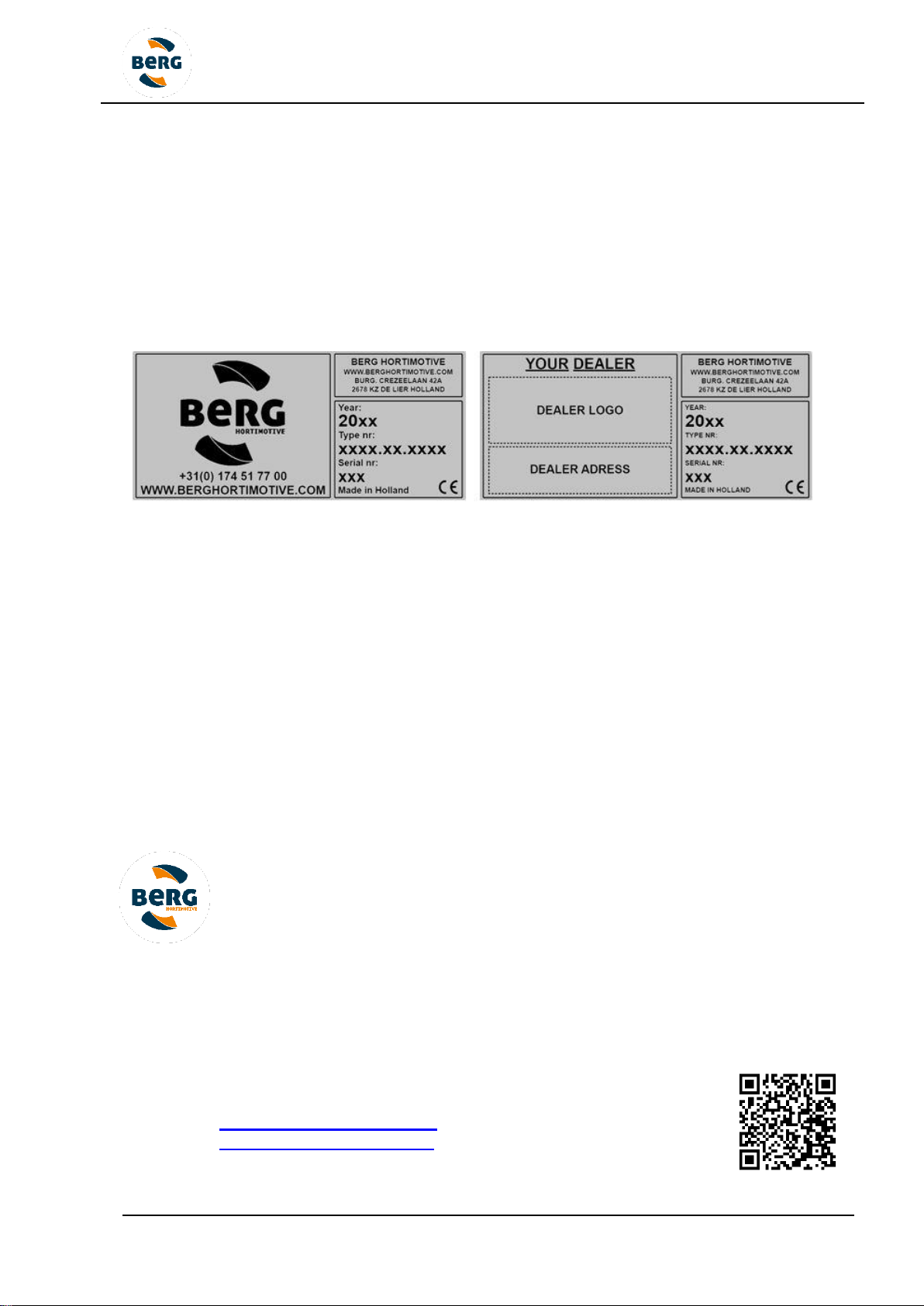

Machine type plate
The BENOMIC S carries a machine type plate which contains the following data: Berg
Hortimotive address details, CE marking, serial number and the year of manufacture.
If you would like to contact the Berg Hortimotive dealer with respect to the BENOMIC S,
please ensure that this information is always readily available.
The machine is manufactured by:
Berg Hortimotive
Burg. Crezeelaan 42a
2678 KZ De Lier
The Netherlands
Tel: [phone]
Email: [e-mail]
Internet: www.berghortimotive.com

Translated user manual (EN-V3) BENOMIC S 350 3 / 53
1. Declarations
1.1 Copyright
Berg Hortimotive
De Lier, 2021
No part of this documentation may be reproduced and/or made public by means of print,
photocopy, film or any other means without prior written permission from Berg Hortimotive
in De Lier, the Netherlands –Except parts intended to be reproduced for the purpose of
using this documentation such as abbreviated instructions and indications on the
machine.
1.2 Liability
Berg Hortimotive is not liable for unsafe situations, accidents and damages resulting from
the failure to observe warnings or regulations, as shown on the BENOMIC S and/or in this
documentation, for example:
- inexpert or improper use or maintenance;
- use for applications or under conditions other than those specified in this
documentation;
- use of parts other than those specified;
- repairs without permission from Berg Hortimotive and/or a certified dealer;
- modifications to the BENOMIC S. This includes:
- changes to the controls;
- welding, mechanical operations, etc.;
- extensions or additions to the BENOMIC S or the controls.
Berg Hortimotive is also not liable in the following cases:
- if the customer has not fulfilled all his obligations toward Berg Hortimotive (financial
or otherwise);
- for consequential damage caused by faults or defects on the BENOMIC S (e.g.
business interruption, delays, etc.).

Translated user manual (EN-V3) BENOMIC S 350 4 / 53
1.3 Guarantee
Berg Hortimotive guarantee is valid for six(6) months after delivery, and offers the customer
warranty on material and manufacturing defects, which arise during normal use. This
guarantee shall not apply if the fault(s) is/are due to improper use or causes other than
material and manufacture faults, or if Berg Hortimotive supplies materials or used goods
after consultation with the client or if the cause of the fault(s) cannot be clearly
demonstrated.
The guarantee conditions are described in the Dutch “METAALUNIE”CONDITIONS, as
recorded in the most recently deposited text. The terms of delivery will be sent on request.
For all goods and materials that Berg Hortimotive does not manufacture itself, Berg
Hortimotive does not, at any time, offer lengthier guarantee than that provided to it by its
supplier. Warranty is “ex-factory”; faulty machines and/or parts need to be delivered
freight-paid.
If machines or installations cannot be delivered, the travel and accommodation costs
incurred will be borne by the client.
Goods sold and delivered with factory, importer's or wholesale guarantees shall be subject
to the warranty provisions laid down by the suppliers.
The hydraulic pump is subject to manufacturer's warranty only if it has an undamaged
supplier's safety seal.
Berg Hortimotive takes responsibility for the availability of replacement parts provided that
they are available from its suppliers under reasonable conditions.
2. Foreword
This manual describes the BENOMIC S .
This manual provides you with additional information on safety aspects, a description of
the working principle of the entire setup, as well as maintenance instructions for the
BENOMIC S.
It will draw attention to potential hazards and directions for avoiding them.
It is very important to read this manual carefully to learn how to operate and maintain the
BENOMIC S. By reading and following this manual when using the BENOMIC S , you and
others will be helped to properly use the BENOMIC S, and to prevent personal injury and
damage to the machine.
Berg Hortimotive produces safe machines. These machines are designed to the latest
standards, according to the CE marking. The user is responsible for the proper use and
maintenance of the machine.

Translated user manual (EN-V3) BENOMIC S 350 5 / 53
Table of contents
1. DECLARATIONS....................................................................................................................... 3
1.1 COPYRIGHT.......................................................................................................................... 3
1.2 LIABILITY.............................................................................................................................. 3
1.3 GUARANTEE......................................................................................................................... 4
2. FOREWORD .............................................................................................................................. 4
3. INTRODUCTION........................................................................................................................ 7
3.1 GENERAL:............................................................................................................................ 7
3.2 SUPPLIERS INFORMATION...................................................................................................... 7
4. SAFETY ..................................................................................................................................... 8
4.1 DECLARATION OF SAFETY TERMS........................................................................................... 8
4.2 SAFETY INSTRUCTIONS ......................................................................................................... 8
4.3 SAFETY ICONS.................................................................................................................... 11
4.4 OTHER RISKS...................................................................................................................... 12
5. INTENDED USE....................................................................................................................... 13
5.1 SCOPE OF USE.................................................................................................................... 13
5.1.1 Physical operating conditions................................................................................... 13
5.2 SAFETY SYSTEMS ............................................................................................................... 14
5.3 SIGNALLING SYSTEMS ......................................................................................................... 15
5.3.1 The multi-colour indicator (11).................................................................................. 15
5.3.2 The horn ................................................................................................................... 18
5.4 BENOMIC SDESCRIPTION................................................................................................. 19
6. TRANSPORT ........................................................................................................................... 21
6.1 EXTERNAL TRANSPORT ....................................................................................................... 21
6.2 INTERNAL TRANSPORT......................................................................................................... 21
7. COMMISSIONING.................................................................................................................... 22
7.1 INSPECTION BEFORE TAKING INTO SERVICE .......................................................................... 22
7.2 PIPE-RAIL SYSTEM IN HORTICULTURE................................................................................... 22
7.3 MINIMUM REQUIREMENTS FOR THE PIPE-RAIL SYSTEM........................................................... 23
7.4 TILT INDICATION.................................................................................................................. 24
7.5 LOAD LIMITER MEASUREMENT SYSTEM................................................................................. 25
7.6 LOAD-HOLDING FUNCTION ................................................................................................... 25
7.7 SCISSOR-LOCKING DEVICE .................................................................................................. 25
7.8 EMERGENCY LOWERING VALVE............................................................................................ 26
7.9 PIPE DETECTION SENSOR.................................................................................................... 26
7.10 SPEED LIMITER ON THE CONCRETE PATH.............................................................................. 26
7.11 PIPE -CONCRETE PATH TRANSITION..................................................................................... 27
8. OPERATION ............................................................................................................................ 27
8.1 OPERATION........................................................................................................................ 28
8.1.1 Undercarriage controls............................................................................................. 28
8.1.2 Controls on the platform........................................................................................... 29
8.2 MOVING THE BENOMIC SONTO THE MAIN PATH ................................................................. 32
8.2.1 Crop work on a row of plants along a gable path..................................................... 33
8.3 MOVING THE BENOMIC SON THE HARVESTING PATH.......................................................... 33
8.3.1 Driving into the harvesting path................................................................................ 33
8.3.2 Driving out of the harvesting path............................................................................. 33
8.4 AUTOMATICALLY DISCONNECT “SLEEP MODE"....................................................................... 34
8.5 OUT OF SERVICE................................................................................................................. 34
8.6 CLEANING .......................................................................................................................... 34
8.7 PROBLEMS,CAUSES AND SOLUTIONS................................................................................... 35
8.8 DISASSEMBLY..................................................................................................................... 37

Translated user manual (EN-V3) BENOMIC S 350 6 / 53
9. MAINTENANCE AND REPAIRS............................................................................................. 38
9.1 SPECIALIST MAINTENANCE................................................................................................... 38
9.2 MAINTENANCE ON,IN OR UNDER THE SCISSOR-UNIT ............................................................. 39
9.3 PIPE-RAIL SYSTEM MAINTENANCE........................................................................................ 39
9.4 CHAIN TIGHTENING.............................................................................................................. 40
9.5 CHECK PIPE-RAIL WHEEL WEAR........................................................................................... 41
10. TECHNICAL SPECIFICATIONS ......................................................................................... 42
10.1 *EXPLANATION OF THE TECHNICAL SPECIFICATIONS............................................................. 43
11. EC DECLARATION OF CONFORMITY.............................................................................. 44
APPENDIX 1: MAINTENANCE LOGBOOK .............................................................................. 45
APPENDIX 2: TECHNICAL DRAWINGS................................................................................... 46
APPENDIX 3: BATTERY SAFETY SHEET ............................................................................... 47
APPENDIX 4: CLEANING THE POWDER COAT FINISH........................................................ 52
APPENDIX 5: QUICK START GUIDE........................................................................................ 53

Translated user manual (EN-V3) BENOMIC S 350 7 / 53
3. Introduction
3.1 General:
You have made a good choice in purchasing the Berg Hortimotive BENOMIC S. You have
an excellent tool, which has been carefully constructed and manufactured. This
investment will benefit you most if you carefully follow the safety, use, and maintenance
instructions detailed in this user manual.
Before commissioning the BENOMIC S, please make yourself familiar with this user
manual. The safety precautions, instructions and directions given should be observed at
all times.
Berg Hortimotive is not liable for damage or indirect damage resulting from failure to follow
the instructions and safety precautions set out in this user manual.
The liability of Berg Hortimotive shall also lapse as soon as you or third parties make any
modifications to the pipe-rail trolley or accessories without our written permission.
The BENOMIC S has been delivered under the "METAALUNIE" (The Dutch METAL-
ASSOCIATION) CONDITIONS, as filed at the court of Rotterdam, as they are in
accordance with the last text set out there. The terms of delivery will be sent on request.
You can also contact the Koninklijke Metaalunie, Postbus 2600, 3430 GA Nieuwegein,
The Netherlands.
3.2 Suppliers information
In the event of breakdowns or defects occurring on the BENOMIC S please contact your
Berg Hortimotive dealer.

Translated user manual (EN-V3) BENOMIC S 350 8 / 53
4. Safety
4.1 Declaration of safety terms
Safety terms:
Danger: Indicates serious injury or risk of fatality when ignoring the
instructions set out in the user manual.
Warning: Indicates risk of injury when ignoring the instructions set out in the
user manual.
Caution: Indicates risk of damage to the machine when ignoring the
instructions set out in the user manual.
ATTENTION: Indicates risk of injury when ignoring the instructions set out in the
user manual.
4.2 Safety Instructions
Please read the following safety precautions carefully.
After reading the safety instructions, always follow them strictly.
If the safety precautions are ignored, working with the pipe-rail trolley will be significantly
more dangerous, which can cause very serious injury.
DANGER!
-Read the user manual carefully. Follow the instructions, safety precautions,
etc. at all times.
-The BENOMIC S is suitable for running on a stable pipe-rail system.
-Use the BENOMIC S exclusively on the correct type of pipe-rail system. You
must check whether the centre-to-centre pipe-rail gauge corresponds with
the pipe-rail trolley, see the icon on the platform.
-Never exceed the maximum load capacity of 250 kg* (for capacities and
restrictions see 10.1!)
- One person incl. load (e.g. tools); see the pictogram on the trolley.
-Never exceed the sideways applied force of 110 N (towing capacity of 11 kg).
-Use the BENOMIC S only for harvesting and crop maintenance in a
greenhouse.
-Using the BENOMIC S with a tilt exceeding 2  (linearly and/or crosswise) is
strictly forbidden.
-It is prohibited to transport any unsecured loads with the BENOMIC S! Make
sure that the load is placed in the middle and is no higher than 40cm above
the platform and is always properly secured.
-It is forbidden for more than one person to enter the platform at the same
time.

Translated user manual (EN-V3) BENOMIC S 350 9 / 53
-Persons are not permitted to ride on the chassis in any way.
-It is forbidden to remove the safety fence.
-The use of the safety rail height extender is mandatory if the user is taller
than 1.80 metres. Only use an original approved Berg Hortimotive safety
guardrail raiser!
(see 5.2)
-It is strictly forbidden to increase the lifting height in whatever way.
- Always stand on the work platform.
-Keep a safe distance from fixed and/or moving parts of the greenhouse
structure, live electric wiring, and cables and ropes.
-Pulling steel or other types of rope/cord/wire and installing protective canvas
with the BENOMIC S is not permitted.
-Using the BENOMIC S as a crane is not permitted.
-Persons or pets are not permitted to enter the operational pathway of a
BETOMIC S. Never use more than one pipe-rail trolley on the same path!
-All safety shields and protective caps must be fitted and closed during
operation of the BENOMIC S.
-Additional options, accessories and parts must be manufactured and/or
supplied by Berg Hortimotive.
Warning!
-The BENOMIC S may only be operated when there are no other persons,
other than the operator, in the vicinity of the machine.
-The BENOMIC S may only be operated by persons of at least 18 years of age
who have received thorough instruction on the BENOMIC S, are familiarized
with this user manual, fully understand it, and are aware of the hazards.
-The BENOMIC S may only be operated once it has been correctly installed on
the pipe-rail system.
-All personnel working within the active radius of the BENOMIC S must be
familiar with the relevant safety rules and precautions that apply to the
machine.
- Instructions from the employer.
-For safe working at heights, Berg Hortimotive recommends the use of safety
belts that comply with the EN358 standard. The BENOMIC S is equipped with
two safety belt anchor points and anchor rail for securing the safety belts
(see 5.2).
-Instructions from the employer.
-Repairs on the BENOMIC S may only be carried out by personnel instructed
by Berg Hortimotive.

Translated user manual (EN-V3) BENOMIC S 350 10 / 53
-When servicing the scissors, support it at all times using the scissor-lock
(see 9.2).
-Never carry out work on the BENOMIC S while someone else is operating it.
Always switch it off using the main switch, and remove the charging plug
from the trolley before carrying out maintenance.
-Check the BENOMIC S every day for defects and give it regular maintenance,
see chapter 9: Maintenance.
- Clean the controls and safety pictograms regularly and in good time.
- Operating functions and safety pictograms must be visible at all times.
-The BENOMIC S must always be switched off after use, using the main
switch.
-Never leave the BENOMIC S unattended,
- unless the key is removed from the main switch.
-It is forbidden to make any modifications/alterations to the BENOMIC S
without written permission from Berg Hortimotive
-When leaving a track, first stop and check whether anybody is standing in
the direct vicinity before continuing onto the concrete path.
-Before going onto a track, ensure that there are no obstacles such as plant
remains, etc. lying on the rail.
-Never clean the BENOMIC S with a water hose, high-pressure water gun or
steam cleaner.
-When moving the BENOMIC S, other than on the pipe-rail, or crossing on a
concrete path, the platform has to be at its lowest position.
-The BENOMIC S is besides driving on a pipe rail system, also suitable for
driving on a flat paved floor (concrete), which is rough enough to be able to
drive and stop safely. The surface condition must comply with NEN2743:
2003 Concrete floors.
-Never use the BENOMIC S outdoors or on the public road.
-Leaving a trolley that is not completely at its lowest position is not permitted.
-Follow the battery safety specifications, see Appendix 3.
-Beware of feet and toes when operating the lifter on the BENOMIC S! The
trolley moves a few centimetres forwards when setting down!
-Wearing shoes with safety toecaps (minimum S1) is mandatory.
-Always remove the charging plug before using the BENOMIC S.

Translated user manual (EN-V3) BENOMIC S 350 11 / 53
Attention!
- Keep the workplace tidy.
An untidy working area leads to hazardous situations.
-Be focused.
Always maintain the appropriate level of concentration when operating the pipe-rail
trolley. Do not operate the BENOMIC S when unable to concentrate properly, or
when using medication that could impair your reaction times when operating
machinery or participating in traffic.
4.3 Safety icons
The BENOMIC S caries a few safety icons. These icons should alert the user to potential
hazards or hazardous situations. Observe the warnings at all times and contact your
supplier if the hazard indicated by the icon seems unclear.
Always make sure that the icons remain visible and undamaged!
The operator of the BENOMIC S must have read and understood this manual before
using it. If the user does not understand the warnings in the manual or on the machine
(e.g. because he/she speaks a different language), all instructions, hazards, warnings and
functions should be explained to the user by a responsible person so that the user can
clearly understand them.
Use only indoors (in the greenhouse)
Mass of the machine in kg
Suitable for the indicated pipe diameter with minimum wall thickness
Suitable for the indicated centre-to-centre (gauge) pipe-rail system size
Maximum tilt 2°
Maximum lateral applied force in Newton (kg x 10)
Maximum support distance 1000 mm
Maximum total load in kg (maximum one person + secured load)
The values depend on the type of BENOMIC S!
Pay attention to the lowering platform!
Always use the scissors locking device when working under or on the scissors!

Translated user manual (EN-V3) BENOMIC S 350 12 / 53
4.4 Other risks
Despite the best possible design, the use of risk-reducing resources and warnings against
the hazards on the machine and in the manual, hazardous situations may still occur.
Watch out for and avoid:
-The risk of crushing hands, fingers, arms and head between the scissor parts!
-The risk of crushing under the trolley when using the lifting mechanism for setting
down or lifting!
-The risk that trolley may topple if used on an unsuitable pipe-rail system!
-The trolley can topple if the maximum laden weight or applied force limits are
exceeded!
-Users taller than 1.80 metres can lose their balance if they do not use the obligatory
safety rail height extender!
WARNING! Read the user manual before use!
WARNING! During maintenance, first isolate the power (Switch off main switch) and consult
the manual
Upwards = scissors up, Downwards = scissors down
Main switch (power): key vertical = ON, key horizontal = OFF
The key can be removed by continuing to turn in the off position.
Warning! Dangerous chemical battery: explosive gas and corrosive battery acid!
WARNING; danger of entrapment!
Keep your hands away from the scissor parts!
Height of the railing depends on the length of the user

Translated user manual (EN-V3) BENOMIC S 350 13 / 53
5. Intended Use
5.1 Scope of use
The BENOMIC S is intended for professional use in the greenhouse horticulture sector.
The controls may only be operated by one person with a minimum age of 18 years who
has received thorough instruction on operation of the BENOMIC S. This person must fully
understand the safety instructions and this manual.
The BENOMIC S is a pipe-rail trolley, which runs on a pipe-rail system that meets the
minimum requirements of paragraph 7.3 and is intended as an aid in harvesting, caring for
and/or maintaining the crops in a greenhouse. Use of the BENOMIC S for any other
purposes is strictly forbidden. The maximum load may consist of one person plus a
secured load, of which the combined weight should not exceed 250 kg*. The trolley may
only be operated once it has been correctly installed on the pipe-rail system. Take extra
care when the scissors drop so that no persons or objects are trapped under or between
the scissor-unit. Always walk alongside the trolley, therefore not on the chassis when
transporting it over the main path.
* Stability tests have shown that with unfavourable combinations of pipe-rail type and the
support distance of the pipe-rail system, constraints must be applied for the maximum
permissible load. See 10.1 Explanation of the technical specifications.
5.1.1 Physical operating conditions
Ambient temperature,
Transport & Storage: 5 to +40 degrees Celsius
Working: 5 to +40 degrees Celsius
Rel. Humidity (RH): 0% to 90%, not condensing
Lighting: Normal ambient lighting.
The machine is not designed to be used outdoors.
The machine is not suitable for operating in explosive atmospheres.

Translated user manual (EN-V3) BENOMIC S 350 14 / 53
5.2 Safety systems
The BENOMIC S series is equipped with the following safety systems, which will be
described in chapter 7 (Commissioning) and chapter 8.1 (Operation).
-Running and lifting restriction when tilted (see 7.4)
-Load limiter measurement system (see 7.5)
-Load-holding function (see 7.6)
-Scissor-locking device (see 7.7)
-Emergency lowering control (see 7.8)
-Pipe detection sensor (see 7.9)
-Speed limiter on the concrete path (see 7.10)
-Pipe-rail to concrete path transition (see 7.11)
-Emergency stop (see 8.1.2)
-Lowering the platform (see 8.1.2)
-Two-handed control (see 8.1.2)
-Inadvertent foot pedal operation (8.1.1)
-Safety belt anchor points & anchor rings*
-Guardrail raisers**
* & ** The regulations for the use of certain safety devices may differ from country to
country, always consult the local safety authorities before use, these regulations
are authoritative!
* In general, the use of safety belts is compulsory in many countries from a working
height of 2.50 metres. There are two possibilities for attaching a safety belt:
- On the anchor rails, giving more freedom of movement (not always allowed!)
- At the anchor points
** The use of guardrail braces depends on the height of the user. For employees
taller than 1.80 metres, raising the standard guardrail is mandatory!
- Always work according to the local safety regulations!
- Manipulation of safety systems is strictly prohibited!
- Additional options, accessories and parts must be manufactured
and/or supplied by Berg Hortimotive.

Translated user manual (EN-V3) BENOMIC S 350 15 / 53
5.3 Signalling systems
In order to alert the user to changing status of the BENOMIC S during use, a multi-colour
indicator (11) and horn are used.
5.3.1 The multi-colour indicator (11)
The multi-colour indicator (11) is located on the platform control, for this refer to chapter
8.1.2.
The visual signalling is divided into seven indication levels:
1. Safe & alert status Colour Green or Orange
2. Acute danger Colour Red
3. Indirect danger Colour Red-Orange
4. Function monitoring (sensors) Colour Red-Blue
5. Reset emergency stop Colour Blue
6. Cruise control Colour Light-Blue
7. Disinfection Colour Purple
Safe & alert status
The indicator displays a status or flash pattern in the colours Green, Orange
Green:
Safety status:
Limitation:
Solution:
Off
Benomic S is
powered off
Is off
On
BENOMIC S is on,
in safe status
None
Flashing
2x
Start-up / standby,
flash indicates the
number of scissors
Is on standby
Press horn / reset button (2 or
10)
Stops automatically
Flashing
3x
Start-up / standby,
flash indicates the
number of scissors
Is on standby
Press horn/reset button (2 or 10)
Stops automatically
Flashing
4x
Start-up / standby,
flash indicates the
number of scissors
Is on standby
Press horn / reset button (2 or
10)
Stops automatically
Orange:
Safety status:
Limitation:
Solution:
Flashing
slowly +
bleeping
Tilt warning
“attention” with
raised platform
level the pipe-rail system (see
7.3)

Translated user manual (EN-V3) BENOMIC S 350 16 / 53
Acute hazard
The indicator displays a Red blinking pattern:
Red:
Safety status:
Limitation:
Solution:
On, short
Starting up
Wait 1 sec.
Turns itself off
On
&
Bleeping
Tilt warning “critical”
with raised platform
Platform raised
Running stops
Lower platform
level the pipe-rail system (see
7.3)
Flashing
1x
&
Bleeping
Emergency stop
used
Operation stopped
Unlock if danger averted
Flashing
2x
&
Bleeping
Batteries empty
Platform raised
Lift wheels
Speed limiter
Fully charge batteries
Flashing
3x
Tilt warning “critical”
with lowered
platform
Platform raised
level the pipe-rail system (see
7.3)
Flashing
4x
Load limiter
Platform raised
Run with raised
platform
Reduce load
Lower platform height
Flashing
5x
Pipe-rail sensor
malfunction
Platform raised
Lift wheels
Run with platform
raised
Speed limiter
Consult your dealer
Indirect danger
The indicator displays a Red-Orange blinking pattern:
This blinking pattern consists of two colours.
Red
Orange:
Safety status:
Limitation:
Solution:
Flashing
1x
Speed too high
Running stops
Switch Benomic S off and on,
Consult your dealer
Flashing
2x
Tilt sensor signal is
absent with low
platform
Run with platform
raised
Lower platform completely,
Consult your dealer
Flashing
3x
Height sensor
signal absent
Platform raised
Platform down only
slowly
Lower platform completely,
Consult your dealer
Flashing
4x
Load limiter in
combination with
platform height
Running stopped
Reduce load <150 kg,
Lower platform <2.5 m
Flashing
5x
Load sensor signal
absent
Platform raised
Run with raised
platform
Consult your dealer
Flashing
6x
Speed limiter
(running pulses
absent)
Running stops
Speed limiter
Speed reduction active on
restarting
Consult your dealer

Translated user manual (EN-V3) BENOMIC S 350 17 / 53
Function monitoring (sensors)
The indicator displays a Red-Blue blinking pattern:
This blinking pattern consists of two colours.
Red
Blue:
Safety status:
Limitation:
Solution:
Flashing
1x
Both sensors of
wheel lift system
active
Platform raised
Running stops
Consult your dealer
Flashing
2x
Wheel lift system
time too long
Platform raised
Running stops
Operate the lift-wheel system
again,
Consult your dealer
Flashing
3x
Wheel lift system
sensors status
spontaneously
changed
Platform raised
Running stops
Operate wheel lift system again,
Consult your dealer
Flashing
4x
Lift time too long /
platform lowers
Platform stops
Operate again
Reset emergency stop
The indicator displays a Blue blinking pattern:
Blue:
Action or Safety
status:
Limitation:
Solution:
Flashing
Emergency stop
released
Benomic S stopped
Press reset button (2 or 10)
Flashing
Button operated at
power-up
Does not enter
operating state
Continues to flash blue,
deactivate operated button
Cruise control
The indicator displays a Light-Blue blinking pattern:
Light Blue:
Action or Safety
status:
Limitation:
Solution:
On
Cruise control
active
Maximum speed
limited 30 m/min.
Stops by, a short press on the
foot pedal
Flashing
Cruise control on
standby
Does not drive yet
Press the foot pedal shortly
Disinfection
The indicator displays a Purple blinking pattern:
Purple:
Action or Safety
status:
Limitation:
Solution:
On
Disinfection *
advance notice
None
Disinfect hands
Flashing
slowly
Disinfection * time
elapsed
Running stops
Disinfect hands
* A disinfectant fluid container for the hands can be supplied as an option for the
BENOMIC S, ask dealer for the possibilities.

Translated user manual (EN-V3) BENOMIC S 350 18 / 53
5.3.2 The horn
The acoustic warning gives the user feedback on the action that is being performed, or a
changing safety status.
Horn
signal:
Action or
Safety status:
Limitation:
Status or Solution:
1x
bleep
Press horn / reset
button (2 or 10)
None
The Benomic S is on and ready
for use
bleep tone
Press horn / reset
button (10)
None
Horn is active while being
pressed
1x
bleep
per 3 sec
Emergency stop
used
Operation stopped
Unlock if danger averted
2x
bleep
per 3 sec
Batteries empty
Platform raised,
Lift wheels,
Speed
Fully charge batteries
5x
short
bleep
Incorrect operation,
function not
possible
Button operated at
power-up
The required action
will not be executed
Does not enter
operating state
Execute an operation that is
possible (safe).
(E.g. platform down)
Continues to flash blue,
deactivate operated button
1x
bleep
per 0.5
sec
When lowering the
platform in the last
meter
Platform descends
slowly
Platform is lower than 1 metre,
Beware of entrapment.
Slow
bleeping
Tilt warning
“attention” with
raised platform
Speed (above
height 250 cm)
level the pipe-rail system (see
7.3)
Fast
bleeping
Critical tilt with
raised platform
Platform raised
Running stops
Platform lowered,
level the pipe-rail system (see
7.3)

Translated user manual (EN-V3) BENOMIC S 350 19 / 53
5.4 BENOMIC S description
Figure 5.1; Names of the components on the upper-side of the BENOMIC S
Fencing/safety railing
Control panel
Foot pedal (5)
Platform
Scissor-unit
Gate
Cylinder
Undercarriage
controls
Gate
Fencing
height-extenders
Safety belt
anchor point &
anchor rail
Safety belt
anchor point &
anchor rail
NOTE:
Fencing height-extenders are
supplied/assembled as
standard for the French
market.
Side cover

Translated user manual (EN-V3) BENOMIC S 350 20 / 53
Hydraulic tank
Battery cover
Hydraulics
valve block
Figure 5.3; Names of the components on the underside of the BENOMIC S
Emergency
lowering valve
Lift-wheels
Drive roller
Trailing roller
Figure 5.2; Names of the components on the under-side of the BENOMIC S
Scissors
locks
