Berkel SCORRIMENTO 315G User manual

Première Series BSPGM-BSPGL-BSPGX Date 11-01-08 SM - Code N4- Rev. 0.2
Service Manual
SERVICE MANUAL
PREMIERE GRAVITY RANGE
BSPG

Première Series BSPGM-BSPGL-BSPGX Date 11-01-08 SM - Code N4- Rev. 0.2
2
Service Manual
INDEX
1. Medium
•Casing-trasmission blade.................................................................................................................................................. 4
•Thickness adjusting assembly........................................................................................................................................... 7
•Sliding............................................................................................................................................................................ 10
•Plastic sharpener............................................................................................................................................................ .13
•Meat table...................................................................................................................................................................... 15
•Meat table with extension.................................................................................................................................................18
•Electrical components.......................................................................................................................................................21
•Wiring diagrams……………………………………………………………………………………………………………………………………………………………23
2. Large
•Casing-trasmission blade...................................................................................................................................................26
•Thickness adjusting assembly............................................................................................................................................29
•Sliding.............................................................................................................................................................................32
•Plastic sharpener..............................................................................................................................................................35
•Meat table.......................................................................................................................................................................37
•Meat table with extension.................................................................................................................................................40
•Electrical components.......................................................................................................................................................43
•Wiring diagrams……………………………………………………………………………………………………………………………………………………………45
3. Extra Large
•Casing-trasmission blade...................................................................................................................................................48
•Thickness adjusting assembly............................................................................................................................................51
•Sliding.............................................................................................................................................................................54
•Plastic sharpener..............................................................................................................................................................57
•Meat table.......................................................................................................................................................................59
•Meat table with extension.................................................................................................................................................62
•Electrical components...................................................................................................................................................... 65
•Wiring diagrams……………………………………………………………………………………………………………………………………………………………67

Première Series BSPGM-BSPGL-BSPGX Date 11-01-08 SM - Code N4- Rev. 0.2
3
Service Manual
MEDIUM

Première Series BSPGM-BSPGL-BSPGX Date 11-01-08 SM - Code N4- Rev. 0.2
4
Service Manual

Première Series BSPGM-BSPGL-BSPGX Date 11-01-08 SM - Code N4- Rev. 0.2
5
Service Manual

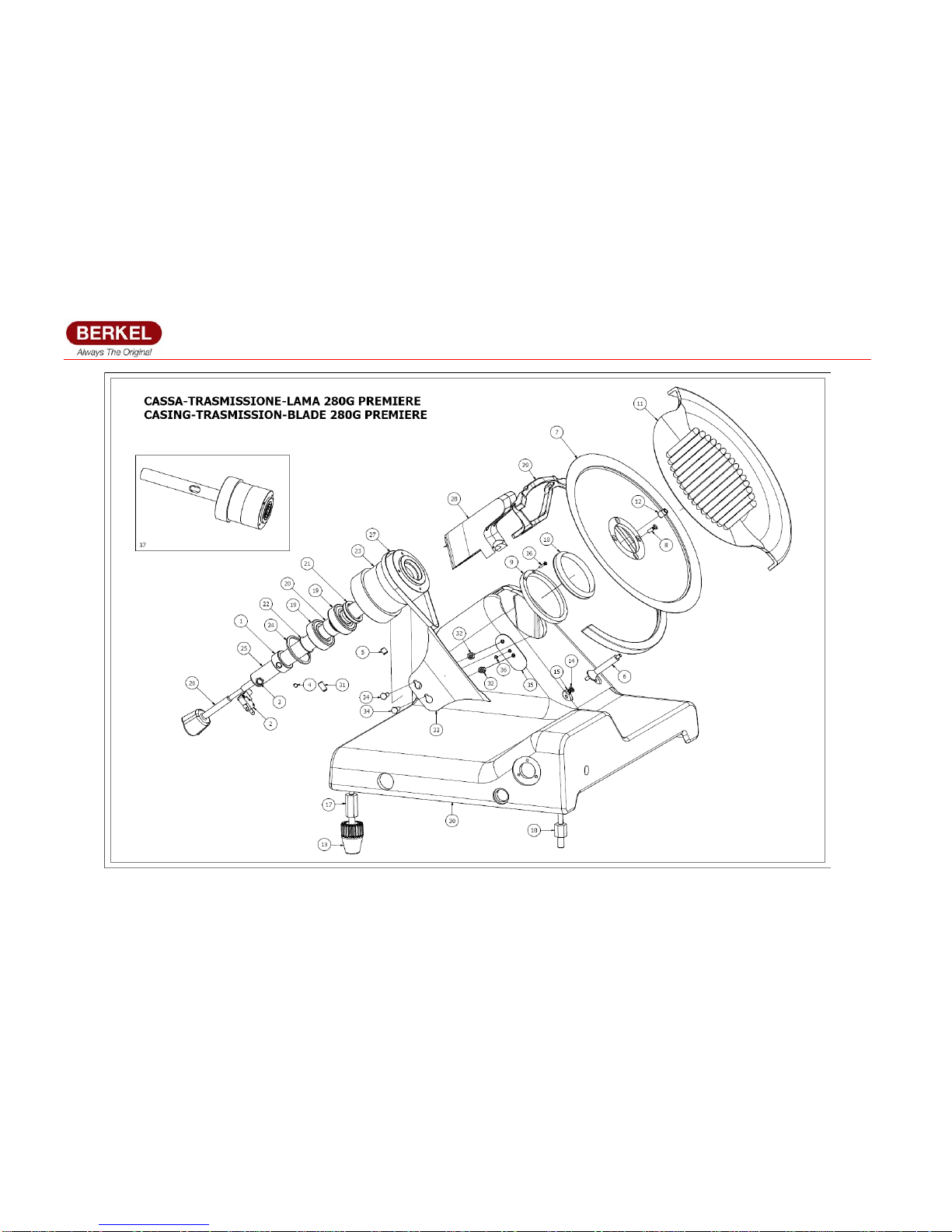

CASSA-TRASMISSIONE-LAMA 280G PREMIERE
CASING-TRASMISSION-BLADE 280G PREMIERE
N° QTA' COD. DESCRIZIONE DESCRIPTION
1 1 306CE046 Anello micro Micro-switch spacer
2 1 221CE045 Microinterruttore Microswitch
3 1 30500211 Dado per micro Micro-switch nut
4 1 5923 5 6 Grano UNI 5923 - M5 x 6 Grub screw
5 1 5923 8 10 Grano UNI 5923 - M8 x 10 Grub screw
6 2 280VCE259 Distanziale anello paralama Spacer for blade guard ring
7 1 280V00073 Lama C45 Blade 100Cr6
1 280VCE073 Lama C45 con 2 fpori estrattori Blade 100Cr6 with 2 holes
8 4 6109 5 16/A2 Vite TS UNI 6109 - M5 x 16 inox Screw
9 1 315VCE160 Anello per V-RING Ring for V-rubber ring
10 1 1001003 Anello V-ring 80 V-rubber ring
11 1 280VCE002 Disco paralama Blade cover
12 1 9001002 Inserto paralama Cover insert
13 4 315VCE093 Piedino Rubber foot
14 2 6592 5 10/A2 Rondella UNI 6592 5.3x10 inox Washer
15 2 5588 5/A2 Dado UNI 5588 M5 inox Nut
16 2 6109 3 14/A2 Vite svasata UNI 6109 M3x14 inox Screw
17 2 315VCE170 Distanziale per piedini Spacer for rubber foot
18 2 315VCE171 Distanziale per piedino Spacer for rubber foot
19 2 3001009 Cuscinetto 6204-2RS Bearing 6204-2RS
20 1 280VCE070 Distanziale cuscinetti Beraring spacer
21 1 1001001 Corteco Rubber ring
22 1 7435 20 Anello seeger Circlip
23 1 280VCE067 Puleggia Pulley
24 1 7437 47 Anello seeger Circlip
25 1 280GCE068 Perno puleggia Pulley shatf
26 1 280GCE501A Tirante paralama Tie rod assembly
27 1 3005006 Cinghia 380 Belt
28 1 280VCE100P Funghetto premiere Sharpener support

Première Series BSPGM-BSPGL-BSPGX Date 11-01-08 SM - Code N4- Rev. 0.2
6
Service Manual
CASSA-TRASMISSIONE-LAMA 280G PREMIERE
CASING-TRASMISSION-BLADE 280G PREMIERE
N° QTA' COD. DESCRIZIONE DESCRIPTION
29 1 280VCE257G Anello paralama in plastica Plastic blade guard ring
30 1 280GCE001P Cassa premiere Casing
31 1 5923 8 16 Grano UNI 5923 - M8 x 16 Grub screw
32 2 5588 6 Dado esagonale UNI 5588 - M6 Nut
33 1 315VACE011IX Parafetta inox Slice deflector inox
34 2 351A00091 Vite per parafetta Screw for slice deflector
35 1 315VCE015 Lamierino per parafetta Plate for slice deflector
36 1 6109 3 5/A2 Vite TS UNI 6109 - M3 x 5 inox Screw
37 280GCE502 Puleggia assemblata Pulley assembly

Première Series BSPGM-BSPGL-BSPGX Date 11-01-08 SM - Code N4- Rev. 0.2
7
Service Manual

Première Series BSPGM-BSPGL-BSPGX Date 11-01-08 SM - Code N4- Rev. 0.2
8
Service Manual
REGOLAZIONE SPESSORE 280 G
THICKNESS ADJUSTING ASSEMBLY 280 G
N° QTA' COD. DESCRIZIONE DESCRIPTION
1 1 280GCE001 Cassa Casing
2 1 315GCE063 Perno spostamento Shaft
3 1 315GCE022 Spostamento Support
4 2 5923 6 16 Grano UNI 5923 - M6 x 16 Grub screw
5 2 5589 6 Dado UNI 5589 - M6 Nut
6 2 5929 8 12 Grano UNI 5929 - M8 x 12 Grub screw
7 1 5739 5 25/O Vite TE UNI 5739 - M5 x 25 ottone Screw
8 1 5588 5 Dado UNI 5588 - M5 Nut
9 1 22100030 Tappo spostamento Plastic tap
10 1 30100027 Perno filettato M8 x 36 Threaded pin
11 2 5589 8 Dado UNI 5589 - M8 Nut
12 2 2001005 Boccola 18X20X20 Bushing
13 1 280GCE021 Perno per molla di spinta L.tot 55 Support shaft
14 1 30100024A Molla Spring
15 1 251A00026 Piastrina spostamento Support plate
16 2 5739 5 16 Vite TE UNI 5739 - M5 x 16 Screw
17 1 315VCE261 Flangia Flange
18 3 6109 5 12/A2 Vite TS UNI 6109 - M5 x 12 inox Screw
19 2 2001014 Boccola 18X20X15 Bushing
20 1 315VCE095 Rondella acciaio ondulata Washer
21 1 315VCE026 Cam forata per macchine Berkel Cam
22 2 5739 5 10 Vite TE UNI 5739 - M5 x 10 Screw
23 1 315VCE265 Rondella =1.5 delrin Washer
24 1 315VCE035A Manopola numerata Graduated knob
25 1 30100096 Ribattino Rivet
26 2 5923 6 12 Grano UNI 5923 - M6 x 12 Grub screw
27 1 360GCE004 Supporto vela Gauge plate support
28 1 315GACE085 Guarnizione supporto vela
29 1 280GCE003 Vela Gauge plate

Première Series BSPGM-BSPGL-BSPGX Date 11-01-08 SM - Code N4- Rev. 0.2
9
Service Manual
REGOLAZIONE SPESSORE 280 G
THICKNESS ADJUSTING ASSEMBLY 280 G
N° QTA' COD. DESCRIZIONE DESCRIPTION
30 3 6592 8 14 Rondella UNI 6592 - 8,4 x 14 Washer
31 3 5931 8 20 Vite TC UNI 5931 - M8 x 20 Screw
32 3 315VCE312A Tappo per braccio speciale Plastic tap
33 315GCE701 Spostamento assemblato Complete support assembly
34 280GCE702 Cam assemblata Cam assembly

Première Series BSPGM-BSPGL-BSPGX Date 11-01-08 SM - Code N4- Rev. 0.2
10
Service Manual

Première Series BSPGM-BSPGL-BSPGX Date 11-01-08 SM - Code N4- Rev. 0.2
11
Service Manual

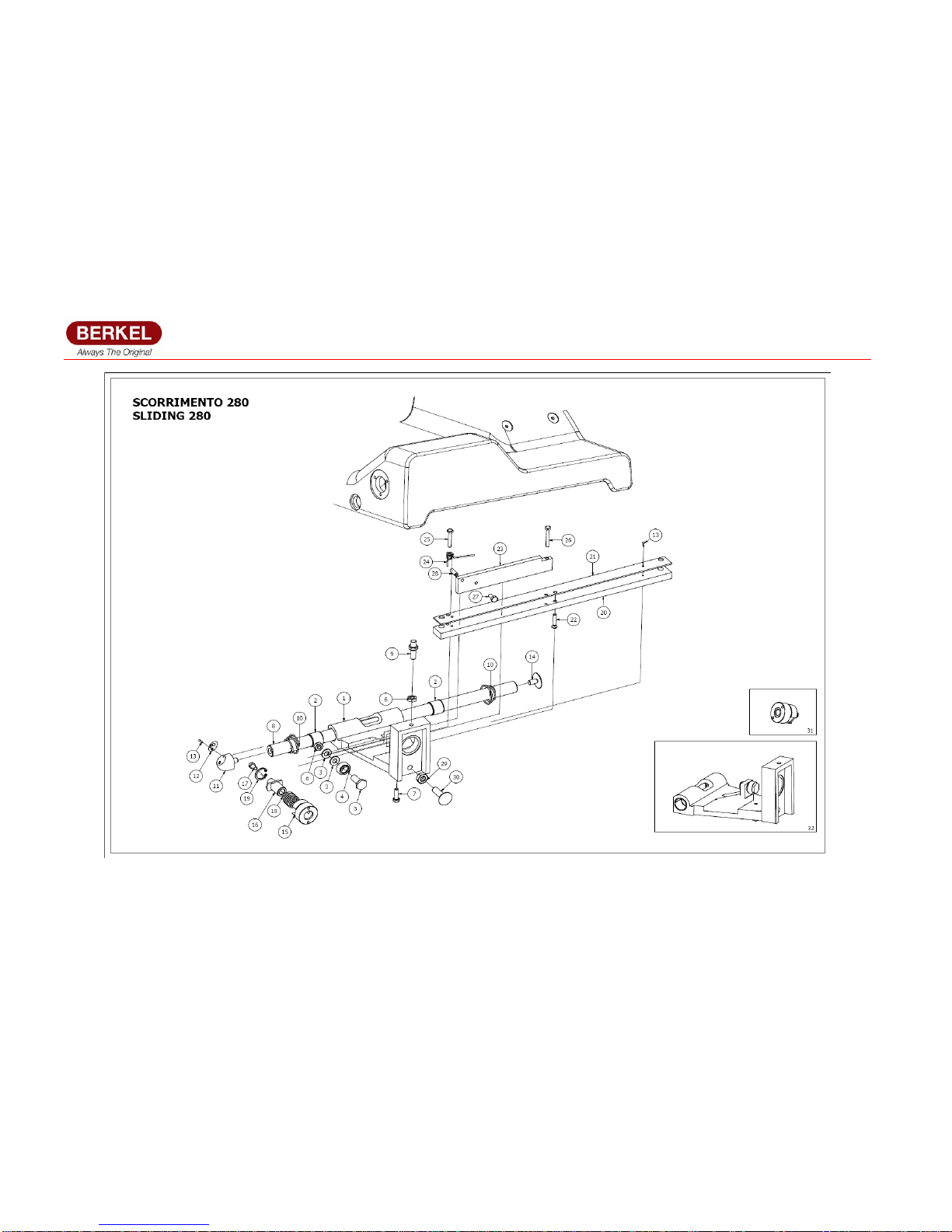

SCORRIMENTO 280G
SLIDING 280G
N° QTA' COD. DESCRIZIONE DESCRIPTION
1 1 280GCE012 Carrello Carriage
2 2 2001003 Boccola 20 20 Bushing
3 2 6592 8 16 Rondella UNI 6592 - 8 16 Washer
4 1 3001010 Cuscinetto 608 ZZ Bearing
5 1 5739 8 25/LAV Vite TE UNI 5739 M8x25 ribassata Screw
6 2 5589 8/A2 Dado UNI 5589 - M8 inox Nut
7 1 5739 6 20/N Vite TE UNI 5739 M6x20 nylon Screw
8 1 280GCE013 Barra tonda Round bar
9 1 315VCE128 Distanziale carrello - ES.12x29.5 Spacer
10 2 30600020 Molla per carrello Spring
11 1 315VCE099 Vite oliatore Oil screw
12 1 315VCE097 Piastrina Oil plate
13 3 30100096 Ribattino Rivet
14 1 315VCE050 Vite per barra tonda Screw for round bar
15 1 221CE268 Bussola filettata Bushing
16 1 221CE270 Bussola fresata Bushing
17 1 6107 6 10/N Vite UNI 6107 M6x10 nylon Screw
18 1 221CE269 Molla blocco CE Spring for CE block
19 1 743722 Anello seeger Circlip
20 1 280VCE014 Barra quadra Square bar
21 1 280VCE092L Piattina Plate
22 1 6109 5 25 Vite TS UNI 6109 - M5 x 25 Screw
23 1 280GCE254 Piastrina blocco Plate
24 1 301CE273 Molla a torsione Spring
25 1 5739 5 30 Vite TE UNI 5739 - M5 x 30 Screw
26 1 5739 5 35 Vite TE UNI 5739 - M5 x 35 Screw
27 1 5739 6 12/A2 Vite UNI 5739 M6x12 INOX Screw
28 1 315VCE277 Perno per piastrina blocco CE Pin
29 1 5589 10 Dado UNI 5589 M10 Nut

Première Series BSPGM-BSPGL-BSPGX Date 11-01-08 SM - Code N4- Rev. 0.2
12
Service Manual
SCORRIMENTO 280G
SLIDING 280G
N° QTA' COD. DESCRIZIONE DESCRIPTION
30 1 603 10 35 Vite bombata DIN 603 - M10 x 35 inox Screw
31 221CE650 Blocco CE assemblato CE block assembly
32 280GCE601 Carrello assemblato Carriage assembly

Première Series BSPGM-BSPGL-BSPGX Date 11-01-08 SM - Code N4- Rev. 0.2
13
Service Manual

Première Series BSPGM-BSPGL-BSPGX Date 11-01-08 SM - Code N4- Rev. 0.2
14
Service Manual
AFFILATOIO IN PLASTICA 280 PREMIERE
PLASTIC SHARPENER 280 PREMIERE
N° QTA' COD. DESCRIZIONE DESCRIPTION
1 1 315VCE400 Affilatoio in plastica Plastic sharpener frame
2 1 315VCE110P Perno smeriglio Wheel shaft
3 1 6107 3 6/A2 Vite TS UNI 6107 - M3 x 6 inox Screw
4 1 6592 3 6/A2 Rondella UNI 6592 - 3.2 x 6 inox Washer
5 2 6592 6 11/A2 Rondella UNI 6592 - 6.4 x 11 inox Washer
6 2 22100117 Molla Spring
7 2 22100112 Mola rompifilo Stone
8 2 17001001 Sfera da 1/8" Ball 1/8"
9 1 22100115 Pulsante per mola rompifilo Push button
10 2 6109 2 5/A2 Vite TS UNI 6109 - M2 x 5 inox Screw
11 1 315VCE109P Perno smeriglio Wheel shaft
12 2 5589 6/A2 Dado esagonale UNI 5589 - M6 inox Nut
13 1 22100116 Pulsante affilatoio Push button
14 2 221CE271IX Rondella spessore 0.9 inox Washer
15 1 315VCE010A Capottina in plastoca Plastic sharpener cover
16 1 315VCE100P Funghetto affilatoio Sharpener support
17 1 280VCE106 Prolunga funghetto Sharpener support extension
18 1 5931 6 45 Vite TC UNI 5931 - M 6 x 45 Screw
19 1 315VCE260 Canotto guida affilatoio Sharpener guide
20 1 5588 8 Dado esagonale UNI 5588 - M8 inox Nut
21 1 315VCE103 Vite per affilatoio Screw for sharpener
22 1 280VCE107 Pomolo per prolunga affilatoio Stainless steel knob
23 1 315VCE112 tuttofiletto per 315VCE107 Thread for 315VCE107
24 1 315VCE104 Perno affilatoio x 315 Shaft
25 1 5721 6/A2 Dado cieco UN 5721 - M6 inox Nut
26 1 5588 6/A2 Dado esagonale UNI 5588 - M6 inox Nut
27 1 1001005 o-ring O-ring
28 1 315VCE111 Vite per fissaggio capottina Screw
29 1 360VCE277 Perno fermo capottina Pin
30 315VCE803 Affilatoio assemblato Sharpener assembly

Première Series BSPGM-BSPGL-BSPGX Date 11-01-08 SM - Code N4- Rev. 0.2
15
Service Manual

Première Series BSPGM-BSPGL-BSPGX Date 11-01-08 SM - Code N4- Rev. 0.2
16
Service Manual
PIATTO 280G PREMIERE
MEAT TABLE 280G PREMIERE
N° QTA' COD. DESCRIZIONE DESCRIPTION
1 1 280GCE008 Piatto Meat table
2 1 280GCE084 Asta piatto Table shaft
3 1 280GACE081 Perno archetto Shaft
4 1 315GACE186 Archetto Arc
5 1 280GCE082 Nottolino per perno archetto Pin for shaft
6 4 5589 8 Dado UNI 5589 - M8 Nut
7 1 315VCE312A Tappo per braccio speciale Plastic tap
8 2 2001001 Boccola 12X14X12 Bushing
9 1 315GCE211 Rondella per distanziale pressamerce Washer
10 1 315GCE210 Rondella per bussola pressamerce Washer
11 1 IFI 512-S - 3 Spina - molla scanalata (Metrico) Pin
12 1 315GCE208 Distanziale pressamerce Spacer
13 1 5923 6 8 Grano UNI 5923 - M6 x 8 Grub screw
14 1 315GCE090A Maniglia pressamerce Handle
15 1 315GCE209 Bussola pressamerce Bushing
16 1 280GCE009 Staffa pressamerce 280 Hand grip
17 1 30400183 Perno staffa Screw
18 1 5589 10 Dado UNI 5589 - M10 Nut
19 1 315VCE302-3A Pressamerce in plastica con puntine Plastic hand grip with pins
20 1 315VCE299A Manopola per estrazione pressamerce Knob
21 2 280GCE088 Nottolino pressamerce Nylon pin
22 2 280GCE133 Distanziale per riparo plexiglass Spacer
23 1 315GCE094 Protezione Plexi guard
24 1 315GCE037A Maniglia piatto gravità Handle
25 2 5931 6 25 Vite TC UNI 5931 - M 6 x 25 Screw
26 2 315GCE038A Tappo per 315GCE037A Plastic tap
27 1 280GCE007 Supporto piatto Meat table support
28 3 5923 8 30 Grano UNI 5923 - M8 x 30 Brub screw
29 3 6593 9 24 Rondella UNI 6593 - 9 x 24 Washer
30 1 355CE290 Bussola Bushing

Première Series BSPGM-BSPGL-BSPGX Date 11-01-08 SM - Code N4- Rev. 0.2
17
Service Manual
PIATTO 280G PREMIERE
MEAT TABLE 280G PREMIERE
N° QTA' COD. DESCRIZIONE DESCRIPTION
31 1 315VCE040A Manopola blocco CE Carriage Knob
32 1 743510 Anello seeger Circlip
33 1 5923 8 8 Grano UNI 5923 - M8 x 8 Grub screw
34 1 315GCE091 Spina per manopola elsa Pin
35 1 6592 8 16 Rondella UNI 6592 8x16 Waher

Première Series BSPGM-BSPGL-BSPGX Date 11-01-08 SM - Code N4- Rev. 0.2
18
Service Manual

Première Series BSPGM-BSPGL-BSPGX Date 11-01-08 SM - Code N4- Rev. 0.2
19
Service Manual
PIATTO CON PROLUNGA 280G PREMIERE
EXTENDED MEAT TABLE 280G PREMIERE
N° QTA' COD. DESCRIZIONE DESCRIPTION
1 3 6593 9 24 Rondella UNI 6593 - 9 x 24 Washer
2 1 315GCE037A Maniglia piatto gravità Handle
3 2 5931 6 25 Vite TC UNI 5931 - M 6 x 25 Screw
4 2 315GCE038A Tappo per 315GCE037A Plastic tap
5 1 315GA00186 Archetto per prolunga piatto Arc
6 1 315VCE299A Manopola per estrazione pressamerce Knob
7 1 315GCE090A Maniglia pressamerce Handle
8 1 280GCE007 Supporto piatto Meat table support
9 1 30400183 Perno staffa Screw
10 1 5589 10 Dado UNI 5589 - M10 Nut
11 1 315GCE209 Bussola pressamerce Bushing
12 1 315GCE208 Distanziale pressamerce Spacer
13 1 315GCE210 Rondella per bussola pressamerce Washer
14 1 315GCE211 Rondella per distanziale pressamerce Washer
15 1 IFI 512-S - 3 Spina - molla scanalata (Metrico) Pin
16 1 5923 6 8 Grano UNI 5923 – M6 x 8 Grub screw
17 2 2001001 Boccola 12X14X12 Bushing
18 1 315GCE094 Protezione Plexi guard
19 2 280GCE133 Distanziale per riparo plexiglass Spacer
20 1 5589 8 Dado UNI 5589 - M8 Nut
21 1 280GCE009 Staffa pressamerce 280 Hand grip
22 1 315VCE302-3A Pressamerce in plastica con puntine Plastic hand grip with pins
23 1 315VCE312A Tappo per braccio speciale Plastic tap
24 2 280GCE088 Nottolino pressamerce Nylon pin
25 1 315GCE091 Spina per manopola elsa Pin
26 1 355CE290 Bussola Bushing
27 1 315VCE040A Manopola blocco CE Carriage Knob
28 1 743510 Anello seeger Circlip
29 3 5923 8 30 Grano UNI 5923 - M8 x 30 Brub screw
30 1 280G00008 Piatto per prolunga Extended meat table

Première Series BSPGM-BSPGL-BSPGX Date 11-01-08 SM - Code N4- Rev. 0.2
20
Service Manual
PIATTO CON PROLUNGA 280G PREMIERE
EXTENDED MEAT TABLE 280G PREMIERE
N° QTA' COD. DESCRIZIONE DESCRIPTION
31 1 280GA00084 Asta piatto (x prolunga piatto) Table shaft ( for extended table)
32 1 315GA00015 Prolunga piatto Extension plate
33 1 6592 5 10/A2 Rondella UNI 6592 58x10 inox Waher
34 1 6592 8 16 Rondella UNI 6592 8x16 Waher
35 1 315G00081 Perno arresto archetto per prolunga piatto Shaft
36 1 280GACE081 Perno archetto arresto TN Shaft
37 1 280GCE082 Nottolino per perno archetto Pin for shaft
38 1 5923 5 6 Grano UNI 5923 – M5 x 6 Grub screw
39 1 5588 5/A2 Dado UNI 6592 – M5 inox Nut
40 1 315G00017 Protezione plastica Plastic guard
41 1 6593 5 15/A2 Rondella UNI 6593 5x15 inox Waher
42 1 315G00018 Perno M5x53 inox Shaft
