Bertazzoni KPH 2XT Series User manual

EN
F
E
BERTAZZONI
INSTALLATION AND USER MANUAL
WALL-MOUNTED CHIMNEY HOOD
BERTAZZONI
INSTRUCTIONS D’INSTALLATION ET D’UTILISATION
HOTTE DE CHEMINÉE MURALE
BERTAZZONI
INSTRUCCIONES DE INSTALACIÓN Y USO
CAMPANA DE CHIMENEA DE PARED
KPH..2XT

- 3 -
A
B
A
• KPH482XT
36” 48”
5 1/2” 8 1/4” 8 1/4”5 1/2”
6 7/8” 17 1/8” 17 1/8”6 7/8”
4 2/3” 10 5/8” 10 5/8”4 2/3”
A
X
0 11/16” 0 11/16”
A
X
Fig.1
Fig.2
Fig.2A Fig.3

- 4 -
35 15/16” - 47 61/64”
17 19/32” - 29 13/32”
17 23/32”
11 27/32”
MIN 16 23/32” - MAX 35 1/4”
19 11/16” 6 7/16”
Ø 8”
FALDAS Ø8
TASSELS Ø8
WALL ANCHORS Ø8

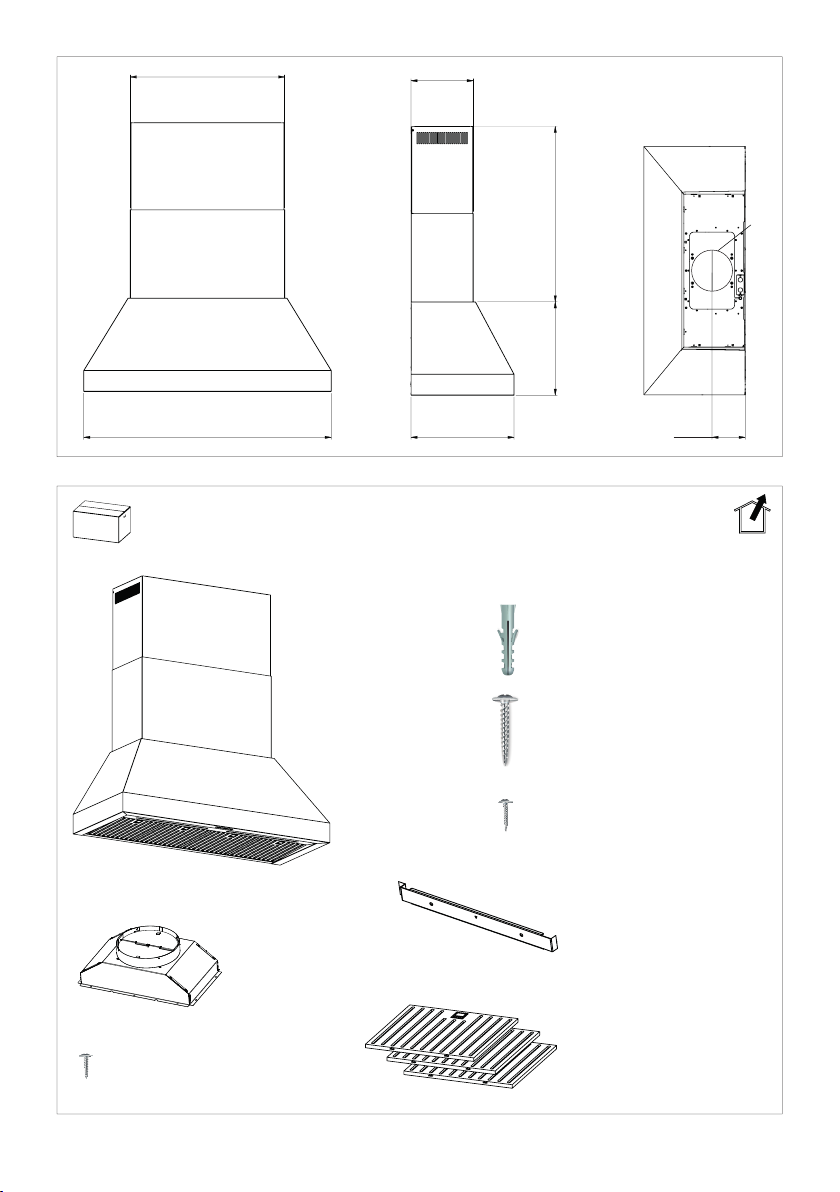

EN EL EMBALAJE /
DANS L'EMBALLAGE / INSIDE PACKAGING
CAMPANA EXTRACTORA
HOTTE DE CUSINE
COOKER HOOD
CRUCE
JONCTION
JUNCTION
TORNILLO AUT. 5x40 TB
VIS AUT. 5x40 TB
SCREWS AUT. 5x40 TB
TORNILLO AUT. 3,9x6 T.PLANO
VIS AUT. 3,9x6 T.PLATTE
SCREWS AUT. 3,9x6 T.FLAT
SOPORTE DE LA TUBERÍA
SUPPORT DE TUYAUTERIE
PIPE BRACKET
FILTROS DE GRASA
FILTRES À GRAISSE
GREASE FILTERS
(Cantidad según el modelo comprado/
Q.té selon le modèle acheté/
Q.ty according to the mod purchased
X8
X8
X4
TORNILLO AUT. 3,5x6 TPRB
VIS AUT. 3,5x6 TPRB
SCREWS AUT. 3,5x6 TPRB
X10
Fig.4

- 5 -
X
C
Ø 8”
Fig.5
Fig.7
Fig.9
Fig.6
Fig.8

- 6 -

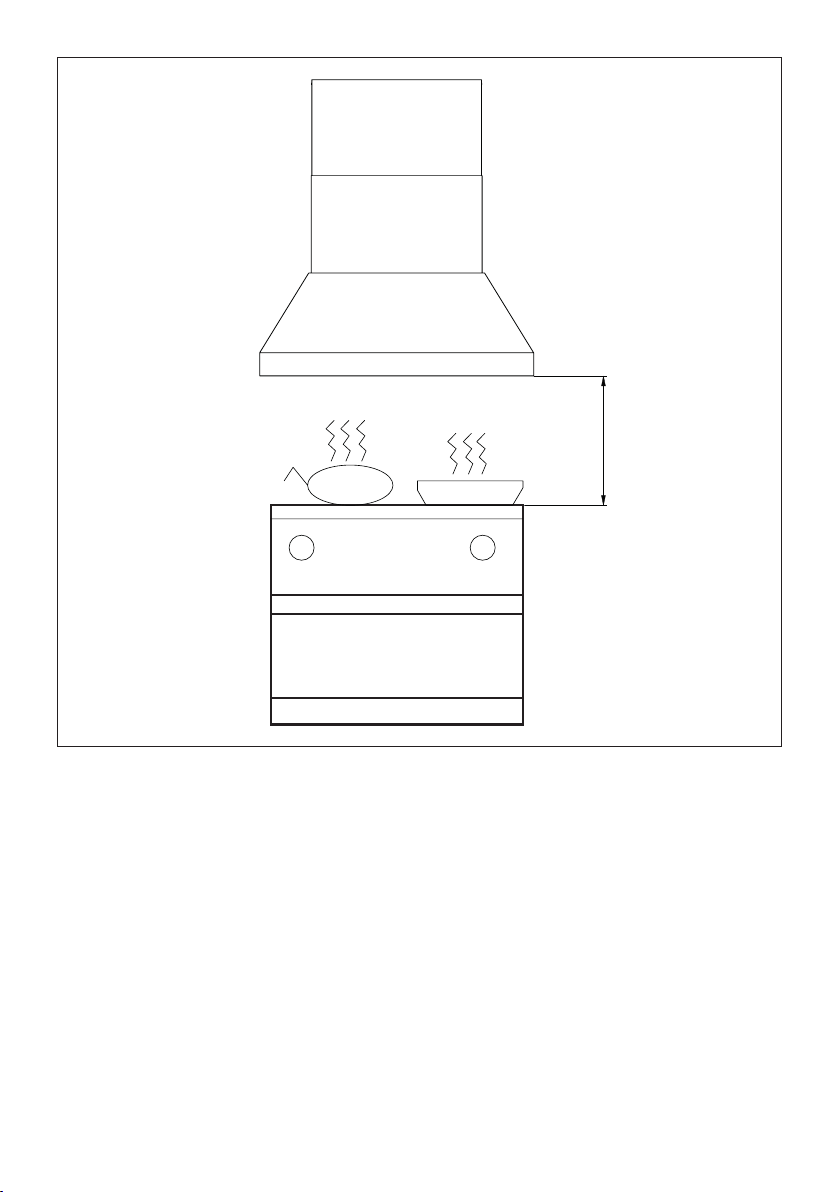

26” - 30”
Fig.10

- 7 -
IMPORTANT SAFETY INSTRUCTIONS.
FOR RESIDENTIAL USE ONLY.
READ AND SAVE THESE INSTRUCTIONS.
PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING.
IMPORTANT: Save these Instructions for the Local Electrical Inspectors use.
INSTALLER: Please leave these Instructions with this unit for the owner.
OWNER: Please retain these instructions for future reference.
Take care when using cleaning agents or detergents.
Suitable for use in household cooking area.
WARNING - To reduce the risk of fire or electric shock, do not use this fan with any
Solid-State Speed Control Device.
CAUTION - To reduce risk of fire and to properly exhaust air, be sure to duct air outside
– Do not vent exhaust air into spaces within walls or ceilings or into attics, crawl spaces,
or garages.
CAUTION - For general ventilating use only. Do not use to exhaust hazardous or
explosive materials and vapors.
CAUTION - To avoid motor bearing damage and noisy and/or unbalanced impellers,
keep drywall spray, construction dust, etc. off power unit.
CAUTION - Please read specification label on product for further information and
requirements.
WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
A. Use this unit only in the manner intended by the manufacturer. If you have questions,
contact the manufacturer.
B. Before servicing or cleaning unit, switch power off at service panel and lock the service
disconnecting means to prevent power from being switched on accidentally. When
the service disconnecting means cannot be locked, securely fasten a prominent warning
device, such as a tag, to the service panel.
WARNING - TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
A. Never leave surface units unattended at high settings. Boilovers cause smoking and
greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
B. Always turn hood ON when cooking at high heat or when flambeing foods (i.e. Crepes
ENGLISH USA

- 8 -
Suzette, Cherries Jubilee, Peppercorn Beef Flambè).
C. Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan
or filter.
D. Use proper pan size. Always use cookware appropriate for the size of the surface
element.
E. Keep fan, filters and grease laden surface clean.
F. Use high range setting on range only when necessary.Heat oil slowly on low to medium
setting.
G. Don’t leave range unattended when cooking.
H. Always use cookware and utensils appropriate for the type and amount off food being
prepared.
WARNING – TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE
TOP GREASE FIRE, OBSERVE THE FOLLOWINGa:
A. SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off
the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately,
EVACUATE AND CALL THE FIRE DEPARTMENT.
B. NEVER PICK UP A FLAMING PAN – You may be burned.
C. DO NOT USE WATER, including wet dishcloths or towels – a violent steam explosion
will result.
D. Use an extinguisher ONLY if:
1. You know you have a Class ABC extinguisher, and you already know how to operate it.
2. The fire is small and contained in the area where it started.
3. The fire department is being called.
4. You can fight the fire with your back to an exit.
aBased on“kitchen firesafety tips”published by NFPA.
Proper maintenance of the Range Hood will assure proper performance of the unit.
INSTALLATION INSTRUCTIONS
WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
A. Installation work and electrical wiring must be done by qualified person(s) in accordance
with all applicable codes and standards, including fire-rated construction.
B. Sufficient air is needed for proper combustion and exhausting of gases through the
flue (chimney) of fuel burning equipment to prevent back drafting. Follow the heating
equipment manufacturer’s guideline and safety standards such as those published by
the National Fire Protection Association (NFPA), and the American Society for Heating,
Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.
C. When cutting or drilling into wall or ceiling, do not damage electrical wiring and
other hidden utilities.
D. Ducted fans must always be vented to the outdoors.
E. This unit must be grounded.

- 9 -
WARNING - TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.
WARNING - UNDER CERTAIN CIRCUMSTANCES DOMESTIC APPLIANCES MAY BE
DANGEROUS.
A. Do not check filters with hood working.
B. Do not touch the lamps after a prolonged use of the appliance.
C. No food must be cooked flambè underneath the hood.
D. The use of an unprotected flame is dangerous for the filters and could cause fires.
E. Watch constantly the fried food in order to avoid the cooking oil flares up.
F. Before performing any mainteinance operation, disconnect the hood from the electrical
service.
The manufacturers will not to accept any responsability for eventual damages, because
of failure to observe the above instructions.

- 10 -
INSTALLATION INSTRUCTIONS.
OPERATING INSTRUCTION.
READ AND SAVE THESE INSTRUCTIONS.
GENERAL
Carefully read the following important information regarding installation safety and
maintenance. Keep this information booklet accessible for further consultations. The
appliance has been designed for use in the ducting version (air exhaust to the outside
- Fig.1B).
INSTALLATION INSTRUCTIONS
• Electric Connection (Fig.9):
For connection to the power supply refer to the follows:
BLACK = L line
WHITE = N neutral
GREEN/YELLOW = G ground
A double-pole switch properly rated must be installed to provide the range hood power
supply disconnection. The appliance must be installed at a minimum height of 26 inches
(66 cm) from an electric cooker stove, or 30 inches (76 cm) from gas or combined cooker
stoves. If a connection ductwork composed of two parts is used, the upper part must be
placed outside the lower part. Do not connect the range hood exhaust duct air to the
same duct air used to exhaust hot air or fumes from other appliances other than electrical.
Before proceeding with the assembly operations, remove the anti-grease filter(s) (Fig.6)
so that the unit is easier to handle.
• We recommend the use of an air exhaust tube which has the same diameter as the air
exhaust outlet hole (Ø 8”). If a pipe with a smaller diameter is used, the efficiency of the
product may be reduced and its operation may become noisier.
• Fixing to the wall:

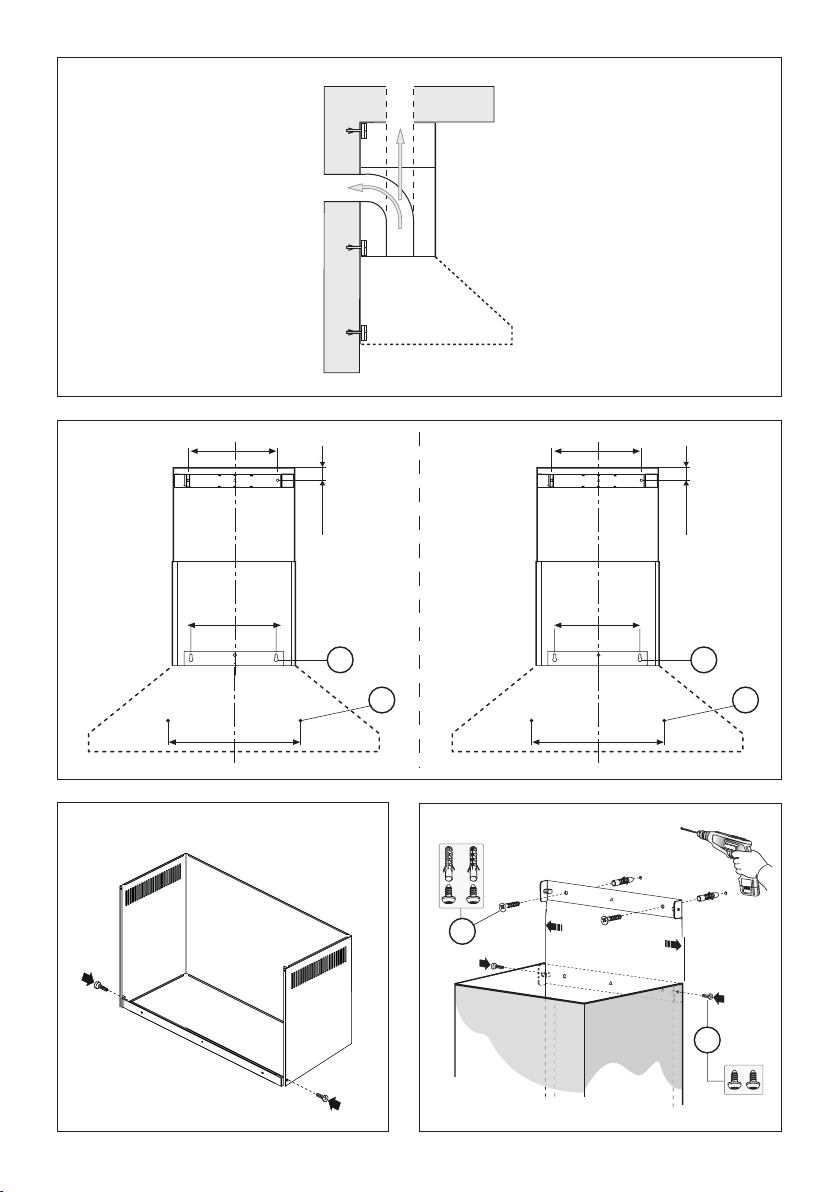

Drill the holes Arespecting the distances indicated (Fig.2). Fix the appliance to the wall
and align it in horizontal position to the wall units. When the appliance has been adjusted,
definitely fix the hood using the screws X(Fig.5). For the various installations use screws
and screw anchors suited to the type of wall (e.g. reinforced concrete, plasterboard, etc.). If
the screws and screw anchors are provided with the product, check that they are suitable
for the type of wall on which the hood is to be fixed.
•Fixing the decorative telescopic flue:
Arrange the electrical power supply within the dimensions of the decorative flue. If your
appliance is to be installed in the ducting version, prepare the air exhaust opening. Install
the upper decorative flue’s support bracket and fix it on the wall using the screws A(Fig.3)
so it is in axis with your hood and respecting the distance from the ceiling shown in Fig.2.
Connect flange Cto air extraction hole via an air extraction pipe (Fig.5).
ATTENTION:
only for models KPH482XT before installing the decorative chimneys, mount the bracket

- 11 -
on the upper chimney as shown in figure 2A.
Insert upper decorative flue inside the lower decorative flue and rest them on top of the
frame. Extract the upper flue up to the bracket and fix it with the screws B(Fig.3).
USE AND MAINTENANCE
• We recommend that the cooker hood is switched on before any food is cooked. We also
recommend that the appliance is left running for 15 minutes after the food is cooked, in
order to thoroughly eliminate all contaminated air.The effective performance of the cooker
hood depends on constant maintenance; the anti-grease filter require special attention.
•The anti-grease BAFFLE filter: This is a suction system which offers improved perfor-
mance with respect to the classic aluminium filters. Its structure means it is able to retain
grease particles, thereby reducing noise to a minimum. It should be washed regularly
every 15 to 30 days in order to prevent the oil from leaking out; this may be done by hand
or using the dishwasher.
-After a few washes, colour alterations may occur. This does not give the right to claim
their replacement.
• Clean the hood frequently, both internally and externally, using a cloth dampened
with denatured alcohol or neutral liquid detergents that are non abrasive.
• The lighting system is designed for use during cooking and not for the prolonged general
lighting of the room.The prolonged use of the lighting system significantly decreases the
average duration of the bulbs.
• Attention: the non compliance with the hood cleaning warnings and with the replace-
ment and cleaning of the filters entails risk of fires. One therefore recommends keeping
to the suggested instructions.
• Replacing LED lamps (Fig.7)
The intervention of a specialised technician is necessary to replace them.
• Commands luminous (Fig.8) the key symbols are explained below:
A= LIGHT
B= OFF
C= SPEED I
D= SPEED II
E = SPEED III
F = AUTOMATIC STOP TIMER - 15 minutes (*)
Your appliance has the INTENSIVE speed function, from speed THREE, press key Efor 2
seconds and it will be activated for 10 minutes after which it will return to the previously
set speed.When the function is active the LED flashes.To interrupt it before the 10 minutes
have elapsed, press key Eagain.
• Function Clean air
By pressing key F for two seconds (with the hood switched off) the“clean air”function is
activated. This function switches the appliance on for ten minutes every hour at the first
speed. As soon as this function is activated the motor starts up at the first speed for ten

- 12 -
minutes. During this time key F and key C must flash at the same time. After ten minutes
the motor switches off and the LED of key F remains switched on with a fixed light until
the motor starts up again at the first speed after fifty minutes and keys F and C start to
flash again for ten minutes and so on. By pressing any key for the exclusion of the hood
light the hood will return immediately to its normal functioning (e.g. if key Dis pressed
the “clean air” function is deactivated and the motor moves to the 2nd speed straight
away. By pressing key B the function is deactivated).
• Function Timer
(*) The “AUTOMATIC STOP TIMER” delays stopping of the hood, which will continue
functioning for 15 minutes at the operating speed set at the time this function is activated.
• Anti-grease:
-When the Akey flashes with a 2 second frequency the anti-grease filters must be washed.
Once the clean filter has been put back one must reset the electronic memory by pressing
the Akey for approximately 5 seconds until it stops flashing.

- 13 -
ASSISTANCE
• Two year limited warranty statement.
WHAT THIS LIMITED WARRANTY COVERS
The warranties provided by Bertazzoni SpA herein apply exclusively to Bertazzoni ap-
pliances and accessories sold as new products to the original owner by an authorized
Bertazzoni distributor, retailer, dealer or service center and installed in the United States
or Canada. The warranties provided herein are not transferable and are valid from the
date of installation.
The Warranty coverage provided by Bertazzoni SpA (“Bertazzoni”) in this statement ap-
plies exclusively to the original Bertazzoni appliance (“Product”) sold to the consumer
(“Purchaser”) by an authorized Bertazzoni dealer/distributor/retailer, purchased and
installed in the United States, District of Columbia, or Canada which has always remained
within the country of original purchase (United States, District of Columbia, or Canada).
Warranty coverage is activated on the date of original retail purchase of the Product and
has a duration of two (2) years.
Warranty coverage is non-transferrable. In the event of parts replacement or entire prod-
uct replacement, the replacement Product (or parts) shall assume the remaining original
Warranty activated with original retail purchase document. This Warranty shall not be
extended with respect to such replacement.
Bertazzoni SpA will repair or replace any component/ part which fails or proves defec-
tive due to materials and/or workmanship within 2 years from the date of original retail
purchase and under conditions of normal residential, non-commercial use.
Repair or replacement will be free of charge, including labor at standard rates and ship-
ping expenses. Purchaser is responsible for making the Product reasonably accessible for
service. Repair service must be performed by a Bertazzoni Authorized Service company
during normal working hours. Labor performed at overtime or premium rates shall not
be covered by Warranty.
• IMPORTANT - Retain proof of original purchase to establish warranty period.
Bertazzoni’s liability on any claim of any kind, with respect to the goods and/or services
provided, shall in no event exceed the value of the goods or service or part thereof which
gives origin to the claim.
30 Day Cosmetic warranty
Inspection of the product must be made by Purchaser at time of delivery.
Bertazzoni warrants that the Product is free from manufacturing defects in materials and
workmanship for a period of thirty (30) days from date of original retail purchase of the
Product.
This coverage includes:
>Paint blemishes
>Chips
>Macroscopic finish defects

- 14 -
Cosmetic warranty does NOT cover:
>issues resulting from incorrect transport, handling and/or installation (i.e: dents, broken,
bowed or deformed structures or components, shattered glass components)
> slight color variations in painted/enameled components
> differences caused by natural or artificial lighting, location or other analogous factors
>• stains/corrosion/discoloration caused by external substances and/or environmental
factors
>labor costs, display, floor, B-stock, out- of-box,“as is”appliances and demo units.
HOW TO OBTAIN SERVICE
To receive warranty service, the Purchaser must contact Bertazzoni Service for problem
determination and correct service procedures. Model number, serial number and date of
original retail purchase will be requested.
• IMPORTANT - Retain proof of original purchase to establish warranty period.
If located in the USA
866 905 0010
hiips://us.bertazzoni.com/more/support
If located in CANADA
800 561 7265
hiips://ca.bertazzoni.com/more/support
• WARRANTY EXCLUSION - WHAT IS NOT COVERED
> Use of the Product in any non-residential, commercial application
> Use of the Product for anything other than its intended scope
> Repair service provided by other than a Bertazzoni authorized service agency.
> Damage or repair service to correct service provided by an unauthorized agency or the
use of unauthorized parts.
> Installation not in accordance with local/state/city/ county fire codes, electrical codes,
gas codes, plumbing codes, building codes, regulations, or laws.
> Defects or damage due to improper storage of the Product.
> Defects or damage or missing parts on products sold out of the original factory packag-
ing or from displays.
> Service calls or repairs to correct the incorrect installation of the product and/or related
accessories.
> Replacement of parts/service calls to connect, convert or otherwise repair the electrical
wiring and/or gas line to properly use the product.
> Replacement of parts/service calls to provide instructions and education on the use
the Product.
> Replacement of parts/service calls to correct issues due to product usage in manner
other than what is normal and customary for residential use.
> Replacement of parts/service calls due to wear and tear such as gaskets, knobs, pan
supports, shelving, cutlery baskets, buttons, touch displays, scratched or broken ceramic

- 15 -
glass tops
> Replacement of parts/service calls for lack of/improper maintenance such as but not
limited to: residue build up, stains, scratches, discoloration, corrosion
> Replacement of glass components and light bulbs if claim arises after 30 days from
original retail purchase date.
> Defects and damages arising from accidents, alteration, misuse, abuse, improper instal-
lation.
> Defects and damages arising from transport, logistics and handling of the Product.
Inspection of the product must be made at time of delivery. Any issues from handling,
transport and logistics must be notified to selling dealer/delivery company after receipt
and inspection.
> Defects and damage arising from external forces beyond the control of Bertazzoni SpA
including but not limited to wind, rain, sand, fires, floods, mud slides, freezing temperatures,
excessive moisture or extended exposure to humidity, power surges, lightning, structural
failures surrounding the appliance and other acts of God.
> Products with altered/damaged/tampered serial number.
In no case shall Bertazzoni be liable or responsible for damage to surrounding property, in-
cluding furniture, cabinetry, flooring, panels and other structures surrounding the Product.
Bertazzoni is not liable nor responsible for the Product if located in a remote area or an
area where certified trained technicians are not reasonably available. Purchaser must bear
any transportation and delivery costs of the Product to the nearest authorized Service
center or for the additional displacement rates of a certified trained technician.
THERE ARE NO EXPRESSWARRANTIES OTHERTHANTHOSE LISTED AND DESCRIBED ABOVE,
AND NOWARRANTIES WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO,
ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PUR-
POSE, SHALL APPLY AFTER THE EXPRESS WARRANTY PERIODS STATED ABOVE, AND NO
OTHER EXPRESSWARRANTY OR GUARANTEE GIVEN BY ANY PERSON, FIRM OR CORPORA-
TIONWITH RESPECT TOTHIS PRODUCT SHALL BE BINDING ON BERTAZZONI. BERTAZZONI
SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURETO REALIZE SAVINGS OR
OTHER BENEFITS, TIME AWAY FROMWORK, MEALS, LOSS OF FOOD OR BEVERAGES,TRAVEL-
ING OR HOTEL EXPENSES, EXPENSESTO RENT OR PURCHASE APPLIANCES, REMODELLING/
CONSTRUCTION EXPENSES IN EXCESS OF DIRECT DAMAGES WHICH ARE DEFINITIVELY
CAUSED EXCLUSIVELY BY BERTAZZONI, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSE-
QUENTIAL DAMAGES CAUSED BY THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT,
REGARDLESS OFTHE LEGAL THEORY ON WHICHTHE CLAIM IS BASED, AND EVEN IF BERTAZ-
ZONI HAS BEEN ADVISED OFTHE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY
OF ANY KIND AGAINST BERTAZZONI BE GREATER IN AMOUNTTHAN THE PURCHASE PRICE
OFTHE PRODUCT SOLD BY BERTAZZONI AND CAUSING THE ALLEGED DAMAGE.WITHOUT
LIMITING THE FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS,
DAMAGE OR INJURYTO PURCHASER AND PURCHASER’S PROPERTY AND TO OTHERS AND
THEIR PROPERTY ARISING OUT OF THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT
SOLD BY BERTAZZONI NOT CAUSED DIRECTLY BYTHE NEGLIGENCE OF BERTAZZONI.THIS
LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PUR-

- 16 -
CHASER OFTHIS PRODUCT, IS NON-TRANSFERABLE AND STATESYOUR EXCLUSIVE REMEDY.
Bertazzoni does not assume any responsibility for incidental or consequential dam-
ages. Some states do not allow the exclusion or limitation of incidental or consequential
damages, so the above limitation or exclusion may not apply to you. This warranty gives
you specific legal rights and you may also have other rights which may vary from state to
state or province to province.
Any questions about this LimitedWarranty may be directed to Bertazzoni Customer
Care
If located in the USA:
866 905 0010
hiips://us.bertazzoni.com/more/support
If located in CANADA:
800 561 7265
hiips://ca.bertazzoni.com/more/support

- 17 -
INSTRUCTIONS DE SECURITE IMPORTANTES.
POUR UN USAGE DOMESTIQUE EXCLUSIVEMENT.
LIRE ET CONSERVER LES INSTRUCTIONS.
COMMENCER PAR LIRE ENTIEREMENT LES INSTRUCTIONS.
IMPORTANT: Conserver les Instructions à usage des Inspecteurs Electriques Locaux.
A L’ATTENTION DE L’INSTALLATEUR: Laisser les Instructions dans l’unité à usage du
propriétaire.
A L’ATTENTION DU PROPRIETAIRE: Conserver les Instructions pour des consultations
ultérieures.
N’utiliser des produits de nettoyage ou des détergents qu’avec la plus grande prudence.
Cet appareil est propre à une utilisation domestique et culinaire.
AVERTISSEMENT – Afin de réduire les risques d’incendie ou d’électrocution, ne pas
utiliser le moteur avec un Dispositif de Contrôle de la Vitesse à Semi-conducteurs quel
qu’il soit.
ATTENTION – Afin de réduire les risques d’incendie et de permettre une aspiration
correcte de l’air, s’assurer que celui-ci est bien transporté à l’extérieur à travers un conduit
d’évacuation. – Ne pas évacuer l’air dans des interstices tels qu’entre des cloisons ou
des plafonds, dans des greniers, des espaces confinés ou des garages.
ATTENTION – N’utiliser que pour une ventilation générique. Cet appareil n’est pas
propre à l’aspiration de matières ou de vapeurs dangereuses ou explosives.
ATTENTION – Afin d’éviter des bruits et des dommages au niveau du moteur, et/ou
un déséquilibre au niveau des hélices, veiller à ce que l’unité d’alimentation n’entre pas
en contact avec du spray, de la poussière etc.
ATTENTION – Pour obtenir des compléments d’informations, consulter l’étiquette de
spécification sur le produit.
AVERTISSEMENT – AFIN DE RÉDUIRE LES RISQUES D’INCENDIE, D’ÉLECTROCUTION
OU DE DOMMAGES AUX PERSONNES, RESPECTER LES REGLES SUIVANTES:
A. N’utiliser l’unité que pour les opérations prévues par le fabricant. Pour toute question
éventuelle, contacter le fabricant.
B. Avant d’effectuer des opérations de maintenance ou de nettoyage sur l’unité,
débrancher le panneau de service et fermer à clef les commandes de déconnection
afin d’éviter toute mise sous tension accidentelle.
Au cas où les commandes de déconnection ne pourraient être fermées à clef, fixer sur
FRANÇAIS F

- 18 -
lepanneau de service un message avertissant du danger, par exemple une plaque.
AVERTISSEMENT–AFINDE RÉDUIRE LESRISQUESD’INCENDIEPAR INFLAMMATION
DES GRAISSES PRESENTES SUR LA GAZINIERE:
A. Ne jamais laisser de casseroles sur feu vif sans surveillance. D’éventuels débordements
dus à une forte ébullition peuvent provoquer de la fumée et des dépôts de graisses
susceptibles de prendre feu. Réchauffer l’huile lentement, à petit feu ou moyen.
B. ALLUMER systématiquement la hotte pour cuisiner à des températures élevées ou pour
flamber des aliments (ex.: Crêpes Suzette, Cherries Jubilee – cerises flambées au brandy
et glace -, Boeuf flambé au poivre).
C. Nettoyer souvent le moteur. Eviter que les graisses ne s’accumulent sur le moteur ou
sur le filtre.
D. Utiliser des plats aux dimensions adaptées. Toujours utiliser des ustensiles de cuisine
adaptés à la taille de la casserole qui se trouve sur la cuisinière.
E. Veiller à ce que le moteur, les filtres et la surface où viennent s’accumuler les graisses
restent propres.
F. N’utiliser une flamme élevée que lorsque cela est nécessaire. Réchauffer l’huile
lentement, à faible ou moyenne température.
G. Ne jamais laisser la cuisinière sans surveillance pendant la cuisson.
H. Utiliser systématiquement des ustensiles de cuisine adaptés au type et à la quantité
d’aliments que l’on prépare.
AVERTISSEMENT – AFIN DE RÉDUIRE LES RISQUES DE DOMMAGES AUX PERSONNES
EN CAS D’INCENDIE PAR INFLAMMATION DES GRAISSES PRESENTES SUR LA CUISINIERE,
RESPECTER LES REGLES SUIVANTESa:
A. ETOUFFER LA FLAMME à l’aide d’un couvercle hermétique, une plaque à four ou un
plateau en métal et éteindre le brûleur. PROCEDER AVEC LA PLUS GRANDE PRUDENCE
AFIN D’EVITER TOUTE BRULURE. Si les flammes ne s’éteignent pas immédiatement,
EVACUER LA PIECE ET APPELER LES POMPIERS.
B. NE JAMAIS TOUCHER UN PLAT EN FEU – on risque de se brûler.
C. NE PAS UTILISER D’EAU, ni de chiffons ou de serviettes humides – cela pourrait provoquer
une violente explosion de vapeur.
D. Utiliser un extincteur UNIQUEMENT dans les cas suivants:
1. On dispose d’un extincteur de Classe ABC que l’on sait faire fonctionner.
2. L’incendie est peu important et il est confiné à la zone où il a éclaté.
3. On a déjà appelé les pompiers.
4. On peut affronter les flammes tout en ayant une issue de secours derrière soi.
aBasé sur les « mesures de sécurité incendie dans la cuisine « publiées par l’organisme NFPA.
Une bonne maintenance de la hotte garantit le parfait fonctionnement de l’unité.
INSTRUCTIONS D’INSTALLATION
AVERTISSEMENT – AFIN DE RÉDUIRE LES RISQUES D’INCENDIE, D’ÉLECTROCUTION OU
DE DOMMAGES AUX PERSONNES, RESPECTER LES REGLES SUIVANTES:
A. Les opérations d’installation et de branchement électrique doivent être effectuées par

- 19 -
du personnel qualifié, conformément aux lois et aux normes en vigueur, y compris
celles relatives aux appareils à feu.
B. Il est nécessaire de disposer d’une quantité d’air suffisante pour une bonne combustion
et aspiration des gaz à travers le conduit de fumée de l’installation de combustion du
carburant, afin d’éviter un appel d’air de l’arrière. Suivre les indications du fabricant
de l’installation de chauffage et les normes de sécurité correspondantes telles que
celles émises par l’Association Nationale de Protection contre les Incendies (National
Fire Protection Association - NFPA), la Société Américaine desTechniciens de Chauffage,
Réfrigération et Climatisation de l’Air (American Society for Heating, Refrigeration and
Air Conditioning Engineers - ASHRAE), et par les autorités locales préposées.
C. Au cours des opérations de découpage ou de perforation du mur ou du plafond, veiller
à ne pas endommager les câbles électriques ou d’autres canalisations cachées.
D. L’appareil doit toujours être relié à un trou d’évacuation vers l’extérieur.
E. L’unité doit être reliée à la terre.
AVERTISSEMENT – AFIN DE RÉDUIRE LES RISQUES D’INCENDIE, N’UTILISER QUE
DESCONDUITS METALLIQUES.
AVERTISSEMENT – LES APPAREILS ELECTROMENAGERS PEUVENT PARFOIS S’AVERER
DANGEREUX.
A. Ne pas contrôler les filtres lorsque la hotte est en état de marche.
B. Ne pas toucher les lampes après une utilisation prolongée de l’appareil.
C. Ne jamais faire flamber d’aliments sous la hotte.
D. L’usage de flammes libres est dangereux pour les filtres et peut générer des incendies.
E. Contrôler constamment les fritures pour éviter que des éclaboussures d’huile ne
prennent feu.
F. Avant d’effectuer toute opération de maintenance, débrancher la hotte du réseau
d’alimentation électrique.
Le fabricant ne pourra être retenu responsable d’éventuels dommages causés par le
non respect des instructions susmentionnées.

- 20 -
INSTRUCTIONS D’INSTALLATION.
INSTRUCTIONS POUR LE FONCTIONNEMENT DE L’APPAREIL.
LIRE ET CONSERVER LES INSTRUCTIONS.
GENERALITES
Lire attentivement les informations suivantes, relatives à la sécurité dans les opérations
d’installation et de manutention. Conserver ce fascicule d’informations pour des
consultations ultérieures. Cet appareil a été conçu pour être utilisé en version aspirante
(évacuation de l’air vers l’extérieur - Fig.1).
INSTRUCTIONS D’INSTALLATION
• Connexion électrique (Fig.9):
Pour brancher l’appareil au réseau d’alimentation électrique:
NOIR = L ligne
BLANC = N neutre
VERT/JAUNE = G terre
Un interrupteur bipolaire approprié doit être installé afin de permettre à la hotte de se
débrancher du réseau électrique. L’appareil doit être installé à une hauteur minimum
de 26 pouces (66 cm) par rapport à une cuisinière électrique, et de 30 pouces (76 cm)
s’il s’agit d’une cuisinière à gaz ou combinée. Si l’on utilise un conduit composé de deux
éléments, la partie supérieure doit alors être reliée à l’extérieur de la partie inférieure. Ne
pas relier le conduit d’aspiration d’air de la hotte à celui utilisé pour aspirer l’air chaud ou
les fumées provenant de d’autres appareils électroménagers non électriques. Avant de
procéder aux opérations d’assemblage, retirer le(s) filtre(s) anti-graisses (Fig.6). L’unité
sera ainsi plus facile à manoeuvrer.
• Nous conseillons d’utiliser un tuyau d’évacuation de l’air de même diamètre que l’orifice
de sortie de l’air (Ø 8”). L’utilisation d’une réduction pourrait diminuer les performances
du produit et augmenter le niveau sonore.
• Fixation murale:
Exécuter les trous Aen respectant les cotes indiquées (Fig.2). Fixer l’appareil au mur et l’ali-
gner dans la position horizontale avec les éléments suspendus. Cette opération terminée,
fixer la hotte définitivement au moyen des 2 vis X(Fig.5). En cas de différents montages
utiliser des vis et des goujons à expansion adéquats au type de mur (par exemple béton
armé, placoplâtre, etc.). Au cas où les vis et les goujons seraient fournis avec l’appareil,
s’assurer qu’ils sont adéquats au type de paroi, où sera fixée la hotte.
•Fixation des raccords télescopiques de décoration:
Installer au préalable l’alimentation électrique dans les limites de l’encombrement de la
cheminée décorative. Si votre appareil doit être installé en version aspirante, prévoir l’orifice
d’évacuation d’air. Installer l’étrier de support de la cheminée décorative supérieure, le fixer
ensuite au mur avec les vis A(Fig.3) de manière qu’il soit dans l’axe de votre hotte; ceci
en respectant la distance du plafond indiquée sur la Fig.2. Raccorder la bride Cà l’orifice
d’évacuation d’air (Fig.5) au moyen du tuyau d’évacuation d’air.
