MODEL K210A
INTENDED FOR DOMESTIC USE ONLY
INSTALLER: LEAVE THIS MANUAL WITH HOMEOWNER.
HOMEOWNER: USE AND CARE INFORMATION ON PAGES 12 AND 13.
BEST; Hartford, Wisconsin www.BestRangeHoods.com 800-558-1711
BEST; Drummondville, QC, Canada www.BestRangeHoods.com 866-737-7770
REGISTER YOUR PRODUCT ON LINE AT: www.BestRangeHoods.com/register
For additional information - visit www.BestRangeHoods.com
SV03516 rev. P
HB0029
INSTALLATION INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
!
!

WARNING WARNING
- 2 -
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR INJURY TO PERSONS, OBSERVE
THE FOLLOWING:
1. Use this unit only in the manner intended by the
manufacturer. If you have questions, contact the
manufacturer at the address or telephone number
listed in the warranty.
2. Before servicing or cleaning unit, switch power off
at service panel and lock service disconnecting
means to prevent power from being switched on
accidentally. When the service disconnecting
means cannot be locked, securely fasten a prominent
warning device, such as a tag, to the service panel.
3. Installation work and electrical wiring must be
done by qualified personnel in accordance with all
applicable codes and standards, including
fire-rated construction codes and standards.
4. Sufficient air is needed for proper combustion and
exhausting of gases through the flue (chimney) of
fuel burning equipment to prevent backdrafting.
Follow the heating equipment manufacturer’s
guidelines and safety standards such as those
published by the National Fire Protection
Association (NFPA), and the American Society for
Heating, Refrigeration and Air Conditioning
Engineers (ASHRAE), and the local code authorities.
5. When cutting or drilling into wall or ceiling, do not
damage electrical wiring and other hidden utilities.
6. Ducted fans must always be vented to the outdoors.
7. Do not use this unit with any additional solid-state
speed control device.
8. To reduce the risk of fire, use only metal ductwork.
9. This unit must be grounded.
10. When applicable local regulations comprise
more restrictive installation and/or certification
requirements, the aforementioned requirements
prevail on those of this document and the installer
agrees to conform to these at his own expenses.
TO REDUCE THE RISK OF A RANGE TOP
GREASE FIRE:
a) Never leave surface units unattended at high
settings. Boilovers cause smoking and greasy
spillovers that may ignite. Heat oils slowly on
low or medium settings.
b) Always turn hood ON when cooking at high
heat or when cooking flambeing foods (i.e.: Crêpes
Suzette, Cherries Jubilee, Peppercorn Beef
Flambé).
c) Clean ventilating fans frequently. Grease should
not be allowed to accumulate on fan or filter.
d) Use proper pan size. Always use cookware
appropriate for the size of the surface element.
TO REDUCE THE RISK OF INJURY TO PERSONS
IN THE EVENT OF A RANGE TOP GREASE
FIRE, OBSERVE THE FOLLOWING*:
1. SMOTHER FLAMES with a close-fitting lid,
cookie sheet or metal tray, then turn off the
burner. BE CAREFUL TO PREVENT BURNS. IF
THE FLAMES DO NOT GO OUT IMMEDIATELY,
EVACUATE AND CALL THE FIRE DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN—You may
be burned.
3. DO NOT USE WATER, including wet dishcloths or
towels—This could cause a violent steam explosion.
4. Use an extinguisher ONLY if:
A. You own a Class ABC extinguisher and you
know how to operate it.
B. The fire is small and contained in the area
where it started.
C. The fire department has been called.
D. You can fight the fire with your back to an exit.
* Based on “Kitchen Fire Safety Tips” published by NFPA.
CAUTION
1. For indoor use only.
2. For general ventilating use only. Do not use to
exhaust hazardous or explosive materials and vapors.
3. To avoid motor bearing damage and noisy and/or
unbalanced impellers, keep drywall spray,
construction dust, etc. off power unit.
4. Your hood motor has a thermal overload which will
automatically shut off the motor if it becomes
overheated. The motor will restart when it will be
cooled down. If the motor continues to shut off and
restart, have the hood serviced.
5. For best capture of cooking impurities, the bottom
of the hood should be at a minimum of 20”
(24” over a gas range) and at a maximum of 30”
above the cooking surface.
6. Two installers are recommended because of the
large size and weight of this hood.
7. To reduce the risk of fire and to properly exhaust
air, be sure to duct air outside—Do not exhaust air
into spaces within walls or ceiling or into attics,
crawl space or garage.
8. This product is equipped with a thermostat which
may start blower automatically. To reduce the risk
of injury and to prevent power from being switched
on accidentally, switch power off at service panel
and lock or tag service panel.
9. Because of the high exhausting capacity of this
hood, you should make sure enough air is entering
the house to replace exhausted air by opening a
window close to or in the kitchen.
10. To reduce the risk of fire and electric shock, the
Best K210A hood must be installed with Best
interior blower models P5 or P8; Best exterior models
EB6, EB9, EB12 or EB15; Best in-line blowers models
ILB3, ILB6, ILB9 or ILB11 Other blowers cannot be
substituted. (Blowers sold separately.)
11. Use with approved cord-connection kit only.
12. Please read specification label on product for
further information and requirements.
!
!

HL0070
- 3 -
Backsplash (RMP Series)
(Stainless steel wall covering
with warming shelves. Optional)
8” Round adjustable
elbow (optional)
Model 415
7” Round adjustable
elbow (optional)
Model 412
Transition
(3¼” x 10” to 7”)
Adapter and damper 3¼” x 10”
(supplied with P5 and P8 blowers)
Adapter and damper
3¼” x 14”
(supplied with P8 blower)
Standard
3¼” x 10”
duct Standard
3¼” x 14” duct
Model P5
single-blower
(500 cfm)
K210A HOOD

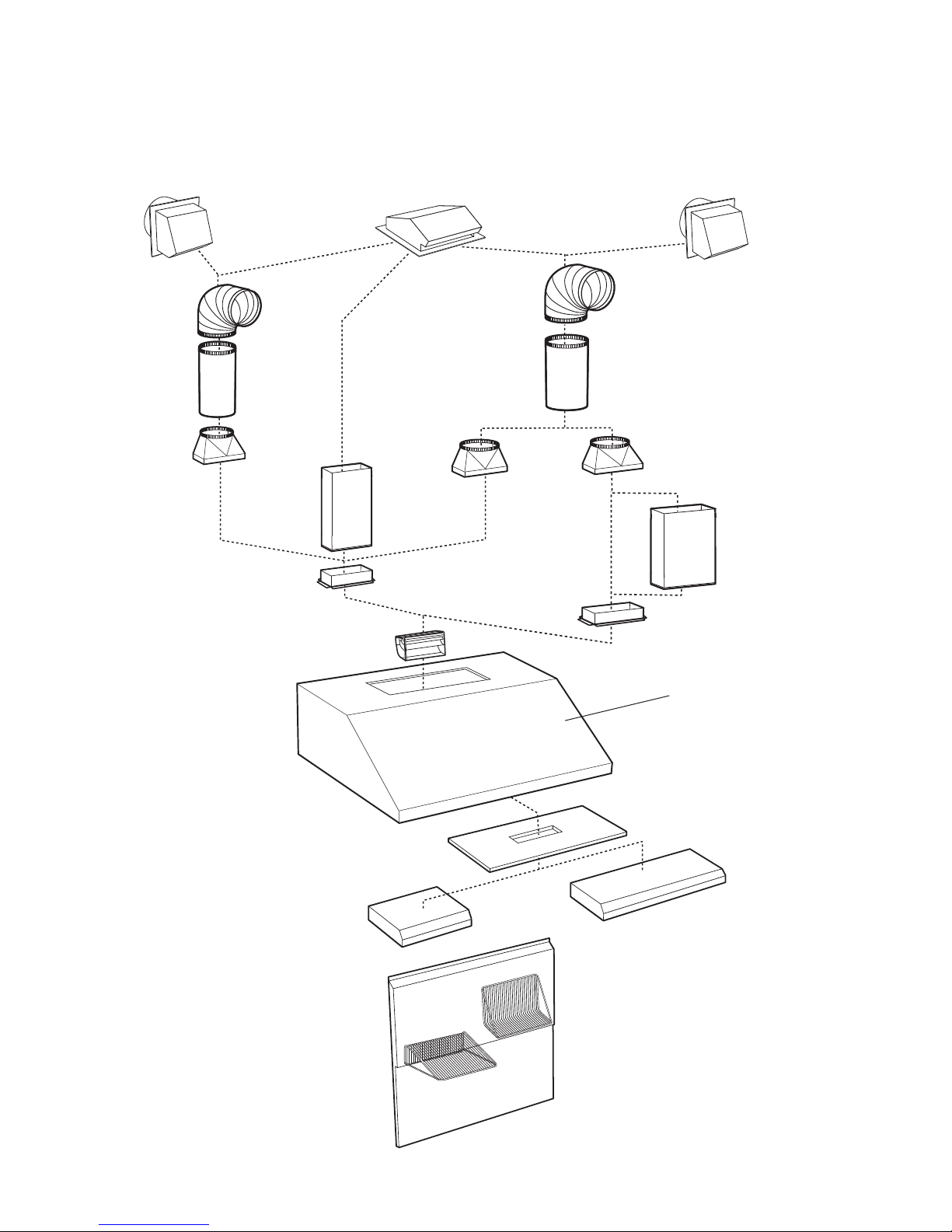

- K210A MODEL RANGE HOOD SYSTEM -
INTERIOR BLOWERS
Flow deviator
(vertical exhaust only)
(supplied with P5 and P8 blowers)
Model 647
(7” Round wall cap) Model 634 or 644 (roof cap) Model 643
(8” Round wall cap)
8” Round
standard
duct
Model 407
(7” Round—
2 ft sections)
Model 413
Transition
(3¼” x 10” to 8”)
Model 459 transition
(3¼” x 14” to 8”)
Model P8 dual-blower (900 cfm)
For use with 36” hoods or wider
NOTE: The dual blower P8 must be
installed with 3¼” x 14” duct. If it
is impossible to connect the dual
blower P8 to a 3¼” x 14” duct,
use a 3¼” x 10” duct. In that
case, the blower performance
will be decreased by 25%.
Rough-in kit
(supplied with P5 and P8 blowers)

- 4 -
HL0071
RMP Series Backsplash
(Stainless Steel wall
covering with warming
shelves. Optional)
K210A HOOD

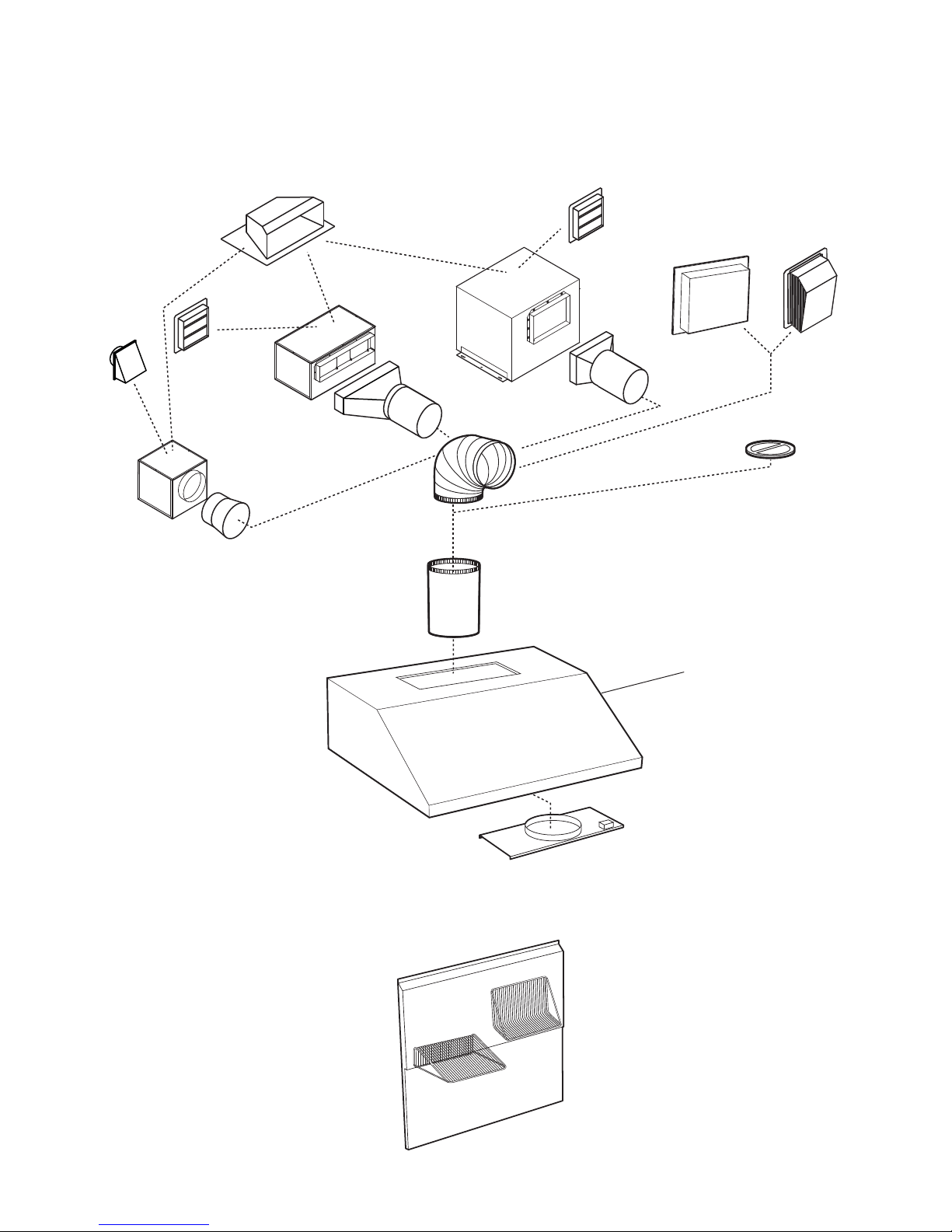

- K210A MODEL RANGE HOOD SYSTEM -
IN-LINE AND EXTERIOR BLOWERS
In-line and exterior blower rough-in kit
(included with EB6, EB9, EB12, EB15,
ILB3, ILB6, ILB9 and ILB11 blowers).
Model 418
(10” Round
adjustable elbow)
(optional)
Model ILB3
(280 cfm)
In-line blower
(includes one 8” to
10” round transition)
Model EB6 (600 cfm)
or EB9 (900 cfm)
exterior blower
Model EB12
(1200 cfm)
or EB15
(1500 cfm)
Exterior blower
Model 441
(10” Round
wall cap)
Model 437
(High capacity roof cap)
Model 441
(10” Round wall cap)
Model 421
(10” Round vert.
In-line damper)
(Recommended
for use with
exterior blowers)
Model 410
(10” Round duct
2 ft. sections)
Model ILB6 (600 cfm)
In-line blower
(includes two 4½” x 18½”
to 10” round transitions)
Model ILB9 (800 cfm)
or ILB11 (1100 cfm)
In-line blower
(includes two 8” x 12” to
10” round transitions)
Model 643
(8” Round
wall cap)

- 5 -
1. SELECT BLOWER OPTION AND INSTALL DUCTWORK
Either an interior or exterior blower or in-line blower may be used with this hood. The Best K210A must be installed with
blower models P5, P8, ILB3, ILB6, ILB9, ILB11, EB6, EB9, EB12 or EB15 only. Other blowers cannot be substituted.
(Blowers sold separately).
Plan where and how the ductwork will be installed.
If installing in-line blower, refer to instructions packed with in-line blower and follow steps 1 up to 3, 6, 9, 10,
12 and up of this manual.
Install proper-sized ductwork, elbows and roof or wall cap for the type of blower you are installing. If using 7” or 8” round
ducts, or 31/4” x 14” duct, use a transition. Use 2” metal foil duct tape to seal duct joints.
The minimum hood distance above cooktop must not be less than 20” for an electric range and 24” for a gas
range. A maximum of 30” above cooktop is highly recommended for best capture of cooking impurities.
Distances over 30” are at the installer and users discretion.
Hood with
interior blower
3¼”x 10”or
3¼”x 14”duct
Roof cap
Wall
cap
HH0030A
3¼”x 14”to 8”
transition if
3¼”x 14”duct
20”minimum above
cookingsurface
(24”for gas)

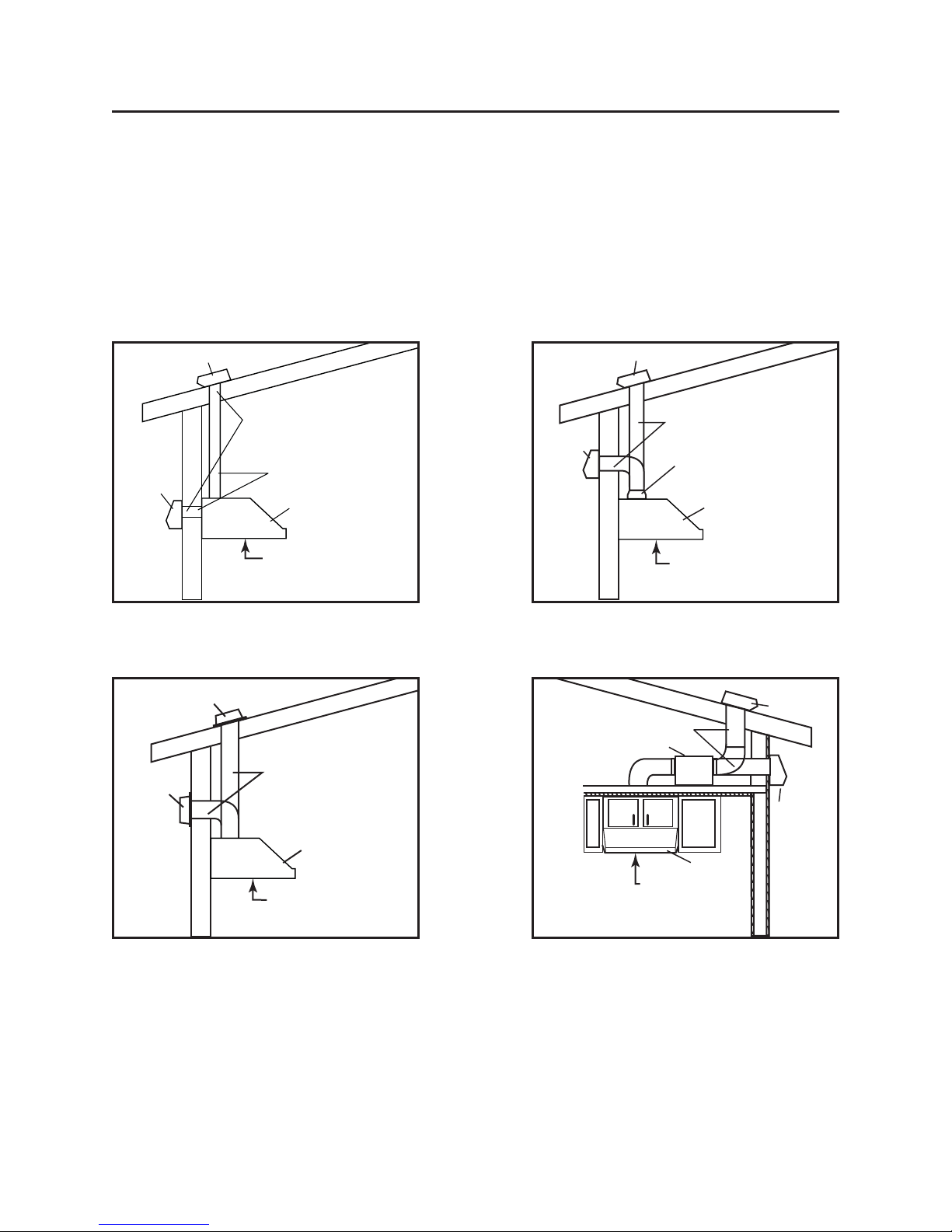

MODEL P5 (SINGLE) OR P8 (DOUBLE)
INTERIOR BLOWER
TYPICAL RECTANGULAR DUCTWORK
Hood
7”or 8”
round duct
Roof cap
Wall
cap 3¼”x 10”to 7”
or 8” transition
HH0031A
20”minimum above
cookingsurface
(24”for gas)
MODEL P5 (SINGLE) OR P8 (DOUBLE)
INTERIOR BLOWER
7” OR 8” ROUND DUCTWORK
Hood
10”round duct
Exterior blower
HH0032A
Exterior
blower
20”minimum above
cookingsurface
(24”for gas)
MODEL EB6, EB9, EB12 OR EB15
EXTERIOR BLOWER
TYPICAL DUCTWORK
In-line blower
10”round duct
HH0060A
20”minimum
above cooking
surface
(24”for gas)
Roof cap
Wall
cap
Hood
MODEL ILB3, ILB6, ILB9 OR ILB11
IN-LINE BLOWER
TYPICAL DUCTWORK

- 6 -
2. PREPARE THE INSTALLATION
Make sure that the following items are included:
- Range hood
- Accessories:
• Baffle filters
• Baffle filters handles
• Shielded halogen lamps (120 V, 50 W, MR16 or PAR16 with GU10 base)
• Bag of parts including:
(4) lock nuts, (1) wire clamp, (8) 1/2” double thread screws, (2) wire connectors,
(2) 1/2” standard screws, (6) 3/8 screws.
Parts sold separately:
- Interior blower Model P5 includes blower, rough-in kit, flow deviator and 3¼” x 10” adapter
- Interior blower Model P8 includes blower, rough-in kit, flow deviator and 3¼” x 10” adapter and 3¼” x 14” adapter
- In-line blower assembly ILB3, ILB6, ILB9 or ILB11 (all include transition and rough-in plate)
- Exterior blower assembly EB6, EB9, EB12 or EB15 (all include rough-in plate)
- Backsplash (optional)
- Transitions, duct, elbows, dampers, wall and roof caps. Refer to pages 3 and 4 for a complete list of venting options
and model numbers.

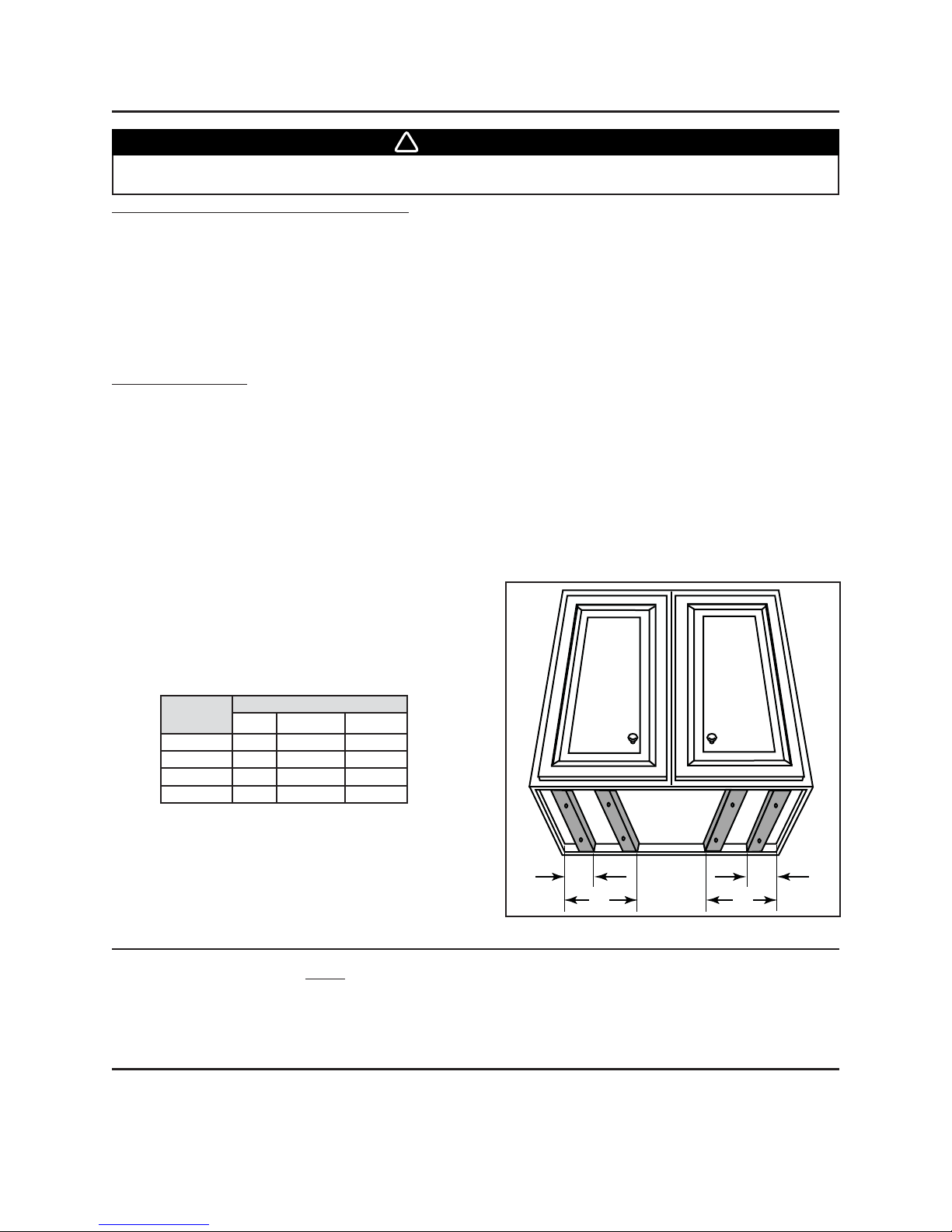

NOTE: For cabinets with recessed bottom, attach wood filler strips (not included) on each sides, as shown below. Use
two (2) 2-inch wide strips for 30” wide hoods, and four (4) 2-inch wide strips for wider hoods, cut to length.
See below for wood filler strip locations.
HD0079
A
A
B C
3. INSTALL BACKSPLASH (OPTIONAL)
Backsplash must be installed before the hood shell because the hood shell covers the backsplash top mounting
screws. In order to be able to install the backsplash, make sure you have at least 18” clearance between bottom of
hood and range control panel or cooktop. (See instructions packed with backsplash.)
4. SELECT BLOWER OPTION (EXTERIOR OR INTERIOR)
INTERIOR BLOWER: Follow all subsequent steps of this manual.
EXTERIOR BLOWER: Refer to instructions packed with exterior blower and follow steps 6, 9, 10, 12 and up of the
present manual.
When performing installation, servicing or cleaning the unit, it is recommended to wear safety
glasses and gloves.
HOOD
WIDTHS
LOCATIONS
A B C
30” 2” N/A N/A
36” 2” 4½” 4½”
42” 2” 7¼” 8¼”
48” 4” 10¼” 11¼”
WARNING
!

- 7 -

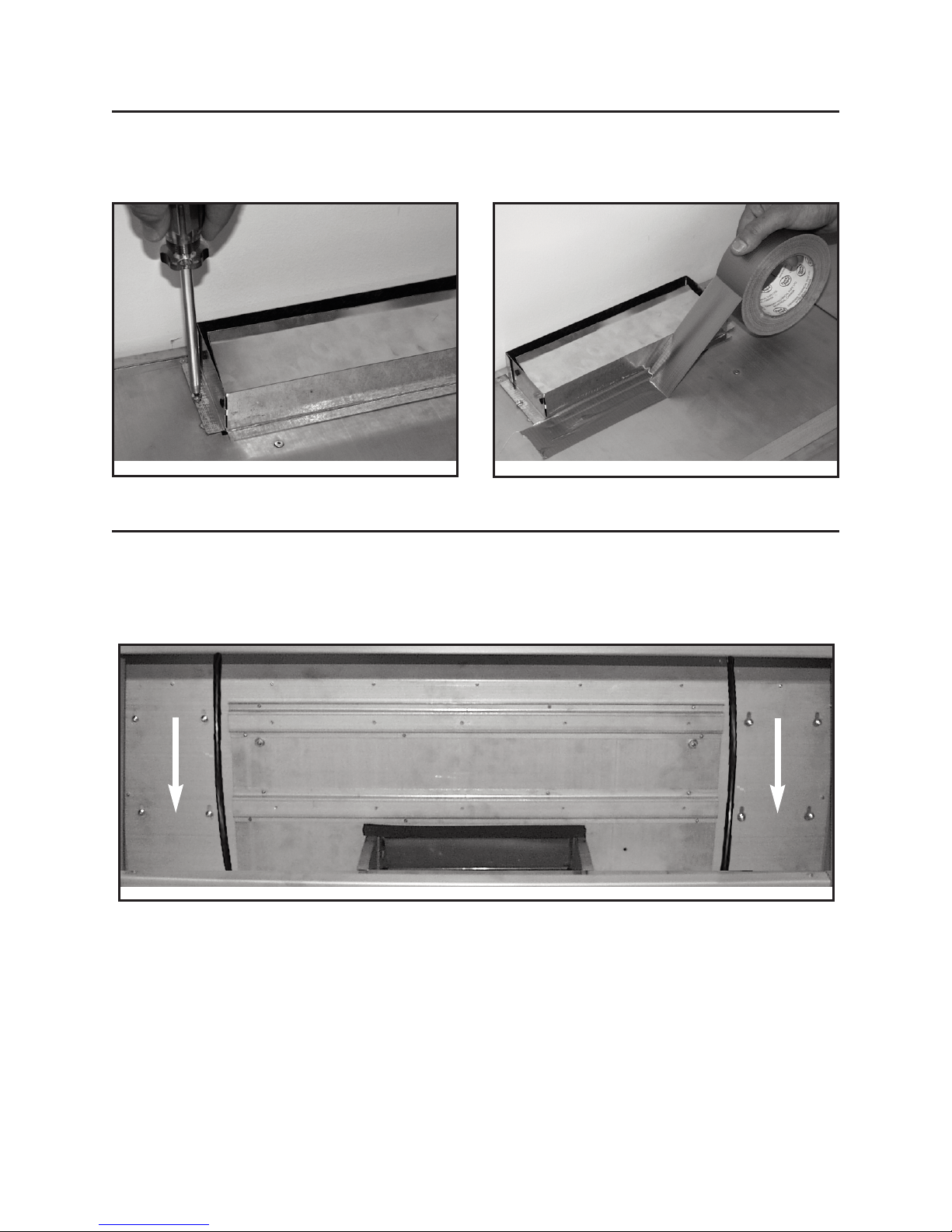

Removing horizontal knockout opening on back of hood
HD0076
5. CHOOSE THE OPENING (INTERIOR BLOWER)
Remove the knockout for the chosen opening (horizontal at the back of the hood or vertical on rough-in plate).
See pictures below.
CAUTION
When using P5 blower, remove the 10” wide knockout (smaller part). If using P8 blower, remove the
knockout corresponding to the ducting installed (10” or 14”).
Removing vertical knockout opening on rough-in plate
HD0077
10” KNOCKOUT
14” KNOCKOUT
14”
KNOCKOUT
10”
KNOCKOUT
6. INSTALL THE ROUGH-IN PLATE (ALL BLOWERS)
INTERIOR BLOWER: Secure the rough-in plate (provided with the P5 and P8 blower) inside the hood with four (4)
lock nuts. See picture below.
EXTERIOR OR IN-LINE BLOWER: Refer to instructions included with EB6, EB9, EB12 or EB15 the rough-in kit.
Secure the rough-in plate inside the hood with (4) lock nuts.
HD0042
Inserting deviator into hood vertical opening
7. INSTALL THE DEVIATOR (INTERIOR BLOWER)
YOU MUST install the deviator if you choose to vent the hood vertically.
Install the deviator as shown.
NOTE: If installed correctly, the deviator will protrude about 1/8” above the
rough-in plate.
HD0003

- 8 -
8. INSTALL THE ADAPTER (INTERIOR BLOWER)
Using two (2) standard 1/2” screws, secure the adapter to the top (or back) of the hood. Seal the adapter to the hood
using metal foil duct tape.
NOTE: For vertical exhaust, please make sure that the damper pivot is located towards the front of the hood.
HD0005 HD0006
9. INSTALL THE HOOD (INTERIOR & EXTERIOR BLOWER)
HD0043
INTERIOR BLOWER: Run power cable to installation location. Place the hood to its location. Mark the position of the
screws (smaller part of the key holes) with a pen. Remove the hood and install the (8) 1/2” double thread screws
leaving a 1/8” gap (4 screws for 30” hood). Remove wiring cover, place the wire clamp, insert the cable in the hood and
tighten the wire clamp to secure the cable. Place the hood under the cabinet and slide it in position. Make sure the
adapter/damper assembly enters the ducting. Secure the hood by tightening the screws completely.
EXTERIOR BLOWER: Run power cable to installation location. Place the hood to its location. Mark the position of the
screws (smaller part of the key holes) with a pen. Remove the hood and install the (8) 1/2” double thread screws
leaving a 1/8” gap (4 screws for 30” hood). Remove wiring cover on top of the hood and connect wiring (see instructions
included with exterior blower). Place the hood under the cabinet and slide it in position. Secure the hood by tightening
the screws completely.

- 9 -
10. CONNECT WIRING (ALL BLOWERS)
INTERIOR BLOWER: Connect cable into wiring box using wire
connectors.
Connect wires as follow: BLACK to BLACK, WHITE to WHITE and
GREEN or BARE wire under ground screw. Reinstall wiring cover.
DO NOT FORGET TO CONNECT THE GROUND.
WARNING
Risk of electrical shock. Electrical wiring must be done by qualified personnel in accordance with
all applicable codes and standards. Before connecting wires, switch power off at service panel and
lock service disconnecting means to prevent power to be switched on accidentally.
!
1
HD0007
1) Ground screw
11. INSTALL THE BLOWER (INTERIOR BLOWER)
The blower must be installed to the rough-in plate using (4) 3/8” screws for the single blower unit and (6) 3/8” screws
for the dual blower unit. Remove the cover from the blower assembly. Remove the impeller(s) by pulling them out gently
(see pictures below).
HD0021 HD0022
IN-LINE OR EXTERIOR BLOWER: Remove rough-in plate wiring cover and connect wiring (see instructions included
with in-line or exterior blower).

- 10 -

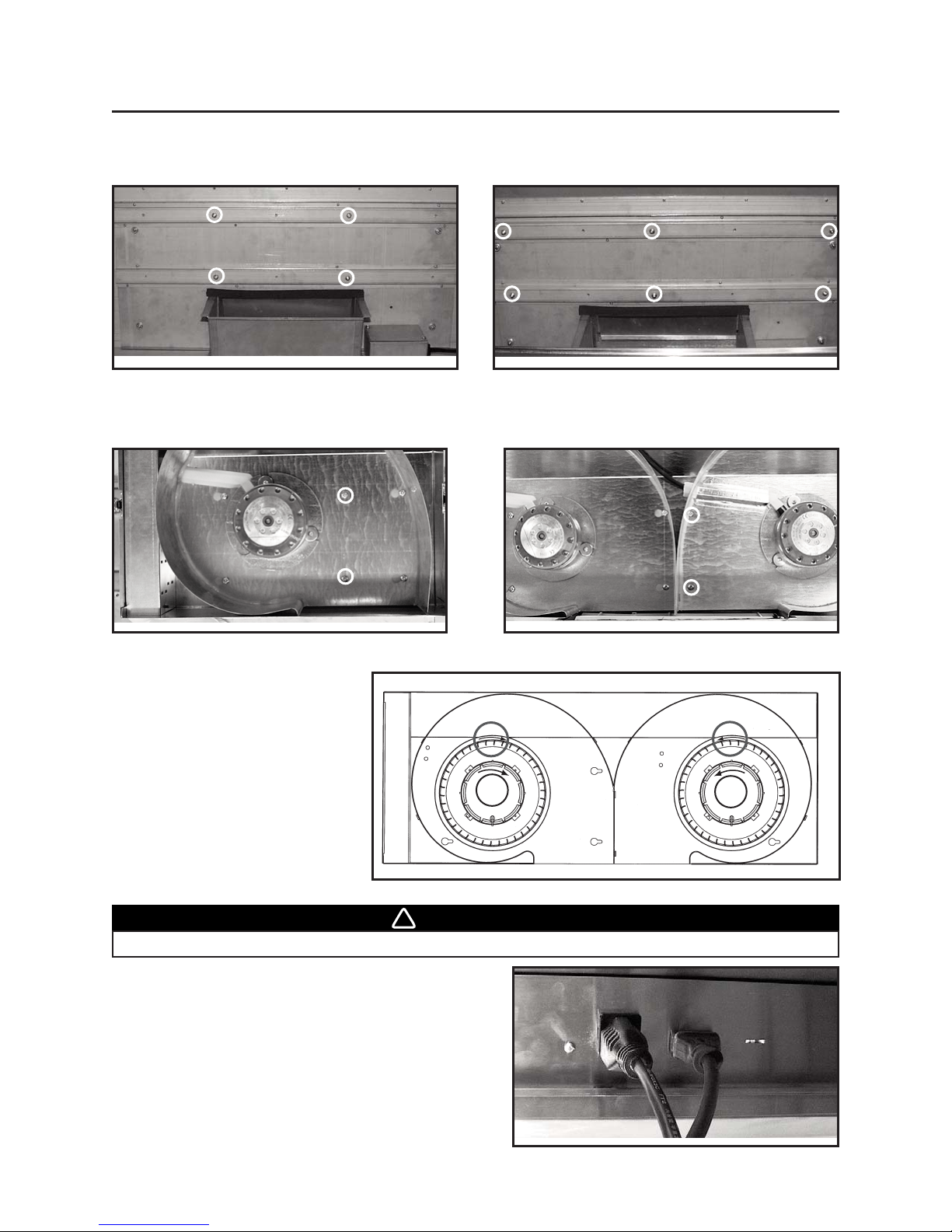

11. INSTALL THE BLOWER (INTERIOR BLOWER) (CONT’D)
Secure the blower by installing 2 more screws into the locations shown in the pictures below (single blower or dual
blower). Reinstall impeller(s) and cover.
Plug the power supply to the 3-prong male connector (A) and
the blower unit into the 2-prong female receptacle (B) inside the
hood.
HE0003
WARNING
Never plug the 2-prong blower cord to the 3-prong power supply cord.
!
FOR DUAL BLOWER UNIT, MAKE
SURE THE IMPELLERS ARE
CORRECTLY INSTALLED, THE HOOD
WILL NOT WORK PROPERLY IF
REVERSED. Both impellers are different
in the dual blower, one rotates clockwise
and the other counterclockwise. Each
wheel and motor have an arrow and a
number on them, you have to match
them correctly (see drawing beside).
Install screws into the location as shown in the pictures below (single blower or dual blower). Do not tighten screws
down fully, leave a 1/8” gap. Hang blower unit onto blower plate (screws through the large part of the keyhole). Slide
the blower to its position (screws in the small part of the keyhole). Tighten the screws.
HD0044 HD0044
Single blower (P5) Dual blower (P8)
HD0080 HD0081
Single blower (P5)
21
HD0023
FRONT
AB
Dual blower (P8)
HD0023
12

- 11 -
12. LIGHT BULBS
13. INSTALL BAFFLE FILTERS
This range hood must use shielded halogen lamps (120 V, 50 W, MR16 or PAR16 with GU10 base), included.
1. Install the lamps by placing the bulb leads into their grooves in the socket.
2. Gently push upwards and turn clockwise until secure.
To remove lamps, gently push upwards and turn counterclockwise to disengage bulb leads from their grooves.
NOTE: If need be, use a rubber dishwashing glove to add grip when removing the bulb.
WARNING
In order to prevent the risk of personal injury, do not install a
lamp identified for use only in enclosed fixtures.
!
WARNING
In order to prevent the risk of personal injury, the halogen
lamps must be cooled down before removing them.
!
12
HO0090
NOTES: 1. Assemble the metal handles to the filters, using no. 8-32 x 1/4” screws provided, before installing them in
the hood.
2. A vertical arrow with the word AIR can be found on the filter
border. Make sure to install the filters with this arrow pointing
toward the inside of the hood.
3. If needed to ease baffle filters installation, remove and discard the clips from
the hood grease channel by removing the screws.
It is recommended to install side filters first and finish with center one(s).
1. Insert front end of the filter inside front of the hood.
2. Raise lower end toward the inside of hood and insert into channel.
3. Slide filter under the inner retaining piece.
HD0095
HD0104
2
3
1
CAUTION
Remove protective plastic film covering filters before installing them.
HO0001

- 12 -
14. USE AND CARE
Baffle filters and impeller(s).
The baffle filters, impeller(s) and grease rail should be cleaned frequently. Use a warm detergent solution.
Baffle filters and impeller are dishwasher safe.
Remove filters by pushing filters towards the back of hood and rotating filters downward.
Clean all-metal filters in the dishwasher using a non-phosphate detergent. Discoloration of the filter may occur if using
phosphate detergent or as a result of local water conditions—but this will not affect filter performance.This discoloration
is not covered by the warranty.
Hood cleaning
Stainless steel cleaning: How to maintain its “BRIGHT LOOK”
Do:
- Regularly wash surfaces with clean cloth or rag soaked with warm water and mild soap or liquid dish detergent.
- Always clean in the direction of original polish lines.
- Always rinse well with clear water (2 or 3 times) after cleaning. Wipe dry completely.
- You may also use a specialized household stainless steel cleaner.
Don’t:
- Use any steel or stainless steel wool or any other scrapers to remove stubborn dirt.
- Use any harsh or abrasive cleansers.
- Allow dirt to accumulate.
- Let plaster dust or any other construction residues reach the hood. During construction or renovation, cover
the hood to make sure no dust sticks to stainless steel surface.
Avoid: when choosing a detergent
- Any cleaners that contain bleach will attack stainless steel.
- Any products containing: chloride, fluoride, iodide, bromide will deteriorate surfaces rapidly.
- Any combustible products used for cleaning such as acetone, alcohol, ether, benzol, etc., are highly explosive
and should never be used close to a range.
Enamel finish:
Clean with warm water and mild detergent only. When discoloration occurs, use a good enamel polish such as
automotive polish. (DO NOT use rough abrasive cleaner or porcelain cleaner.)
15. OPERATION
COOKTOP LIGHTING (HALOGEN)
The light switch turns the halogen lights ON and OFF.
1) Light switch 2) blower speed control 3) Blower ON/OFF switch
1 2 3
HC0009
Always turn your hood on before you begin cooking to establish an air flow in the kitchen. Let the blower run for a few
minutes to clear the air after you turn off the range. This will help keep the whole kitchen cleaner and brighter.
The hood is operated using the (3) slide controls located beneath the front edge of the hood.

- 13 -
WARRANTY
15. OPERATION (CONT’D)
HEAT SENTRY™
This hood is equipped with a Heat Sentry thermostat. This thermostat is a device that will turn on or speed up the blower
if it senses excessive heat above the cooking surface.
1) If blower is OFF—it turns blower ON to HIGH speed.
2) If blower is ON at a lower speed setting—it turns the blower up to HIGH speed.
When the temperature level drops to normal, the blower will return to its original setting.
WARNING
The HEAT SENTRY can start the blower even if the hood is turned OFF. In this case, it is impossible to
turn the blower OFF with blower switch. If you must stop the blower, do it from the main
electrical panel.
!
ONE-YEAR LIMITED WARRANTY FOR BEST PRODUCTS
Broan-NuTone LLC (Broan-NuTone) warrants to the original consumer purchaser of Best products that such
products will be free from defects in materials or workmanship for a period of one year from the date of original
purchase. THERE ARE NO OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED
TO, IMPLIED WARRANTIES OR MERCHANT ABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
During this one-year period, Broan-NuTone will, at its option, repair or replace, without charge, any product or
part which is found to be defective under normal use and service.
THIS WARRANTY DOES NOT EXTEND TO FLUORESCENT LAMP STARTERS, TUBES, HALOGEN AND
INCANDESCENT BULBS, FUSES, FILTERS, DUCTS, ROOF CAPS, WALL CAPS AND OTHER ACCESSORIES
FOR DUCTING. This warranty does not cover (a) normal maintenance and service or (b) any products or parts
which have been subject to misuse, negligence, accident, improper maintenance or repair (other than by
Broan-NuTone), faulty installation or installation contrary to recommended installation instructions.
The duration of any implied warranty is limited to the one-year period as specified for the express warranty. Some
states or provinces do not allow limitation on how long an implied warranty lasts, so the above limitation may not
apply to you.
BROAN-NUTONE’S OBLIGATION TO REPAIR OR REPLACE, AT BROAN-NUTONE’S OPTION, SHALL BE
THE PURCHASER’S SOLE AND EXCLUSIVE REMEDY UNDERTHIS WARRANTY. BROAN-NUTONE SHALL
NOT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN
CONNECTION WITH PRODUCT USE OR PERFORMANCE. Some states or provinces do not allow the
exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may
not apply to you.
This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state
or province to another. This warranty supersedes all prior warranties.
To qualify for warranty service, you must (a) notify Broan-NuTone at the address or telephone number stated below,
(b) give the model number and part identification and (c) describe the nature of any defect in the product or part.
At the time of requesting warranty service, you must present evidence of the original purchase date.
In USA - Best®,926 W. State Street, Hartford, WI 53027 (800-558-1711)
In Canada - Best®,550 Lemire Blvd., Drummondville, QC, Canada, J2C 7W9 (866-737-7770)
www.BestRangeHoods.com
BLOWER
The blower is operated using two (2) controls.
Use the blower speed control to increase or decrease cooktop ventilation. Slide the control to the left to increase the
blower speed—to the right to decrease the blower speed.
The blower ON/OFF switch turns the blower ON to the speed preset by the speed control. The blower must be turned
ON and OFF using this switch.

HL0154

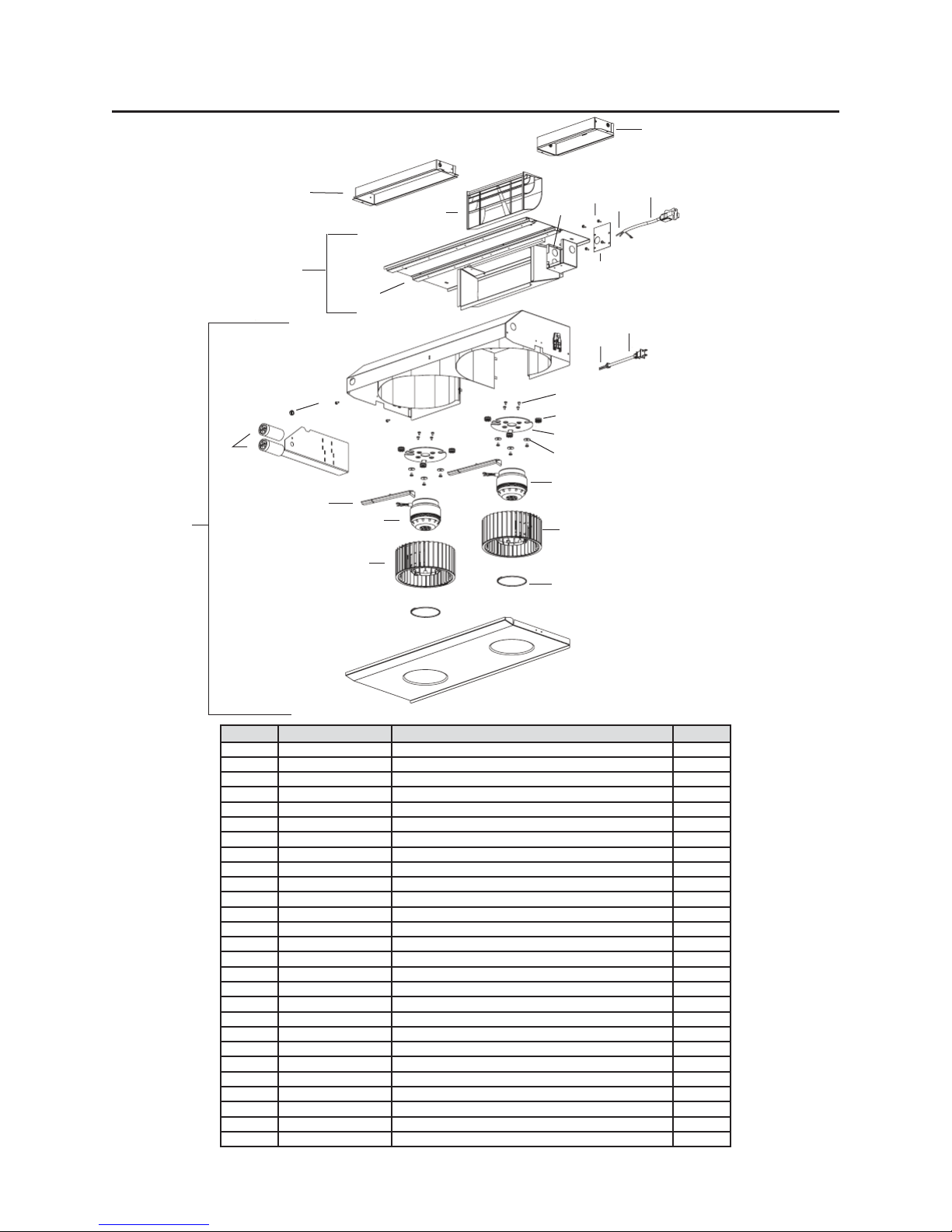

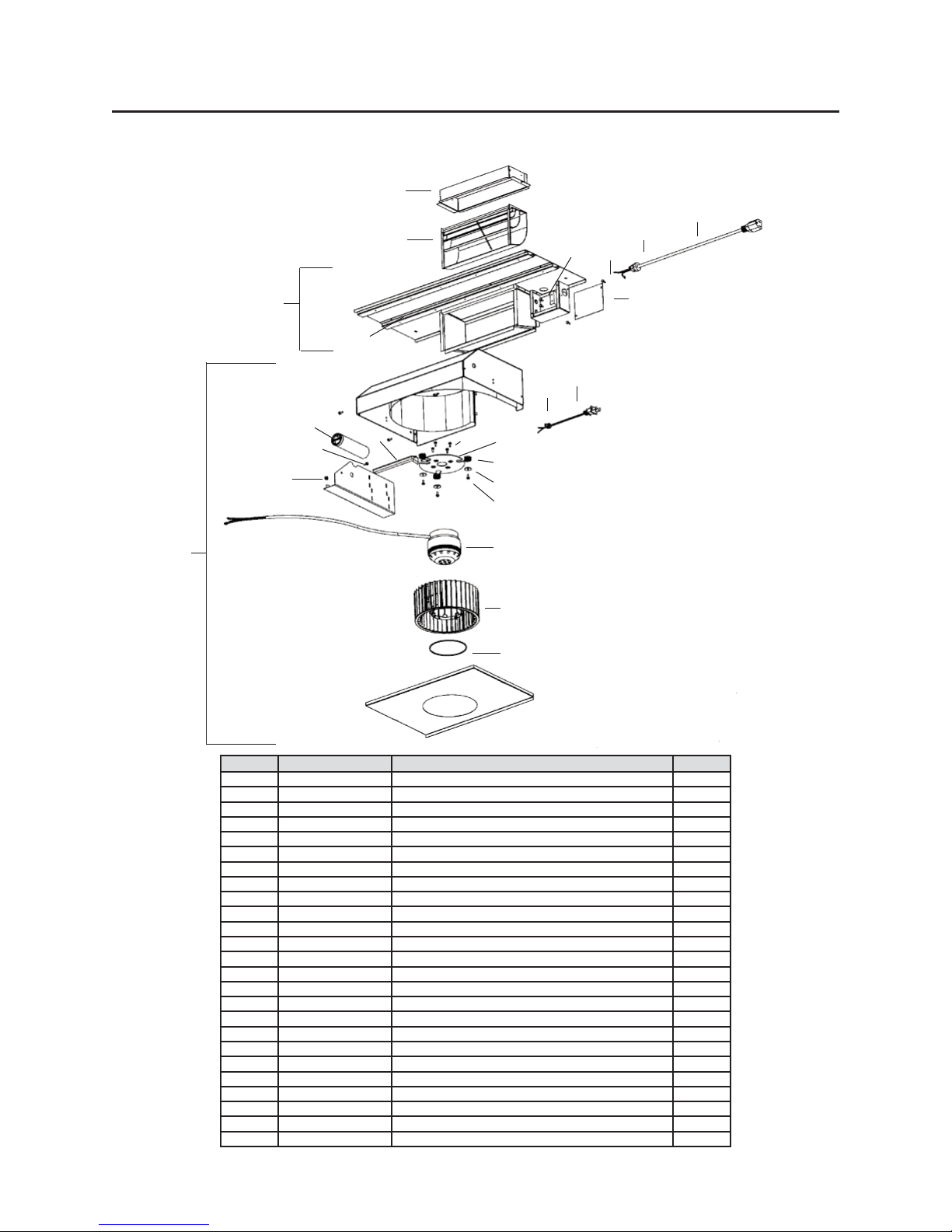

SERVICE PARTS
1
2
3
4
56
7
89
10
11
11
11
12
13 14 14 17
16
15
KEY No. PART No. DESCRIPTION QTY. (Hood Width)
1SV12969 SWITCH ASSEMBLY, BLACK 1 1 1 1
2SV16569 LAMP SHELL, SOCKET & TRIM ASS’Y 2 2 3 3
3SV05921 HALOGEN BULB 50 W GU10 2 2 3 3
4SV03255 BOARD ASSEMBLY 1 1 1 1
5SV03435 THERMOSTAT 1 1 1 1
6SV03436 THERMOSTAT BRACKET 1 1 1 1
7SV02773 MALE CONNECTOR 1 1 1 1
8SV02772 FEMALE CONNECTOR 1 1 1 1
9 * MACHINE SCREW NO. 6-32 x 1/4” 1 1 1 1
10 *LOCK NUT NO. 6-32 1 1 1 1
11 *SCREW NO. 8-3/8” T/B NO.8 HEAD 8 8 8 8
12 *SCREW NO. 6-1/2”, T/A 3 3 3 3
13
SV13431 BAFFLE FILTER 9.250” x 12.500” - 3 - 4
SV13432 BAFFLE FILTER 11.125” x 12.500” 2 - 3 -
14
SV12514 SIDE LINERS 30” 1 - - -
SV12515 SIDE LINERS 36” - 1 - -
SV13113 SIDE LINERS 42” - - 1 -
SV12516 SIDE LINERS 48” - - - 1
15
SV13220 GREASE RAIL 30” 1 - - -
SV13221 GREASE RAIL 36” - 1 - -
SV13112 GREASE RAIL 42” - - 1 -
SV13222 GREASE RAIL 48” - - - 1
16 SV05869 BEST LOGO 1 1 1 1
17 SV05528 FILTER CLIP 3 3 4 4
SV07398 HARNESS 1 1 1 1
SV07400 SPLITTING HARNESS - - 1 1
SV03516 INSTALLATION GUIDE 1 1 1 1
SV13278
PARTS BAG: (4) LOCK NUTS NO. 10-32,
(1) WIRE CLAMP LP16-AP, (2) NO. 6 X1/2” SCREWS
(2) WIRE CONNECTORS NO. 74B, (6) NO. 8 X3/8”
(8) DOUBLE THREADED SCREWS 6-12 X0.5”
1 1 1 1
30” 36” 42” 48”
- 14 -
* STANDARD HARDWARE—MAY BE PURCHASED LOCALLY.
MODEL K210A

- 15 -
SERVICE PARTS
SINGLE BLOWER/ROUGH-IN
(Model P5)
HL0021
19
21
18
17
20
22
2
3
23
4
1
9
6
8
515
14
13
6
16
12
7
11
10
KEY No. PART No. DESCRIPTION QTY.
1SV13296 ADAPTER AND DAMPER 3¼” X10” 1
2SV03500 AIR DEFLECTOR 1
3SV12997 SINGLE BLOWER ROUGH-IN PLATE ASSEMBLY 1
4SV03577 FOAM 1/2” X1/2” X12” 1
5SV02160 CAPACITOR 15 µF 1
6*MACHINE SCREW NO. 6-32 X1/4” 4
7SV01857 WIRE COVER 1
8*LOCK NUT NO. 6-32 1
9SV14973 SINGLE BLOWER ASSEMBLY 1
10 SV01810 IMPELLER RING 1
11 SV03400 BLOWER IMPELLER 7.094” X3.375” CW 1
12 SV01766 MOTOR 165 W CW 1
13 *WASHER 3/16” ID X3/4” OD 3
14 SV02001 MOTOR GROMMET G-431-1 3
*8” TIE WRAP 2
15 SV11705 MOTOR MOUNT 1
*WIRE NO. 18 TEW BROWN X10” 1
16 SV01927 METRIC SCREW M4 X6 MM PAN QDRX 4
17 SV03495 STRAIN RELIEF FOR BLOWER POWER CORD 1
18 SV03494 36” BLOWER POWER CORD 1
19 SV13230 OUTLET BOX COVER 1
20 SV03496 POWER CORD, 120 VOLTS 1
21 SV00660 STRAIN RELIEF FOR POWER CORD 1
22 *SCREW NO. 8 X3/8”, T/B, NO. 8 HEAD 2
23 *SCREW NO. 10-32 X3/8”, TF, GREEN 2
* STANDARD HARDWARE—MAY BE PURCHASED LOCALLY.

21
22
23
2
3
20
24
25
1
19
18
17
16
15
13
6
9
10
11
12
14
4
5
- 16 -
SERVICE PARTS
DUAL BLOWER/ROUGH-IN
(Model P8)
7
8
HL0022
KEY No. PART No. DESCRIPTION QTY.
1SV14971 ADAPTER AND DAMPER 3¼” X14” 1
2SV13296 ADAPTER AND DAMPER 3¼” X10” 1
3SV03500 AIR DEFLECTOR 1
4SV14975 DUAL BLOWER ROUGH-IN PLATE ASSEMBLY 1
5SV03577 FOAM 1/2” X1/2” X12” 1
6*LOCK NUT NO. 6-32 1
7SV02160 CAPACITOR 15 µF 2
8SV01857 WIRE COVER 2
9SV01766 MOTOR 165 W CW 1
10 SV03400 BLOWER IMPELLER, HOOD 7.094” X3.375” CW 1
11 SV14974 DUAL BLOWER ASSEMBLY 1
12 SV01810 IMPELLER RING 2
13 SV03399 BLOWER IMPELLER, HOOD 7.094” X3.375” CCW 1
14 SV03457 MOTOR 165 W CCW 1
*WASHER 3/16” ID X3/4” OD 6
15 *8” TIE WRAP 4
SV11705 MOTOR MOUNT 2
16 *WIRE NO. 18 TEW BROWN X10” 2
17 SV02001 MOTOR GROMMET G-431-1 6
18 SV01927 METRIC SCREW M4 X6 MM PAN QDRX 8
19 SV03495 STRAIN RELIEF FOR BLOWER POWER CORD 1
20 SV03494 36” BLOWER POWER CORD 1
21 SV14960 OUTLET BOX COVER 1
22 SV00660 STRAIN RELIEF FOR POWER CORD 1
23 SV03496 POWER CORD, 120 VOLTS 1
24 *SCREW NO. 8 X3/8”, T/B, NO. 8 HEAD 4
25 *SCREW NO. 10-32 X3/8”, TF, GREEN 2
* STANDARD HARDWARE—MAY BE PURCHASED LOCALLY.

GUIDE D’INSTALLATION
Modèle K210A
CONÇU POUR USAGE DOMESTIQUE SEULEMENT
INSTALLATEUR : LAISSER CE GUIDE AU PROPRIÉTAIRE.
PROPRIÉTAIRE : DIRECTIVES D’ENTRETIEN ET DE FONCTIONNEMENT
EN PAGES 28 ET 29.
SV03516 rév. P
LIRE ET CONSERVER CES DIRECTIVES
HB0029
!
!
BEST; Hartford, Wisconsin www.BestRangeHoods.com 800 558-1711
BEST; Drummondville (QC), Canada www.BestRangeHoods.com 866 737-7770
ENREGISTREZ VOTRE PRODUIT EN LIGNE À : www.BestRangeHoods.com/register
Pour obtenir plus d’information, consultez notre site www.BestRangeHoods.com

- 18 -
AVERTISSEMENT AVERTISSEMENT
AFIN DE RÉDUIRE LES RISQUES D’INCENDIE,
D’ÉLECTROCUTION OU DE BLESSURES CORPORELLES,
SUIVEZ LES DIRECTIVES SUIVANTES :
1. N’utilisez cet appareil que de la façon prévue par
le manufacturier. Si vous avez des questions,
contactez le manufacturier à l’adresse et au
numéro de téléphone indiqués sur la garantie.
2. Avant de réparer ou de nettoyer l’appareil, couper
l’alimentation électrique en verrouillant le panneau
de distribution afin d’éviter sa remise en marche
accidentelle.Si le panneau de service ne peut être
verrouillé, yfixer un avertissement en évidence.
3. Les travaux d’installation et de raccordement
électrique doivent être effectués par une personne
qualifiée, conformément aux codes et aux standards
de construction, dont ceux sur la prévention d’incendie.
4. Une quantité d’air adéquate est requise afin d’assurer
une bonne combustion et l’évacuation des gaz par
la cheminée dans le cas des équipements alimentés
au gaz afin de prévenir les retours de cheminée.
Conformez-vous aux instructions et aux standards
de sécurité des manufacturiers d’équipement de
chauffage, tel qu’ils sont publiés par la
National
Fire Protection Association (NFPA) et l’ American
Society for Heating, Refrigeration and Air
Conditioning Engineers (ASHRAE) ainsi que les
responsables des codes locaux.
5. Lorsque vous coupez ou perforez un mur ou un
plafond, prenez garde de ne pas endommager les
fils électriques ou autre installation qui pourraient y
être dissimulés.
6. Les ventilateurs avec conduits doivent toujours
évacuer l’air à l’extérieur.
7. Ne pas utiliser cet appareil avec une commande
de vitesse à semiconducteur additionnelle.
8. Afin de réduire les risques d’incendie, n’utilisez
que des conduits de métal.
9. Cet appareil doit être mis à la terre.
10. Lorsqu’une réglementation est en vigueur localement
et qu’elle comporte des exigences d’installation et/ou
de certification plus restrictives, lesdites exigences
prévalent sur celles de ce document et l’installateur
entend s’y conformer à ses frais.
AFIN DE RÉDUIRE LES RISQUES DE FEU
DE CUISINIÈRE :
a) Ne jamais laisser les appareils de cuisson sans
surveillance lorsqu’ils sont réglés à feu vif. Les
débordements engendrent de la fumée et des
déversements graisseux pouvant s’enflammer.
Chauffez l’huile lentement, à feu doux ou moyen.
b) Mettez toujours la hotte en marche lorsque vous
cuisinez à feu vif ou que vous cuisinez des mets
flambés (par ex. : crêpes Suzette, cerises jubilé,
steak au poivre flambé).
c) Nettoyez régulièrement la (les) roue(s) du ventilateur.
Ne laissez pas la graisse s’accumuler sur le ventilateur
ou les filtres.
d) Utilisez le bon format de casserole. Servez-vous
toujours de casseroles et d’ustensiles appropriés à
la dimension de la surface chauffante.
AFIN D’ÉVITER TOUT RISQUE DE BLESSURES
LORS D’UN FEU DE CUISINIÈRE, SUIVEZ LES
DIRECTIVES SUIVANTES* :
1. Étouffez les flammes avec un couvercle hermétique,
une tôle à biscuits ou un plateau métallique, puis
éteignez le brûleur. ÉVITEZ DE VOUS BRÛLER.
SI LES FLAMMES NE S’ÉTEIGNENT PAS
IMMÉDIATEMENT, ÉVACUEZ LES LIEUX ET
APPELEZ LES POMPIERS.
2. NE PRENEZ JAMAIS UNE CASSEROLE EN
FLAMMES DANS VOS MAINS;vous pourriez vous brûler.
3. N’UTILISEZ PAS D’EAU, ni de linge à vaisselle ou
de serviette mouillés; cela pourrait occasionner
une violente explosion de vapeur.
4. N’utilisez un extincteur SEULEMENT LORSQUE :
A. Vous savez qu’il s’agit d’un extincteur de classe ABC
et que vous en connaissez le fonctionnement.
B. L’incendie est petit et limité à l’endroit où il a débuté.
C. Les pompiers ont été avisés.
D. Vous pouvez combattre l’incendie en ayant
accès à une sortie de secours.
*Tirées du
Kitchen Fire Safety Tips publié par la NFPA.
ATTENTION
1. Pour une utilisation à l’intérieur seulement.
2. Pour usage domestique seulement. Ne pas utiliser
pour évacuer des vapeurs ou des matières
dangereuses ou explosives.
3. Afin d’éviter tout dommage au moteur et de débalancer
ou de rendre bruyante la roue du moteur, garder votre
appareil à l’abri des poussières de gypse et de
construction/rénovation, etc.
4. Le moteur de votre hotte possède une protection thermique
qui l’éteindra automatiquement s’il devient surchauffé.
Le moteur redémarrera automatiquement une fois
refroidi. Si le moteur continue de s’éteindre et de se
remettre en marche, faites-le vérifier.
5. La distance minimale entre le bas de votre hotte et
la surface de cuisson ne doit pas être inférieure à 20 po
(24 po d’une cuisinière à gaz). Un maximum de 30 po
au-dessus de la surface de cuisson est fortement
recommandé pour une meilleure évacuation des
odeurs de cuisson.
6. Vu la grande dimension et le poids de cette hotte, il est
recommandé de confier son installation à deux personnes.
7. Afin de réduire les risques d’incendie, assurez-vous
d’évacuer l’air à l’extérieur. Ne pas évacuer l’air dans
des espaces restreints comme l’intérieur des murs ou
plafond ou dans le grenier, vide sanitaire ou garage.
8. Cet appareil est équipé d’un thermostat pouvant
faire démarrer le ventilateur automatiquement. Afin
de réduire le risque de blessure, couper le courant à
partir du panneau électrique et verrouiller ou apposer
un avertissement sur le panneau afin de prévenir
que la hotte soit mise en marche automatiquement.
9. En raison de la grande capacité d’évacuation de
cette hotte, il est recommandé d’ouvrir une fenêtre dans
ou près de la cuisine afin de remplacer l’air évacué.
10. Afin de réduire les risques d’incendie et d’électrocution, la
hotte Best K210A doit être installée uniquement
avec l’un des ventilateurs intérieurs Best suivants :P5
ou P8; l’un des ventilateurs extérieurs Best suivants :
EB6, EB9, EB12 ou EB15; l’un des ventilateurs en
ligne Best suivants : ILB3, ILB6, ILB9 ou ILB11 (vendus
séparément). Aucun autre ventilateur ne doit être utilisé.
11. Cette hotte ne doit être utilisée seulement qu’avec
un ensemble de cordon d’alimentation approuvé.
12. Veuillez consulter l’autocollant apposé à l’intérieur de
la hotte pour plus d’information ou autres exigences.
!
!

- 19 -
HL0070
Dosseret Série RMP
(recouvrement de mur
en acier inoxydable
avec support assiettes)
Adaptateur et volet de 3¼ po x 10 po
(fourni avec ventilateurs P5 et P8)
Adaptateur et volet de 3¼ po x 14 po
(fourni avec ventilateur P8)
Modèle P5
Ventilateur simple
(500 PCM)
Modèle P8
Ventilateur double
(900 PCM) pour hottes
de 36 po ou plus
NOTE : Le ventilateur double P8 doit être
installé avec des conduits de
3¼ po x 14 po. S’il est impossible
de relier le ventilateur double P8
à un conduit de 3¼ po x 14 po,
utiliser un conduit de 3¼ po x 10 po.
Dans un tel cas, la performance
du ventilateur sera réduite de 25 %.
Plaque ventilateur fournie
avec ventilateurs P5 et P8
HOTTE K210A
-SYSTÈME DE HOTTE DE CUISINIÈRE MODÈLE K210A -
VENTILATEURS INTÉRIEURS
Modèle 407
Conduit de
7 po, rond
(section
de 2 pi)
Modèle 412
Transition
(3¼ po x 10 po à 7 po)
Conduit
standard
(3¼ po x 10 po) Conduit
standard
(3¼ po x 14 po)
Modèle 643
(capuchon de
mur 8 po, rond)
Déviateur d’air (sortie verticale seulement)
(fourni avec les ventilateurs P5 et P8)
Modèle 647
(capuchon de
mur 7 po rond) Modèle 634 ou 644
(capuchon de toit)
Conduit
standard de
8 po, rond
Modèle 413
Transition
(3¼ po x 10 po
à 8 po) Modèle 459
Transition
(3¼ po x 14 po à 8 po)
Modèle 415
Coude ajustable
7 po rond (optionnel)
Coude ajustable
8 po rond (optionnel)

- 20 -
HL0071
HOTTE K210A
-SYSTÈME DE HOTTE DE CUISINIÈRE MODÈLE K210A -
VENTILATEURS EN LIGNE OU EXTÉRIEURS
Plaque ventilateur en ligne ou extérieur
(fournie avec les ventilateurs EB6, EB9,
EB12, EB15, ILB3, ILB6, ILB9 et ILB11).
Dosseret Série RMP
(recouvrement de mur
en acier inoxydable
avec support assiettes)
Modèle 421
(volet intérieur
10 po, rond. vert.)
(recommandé
pour utilisation
avec ventilateurs
extérieurs)
Modèle 410
(conduit de 10 po, rond,
standard, section de 2 pi)
Modèle 418
(coude ajustable de
10 po) (optionnel)
Ventilateur en ligne
Modèle ILB3 (280 PCM)
(incluant une transition
ronde de 8 po à 10 po)
Ventilateur extérieur
Modèle EB6 (600 PCM)
ou EB9 (900 PCM)
Ventilateur extérieur
Modèle EB12
(1200 PCM)
ou EB15
(1500 PCM)
Modèle 441
(capuchon de mur
de 10 po, rond)
Modèle 437
(capuchon de toit à haut rendement) Modèle 441
(capuchon de mur
de 10 po, rond)
Ventilateur en ligne
Modèle ILB6 (600 PCM)
(incluant 2 transitions rondes
de 4½ po x 18 ½ po à 10 po)
Ventilateur en ligne
Modèle ILB9 (800 PCM)
ou ILB11 (1100 PCM)
(incluant deux transitions
rondes de 8 po x 12 po
à 10 po)
Modèle 643
(capuchon
de mur de
8 po rond)
