Best IC34E Series User manual

In USA - BEST Hartford, Wisconsin
In CANADA - BEST Drummondville, QC, Canada
Model IC34
ENGLISH........................................3
FRANÇAIS...................................23
ESPAÑOL.....................................46
REGISTER YOUR PRODUCT ONLINE AT : www.BestRangeHoods.com/register
For additional Information visit www.BestRangeHoods.com

- 3 -
READ AND SAVE THESE INSTRUCTIONS
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE
THE FOLLOWING:
1. Use this unit only in the manner intended by the manufacturer. If you have questions, contact
the manufacturer at the address or telephone number listed in the warranty.
2. Before servicing or cleaning unit, switch power off at service panel and lock service panel to
prevent power from being switched on accidentally. When the service disconnecting means
cannot be locked, securely fasten a prominent warning device, such as a tag, to the service
panel.
3. Installation work and electrical wiring must be done by a qualifi ed person(s) in accordance with
all applicable codes and standards, including fi re-rated construction codes and standards.
4. Suffi cient air is needed for proper combustion and exhausting of gases through the fl ue
(chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment
manufacturer’s guidelines and safety standards such as those published by the National Fire
Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air
Conditioning Engineers (ASHRAE), and the local code authorities.
5. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden
utilities.
6. Ducted fans must always be vented to the outdoors.
7. Do not use this unit with any separate solid-state speed control device.
8. To reduce the risk of fi re, use only steel ductwork.
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the
risk of electrical shock by providing an escape wire for the electric current.
WARNING - Improper grounding can result in a risk of electric shock.
Consult a qualifi ed electrician if the grounding instructions are not completely understood, or if
doubt exists as to whether the appliance is properly grounded.
TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
A. Never leave surface units unattended at high settings. Boilovers cause smoking and greasy
spillovers that may ignite. Heat oils slowly on low or medium settings.
B. Always turn hood ON when cooking at high heat or when fl ambeing food (i.e. Crepes Suzette,
Cherries Jubilee, Peppercorn Beef Flambe’).
C. Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or fi lter.
D. Use proper pan size. Always use cookware appropriate for the size of the surface element.
!
INTENDED FOR DOMESTIC COOKING ONLY
!

- 4 -
WARNING
TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE
FIRE, OBSERVE THE FOLLOWING:*
1. SMOTHER FLAMES with a close-fi tting lid, cookie sheet, or metal tray, then turn off the burner.
BE CAREFUL TO PREVENT BURNS. If the fl ames do not go out immediately, EVACUATE AND
CALL THE FIRE DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN - You may be burned.
3. DO NOT USE WATER, including wet dishcloths or towels - violent steam explosion will result.
4. Use an extinguisher ONLY if:
A. You know you have a Class ABC extinguisher and you already know how to operate it.
B. The fi re is small and contained in the area where it started.
C. The fi re department is being called.
D. You can fi ght the fi re with your back to an exit.
* Based on “Kitchen Fire Safety Tips” published by NFPA.
!
CAUTION
1. For indoor use only.
2. To reduce risk of fi re and to properly exhaust air, be sure to duct air outside. Do not vent exhaust
air into spaces within walls or ceilings or into attics, crawl spaces, or garages.
3. Take care when using cleaning agents or detergents.
4. Avoid using food products that produce fl ames under the Range Hood.
5. For general ventilating use only. Do not use to exhaust hazardous or explosive materials and
vapors.
6. To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall spray,
construction dust, etc. off power unit.
7. Your hood motor has a thermal overload which will automatically shut off the motor if it becomes
overheated. The motor will restart when it cools down. If the motor continues to shut off and
restart, have the hood serviced.
8. For best capture of cooking impurities, the bottom of the hood should be a minimum of 24” and
a maximum of 36” above the cooking surface.
9. Two installers are recommended because of the large size and weight of this hood.
10. This product is equipped with a thermostat which may start blower automatically. To reduce
the risk of injury and to prevent power from being switched on accidentally, switch power off at
service panel and lock or tag service panel.
11. Please read specifi cation label on product for further information and requirements.
12. EXTERNAL BLOWER MODELS ONLY: To reduce risk of fi re and electric shock, install this
range hood only with Best Exterior Blower Models EB6, EB9, EB12 or EB15 or Best In-Line
Blower Models ILB3, ILB6, ILB9 or ILB11. Other blowers cannot be substituited. (Blower sold
separately).
13. This hood is not designed to be used as a shelf.

- 5 -
LED LAMPS
The hood is provided with LED lamps wich require no maintenance.
CLEANING AND MAINTENANCE
Proper maintenance of the Range Hood will assure proper performance of the unit.
Motor
The motor is permanently lubricated and never needs oiling. If the motor bearings make
excessive or unusual noise, replace the motor with the exact service motor. The impeller
should also be replaced.
Grease Filter
The grease fi lters should be cleaned frequently. Use a warm detergent solution. Grease
fi lter are dishwasher safe.
Clean all-metal fi lters in the dishwasher using a non-phosphate detergent. Discoloration of
the fi lter may occur if using phosphate detergents, or as a result of local water conditions -
but this will not aff ect fi lter performance. This discoloration is not covered by the warranty.
See “INSTALL FILTERS” section for removal and installation instructions.
Non-ducted Recirculation Filter
The non-ducted recirculation fi lter should be changed every 6 months. Replace more often
if your cooking style generates extra grease, such as frying and wok cooking. See “IN-
STALL FILTERS” section for removal and installation instructions.
Stainless Steel Cleaning
DO:
• Regularly wash with clean cloth or rag
soaked with warm water and mild soap or
liquid dish detergent.
• Always clean in the direction of original
polish lines.
• Always rinse well with clear water (2 or 3
times) after cleaning. Wipe dry completely.
• You may also use a specialized household
stainless steel cleaner.
DON’T:
• Use any steel or stainless steel wool or
any other scrapers to remove stubborn dirt.
• Use any harsh or abrasive cleansers.
• Allow dirt to accumulate.
• Let plaster dust or any other construction
residues reach the hood. During construc-
tion/renovation, cover the range hood to
make sure no dust sticks to the stainless
steel surface.
Avoid: When choosing a detergent
• Any cleaners that contain bleach will attack stainless steel
• Any products containing: chloride, fl uoride, iodide, bromide will deteriorate surfaces rap-
idly.
• Any combustible products used for cleaning such as acetone, alcohol, ether, benzol, etc.,
are highly explosive and should never be used close to a range.

- 6 -
OPERATION
The hood is operated using the (5) push buttons located on the front edge of the hood. The
Light On/Off buttons turn the lights on and off .
The Blower Off / - button decreases the blower speed each time pressed. Depress and
hold the button for 2 seconds to turn the blower off .
The Blower On /+ button turns the blower on and increases the blower speed each time
pressed. There are four diff erent speed settings: Low, Medium-Low, Medium-High and
High.
The Blower LED Indicators illuminate to indicate the selected blower speed.
The Delay button activates the delay-off feature. When the blower in on and the button
is pushed, the blower will continue to operate at the current speed setting for 10-minutes
before automatically turning itself off . The LED (on the right) fl ashes during operation.
The LED (on the right) is also used as a fi lter clean reminder. It will fl ash after 30 hours of
operation - indicating the need to clean the fi lters.
The Filter Clean Reset button is used to reset the 30-hour fi lter timer. After fi lters are
cleaned or replaced, press button once to reset the fi lter clean alarm.
HEAT SENTRY™
Your hood is equipped with a HEAT SENTRY™ thermostat. This thermostat is a device that
will turn on or speed up the blower if it senses excessive heat above the cooking surface.
1) If blower is OFF - it turns blower ON to HIGH speed.
2) If blower is ON at a lower speed setting - it turns blower up to HIGH speed.
When the temperature level drops to normal, the blower will return to its original setting.
WARNING
The HEAT SENTRY thermostat can start the blower even if the hood is turned OFF.
When this occurs, it is impossible to turn the blower OFF with its switch. If you
must stop the blower, do it from the main electrical panel.
REMOTE CONTROL:
An optional ACR Series remote control (purchase separately) can be used to operated
the range hood.

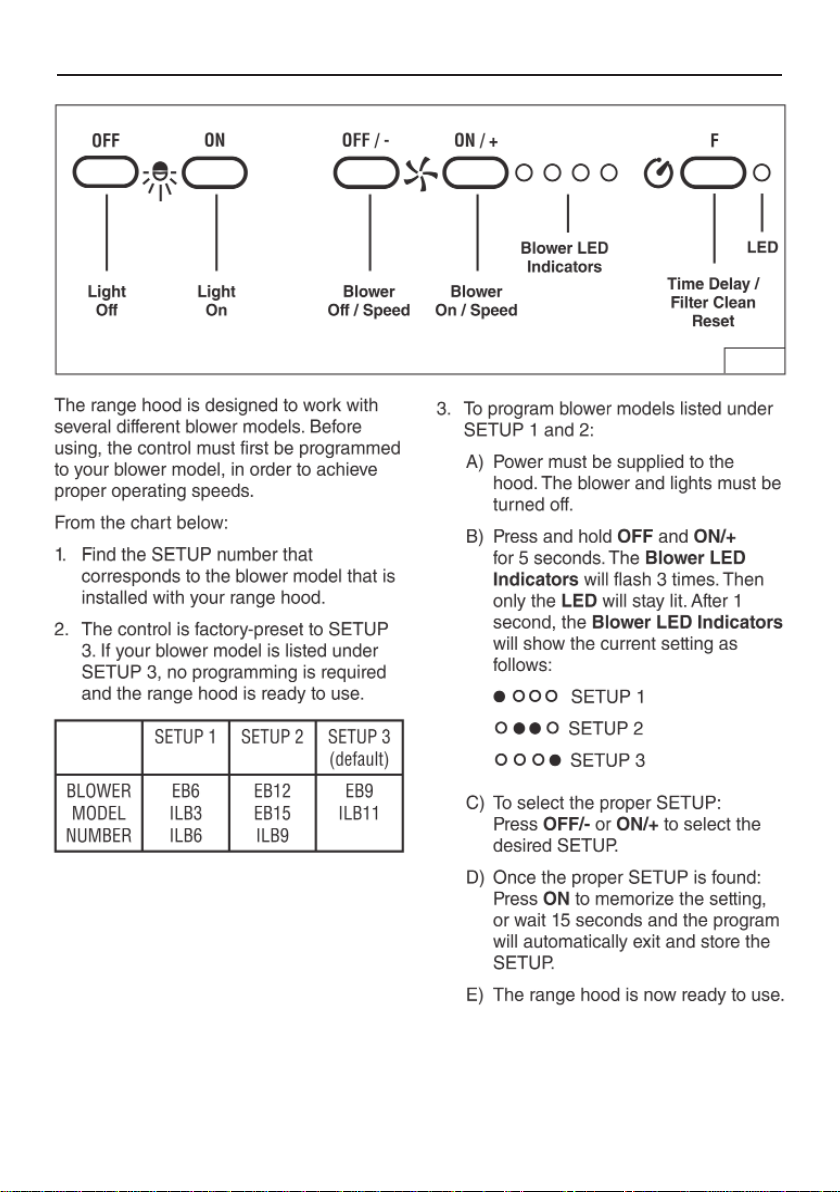

Controls (Fig.1)

- 7 -

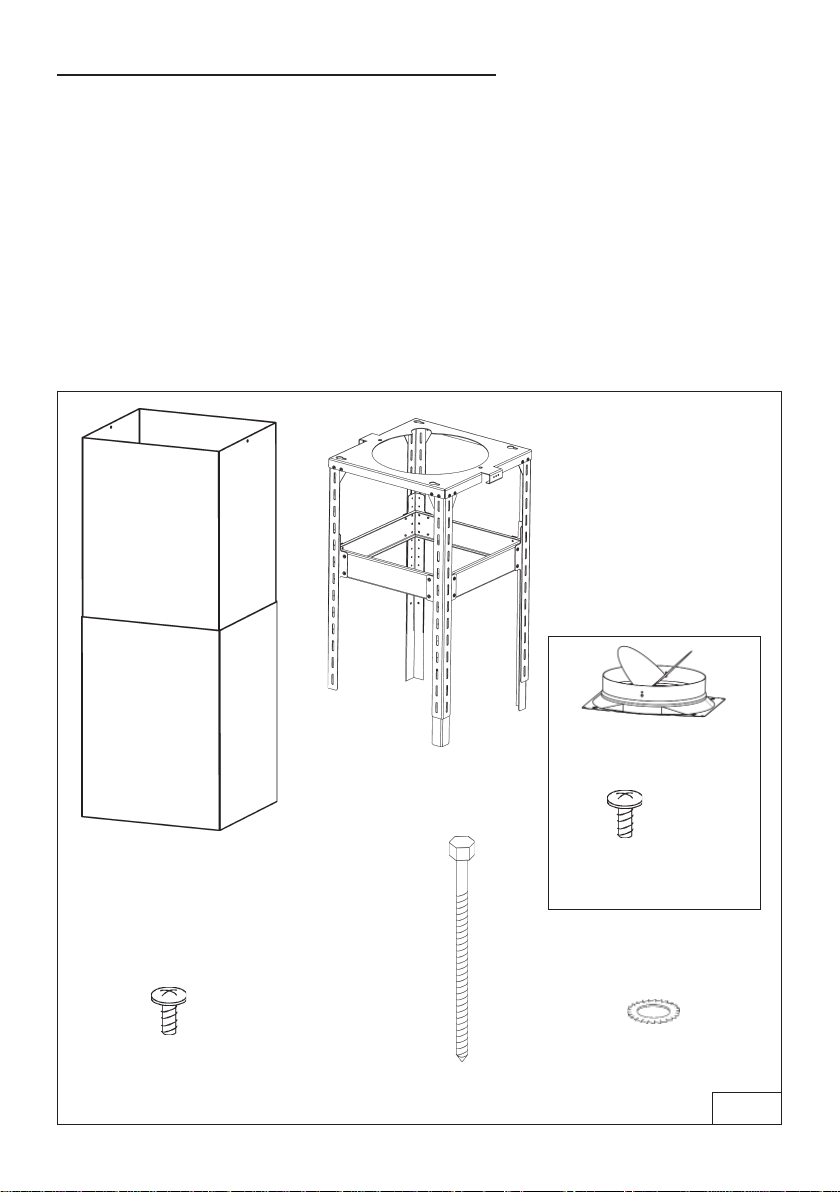

PREPARE THE HOOD
Unpack hood and check contents.
You should receive:
1 - Hood
1 - Decorative Flues
1 - Support Frame
1 - Parts Bag (B080811002) containing:
32 - Mounting Screws (3,9 x 9,5mm Pan Head)
6 - Mounting Lag Screws (6 x 60mm)
10 - Lock Washers ø 4,3
1 - Damper Kit
4 - Mounting Screws (3,9 x 9,5mm Pan Head)
1 - Installation Instructions
DAMPER KIT
DECORATIVE
FLUES
32 MOUNTING
SCREWS (3,9x9,5mm
Pan Head) 6 MOUNTING LAG
SCREWS (6x60mm) FIG. 3
10 LOCK WASHERS Ø 4.3
SUPPORT
FRAME
4 MOUNTING SCREWS
(3,9x9,5mm Pan Head)

- 8 -
EXTERIOR AND IN-LINE BLOWER SELECTION IC34E Series
CAUTION: To reduce risk of fi re and electric shock, install this range hood only with Best
Exterior Blower Models EB6, EB9, EB12 or EB15, and Best In-Line Blower Models ILB3,
ILB6, ILB9 or ILB11. Other blowers cannot be substituited.
The blower must be UL listed for Canadian and U.S. use, and evaluated for use with solid
state speed control, rated 120V, 60 Hz, 6.0 A max.
INSTALL THE DUCTWORK IC34E Series
NOTE: To reduce the risk of fi re, use only metal ductwork.
1. Choose the location where the Exterior Blower or In-Line Blower will be mounted. See
illustrations below for mounting location suggestions and restrictions.
2. A straight, short duct run will allow the hood to perform most effi ciently.
3. Long duct runs, elbows and transitions will reduce the performance of the hood. Use as
few of them as possible. Larger ducting may be required for best performance with long
duct runs.
4. After the Exterior or In-Line Blower has been installed, connect round metal ductwork and
work back towards the hood location. Use duct tape to seal joints between ductwork sec-
tions.
10”ROUND
DUCT
24” TO 36” ABOVE
COOKING SURFACE
DECORATI-
VE FLUE
10” ROUND
DUCT EXTERIOR
BLOWER
HOOD
OK
OK

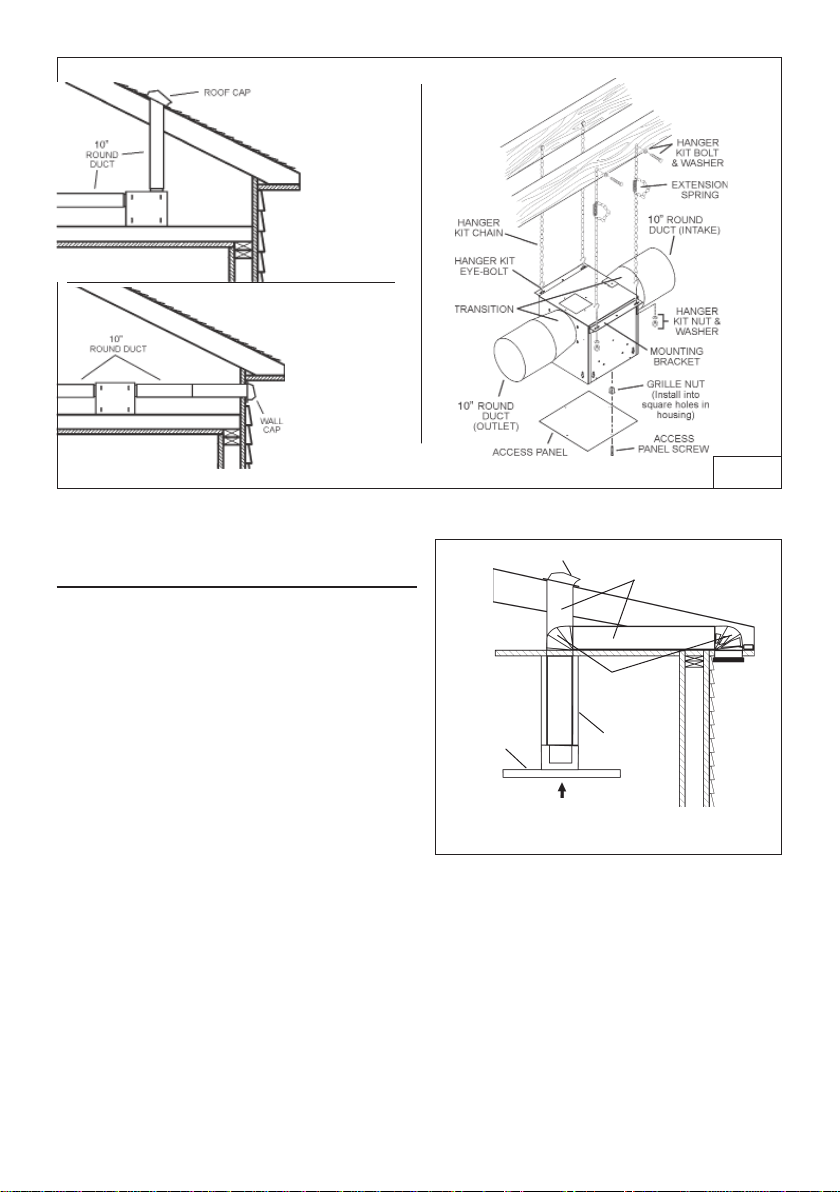

SUGGESTED MOUNTING LOCATIONS
EXTERIOR BLOWER
CAUTION: MAY NOT FIT
UNDER EAVES OF SINGLE
STORY HOMES
FIG. 4

- 9 -
IN-LINE BLOWER
FIG. 5
INSTALL THE DUCTWORK
IC34IQ Series
WARNING: To reduce the risk of fi re, use
only metal ductwork.
1. Decide where the ductwork will run between
the hood and the outside.
2. A straight, short duct run will allow the hood
to perform most effi ciently.
3. Long duct runs, elbows, and transitions will
reduce the performance of the hood. Use
as few of them as possible.
4. Install a roof or wall cap. Connect 8” round
metal ductwork to cap and work back
towards hood location. Use duct tape to
seal the joints between ductwork sections.
ROOF CAP
8” ROUND
ELBOW
24” TO 36” ABOVE
COOKING SURFACE
8” ROUND
DUCT
DECORATIVE
FLUE
HOOD

- 10 -
Ceiling
Height
Hood Distance Above 36” High Cook Top (in.)
8 Feet 34 3/
10 Feet
11 Feet
9 Feet
33 3/ 32 3/ - - - - - - - - -
34 3/ 33 3/ 32 3/ - - - - - - - - -
- 45 3/* 44 3/* 43 3/* 42 3/ 41 3/ 40 3/ 39 3/ 38 3/ 37 3/ 36 3/ 35 3/ 34 3/
24 25 26 28 29 30 31 32 33 34 35 36 27
Assembled Support Frame Height (in.)
INSTALL SUPPORT SYSTEM
1. At hood location, install 2 x 4 or larger
cross framing between ceiling joists
using dimensions shown.
2. Finish the ceiling surface. Be sure to mark
the location of the ceiling joists and cross
framing (Fig. 6).
3. Mount the four 6x60mm screws to ceiling
in the location shown in fi gure 7. Allow 1/4”
clearance between screw head and ceiling
(screws will be tightened later). Make sure
the screws are driven into the center of
joists and framing for maximum strength.
TOP VIEW OF SUPPORT FRAME
103/16” (260mm)
117/16”
(290mm)
CEILING
JOISTS
CROSS FRAMING
10 3/16”
DRYWALL
==
11” (280mm)
FIG. 6
FIG. 7
Notes:
a. “-” = Mounting height is not possible.
b. Minimum hood distance above cook top must not be less than 24”. A maximum of 36” above cook
top is highly recommended for best capture of cooking impurities. Distances over 36” are at the
installer and the users descretion; and if ceiling height and fl ue length permit.
c. Requires optional 10 / 11’ fl ue extension, ducted model AEIC345SB or non-ducted
model AEIC345SBN.
d. “ * “ = Mounting height is possible, but not duct opening will be exposed.
HOOD MOUNTING TABLE
Duct Method
Ducted
Non-Ducted
Ducted
Non-Ducted
Ducted
Ducted
58 3/ 57 3/ 56 3/ 55 3/ 54 3/ 53 3/ 52 3/ 51 3/ 50 3/ 49 3/ 48 3/ 47 3/ 46 3/
- - - - - - - - 62 3/ 61 3/ 60 3/ 59 3/ 58 3/
- 45 3/ 44 3/ 43 3/ 42 3/ 41 3/ 40 3/ 39 3/ 38 3/ 37 3/ 36 3/ 35 3/ 34 3/
SUPPORT FRAME HEIGHT DIMENSION
31 3/
31 3/

- 11 -
INSTALL THE HOOD
DUCTED AND NON-DUCTED INSTALLA-
TION
1. Remove the electrical system box from
chimney frame by removing (2) 3.9 x 9.5
mm screws (Fig. 8).
2. Attach electrical system box to frame using
(2) 3.9 x 9.5 mm screws removed in Step 1
and (2) 3.9 x 9.5 mm screws and (2) lock
washers from hardware bag (Fig.9)
3. Fix the damper kit onto the hood using 4
screws (3.9x9.5mm) located in the Damper
Package (Fig.10).
4. Adjust the overall height using the chart
shown on page 10 of the support frame.
Loosen and re-tighten the 4 screws in the
height adjustment slots as necessary.
Insert 12 screws (3.9x9.5mm) located in
the Hardware Package (Fig.11) make sure
this a 4” min. overlap between the upper
and lower support legs.
SUPPORT
FRAME
MOUNTING
SCREWS
(6x60mm)
HEIGHT ADJUSTMENT
SLOTS FIG.11
MOUNTING
SCREWS
3,9x9,5mm
FIG.9
FIG.8
FIG.10
MOUNTING SCREWS
3,9x9,5mm
MOUNTING SCREWS 3,9x9,5mm
MOUNTING SCREWS 3,9x9,5mm
MOUNTING SCREWS 3,9x9,5mm
WASHERS

- 12 -

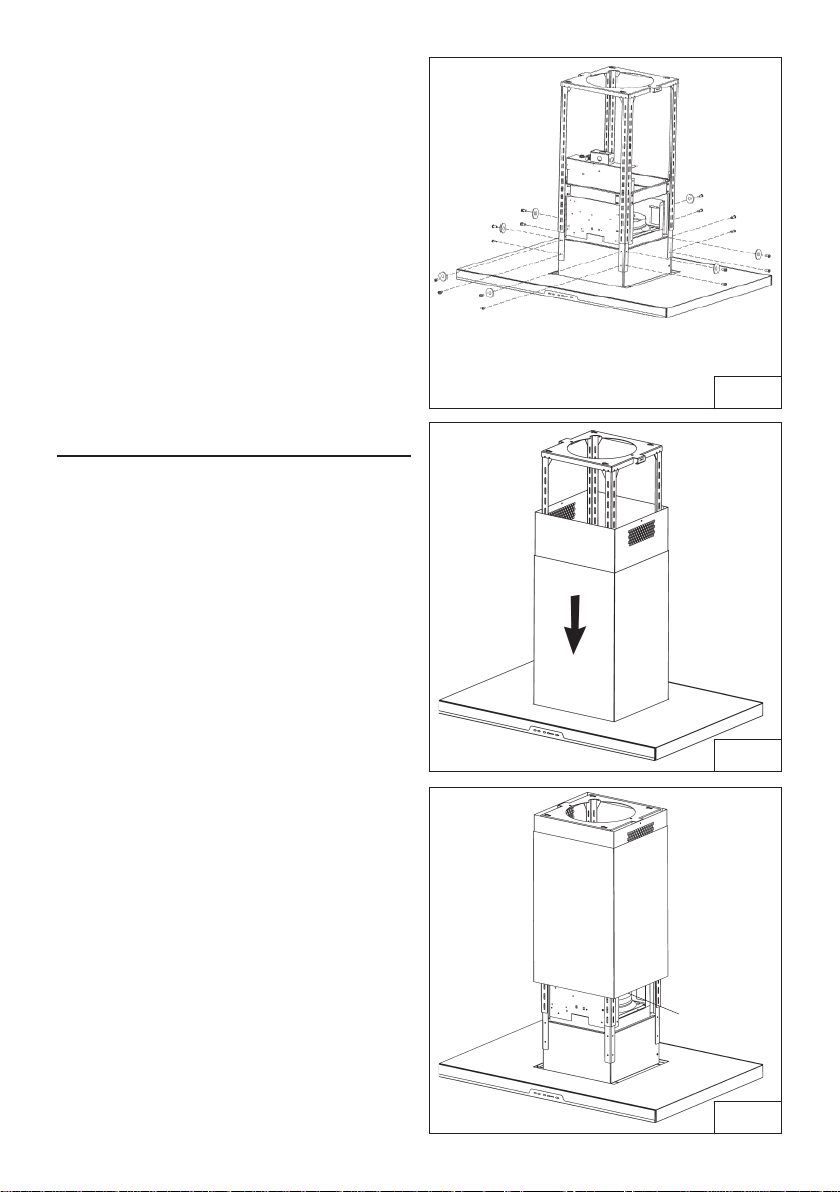

5. Adjust the overall height of the support
frame. Loosen and re-tighten the 4 screws
in the height adjustment slots as neces-
sary. Insert 16 screws (3.9x9.5mm), and 8
lock washers (D.4.3) located in the Hard-
ware Package (Fig. 12).
CONNECT DECORATIVE
FLUE
DUCTED INSTALLATION ONLY
Note: Rooms with 10 or 11 foot ceilings
require fl ue extension model AEIC34SB,
available from your local dealer. Discard
the upper fl ue supplied with the range
hood and replace it with the longer fl ue
extension.
1. Insert the upper fl ue and lower fl ue in the
support frame (Fig.13).
2. Mount the hood to the ceiling using the
(4) previously installed 6x60mm screws.
Tighten these screws. Install (2) additional
6x60mm screws as shown in the illustra-
tion. Make sure all (6) screws are secure.
3. Use 8” round metal duct to connect the
duct collar on the hood to the ductwork
above (Fig.14).
4. Use duct tape to make all joints secure and
air tight.
FIG.13
FIG.12
INSTALL (16) 3.9 x 9.5 mm SCREWS &
LOCK WASHERS ON (8) SCREWS
FIG.14
10-INCH DIA.
METAL DUCT

- 13 -
NON-DUCTED INSTALLATION ONLY
Note:
a. Purchase Model ANKWC45 Non-ducted
Recirculation Kit from your local dealer.
b. Rooms with 10 or 11 foot ceilings require fl ue
extension model AEIC34SBN, available
from your local dealer. Discard the upper
flue supplied with the range hood and
replace it with the longer fl ue extension.

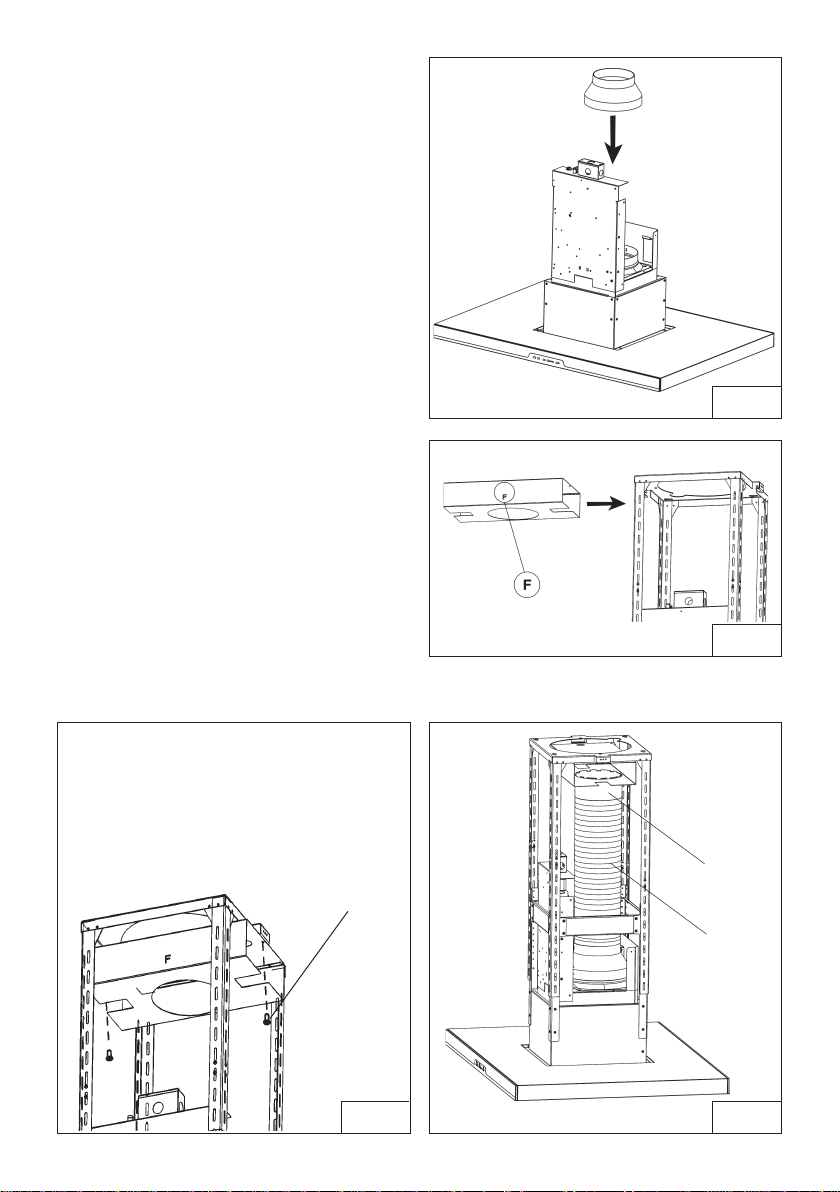

1. Install discharge collar supplied with the
range hood (Fig.15).
2. Attach the 6”-to-8” adapter to blower
discharge and tape joint with aluminum
duct tape (Fig.15).
3. Insert the plenum in the upper support
frame. Make sure that the letter F is
positioned at the front of the support frame
(Fig.16).
4. Install the plenum to the upper decorative
fl ue using (2) 3.9 x 9.5 mm screws provided
as shown (Fig.17).
5. Attach 6-inch expandable ducting to the
plenum and tape joint with aluminum duct
tape (Fig.18).
MOUNTING SCREWS
(3.9 x 9.5 mm Flat Head)
FIG. 15
FIG. 18
DUCT CON-
NECTOR
FIG. 17
FIG. 16
FRONT
EXPANDABLE
DUCT

- 14 -
WIRING (IC34IQ)
Note: This range hood must be properly
grounded. The unit should be installed by
a qualifi ed electrician in accordance with
all applicable national and local electrical
codes.
1. Remove the wiring box cover. Remove a
knockout from the wiring box (Fig.19).
2. Secure the conduit to the wiring box
through a conduit connector.
3. Make electrical connections. Connect white
to white, black to black and green to green.
4. Replace wiring box cover and screws.
Make sure that wires are not pinched
between cover and box.
ADDITIONAL EXTERNAL
BLOWER WIRING (IC34E)
1. Run 2-wire plus ground power cable from
the exterior blower to the hood’s wiring box
marked “motor connection” (Fig.20).
2. Remove the cover from the wiring box and
remove one knockout.
3. Feed 6” of cable through the knockout
opening and secure the cable to the wiring
box with an appropriate connector.
4. Make electrical connections at the hood.
Connect white-to-white, red-to-black and
green-to-ground.
5. Replace the wiring box cover and screws.
Make sure wires are not pinched between
the cover and box.
Exterior blower connection:
1. Make electrical connections at the exterior
blower (see instructions provided with the
exterior blower).
CONNECT DECORATIVE FLUE
1. Attach the upper fl ue to the upper support
frame with the mounting screws 3.9x9.5
mm (Fig.21).
2. Lower the lower fl ue in place.
WIRING BOX
COVER
FIG.19
EXTERIOR BLOWER
BLOWER CONNECTION AT HOOD
CONNECT:
WHITE-TO-WHITE,
RED-TO-BLACK,
GREEN-TO-GROUND.
BOX MARKED
“MOTOR CON-
NECTION”
FIG.20
FIG. 21
MOUNTING SCREWS
(3.9 x 9.5 mm Flat Head)

- 15 -
FIG. 22
FIG. 23
INSTALL FILTERS
DUCTED AND NON-DUCTED HOODS
NOTE: prior to use, remove protective fi lm
from the fi lter frame.
1. To remove the GREASE fi lter, push in
latch tab to disengage the fi lter from the
hood. Tilt the fi lter downward and remove
(Fig.22).
2. To install the GREASE fi lter, align rear fi lter
tabs with slots in the hood. Push latch tab
in, push fi lter into position and release.
Make sure the fi lter is securely engaged
after installation.
NON-DUCTED HOODS ONLY
1. To remove the CHARCOAL fi lter, grip and
push fi lter tab toward rear of hood. Pull the
fi lter down to disengage the rear fi lter tabs
(Fig.23).
2. To install the CHARCOAL fi lter, align fi lter
in rectangular opening. Push fi lter against
springs in rear of hood and press into place.
Make sure the fi lter is securely engaged
after assembly.
3. Install GREASE fi lter after charcoal fi lter is
installed.
4. The charcoal fi lter replacement model is
AFCWC345.

- 16 -
CALIBRATION
LIGHT
CALIBRATION
BUTTON
CALIBRATE IQ BLOWER SYSTEMTM
INTERNAL BLOWER DUCTED UNITS ONLY
After the hood is installed and wired, engage the calibration process (our Guaranteed Performance
System Technology to ensure full-rated airfl ow is being delivered). Prior to calibration, ensure that
all fi lters, light bulbs and duct system are installed.
CALIBRATION PROCESS
Hold the calibration button for 3 seconds; calibration button will light up and stay on for up to 13
minutes. The blower will start and begin the calibration process. When calibration is complete, one
of two things will occur:
1. The blower turns off and calibration button light stays on = Successful calibration. Press the button
to turn off the LED. Note: The LED will also turn off if you select any blower speed on the control.
2. The blower turns off and calibration button light blinks continuously = Too much restriction in the
ductwork is preventing the IQ Blower System™ from achieving the rated airfl ow. The blower is
automatically set to maximum intensity.
NOTE: Common items that cause restrictions: restricted damper fl ap (backdraft damper, wall
cap, roof cap), too many elbows, duct size less than 80% of hood outlet, poor transition, use of
fl ex ducting and/or crushed ducting.
Three options are available if your hood system has too much restriction:
1. Accept airfl ow as is.
a. Press the calibration button to accept airfl ow as is. The IQ Blower System™ is nowconfi gured
to the highest possible performance. The blinking calibration light goes out. Note: The LED
will also turn off if you select any blower speed on the control.
2. Correct duct restriction, clear the original calibration data, and repeat the calibration
process.
a. Correct the duct restriction.
b. Clear the original calibration data by holding calibration button for 10 seconds. The light will
blink 3 times to confi rm and the blower confi guration will go back to default settings.
c. Repeat calibration process from the beginning.
3. Clear calibration data to reset hood to default factory setting and achieve standard high
pressure blower performance.
a. Clear calibration data and reset hood to factory default setting by holding calibration
button for 10 seconds. The light will blink 3 times to confi rm and the blower confi guration
will go back to default settings.

- 17 -
IC34E Programming Mode Procedure
FIG. 24

- 18 -
Limited Warranty
Warranty Period and Exclusions: Broan-NuTone, LLC(the “Company”) warrants to the consumer purchaser of its product (“you”) that
the product (the “Product”) will be free from material defects in the materials or its workmanship for a period of fi ve (5) years from the date
of original purchase (or such longer period as may be required by applicable law) or a period of two (2) years from the date of service for
any labor provided on the Product.
The limited warranty period for any replacement parts provided by the Company and for any Products repaired or replaced under this limited
warranty shall be the remainder of the original warranty period (or such longer period as may be required by applicable law).
THIS WARRANTY DOES NOT EXTEND TO FLUORESCENT LAMP STARTERS, TUBES AND BULBS, FUSES, FILTERS, DUCTS, ROOF
CAPS, WALL CAPS AND OTHER ACCESSORIES FOR DUCTING. This warranty does not cover (a) normal maintenance and service, (b)
normal wear and tear, (c) any Products or parts which have been subject to misuse, abuse, abnormal usage, negligence, accident, improper
or insuffi cient maintenance, storage or repair (other than repair by the Company), (d) damage caused by faulty installation, or installation
or use contrary to recommendations or instructions, (f) damage caused by exposure to salt air, (g) damage in transit, (h) natural wear of
fi nish, (i) Products in commercial or nonresidential use, (j) damage caused by fi re, fl ood or other act of God, or (k) Products with altered,
defaced or removed serial numbers. This warranty covers only Products sold to consumers in North America.
This warranty supersedes all prior warranties and, subject to applicable law, is not transferable from the original consumer purchaser.
No Other Warranties: This Limited Warranty contains the Company’s sole obligation and your sole remedy for defective Products. The
foregoing warranties are exclusive and in lieu of any other warranties and conditions, express or implied. TO THE MAXIMUM EXTENT
PERMITTED BY APPLICABLE LAW, THE COMPANY DISCLAIMS AND EXCLUDES ALL OTHER EXPRESS WARRANTIES AND
CONDITIONS, AND DISCLAIMS AND EXCLUDES ALL WARRANTIES AND CONDITIONS IMPLIED BY LAW, INCLUDING WITHOUT
LIMITATION THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. To the extent that applicable law prohibits
the exclusion of implied warranties or conditions, the duration of any applicable implied warranty or condition is limited to the period specifi ed
for the express warranty above. Some jurisdictions (which may include the Province of Quebec or specifi c US states) do not allow limitations
on how long an implied warranty lasts, so the above limitation may not apply to you. Any oral or written description of the Product is for the
sole purpose of identifying it and shall not be construed as an express warranty.
Whenever possible, each provision of this Limited Warranty shall be interpreted in such manner as to be eff ective and valid under applicable
law, but if any provision is held to be prohibited or invalid, such provision shall be ineff ective only to the extent of such prohibition or invalidity,
without invalidating the remainder of such provision or the other remaining provisions of the Limited Warranty.
Remedy: During the applicable limited warranty period, the Company will, at its option, provide replacement parts for, or repair or replace,
without charge, any Product or part thereof, to the extent the Company fi nds it to be covered by and in breach of this limited warranty
under normal use and service. The Company will ship the repaired or replaced Product or replacement parts to you at no charge. You are
responsible for all costs for removal, reinstallation and shipping, insurance or other freight charges incurred in the shipment of the Product
or part to the Company. If you must send the Product or part to the Company, as instructed by the Company, you must properly pack the
Product or part—the Company is not responsible for damage in transit. The Company reserves the right to utilize reconditioned, refurbished,
repaired or remanufactured Products or parts in the warranty repair or replacement process. Such Products and parts will be comparable
in function and performance to an original Product or part and warranted for the remainder of the original warranty period (or such longer
period as may be required by applicable law).
Company reserves the right, in its sole discretion, to refund the money actually paid by you for the Product. If the Product or component
is no longer available, replacement may be made with a similar product of equal or greater value, at Company’s sole discretion. This is
your sole and exclusive remedy for breach of this limited warranty.
Exclusion of Damages: THE COMPANY’S OBLIGATION TO PROVIDE REPLACEMENT PARTS, OR REPAIR OR REPLACE, AT THE
COMPANY’S OPTION, SHALL BE YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY AND THE COMPANY’S
SOLE AND EXCLUSIVE OBLIGATION. THE COMPANY SHALL NOT BE LIABLE FOR INCIDENTAL, INDIRECT, CONSEQUENTIAL OR
SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE PRODUCT, ITS USE OR PERFORMANCE.
Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may
not apply to you. This warranty gives you specifi c legal rights, and you may also have other rights, which vary from jurisdiction to jurisdic-
tion. The disclaimers, exclusions, and limitations of liability under this warranty will not apply to the extent prohibited by applicable law.
This warranty covers only replacement or repair of defective Products or parts thereof at the Company’s main facility and does not include
the cost of fi eld service travel and living expenses.
Any assistance the Company provides to or procures for you outside the terms, limitations or exclusions of this limited warranty will not
constitute a waiver of such terms, limitations or exclusions, nor will such assistance extend or revive the warranty.
The Company will not reimburse you for any expenses incurred by you in repairing or replacing any defective Product, except for those
incurred with the Company’s prior written permission.
How to Obtain Warranty Service: To qualify for warranty service, you must (a) notify the Company at the address or telephone number
stated below within seven (7) days of discovering the covered defect, (b) give the model number and part identifi cation and (c) describe the
nature of any defect in the Product or part. At the time of requesting warranty service, you must present evidence of the original purchase
date. If you cannot provide a copy of the original written limited warranty, then the terms of the Company’s most current written limited
warranty for your particular product will control.
PRODUCT SPECIFICATIONS
All illustrations and specifi cations in this catalog are based on the latest product information available at time of production. Broan-NuTone,
LLC and BEST® reserves the right to make changes at any time, without notice, in prices, colors, materials, equipment, specifi cations and
models, place of manufacture and to discontinue models or equipment.
Best
Broan-NuTone, LLC- 926 W. State Street, Hartford, WI 53207
1-800-637-1453
Best®, 550 Lemire Blvd., Drummondville, QC, Canada (1-866-737-7770) www.bestrangehoods.com

- 19 -
KEY NO. PART NO. DESCRIPTION
9 B08087679 Grease Filters
17 BE3351998 Light Diff user Support
37 B02300804 Heat Sentry
67 B06102619 Wires Assembly
76 B003102891 Glass Front Trim
114 B032904990 Runner Wires
115 BE3350233 Wiring Box
116 BE3334252 Wiring Box Cover
124 B08092904 Telescopic Structure Bottom
125 B08093457 Telescopic Structure Top
130 B08092983 Glass Trim Back
202 B03292290 Wire Clamp
415 B03292596 Fairlead
439 B02320034 Grommet
474 B08093413 Led Lamp
477 BE3352074 Light Diff user Support Back
485 B08016376 Decorative Flue Assembly
506 97019431 BLDC Driver
507 B06102584 Calibration Button Assembly
AQI B06102594 Switch Box Assembly
ARU B080810849 Duct Connector Assembly 10”
IME B06145225 Electrical Installation Assembly
* B02300427 Led Driver
CAS B06002259 Blower Assembly
* B080811002 Fitting Set
ANKIC34 B08999181 Non-Ducted Kit (Includes Key No. 58, 64, 86, 122, 503)
58 B03294170 Outlet Reduction
64 B08093447 Non-Ducted Filter Frame
86 B03292300 Outlet Flange
122 B08093496 Non-Duct Plenum
503 B02011557 Expandable Duct
AFCWC345 B08999176 Non-Duct Filter
* Not shown assembled.

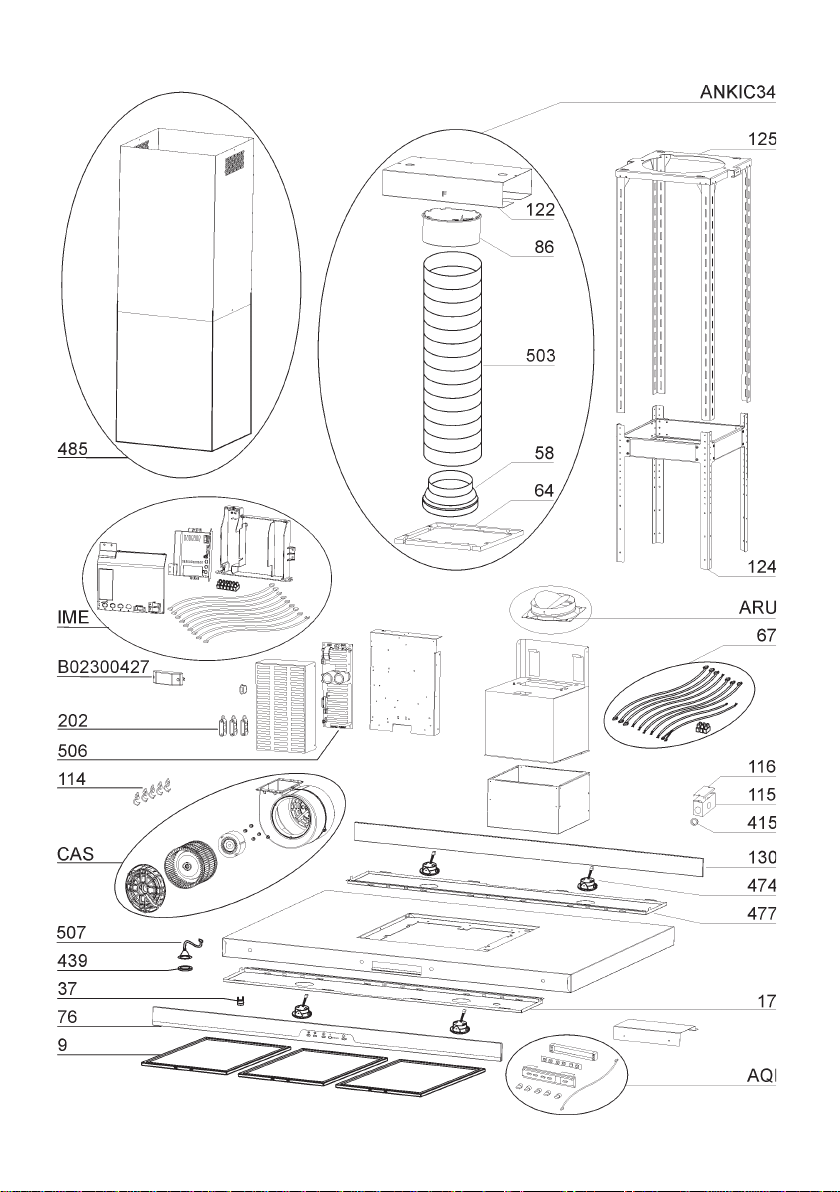

SERVICE PARTS
MODEL IC34IQ

- 20 -
