Better Homes and Gardens BG2294BZH-W User manual

1
MODEL NO: BG2294BZH-W
MAIN BBQ GRILL
VSN.: BH16-101-09903G
SINK MODULAR
VSN.: BH16-101-09903S
DRAWER MODULAR
VSN.: BH16-101-09903D
Call Customer Service Hotline
1-855-242-6887
WARNING
For Outdoor Use Only (outside any enclosure)
WARNING
1. Improper installation, adjustment, alteration,
service or maintenance can cause injury or
property damage.
2. Read this instruction manual thoroughly
before installing or servicing this equipment.
3. Failure to follow these instructions could
result in fire or explosion, which could cause
property damage, personal injury or death.
4. This instruction manual contains important
information necessary for proper assembly and
safe use this appliance.
WARNING
1. Do not store or use gasoline or other
flammable vapors and liquids in the vicinity of
this or any other appliance.
2. An LP tank not connected for use should not
be stored in the vicinity of this or any other
appliance.
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flames.
3. Open the lid.
4. If the odor continues, keep away from the
appliance and immediately call your gas
supplier or fire department.
DANGER
Never operate this appliance unattended.
Save these instructions for future reference.
If you are assembling this unit for someone else,
give this manual to him or her to read save for
future reference.
DO NOT RETURN YOUR GRILL TO THE STORE
Question, problems, missing parts? Don’t return the grill to stores, please call our customer service
department at 1-855-CHANT-US (1-855-242-6887) from 8:00am to 5:00pm Eastern time, Monday
through Friday for assistance.
OUTDOOR 4-BURNER
STAINLESS STEEL ISLAND GRILL

2
Always read and understand the WARNINGS and INSTRUCTIONS that are contained in this
manual before attempting to use this gas barbecue grill to prevent possible bodily injury or
property damage.
Always keep this manual for convenient future reference.
WARNING
1. Do not store or use gasoline or other
flammable liquids or vapors in the
vicinity of this or any other appliance.
2. An LP cylinder not connected for use
should not be stored in the vicinity of
this or any other appliance.
DANGER
If you smell gas:
1. Shut off gas to the appliance
2. Extinguish any open flame
3. Open lid
4. If odor continues, keep away from the
appliance and immediately call your gas
supplier or your fire department.

3
TABLE OF CONTENTS
Cover …………….…………………………………….………...….………….………….….………..1
Table of Contents……………………………………….………...….………….…………………….3
Safety Information…………………………………….………...….………….….…………………..4

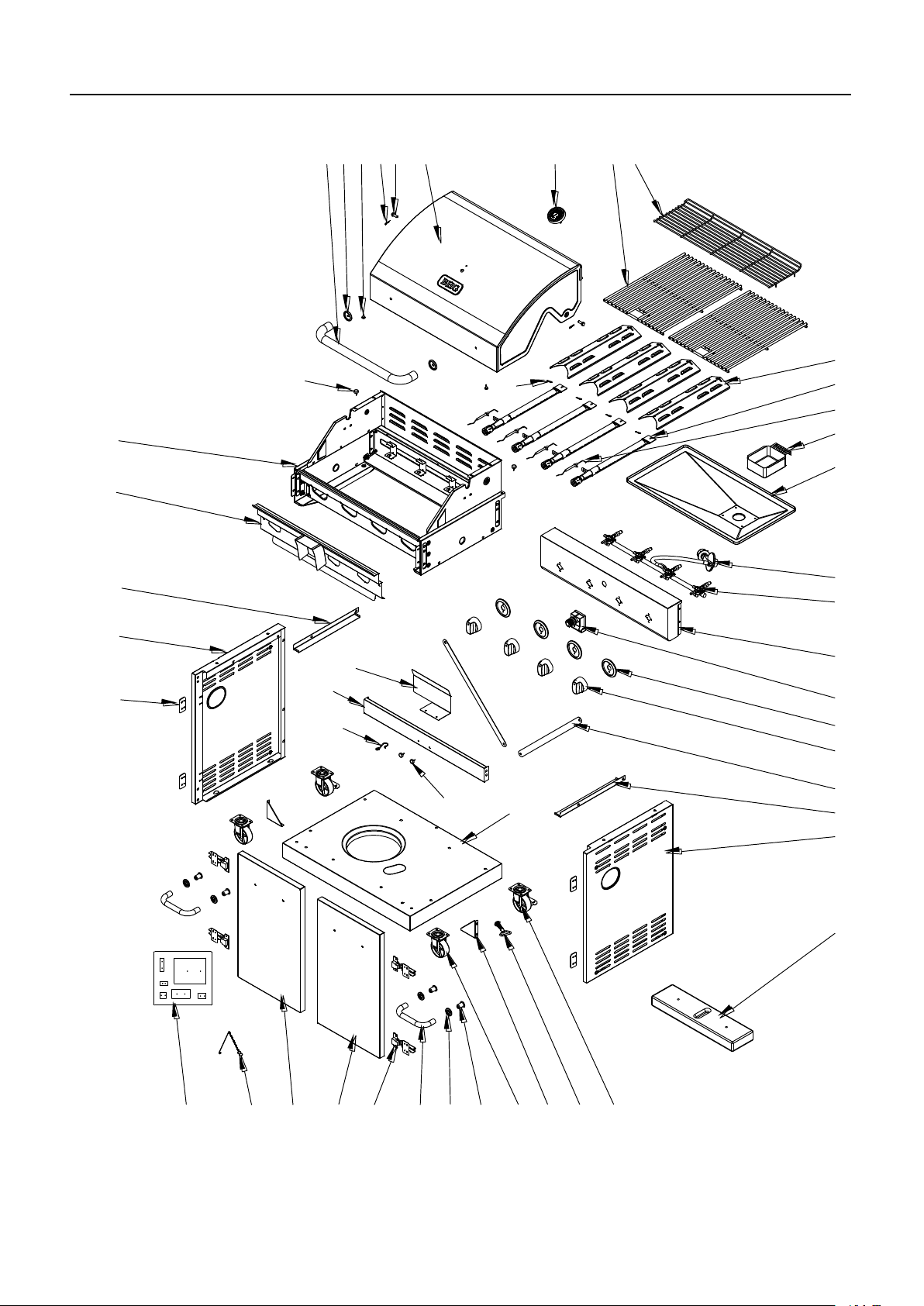

Main BBQ Grill Exploded View………….……………………………………………….............7
Main BBQ Grill Parts List…..…..….…................……………....………...…….............8
Main BBQ Grill Hardware Contents…………………………………………………….…………10
Main BBQ Grill Assembly Instructions………….……….……………………………………….11
Sink Modular Exploded View……………….……………………………………………............19
Sink Modular Parts List….…………..…..….…................……………....………...……...........20
Sink Modular Hardware Contents……………………………………………………….…20
Sink Modular Assembly Instructions…………….…….……………………………………….21
Drawer Modular Exploded View……………….…………………………………………............27
Drawer Modular Parts List….……………..…..….…................……………....……….............28
Drawer Modular Hardware Contents……………………………………………………….…28
Drawer Modular Assembly Instructions…………….……….………………………………….29
Island Grill Combination Assembly Instructions…………………………………….34
Natural Gas Conversion..........................…………….……….…………………………………. 35
Liquid Propane Gas Instructions…………………………….……...……....................41
Operation Instructions…………………………….……...………………………….....................44
Lighting Instructions…………………………….……...………………………….....................47
Care and Maintenance……………………………….………………………………………………49
Troubleshooting …………………………………………………………………..….……………...51
Warranty………………………………………………………………………………………………..53

4
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate
or install the product. If you have any questions regarding the product, please call our
customer service at 1-855-CHANT-US(1-855-242-6887) from 8:00am to 5:00pm Eastern
time, Monday through Friday for assistance.
The installation and repairs of this appliance must conform with local codes or, in the absence of local
odes, with either the National Fuel Gas Code, ANSI Z223.1/NFPA 54, or Natural Gas and Propane
Installation Code, CSA/CGA-B149.1.
All pipe sealants must be an approved type and resistant to the actions of L.P. gases. Never use pipe
sealant on flare fittings. All gas connections should be made by a competent qualified service technician
and in accordance with local codes and ordinances. In the absence of local codes, the installation must
comply with the National Fuel Gas Code, NFPA 54-2002/ANSI Z223.1-2002.
This grill must be isolated from the gas supply piping system by closing its individual manual shut-off valve
during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 PSI
(3.5 kPa.).
This grill is intended for use outdoors and should not be used in a building, garage or any other enclosed
or covered area.
A minimum clearance of 36 inches from combustible constructions to the sides of the grill and 36 inches
from the back of the grill to combustible constructions must be maintained. This outdoor cooking gas
appliance must not be placed under overhead combustible construction.
Natural Gas (NG) Characteristics:
a. NG is flammable and hazardous if handled improperly. Become aware of the characteristics before
using any NG products.
b. NG is explosive under pressure, heavier than air and settles and pools in low areas.
c. NG in its natural state has no odor. For your safety, an odorant is added than smells like rotten cabbage.
d. Contact with NG can cause freeze burns to skin.
Do not block holes in sides or back of the grill.
A fire causing, serious bodily injury or damage to property may occur if above is not followed exactly.
The use of alcohol, prescription or non- prescription drugs may impair the consumers’ ability to properly
assemble or safely operate the appliance.
Never use charcoal, lighter fluid, lava rocks, gasoline, kerosene or alcohol with this product.
Check for leaks even if your unit was assembled for you by someone else.
Do not operate if gas leak is present. Gas leaks may cause a fire or explosion.
You must follow all leak-checking procedures before operating. To prevent fire or explosion hazard when
testing for a leak:
a. Always perform leak test before lighting the grill and each time the tank is connected for us.
b. No smoking. Do not use or permit sources of ignition in the area while conducting a leak test.
c. Conduct the leak test outdoors in a well-ventilated area.
d. Do not use matches, lighters, or a flame to check for leaks.
e. Do not use grill until any and all leaks are corrected.
If you can unable to stop a leak, turn off the main valve on the NG supply line. Call a gas appliance
serviceman or your local NG supplier.
Never attach an unregulated gas line to the appliance. Connection to an unregulated gas line can cause
excessive heat or fire.
The appliance and its individual shutoff valve must be disconnected from the gas supply piping system
during any pressure testing of that system at pressures in excess of 1/2 psig (3.5kpa).
The appliance must be isolated form the gas supply piping system by closing its individual manual shutoff
valve during any pressure testing of the gas supply piping system at test pressures equal to or less than
1/2 psig (3.5kpa).
Do not store or use gasoline or other flammable liquids or vapors within 25 feet (7.62 m) of this appliance.
Do not use in an explosive atmosphere. Keep grill area clear and free from combustible materials,
gasoline and other flammable vapors and liquids.
It is essential to keep the grill’s valve compartment, burners and circulating air passages clean.
Use only the gas pressure regulator supplied with this appliance. This regulator is set for an outlet
pressure of 11.0 wc.
The cylinder used must include a collar to protect the cylinder valve.
Do not store a spare LP-gas cylinder under or near this appliance.
Do not alter grill in any manner. Any alteration will void your warranty.
Do not use grill in high winds.

5
SAFETY INFORMATION
Do not use the grill unless it is COMPLETELY assembled and all parts are securely fastened and
tightened.
Do not build this model of grill in any built-in or slide in construction. Ignoring this warning could cause a
fire or an explosion that can damage properly and cause serious bodily injury or death
This grill should be thoroughly cleaned and inspected on a regular basis.
Clean and inspect the hose before each use of the appliance. If there is evidence of abrasion, wear, cuts
or leaks, hose must be replaced prior to the appliance being put into operation.
Use only the regulator and hose assembly provided. The replacement regulator and hose assembly shall
be that specified by the manufacturer.
Use only Chant Kitchen Equipment (H.K.) Ltd. company authorized
parts. The use of any part that is not company authorized can be
dangerous. Doing so will also void your warranty.
Never fill the cylinder beyond 80 percent full.
Only a 20 lb. LP-gas cylinder is allowed. The cylinder must be
constructed and marked in accordance with the Specifications for LP
Gas Cylinders of the U.S. Department of Transportation (D.O.T.) or the
National Standard of Canada, CAN/CSA-B339, Cylinders, Spheres and
Tubes for Transportation of Dangerous Goods; and Commission.
A 20 lb. LP-Gas cylinder’s dimensions are:
Inspect grill before each use.
Do not operate this appliance without reading “Operating Instructions”
in this manual.
This grill is designed with to operate at an inlet pressure of: LP gas: 11 inches water column; NG 7inches
water column.
Never operate grill without heat plates installed.
Do not leave a lit grill unattended, especially keep children and pets away from grill at all times.
Always use a meat thermometer to ensure food is cooked to a safe temperature.
Use protective gloves when assembling this product.
Do not force parts together as this can result in personal injury or damage to the product.
Never lean over the grill when lighting.
Do not place empty cooking vessels on the appliance while in operation.
Use caution when placing anything on the grill while the appliance is in operation.
Do not touch metal parts of grill until it has completely cooled (about 45 minutes) to avoid burns, unless
you are wearing protective gear (pot holders, gloves, BBQ mittens, etc…).
Do not attempt to move grill when in use. Allow the grill to cool before moving or storing.
Always open grill led carefully and slowly as heat and steam trapped within grill can severely burn you.
Do not attempt to disconnect the gas regulator from the tank or any gas fitting while the grill is in us.
Always place your grill on a hard, on-combustible, level surface. An asphalt or blacktop surface may not be
acceptable for this purpose.
Move gas hoses as far away as possible from hot surfaces and dripping hot grease.
Keep all electrical cords away from a hot grill
After a period of storage and/or nonuse, check for leaks, burner obstructions and inspect for any abrasion,
wear or cuts to the hose.
Failure to open lid while igniting the grill’s burners, or not waiting 5 minutes to allow the gas to clear if the
grill does not light, may result in an explosive flam-up.
All electrical accessories (such as rotisserie) must be electrically grounded in accordance with local codes,
or National Electrical Code, ANSI / NFPA 70 or Canadian Electrical Code, CSA C22.1. Keep any electrical
cords and/or fuel supply hoses away from any hot surfaces.
When cooking, fire extinguishing materials shall be readily accessible. In the event of an oil/grease fire, do
not attempt to extinguish with water. Use type BC dry chemical fire extinguisher or smother with dirt, sand
or baking soda.
Do not leave grill unattended while preheating or burning off food residue on high if grill has not been
cleaned, a grease fire can occur that may damage the product.
To protect against electric shock, do not immerse cord or plugs in water or other liquid.
Unplug from the outlet when not in use and before cleaning. Allow to cool before putting on or taking off
parts.
Do not let the cod hang over the edge of a table or touch hot surface.
Do not use an outdoor cooking gas appliance for purposes other than intended.
When connecting, first connect plug to the outdoor cooking gas appliance then plug appliance into the
outlet.

6
SAFETY INFORMATION
Use only a ground Fault Interrupter (GFI) protected circuit with this outdoor cooking gas appliance.
Never remove the grounding plug or use with an adapter of 2 prongs; and use only extension cords with
a 3 prong grounding plug, rated for the power of the equipment, and approved for outdoor use with a W-A
marking.
OUTDOOR USE ONLY. DO NOT EXPOSE TO RAIN.
CAUTION: Risk of Electric Shock. Keep extension cord connection dry and off the ground.
Use only on properly grounded outlet.
Deaths, serious injury or damage to properly may occur if the above is not followed exactly.
Never cover entire cooking area with aluminum foil.
CALIFORNIA PROPOSITION 65 WARNING:
(a)The burning of gas cooking fuel generates some byproducts which are on the list of substances known
by the State of California to cause cancer, reproductive harm, or other birth defects. To reduce exposure to
these substances, always operate this unit according to the use and care manual, ensuring you provide
good ventilation when cooking with gas.
(b)Handling the brass material on this product exposes you to lead, a chemical known to the State of
California to cause cancer and birth defects or other reproductive harm. Wash hands after handling.
(c)This product contains chemicals, including lead and lead compounds, known by the State of California
to cause cancer, reproductive harm, or other birth defects.
(d) Wash your hands after using this product.
IMPORTANT: We urge you to read this manual carefully and follow the recommendations
enclosed. This will ensure you receive the most enjoyable and trouble-free operation of
your new gas grill. We also advise you retain this manual for future reference.
WARNING: Your grill has been designed to operate using only the gas specified by
the manufacturer on the rating plate. Do not attempt to operate your grill on other gases.
Failure to follow this warning could lead to a fire hazard and bodily harm and will void
your warranty.
WARNING: Make certain your LP (propane) tank is filled by a reputable propane
dealer. An incorrectly filled or an overfilled LP tank can be dangerous. The overfilled
condition combined with the warming of the LP tank (a hot summer day, tank left in the
sun, etc.) can cause LP gas to be released by the pressure relief valve on the tank since
the temperature increase causes the propane to expand. LP gas released from the tank
is flammable and can be explosive. Refer to your Owner’s Manual for more information
concerning filling your LP tank.

7
MAIN BBQ GRILL EXPLODED VIEW
H1
4043
28 20
21
15
18
19
17
16
32
46 45 44 42 41
31
39 383736 35
34
33
30
29
27
26
25
24
23
22 14
13
12
11
10
98
7
6
54
321
F1
G1 B1
A1
C1+D1+E1
4
3

8
MAIN BBQ GRILL PARTS LIST
※：NO ASSEMBLY REQUIRED
PART
DESCRIPTION
PART NO
QTY
1
※Lid Handle
2307563
1
2
※Lid Handle Bezel
5201177
2
3
※Lid Spacer
2100158
4
4
※R-Pin
2307001
6
5
※Lid Axis
2406690
2
6
※Lid Assembly
229G001
1
7
※Temperature Gauge
2406912
1
8
Cooking Grate
2409489
2
9
Warming Rack
2310685
1
10
Heat Tent
5207190
4
11
※Tube Burner
2409257
4
12
※Tube Burner Ignition Pin
2409259
4
13
Grease Cup
5201953
1
14
Drip Tray
229G002
1
15
※Regulator & Hose Assembly
5204132
1
16
※Manifold & Gas Valve Assembly
5207314
1
17
※Control Panel
5207194
1
18
※Electric Igniter
2409468
1
19
※Knob Bezel
2409209
4
20
Knob
2409208
4
21
※Firebox Assembly
229G003
1
22
※Heat Shield
229G004
1
23
Left Drip Tray Support
5201882
1
24
Left Side Panel
5207196
1
25
Hinge Spacer
5207205
4
26
Hose Heat Shield
5207204
1
27
Front Beam
5207199
1
28
※Hose Clip Hook
2405337
1
29
※Cushion Rubber
2404055
2
30
Bottom Panel
5207195
1
31
Cabinet Reinforcing Bar
5207198
2

9
MAIN BBQ GRILL PARTS LIST
※：NO ASSEMBLY REQUIRED
PART
DESCRIPTION
PART NO
QTY
32
Right Drip Tray Support
5201883
1
33
Right Side Panel
5207197
1
34
※Weight Plate
2406712
1
35
Lockable Castor
2100470
2
36
※Retention Screw
229G005
1
37
Triangle reinforcing Plate
5201879
2
38
Unlockable Castor
2100471
2
39
Door Screw Socket
2100481
4
40
Door Handle Bezel
5201175
4
41
Door Handle
5204382
2
42
Door Hinge
2307764
4
43
Right Door
229G006
1
44
Left Door
229G007
1
45
※Match-Light Extension
2307247
1
46
Hardware Pack
5207206
1
47
NG Conversion Kit
5207207
1

10
MAIN BBQ GRILL HARDWARE CONTENTS
X 20A1 M6X16mm Silver Screw
I1 AA Battery X 1
H1 M6 Spring Washer
G1 M6 Flat Washer
F1 M4 Plastic Washer
E1 M4 Nut
D1 M4X10mm Screw
C1 M4X12mm Screw
B1 M6X12mm Silver Screw
X 20
X 20
X 23
X 3
X 24
X 1
X 1
ASSEMBLY PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with
package contents list and hardware contents list. If any part is missing or damaged, do not
attempt to assemble the product.
NOTE: Some parts come with screws pre-installed. Loosen and tighten for final assembly.
Estimated Assembly Time: 1 hour by two people
Tools required for assembly:
* Phillips Head Screwdriver 1pc (not included)

11
MAIN BBQ GRILL ASSEMBLY INSTRUCTIONS
IMPORTANT: ASSEMBLE ON FLAT AND SOFT SURFACE TO AVOID SCRATCHING.
1. Attach Unlockable Castors (38) in the front and Lockable Castors (35) in the back as shown.
38
A1
H1
G1 35
A1 M6X16mm Silver Screw
G1 M6 Flat Washer
H1 M6 Spring Washer
X 16
X 16
X 16
2. Attach Left Side Panel (24) and Right Side Panel (33) on Bottom Panel.
24
33
B1
B1 M6X12mm Silver Screw X 4

12
MAIN BBQ GRILL ASSEMBLY INSTRUCTIONS
3. Attach Cabinet Reinforcing Bars (31) as shown.
B1
31
4. Attach Front Beam (27) and Triangle reinforcing plates (37).
37
B1 27
X 3
B1 M6X12mm Silver Screw
X 12
B1 M6X12mm Silver Screw

13
MAIN BBQ GRILL ASSEMBLY INSTRUCTIONS

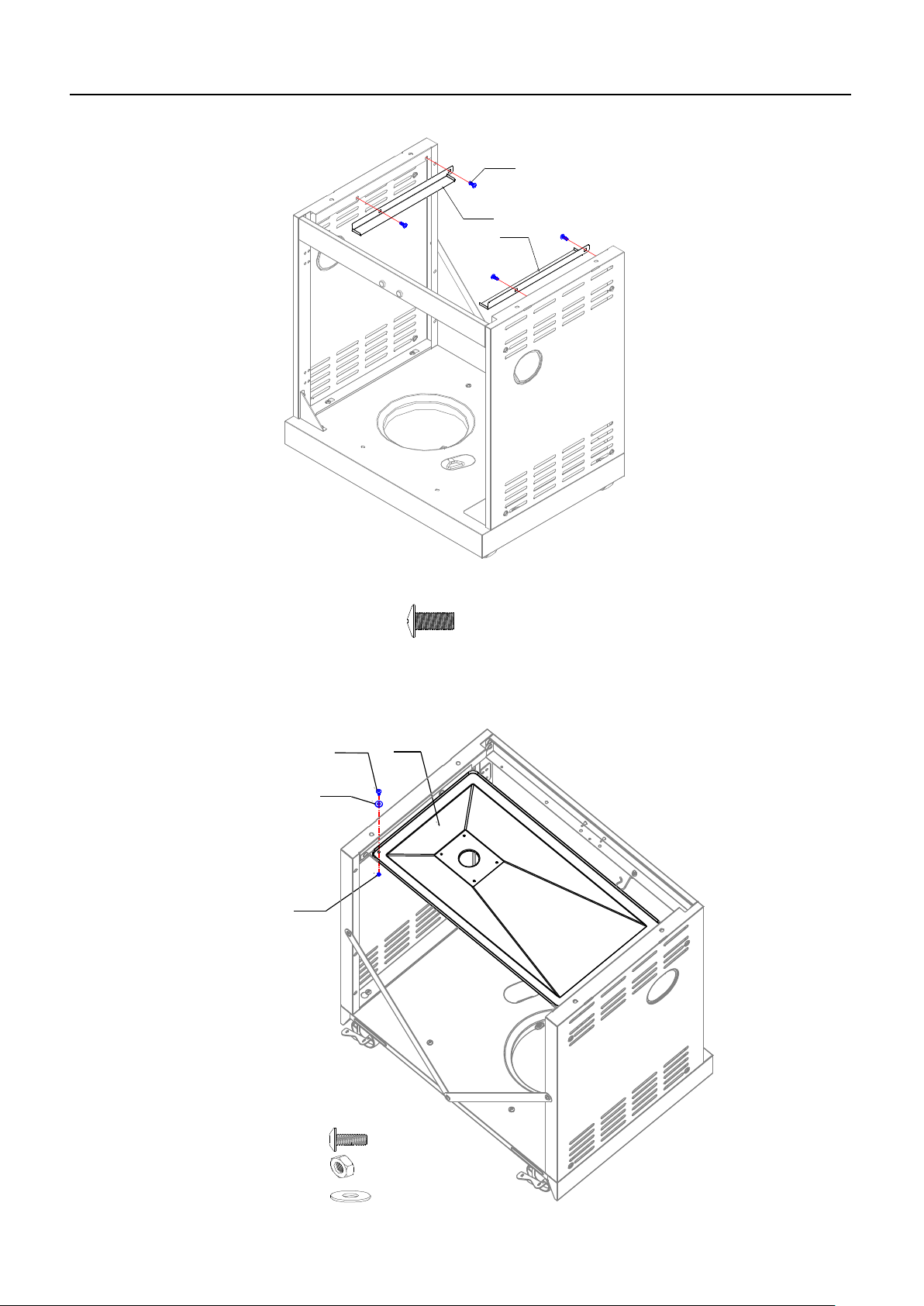

5. Attach Left Drip Tray Support (23) and Right Drip Tray Support (32) to the side panels.
B1
2332
B1 M6X12mm Silver Screw X 4
6. Put Drip tray (14) onto the Drip Tray Supports.
E1
F1
D1 14
F1 M4 Plastic Washer
E1 M4 Nut
D1 M4X10mm Screw
X 1
X 1
X 1

14
MAIN BBQ GRILL ASSEMBLY INSTRUCTIONS

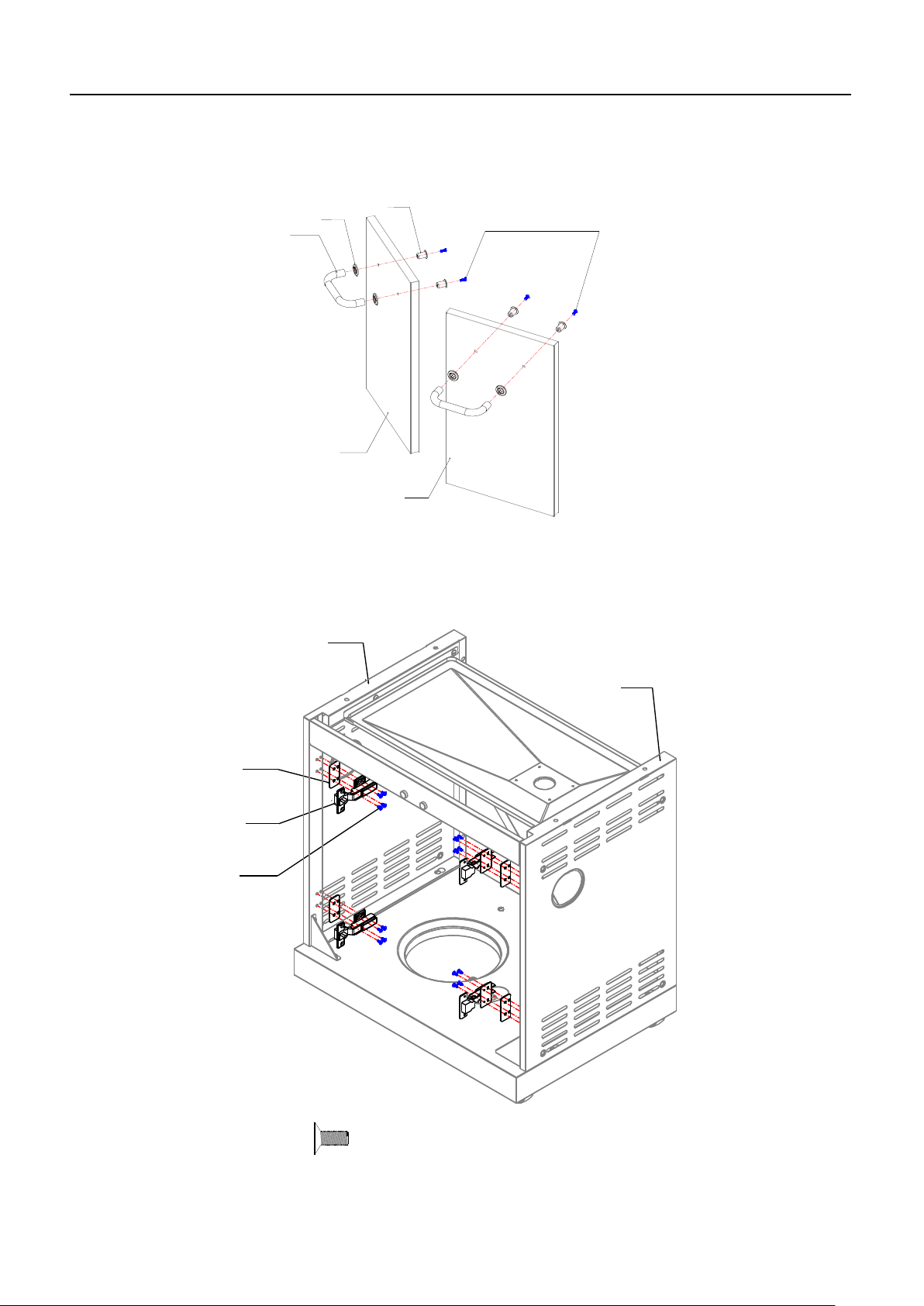

7. Loosen the pre-assembled M5 x15 screws from Door Handles (41), attach Door Handles
(41), Door Handle Bezel (40) and Door Screw Sockets (39) to the Left & Right Door (43/44),
and then fasten the screws.
43
44
M5x15 Screw
4140 39
8. Attach Door Hinges (42) and Hinge Spacers (25) to Left & Right Side Panel (24/33) as
shown.
Note: DO NOT tighten the screws of this step now.
24
33
C1
42
25
C1 M4X12mm Screw X 16

15
MAIN BBQ GRILL ASSEMBLY INSTRUCTIONS
9. Attach Left door (44) and Right door (43) to Door Hinges (42), and then tighten all of the
screws, including the screws in last step.
Note: Two adjusting screws inside the door hinge, which can be used to adjust the distance
as shown.
C1 M4X12mm Screw X 8

16
MAIN BBQ GRILL ASSEMBLY INSTRUCTIONS

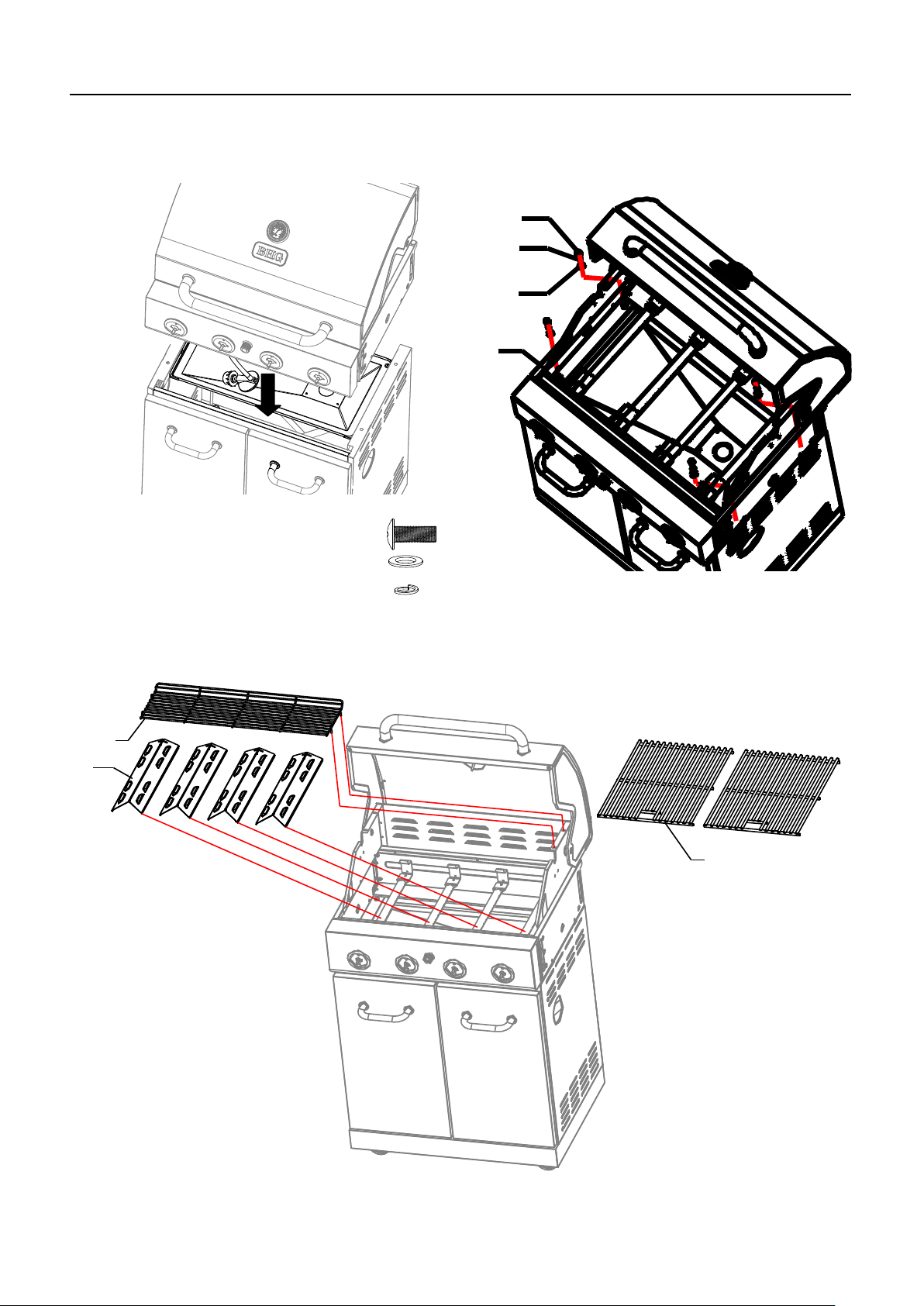

10.The Regulator & Hose Assembly is located inside of the control panel. Please untie it and
hang it as the picture shown. Attach Firebox Assembly (21) on the top of the cabinet and
fasten the screws and washers as shown.
21
G1
H1
A1
11.Insert Heat Tents (10), Cooking Grates (8) and Warming Racks (9).
8
10
9
A1 M6X16mm Silver Screw
G1 M6 Flat Washer
H1 M6 Spring Washer X 4
X 4
X 4

17
MAIN BBQ GRILL ASSEMBLY INSTRUCTIONS
12.Open the door, pull out the Hose Clip Hook (28) and secure the hose into the hook.
Then attach Grease Cup (13) as shown.
13
15
28
13.Attach Hose Heat shield (26) to Front Beam (27).
D1
26 27
D1 M4X10mm Screw X 2

18
MAIN BBQ GRILL ASSEMBLY INSTRUCTIONS
14.Place AA battery (I1) into the Electronic Igniter with the positive (+) end facing out, and then
attach Knobs (20) to bezels.
20
I1
15. Your Main BBQ Grill is now assembled.
I1 AA Battery X 1

19
SINK MODULAR EXPLODED VIEW
5
6
7
5
6
7
11
10
11
13
12
A
C
D E B
21
20
2
4
8
14
18
15
17
17
9
16
16
1
3
19

20
SINK MODULAR PARTS LIST
※：NO ASSEMBLY REQUIRED
SINK MODULAR HARDWARE CONTENTS:
A2 M6X16mm Silver Screw X 24
X 24
X 21
X 20
X 20
B2 M6X12mm Silver Screw
C2 M4X12mm Screw
D2 M6 Flat Washer
E2 M6 Spring Washer
PART
DESCRIPTION
PART NO
QTY
1
Tap
2307729
1
2
※Sink Assembly
229S001
1
3
Water Inlet Hose
229S002
1
4
Launching Device Assembly
229S003
1
5
Door Screw Socket
2100481
4
6
Door Handle Bezel
5201175
4
7
Door Handle
5204382
2
8
Right Door
229S004
1
9
Left Door
229S005
1
10
Left Side Panel
5207196
1
11
Hinge Spacer
5207205
4
12
Front Beam
5207199
1
13
Back Panel
5207253
1
14
Bottom Panel
5207251
1
15
Right Side Panel
5207252
1
16
Door Hinge
2307764
4
17
Triangle reinforcing Plate
5201879
2
18
Lockable Castor
2100470
2
19
Unlockable Castor
2100471
2
20
※Cushion Rubber
2404055
2
21
Hardware Pack
5207254
1
