BevLes Wall Mount/Under Counter Proofer/Holding Cabinet... User manual

This equipment has been engineered to provide you with year round dependable service when used
according to the instructions in this manual and standard commercial kitchen practices.
1
!!
FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapors and liquids in the
vicinity of this or any other appliance.
!!
WARNING
Improper installation, adjustment, alteration, service or maintenance can
cause property damage, injury or death. Read the Installation, Operating and
Maintenance Instructions thoroughly before installing or servicing this
equipment.
Wall Mount/Under Counter
Proofer/Holding Cabinet
Models: PHC23-AR10 & PHC23-AR12
P/N 780097 3/06
INSTALLATION AND OPERATING
INSTRUCTIONS
INTENDED FOR OTHER THAN HOUSEHOLD USE
RETAIN THIS MANUAL FOR FUTURE REFERENCE
UNIT MUST BE KEPT CLEAR OF COMBUSTIBLES AT ALL TIMES
Innovative Foodservice Equipment Custom
Designed for Performance, Service and Value.
Phone: +1
Fax: [phone]
Toll Free: [phone]
Website: www.BevLes.com
E-mail: [email protected]
[phone]
BevLes
729 Third Avenue
Dallas, TX 75226

!WARNING:
This symbol refers to a potential hazard or unsafe practice, which could result in
seriousinjuryor death.
!
!
!DANGER:
Thissymbolwarnsof imminenthazardwhichmayresult inseriousinjury ordeath.
!
!CAUTION:
This symbolrefers to a potentialhazard or unsafepractice, whichmay resultin minor or
moderateinjuryorproductor propertydamage.
!
!NOTICE:
This symbol refers to informationthat needs special attentionor must be fully understood
eventhoughnot dangerous.
GENERAL INFORMATION
THIS MANUAL SHOULD BE RETAINED FOR FUTURE REFERENCE
The takes pride in the design and quality of our products. When used as intended and
with proper care and maintenance, you will experience years of reliable operation from this equipment. To
ensure best results, it is important that you read and follow the instructions in this manual carefully.
Installation and start-up should be performed by a qualified installer who thoroughly read, understands and
follows these instruction.
If you have questions concerning the installation, operation, maintenance or service of this product, write
Technical Service Department
Before installing and operating this equipment be sure everyone involved in its operation is fully trained and
aware of all precautions. Accidents and problems can result by a failure to follow fundamental rules and
precautions.
The following words and symbols, found in this manual, alert you to hazards to the operator, service
personnel or the equipment. The words are defined as follows:
BevLes Company
BevLes Company, Inc., 729 ThirdAvenue, Dallas, TX 75226
SAFETY PRECAUTIONS
!
CAUTION: These models are designed, built, and sold for commercial use. If these models are
positioned so the general public can use the equipment make sure that cautions, warnings, and
operating instructions are clearly posted near each unit so that anyone using the equipment will
useit correctlyandnot injurethemselvesorharm the equipment.
!
!
WARNING: Check the data plate on this unit beforeinstallation.Connectthe unit only to the voltage
andfrequencylistedon thedataplate.Connectonly tosingle phase aslisted onthe dataplate.
!
!
!WARNING:
Electrical and grounding connections must comply with the applicable portions of the
nationalelectricalcodeand/orotherlocalelectricalcodes.
WARNING: Install per the spacing requirements listed in the installation section of this manual. We
strongly recommend having a competent professional install the equipment.A licensed electrician
should make the electrical connections and connect power to the unit. Local codes should always
be used when connecting these units to electrical power. In the absence of local codes, use the
latestversionof theNationalElectricalCode.
!
!
!
!
WARNING: This device should be safely and adequately grounded in accordance with local
codes, or in the absence of local codes, with the National Electrical code, ANSI/NFPA 70, Latest
Edition to protect the user from electrical shock. It requires a grounded system and a dedicated
circuit, protected by a fuse or circuit breaker of proper size and rating. Canadian installation must
complywiththe CanadianElectricalCode,CSAC22.2,asapplicable.
2
!! WARNING: This appliance must be serviced by an Authorized Service Technician only.
Before cleaning or servicing the unit, disconnect device from electrical power supply and
place a Tag Out-Lockout on the power plug, indicating that you are working on the circuit.

!!
WARNING: Never clean any electrical unit by immersing it in water. Turn off before cleaning
surface.
!!
WARNING: An earthing cable must connect the appliance to all other units in the complete
installationandfrom thereto anindependentearthconnection.
!!
NOTICE: This productis intendedforcommercialuseonly. Not for householduse.
!!
WARNING: - SHOCK HAZARD De-energize all power to equipment before cleaning the
equipment.
!
!
NOTICE: The unit when installed, must be electrically grounded and comply with local codes, or in
the absence of local codes, with the national electrical code ANSI/NFPA70- latest edition.
Canadian installation must comply with CSA-STANDARD C.22.2 Number 0 M1982 General
Requirements-CanadianElectricalCodePartII, 109-M1981-CommercialCookingAppliances.
!
!
NOTICE: Local codes regarding installation vary greatly from one area to another. The National
Fire ProtectionAssociation, Inc. states in its NFPA96 latest edition that local codes are Authority
Having Jurisdiction when it comes to requirement for installation of equipment. Therefore,
installationshouldcomplywithall localcodes.
!!
WARNING: - SHOCKHAZARD Donot openany panelsthat requiretheuse of tools.
IMMEDIATELY INSPECT FOR SHIPPING DAMAGE
All containers should be examined for damage before and during unloading. The freight carrier has
assumed responsibility for its safe transit and delivery. If equipment is received damaged, either apparent
or concealed, a claim must be made with the delivering carrier.
A) Apparent damage or loss must be noted on the freight bill at the time of delivery. It must then be signed
by the carrier representative (Driver). If this is not done, the carrier may refuse the claim. The carrier can
supply the necessary forms.
B) If concealed damage or loss is not apparent until after equipment is uncrated, a request for inspection
must be made to the carrier within 15 days. The carrier should arrange an inspection. Be certain to hold all
contents and packaging material.
Installation and start-up should be performed by a qualified installer who has thoroughly read, understands
and follows these instructions.
3
TABLE OF CONTENTS
ITEM PAGE
Safety Precautions 2
General Information 2
Operating Instructions 4
Maintenance 4
Service 4
Warranty Information 4
Specifications 5
Wiring Diagram 5

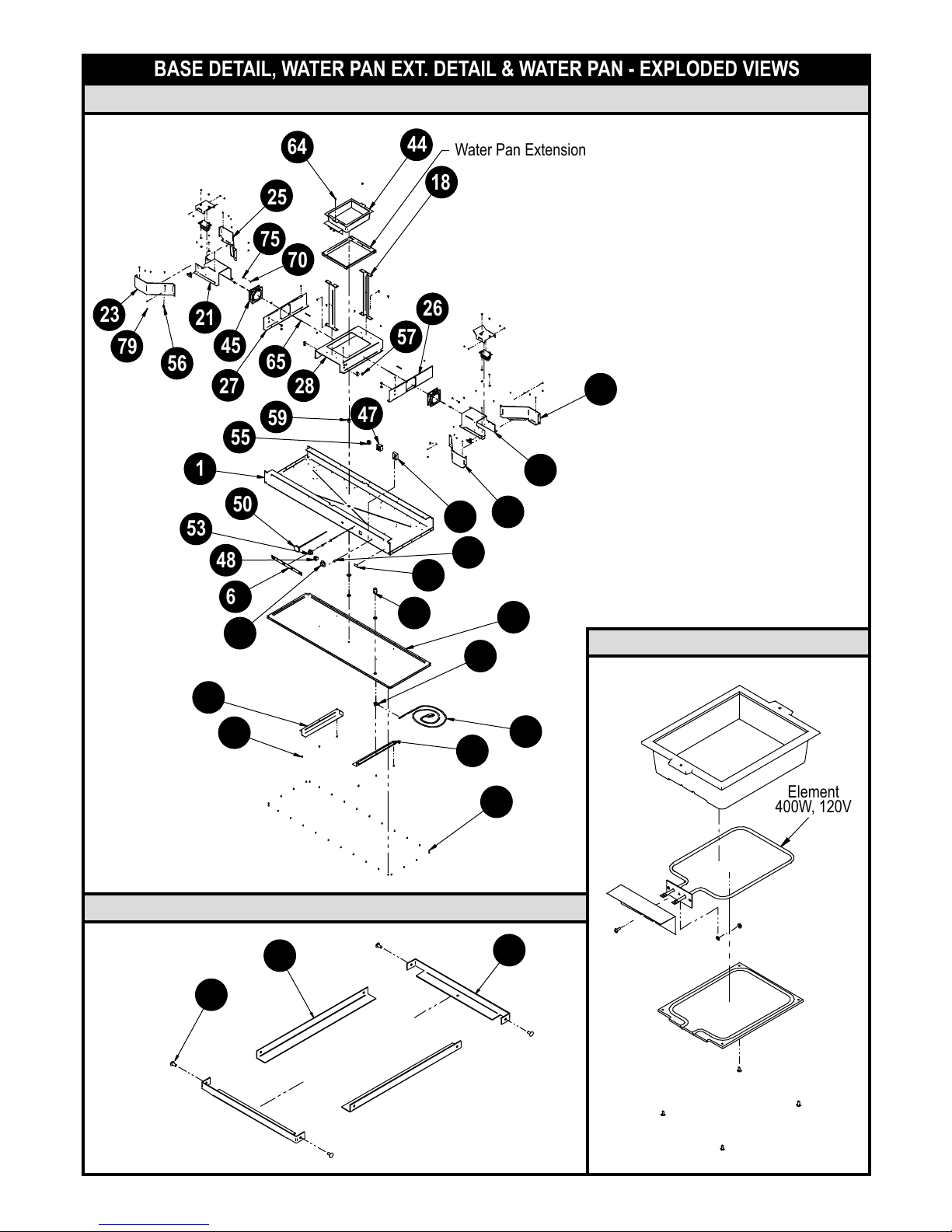

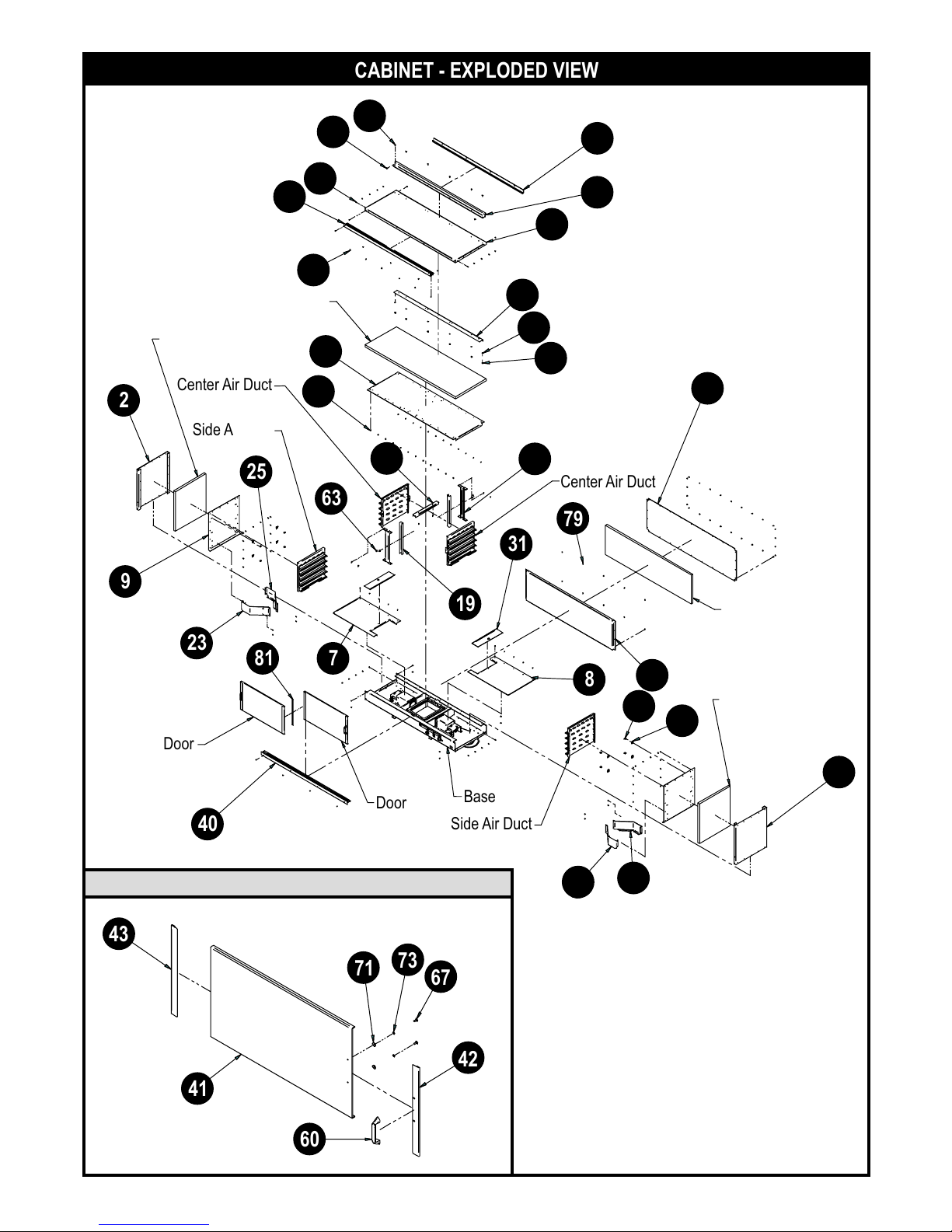

Parts List & Exploded Views 6

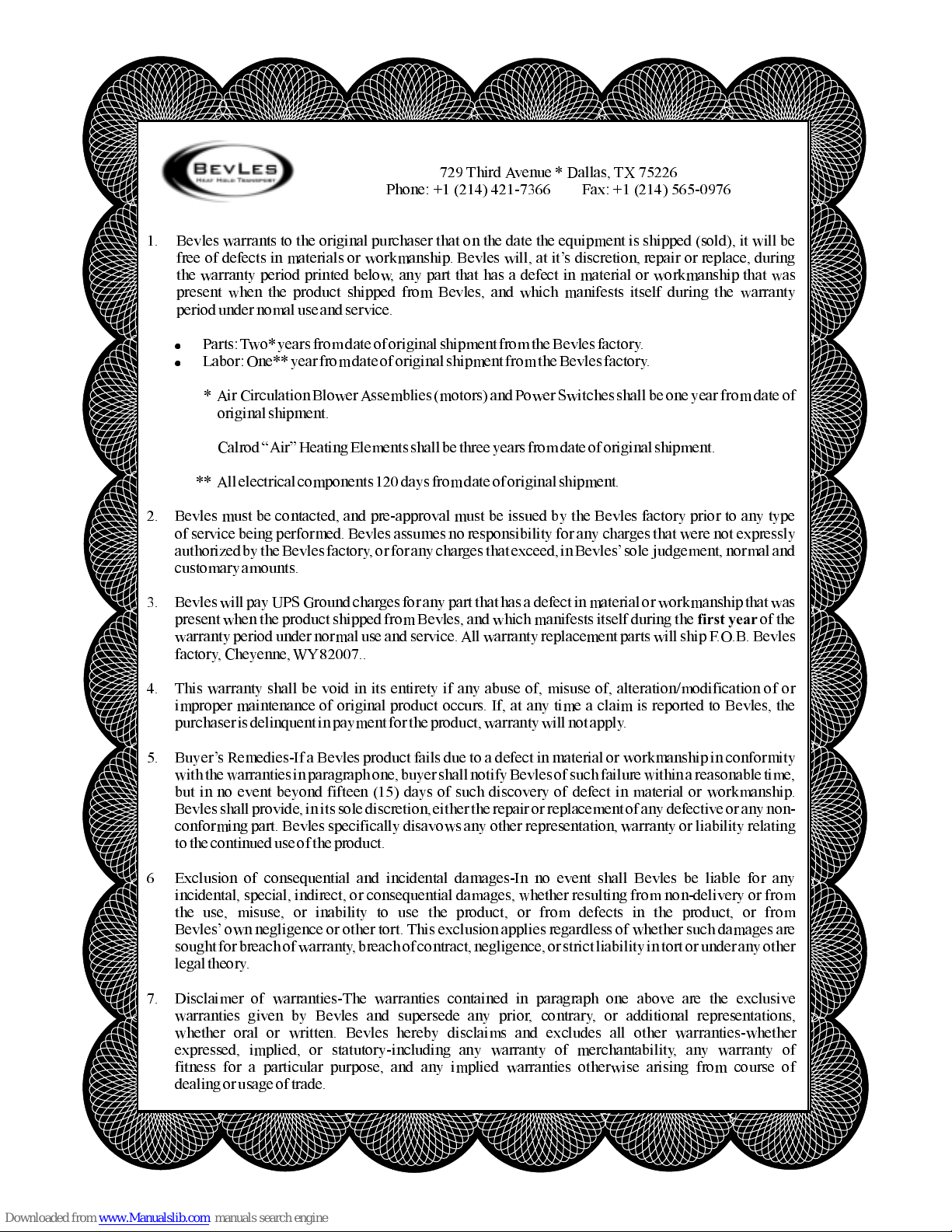

Warranty 11

4
OPERATING INSTRUCTIONS
MAINTENANCE
I. Remove Lexan water pan cover.
2. Fill water pan to 3/4 full (hot tap water is recommended when starting your proofing operation).
3. Replace Lexan water pan cover.
4. Set thermostat (black knob) to desired proofing temperature (90° to 100°F is recommended as a
starting position - increase or decrease as needed to best suit your product).
5. Set humidity control (white knob) to position #3. This can then be adjusted if necessary to suit your
specific product.
6. Make certain that a standard 18" X 26" pan has been inserted as a drip pan in the runners on the
bottom (outside) of the proofer.
7. Push the lighted power switch to the ON position.Always turn the unit ON or OFF with this control.
It is recommended that humidity to be kept to the minimum level that is practical for your product. Excessive
humidity with condensation on the walls and floor of the cabinet is not considered desirable. You should
attempt to maintain the water pan at a level of ½ full to ¾ full during operation.
This product was designed and built for maximum sanitation. It is not self cleaning, so it should be cleaned
frequently with soap and water.
NEVER USE STEEL WOOL OR CAUSTIC CLEANING COMPOUNDS
1. Make sure that the unit is turned off.
2. Unplug from electrical service.
NOTE:
CLEANING
3. Remove Lexan doors by lifting them up and pulling out the bottom edge first.
4. Remove pan supports from sides and center of cabinet, and then remove the two Lexan
water pan covers.
5. Clean inside of cabinet with soap and water. Clean clear Lexan water pan covers and
Lexan cabinet doors with soft sponge, soap and water. NEVER USE HARSH
MATERIALS OR ABRASIVES FOR CLEANING LEXAN, thereby avoiding scratching.
6. Remove the 18" X 26" collector pan from underneath the cabinet and empty and clean as
needed.
Phone the BevLes Company Manufacturing Facility for the name of the nearest authorized service
representative in your area . [phone].
If replacement parts are ever required, only use parts that have been approved by the manufacturer.
See Warranty on page 11. To determine if your cabinet is still covered by warranty, telephone the BevLes
Manufacturing Facility at [phone]. Give them the serial and model numbers which are located on the
product identification plate at the right end of the control module.
We suggest that you clean the water pan at least once a month with a solution of white vinegar and
hot water. Allow solution to remain in the water pan overnight. Use a soft cloth to wipe away any
mineral buildup. Do not use any harsh cleaning solutions on this cast aluminum water pan. Do not
scratch the inner surface of the pan as this will result in more rapid mineral buildup.
SERVICE
WARRANTY INFORMATION

60.011
60.011
28.085
23.135 2.181
2.769
2.769
28.085
2.181
23.135
14.982
5.806
1.355
25.917
25.917
1.355
5.806
14.982
18.889
18.889

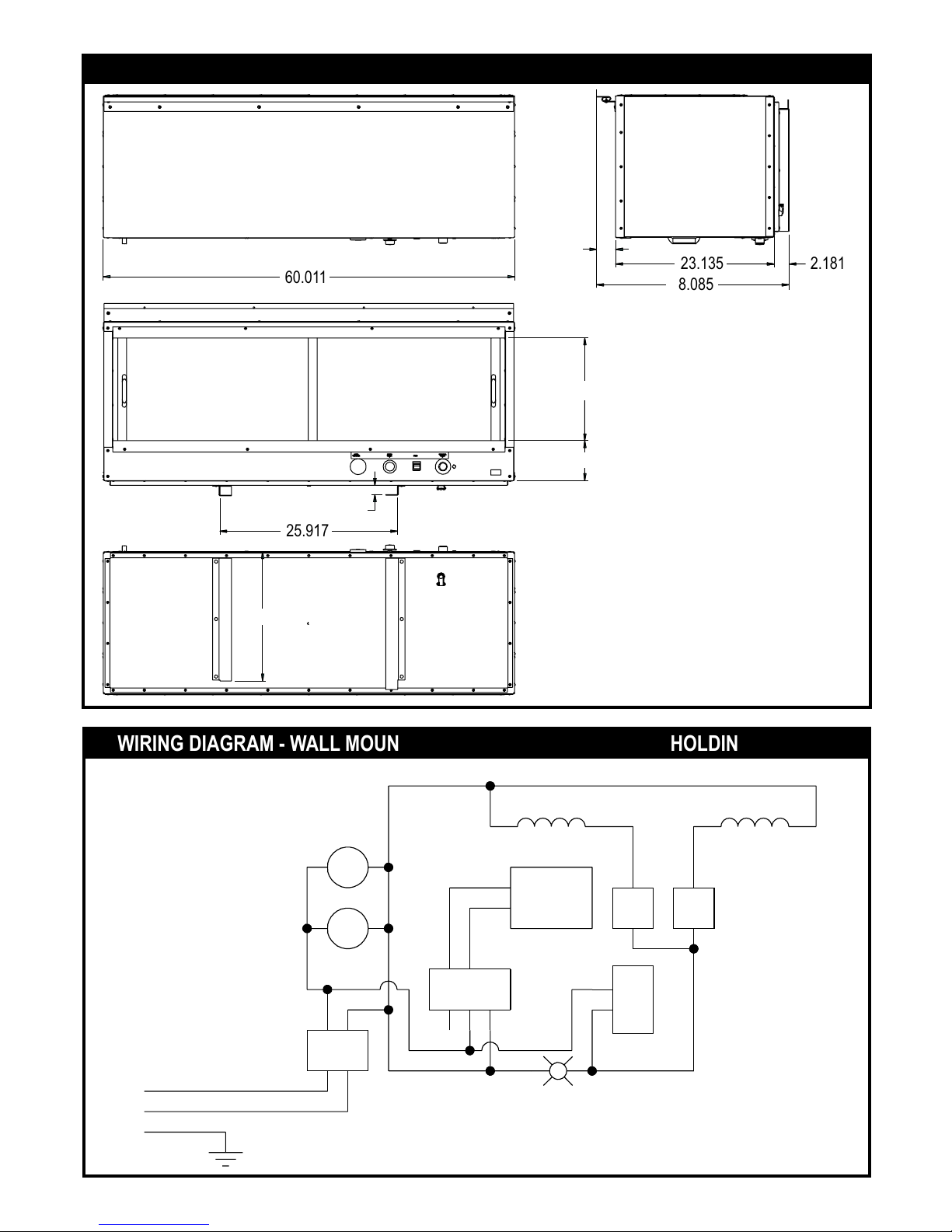

WIRING DIAGRAM - WALL MOUNT/UNDER COUNTER PROOFER/HOLDING CABINET
PHC23-AR10 or 12
INFINITE
SWITCH
POWER
SWITCH
15A
THERMOSTAT
80° - 180°
FAN
120V
SENSOR
HIGH
TEMP
HEATER COIL
500W, 120V
WHT
BLK PILOT
LIGHT
GRN
HEATER COIL
500W, 120V
SENSOR
HIGH
TEMP
FAN
120V
WATER PAN
CALROD
400W, 120V
SPECIFICATIONS
5

6
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
741522
741534
740921
741526
741542
741518
746504
741530
741538
741514
741546
746508
741612
741620
741624
741616
741558
741550
741554
741598
747365
741601
741602
746506
746507
741604
746505
741570
741574
741594
760400
741608
740945
741630
741504
741628
750868
750920
750924
750928
760396
741566
741562
720079
784348
782012
782088
782556
BASE, OUTER
SIDE, OUTER
PANEL, SIDE, OUTER, RIGHT
COVER, BASE, OUTER
TOP, OUTER
BACK, OUTER
INNER BASE, LEFT
INNER BASE, RIGHT
SIDE, INNER
BACK, INNER
TOP. INNER
SLIDE, DRIP PAN, LEFT
SLIDE, DRIP PAN, RIGHT
SUPPORT, CABINET
SUPPORT, WALL, INNER
SUPPORT, WALL
MULLION, TOP
MULLION, FRONT & REAR
COVER, MULLION
AIR DUCT, MOTOR
AIR DUCT, MOTOR, LEFT
AIR, DUCT, MOTOR SIDE,RR
AIR, DUCT, MOTOR SIDE,FL
AIR DUCT, MOTOR SIDE, RF
AIR DUCT, MOTOR SIDE, RR
MOTOR MOUNT, SIDE, RIGHT
MOTOR MOUNT, SIDE, LEFT
SUPPORT, WATER PAN
EXTENSION, WATER PAN FRONT
EXTENSION, WATER PAN SIDE
COVER, WATER PAN
BRACKET, HEATING ELEMENT
CLIP, MTG, AIR DUCT
AIR DUCT, SIDE
AIR DUCT, CENTER
SUPPORT, AIR DUCT, CENTER
RUNNER, ANGLE
SUPPORT, PAN, CENTER, BOTTOM
DOOR TRACK, TOP
DOOR TRACK, BOTTOM
DOOR, POLYCARB, LEFT & RIGHT
DOOR, EDGE, WITH HANDLE HOLES
DOOR, EDGE
ASSEMBLY, WATER PAN SET
FAN,COOLING, 115V
THERMOSTAT, 80° - 180°
SWITCH, INFINTE
SWITCH, ROCKER, 15A
1
1
1
1
1
1
1
1
2
1
1
1
1
1
1
1
1
2
2
1
1
1
1
1
1
1
1
1
2
2
2
2
8
2
2
4
16
4
1
1
2
2
2
1
2
1
1
1
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
95
82*
83*
84*
85*
86*
87*
88*
89*
90*
91*
92*
93*
94*
782116
784056
784300
782208
782092
784130
782280
8967200
8967000
783032
784528
784124
8861000
781069
783012
770169
770709
8105800
8159000
8175900
8177800
8502500
8505300
8506600
8506200
8402900
8408300
8417100
770000
770076
8353400
782076
1037100
782222
1023200
770003
784684
784072
783026
784052
783024
8980400
784721
791136
1501700
791184
780097
LIGHT, INDICATOR, 125V
THERMOMETER, 14" STEM
ELEMENT, COIL, 500W, 120V
THERMOSTAT
KNOB, INFINTE SWITCH
KNOB, THERMOSTAT
NUT, THERMOSTAT
BUSHING, SNAP .5 HOLE NYLON
BUSHING, SNAP HEYCO .5" I.D.
OBSOLETE USE 1101500
BOLT, DRAIN, CANOPY
HANDLE, DRAWER PULL
LABEL, SERIAL NUMBER
DECAL, FRONT PANEL
BUTTON, UPRIGHT
SCREW, SHT METAL, #10 X 1/2, Z
SCREW, RD HD SL #8-32X2ZN
SCREW, PH, 6-32x3/8, S/S
SCREW, TR HD, 10-24x1/2, Z
SCREW, 10-32 X 1/2 TR HD
10-32 X 3/4 TR HD
#8 FLAT WASHER, S/S
FLAT WASHER, SAE #10
WASHER, FLAT, #10, S/S
WASHER, LOCK, INT, #10, Z
NUT, HEX, 6-32 SS
#8-32 HEX NUT, KEPS, NI
NUT, HEX, KEPS 10-32
RIVET, SOFT, 1/2 SHINY, 390/LB
RIVET, 3/16 x 7/16, GR .125-.250
RIVET, POP 3/16 FLUSHBREAK
POWER CORD 15A PICA 14-3
SEALING STRIP, 1/8x1/2
FITTING, 1/2NPT ADAPTER
DUCT WRAP, 48' x 1.5"
LAG BOLT, 1/4 x 1 1/2
CORD 36" - AXIAL FAN
WIRE SET, 120V, WALL PRFR
WIRE NUT, YEL
WIRE NUT, ORANGE
WIRE NUT, RED
CLAMP 1/4" LOOP NYLON WHITE
CLAMP 3/16" NYLON
TIE, CABLE, 5 3/5 NYLON
TIE, CABLE, 4"
CARTON, WLPF
MANUAL, PROOFER WALL MTG
1
1
2
2
1
1
1
10
1
1
1
2
1
1
4
4
4
4
4
4
6
4
4
10
4
4
4
10
74
10
230
1
2FT
1
22 SQFT
4
2
1
6
3
3
1
1
2
1
1
1
ITEM P/N DESCRIPTION QTY ITEM P/N DESCRIPTION QTY
PARTS LIST & EXPLODED VIEWS
*NOT SHOWN

7
DOOR DETAIL
16
1
14
1
64
4
69
6
5
1
79
230
39
1
15
1
72
10
76
10
11
1
79
230
18
2
19
2
17
1
63
4
2
1
9
2
23
1
10
1
6
1
31
2
8
1
3
1
40
1
25
1
7
1
81
2FT
24
1
22
1
33
8
77
74
43
2
41
2
60
2
42
2
67
4
73
4
71
4
79
230
79
230
CABINET - EXPLODED VIEW
43
41
71 73 67
42
60
2
25
63
9
23 81 7
40
19
8
31
79
Door
Door Base
Side Air Duct
Center Air Duct
Center Air Duct
Side Air Duct
DuctWrap3.25SqFt
DuctWrap3.25SqFt
DuctWrap6.63SqFt
DuctWrap8.63SqFt
69
64
79
39
79
16
14
5
15
72
76
11
79
17 18
6
10
77 33
3
22
24

8
WATER PAN EXTENSION DETAIL
WATER PAN
BASE DETAIL
79
230
12
1
13
1
78
10 80
1
4
1
58
1
1
1
50
1
62
1
61
1
49
1
54
1
48
1
53
1
46
1
47
1
55
1
24
1
56
10
79
230
23
1
25
1
45
2
27
1
22
1
20
1
21
1
64
4
26
1
18
2
28
1
44
1
78
10
30
2
29
2
57
1
65
4
70
4
75
4
59
1
95
1
BASE DETAIL, WATER PAN EXT. DETAIL & WATER PAN - EXPLODED VIEWS
Element
400W, 120V
Water Pan Extension
64 44
18
25
75
70
26
57
23
79 56
21
45
27
65
28
59 47
55
50
1
53
48
62
54
46
49
61
95 4
58
12
22
20
24
80
78
79
13
78
30 29

9
CENTER AIR DUCT DETAIL MOTOR AIR DUCT DETAIL
END AIR DUCT DETAIL
CENTER AIR DUCT, MOTOR AIR DUCT & END AIR DUCT DETAILS - EXPLODED VIEWS
35
2
36
4
77
74
35
77
77
37
38
36
68
32
79
51
72
76
66
20
52
74
77
74
9
2
33
877
74
933 77
77
38
37
34

10
IMPORTANT FOR FUTURE REFERENCE
Please complete this information and retain this manual for the life of the equipment. For
Warranty Service and/or Parts, this information is required.
Model Number Serial Number Date Purchased
Notes:

11
4/02
BEVLES COMPANY LIMITED WARRANTY
729 Third Avenue * Dallas, TX 75226
Phone: [phone] Fax: [phone]
1. Bevles warrants to the original purchaser that on the date the equipment is shipped (sold), it will be
free of defects in materials or workmanship. Bevles will, at its discretion, repair or replace, during
the warranty period printed below, any part that has a defect in material or workmanship that was
present when the product shipped from Bevles, and which manifests itself during the warranty
periodundernomaluseandservice.
Parts:Two*yearsfromdateoforiginalshipmentfromtheBevlesfactory.
Labor:One**year
* Air Circulation BlowerAssemblies (motors)and Power Switches shall be one year from date of
originalshipment.
CalrodAirHeatingElementsshallbethreeyearsfromdateoforiginalshipment.
** Allelectricalcomponents120days
2. Bevles must be contacted, and pre-approval must be issued by the Bevles factory prior to any type
of service being performed. Bevles assumes no responsibility for any charges that were not expressly
authorizedbytheBevlesfactory, orfor anychargesthatexceed,in Bevlessole judgement, normal and
customaryamounts.
3. Bevles willpay UPS Ground charges for any part that hasa defect in material or workmanshipthat was
present when the product shipped from Bevles, and which manifests itself during the of the
warranty period under normal use and service.All warranty replacement parts will ship F.O.B. Bevles
factory, Cheyenne,WY82007..
4. This warranty shall be void in its entirety if any abuse of, misuse of, alteration/modification of or
improper maintenance of original product occurs. If, at any time a claim is reported to Bevles, the
purchaserisdelinquentinpaymentfortheproduct,warrantywillnotapply.
5. Buyers Remedies-If a Bevles product fails due to a defect in material or workmanship in conformity
withthe warrantiesinparagraphone,buyershallnotifyBevlesofsuchfailurewithina reasonabletime,
but in no event beyond fifteen (15) days of such discovery of defect in material or workmanship.
Bevlesshallprovide,in its sole discretion,eitherthe repairor replacementofany defectiveor any non-
conforming part. Bevles specifically disavows any other representation, warranty or liability relating
tothecontinueduseoftheproduct.
6 Exclusion of consequential and incidental damages-In no event shall Bevles be liable for any
incidental, special, indirect, or consequential damages, whether resulting from non-delivery or from
the use, misuse, or inability to use the product, or from defects in the product, or from
Bevlesown negligence or other tort. This exclusion applies regardless of whether such damages are
soughtforbreachofwarranty, breachof contract,negligence,orstrictliabilityintortorunderanyother
legaltheory.
7. Disclaimer of warranties-The warranties contained in paragraph one above are the exclusive
warranties given by Bevles and supersede any prior, contrary, or additional representations,
whether oral or written. Bevles hereby disclaims and excludes all other warranties-whether
expressed, implied, or statutory-including any warranty of merchantability, any warranty of
fitness for a particular purpose, and any implied warranties otherwise arising from course of
dealingorusageoftrade.
!
! fromdateoforiginalshipmentfromtheBevlesfactory.
fromdateoforiginalshipment.
first year

12
Innovative Foodservice Equipment Custom
Designed for Performance, Service and Value.
Phone: +1
Fax: [phone]
Toll Free: [phone]
Website: www.BevLes.com
E-mail: [email protected]
[phone]
BevLes
729 Third Avenue
Dallas, TX 75226
