Designer Holding Cabinet
Model Series: 5510, 5511, and 5512
Instruction Manual

Designer Holding Cabinet Model Series: 5510, 5511, and 5512
Page 2
gmpopcorn.com
Table of Contents
SAFETY PRECAUTIONS ...................................................................................................................................3
INSTALLATION INSTRUCTIONS ...................................................................................................................5
Inspection of Shipment ..........................................................................................................................................5
Manual...........................................................................................................................................................................5
Model Description....................................................................................................................................................5
Items Included with this Unit..............................................................................................................................5
Setup...............................................................................................................................................................................5
Electrical Requirements ........................................................................................................................................7
Before You Plug In Machine.................................................................................................................................7
OPERATING INSTRUCTIONS .........................................................................................................................8
Controls and Their Functions..............................................................................................................................8
Operating Instructions ...........................................................................................................................................8
Adjusting the Set Temperature ..........................................................................................................................9
Care and Cleaning .................................................................................................................................... 10
Troubleshooting....................................................................................................................................... 11
THE FOLLOWING SECTIONS ARE FOR QUALIFIED SERVICE PERSONNEL ONLY ............12
MAINTENANCE INSTRUCTIONS ................................................................................................................12
ORDERING SPARE PARTS............................................................................................................................ 13
Replacing Broken Glass....................................................................................................................................... 14
Cabinet - Parts Breakdown................................................................................................................................ 15
Dome Interior –Parts Breakdown................................................................................................................. 17
Wiring Diagram ........................................................................................................................................19
WARRANTY...................................................................................................................................................... 20

Designer Holding Cabinet Model Series: 5510, 5511, and 5512
Page 3
gmpopcorn.com
SAFETY PRECAUTIONS
DANGER
Machine must be properly grounded to prevent electrical shock to personnel.
Failure to do so could result in serious injury, or death.
Make sure all machine switches are in the OFF position before plugging the
equipment into the receptacle. Keep cord and plug off the ground and away
from moisture. Always unplug the equipment before cleaning or servicing.
DO NOT immerse any part of this equipment in water.
DO NOT use a water jet or excessive water when cleaning. 008_012221
DANGER
Improper installation, adjustment, alteration, service, or maintenance can
cause property damage, injury, or death. Any alterations to this equipment
will void the warranty and may cause a dangerous condition. This appliance
is not intended to be operated by means of an external timer or separate
remote-control system. NEVER make alterations to this equipment. Read the
Installation, Operating, and Maintenance Instructions thoroughly before
installing, servicing, or operating this equipment.
014_020416
WARNING
To avoid burns, DO NOT touch heated surfaces.
DO NOT place or leave objects in contact with heated surfaces.
009_092414
WARNING
ALWAYS wear safety glasses when servicing this equipment.
010_010914
WARNING
No user serviceable parts inside. Refer servicing to qualified service
personnel.
011_051514
WARNING
Read and understand operator’s manual and all other safety instructions
before using this equipment. To order copies of the operator’s manual go to
gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive,
Cincinnati, OH 45241 USA 1-(800)-543-0862
022_060215

Designer Holding Cabinet Model Series: 5510, 5511, and 5512
Page 4
gmpopcorn.com
WARNING
DO NOT allow direct contact of this equipment by the public when used in
food service locations. Only personnel trained and experienced in the
equipment operation may operate this equipment.
Carefully read all instructions before operation.
012_010914
WARNING
This machine is NOT to be operated by minors.
007_010914
CAUTION
If the supply cord is damaged, it must be replaced by Gold Medal Products Co.,
its service agent or similarly qualified persons in order to avoid a hazard.
039_080614
Note: Improvements are always being made to Gold Medal’s equipment. This information
may not be the latest available for your purposes. It is critical that you call Gold Medal’s
Technical Service Department at 1-800-543-0862 for any questions about your
machine operations, replacement parts, or any service questions. (Gold Medal
Products Co. does not assume any liability for injury due to careless handling and/or
reckless operation of this equipment.) General images may be used in manual for
reference only.

Designer Holding Cabinet Model Series: 5510, 5511, and 5512
Page 5
gmpopcorn.com
INSTALLATION INSTRUCTIONS
Inspection of Shipment
After unpacking, check thoroughly for any damage which may have occurred in transit. Claims
should be filed immediately with the transportation company. The warranty does not cover
damage that occurs in transit, or damage caused by abuse, or consequential damage due to the
operation of this machine, since it is beyond our control (reference warranty in back of manual).
Manual
Read and understand the operator’s manual and all other safety instructions before using this
equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold
Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862.
Model Description
Designer Holding Cabinet is a countertop unit with an LED lighted cabinet and sign, and a digital
heat control.

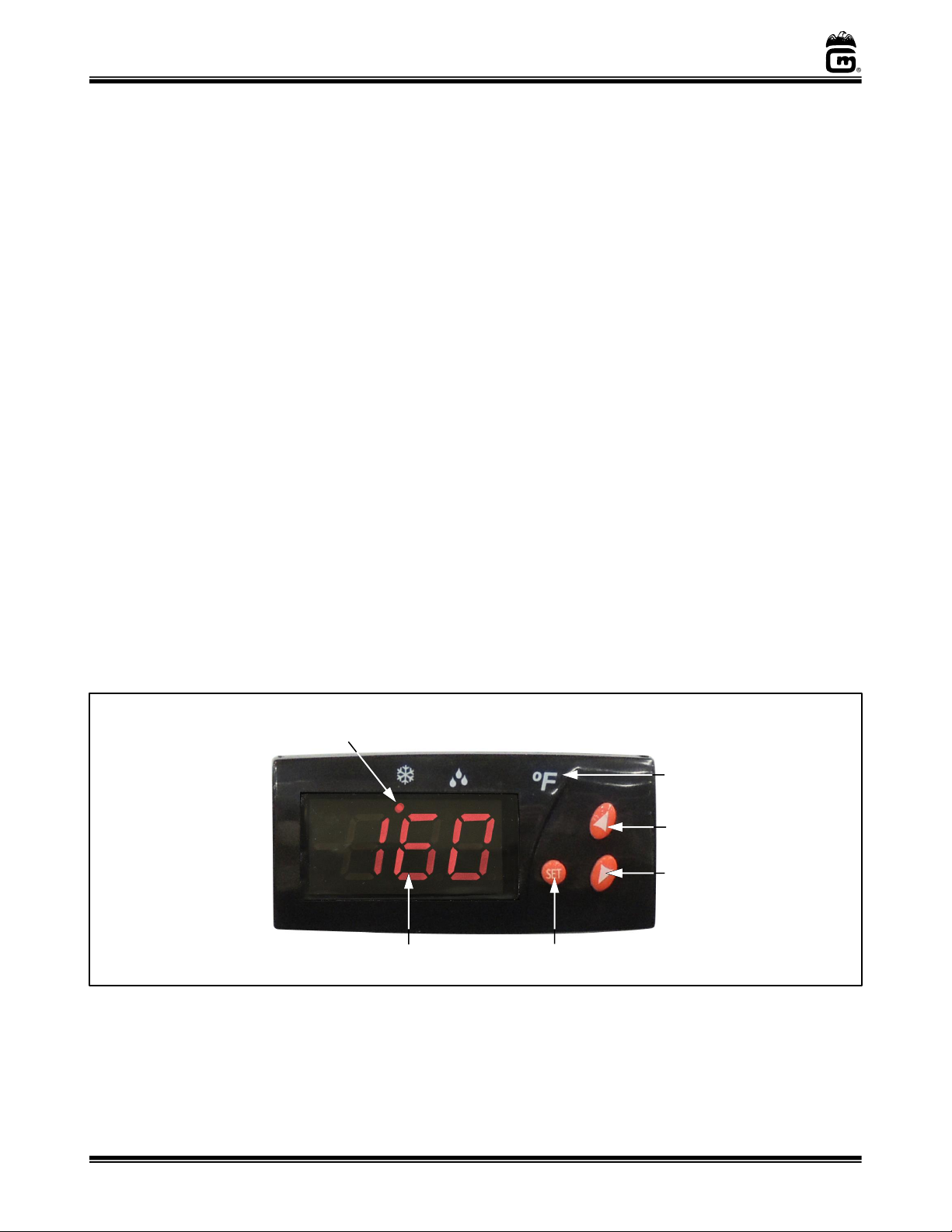

Unit is suitable for holding potentially hazardous foods (volatile food products) when the digital
heat control is set to 160°F (72°C)—holds precooked products at serving temperature; not
designed for cooking or reheating, see Operating Instructions.
5510-00-100: Small Cabinet, two removable shelves
5511-00-100: Tall Cabinet, five removable shelves
5512-00-100: Wide Cabinet, two removable shelves
Items Included with this Unit
Setup
This unit has been tested at the factory.
1. Remove all packaging and tape prior to operation.
2. Place the unit on a sturdy, level base.

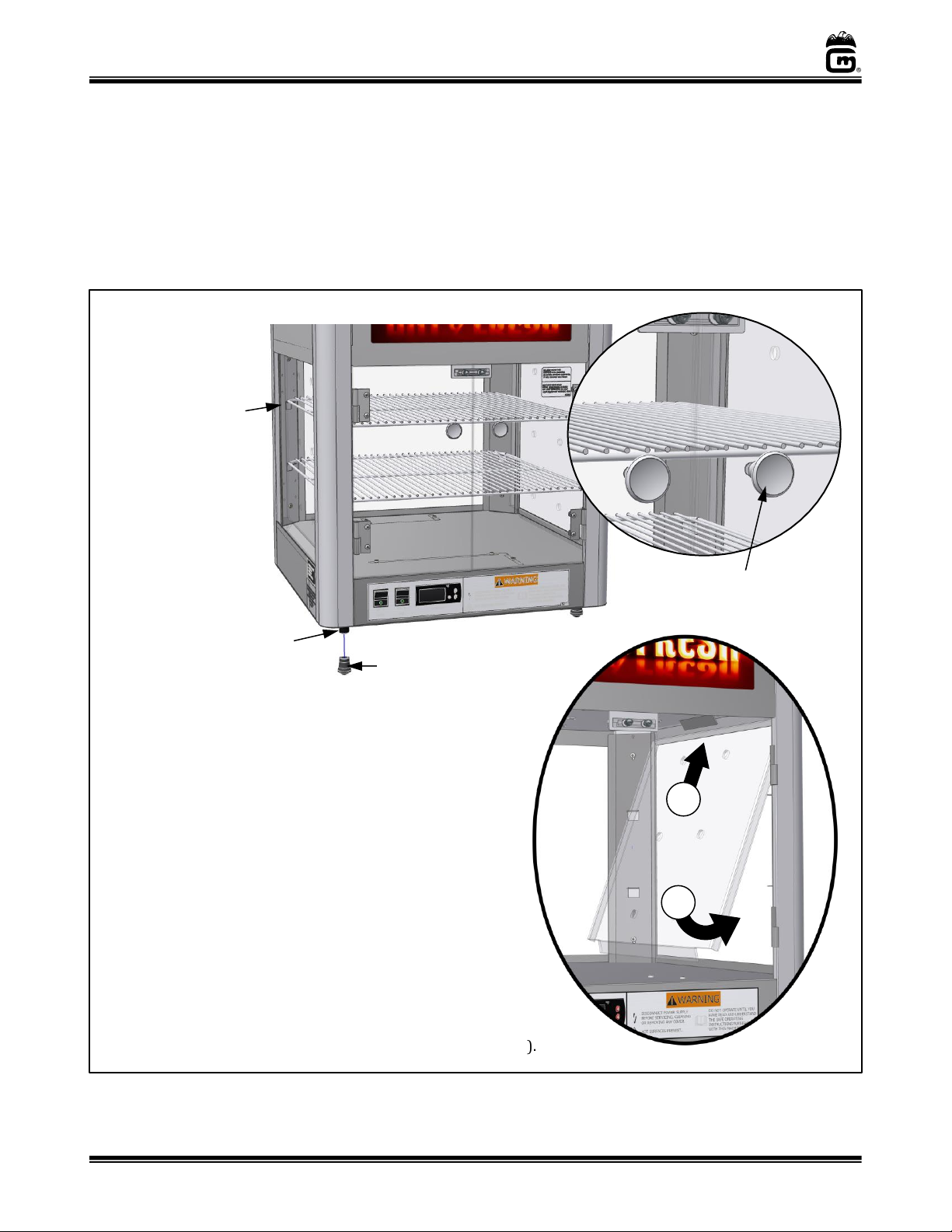

3. Unit has 4 glide feet preinstalled at the factory (see image below). Install a Black
Crutch Tip on each foot. Firmly push crutch tip over glide until it covers glide entirely.
Instruction
Manual
Registration
Warranty Card
Black Crutch Tips (x4)
(PN 49123)
