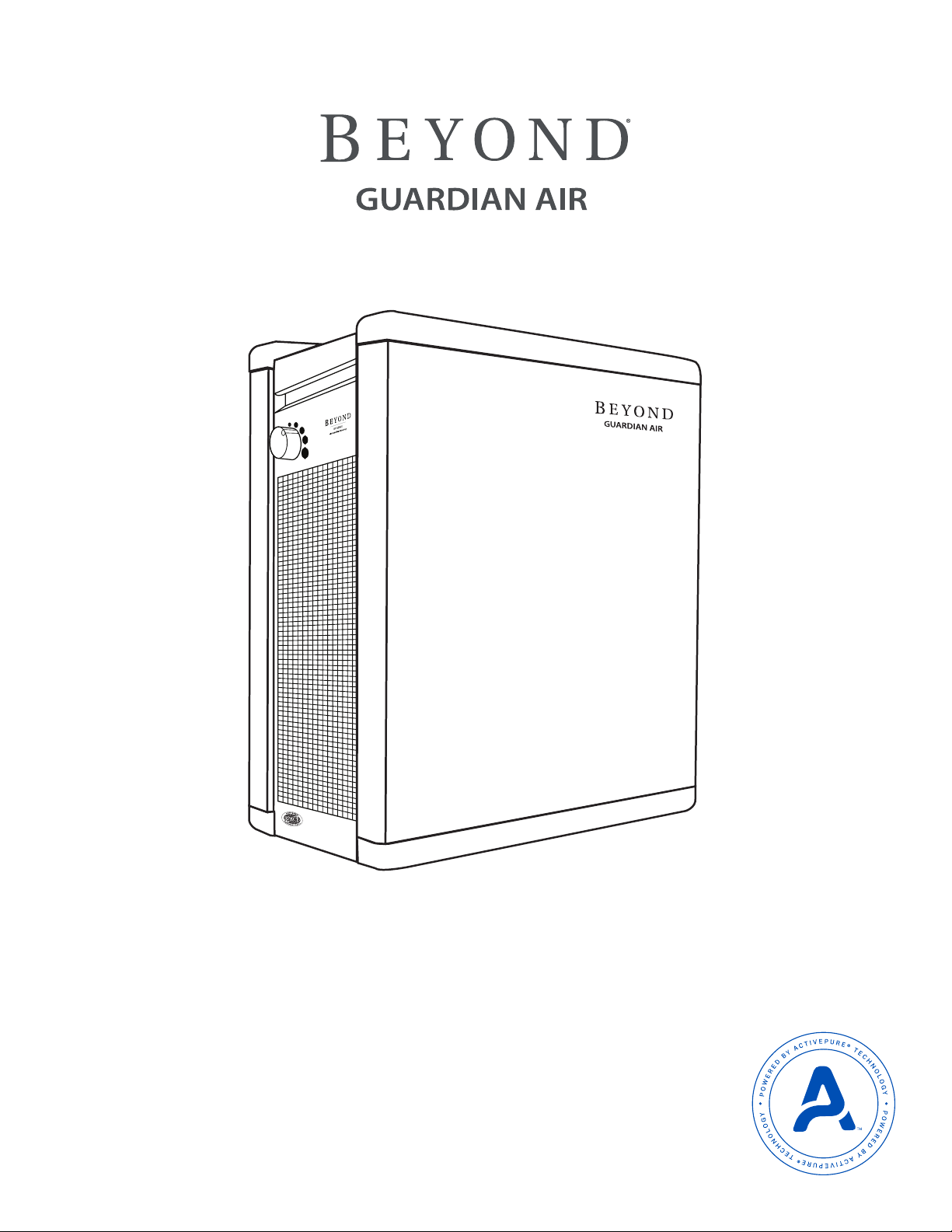

Beyond F159E User manual
A I R P U R I F I CA T I ONS Y S T E M
HEPAsil e n t
™
MA X air f l ow
AIR PURIFICATION SYSTEM
Model: F159E
READ MANUAL CAREFULLY FOR PROPER USE AND OPERATION.
2
CONTENTS
Product Overview. . . . . . . . . . . . . . . . . . . . . . . 2
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . 2
Storage and Disposal . . . . . . . . . . . . . . . . . . . . . 2
Important Safety Instructions . . . . . . . . . . . . . . . . 3
For Canadian Customers Only. . . . . . . . . . . . . . . . 4
Product Features . . . . . . . . . . . . . . . . . . . . . . . 5
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . 7
Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
UVC Bulb & ActivePure®Cell . . . . . . . . . . . . . . . . . 7
Changing the Filters. . . . . . . . . . . . . . . . . . . . . . 8
Replacement Parts & Service . . . . . . . . . . . . . . . . 8
Warranty Information. . . . . . . . . . . . . . . . . . . . . 9
FCC Declaration & Responsible Party . . . . . . . . . . . .10
If you have any questions regarding the use of this, or any Aerus product, contact your Independent
Distributor/Contractor or Aerus Customer Service at 800.572.0502 (U.S.) or 800.668.0763 (CANADA).
GENERAL INFORMATION
SPECIFICATIONS
Beyond Guardian Air
• Model number: F159E
• Sales number: 00634
Technology:
• ActivePure®
• HEPA Filtration
• Activated Carbon Filter
Electrical:
• Input Voltage: 120 VAC; 60Hz
• Power Consumption: 23 to 80 watts
• Complies to UL 867
Mechanical:
• Motor: 230 VAC; 0.28 A
• Air Exchange: 4.2 changes per hour (351 / sq. ft.)
Airflow Rate:
• Speed 1: 75 CFM 130 m3/h • Speed 2: 95 CFM 160 m3/h
• Speed 3: 150 CFM 250 m3/h • Speed 4: 240 CFM 410 m3/h
Sound Level:
• Speed 1: 32 dB(A) • Speed 2: 39 dB(A)
• Speed 3: 46 dB(A) • Speed 4: 58 dB(A)
Weight & Dimensions:
• 34 lbs (15.5 kg)
• 23” H x 20” W x 11” D (590mm H x 500mm W x 275mm D)
Operating Temperature:
• (Return Air) 30º F to 95º F (-1ºC – 35ºC)
Recommended Maximum Coverage in a Contiguous Space1:
• Up to 2,500 sq. ft. (232m) depending on occupant density
and other factors. High density commercial not to exceed
1,000 sq. ft. (92m).
• For coverage in medical or health care environments,
contact Medical@activepure.com.
Warranty:
• Limited 5 Year Warranty* (Terms & Conditions apply)
*Dependent upon product registration.
Aerus, LLC reserves the right to change or modify any specification
without notice.
1. Assumes 8 foot ceilings. Solutions should be customized based upon a variety of factors including
HVAC system capabilities and settings, air flows taking into account walls, air pressure, and doors,
ambient air temperatures and humidities, variable density, known VOC concentrations, and other
layers of protection.
Record information regarding your new Beyond Guardian Air
here. Retain for future reference.
Model No.
Serial No.
Date of Purchase
Independent Distributor/Contractor:
Name
Phone No.
Address
FILL IN AND SAVE
PRODUCT OVERVIEW
Congratulations on your purchase! Your new Beyond®Guardian Air is designed to provide years of trouble-free, low maintenance operation.
Be sure to read and follow all service procedures outlined in this owner’s manual, and use only genuine Aerus®replacement parts.
STORAGE AND DISPOSAL
Do not dispose of this product as household waste. Electrical
waste and electronic products should be appropriately recycled
as required by practices established by your local authority.
3
SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
• When using an electrical appliance, basic precautions should always be taken
• To reduce risk of fire, electrical shock, or injury to persons, observe the following:
WARNING
Read this manual in its entirety before using your Beyond®Guardian Air.
• Keep out of the reach of children
• Use only as described in this manual
• This unit contains a UVC bulb
• Unintended use of the unit or damage to the housing may result in the escape of dangerous UVC radiation. UVC radiation may cause
eye and skin irritation. Avoid exposing eyes and skin to ultraviolet radiation.
• DO NOT attempt to repair or adjust any of the electrical or mechanical functions of the Beyond Guardian Air. Contact Aerus®
Customer Service for service information
• Unit will automatically turn off when the front door is open for cleaning and filter replacement; Read the maintenance instructions
before opening the front door
• DO NOT use filters other than authorized Guardian Air filters
• DO NOT use outdoors or on wet surfaces
• DO NOT look directly at the UV light inside unit when operating. Eye damage may occur
• DO NOT allow to be used as a toy; Keep out of reach from children; close attention is necessary if operated near children
• DO NOT use with damaged cord or plug. If unit is not working as it should, has been dropped, damaged, left outdoors, or dropped into
water, DO NOT use, and return it to a service center
• DO NOT pull or carry by cord, use cord as a handle, close door on cord, or pull cord around sharp edges or corners. Keep cord away
from heated surfaces
• DO NOT unplug by pulling on cord. To unplug, grasp the plug, not the cord
• DO NOT handle plug or unit with wet hands
• DO NOT allow foreign objects to enter the ventilation or exhaust openings
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts
• Turn off all controls before unplugging
• To avoid electric shock and fire hazards, plug directly into an appropriate electrical outlet (see voltage on unit) using cable provided
(beneath unit)
• To reduce the risk of electrical shock, this unit has a grounded plug (with a third prong); This plug will fit in a grounded outlet only one
way. If it does not fit, contact a qualified electrician to install the proper outlet. DO NOT change the plug in any way. DO NOT use
adapters
• The unit should not be used near the presence of oxygen tanks or other flammable gasses
• Place the unit in a location away from the wall that allows air to move freely into, around and out of the unit
4
FOR CANADIAN CUSTOMERS ONLY
BEYOND®GUARDIAN AIR
Sales No. : 00634
This UV device helps reduce the spread of viruses in the air.
Keep out of the reach of children
Please read the label and owner's manual before using: www.aerusonline.com/manuals
PRECAUTIONS:
WARNING: UV radiation emitted from this device. Unintended use of the device, or damage to the housing, may result in exposure to ultraviolet
radiation. Ultraviolet radiation may cause eye and skin irritation. Avoid exposing eyes and skin to ultraviolet radiation.
FIRST AID INSTRUCTIONS: Please contact your healthcare provider in the event of injury caused by this device.
DIRECTIONS FOR USE:
Plug the cord into a working electrical outlet, leaving at least one inch of open area to allow for airflow. Please see owner's manual for detailed
instructions on using, handling, storing and disposing of the device, and procedures to mitigate any associated risks.
The use of this device is a supplement to and not a substitute for standard infection control practices; users must continue to follow all current
infection control practices, including those related to the cleaning and disinfection of environmental surfaces.
FOR INQUIRIES CONTACT:
AERUS CANADA, INC.
Laird Business Park
3480 Laird Road, Units 2–5
Mississauga, Ontario, Canada, L5L 5Y4
W. Parrell, Manager
(905) 569-9399
wparr[email protected]
Aerus Canada, Inc. is aliated with Aerus, LLC
1300 Valley Drive, Bristol, Virginia 24201
5
PRODUCT FEATURES
It is important to be familiar with the parts of the Beyond®Guardian Air. If any parts are missing, call your local Aerus®location
for replacement.
Power source and cord — beneath unit
4-speed control knob (on side)
Airflow output
Built-in carry handles
Easy-to-change filter
Galvanized steel housing
Carbon brushes
UVC light for purification
Airflow intake
ActivePure®Cell
1
2
3
4
5
6
8
7
10
9
Front
Panel
Back
Panel
TEN UNIQUE TECHNOLOGIES
1. Directional air intake for less resistance.
2. Multiple carbon brushes aid in the capture of contaminants.
3. Carbon layer prefilters large particles and odors.
4. Water-proof, polypropylene filter captures small particles.
5. UVC light helps reduce viruses in the air.
6. Our proprietary ActivePure®Certified Space Technology
reduces many surface and airborne contaminants.
7. 4-speed dual intake fan moves particles toward filter.
8. Angled blades at emission point create dynamic air flow
through room.
9. Whisper quiet HEPASilent™ setting on 4-speed control knob.
10. Durable all-steel construction for durability & sound-insulation.
6
OPERATION
SETTINGS
1. Take your Beyond®Guardian Air unit out of the shipping carton and remove all protective materials.
2. Place the unit in a location away from the wall that allows air to move freely into, around and out of the unit. The rear of the unit
requires one inch or more of open area to allow unrestricted airflow.
3. Attach cord to unit, if required. Plug the cord into a working electrical outlet.
4. When turning the unit on, turn the speed control to MAX airflow for a few minutes of fast initial purification.
5. After a few minutes, adjust the control to the desired speed.
NOTE: Safety switch automatically turns power o when door is opened.
When turning the Beyond Guardian Air on, turn the speed control to maximum airflow for a few
minutes of fast initial cleaning. Then adjust the control to the desired speed.
There are four settings on the Beyond Guardian Air:
1. HEPASilent™
2. Moderate fan speed (for normal use)
3. High fan speed (for a large room)
4. Maximum operation (for fast initial cleaning)
For best results, run your Beyond Guardian Air 24 hours a day, 7 days a week, giving you the
benefits of ActivePure®day and night.
NOTE: Safety switch automatically turns power o when door is opened.
MA X airflow
H E PASilent™
DO NOT place the unit:
• Directly on or near soft furnishing, such as bedding or curtains
• Near electronically sensitive devices, such as a computer (within 6"–10")
• Near sources of heat, such as radiators, fireplaces, or ovens
• Near oxygen tanks or other combustible gases
• Near water, outdoors, or in a damp or wet area(s), such as bathrooms
WARNING
7
UVC BULB & ACTIVEPURE®CELL
FILTERS
Aerus HEPA technology makes the Beyond Guardian Air incredibly quiet. Units come with one HEPASilent™ particle filter (installed).
The Aerus HEPA particle filter is made of polypropylene, which mechanically filters out airborne particles (dust, pollen, pet dander, mold
spores and other airborne particles). To maximize filter eectiveness, particles are negatively charged before reaching the filter.
For optimal performance Aerus recommends that you replace filter at least every 6–12 months, depending on usage.
NOTE: Use only Aerus HEPA particle filters to ensure proper functioning and to qualify your unit for full warranty coverage.
MAINTENANCE
Our air purifiers are designed to help improve indoor air with minimum impact on the environment.
The Aerus®HEPA particle filter is made of polypropylene, an eco-friendly plastic. Our filter contains no aluminum, triclosan or other
chemical additives.
All major parts are made from high-quality galvanized steel, not plastic. The steel housing is noise-muling, providing quiet operation. The
external parts have been powder coated for endurance and environmental protection.
The Beyond®Guardian Air is energy ecient. From lowest to highest speed, it uses from 23 to 80 watts — no more than a lightbulb.
Aerus air purification systems are built for years of use.
KEEP YOUR BEYOND GUARDIAN AIR LOOKING GOOD AND WORKING WELL
The Beyond Guardian Air features award-winning design, materials and workmanship.
Keep your unit in top condition with these cleaning tips:
• Always unplug unit before cleaning
• Wipe the exterior with a soft, clean, damp cloth
• Vacuum the small inlets on each end panel with a soft brush attachment
• Clean inside the filter chamber by opening the front door of the unit and opening the door of the filter
chamber (right-hand side)
• Never clean with gasoline, chemical solvents or corrosive materials — they may damage the surface
AIR PUR IFICATI ONSYSTE M
HEPAsile n t
™
MAX airf l ow
To maintain optimal performance, the UVC Bulb and ActivePure®Cell should be replaced annually.
For questions, call your local franchise or Customer Service at 800.572.0502 (U.S.) or 800.668.0763 (CANADA).
8
CHANGING THE FILTERS
CAUTION
Disconnect power before changing filter.
STEP 1:
Open the front door
from the right-hand
side
STEP 2:
Remove old filter
STEP 3:
Clean filter chamber
(See Diagram, Page 5)
STEP 4:
Replace with new Aerus®
HEPA particle filter
STEP 5:
Close front door
REPLACEMENT PARTS (QTY) PART NUMBER
Aerus HEPA Filter (1) 49457
ActivePure®Cell 49716
UVC Bulb 48710
ActivePure Cell Assembly 50077
REPLACEMENT PARTS & SERVICE
Use this unit only in the manner intended by the manufacturer. If you have questions,
contact Customer Service at 800.572.0502 (U.S) or 800.668.0763 (CANADA).
For prompt service, call your Aerus representative or the nearest Aerus location. Your authorized Aerus location oers you the best in
service both during and after the warranty period, as well as genuine Aerus parts and supplies.
Every eort is made to ensure that customers receive an up-to-date instruction manual on the use of Aerus products; however, from time
to time, modifications to our products may without notice make the information contained herein subject to alteration.
9
*Warranty does not include consumable items.
WARRANTY INFORMATION
Limited One (1) Year Warranty — Increase Your Warranty to Five (5) Years:
You can increase the length of your warranty to 5 years from the date of purchase by registering your
Beyond®Guardian Air at www.aerusonline.com/register*.
WHAT IS COVERED BY THIS WARRANTY
Aerus®warrants the Beyond Guardian Air, to the consumer subject
to the conditions below, against defects in workmanship or material,
provided that the products are returned to an Aerus location within
1 year of date of purchase*.
MAINTENANCE REQUIREMENTS
Failure to use and maintain your Beyond Guardian Air in accordance
with your Owner’s Manual will void this warranty, including but not
limited to:
• Replacing your HEPA filters with genuine Aerus filters every 6–12
months, depending on usage
• Replacing the UVC bulb with a genuine Aerus part annually
• Replacing the ActivePure®Cell with a genuine Aerus part annually
(proof of change may be required)
Servicing your Beyond Guardian Air by parties other than an
authorized Aerus location and/or using parts other than genuine
Aerus parts will also void this warranty.
HOW TO OBTAIN WARRANTY SERVICE
Customers must contact their distributor or Customer Service and
provide proof of purchase within the above time periods. We will
repair or replace and return the product, without charge and within
a reasonable period of time, subject to the conditions in the above
paragraphs, if its examination shall disclose any part to be defective
in workmanship or material. If we, in our discretion, are unable to
repair the product after a reasonable number of attempts, we will
provide either a refund of the purchase price or a replacement unit,
at the company’s option.
WHAT IS NOT COVERED BY THIS WARRANTY
This product is intended for household and commercial use.
Ordinary wear and tear shall not be considered a defect in
workmanship or material. These warranties do not apply for loss
or damage caused by accident, fire, abuse, misuse, modification,
misapplication, or by any repairs other than those provided by an
authorized Aerus location.
EXCLUSION OF OTHER WARRANTIES AND CONDITIONS
EXCEPT AS PROVIDED HEREIN, AND TO THE EXTENT CONSISTENT
WITH APPLICABLE LAWS, AERUS MAKES NO REPRESENTATION
OR WARRANTY OF ANY KIND. ALL OTHER WARRANTIES OF ANY
KIND, EXPRESS OR IMPLIED, ARE HEREBY EXPRESSLY DISCLAIMED,
INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE.
UNAUTHORIZED CHANNELS & MISSING SERIAL NUMBERS
If a valid serial number is missing from the product, the warranty
will be voided. Aerus products are authorized for sale through
Aerus representatives only. Warranties are voided if a product is
purchased through unauthorized channels, this includes websites
that are not authorized to use Aerus’ trademarked names, images
and logos as well as Internet auction sites (e.g. ebay and Craigslist).
The only approved Internet presence for Aerus products is www.
aerusonline.com. To confirm warranty coverage prior to purchasing
a product, contact Aerus at 800.572.0502 (U.S.) or 800.668.0763
(CANADA) with the serial number located on the back of the unit.
LIMITATION OF LIABILITY FOR SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES
TO THE EXTENT CONSISTENT WITH APPLICABLE LAWS, AERUS
SHALL NOT IN ANY CASE BE LIABLE FOR SPECIAL, INCIDENTAL
OR CONSEQUENTIAL DAMAGES ARISING FROM BREACH OF
EXPRESS OR IMPLIED WARRANTIES, CONDITIONS, GUARANTEES
OR REPRESENTATIONS, BREACH OF CONTRACT, NEGLIGENCE
OR ANY OTHER LEGAL THEORY. Such excluded damages include,
but are not limited to, loss of profits or revenue and loss of the use
of the products.
FOR U.S. APPLICATION ONLY
This warranty gives you specific legal rights, and you may also have
other rights which vary from state to state. Some states do not
allow limitations on warranties, or on remedies for breach. In such
states, the above limitations may not apply to you.
FOR CANADIAN APPLICATION ONLY
Exclusion of Subsequent Owners: Except as otherwise required
by applicable legislation, this warranty is not transferable. This
warranty gives you specific legal rights and you may also have other
rights which vary from province to province. Some provinces and
territories do not allow limitations on warranties, or on remedies
for breach. In such provinces or territories, the above limitations
may not apply to you.
If any provision of this warranty or part thereof is held by a court
of competent jurisdiction to be invalid, illegal or unenforceable,
the validity, legality and enforceability of the remaining provisions
or parts thereof will not in any way be aected or impaired within
the jurisdiction of that court. This entire warranty shall continue to
be valid, legal and enforceable in any jurisdiction where a similar
determination has not been made.
This warranty is provided by:
Aerus, LLC
1300 Valley Drive,
Bristol, VA 24201
SERVICE
Every eort is made to ensure that customers receive an up-to-
date instruction manual on the use of our products; however, from
time to time, modifications to our products may without notice
make the information contained herein subject to alteration.
For the latest information, please call customer service at
800.572.0502 (U.S.) or 800.668.0763 (CANADA).
10
FCC DECLARATION & RESPONSIBLE PARTY
FCC DECLARATION OF CONFORMITY
Name: Beyond Guardian Air
Model: F159E
Manufactured For: Aerus, LLC
This device complies with Part 15 of the FCC Rules.
RESPONSIBLE PARTY
Aerus, LLC
1300 Valley Drive
Bristol, VA 24201
Ph: 800.572.0502
Signature:
Printed Name: Andrew Eide
Title: Vice President of Product Development
and Manufacturing
Date: 10/25/21
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant of part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses,
and can radiate radio frequency energy, and if not installed
and used in accordance with the instructions, may cause
harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television, which can be determined
by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the
following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and
receiver.
•
Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
•
Consult the Independent Contractor for help.
11
BGA120VGenI_OM_00947-1966B_EA-04046
Aerus, LLC | 1300 Valley Drive | Bristol, VA 24201 | 800.572.0502
Aerus Canada, Inc. | 3480 Laird Road, Suite 2-5 | Mississauga, ON L5L 5Y4 | 800.668.0763
Made in P.R.C. | © Aerus, LLC. All Rights Reserved
For information regarding the use of this product, please contact Customer Service
800.572.0502 (U.S.)
800.668.0763 (CANADA)
www.aerusonline.com
Table of contents
Other Beyond Air Cleaner manuals
