BGates LT User manual

Open your gate by mobile phone!
Installation and user’s manual
Release 3.0 Firmware 2.2.4

A PRODUCT MADE IN ITALY
2

BGates comes with the Smart Start feature active.
This means that the device does not need any programming for use. Simply ring the number of the
inserted SIM card and BGates LT will activate the relay. Deactivate this feature if you prefer to have
BGates LT open only for memorised numbers.
SMART START
CAUTION
This function is only available for devices with rmware 2.1.2 and above. To know the version of your device, use the “13” function
on page 17.
3

BGates LT
Open your gate with an APP or by calling your BGates LT
Open a motorised gate, such as your front gate,
from any distance using a mobile telephone or
landline phone and without any remote control,
providing access to a maximum of 500 users.
Open the gate simply by dialling the number of
the SIM inside BGates LT or use the appropriate
APP available for smartphones free of charge.
BGates LT works by inserting a SIM1from Europe’s leading telecom
operators, excluding SIM cards that use only VOIP technology
(for example, operator 3).
Phone calls are always toll-free: BGates LT recognises the caller’s
number and opens the gate, thus refusing the call. The only costs
are those relating to SMS reply messages, corresponding to the
fees of your service plan for the SIM inserted into BGates LT.
Be sure to pay attention to the SIM expiration date and make sure
that it is enabled to send and receive SMS.
1Sold separately. The SIM card should be standard size. A dedicated adapter is
required if owning a Micro SIM or Nano SIM.
4

Installation
PRECAUTIONS FOR INSTALLATION
• Make sure that the product is intact after removing the
packaging.
• The system must be installed in compliance with current
safety standards.
• An appropriate disconnector and protection switch should be
installed upstream of the actuator.
• Before connecting the device, make sure that the rating plate
data corresponds to that of the distribution network.
• Disconnect the device from the mains power supply before
attempting to clean or service it.
• Disconnect the device and do not touch it in case of failure
and/or malfunction.
• Do not let the device come into direct contact with water
or extreme heat, moisture or heat shock: see the chapter
“installation”.
• Do not obstruct the ventilation or heat dispersion openings or
ns.
• Contact the manufacturer for repairs.
Take note that:
• Failure to comply with the above may compromise the safety
and warranty of the device.
• The manufacturer can not be held responsible for any damage
caused by improper, incorrect and unreasonable use.
5

INSIDE THE BOX
• BGates LT device
• This instruction sheet
TECHNICAL FEATURES
• Power supply 230V - 50/60 Hz.
• The transformer is electronically protected against overloads
and short circuits.
• Absorbed power: 10VA.
• Relay: 230V maximum voltage, maximum current 1A with
resistive load (0.4A inductive load).
• Action Type: 1 B-U.
• Dimensions: 9-unit module for DIN rail.
• Dual mode operation: pulse (default) or bistable.
LOCATION
Install the device in an area where there is a good GSM/GPRS
signal. This area can be identied in the vicinity of the automation
that you want to connect, though its proximity to the gate is not
an essential factor. It is advisable to perform simple eld strength
checks before installing the actuator.
INSTALLATION
The device is equipped with a relay to process the open command.
The device can be installed in an electrical panel or alternatively
in the box tted with DIN rail (EN 50022). Outdoor installations
require the use of a suitable sealed container such as an IP65
weather sealed box.
BGates LT can operate in two modes:
• Pulse (factory default setting): the device closes the relay for
the number of seconds set (factory settings: 2 seconds).
• Bistable: the device closes the relay until the next command.
6

Figure 1
7

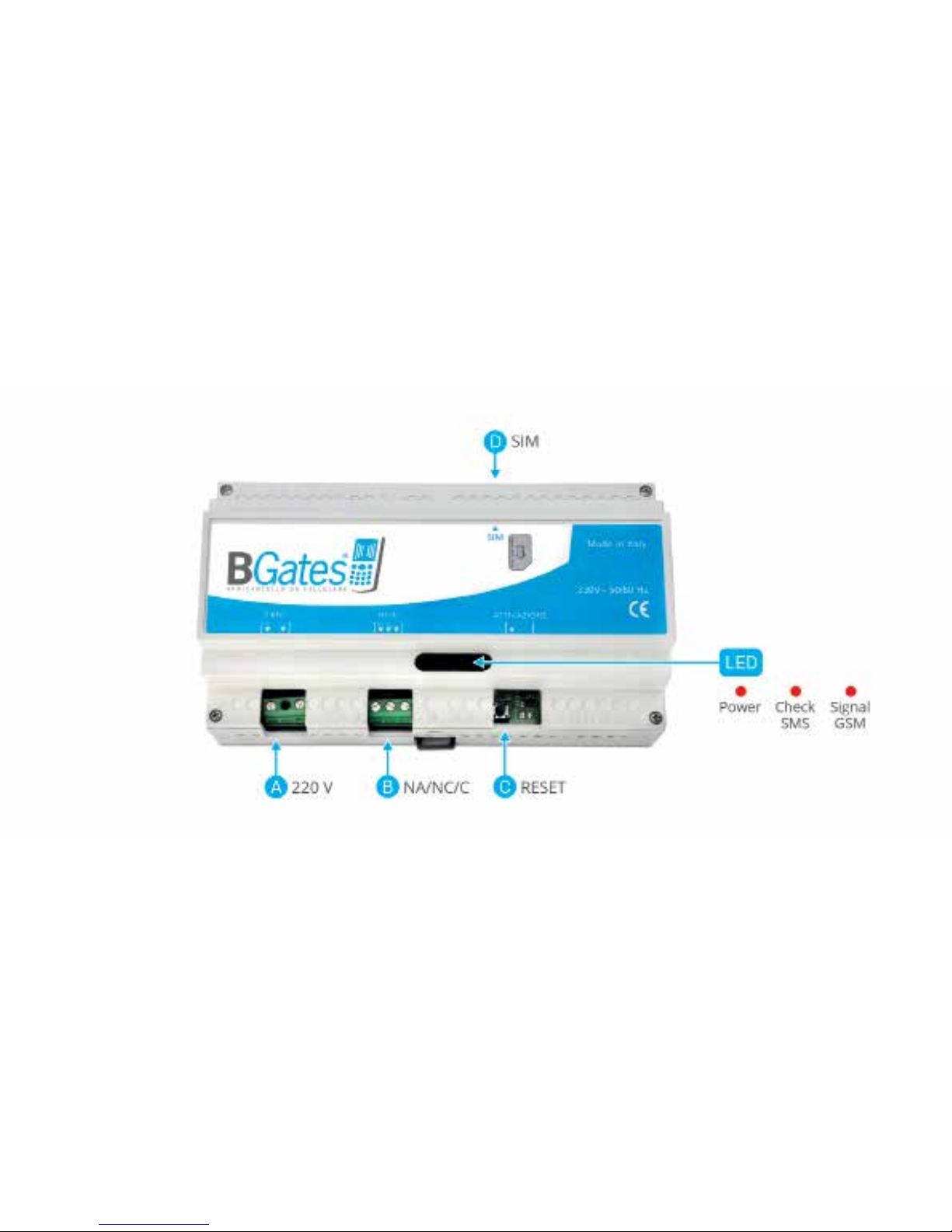

OPERATION OF THE BGates LT TERMINALS (Fig. 1)
A) Terminal board M1
220V power supply
B) Terminal board M2
Automation open control relay. Relay contacts:
- NO normally open
- NC normally closed
- C common
C) SW1 button - Reset to factory settings
Turn on the module, wait for the three LEDs to light up at the
same time and then press the C button (SW1) within 5 seconds.
Acceptance of the command will be conrmed by the rapid
ashing of the right LED (looking at the label and reading BGates).
CAUTION:
This process deletes all registered telephone numbers and restores
messages and settings to the initial values (including passwords to
0000).
D) SIM Card insertion seat
The SIM inserted must be congured without the PIN number. The
device will not work if a SIM congured with the PIN request is
inserted.
The connections to the control relay must be provided in function
of the type of apparatus that must be automated. The simplest
approach is to identify the button/key to open the device to
automate and make a parallel connection. If the plant is not tted
with any, refer to the manual of the plant to be automated to
determine the correct connection with the control unit in order to
automate the opening.
Once powered, BGates LT will proceed with registration on the
GSM network. Registration may last a few minutes.
The system is ready for use after this operation.
8

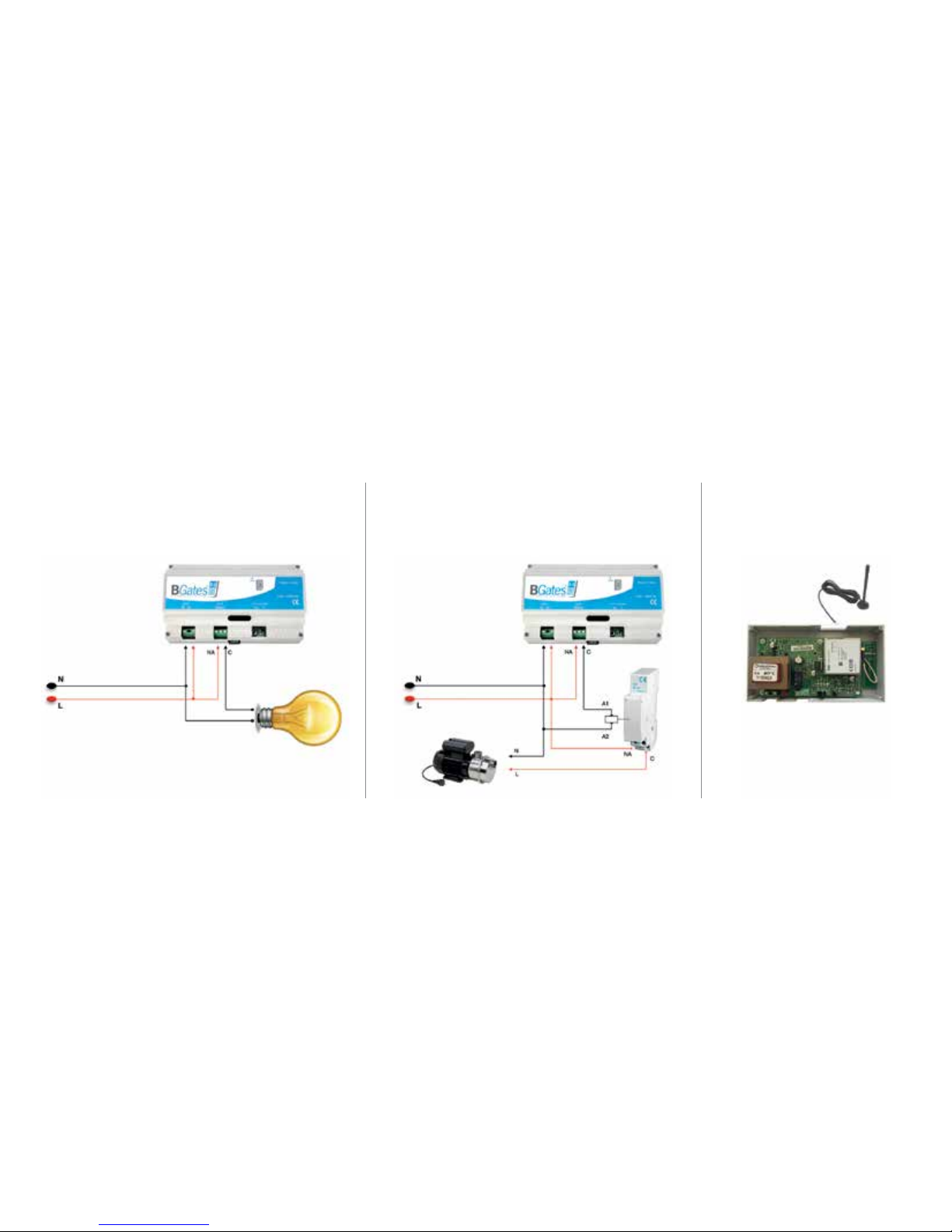

WIRING INSTRUCTION BGates LT
BGates LT - Pulse Bistable/Timer for thermostat consensus
9

Bistable / Timer for resistive load
less then 230V/1A
WIRING INSTRUCTION BGates LT
Bistable / Timer with additional Relay for
inductive load more then 230V/0.4A
Poor signal < 9,0 - to use
MMCX GSM external antenna
10

User / operator instructions
BGates LT can be controlled via SMS from a
simple GSM mobile phone or via the Smartphone
APP!
SMARTPHONE AND APP USE
ACTIVATION OF BGates LT
Use the free APP available in the Apple Store and Google Play
Store to make the activation of BGates LT faster and its use easier.
The APP allows you to open up to four gates (each gate must
be controlled by a BGates LT device, each with its own SIM). The
instructions for use and conguration are included in the APP.
Download the free BGates LT app for Apple and Android
BGates LT
11

2. Setting the personal password
BGates LT has a default password that is 0000. We strongly recommend
you to change it with a new password and to keep it secret, writing it
down in a safe place. The password may contain only 4 numbers.
• Send an SMS using your mobile phone to the number active on
the SIM card inside the BGates LT device, using the following
formula (without spaces between words):
You will receive an SMS to conrm the changes.
WARNING: BGates LT must be reset to factory settings if you misplace
your password. All saved phone numbers will be deleted and messages and
settings will be restored to the initial values (including password to 0000).
MOBILE PHONE AND SMS USE
ACTIVATION OF BGates LT
1. Preliminary steps
• Add the number of the SIM that you will insert into the BGates LT
to your mobile phones contact list giving it a name that is easily
identied. For example Name: “Garage Door”, Phone Number:
“07936 719189”.
• Insert the SIM into slot (D) of your BGates LT.
• Make sure that your mobile phone sends its caller ID when
making a call. If your mobile phone does not send its Caller
ID check the phones “Settings/Phone” and make sure “Show
My Caller ID” is turned on. This instruction is correct for all
Apple iPhones.Almost all other mobile phones have a menu
option that allows you to turn the phones Caller ID ON and OFF.
If you are using a landline phone, contact your service provider and ask them
to enable your phones Caller ID. If your phone is connected to a PBX exchange,
contact the PBX administrator and ask him to enable your phones Caller ID.
oldpassword,P,newpassword
(example: 0000,P,1234)
12

3. Enabling the authorised numbers to open the gate
Up to 500 numbers can be enabled by entering the phone number
without the leading international country or dialling code.
• Example: The Mobile it shows Number in Phone Settings as
“[phone]”. Send a SMS to BG using the following
formula : Number becomes 20123456789 with the international
country and dialling codes removed.
Please see the table “COMPLETE LIST OF
FUNCTIONS” for instructions on how to delete
enabled numbers, how to enable or disable
the SMS response to commands and all other
functions.
password,I,phonenumber
(example: 1234,I,7936123456789)
You can now open
the gate!
Dial the number of your
BGates LT!
NB: We strongly recommend that you do not give your BGates
password to any other users, but instead authorise each mobile
phone number individually.
13

It is also possible to enable gate opening with landline telephone numbers.
Complete list of functions
To change the features of BGates LT, send an SMS to BGates LT writing the “Command Text”
Function Command text via SMS Note
A1* Smart Start ON password,E,SMART=ON
ex. 1234,E,SMART=ON
Open to all calls
(factory default)
A2* Smart Start OFF password,E,SMART=OFF
ex. 1234,E,SMART=OFF
Open only to memorised numbers
Caution -Some functions are only available for devices with: *Firmware 2.1.2 and above / ** Firmware 2.2.4 and above.
To know the version of your device, use the “13” function.
14

Function Command text via SMS Note
1Change password
Default password: 0000
oldpassword,P,newpassword
ex. to change the default password (0000)
with a new one (1234) type: 0000,P,1234
A response SMS “Your password has
been changed” will be sent to you as
conrmation.
2Enabling a new mobile phone to
open a gate
password,I,phonenumber
ex. 1234,I,347123456789
(phone number without international country code)
You will receive an SMS message
reading “phonenumber successfully
inserted” as conrmation of the process
2a** Multiple enabling of mobile phones
for gate opening
password,MI,telephonenumber1,telephonenumber2,
telephonenumber3,…
Enabling command by simply sending
an SMS, up to 10 telephone numbers
3Deleting a phone number enables
to open a gate
password,D,phonenumber
ex. 1234,D,347123456789
(phone number without international country code)
You will receive an SMS message
reading “phonenumber successfully
removed” as conrmation of the process
4Check number
(of an enabled phone)
password,C,phonenumber
ex. 1234,C,347123456789
You will receive a response SMS
message on the status of the phone
number: “found in phonebook” if enabled;
“not found in phonebook” if not enabled
15

Function Command text via SMS Note
5Changing the response SMS text to
command 1 “Change Password”
password,E,T7,new text Default SMS:
“Your password has been changed”
(max 160 characters)
6Activating a response SMS for
Enabling/Deleting
a mobile phone number
password,E,A1 This function is already factory
activated (default)
7Deactivating a response SMS for
Enabling/Deleting a mobile phone
number
password,E,A0
8Changing the response SMS text to
command 2 “Enabling an opening
phone number...”
password,E,T5,new text
ex.: 1234,E,T5,command executed
Default SMS:
“successfully inserted”
(max 160 characters)
9Changing the response SMS text to
command 3 “Deleting an enabled
phone number...”
password,E,T6,new text
ex.: 1234,E,T6,command executed
Default SMS:
“successfully removed”
(max 160 characters)
16

10 Changing the response SMS text
to command 4 “Check Number”
(for an enabled number)
password,E,T3,new text
ex. 1234,E,T3,number in phonebook
Default SMS:
“found in phonebook”
(max 160 characters)
11 Changing the response SMS text
to command 4 “Check Number”
(for an number not enabled)
password,E,T4,new text
ex. 1234,E,T4,number not in phonebook
Default SMS:
“not found in phonebook”
(max 160 characters)
12 COMPLETELY deleting the numbers
saved in BGates LT
password,E,DELETE WARNING: this command deletes all of
the numbers saved in BGates LT
13 Check the status of the BGates LT
device (status, rmware, antenna)
password,E,PING You will receive a response SMS with
the status of the BGates LT device, the
rmware version and the level of antenna
signal strength (ex. LT Running, rmware
x.y.z, signal 20.0)
14 Pulse operating mode settings1
(factory value)
password,E,M,1 Pulse mode
15 Bistable operating mode settings1password,E,M,2 Bistable mode
17

Function Command text via SMS Note
16 Setting pulse duration password,E,PS,seconds
ex. 1234,E,PS,5 (5 sec pulse duration)
Factory setting:
2 seconds
17 Setting bistable time-delay reply password,E,DS,seconds
ex. 1234,E,DS,10 (10 sec delay)
Factory setting:
20 seconds
18 Checking status in bistable mode Call and hang up before the time-delayed
response set (default 10 sec.)
A response SMS will provide relay status
(ex. “LT ON” or “LT OFF”)
19 Change bistable response text (ON) password,E,T1,new text default response SMS:
“BGates ON” (max 160 characters)
20 Change bistable response text (OFF) password,E,T2,new text default response SMS:
“BGates OFF” (max 160 characters)
1as stated in the paragraph “Installation” in the section dedicated to the installer, the device can operate in two modes:
- Pulse (default) - the apparatus closes the relay for the number of seconds established (default 2 sec.). Typical applications: gates, armoured doors, etc.
- Bistable - the apparatus closes the relay until the next command. Typical applications: boilers, lights etc.
18

DELAY ANSWER
Feature that can be activated to solve the problem of double relay opening. On some networks, if the
telephone call disconnection is not properly managed, this new feature implements a timed control
that veries the actual disconnection of the telephone call.
Function Command text via SMS Note
A3* Delay Answer password,E,DC,seconds
ex: 1234,E,DC,10
Factory default: 0 seconds
19

Function SMS Command Notes
21 Timer
Sets the device in TIMER mode
password,E,TIMER,minutes
ex. 1234,E,TIMER,120
Values from 1 to 1440 minutes (max 24 hours).
After setting, to start the timer, place a call to
the device
22 Device activation in Timer mode
Sets the device to TIMER mode and
simultaneously activates the relay on
expiration of the set time.
password,BS,minutes Values from 1 to 1440 minutes (max 24 hours)
TIMER
New timed switching off mode. The device closes the relay and reopens it automatically when the set
time expires. If the Timer is set to 0, the device will automatically activate the pulse mode.
Caution: These functions are only available for devices with rmware 2.2.4 and above.
To know the version of your device, use the “13” function.
20
