Big Backyard BALMORAL A24655E User manual

5 - 7 Hrs
Two person
assembly
5.22m
7.15m
1.22m
3.15m
Table of Contents
Warnings and Safe Play Instructions .......... pg. 2
Protective Surfacing Guidelines .............. pg. 3
Instructions for Proper Maintenance .......... pg. 4
About Our Wood – Limited Warranty.......... pg. 5
Keys to Assembly Success.................. pg. 6
Part ID .................................. pg. 7
Installation of I.D./Warning Plaque........ Final Step
Solowave Design
375 Sligo Rd. West, PO Box 10
Mount Forest, ON Canada N0G 2L1
Toll Free: 1-877-966-3738
[email protected]
United Kingdom
Toll Free: 0870 145 2145
Email: [email protected]
Other Countries:
Please refer to label affixed to outside of carton.
The 1-877 number on the Owners Manual &
Safety Instructions is for North America only.
INSTALLATION AND OPERATING INSTRUCTIONS
To reduce the risk of serious injury or death, you must read and
follow these instructions. Keep and refer to these instructions
often and give them to any future owner of this play system. Manufacturer contact information provided below.
OBSTACLE FREE SAFETY ZONE - 5.22 x 7.15 m area requires Protective Surfacing. See page 3.
MAXIMUM VERTICAL FALL HEIGHT - 1.8 m
CAPACITY - 4Users Maximum, Ages 3to 10; Weight Limit 110 lbs. (49.9 kg) per child.
RESIDENTIAL HOME USE ONLY. Not intended for public areas such as schools, churches, nurseries,
day cares or parks
Rev 02/08 /2011
3404655E
WARNING
For Outdoor Family Domestic Use Only
BALMORAL – A24655E
for use with SELWOOD 1.2 METRE FORT – A23835E

Square
Assembly

3630705 Box 1
F5
(3) Cedar Wall 1 x 4 x 23½"
3641694 Box 1
F17
(2) End Floor 1 x 5 x 38-1/4"
Part Identification (Reduced Part Size) F1 - F18
1/2" x 4"
1" x 4"
1" x 5"
1" x 6"
5/4" x 6"
5/4" x 5"
5/4" x 4"
2" x 2"
2" x 3"
2" x 4"
2" x 6"
Nominal Size Actual Size
1½" x 5⅜"
1⅜" x 3⅜"
1⅜" x 2½"
1½" x 1½"
1" x 3½"
1" x 4½"
1" x 5½"
⅝" x 5⅜"
⅝" x 4½"
⅝" x 3⅜"
7/16" x 3¼"
(22) Wall Board 1/2 x 4 x 20"
F7 3631503 Box 1
3640369 Box 1
F11
(1) Lower Diagonal 2 x 3 x 37"
3641554 Box 1
(1) SW Ground 1 x 5 x 77"
F16
3640791 Box 1
F12
(1) Floor Front 2 x 3 x 46-1/4"
(1) Front Top 1 x 5 x 46-1/2"
3641505 Box 1
F15
(2) CE Access Board 1 x 6 x 19-3/4"
F1 3630606 Box 1
(8) Cedar Floor Board 1 x 5 x 35¼"
3630621 Box 1
F2
(3) CE Rock Board 1 x 6 x 19-3/4"
3630630 Box 1
F3
(1) SL Ground 1 x 5 x 38-1/4"
3640348 Box 1
F8
3640351 Box 1
(2) Front Back 1 x 5 x 46-5/8"
F9
(2) CE Rock Board 1 x 6 x 19-3/4"
3630631 Box 1
F4
3630710 Box 1
(2) Cedar Gap Board 1 x 5 x 35-1/4"
F6
(1) Top Front Back 1 x 4 x 46½"
3640358 Box 1
F10
(4) Post 2 x 4 x 83"
3641500 Box 1
F13
(2) Wall Support 1 x 4 x 38-1/4"
3641502 Box 1
F14
3641754 Box 1
F18
(1) Lower Back Wall 1 x 4 x 31-1/2"

BR16
1X 3750702
Pineview Chalk Wall
Green
BR14
3641569 Box 1
(1) SW Mount 2 x 4 x 40-3/4"
1X 9750031
Westchester Canopy -
Green
1X 9750030
Westchester Gable
Canopy -Yellow
BR3
(1) Gusset 5/4 x 4 x 18-1/2"
3640403 Box 1
BR8
3641556 Box 1
(1) Roof Upright 2 x 2 x 60-1/2"
BR10
3641558 Box 1
(2) Roof Support 2 x 2 x 33"
BR1
3640349 Box 1
(2) Rock Rail 2 x 3 x 51"
BR4
(1) Panel Frame 1 x 2 x 25-1/2"
3640726 Box 1
BR6
(1) Side Joist 2 x 2 x 43" 3640795 Box 1
BR11
3641560 Box 1
(1) Roof Ridge 2 x 2 x 45-1/4"
BR13
3641568 Box 1
(1) Back Roof Support 1 x 4 x 60-3/4"
BR15 3641566 Box 1
(2) Gable Front 5/4 x 3 x 35-3/8"
Part Identification (Reduced Part Size) BR1 -BR16
BR2
(2) Floor Gusset 2 x 3 x 11"
3640367 Box 1
3640790 Box 1
(1) Floor Joist 5/4 x 4 x 46-1/2"
BR5
BR9
3641557 Box 1
(2) Roof Side 1 x 4 x 45"
BR12 3641561 Box 1
(2) Gable Block 2 x 2 x 15"
BR7 3640799 Box 1
(1) Floor Back 5/4 x 4 x 46-3/4"
(3) Ground Stake 1-1/4 x 1-1/2 x 14"
3650318 Box 1
1X 3320185 Rocks (5pk)
Green c/w hardware
1X 3799949 (9pk)
Hole Plug

H12
(1) Hex Bolt 1/4 x 3" 9277230
1/4" Lock Washer - 1/4" Flat Washer - 1/4" T-Nut
S3
(15) Flat Head Screw #8 x 2 1/2" (9260522)
S1
(10) Flat Head Screw #8 x 1 1/8" (9290514)
S4 (4) Flat Head Screw #8 x 3" (9290530)
S5
(36) Pan Screw #8 x 1/2" (9264504)
S7
(17) Pan Screw #12 x 2" (9294620)
(38) 1/4" T-Nut
(9285200)
(38)
1/4" Lock Washer
(9253200)
(3)
5/16" Lock Washer
(9253300)
(51)
1/4" Flat Washer
(9251200)
(3) 5/16" T-Nut
(9285300)
(3)
5/16" Flat Washer
(9251300)
(14)
3/16" Flat Washer
(9251100)
S2
(103) Flat Head Screw #8 x 1 1/2" (9260512)
PB2
(1) Pan Bolt 1/4 x 1 1/4"
1/4" Lock Washer 1/4" Flat Washer 1/4" T-Nut 9274211
(36)
#8 Flat Washer
(9251500)
S0
(88) Truss Screw #8 x 7/8" (9229505)
LS1 9262212
(4) Lag Screw 1/4 x 1 1/2"
1/4" Flat Washer
LS3 9262230
(9) Lag Screw 1/4 x 3" -1/4" Flat Washer
Hardware Identification (Actual Size)
H1 PB1
(1) Hex Bolt 1/4 x 1 1/2" 9277212
1/4" Lock Washer - 1/4" Flat Washer - 1/4" T-Nut
(7) Pan Bolt 1/4 x 3/4"
1/4" Lock Washer 1/4" Flat Washer 1/4" T-Nut 9274203
H2
(22) Hex Bolt 1/4 x 2" 9277220
1/4" Lock Washer - 1/4" Flat Washer - 1/4" T-Nut
H3
(2) Hex Bolt 1/4 x 2 1/2" 9277222
1/4" Lock Washer - 1/4" Flat Washer - 1/4" T-Nut
H5
(2) Hex Bolt 1/4 x 4 1/2" 9277242
1/4" Lock Washer - 1/4" Flat Washer - 1/4" T-Nut
H6
(2) Hex Bolt 1/4 x 4 3/4 9277243
1/4" Lock Washer - 1/4" Flat Washer - 1/4" T-Nut
G4
(3) Hex Bolt 5/16 x 4" 9277340
5/16" Lock Washer - 5/16" Flat Washer - 5/16" T-Nut

PRODUCT NUMBER: A23835E & A24655E
CARTON I.D. STAMP: __ __ __ __ __ 14459 ___ (Box 1)
CARTON I.D. STAMP: __ __ __ __ __ 14459 ___ (Box 2)
CARTON I.D. STAMP: __ __ __ __ __ 14459 ___ (Box 3)
CARTON I.D. STAMP: __ __ __ __ __ 14459 ___ (Box 4)
CARTON I.D. STAMP: __ __ __ __ __ 14459 ___ (Box 5)
CARTON I.D. STAMP: __ __ __ __ __ 14459 ___ (Box 6)

Step 1: Rock Wall Assembly
A: Lay 2 (BR1) Rock Rails down, side by side with angled edges facing down. (g. 1.1)
B: Place (F1) CE Access Board on the bottom of each (BR1) Rock Rail as shown in g. 1.1. Make sure (F1) CE
Access Board is square and ush to the outside and bottom edges of each (BR1). Attach using 4 (S2) #8 x 1-1/2”
Wood Screws.
C: 8-1/8” down from the top of both (BR1) Rock Rails place 1 (F3) CE Rock Board, making sure the sides are ush
to the outside edges of each (BR1) Rock Rail. Attach using 4 (S2) #8 x 1-1/2” Wood Screws. (g. 1.1)
D: In between the (F1) CE Access Board and (F3) CE Rock Board stagger 2 (F4) and 2 (F3) CE Rock Boards
using 4 (S2) #8 x 1-1/2” Wood Screws per board. Placing them as shown in (g. 1.1), this will prevent rocks from
forming a straight line. Make sure the gap between boards are spaced 2-1/8” and does not exceed 2-3/8”.
E: Place 1 rock on each (F3) and (F4) CE Rock Board
(g. 1.2) and attach using included hardware. The
screw must be in the hole directly under the Pan Bolt, it
will stop the rock from spinning. (g. 1.3)
F1
F3
F3
F4
F3
F4 BR1
Fig. 1.1
Pan Screw Pan Bolt
Flat
Washer
Rock
Barrel Nut
Lock
Washer
Fig. 1.3
Note: Gaps between boards 2-1/8”,
not to exceed 2-3/8”
Note: The holes
in the rock boards
must orient to the
top of the boards.
x 4 per
board
Bottom
8-1/8”
approx.
1 x CE Access Board 1 x 6 x 19-3/4”
3 x CE Rock Board 1 x 6 x 19-3/4”
2 x CE Rock Board 1 x 6 x 19-3/4”
2 x Rock Rail 2 x 3 x 51”
F1
F4
F3
BR1
24 x #8 x 1-1/2” Wood Screw
S2 5 x Rocks (with hardware)
Hardware Other Parts
Wood Parts
Fig. 1.2
S2
11

A: To 2 (F13) Posts attach 1 (F8) SL Ground with 4 (H2) 1/4 x 2” Hex Bolts (with lock washer, at washer and
t-nut) and in 1 (F17) End Floor in the bottom holes with 2 (H2) 1/4 x 2” Hex Bolts (with lock washer, at washer and
t-nut). (g. 2.1)
B: Make sure assembly is square and then in the top holes of the (F17) End Floor fasten to (F13) Posts using 2
(LS1) 1/4 x 1-1/2” Lag Screws (with at washer). (g. 2.2)
C: Tighten all bolts.
Note: Pre-drill all holes using a 1/8” drill
bit before installing the lag screws.
Hex Bolt Assembly
Lock
Washer T- Nut
Flat
Washer
He x
Bolt
Predrill Pilot Holes for Lag Screw
Lag
Screw
Flat
Washer
Predrill 1/8”
pilot hole
Use factory drilled
hole as a guide
Fig. 2.1
F17
F13
F8
Notice hole
positioning
F13
H2
H2
H2
H2
F17
LS1
Fig. 2.2
1x End Floor 1 x 5 x 38-1/4”
1x SL Ground 1 x 5 x 38-1/4”
2x Post 2 x 4 x 83”
F17
F13
F8
6 x 1/4 x 2” Hex Bolt
 (1/4”lockwasher,1/4”atwasher,1/4”t-nut)
2 x 1/4 x 1-1/2” Lag Screw
 (1/4”atwasher)
Hardware
Wood Parts
H2
LS1
Step 2: Wall Assembly
If you purchased a Selwood Monkey Ladder or Selwood Spiral
Wave Slide refer to that manual.
F13
F13
12

Step 3: Swing Wall Assembly
B: Make sure assembly is square and then fasten (F17) End Floor to (F13) Posts in the top holes using 2 (LS1)
1/4 x 1-1/2” Lag Screws (with at washer). (g. 3.2)
C: Attach (F11) Lower Diagonal to (F16) SW Ground with 1 (H2) 1/4 x 2” Hex Bolt (with lock washer, at washer
and t-nut) and to (F13) Post using 1 (LS3) 1/4 x 3” Lag Screw (with at washer). (g. 3.2)
D: Tighten all bolts.
Note: Pre-drill all holes using a 1/8” drill
bit before installing the lag screws.
Hex Bolt Assembly
Lock
Washer T- Nut
Flat
Washer
He x
Bolt
Predrill Pilot Holes for Lag Screw
Lag
Screw
Flat
Washer
Predrill 1/8”
pilot hole
Use factory drilled
hole as a guide
Fig. 3.1
F17
F13
F16
Notice hole
positioning
F14
LS1
Fig. 3.2
F13
H2
H2
H2
F16 H2
F11
LS3
1 x End Floor 1 x 5 x 38-1/4”
1 x SW Ground 1 x 5 x 77”
1 x Lower Diagonal 2 x 3 x 37”
2 x Post 2 x 4 x 83”
1 x Wall Support 1 x 4 x 38-1/4”
F17
F16
F11
F13
F14
Hardware
Wood Parts
9 x 1/4 x 2” Hex Bolt
 (1/4”lockwasher,1/4”atwasher,1/4”t-nut)
1 x 1/4 x 3” Lag Screw
 (1/4”atwasher)
2 x 1/4 x 1-1/2” Lag Screw
 (1/4”atwasher)
H2
LS3
LS1
A: To 2 (F13) Posts attach 1 (F16) SW Ground with 4 (H2) 1/4 x 2” Hex Bolts (with lock washer, at washer and
t-nut); 1 (F17) End Floor in the bottom holes and 1 (F14) Wall Support with 2 (H2) 1/4 x 2” Hex Bolts (with lock
washer, at washer and t-nut) in each board. (g. 3.1)
Fig. 3.2
F16
H2
F11
LS3
H2
F13
LS1
13

Step 4: Front Frame Assembly
A: Attach (F12) Floor Front to both (F13) Posts using 2 (H6) 1/4 x 4-3/4” Hex Bolts (with lock washer, at washer
and t-nut). (g. 4.1)
B: Square and attach 1 (F9) Front Back to the bottom of (F13) Posts with 2 (LS3) 1/4 x 3” Lag Screws (with at
washer) in the top (pre-drilled) hole and 2 (S7) #12 x 2” Pan Screws (with 3/16” at washer) in the bottom holes as
shown in (g. 4.1).
C: Tighten all bolts.
Note: Pre-drill all holes using a 1/8” drill
bit before installing the lag screws.
Hex Bolt Assembly
Lock
Washer T- Nut
Flat
Washer
He x
Bolt
Predrill Pilot Holes for Lag Screw
Lag
Screw
Flat
Washer
Predrill 1/8”
pilot hole
Use factory drilled
hole as a guide
Fig. 4.1
Notice hole
positioning
towards bottom
F12
LS3
H6
F9
S7
S7 LS3
H6
1 x Front Back 1 x 5 x 46-5/8”
1 x Floor Front 2 x 3 x 46-1/4”
F9
F12
Hardware
Wood Parts
2 x 1/4 x 4-3/4” Hex Bolt
 (1/4”lockwasher,1/4”atwasher,1/4”t-nut)
2 x 1/4 x 3” Lag Screw
 (1/4”atwasher)
2x #12x2”PanScrew(with3/16”atwasher)
H6
LS3
S7
F13
F13
Note: Some
boards removed
for clarity
14

Step 5: Back Frame Assembly
A: Attach (BR7) Floor Back to (BR6) Side Joist with 2 (H3) 1/4 x 2-1/2 Hex Bolts (with at washer, lock washer
and t-nut) and 2 (S7) 12 x 2” Pan Screws (with at washers) as shown in g. 5.1.
Note: Pre-drill all holes using a 1/8” drill
bit before installing the lag screws.
Hex Bolt Assembly
Lock
Washer T- Nut
Flat
Washer
He x
Bolt
Predrill Pilot Holes for Lag Screw
Lag
Screw
Flat
Washer
Predrill 1/8”
pilot hole
Use factory drilled
hole as a guide
Fig. 5.1
BR6
F9
S7
H3
Fig. 5.2
BR7
Fig. 5.3
H3
S7
H5
H5
LS3
1 x Front Back 1 x 5 x 46-5/8”
1 x Side Joist 2 x 2 x 43”
1 x Floor Back 5/4 x 4 x 46-3/4”
F9
BR6
Hardware
Wood Parts
4x #12x2”PanScrew(with3/16”atwasher)
2 x 1/4 x 4-1/2” Hex Bolt
 (1/4”lockwasher,1/4”atwasher,1/4”t-nut)
2 x 1/4 x 3” Lag Screw
 (1/4”atwasher)
H5
LS3
S7
BR7
B: Attach Floor Back Assembly from Step A to both (F13) Posts with 2 (H5) 1/4 x 4-1/2” Hex Bolts (with lock washer,
at washer and t-nut) through (F9) Floor Back. Notice the hole orientation towards bottom of board. (g. 5.2 & 5.3)
C: Square and attach (F9) Front Back ush to the bottom and outside edge of (F13) Posts with 2 (LS3) 1/4 x 3” Lag
Screws (with at washer) in the top, pre-drilled holes and 2 (S7) 12 x 2” Pan Screws (with 3/16” at washer) in the
bottom holes as shown in g. 5.2 & 5.3.
D: Tighten all bolts.
SW Ground
removed for
clarity
Back Side
Notice hole
positioning
towards bottom
2 x 1/4 x 2-1/2” Hex Bolt
 (1/4”lockwasher,1/4”atwasher,1/4”t-nut)
H3
15

2-1/8"
2-1/8"
2-1/8"
2-1/8"
2-1/8"
2-1/8"
A: From inside of assembly, measure 2-1/8” down from the tops of each (F17) End Floor (g. 6.2 & 6.3) then
attach (BR5) Floor Joist using 2 (S4) #8 x 3” Wood Screws per end. (g. 6.1)
Fig. 6.1
BR5
Fig. 6.2 Fig. 6.3
S4
S4
1 x Floor Joist 5/4 x 4 x 46-1/2”
Hardware
Wood Parts
4 x #8x 3” Wood Screw
S4
BR5
S4
S4
Step 6: Floor Frame Assembly
If you purchased a Selwood Monkey Ladder or Selwood Spiral Wave Slide
refer to that manual.
F17
F17
F17
F17
16

Step 7: Attach Floor Boards
A: Install 1 (F6) Cedar Gap Board tight to each end of the assembly attaching to (BR6) Side Joist, (BR5) Floor
Joist and (F12) Front Floor using 5 (S2) #8 x 1-1/2” Wood Screws per board. (g. 7.1)
Fig. 7.1
Fig. 7.2
S2
F2
F6
F6
F2
F2
F2
F2
F2
F2
F2
S2 x 5 per board
x 5 per board
8 x Cedar Floor Board 1 x 5 x 35-1/4”
2 x Cedar Gap Board 1 x 5 x 35-1/4”
F2
F6
Hardware
Wood Parts
50 x #8 x 1-1/2” Wood Screw
S2
B: In between both (F6) Cedar Gap Boards place 8 (F2) Cedar Floor Boards making sure all boards are evenly
spaced. Attach to (BR6) Side Joist, (BR5) Floor Joist and (F12) Front Floor using 5 (S2) #8 x 1-1/2” Wood Screws
per board. (g. 7.2)
F13
F13
F13
F12
BR5
BR6
F6
F6
BR5
Under
oor
boards
BR6 Under oor boards
17

Step 8: Attach Gussets
A: On the Swing Wall side place 1 (BR2) Floor Gusset tight to the bottom of the (F6) Cedar Gap Board make sure
assembly is square, then attach to each (F13) Post with 1 (LS3) 1/4 x 3” Lag Screw (with at washer) per gusset in
the pre-drilled holes as shown in g. 8.1, 8.2 and 8.3.
B: Attach each (BR2) Floor Gusset to (F17) End Floor using 2 (S2) #8 x 1-1/2” Wood Screws per gusset. (g.
8.2)
C: Place 1 (BR3) Gusset tight to the bottom of (F12) Floor Front so there is a 1” overhang from the outside edge
of (F13) Post. (g. 8.1 & 8.4)
D: Attach (BR3) Gusset to (F13) Post with 1 (LS3) 1/4 x 3” Lag Screw (with at washer) from inside the assembly
and then to (F12) Floor Front with 1 (LS3) 1/4 x 3” Lag Screw (with at washer) as shown in g. 8.4.
4 x #8 x 1-1/2” Wood Screw
4 x 1/4 x 3” Lag Screw
 (1/4”atwasher)
1 x Gusset 5/4 x 4 x 18-1/2”
2 x Floor Gusset 2 x 3 x 11”
Fig. 8.1
BR2
Fig. 8.3
Fig. 8.2
BR3
LS3
BR2
LS3
LS3
Cedar Gap board
Note: Pre-drill all holes using a 1/8” drill
bit before installing the lag screws.
Predrill Pilot Holes for Lag Screw
Lag
Screw
Flat
Washer
Predrill 1/8”
pilot hole
Use factory drilled
hole as a guide
Fig. 8.4
BR3
BR2
LS3
S2
Hardware
Wood Parts
S2
F13
F12
F13
F17
BR2
F13
18
1”

1/2"
1/2"
1/2"

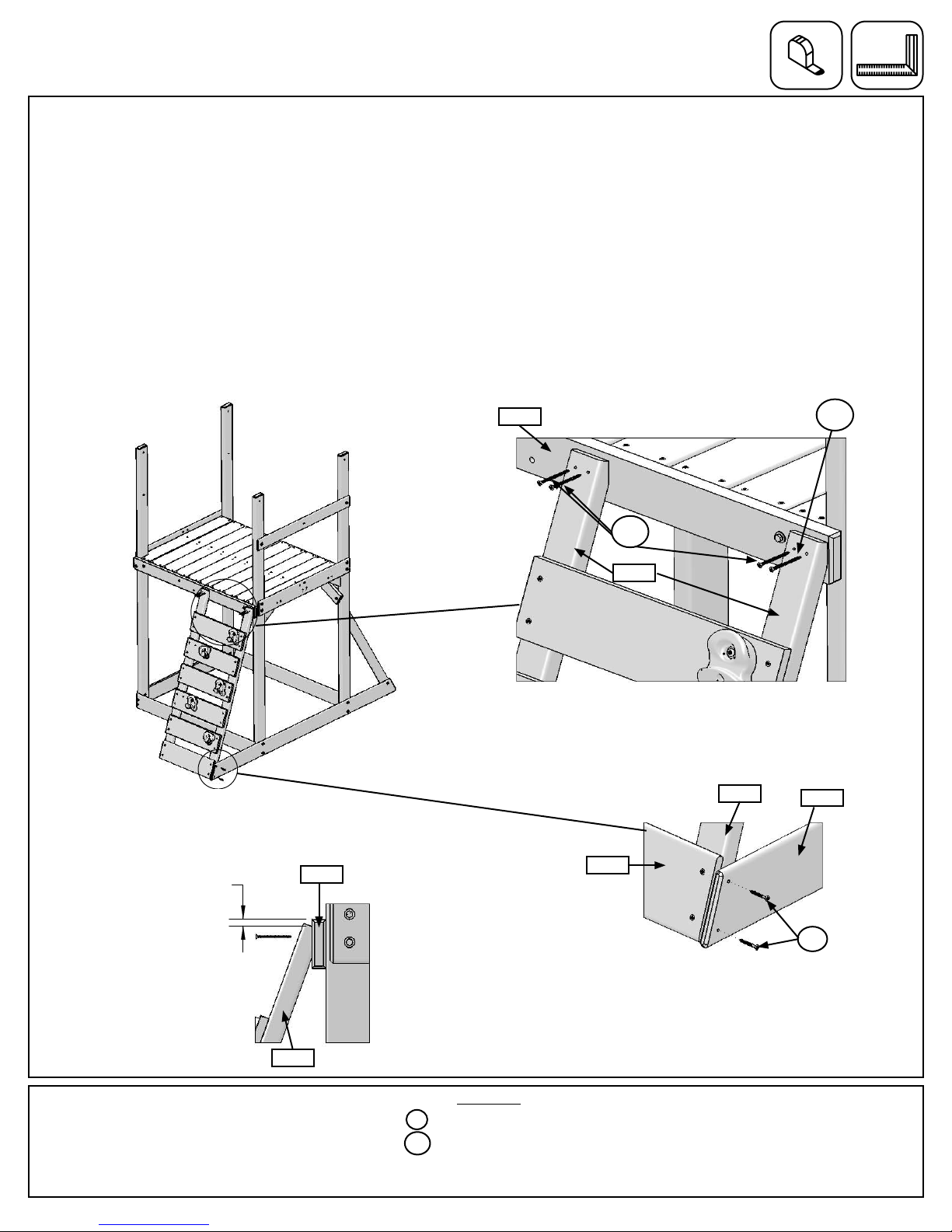

Step 9: Attach Rock Wall to Fort
A: Place Rock Wall Assembly from Step 1 on (BR7) Floor Back, ush to the edge and 1/2” down from the top as
shown in 9.1, 9.2 & 9.3. Attach (BR1) Rock Rails to (BR7) Floor Back using 3 (S2) #8 x 1-1/2” Wood Screws and
1 (S3) #8 x 2-1/2” Wood Screw as shown in g. 9.2 & 9.3.
B: Make sure the assembly is square then attach (F16) SW Ground to (BR1) Rock Rail using 2 (S3) #8 x 2-1/2”
Wood Screws. (g. 9.4)
Fig. 9.1
S3
Fig. 9.4
Fig. 9.2
3 x #8 x 1-1/2” Wood Screw
3 x #8 x 2-1/2” Wood Screw
S2
Hardware
S3
1/2"
Fig. 9.3
BR7
BR1
S2
F1
BR1
F16
BR7
S3
BR1
19

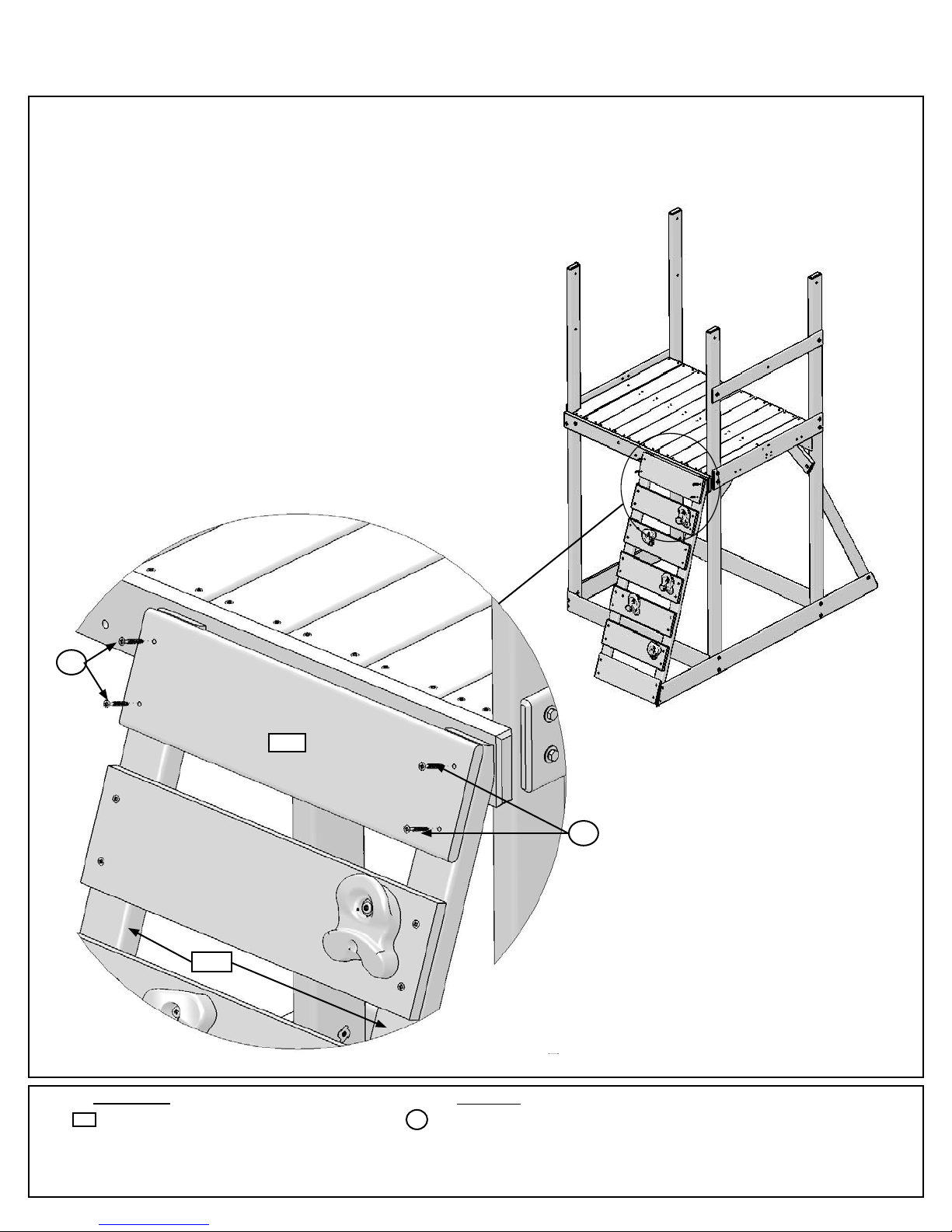

Step 9: Attach Rock Wall to Fort cont.
C: Attach (F1) CE Access Board to top of Rock Wall Assembly, ush to top of (BR1) Rock Rails using 4 (S2) #8 x
1-1/2” Wood Screws. (g. 9.5)
F1
S2
Fig. 9.5
4 x #8 x 1-1/2” Wood Screw
1 x CE Access Board 1 x 6 x 19-3/4”
F1 S2
Hardware
Wood Parts
S2
BR1
20
