Big Joe CB33 User manual

Big Lift LLC MANUAL NO. BL-CB33-0115 - 03-01-2018
www.bigjoeforklifts.com
CB33
SELF-PROPELLED,
POWER STEERING
COUNTERBALANCED LIFT TRUCK
Operation
Maintenance
Repair Parts List
NOTE:For the most current parts information and service updates, please refer to the Big Joe
Support site at www.bigjoesupport.com

WARNING
Do not operate this truck unless you have been autho-
rized and trained to do so, and have read all warnings
and instructions in Operator’s Manual and on this
truck.
Do not operate this truck until you have checked its
condition. Give special attention to tires, horn, battery,
controller, lift system (including forks or attachments,
chains, cables and limit switches), brakes, steering
mechanism, guards and safety devices.
Operate truck only from designated operating position.
Never place any part of your body into the mast struc-
ture or between the mast and the truck. Do not carry
passengers. Keep feet clear of truck and wear foot
protection.
Observe applicable traffic regulations. Yield right of
way to pedestrians. Slow down and sound horn at
cross aisles and wherever vision is obstructed.
Start, stop, travel, steer and brake smoothly. Slow
down for turns and on uneven or slippery surfaces that
could cause truck to slide or overturn. Use special
care when traveling without load as the risk of overturn
may be greater.
Travel with lifting mechanism as low as possible.
Always look in direction of travel. Keep a clear view,
and when load interferes with visibility, travel with load
trailing.
Use special care when operating on ramps travel
slowly, and do not angle or turn. Travel with load
downhill.
Do not overload truck. Check nameplate for capacity
and load center information.
When using forks, space forks as far apart as load will
permit. Before lifting, be sure load is centered, forks
are completely under load, and load is as far back as
possible against load backrest.
Do not handle unstable or loosely stacked loads. Use
special care when handling long, high or wide loads, to
avoid losing the load, striking bystanders, or tipping
the truck.
Do not handle loads which are higher than the load
backrest or load backrest extension unless load is
secured so that no part of it could fall backward.
Elevate forks or other lifting mechanism only to pick up
or stack a load. Watch out for obstructions, especially
overhead.
Do not lift personnel except on a securely attached
specially designed work platform. USE EXTREME
CARE WHEN LIFTING PERSONNEL. Make sure
mast is vertical, place truck controls in neutral and
apply brakes. Lift and lower smoothly. Remain in oper-
ating position or immediate vicinity as long as person-
nel are on the work platform. Never transport
personnel on forks or work platform.
Do not allow anyone to stand or pass under load or lift-
ing mechanism.
When leaving truck, neutralize travel control, fully
lower lifting mechanism and set brake. When leaving
truck unattended, also shut off power.

TABLE OF CONTENTS
BL-CB33-0115 - 03-01-2018 i
Section Page SectionPage
1 DESCRIPTION............................................................1-1
1-1. INTRODUCTION..............................................1-1
1-2. GENERAL DESCRIPTION...............................1-1
1-3. SAFETY FEATURES. ......................................1-1
2 OPERATION ...............................................................2-1
2-1. GENERAL. .......................................................2-1
2-2. OPERATING PRECAUTIONS. ........................2-1
2-3. BEFORE OPERATION.....................................2-2
2-4. GENERAL CONTROL OPERATION................2-4
2-4.1. CONTROL ARM...............................................2-4
2-4.2. CONTROL HEAD.............................................2-4
2-5. DRIVING AND STOPPING PROCEDURES....2-4
2-5.1. STOPPING.......................................................2-4
2-6. CONTROL ARM GAS SPRING........................2-5
2-7. LOADING AND UNLOADING..........................2-5
2-8. PARKING. ........................................................2-5
3 PLANNED MAINTENANCE ........................................3-1
3-1. GENERAL. .......................................................3-1
3-2. MONTHLY AND QUARTERLY CHECKS. .......3-1
3-3. BATTERY CARE.............................................3-1
3-3.1. GENERAL ........................................................3-1
3-3.2. SAFETY RULES ..............................................3-2
3-3.3. BATTERY CARE AND CHARGING.................3-2
3-3.4. BATTERY CLEANING......................................3-2
3-3.5. MAINTENANCE FREE BATTERIES................3-3
3-4. CHARGING BATTERIES.................................3-3
3-5. LUBRICATION. ................................................3-4
3-6. LIFT CHAIN MAINTENANCE...........................3-4
4 TROUBLESHOOTING ................................................4-1
4-1. GENERAL ........................................................4-1
4-1.1. CONTROLLER TROUBLESHOOTING............4-4
4-1.2. ZAPI HANDSET ...............................................4-4
4-1.3. FAULT DETECTION. .......................................4-4
4-1.4. TESTING TRUCK OPERATION. .....................4-4
4-1.5. SETTINGS AND ADJUSTMENTS ...................4-5
5 STEERING SYSTEM, CONTROL HEAD AND
COMPARTMENT ........................................................5-1
5-1. CONTROL HEAD.............................................5-1
5-1.1. CAP ASSEMBLY REMOVAL...........................5-1
5-1.2. CAP ASSEMBLY INSTALLATION...................5-2
5-1.3. CONTROL HEAD REMOVAL. .........................5-3
5-1.4. CONTROL HEAD INSTALLATION. .................5-3
5-1.5. SPEED POTENTIOMETER REPLACEMENT. 5-3
5-1.6. BELLY-BUTTON SWITCH REPLACEMENT...5-3
5-1.7. HORN SWITCH REPLACEMENT....................5-3
5-1.8. LIFT AND LOWER SWITCH
REPLACEMENT...............................................5-3
5-1.9. TILT SWITCH REPLACEMENT.......................5-3
5-2. CONTROL ARM...............................................5-3
5-2.1. GAS RETURN SPRING REPLACEMENT.......5-3
5-2.2. CONTROL ARM REMOVAL. ...........................5-4
5-2.3. CONTROL ARM INSTALLATION. ...................5-4
5-3. COMPARTMENT COVERS.............................5-4
5-3.1. REMOVAL........................................................5-4
5-3.2. INSTALLATION................................................5-4
5-4. STEERING CONTROL.....................................5-4
5-4.1. REMOVAL. ...................................................... 5-4
5-4.2. INSTALLATION. .............................................. 5-4
5-5. STEERING MOTOR........................................ 5-5
5-5.1. REMOVAL. ...................................................... 5-5
5-5.2. INSTALLATION. .............................................. 5-5
6 BRAKE SERVICING................................................... 6-1
6-1. BRAKES. ......................................................... 6-1
6-1.1. BRAKE ASSEMBLY REPLACEMENT ............ 6-1
7 TRANSMISSION, DRIVE WHEEL, LOAD WHEEL.... 7-1
7-1. DRIVE WHEEL................................................ 7-1
7-2. TRANSMISSION. ............................................ 7-1
7-3. LOAD WHEEL. ................................................ 7-1
7-3.1. REMOVAL ....................................................... 7-1
7-3.2. LOAD WHEEL INSTALLATION....................... 7-1
8 ELEVATION SYSTEM SERVICING........................... 8-1
8-1. GENERAL........................................................ 8-1
8-2. LIFT CHAIN LENGTH ADJUSTMENT............. 8-1
8-2.1. TELESCOPIC.................................................. 8-1
8-2.2. THREE STAGE MAST FREE LIFT CHAIN ..... 8-3
8-2.3. THREE STAGE MAST
SECONDARY LIFT CHAIN ............................. 8-3
8-3. LIFT CHAIN WEAR INSPECTION................... 8-3
8-4. LIFT CHAIN REPLACEMENT. ........................ 8-5
8-4.1. TELESCOPIC.................................................. 8-5
8-4.2. THREE STAGE MAST FREE LIFT CHAIN ..... 8-5
8-4.3. THREE STAGE MAST
SECONDARY LIFT CHAIN ............................. 8-5
8-5. LIFT CYLINDERS............................................ 8-5
9 HYDRAULIC SYSTEM SERVICING........................... 9-1
9-1. LINES AND FITTINGS .................................... 9-1
9-2. HYDRAULIC PUMP, AND MOTOR ASSY...... 9-1
9-2.1. REMOVAL ....................................................... 9-1
9-2.2. INSTALLATION ............................................... 9-1
9-3. LIFT CYLINDER (TELESCOPIC).................... 9-3
9-3.1. REMOVAL ....................................................... 9-3
9-3.2. REPAIR ........................................................... 9-5
9-3.3. INSTALLATION ............................................... 9-5
9-4. LIFT CYLINDER
(THREE STAGE MAST FREE LIFT)............... 9-6
9-4.1. REMOVAL ....................................................... 9-6
9-4.2. REPAIR ........................................................... 9-8
9-4.3. INSTALLATION ............................................... 9-8
9-5. LIFT CYLINDER
(THREE STAGE MAST SECONDARY) .......... 9-9
9-5.1. REMOVAL ....................................................... 9-9
9-5.2. REPAIR ........................................................... 9-9
9-5.3. INSTALLATION ............................................... 9-9
9-5.4. TILT CYLINDERS.......................................... 9-11
10 ELECTRICAL COMPONENTS................................. 10-1
10-1. ELECTRICAL CONTROL PANEL................. 10-1
10-1.1.MAINTENANCE............................................. 10-1
10-1.2.CLEANING .................................................... 10-1
10-1.3.PANEL REMOVAL. ....................................... 10-1
10-1.4.PANEL DISASSEMBLY................................. 10-1
10-1.5.PANEL INSTALLATION. ............................... 10-1

TABLE OF CONTENTS - Continued
ii BL-CB33-0115 - 03-01-2018
Section Page SectionPage
10-2. HORN REPLACEMENT ................................ 10-1
10-3. PUMP MOTOR. ............................................. 10-4
10-4. DRIVE MOTOR.............................................. 10-4
10-4.1.MOTOR REMOVAL....................................... 10-4
10-4.2.MOTOR INSTALLATION............................... 10-4
10-5. DEADMAN SWITCH......................................10-4
10-5.1.REPLACEMENT ............................................10-4
11 OPTIONAL EQUIPMENT..........................................11-1
12 ILLUSTRATED PARTS BREAKDOWN ....................12-1
LIST OF ILLUSTRATIONS
Figure Page FigurePage
1-1 NAME PLATE........................................................ 1-1
1-2 CB33 LIFT TRUCK................................................ 1-2
2-1 LOAD CENTER ..................................................... 2-1
2-2 SAMPLE OF OPERATOR CHECK LIST............... 2-3
2-3 CONTROL ARM .................................................... 2-4
2-4 CONTROL HEAD .................................................. 2-4

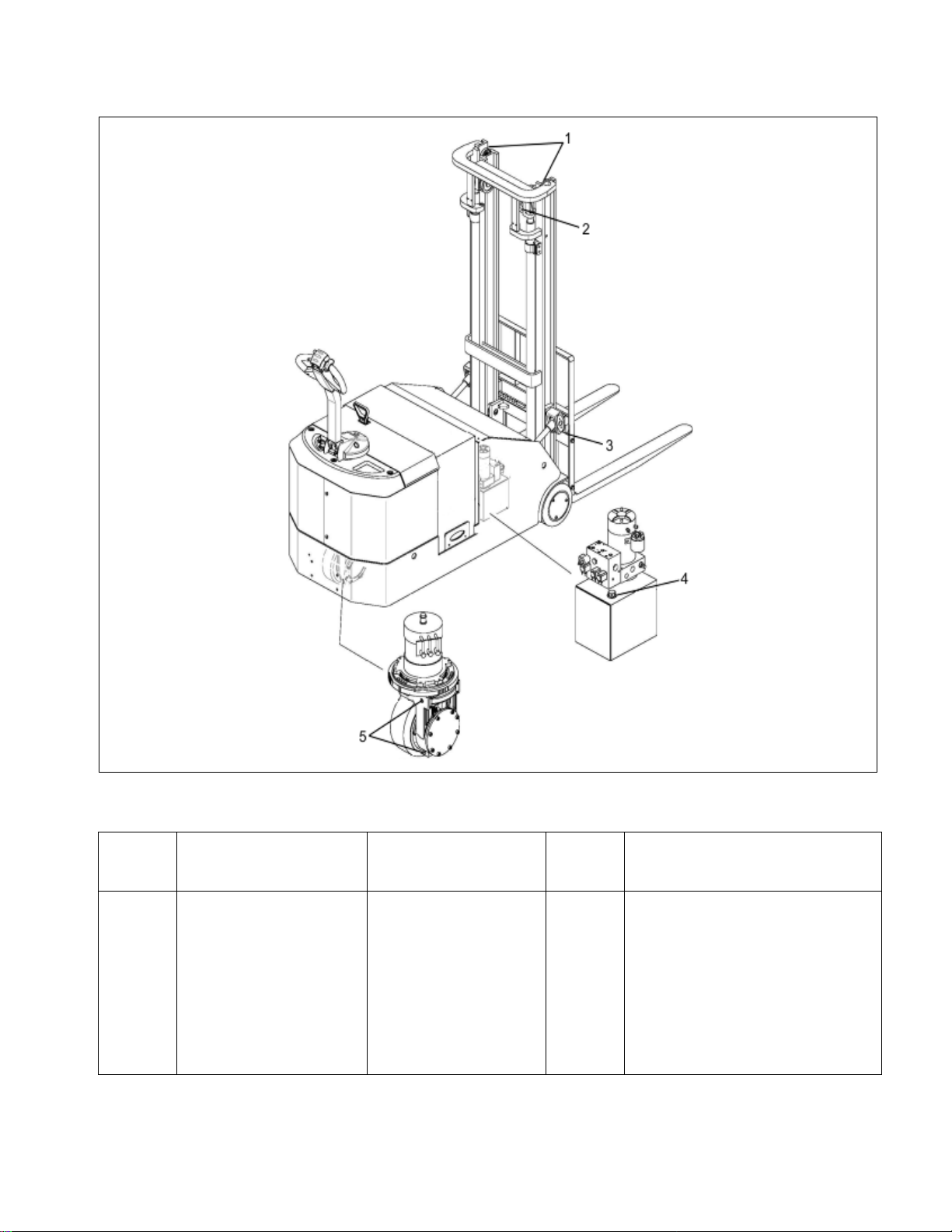

3-1 LUBRICATION DIAGRAM..................................... 3-5
4-1 ZAPI HANDSET..................................................... 4-4
5-1 CONTROL ARM .................................................... 5-1
5-2 CONTROL HEAD .................................................. 5-2
6-1 DRIVE ASSEMBLY ............................................... 6-2
7-1 DRIVE ASSEMBLY ............................................... 7-2
7-2 LOAD WHEELS..................................................... 7-3
8-1 CHAIN ASSEMBLY ............................................... 8-1
8-2 ELEVATION SYSTEM (TELESCOPIC)................. 8-2
8-3 MAST (THREE STAGE MAST)............................. 8-4
9-1 HYDRAULIC SYSTEM .......................................... 9-2
9-2 LIFT SYSTEM (TELESCOPIC) ............................. 9-3
9-3 ELEVATION SYSTEM (TELESCOPIC)................. 9-4
9-4 LIFT CYLINDER (TELESCOPIC).......................... 9-5
9-5 LIFT SYSTEM (THREE STAGE MAST)................ 9-6
9-6 ELEVATION SYSTEM (THREE STAGE MAST)... 9-7
9-7 FREE LIFT CYLINDER (THREE STAGE MAST).. 9-8
9-8 SECONDARY LIFT CYLINDER
(THREE STAGE MAST)...................................... 9-10
9-9 TILT CYLINDER MOUNTING.............................. 9-11
9-10 TILT CYLINDER .................................................. 9-13
10-1 ELECTRICAL SYSTEM....................................... 10-2
10-2 ELECTRICAL PANEL.......................................... 10-3
10-3 TRANSMISSION, MOTOR, BRAKE ASSEMBLY 10-5
12-1 CONTROL ARM................................................... 12-2
12-2 CONTROL HEAD................................................. 12-6
12-3 DRIVE SYSTEM .................................................. 12-8
12-4 DRIVE ASSEMBLY............................................ 12-10
12-5 COMPARTMENT............................................... 12-12
12-6 FRAME............................................................... 12-14
12-7 LOAD WHEELS ................................................. 12-18
12-8 ELEVATION SYSTEM (TELESCOPIC)............. 12-20
12-9 ELEVATION SYSTEM (THREE STAGE MAST) 12-24
12-10LIFT CARRIAGE (TELESCOPIC)...................... 12-30
12-11LIFT CARRIAGE (THREE STAGE MAST)........ 12-32
12-12CHAIN ASSEMBLY............................................ 12-34
12-13HYDRAULIC SYSTEM....................................... 12-36
12-14TILT SYSTEM.................................................... 12-38
12-15LIFT SYSTEM (TELESCOPIC).......................... 12-40
12-16LIFT SYSTEM (THREE STAGE MAST) ............ 12-42
12-17LIFT CYLINDER (TELESCOPIC) ...................... 12-44
12-18FREE LIFT CYLINDER
(THREE STAGE MAST) .................................... 12-46
12-19SECONDARY LIFT CYLINDER
(THREE STAGE MAST) .................................... 12-48
12-20TILT CYLINDER................................................. 12-50
12-21PUMP AND MOTOR.......................................... 12-52
12-22ELECTRICAL SYSTEM ..................................... 12-54
12-23ELECTRICAL PANEL ........................................ 12-56
12-24BATTERY ASSEMBLY ...................................... 12-58
12-25WIRE HARNESS ............................................... 12-60
12-26WIRING CABLES............................................... 12-62
LIST OF TABLES
Table Page TablePage
2-1 OPERATOR CHECKS ........................................... 2-2
3-1 MONTHLY AND QUARTERLY INSPECTION
AND SERVICE CHART..........................................3-1
3-2 RECOMMENDED LUBRICANTS........................... 3-4
3-3 LUBRICATION CHART ..........................................3-5
4-1 TROUBLESHOOTING CHART ..............................4-1
4-2 TRACTION CONTROLLER....................................4-6
4-3 STEERING CONTROLLER..................................4-11

BL-CB33-0115 - 03-01-2018 1-1
SECTION 1
DESCRIPTION
1-1. INTRODUCTION.
This publication describes the 24 volt CB33 lift truck
manufactured by Big Lift LLC. Included are operating
instructions, planned maintenance instructions, lubri-
cation procedures, corrective maintenance procedures
and a complete parts list with part location illustrations.
Users shall comply with all requirements indicated in
applicable OSHA standards and current edition of
A.N.S.I. B56.1 Part II. By following these requirements
and the recommendations contained in this manual,
you will receive many years of dependable service
from your CB33 lift truck.
1-2. GENERAL DESCRIPTION.
The self-propelled CB33 truck, Figure 1-2, lifts and
transports payloads up to 3300 pounds on adjustable
forks.
The forward and reverse motion is controlled by either
of two thumb controlled levers mounted on the control
head. Stopping and turning is controlled by the control
arm. Lift, Lower and Tilt are controlled by pushbuttons
on the control head. The battery powered lift truck is
quiet and without exhaust fumes.
The reversible AC motor propels the lift truck in for-
ward or reverse direction throughout the available
speed range. The CB33 lift truck can be driven with
forks raised or lowered; however, the speed is
restricted when the platform is raised above a preset
limit.
On demand power steering makes the lift truck highly
maneuverable.
The model number will be found on the name plate
(Figure 1-1) along with the serial number, lifting capac-
ity, and load center. Figure 1-2 shows the locations of
the truck’s main components and controls.
1-3. SAFETY FEATURES.
The CB33 is designed and engineered to provide max-
imum safety for operator and payload. Some of the
safety features incorporated into the design are:
• Dead-man brake to apply the brake and cut off drive
power when the control arm is released.
Figure 1-1 Name Plate
• Belly-button switch to reverse truck should the oper-
ator accidentally pin himself against a wall or
obstruction when backing up in slow speed.
• High speed limit switch to restrict speed when lift
carriage is raised above the preset limit.
• All control functions automatically return to “OFF”
when released.
• Externally accessible quick-disconnect battery plug
within operator's reach.
• Separately fused control circuits and power circuits.
• Readily accessible horn button.
• Lift carriage backrest to help stabilize the load.
• Handle to provide a firm hand hold for operator.
• Flow control valve regulates maximum lowering
speed within prescribed limits.
• Relief valve maintains hydraulic pressure within pre-
scribed limits.
• High visibility color scheme of truck provides visual
alert of truck’s presence.
• Battery Indicator.
R6209
COMPLIES WITH THEAPPLICABLE REQUIRE-COMPLIES WITH THE APPLICABLE REQUIRE-
MENTS OF ANSI B56.1AND OSHA STANDARDSMENTS OF ANSI B56.1 AND OSHA STANDARDS
BIG LIFT LLCBIG LIFT LLC
WISCONSIN DELLS, WISCONSIN 53965WISCONSIN DELLS, WISCONSIN 53965
AUSTRALIAN PATENT NO. 537,987AUSTRALIAN PATENT NO. 537,987
U.S. PATENT NO. 4,444,284U.S. PATENT NO. 4,444,284
TRUCK
TYPE
MODEL NO. SERIAL NO.
VOLTAGE
BATTERY
TYPETYPE CERTIFIED
MAX CAP LB/MAX CAP LB/ LOAD CTR IN/LOAD CTR IN/ LIFT HGT IN/
LOAD CTR IN/LOAD CTR IN/ LIFT HGT IN/ALT CAP LB/
BATTERY MIN WT LB/BATTERY MIN WT LB/TRUCK WT LESS BATTERY LB/TRUCK WT LESS BATTERY LB/
BATTERY MAX WT LB/BATTERY MAX WT LB/TRUCK WT WITH BATTERY LB/TRUCK WT WITH BATTERY LB/
KG MM MM
MM MMKG
KGKG
KGKG

1-2 BL-CB33-0115 - 03-01-2018
Figure 1-2. CB33 Lift Truck
R7242
ITEM COMPONENT
1Chassis
2 Drive wheel
3 Battery Discharge Indicator
4KeySwitch
5 Control Handle
6 Battery Disconnect
7 Controller
8Mast
9 Back Rest
10 Forks
11 Load Wheel
12 Hydraulic pump
13 Battery
ITEM COMPONENT

BL-CB33-0115 - 03-01-2018 2-1
SECTION 2
OPERATION
2-1. GENERAL.
This section gives detailed operating instructions for
the CB33 lift truck. The instructions are divided into the
various phases of operations, such as operating lift,
driving, and stopping. Routine precautions are
included for safe operation.
2-2. OPERATING PRECAUTIONS.
WARNING: Improper operation of the lift truck may
result in operator injury, or load and/or lift
truck damage. Observe the following
precautions when operating the CB33 lift
truck.
The following safety precautions must be adhered to
at all times.
• Do not operate this truck unless you have been
trained and authorized to do so.
• All warnings and instructions must be read and
understood before using the equipment.
• Equipment must not be altered in any way.
• Equipment must be inspected by a qualified person
on a regular basis.
• Do not exceed the rated capacity. Overloading may
result in damage to the hydraulic system and struc-
tural components.
• Be certain that the lifting mechanism is operating
smoothly throughout its entire height, both empty
and loaded.
• Be sure that mast is vertical - do not operate on a
slope.
• Be sure the truck has a firm and level footing.
• Avoid overhead wires and obstructions.
• Check for obstructions when raising or lowering the
lift carriage.
• Do not handle unstable or loosely stacked loads.
Use special care when handling long, high, or wide
loads to avoid tipping, loss of load, or striking
bystanders.
• Center and carry the load as far back as possible
toward the lift carriage back rest. The center-of-grav-
ity of the load must not exceed the load center listed
on the nameplate. See Figure 2-1 for load center
limitations.
• Pick up loads on both forks. Do not pick up on only
one fork.
• When traveling, always lower the load as far as pos-
sible.
Figure 2-1 Load Center
R3814

2-2 BL-CB33-0115 - 03-01-2018
• When stacking pallets in racks and it is necessary to
move the load in a raised position, use caution.
Operate truck smoothly.
• Observe applicable traffic regulations. Yield right of
way to pedestrians. Slow down and sound horn at
cross aisles and wherever vision is obstructed.
• Operate truck only from designated operation posi-
tion. Never place any part of your body between the
mast uprights. Do not carry passengers.
• Do not allow anyone to stand or pass under load or
lifting mechanism.
• When leaving truck, neutralize travel control. Fully
lower lifting mechanism and set brake. When leaving
truck unattended, turn off key switch, remove key
and disconnect battery.
2-3. BEFORE OPERATION
Table 2-1 covers important inspection points on the
CB33 lift truck which should be checked prior to opera-
tion. Depending on use, some trucks may require
additional checks.
Figure 2-2 shows a sample format for an Operator
Checklist, which can be modified as necessary to fit
your operation.
WARNING: Periodic maintenance of this truck by a
QUALIFIED TECHNICIAN is required.
CAUTION: A QUALIFIED SERVICE TECHNICIAN
should check the truck monthly for
proper lubrication, proper fluid levels,
brake maintenance, motor maintenance
and other areas specified in the SEC-
TION 3.
WARNING: If the truck is found to be unsafe and in
need of repair, or contributes to an
unsafe condition, report it immediately to
the designated authority. Do not operate
it until it has been restored to a safe
operating condition. Do not make any
unauthorized repairs or adjustments. All
service must be performed by a qualified
maintenance technician.
Table 2-1 Operator Checks
ITEM PROCEDURE
Transmission
and hydraulic
systems.
Check for signs of fluid leakage.
Forks Check for cracks and damage;
and, that they are properly
secured.
Chains, cables
and hoses Check that they are in place, secured correctly, functioning
properly and free of binding or
damage.
Guards and load
backrest Check that safety guards are in place, properly secured and not
damaged.
Safety signs Check that warning labels,
nameplate, etc., are in good
condition and legible.
Horn Check that horn sounds when
operated.
Steering Check for binding or looseness in
control arm when steering.
Travel controls Check that speed controls on
control head operate in all
speed ranges in forward and
reverse and that belly button
switch functions.
Wheels Check drive wheel for cracks or
damage. Move truck to check
load for freedom of rotation.
Hydraulic
controls Check operation of lift, lower and tilt to their maximum positions.
Brakes Check that brakes actuate when
control arm is raised to upright
position, and when lowered to
horizontal position.
Deadman/
Parking brake Check that control arm raises to upright position when released
and brake applies.
Battery
disconnect Check that battery can be disconnected and recon-
nected. Check for connector
damage.
Battery charge Check the battery indicator.
High speed limit
switch Allow for enough space to oper- ate truck in high speed. Elevate
forks approximately two feet,
then test drive truck to check if
high speed is cut out.
ITEM PROCEDURE

BL-CB33-0115 - 03-01-2018 2-3
Figure 2-2 Sample of Operator Check List
R6479

2-4 BL-CB33-0115 - 03-01-2018
2-4. GENERAL CONTROL OPERATION.
2-4.1. Control Arm
The control arm is used to steer and to control speed
and braking of the truck.
Slow Speed: Move the control arm down to the slow
speed range and move the travel lever to forward or
reverse. See Figure 2-3. Press the travel lever farther
to increase speed available in the slow speed range.
High Speed: Move the control arm down to the high
speed range and move the travel lever to forward or
reverse. See Figure 2-3. Press the travel lever farther
to increase speed available in the high speed range.
Braking: Move the control arm to the lower braking
range or release it to the upper braking range. See
Figure 2-3.
Figure 2-3 Control Arm
2-4.2. Control Head
Lift: Pushbutton switch (1, Figure 2-4) activates lower
and pushbutton switch (2) activates lift.
Tilt: Pushbutton switch (6) activates tilt back, and
pushbutton switch (7) activates tilt forward.
Horn: Pushbutton switch (4) activates the horn.
Belly-button: Switch (5) minimizes the possibility of
the driver being pinned by the control arm while driving
the lift truck in slow speed. If the switch presses
against the operator while the lift truck is being driven
toward the operator, the switch changes the direction
of the lift truck.
Figure 2-4 Control Head
2-5. DRIVING AND STOPPING PROCEDURES.
1. Connect the batteries and turn on the key switch.
Grasp the grips of the steering head so that the
speed control can be comfortably operated by
either thumb.
2. Lower the control arm to a comfortable position
above horizontal to disengage the brake and to
energize the electrical circuits. If the truck is not
moved, the electrical circuits will time out and will
de-energize. See Figure 2-3.
3. To move forward (with load in front), slowly press
the travel control (3, Figure 2-4) forward. Press
the travel speed control farther to increase speed.
4. To slow down or stop, release the travel control
and lower or raise the control arm to the horizon-
tal or vertical position. See Figure 2-3. In those
positions, the brake engages, slowing or stopping
the truck.
5. Procedures for movement in reverse are the
same as in the forward direction except slowly
press the travel control (3, Figure 2-4) to reverse.
2-5.1. Stopping
The brake pattern of the truck depends on the ground
conditions. The driver must take this into account
when operating the truck.
The driver must be looking ahead when traveling. If
there is no hazard, brake moderately to avoid moving
the load.
There are four different ways to stop the truck:
1. Plugging: This electrical braking function con-
sists of rotating the travel control (3, Figure 2-4) in
the opposite direction of travel and then releasing
it when the truck stops. Plugging is a convenient
R7244
R7243

BL-CB33-0115 - 03-01-2018 2-5
way to slow down the truck during normal opera-
tion. If the control is not released, the truck will
accelerate in the opposite direction.
2. Control arm (See Figure 2-3): The brake is fully
applied by lowering or raising the control arm. All
traction control power is shut off when the brake is
engaged. When the control arm is in the upright
position, the brake acts as a parking brake. Dead-
man braking occurs when the handle is released
and spring action raises control arm to the upright
position.
3. Regenerative braking: If the travel control (3,
Figure 2-4) is released, the truck automatically
brakes regeneratively.
2-6. CONTROL ARM GAS SPRING.
The control arm gas spring automatically raises the
control arm to the upright position when the control
arm is released. If the control arm does not return fully,
the control arm gas spring requires replacement.
Return truck to maintenance for repair.
2-7. LOADING AND UNLOADING.
1. Move truck to location where load is to be picked
up.
2. Move the truck into position so forks are within
pallet or skid, and the load is centered over the
forks and as far back as possible.
3. Raise forks to lift load.
4. Tilt the forks to level the load.
5. Drive to area where load is to be placed.
6. Move truck to align load with its new position.
7. Lower the load and tilt until it rests squarely in
place and the forks are free.
8. Slowly move the truck out from under the load.
2-8. PARKING.
When finished with moving loads, return the truck to its
maintenance or storage area. Turn off the key switch
and disconnect the batteries. Charge batteries as nec-
essary. Refer to battery care instructions, SECTION 3.

2-6 BL-CB33-0115 - 03-01-2018
NOTES

BL-CB33-0115 - 03-01-2018 3-1
SECTION 3
PLANNED MAINTENANCE
3-1. GENERAL.
Planned maintenance consists of periodic visual and
operational checks, parts inspection, lubrication, and
scheduled maintenance designed to prevent or dis-
cover malfunctions and defective parts. The operator
performs the checks in SECTION 2, and refers any
required servicing to a qualified maintenance techni-
cian who performs the scheduled maintenance and
any required servicing.
3-2. MONTHLY AND QUARTERLY CHECKS.
Table 3-1 is a monthly and quarterly inspection and
service chart based on normal usage of equipment
eight hours per day, five days per week. If the lift truck
is used in excess of forty hours per week, the fre-
quency of inspection and service should be increased
accordingly. These procedures must be performed by
a qualified service technician or your Big Lift LLC Ser-
vice Representative.
3-3. BATTERY CARE.
3-3.1. General
The CB33 may be equipped with maintenance free or
industrial wet cell batteries.
The care and maintenance of the battery is very
important to obtain efficient truck operation and maxi-
mum battery life.
CAUTION: Gases produced by a battery can be
explosive. Do not smoke, use an open
flame, create an arc or sparks in the
vicinity of the battery. Ventilate an
enclosed area well when charging.
CAUTION: Batteries contain sulfuric acid which may
cause severe burns. Avoid contact with
eyes, skin or clothing. In case of contact,
flush immediately and thoroughly with
clean water. Obtain medical attention
when eyes are affected. A baking soda
solution (one pound to one gallon of
water) applied to spilled acid until bub-
bling stops, neutralizes the acid for safe
handing and disposal.
Leakage voltage from battery terminals to battery case
can cause misleading trouble symptoms with the truck
electrical system. Since components of the truck elec-
trical system are insulated from truck frame, leakage
voltage will not normally affect truck operation unless a
short circuit or breakdown of circuit wire insulation to
truck frame occurs.
A voltage check from battery connector terminal to
battery case should indicate near zero volts. Typically,
however, the sum of the voltages at both terminals will
equal battery volts. This leakage voltage will discharge
the battery. As battery cleanliness deteriorates, the
usable charge of the battery decreases due to this self
discharge.
Table 3-1 Monthly and Quarterly Inspection and Service Chart
VISUAL CHECKS
INTERVAL INSPECTION OR SERVICE
Monthly Check electrical brake for proper operation.
Monthly Check load wheels for wear. A poly load wheel must be replaced if worn to within 1/16 inch
of hub. Check for separation from hub.
Monthly Check drive wheel for wear. A poly drive wheel must be replaced if worn to within 3/4 inch of
hub. Check for separation from hub.
Monthly Inspect wiring for loose connections and damaged insulation.
Monthly Inspect contactors for proper operation.
Monthly Check deadman brake switch for proper operation.
Monthly Check lift chain tension, lubrication & operation (see paragraph 3-6.)
Quarterly Check lift and tilt cylinders for leakage.
Quarterly Check for excessive jerking of control arm when stopping or starting.
Semi-annually Inspect for chain wear (See SECTION 8)

3-2 BL-CB33-0115 - 03-01-2018
Although a leakage voltage reading of zero volts may
not be possible, a cleaner battery will have more
usable charge for truck operation and not affect opera-
tion of electronic devices on the unit.
3-3.2. Safety Rules
• Wear protective clothing, such as rubber apron,
gloves, boots and goggles when performing any
maintenance on batteries. Do not allow electrolyte to
come in contact with eyes, skin, clothing or floor. If
electrolyte comes in contact with eyes, flush immedi-
ately and thoroughly with clean water. Obtain medi-
cal attention immediately. Should electrolyte be
spilled on skin, rinse promptly with clean water and
wash with soap. A baking soda solution (one pound
to one galleon of water) will neutralize acid spilled on
clothing, floor or any other surface. Apply solution
until bubbing stops and rinse with clean water.
• If truck is equipped with wet cell batteries, keep vent
plugs firmly in place at all times except when adding
water or taking hydrometer readings. Do not allow
dirt, cleaning solution or other foreign material to
enter cells. Impurities in electrolyte has a neutraliz-
ing effect reducing available charge.
• Do not bring any type of flame, spark, etc., near the
battery. Gas formed while the battery is charging, is
highly explosive. This gas remains in the cells long
after charging has stopped.
• Do not lay metallic or conductive objects on battery.
Arcing will result.
• Do not touch non-insulated parts of DC output con-
nector or battery terminals to avoid possible electri-
cal shock.
• De-energize all AC and DC power connections
before servicing battery.
• Do not charge a frozen battery.
• Do not use charger if it has been dropped or other-
wise damaged.
3-3.3. Battery Care and Charging
CAUTION: Never smoke or bring open flame near
the battery. Gas formed during charging
is highly explosive and can cause seri-
ous injury.
1. Charge the battery only in areas designated for
that use.
2. Make certain the charger being used matches the
voltage and amperage of the truck battery.
3. Before disconnecting or connecting batteries to a
charger, make sure the charger is “OFF”. If an
attempt is made to do this while the charger is
“ON”, serious injury to you, the battery and the
charger could result.
4. Before connecting the battery cable to the trucks
receptacle, make sure the key switch is off. The
battery cable must be fully connected before the
truck is used. If the plug is not making good con-
tact, heat will weld the two parts of the battery
connector together, making it difficult to remove
and necessary to replace.
5. Battery terminals should be checked and cleaned
of corrosion regularly. Good battery terminal con-
tact is essential not only for operation, but also for
proper charging of the battery.
6. The charging requirements will vary depending on
the use of the truck. The battery should be given
an equalizing charge on a weekly basis. This
charge should normally be an additional three
hours at the finish rate.
7. Make certain battery used meets weight and size
requirements of truck. NEVER operate truck with
an undersized battery.
3-3.4. Battery Cleaning
Always keep vent plugs tightly in place when cleaning
battery. When properly watered and charged, the bat-
tery will remain clean and dry. All that is necessary is
to brush or blow off any dust or dirt that may accumu-
late on them. However, if electrolyte is spilled or over-
flows from a cell, it should be neutralized with a
solution of baking soda and water, brushing the soda
solution beneath the connectors and removing grime
from the covers. Then rinse the battery with cool water
from a low pressure supply to remove the soda and
loosen dirt. If batteries stay wet consistently, they may
be either overcharged or over filled. This condition
should be investigated and corrected.

BL-CB33-0115 - 03-01-2018 3-3
3-3.5. MAINTENANCE FREE BATTERIES
Some trucks may be equipped with maintenance free
batteries. These batteries are completely sealed, will
not require any watering and have a full 80% dis-
charge available.
Sealed Maintenance Free batteries contain a pressure
release valve and under normal operating conditions
do not require any special ventilation.
CAUTION: Do not try to open this battery or remove
the pressure release valve.
Only under severe overcharging, such as connected
to an improperly sized charger, will any significant
amount of gasses be released from the battery. Also,
being a valve regulated battery, it never requires
watering.
3-4. CHARGING BATTERIES
Charging requirements will vary depending on depth of
discharge and temperature. Follow safety rules when
placing a battery on charge.
Proceed as follows:
1. Park truck at charging station with carriage low-
ered and turn the key switch off.
2. Check the condition of the AC cord, the battery
connector and battery cables. If there are any cuts
in the cable, any exposed wires, loose plugs or
connectors, DO NOT attempt to charge the bat-
teries. Contact appropriate personnel for repairs
to be made.
3. Disconnect the batteries from the truck and con-
nect the batteries to the charger. Make sure con-
nectors are mated properly.
4. Connect the charger to the appropriate power
supply.
5. Follow the instructions for the charger being used.

3-4 BL-CB33-0115 - 03-01-2018
3-5. LUBRICATION.
Refer to Table 3-2 for the recommended types of
grease and oil. Table 3-3 in conjunction with Figure 3-1
identifies the items requiring lubrication.
3-6. LIFT CHAIN MAINTENANCE.
Fully raise and lower lift carriage while observing
chains as they move over chain sheaves. Ensure
chain is aligned and tracking properly and all links are
pivoting freely. With lift carriage fully lowered, spray or
brush on a film of SAE 30 or 40 engine oil.
Table 3-2 Recommended Lubricants
(See Table 3-3 for Application)
No. 1 Transmission oil—EP SAE 80W-90
Transmission oil—EP SAE 10W-30 (Note)
No. 2 Grease—Lithium base, general purpose.
No. 3 Hydraulic oil-Heavy duty with a viscosity of
150 SUS foam suppressing agent and
rust and oxidation inhibitors
Hydraulic oil-Heavy duty with a viscosity of
100 SUS foam suppressing agent and
rust and oxidation inhibitors (Note)
No. 4 SAE 30 or 40 Engine lubricating oil
NOTE: USED ON COLD CONDITIONED TRUCKS

BL-CB33-0115 - 03-01-2018 3-5
Figure 3-1 Lubrication Diagram
Table 3-3 Lubrication Chart
FIG 3-1
INDEX
NO.
LOCATION METHOD OF
APPLICATION TYPE (Table
3-3)
APPLICATION
OF
LUBRICANT
1 Inner & Outer Mast Brush No. 2 Fulllength ofchannel whererollers
operate.
2 Lift Chain Brush or Spray No. 4 See Paragraph 3-6.
3 Lift Carriage Brush No. 2 Light coating where forks slide
4 Hydraulic Reservoir
Capacity-1 quarts Can No. 3 With lift carriage fully lowered, fill reservoir with hydraulic oil to 1
inch below opening
5 Transmission
Capacity 2 pints Can No. 1 Fill to level plug opening
R7245

3-6 BL-CB33-0115 - 03-01-2018
NOTES

BL-CB33-0115 - 03-01-2018 4-1
SECTION 4
TROUBLESHOOTING
4-1. GENERAL
Use Table 4-1 as a guide to determine possible
causes of trouble. The table is divided into five main
categories: Truck and Hydraulic System Will Not Oper-
ate: Truck Does Not Operate Forward or Reverse:
Trouble With Braking: Trouble With Lifting Or Lower-
ing, and Miscellaneous malfunctions.
Table 4-1 Troubleshooting Chart
MALFUNCTION PROBABLE CAUSE CORRECTIVE ACTION
TRUCK AND HYDRAULIC
SYSTEM WILL NOT OPER-
ATE
Truck will not travel nor will lift sys-
tem operate. a. Fuse blown. Check fuse and replace if necessary.
b. Battery dead or disconnected. Check battery quick-disconnect
plug and check battery voltage.
c. Keyswitch defective. Bypass keyswitch to determine ifit
is malfunctioning.
d. Defective wiring. Check for open circuit. Repair as
required.
TRUCK DOES NOT OPERATE
FORWARD OR REVERSE
Truck does not travel forward or
reverse. All other functions
operate normally.
a. Check all wiring. A loose con-
nection may be the cause of
malfunction.
Tighten all loose connections
before further troubleshooting.
b. Defective deadman switch. Check and replace switch if
defective.
c. Defective main contactor. Check for proper operation and
replace if necessary.
d. Defective potentiometer. Check and replace potentiometer
if defective.
Truck travels forward but not in
reverse. Defective potentiometer in control head. Check and replace potentiometer if defective.
Truck travels reverse but not in
forward. Defective potentiometer in control head. Check and replace potentiometer if defective.
Truck travels forward and in
reverse at lower speeds; will
not travel at high speed.
Defective potentiometer in control
head. Check and replace potentiometer if defective.
TROUBLE WITH BRAKING
Truck does not slow with brake, or
brake does not engage. a. Defective deadman switch. Check deadman switch for continuity. If none found when
the control arm is in the brake
position, replace switch.
b. Defective electric brake. Replace brake.

4-2 BL-CB33-0115 - 03-01-2018
Table 4-1 Troubleshooting Chart - Continued
MALFUNCTION PROBABLE CAUSE CORRECTIVE ACTION
TROUBLE WITH BRAKING -
Continued
Brake will not release. a. Defective electric brake. Replace brake.
b. Brake temperature above
281F (140C). Allow to cool.
c. Open brake circuitry or wiring. Make voltage checks.
Brake drags. Defective electric brake. Replace.
Brake grabs. Defective electric brake. Replace.
Abnormal noise and chatter when
brake is applied. Defective electric brake. Replace.
TROUBLE WITH LIFTING OR
LOWERING
Oil sprays or flows from the top of
the lift cylinder. Defective packing in lift cylinder Repair lift cylinder.
Squealing sounds when lifting
forks. a. Oil level too low. Identify oil leak.
b. Dry channels in mast. Apply grease.
c. Defective mast or carriage roll-
ers Replace rollers
Forks do not lift to top. a. Oil level too low. Add oil to reservoir.
b. Load larger than capacity. Refer to I.D.plate for capacity.
Weak, slow or uneven action of
hydraulic system. a. Defective pump or relief valve. Check pressure. Adjust as necessary.
b. Worn lift cylinder. Replace cylinder.
c. Load larger than capacity. Refer to I.D.plate for capacity.
d. Defective lift motor solenoid. Replace coil.
e. Battery charge low. Charge battery.
Forks do not lift, pump motor does
not run. a. Battery is dead or discon- nected. Check and recharge if required.
b. Defective wiring. Check and repair as required.
c. Defect in electrical system for
operating pump motor. Check lift switch in control head, as well as the coil.
Forks do not lift, motor runs. Defect in hydraulic system. Check the oil level in the reservoir
and the oil lines to the lift cylin-
der, and repair as required. If
normal, check the hydraulic
pump, and relief valve. Repair,
or adjust.
Table 4-1 Troubleshooting Chart - Continued
MALFUNCTION PROBABLE CAUSE CORRECTIVE ACTION
