Bijur Delimon F4019 User manual

1 / 6 P_2009_1_GB _Battery_powered_grease_gun
Product description :
Battery powered
grease gun :
DESCRIPTION
The new Bijur Delimon cordless battery powered grease gun frees
you from cumbersome cords or air hoses. Its high capacity 18
VDC battery delivers grease faster and reduces the number of
time you have to recharge the unit. When the battery runs low, just
charge it using the included one-hour battery quick charger.
OPERATION
Attach the flexible whip hose to a lubrication point and pull the trigger-style switch.
Grease is immediately delivered. To stop the flow of grease, just release the switch.
Composition :
- Two high capacity NICAD batteries
- One hour battery quick charge
- Deliver up to 7 cartridges of grease per battery charge, under pressure
- Fill with standard 14 ounces or bulk load
- High pressure flexible whip hose with spring guard
- Ergonomic grip
- Heavy duty four jaw coupler
- High pressure safety motor override
- Air bleeder valve
CHARACTERISTICS
Electrical requirement: Charger input power: 230VAC / 50Hz
Battery output power: 18 VDC
Battery capacity: 1300 mAh
Battery charge time: 1 hour quick charge
Maximum operating pressure: 8000 psi (550 bar)
Grease reservoir capacity: 400 g
Hose size: 775 mm long x 9,8 mm diameter
Switch: Squeeze type trigger
Weight: 5,5 kg

2 / 6 P_2009_1_GB _Battery_powered_grease_gun

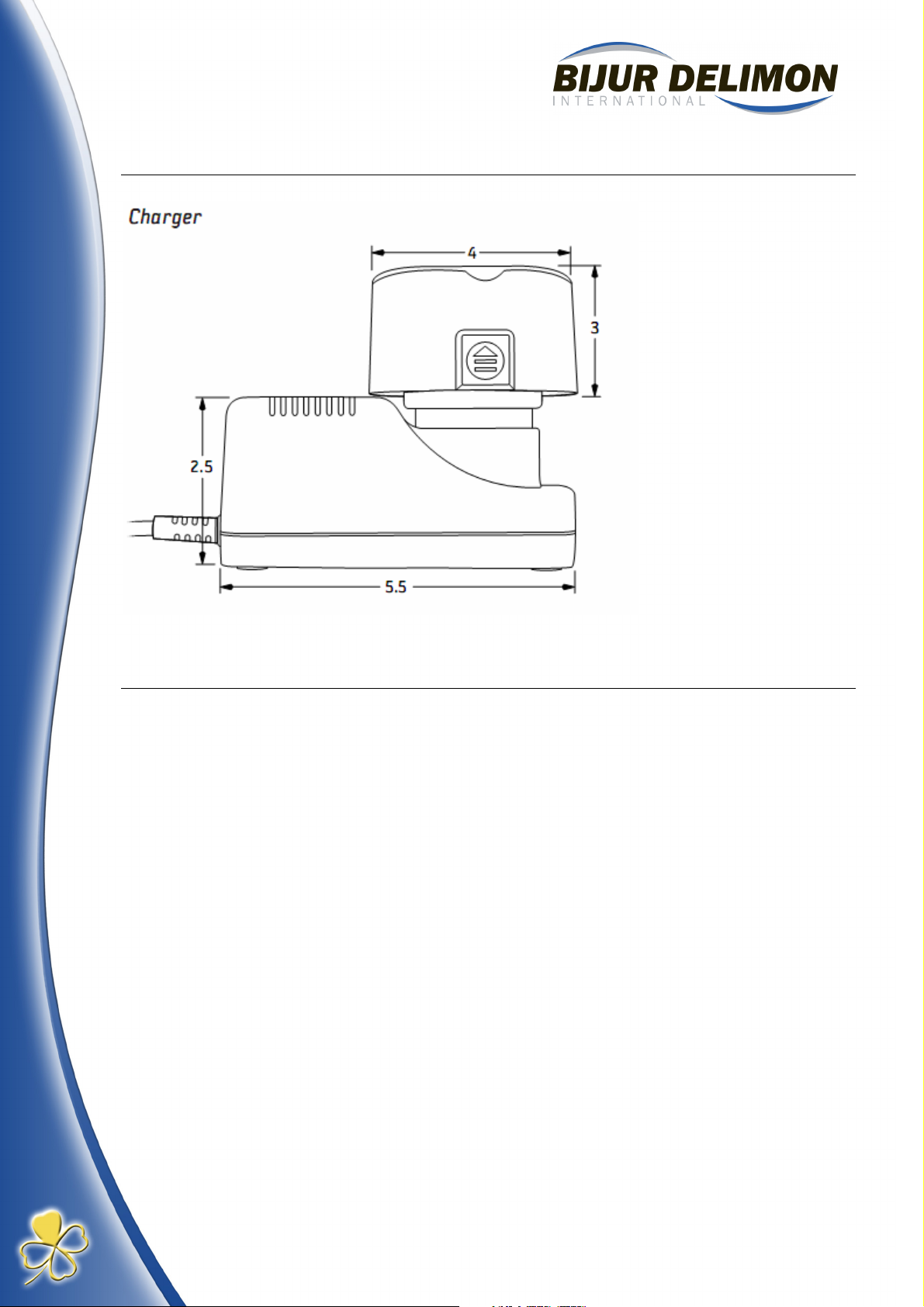

DIMENSIONAL SCHEMATIC (PART 1)

3 / 6 P_2009_1_GB _Battery_powered_grease_gun

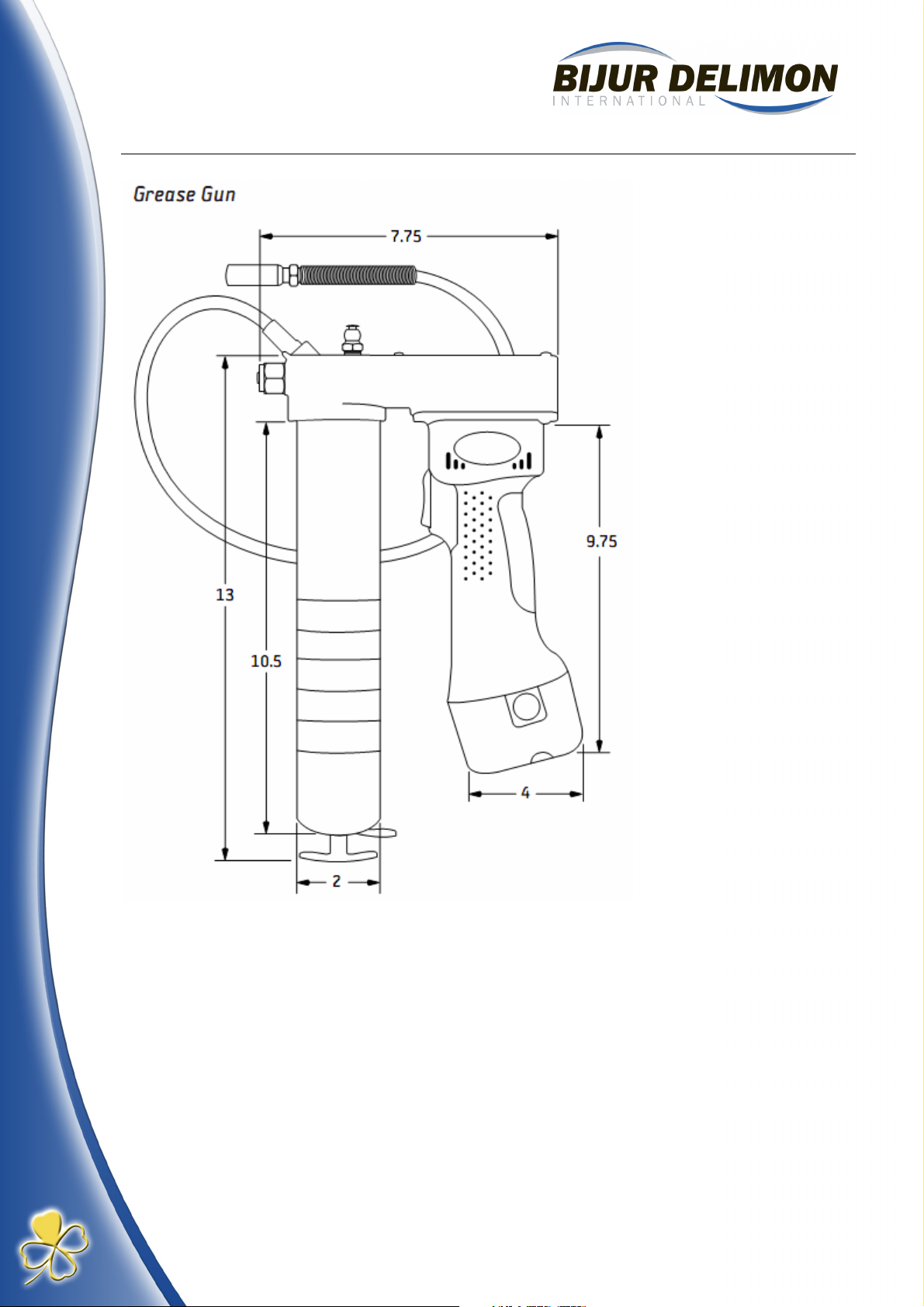

DIMENSIONAL SCHEMATIC (PART 2)
INSTALLATION
Before each use, inspect the general condition of the grease gun. Check for misalignement or binding of
moving parts, cracked or broken parts, leaking battery pack, damaged hose and any other condition that
may affect its safe operation. If abnormal noise or vibration occurs, have the problem corrected before
further use. Do not use damaged equipment

4 / 6 P_2009_1_GB _Battery_powered_grease_gun
INSTRUCTIONS
- Insert the battery pack into the charging socket of the charger. Then plug the charger into the nearest
230 V AC, grounded, electrical outlet.
- The green light on the charger will automatically turn on.
- Depress the SET button on the charger, the green light will automatically go out and the red light will
turn on indicating the charger has switched to the charge mode.
- Charge the battery for one hour before using the gun.
- When the battery pack is fully charged, the red light will automatically go out, and the green light will turn
on. Remove the battery pack from the charger and disconnect the charger from its electrical outlet.
- Load the grease cartridge and pull the trigger to dispense grease.
- When the battery pack requires recharging, a one hour charge allows the tool to operate at full power.
Do not recharge the battery pack longer than one hour as damage to the battery pack and / or charger
will occur.
ATTENTION:
The temperature of the battery pack may increase during use and shortly after use. The battery pack may
not accept a full charge if it is charged immediately after use. Allow the battery pack to cool to room
temperature before charging for best result.
WARNING:
This gun has an external grease bypass system that vents grease from the head of the gun when the
grease fitting is clogged. When grease starts bypassing out of the head of the gun STOP! CONTINUING
TO PRESS THE TRIGGER WILL DAMAGE THE GUN!
MAINTENANCE
- Do not force the tool – use the correct tool for your application. The correct tool will do the job better and
safer at the rate for which it is designed.
- Do not use the power tool if the switch does not turn it on or off.
- Any tool that cannot be controlled with the switch is dangerous and must be replaced.
- Disconnect the power tool from its battery pack before making any adjustements, changing accessories
or storing the tool. Such preventive safety measures reduce the risk of starting the tool accidentally.
- Store idle tools out of reach of children and other untrained persons. Tools are dangerous in the hands
of untrained users.
- Maintain tools with care. Properly maintained tools are less likely to malfunction and are easier to
control. Do not use a damaged tool. Tag damaged tools "Do not use" until repaired.
- Check for misalignement or binding of moving parts, breakage of parts, and any other condition that
may affect the tool's operation. If damaged, have the tool serviced before using. Many accidents are
caused by poorly maintained tools.
- Use only accessories that are recommended by the manufacturer for your model. Accessories that may
be suitable for one tool may become hazardous when used on another tool.

5 / 6 P_2009_1_GB _Battery_powered_grease_gun
TROUBLESHOOTING
TO ORDER
Description Reference
Battery powered grease gun* F4019
Battery (18 VDC) F4028
Charger (230 VAC) F4030
*Included: battery powered grease gun, a spare battery,
a battery charger, all delivered in a transport case.
Symptomes
Possible cause
Remedy
Battery charge too low Recharge the battery
Grease fitting clogged or corroded Replace the fitting
Grease comes out of the front of the gun Grease fitting clogged or corroded Replace the fitting
No grease in gun
Insert new grease cartridge or bulk fill the
tube
Air pocket in grease tube
Partially unscrew tube until a ring of grease
forms at the threads, then retighten the tube
No lights on charger No electricity at the wall socket Check the breaker panel
Gun runs slow
Gun runs but no grease comes out

6 / 6 P_2009_1_GB _Battery_powered_grease_gun
