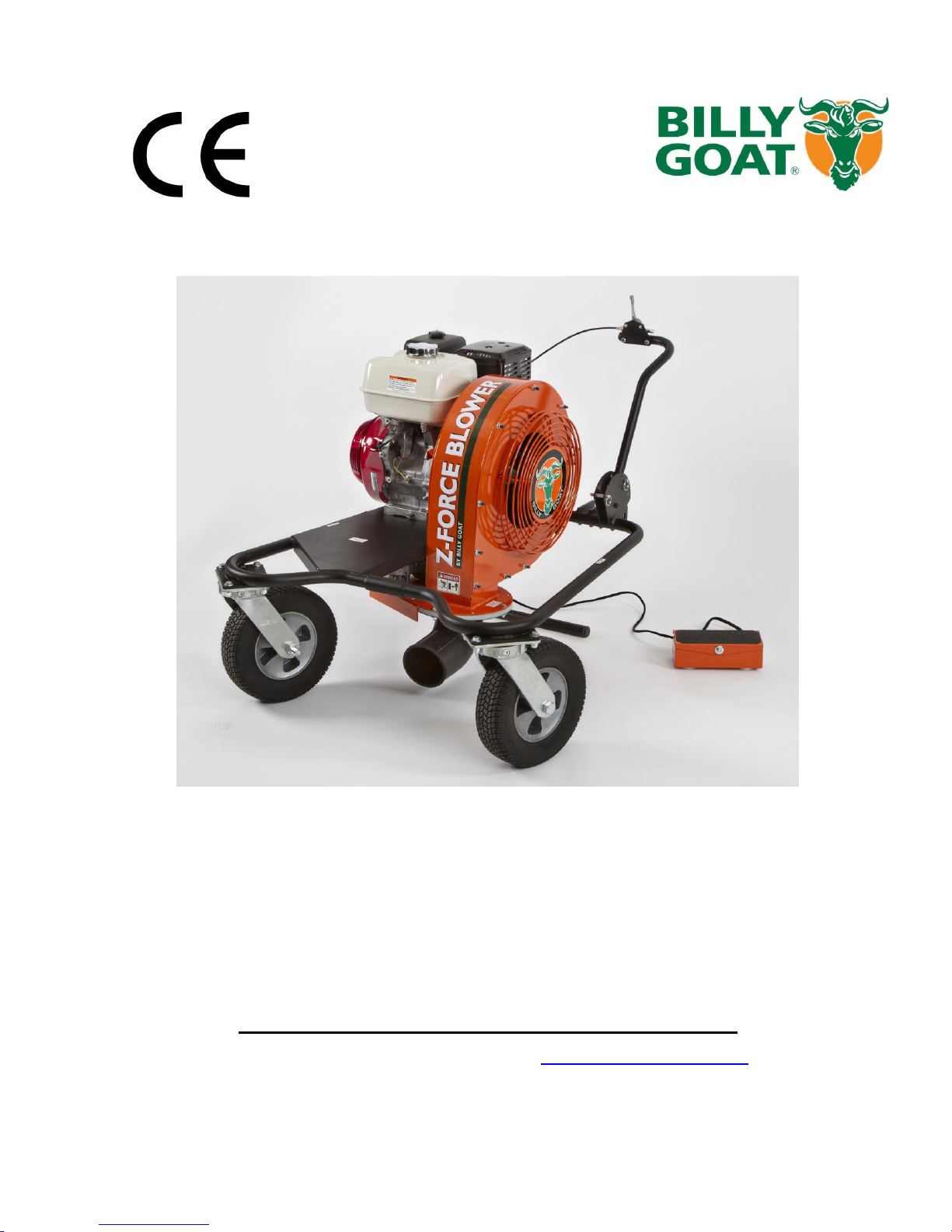

Billy Goat Z FORCE FZ1300H User manual

Part No 442503 Form No F081512A
1
Z FORCE BLOWER Owner’s Manual
Patents Pending
FZ1300H
BILLY GOAT Z FORCE BLOWER
Owner's Manual
*JRCO Universal Mount Not Included*
Contact your Billy Goat Dealer or visit http://jrcoinc.com/ for a list of
JRCO Products

Part No 442503 Form No F081512A
2
Z FORCE BLOWER Owner’s Manual
CONTENTS
SPECIFICATIONS _______________________ 3
SAFETY INSTRUCTIONS AND WARNINGS_________________________________4-5
INSTRUCTION LABELS 6
PACKING CHECKLIST 7
ASSEMBLY 8
OPERATION __ 9
MAINTENANCE AND WARRANTY INFO ____ 10
TROUBLESHOOTING AND WIRING DIAGRAM ______________________________11

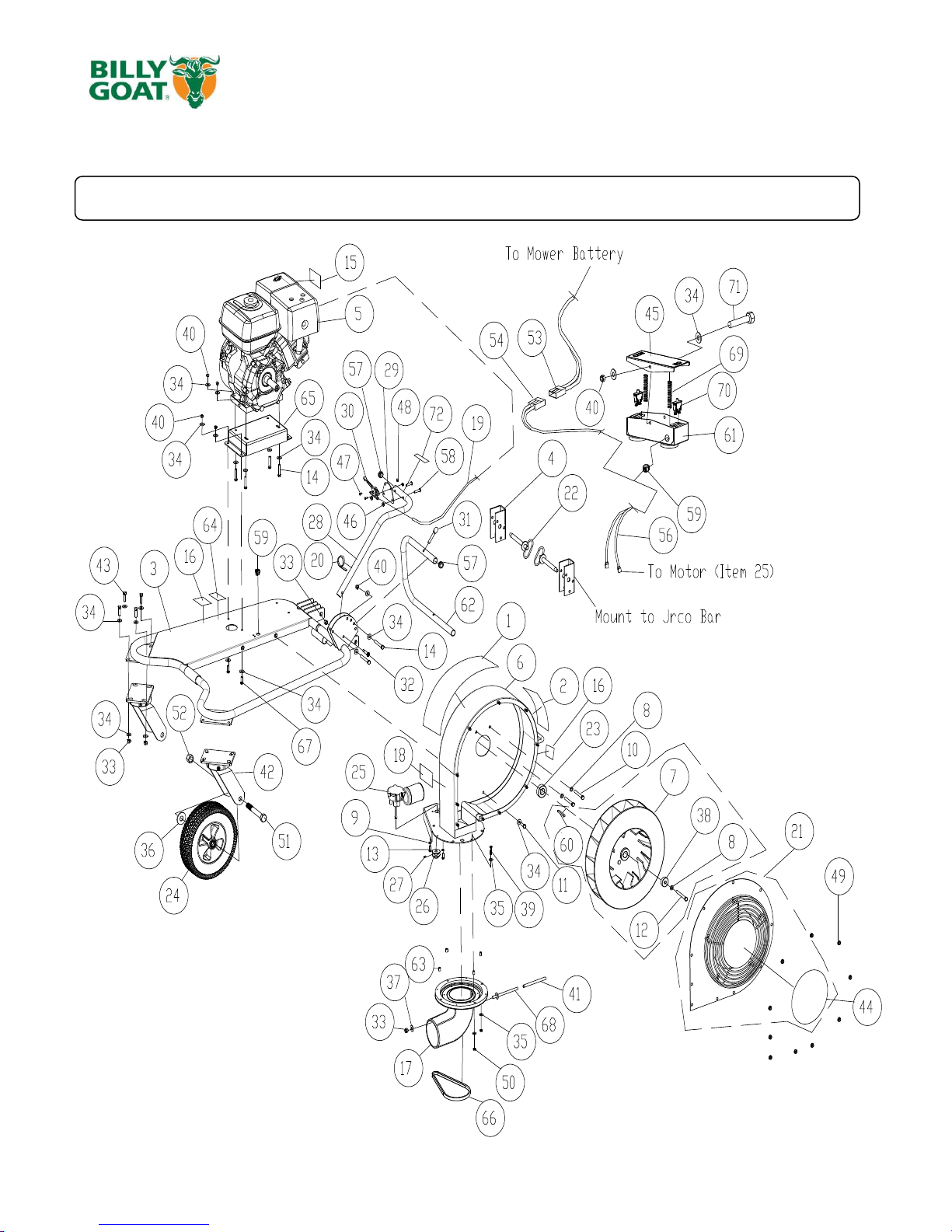

ILLUSTRATED PARTS LIST 12
PARTS LIST 13
MAINTENANCE RECORD________________________________________________14

Part No 442503 Form No F081512A
3
Z FORCE BLOWER Owner’s Manual
Specifications FZ1300H
Engine: HP
13.0 HP (9.6kW)
Engine: Model
GX390K1QAA2
Engine: Type
HONDA OHV
Engine: Fuel Capacity
6.5 qt. (6.1L)
Engine: Oil Capacity
1.16 qt. (1.1L)
Total Unit Weight:
192 # (87Kg)
Overall Length:
42"(1.1m)
Overall Width
35.5” (0.90m)
Max operating slope
20 deg.
SOUND
SOUND LEVEL 87 Db(a) at Operators Position (seated on Zero Turn Mower)
Sound tests were conducted in accordance with 2000/14/EC, as well as ISO 11094, and were performed on 6-30-
2011 under the conditions listed below.
Sound power level listed is the highest value for any model covered in this manual. Please refer to serial plate on
the unit for the sound power level for your model.
General Conditions: Sunny
Temperature: 86oF (30oC)
Wind Speed: 13 mph (20.1 kph)
Wind Direction: South
Humidity: 62%
Barometric Pressure: 29.94 Hg (101.4 kpa)
107 dB

Part No 442503 Form No F081512A
4
Z FORCE BLOWER Owner’s Manual
GENERAL SAFETY INSTRUCTIONS and SYMBOLS
The safety symbols shown below are used throughout this manual. You should become familiar with them before
assembling, operating, or servicing this equipment.
This symbol indicates important information that will prevent injury to yourself or others.
This symbol indicates ear protection is recommended when operating this equipment.
This symbol indicates eye protection is recommended when operating this equipment.
This symbol indicates gloves should be worn when servicing this equipment.
This symbol indicates that this manual and the engine manufacturer’s manual should be read
carefully before assembling, operation, or servicing this equipment.
This symbol indicates important information that will prevent damage to your BILLY GOAT ®
Z FORCE Blower.
This symbol indicates the engine oil level should be checked before operating this
equipment.
Read and make sure you thoroughly understand the following safety precautions before assembling, operating or
servicing this equipment:
READ this manual and the engine manufacturer’s manual carefully before assembling,
operating, or servicing this equipment.
EAR PROTECTION is recommended when operating this equipment.
EYE PROTECTION is recommended when operating this equipment.
BREATHING PROTECTION is recommended when operating this equipment.
EXHAUST from this product contains chemicals known to the State of California to cause
cancer, birth defects or other reproductive harm.
DO NOT operate this equipment on any unimproved forested, brushy, or grass covered land
unless a spark arrester is installed on the muffler as required by Section 4442 of the
California Public Resources Code. The arrester must be maintained in good working order.
Other states may have similar laws. Federal laws apply on federal lands.
DO NOT run engine in an enclosed area. Exhaust gases contain carbon monoxide, an
odorless and possibly fatal poison.

Part No 442503 Form No F081512A
5
Z FORCE BLOWER Owner’s Manual
DO NOT run this equipment indoors or in any poorly ventilated area. Refueling outdoors is
recommended.
DO NOT refuel this equipment while the engine is running. Allow engine to cool for at least two minutes
before refueling.
DO NOT store gasoline near an open flame.
DO NOT remove gas cap while engine is running.
DO NOT start or operate engine if strong odor of gasoline is present.
DO NOT start or operate engine if gasoline is spilled. Move equipment away from spill until gasoline has
completely evaporated.
DO NOT smoke while filling the fuel tank.
DO NOT check for spark with spark plug or spark plug wire removed. Use an approved spark tester.
DO NOT operate engine without a muffler. Inspect muffler periodically and replace if necessary. If
equipped with muffler deflector, inspect deflector periodically and replace if necessary.
DO NOT operate engine with grass, leaves or other combustible material near the muffler.
DO NOT touch muffler, cylinder, or cooling fins when hot. Contact with hot surfaces may cause severe
burns.
DO NOT leave equipment unattended while in operation.
DO NOT park equipment on a steep grade or slope.
DO NOT operate equipment with bystanders in or near the work area.
DO NOT allow children to operate this equipment.
DO NOT operate equipment with guards removed.
DO NOT operate equipment near hot or burning debris or any toxic or explosive materials.
DO NOT operate equipment on slopes greater than specified in Specifications section of this manual.
DO NOT operate near steep embankments or drop offs.
DO NOT transport this unit attached at excessive speeds, doing so may result in serious injury or death.
ALWAYS make sure the machine is attached to the mower securely.
ALWAYS remove spark plug wire when servicing equipment to prevent accidental starting.
ALWAYS wear your seatbelt when using this machine.
ALWAYS check fuel lines and fittings frequently for cracks or leaks. Replace if necessary.
ALWAYS keep hands and feet away from moving or rotating parts.
ALWAYS store fuel in approved safety containers.
ALWAYS shut of gas flow valve when transporting machine.
WARNING: Important
Do not run this machine without exhaust elbow attached.
DO NOT run this machine with a cracked or damaged impeller under any circumstances.

Part No 442503 Form No F081512A
6
Z FORCE BLOWER Owner’s Manual
INSTRUCTION LABELS
The labels shown below were installed on your BILLY GOAT ®Z FORCE Blower. If any labels are damaged or
missing, replace them before operating this equipment. Item numbers from the Illustrated Parts List and part
numbers are provided for convenience in ordering replacement labels. The correct position for each label may be
determined by referring to the Figure and Item numbers shown.
DANGER FLYING DEBRIS LABEL THROTTLE CONTROL
ITEM # 18 P/N 810736 ITEM # 72 P/N 810656
LABEL WARNING FZ
ITEM #2 P/N 442500
ENGINE LABELS
HONDA
LABEL SPARK ARRESTOR
P/N 100252

Part No 442503 Form No F081512A
7
Z FORCE BLOWER Owner’s Manual

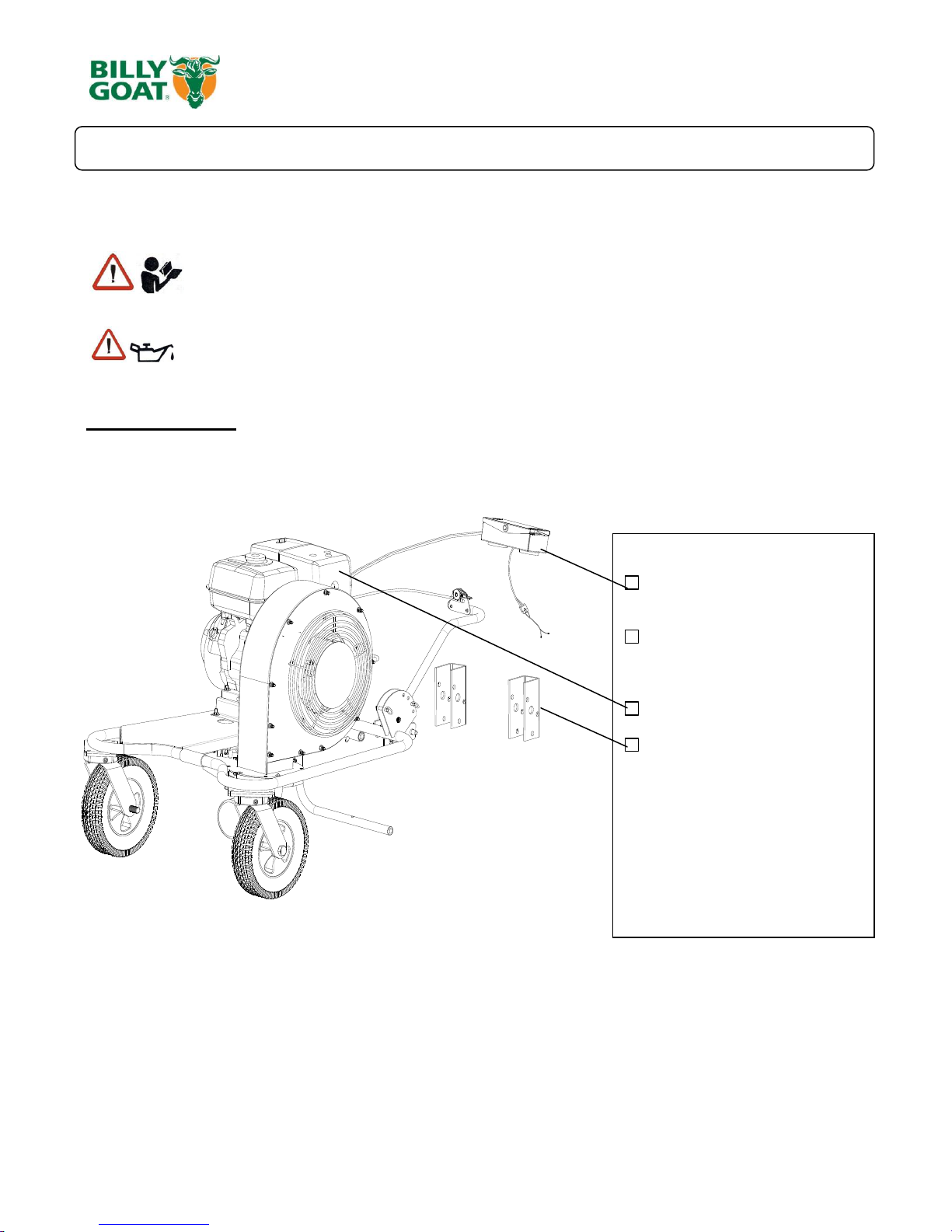

PACKING CHECKLIST
These items should be included in your carton. If any of these parts are missing, contact your dealer.
Your BILLY GOAT ®Z FORCE Blower was shipped in one carton, completely assembled. Mounting hardware can
be found on the attachment points on the frame.
READ all safety instructions before attaching unit.
TAKE CAUTION when removing the unit from the box the switch pedal assembly is attached
by cables.
PUT OIL IN ENGINE BEFORE STARTING
Boxing Parts Checklist
Switch pedal Assy
Parts Bag & Literature Assy
P/N-442006
Honda 13 HP engine manual
JRCO Bracket Adapter P/N-
442203
PARTS BAG &
LITERATURE ASSY
Warranty card P/N- 400972, Owner’s Manual P/N-442503

Part No 442503 Form No F081512A
8
Z FORCE BLOWER Owner’s Manual

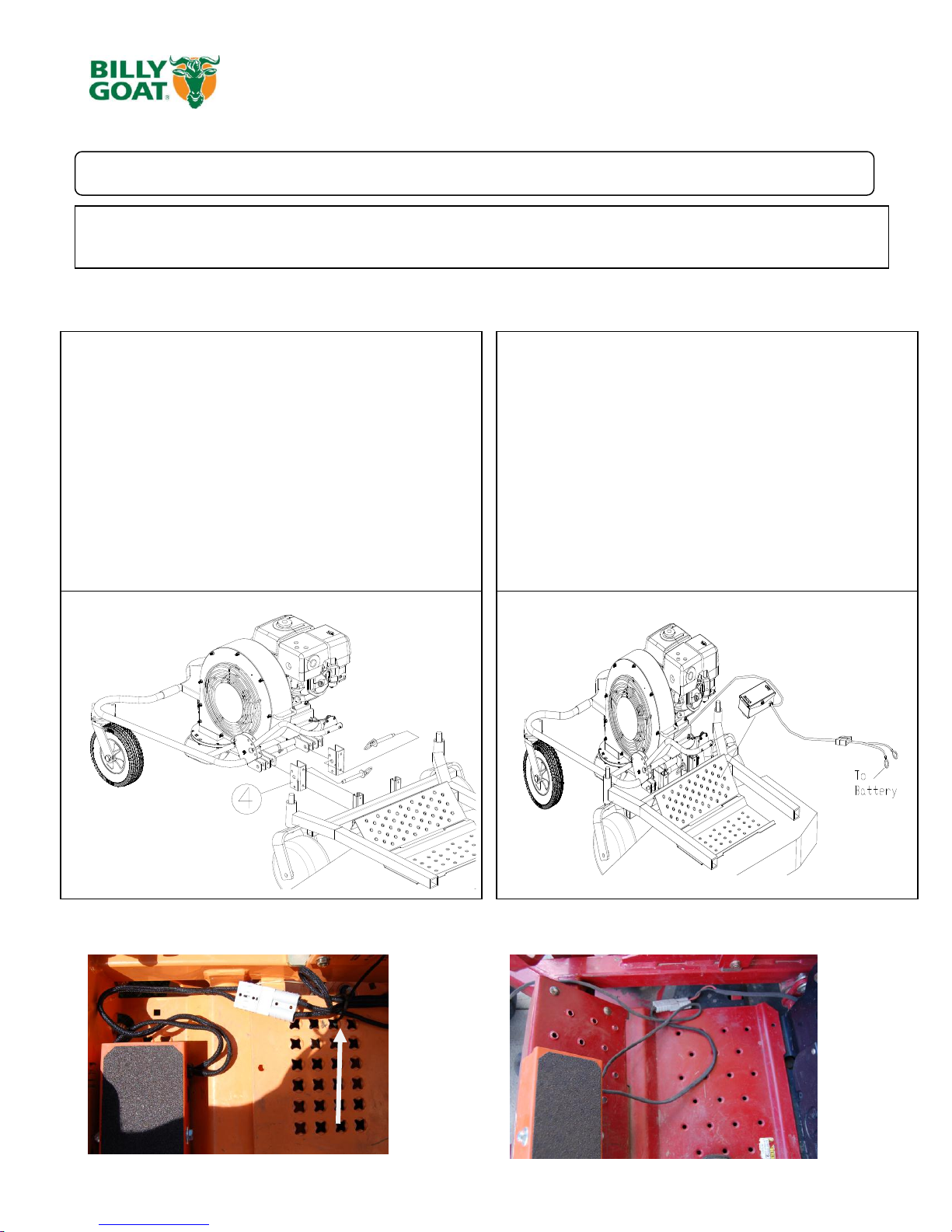

ASSEMBLY
Figure A Figure B
Proper mounting Improper mounting
Wires tied down Wires not tied down
1.Follow the steps in figures A and B, then securely tighten all hardware shown.
2.Connect spark plug wire on the blower.
Make sure your JRCO bar is attached to your mower.
Then replace the mounting bracket with the bracket
provided (item 4). Attach the Blower to brackets and
install the pins making sure they are completely pushed
in. NOTE some JRCO bars will require mounting to the
outside ears of the blower bracket (15” Center).
Ensure the unit is mounted level, failure to do so may
result in poor handling and will put stress on the blower
frame. Level the unit by adjusting the mounting brackets
(item 4) up or down depending on your mower.
Connect the rear portion of the wiring harness to the
mower battery by attaching the red wire to the positive
terminal and the black wire to the negative terminal.
Route the harness so that the connector is located at the
foot rest portion of the mower. Note make sure the
position of the switch box will not interfere with mower
operation controls. Secure any excess length of wire to
the frame of the mower using ty wraps. FAILURE TO
CONTAIN EXCESS WIRE WILL RESULT IN WIRE
COMING INTO CONTACT WITH MOVING PARTS ON
MOWER (belts, blades, brake pedals, etc.) FAILURE TO
PROPERLY SECURE WIRING HARNESS WILL
RESULT IN FAILURE AND IS NOT COVERED UNDER
WARRANTY!

Part No 442503 Form No F081512A
9
Z FORCE BLOWER Owner’s Manual

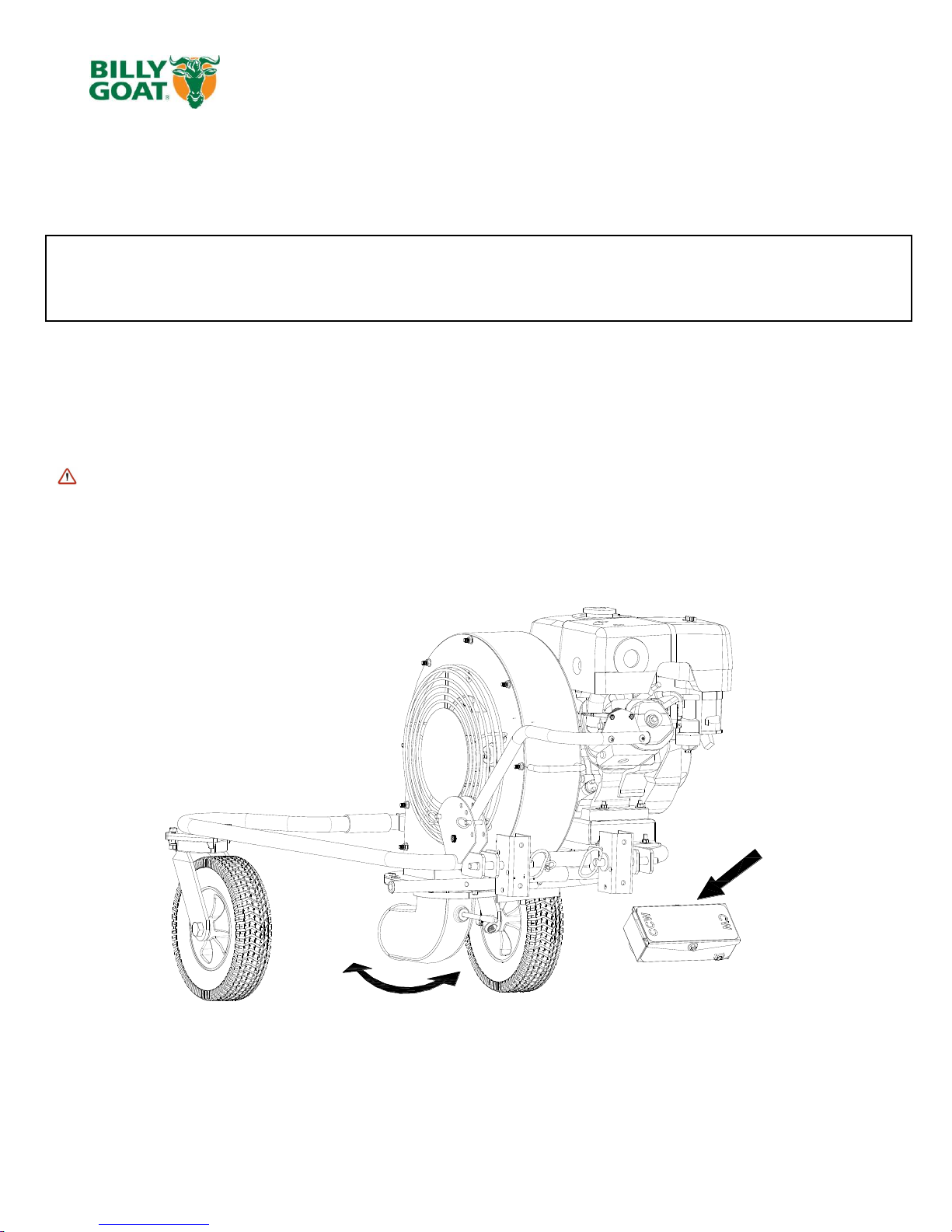

BLOWING OPERATION
Your Billy Goat Z Force blower is equipped with a motorized air director nozzle to allow the operator to direct the air
stream by rotating left or right as required to assist in moving debris. This feature is extremely useful when having to
move debris in various directions.
ADJUSTING AIR DIRECTOR
To change the air direction use the foot pedal switch to rotate the nozzle clockwise (CW) or counter-clockwise (CCW).
Use the red indicator as a visual guide to show which way the nozzle is pointing when out of view. Note: Switch must be
hooked up to battery in order to function.
DO NOT position exhaust nozzle to where it will blow debris towards people, vehicles or other objects in vicinity. Flying
debris may damage, harm, or cause injury to people or objects in air flow range.
Always make sure the kickstand is up before unit is put in motion to raise the kickstand pull out the pin and rotate the
kickstand up towards the blower. Locate the hole that holds it in the upwards position and re-insert the pin. Likewise,
before detaching the unit from the mower make sure the kickstand is down and locked in position.

Part No 442503 Form No F081512A
10
Z FORCE BLOWER Owner’s Manual
MAINTENANCE
PERIODIC MAINTENANCE
Periodic maintenance should be performed at the following intervals:
Maintenance Operation
Every
Use
Daily or Every
5 Hours
Every 25
Hours
Every 50
Hours
Every
100-150
Hours
Inspect for worn or damaged parts.

Check for excessive vibration

Grease Casters and Exhaust elbow

Inspect Impeller for cracks or damage

Inspect for loose parts.

IMPELLER REMOVAL
1. Wait for engine to cool and disconnect spark plug.
2. Remove housing front cover, by removing (11) nuts, items #49, around outside of front cover.
3. Remove impeller bolt (item #12), lock washer (item #8) and washer (item #38).
4. DO NOT pry on impeller. Pull on center hub area only of impeller. Using a penetrating oil can help loosen a stuck
impeller.
5. Reinstall new impeller in reverse order of removal using new hardware including the key.
6. Tighten impeller bolt. Torque impeller bolt (see parts list on page 13 for proper impeller bolt torque specifications).
When servicing engine refer to specific manufacturer’s engine owner's manual. Engine warranty is covered by the specific
engine manufacturer. If your engine requires warranty or other repair work, contact your local servicing engine dealer. When
contacting a dealer for service it is a good idea to have your engine model number available for reference (See table page 3). If
you cannot locate a servicing dealer in your area you can contact the manufacturer’s national service organization.
To reach:
American Honda: 800-426-7701
WARRANTY CLAIM PROCEDURE
Should a BILLY GOAT ®machine fail due to a defect in material and/or workmanship, the owner should make a warranty claim
as follows:
The machine must be taken to the dealer from whom it was purchased or to an authorized Servicing BILLY GOAT
Dealer.
The owner must present the remaining half of the Warranty Registration Card, or, if this is not available, the invoice or
receipt.
The Warranty Claim will be completed by the authorized BILLY GOAT Dealer and submitted to their respective BILLY
GOAT Distributor for their territory Attention: Service Manager. Any parts replaced under warranty must be tagged and
retained for 90 days. The model number and serial number of the unit must be stated in the Warranty Claim.
The distributor service manager will sign off on the claim and submit it to BILLY GOAT for consideration.
The Technical Service Department at BILLY GOAT will study the claim and may request parts to be returned for
examination. BILLY GOAT will notify their conclusions to the distributor service manager from whom the claim was
received.
The decision by the Technical Service Department at BILLY GOAT to approve or reject a Warranty Claim is final and
binding.
For online product registration go to www.billygoat.com

Part No 442503 Form No F081512A
11
Z FORCE BLOWER Owner’s Manual
TROUBLESHOOTING
Z FORCE WIRING DIAGRAM
Replace fuse with-
20 amp bus type fuse
Problem Possible Cause Solution
Abnormal vibration. · Loose or out of balance impeller. · Check impeller and replace if required.
· Debris in impeller.
· Clear debris with compressed air or a
backpack blower (see below pictures).*
· Loose engine. · Check engine.
Engine will not start. · Engine not in full choke position. · Check choke position.
· Out of gasoline or bad, old gasoline. · Check gasoline.
· Spark Plug wire disconnected. · Connect spark plug wire.
· Gas valve off. · Turn on gas valve.
· Dirty air cleaner.
· Clean or replace air cleaner. Contact a
qualified service person.
Engine is locked, will not pull
over.
· Engine problem.
· Contact an engine servicing dealer for
engine problems.
Exhaust elbow not rotating · Grease on elbow · Clean off excess grease on elbow
· Broken belt
· Replace belt
· Battery cable not connected or
Check battery connections
battery is dead · Charge or replace battery
· Belt off of motor pulley Put belt back on pulley
*Using compressed air, or a Backpack blower, you can
loosen or free debris easily from the impeller and housing,
debris can cause wear and tear on the machine. Note:
Always disconnect the sparkplug when servicing.

Part No 442503 Form No F081512A
12
Z FORCE BLOWER Owner’s Manual
ILLUSTRATED PARTS LIST

Part No 442503 Form No F081512A
13
Z FORCE BLOWER Owner’s Manual
PARTS LIST
Item No. Part No. Description Qty
37 8171004 WASHER 3/8" FC 1
38 440176 WASHER 1.5 OD X .453 ID X .5 THK 1
39 8041007 SCREWCAP 1/4"-20 X 1 1/4" HCS MED 4
40 8160002 NUT LOCK 5/16" - 18 HEX ZP 19
41 442243 CAP INDICATOR RED 1
42 442200 CASTER RIG 12" 2
43 8041051 SCREWCAP 3/8 - 16 X 1 1/4" HCS ZP 8
44 440268 LABEL LOGO FORCE 1
45 442604 SWITCH BOX TOP PLATE W/TREAD TAPE 1
46 8161041 NUT LOCK 5/16" TH HT HEX ZP 2
47 830514 SCREW MACH #10-24 X 1/2" 2
48 8164005 NUT LOCK #10 - 32 2
49 350346 NUT FLANGE 5/16" - 18 ZP 10
50 8160001 NUT LOCK 1/4 - 20 4
51 8041175 SCREWCAP 3/4 - 10 X 5 1/2" 2
52 8161006 NUT LOCK 3/4"-10 ZP 2
53 442213 HARNESS WIRE FZ BATTERY 1
54 442214 HARNESS WIRE ROTATOR SWITCH 1
55 360243 LANYARD PLASTIC 10" 1
56 442215 HARNESS WIRE CONTROL 1
57 890132 PLUG TUBE INSERT 1" OD 3
58 442204 SCREW BUTTON HEAD 5/16-18 X 1 1/4" 2
59 500282 STRAIN RELIEF 2
60 9201123 KEY 1/4" SQ X 2.25" 1
61 442103 SWITCH BOX WA 1
62 442401 TUBE KICK STAND 1
63 442241 STAND OFF NOZZLE FZ 4
64 520116 LABEL MADE IN USA 1
65 442105 STAND OFF ENGINE FZ WA 1
66 500119 BELT GATES TRUFLEX 1260 1
67 8041028 SCREWCAP 5/16" - 18 X 1 1/4" HEX ZP 4
68 442106 INDICATOR DIRECTION WA 1
69 442216 SPRING .578 OD X 3.16 LONG 2
70 791095 SWITCH ROTATOR 2
71 8041041 SCREWCAP 5/16 -18 X 4 1/2" 1
72 810656 LABEL THROTTLE CONTROL 1
Item No. Part No. Description Qty
1442501 LABEL LOGO FZ 1
2442500 LABEL WARNING FZ 1
3442600 FRAME WA FZ W/LABELS 1
4442203 JRCO BRACKET 2
5440018 ENGINE 13 HP HONDA 1
6442601 HOUSING WA FZ W/LABELS 1
7442602 IMPELLER ASSY FZ 1
88177012 WASHER LOCK 3/8" S/T MED 3
98177010 WASHER LOCK 1/4" S/T MED 3
10 8041057 SCREWCAP 3/8"-16 X 2 3/4" HCS ZP 2
11 8041050 SCREWCAP 3/8"-16 X 1" HCS ZP 2
12 442237 SCREWCAP 3/8"-24 X 3 1/4" GR. 8 HCS 1
TORQUE TO 38 +/- 2 ft. lbs.
13 442236 SCREWCAP 1/4"-28 X 3/4" 3
14 8041031 SCREWCAP 5/16" - 18 X 1 3/4" HCS ZP 6
15 442506 LABEL GAS SHUT OFF 1
16 360187 LABEL LIFT HERE 2
17 442605 ELBOW EXHAUST ASSY 1
18 810736 LABEL WARNING DEBRIS 1
19 440178 CABLE THROTTLE 31.5 1
20 900407 TY-WRAP 1
21 442603 PLATE FRONT WA FZ W/LABEL 1
22 442202 PIN HITCH 5/8" X 4 1/2" 2
23 442231 SPACER CRANK FZ13H 1
24 442247
WHEEL 12" X 3" RIM W/ 3/4" STEEL BEARING
2
25 442205 MOTOR 12V 1
26 442240 PULLEY 1.63" OD X 7/16" BORE 1
27 8083122 SET SCREW 1/4" - 20 X .375 CUP POINT 1
28 442400 THROTTLE STEM 1
29 500385 THROTTLE PLATE 1
30 440013 CONTROL THROTTLE 1
31 510130 PIN 3/8" X 1 1/2" DETENT 1
32 360284 BOLT SHOULDER 3/8" X 1" 1
33 8160003 NUT LOCK 3/8"-16 10
34 8171003 WASHER 5/16" FC 40
35 8171002 WASHER 1/4" FC 8
36 8171008 WASHER 3/4" FC 2

Part No 442503 Form No F081512A
14
Z FORCE BLOWER Owner’s Manual
MAINTENANCE RECORD
Date
Service Performed

Part No 442503 Form No F081512A
15
Z FORCE BLOWER Owner’s Manual
