Bion X RIDE+ User manual

Electric bicycle
Owner’s Manual
®

DEUTSCHNEDERLANDS
ENGLISH
This Electric bicycle manual is additional to themanual provided with your bicycle.
© 2013 Trek Bicycle Corporation. Allrights reserved.
No texts, details, or illustrations from this Manual may be reproduced or distributed,
or become thesubject of unauthorized use for commercial purposes. Additional manuals for using
theElectric bicycle may be ordered as separate items from Trek Bicycle.
Should you discover any errors, we would be grateful if you would bring them to our attention.
ENGLISH

EN-1
ENGLISH
Contents Page
Congratulations on your new electric bicycle! 2
1. Quick start 3
1.1 BionX G2 controller 3
1.2 RIDE+ Pro controller 4
1.3 RIDE+ Easy controller 5
1.4 RIDE+ Easy II controller 6
1.5 Charging 7
1.6 Rear rack battery packs (RIDE+ R250, RIDE+R320) 8
1.7 Downtube battery packs (RIDE+ C320, RIDE+ C420) 9
2.Description 10
2.1 Specific parts for the electric bicycle 10
2.2 Assistance/Regeneration 12

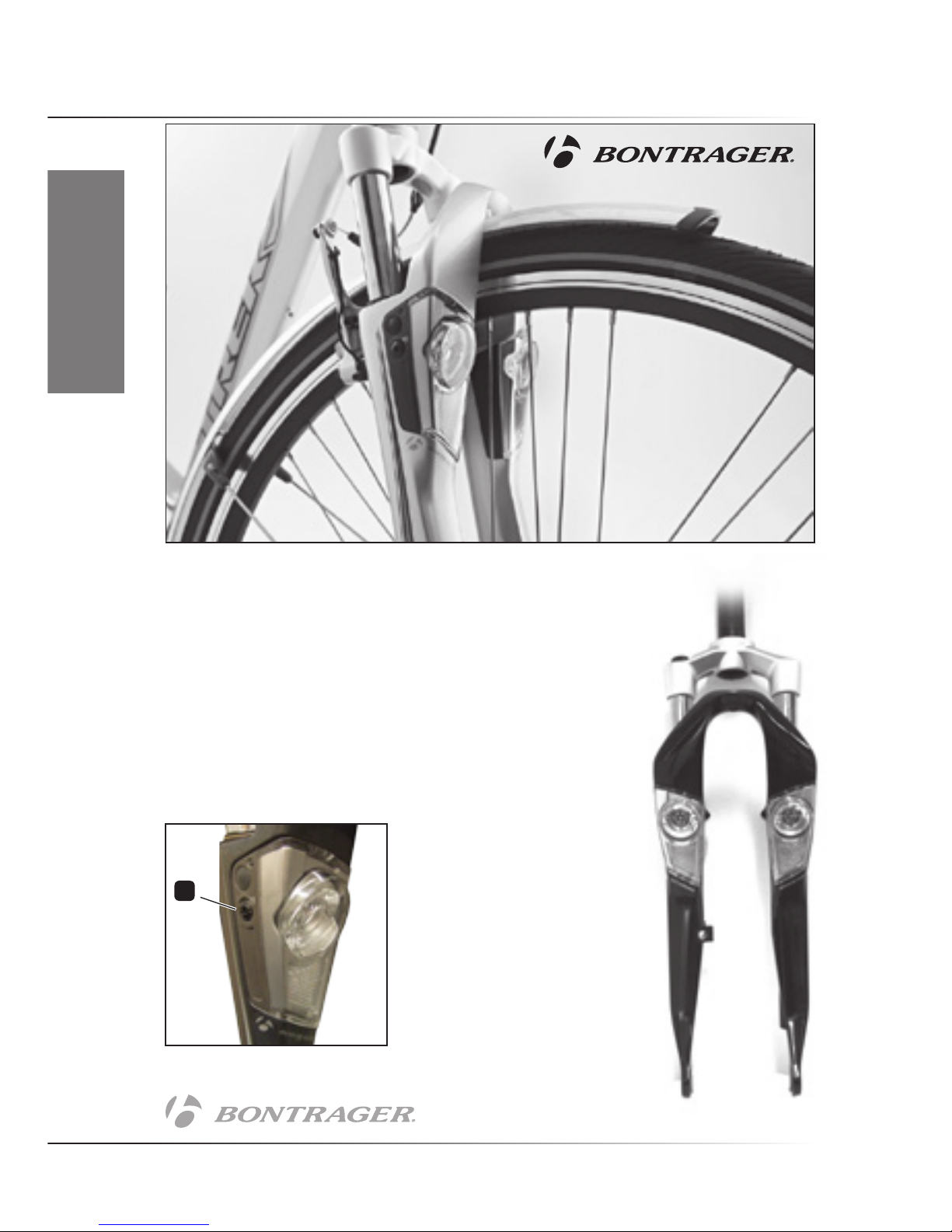

2.3 Bontrager Satellite Elite ForkLight 13
3.40 km/h ‘Fast Electric Bike’ 14
3.1 Legal rules 14
3.2 Dierences in equipment 14
3.3 Instructions for use 14
4.Instructions for Use 15

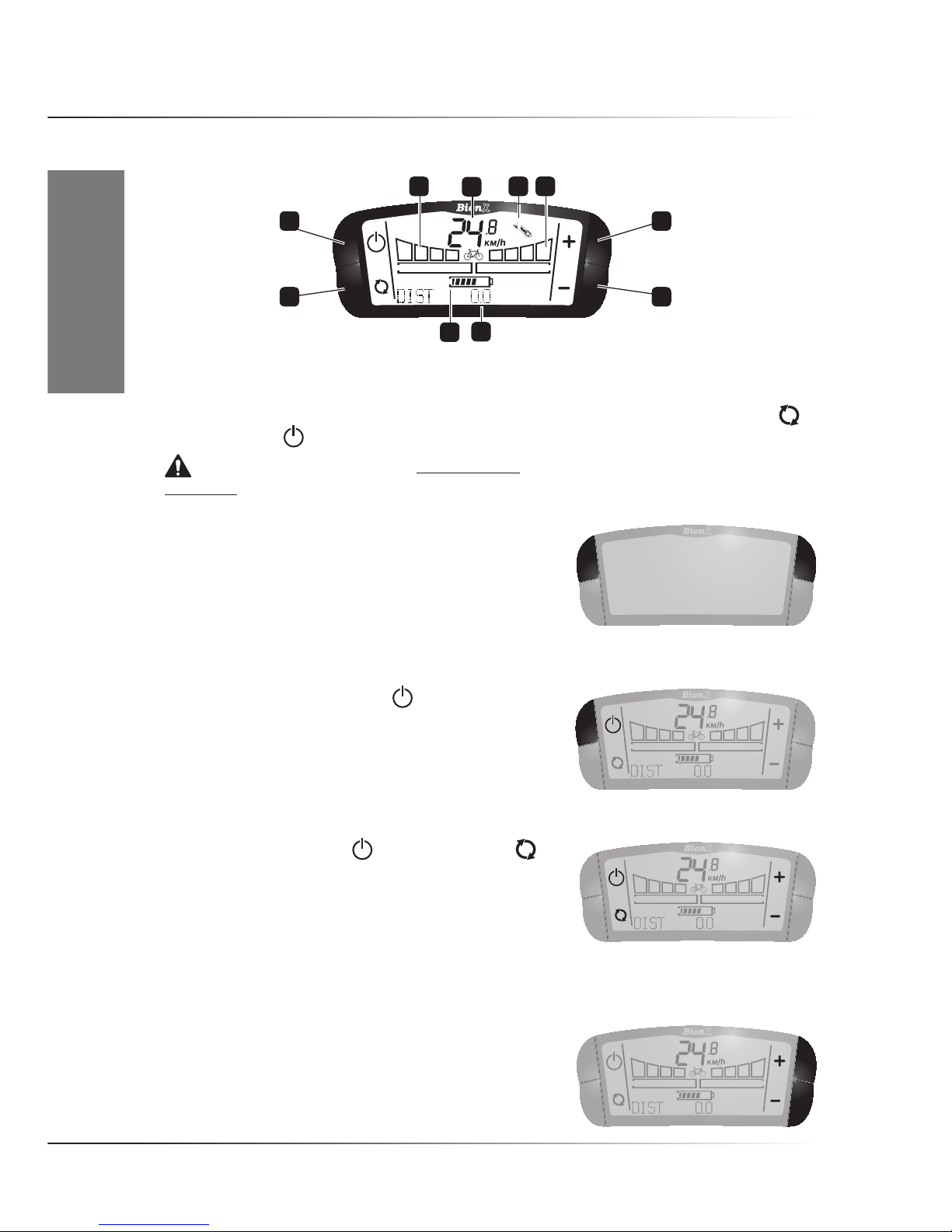

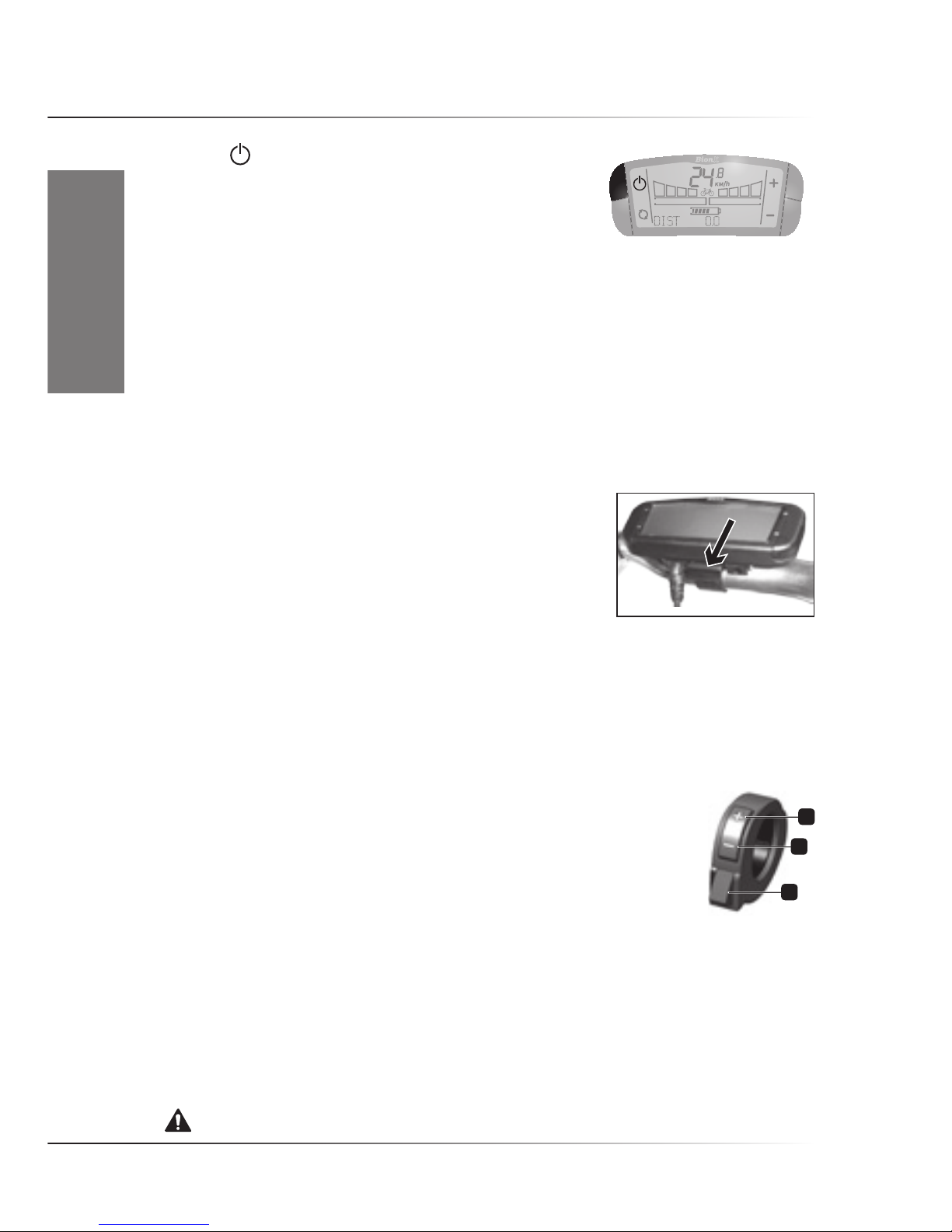

4.1 BionX G2 controller 15
4.2 RIDE+ Pro controller 18
4.3 RIDE+ Easy controller 21
4.4 RIDE+ Easy II controller 23
4.5 Rear rack battery packs 25
4.6 Downtube battery packs 26
4.7 Charging the battery pack 27
4.8 Battery pack care 29
4.9 Warnings and Suggestions for use 29
4.10 Programming (bikes with ‘BionX G2’ and ‘RIDE+ Pro’ controller only) 31
5.Maintenance 32
5.1 Cleaning 32
5.2 Removal and refitting of wheels for bikes with a rear wheel motor 32
5.3 Removal and refitting of wheels for bikes with a front wheel motor 33
6.Technical description 35
6.1 Bike specifics 35
6.2 Battery packs 35
6.3 Minimum and maximum temperatures for battery pack 35
6.4 Power supply 35
6.5 Compliance 35
7. Problem solving 36
7.1 Drive problems 36
7.2 Charging problems 36
7.3 Display problems 37
8. Limited warranty 37
9. Contact 38
Contents

EN-2
ENGLISH
Congratulations on your new electric bicycle!
Your electric bicycle is a bike with electric pedal assistance.
This means that you can pedal it as a normal bike, or that the bike can assist you in your pedaling.
The electric bicycle will assist you when you are pedaling. The amount of assistance depends on
the force you exert on the pedals.
RIDE+ bicycles come in two classes: Pedelecs and Fast Electric Bikes.
•Pedelecsassistuptoaspeedof25km/h.Thisclassislegallyconsideredabicycle,
•FastElectricBikesassistathigherspeeds.Thisclassislegallyconsideredalightweightmoped.
This manual covers the following bikes, both pedelecs and fast class
•Derailleur/RollerBrakes,
•Derailleur/Rim(Magura,V-brakes)ordiscbrakes,
•Internalgearhub/RollerBrakes,
•Internalgearhub/Rim(Magura,V-brakes)ordiscbrakes.
Theelectricbicyclediffersonlyslightlyfromanon-electricbike.
The following parts are specific to an electric bicycle
•Thebatterypackintherearrackoronthedowntube,
•Themotorintherear-orfrontwheelhub,
•Thecontrolleronthehandlebarsorontheclampinfrontofthehandlebars.
Congratulations

QuiCk start - BionX g2 Controller
EN-3
ENGLISH
1. Quick start
This manual has all the information that you’ll
need to get the best from your electric bicycle.
We strongly recommend that you read it through.
However, for quick use of the bike, please read
the Quick Start guide for the type of controller
and battery pack on your bicycle.

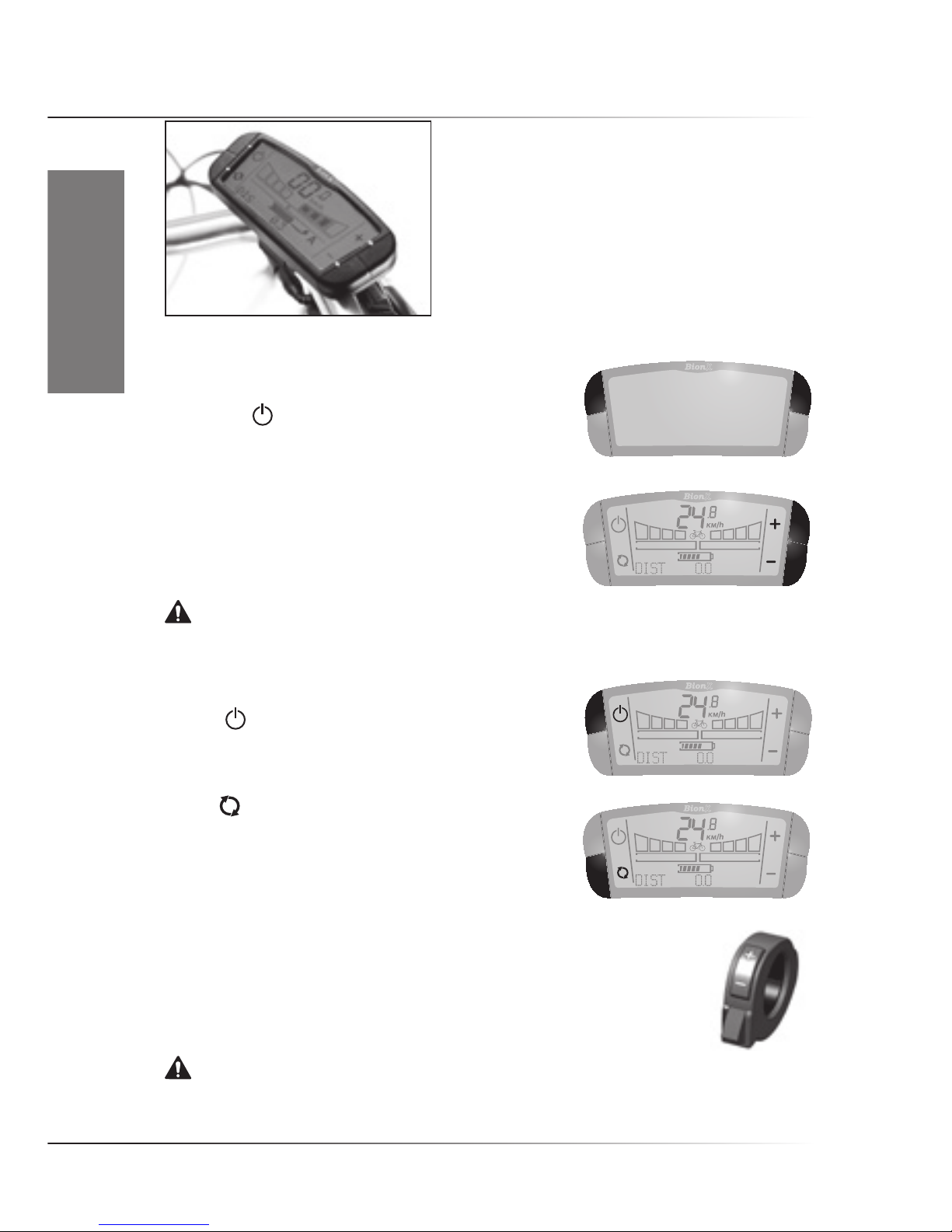

1.1 BionX G2 controller
• Switching system On/Off
Push any of the two upper buttons briefly to switch the system
‘On’. Push the button to switch the system Off. When switched
On,thebikeisincyclemode(zeroassist).
• Assistance/Regeneration Level
Push the ‘+’ button once for assistance level 1, again for
higherlevels.Pushthe‘-’buttontogotoalowerlevel.
Regeneration levels can be controlled in a similar way.
Pushthe‘-’buttononceforregenerationlevel1,againfora
higher level. Push the ‘+’ button to reduce regeneration.
Notice. It is strongly advised to ride away in a straight line
when an assistance level is selected. Never select assistance level 3 or 4 during maneuvering or riding
away in a tight corner. The powerful reaction of motor might take you unawares.
• Switching lights On/Off
Press the buttonfor2secondstoswitchOn/Offthedisplay
light, and, if present, the front and rear lights.
• See time, average speed, odometer, trip distance
Use the buttontochangeccomputerfunctions(Orderof
appearance: trip distance, odometer, average speed, time of
day).Topreventlossofridinginformation,pleasemakesure
that the system is switched Off before the controller is
removed from the bike.
• Using the remote
Some bikes have the controller positioned on a middle clamp, which means that
the controller can more easily be operated with a remote. This device can be used
to select a higher or lower assist or regeneration level without removing your hands
off the handlebars. The red throttle button on the BionX remote is a convenient
helptomovethebikewithoutpedaling(upto4km/h)walkingnexttotheE-bike.
Caution. Beware of unintended use of the throttle button when the system is switched On.

riDe+ Pro Controller - QuiCk start
EN-4
ENGLISH
1.2 RIDE+ Pro controller
• Switching system On/Off
Push any of the two upper buttons briefly to switch the system
‘On’. Push the button to switch the system Off.
WhenswitchedOn,thebikeisincyclemode(zeroassist).
• Assistance/Regeneration Level
Push the ‘+’ button once for assistance level 1, again
forhigherlevels.Pushthe‘-’buttontogotoalowerlevel.
Regeneration levels can be controlled in a similar way.
Pushthe‘-’buttononceforregenerationlevel1,againfor
a higher level. Push the ‘+’ button to reduce regeneration.
Notice. It is strongly advised to ride away in a straight line
when an assistance level is selected. Never select assistance level 3 or 4 during maneuvering or riding
away in a tight corner. The powerful reaction of motor might take you unawares.
• Switching lights On/Off
Press the buttonfor2secondstoswitchOn/Offthe
controller display light, and, if present, the front and rear
lights. Once activated, the text ‘Light On’ or ‘Light Off’ will
appear in the lower field of the display.
• See time, average speed, odometer, trip distance
Use buttontochangebikecomputerfunctions(Orderof
appearance:tripdistance,odometer,averagespeed,time).
To prevent loss of riding information, please make sure that
the system is switched Off before the controller is removed
from the bike.
• Using the RIDE+ Link
Mostbikeswiththe‘RIDE+Pro’controllerpositionedonthemiddleclampare
equipped(orcanbeequipped)withtheRIDE+Link.Thisdevicecanbeusedto
selectahigherorlowerassistorregenerationlevelandtoturnthelightsOn/Off
without removing your hands off the handlebars.The red throttle button on the
RIDE+Linkisaconvenienthelptomovethebikewithoutpedaling(upto4km/h)
walkingnexttotheE-bike.
Caution. Beware of unintended use of the throttle button when the system is switched On.

EN-5
ENGLISH

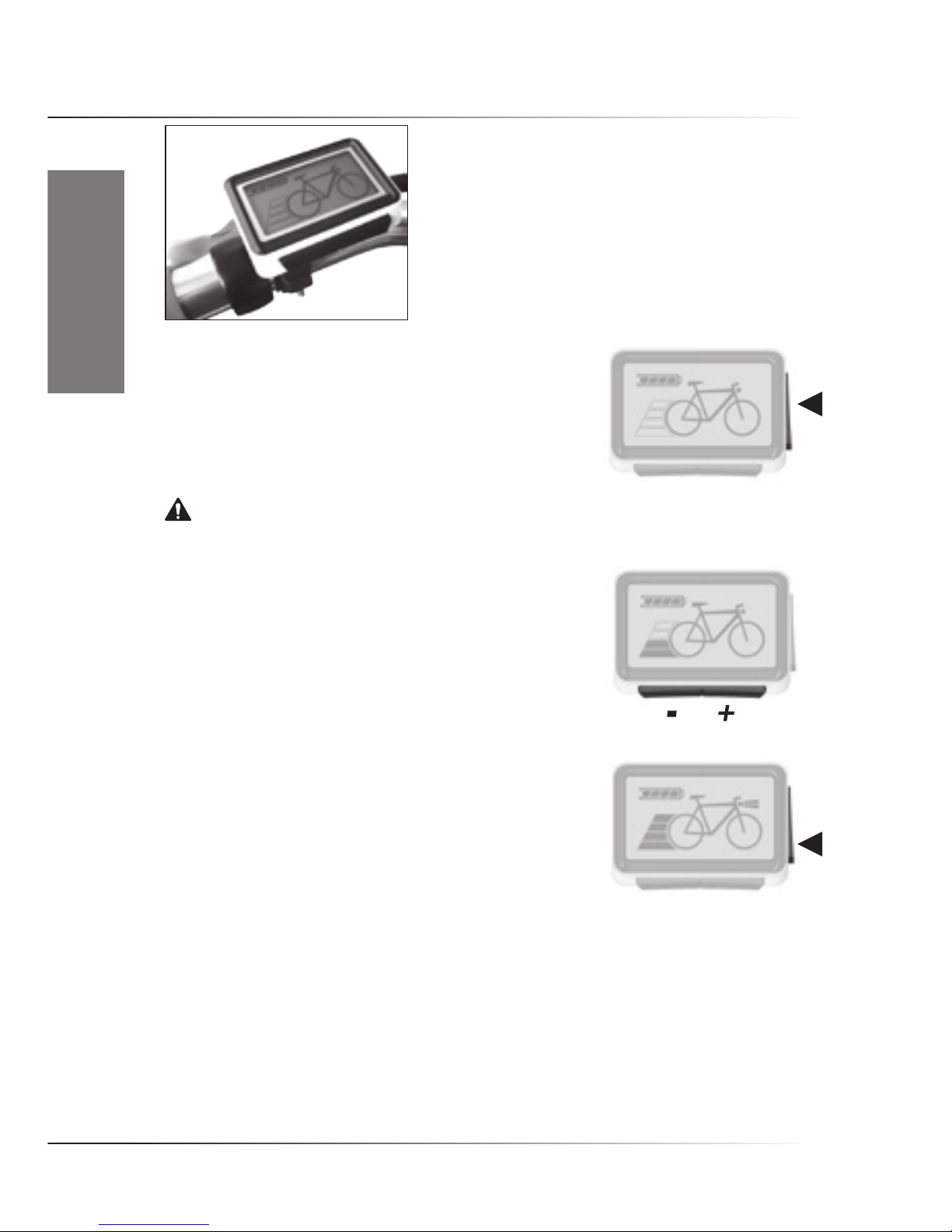

1.3 RIDE+ Easy controller
• Switching system On/Off
To switch the system On, push the ‘Side’ button once briefly .
To switch it Off, push the ‘Side’ button again.
AfterswitchingOn,thebikeisalwaysincyclemode(zeroassist).
Notice. It is strongly advised to ride away in a straight line when an assistance level is selected.
Never select assistance level 3 or 4 during maneuvering or riding away in a tight corner. The powerful
reaction of motor might take you unawares.
• Assistance/(Regeneration) Level
Forassistancelevel1,pushthe‘+’(right-hand)buttononce.
Pushitagainforhigherlevels.Pushthe‘-’(left-hand)buttontogo
to a lower level.
Only when the rear brake is pulled, the system switches to
regeneration mode, the two upper bars in the display will blink.
• Switching Lights On/Off
Pressthe‘Side’buttonfor2secondstoswitchOn/Offthe
controller display light, and if present, the front and rear lights.
Once activated, the light symbol will appear on the screen.
QuiCk start - riDe+ easy Controller

EN-6
ENGLISH
1.4 RIDE+ Easy II controller
• Switching system On/Off
To switch the system On, push the ‘Side’ button once briefly.
To switch it Off, push the ‘Side’ button again. After switching On,
thebikeisalwaysincyclemode(zeroassist).Topreventlossof
riding information, please make sure that the system is switched
Off before the controller is removed from the bike.
Notice. It is strongly advised to ride away in a straight line
when an assistance level is selected. Never select assistance level 3 or 4 during maneuvering or riding
away in a tight corner. The powerful reaction of motor might take you unawares.
• Assistance/Regeneration Level
Push the ‘+’ button once for assistance level 1, again for higher
levels.Pushthe‘-’buttontogotoalowerlevel.Regenerationlevels
can be controlled in a similar way. I n regeneration mode, the
arrowswillblink.Pushthe‘-’buttononceforregenerationlevel1,
again for a higher level. Push the ‘+’ button to reduce regeneration.
If the rear brake lever is pulled, the system will also switch to
regeneration mode, two arrows on the display will blink.
• Switching lights On /Off
Pressthe‘Side’buttonfor2secondstoswitchOn/Offthe
controller display light, and if present, the front and rear lights.
Once activated, the light symbol will appear on the screen.
• See total distance/trip distance
Push the ‘-’buttonfor5secondstoswitchbetweentotaldistance
and trip distance.
riDe+ easy ii Controller - QuiCk start

GREEN/ORANGE
GREEN/ORANGE GREEN/ORANGE
EN-7
ENGLISH

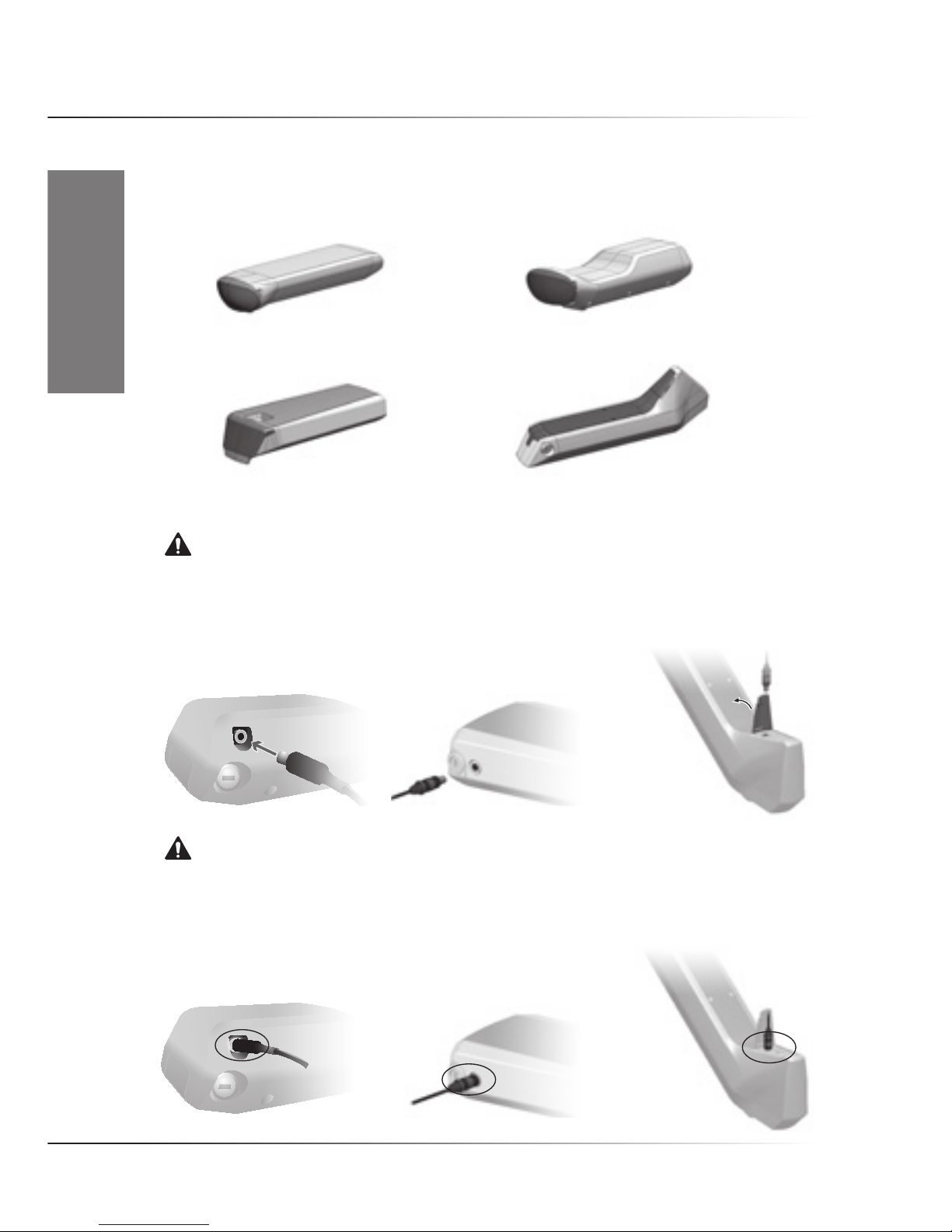

1.5 Charging
• Power supply
The charging process is the same for all battery pack types. They can be charged using the power
supply, on the bike or removed from the bike.
RIDE+ R250 RIDE+ R320
RIDE+ R320 RIDE+ C320 and RIDE+ C420
Attention. When not in use, charge a battery pack at least once every 3 months.
• Charging the battery pack
1. Turn the system Off.
2.Connecttheconnectorofthepowersupplytothechargingportof
the battery pack and connect the power supply to the power outlet.
Warning. Replace a damaged power cable immediately to prevent an electric shock.
3.The battery pack will emit beeps and then the charging port will turn orange. When the battery
pack is full, the charging port will turn green. To stop charging, just disconnect both connectors.
All battery packs with the yellow, round charging connector can also
be left on the power supply and will regularly recharge automatically.
QuiCk start - Charging

1. 2.
1. 2.
3. 4.
3. 4.
EN-8
ENGLISH

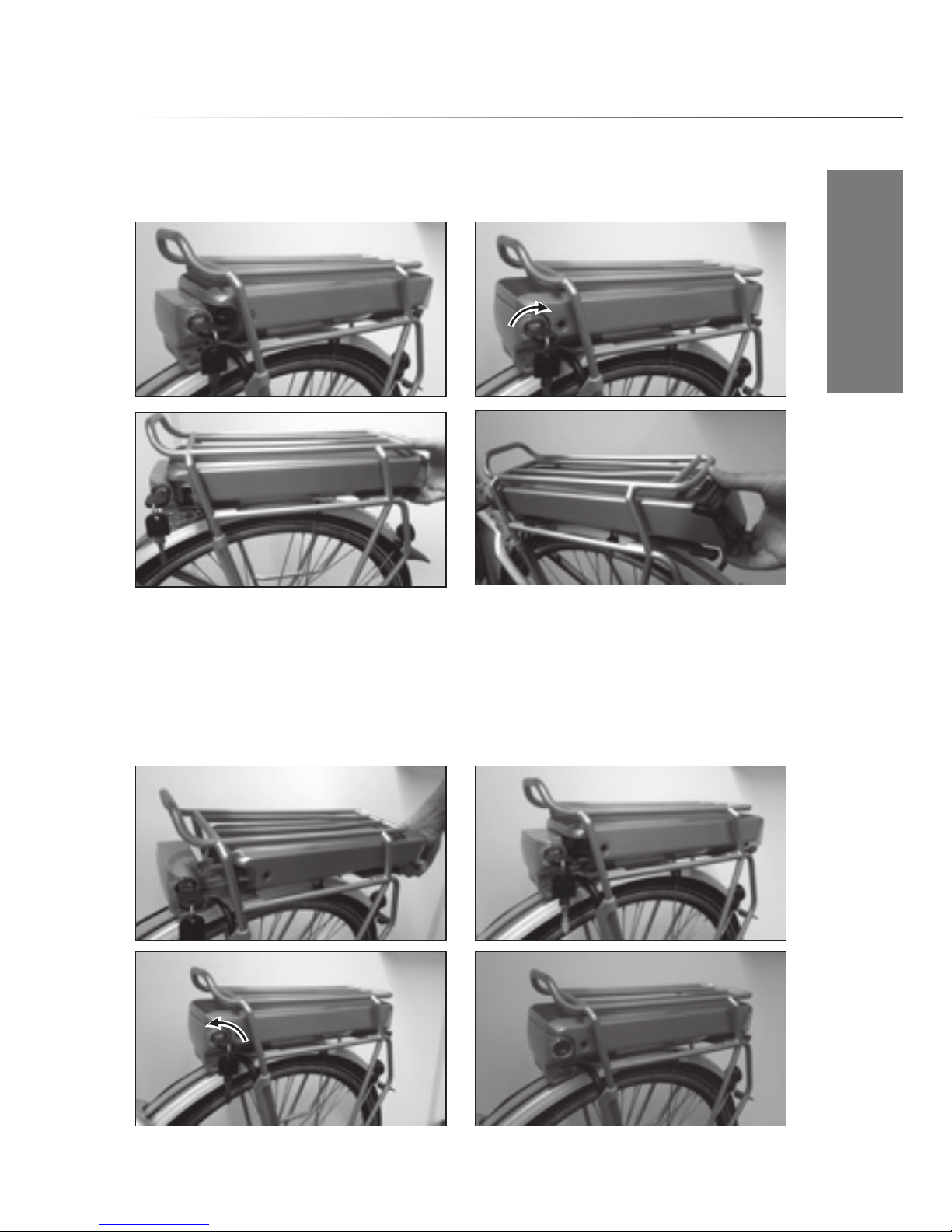

1.6 Rear rack battery packs (RIDE+ R250, RIDE+R320)
• Removing the battery pack
Insertthekeyinthelock,twistthekeyclockwise(1,2).Nowslidethebatterypackrearwardsoutof
therearrack(3,4).Afteryouremovethebatterypack,don’tforgettotakethekeysoutofthelock.
• Placing the battery pack
Slidethebatterypackintotherack,electrical-contactsidefirst(1).Carefullypushalltheway
forward,alsothroughaslightlyhigherresistanceattheend(2,3).Nowturnthekeyofthelock
counterclockwiseuntilthebatterypackislockedandtakethekeyoutofthelock(4).
Do not ride the bike with the lock open.
rear raCk Battery PaCks - QuiCk start

Contacts at the bottom side of the down tube
1. 2. 3.
5.4.
1. 2.
3. 4.
EN-9
ENGLISH
QuiCk start - DowntuBe Battery PaCks

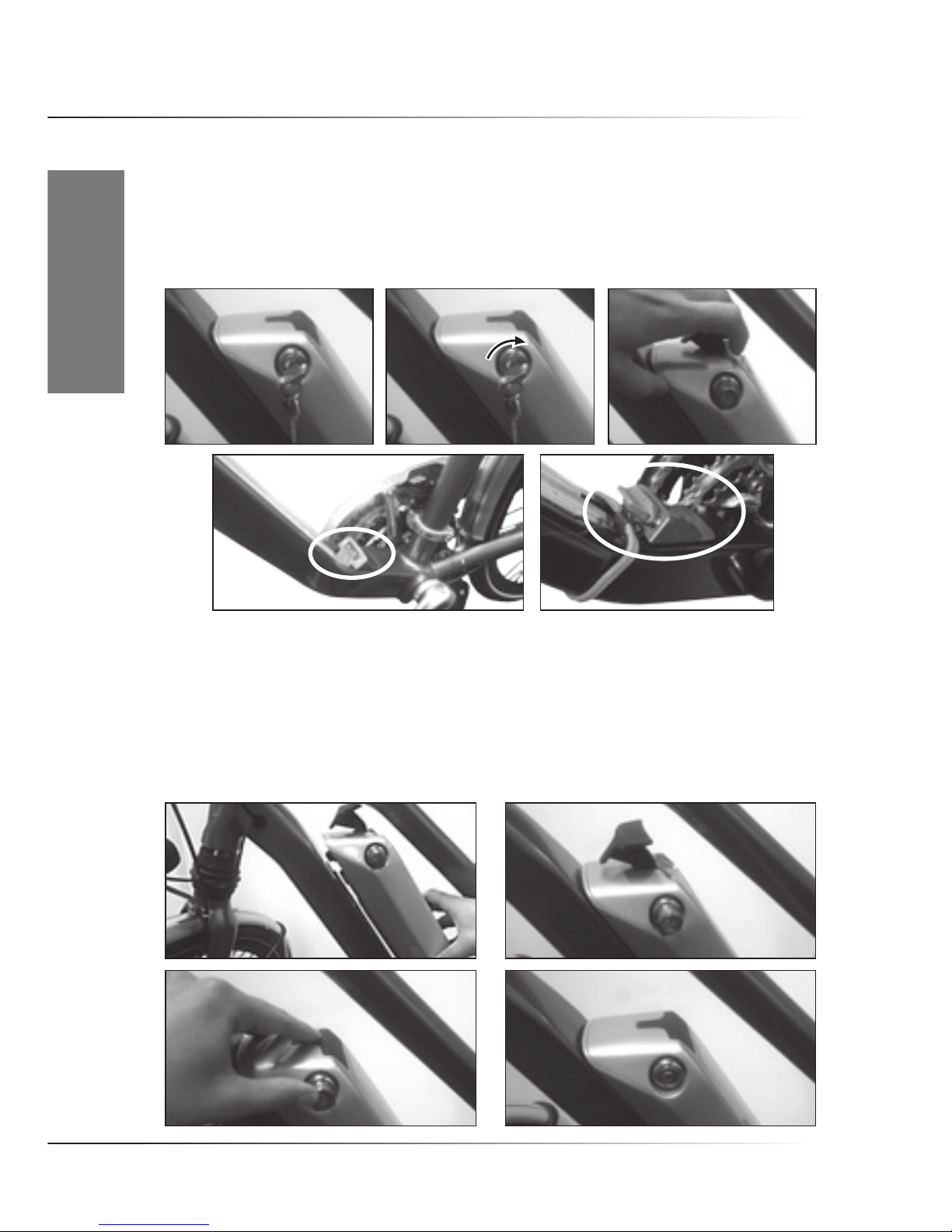

1.7 Downtube battery packs (RIDE+ C320, RIDE+ C420)
• Removing the battery pack
Insertthekeyinthelock,twistthekeyclockwiseuntilthelockspringsout(1,2).Whenthelock
springsout,theleverofthebatterypackwillbereleased.Nowtakethekeyfromthelockandpull
theleverofthebatterypacksothatitslidesupwards-paralleltothedowntube-untilitreleases
fromtherail(3).Whenthebatterypackisnotonthebike,alwaysusetheprotectivecoveronthe
contactsontheframetoprotecttheelectricalsystemfromwater(5).
• Placing the battery pack
Positionthebatteryoverthedowntube(withsomespacebetweentheseattubeandthelowerend
ofthebatterypack,1).Now,slidethebatterypackdownontotherail(2).Usethelevertolower
thebatterypackcarefullyduringthelastphaseofsliding,sothattheconnectorsengage(3).
Be sure that the connector at the bottom of the battery pack and the connector on the docking
engageproperly.Whenthebatterypackisfullyinplace,pushthelockinuntilitclicks(4).
Do not ride the bike with the lock open.

1 3
5
2
1
3
5
4
4
2 2 3 4
1
1
3 52 4 6
2
EN-10
ENGLISH
2. Description
2.1 Specific parts for the electric bicycle
There are several models of electric bicycles, with different equipment options. Find the options
thatareonyourelectricbicycle.Inthepicturesofthebikesyouwillfindthebatterypack(1),the
motor‘frontorrear’(2),thecontroller(3),thebrakeswitch(4),andthewiringharness(5).
• Battery packs
There are four types of battery packs for RIDE+ bicycles:
1.”RIDE+R250”batterypack,containing30Li-Mn(Lithium-Ion)cells,4.8Ah,250Wh.
2.”RIDE+R320”batterypack,containing39Li-Mn(Lithium-Ion)cells,6.6Ah,320Wh.
3.”RIDE+C320”batterypack,containing39Li-Mn(Lithium-Ion)cells,6.6Ah,320Wh.
4.”RIDE+C420”batterypack,containing52Li-Mn(Lithium-Ion)cells,8.8Ah,420Wh.
• Motor configurations
1.250WRIDE+Rearmotor,derailleurandRollerBrakes.
2.250WRIDE+Rearmotor,derailleuranddiscbrakesorrimbrakes(MaguraorV-brakes).
3.250WRIDE+RearSLmotor(lightweight),derailleurandRollerBrakes.
4.250WRIDE+RearSLmotor(lightweight),derailleuranddiscbrakesorrimbrakes(Maguraor
V-brakes).
5.250WRIDE+Frontmotor,InternalgearhubandRollerBrakes.
6.250WRIDE+Frontmotor,Internalgearhubandrimbrakes(MaguraorV-brakes).
DesCriPtion

1
1 2
2 3 4
EN-11
ENGLISH
Description

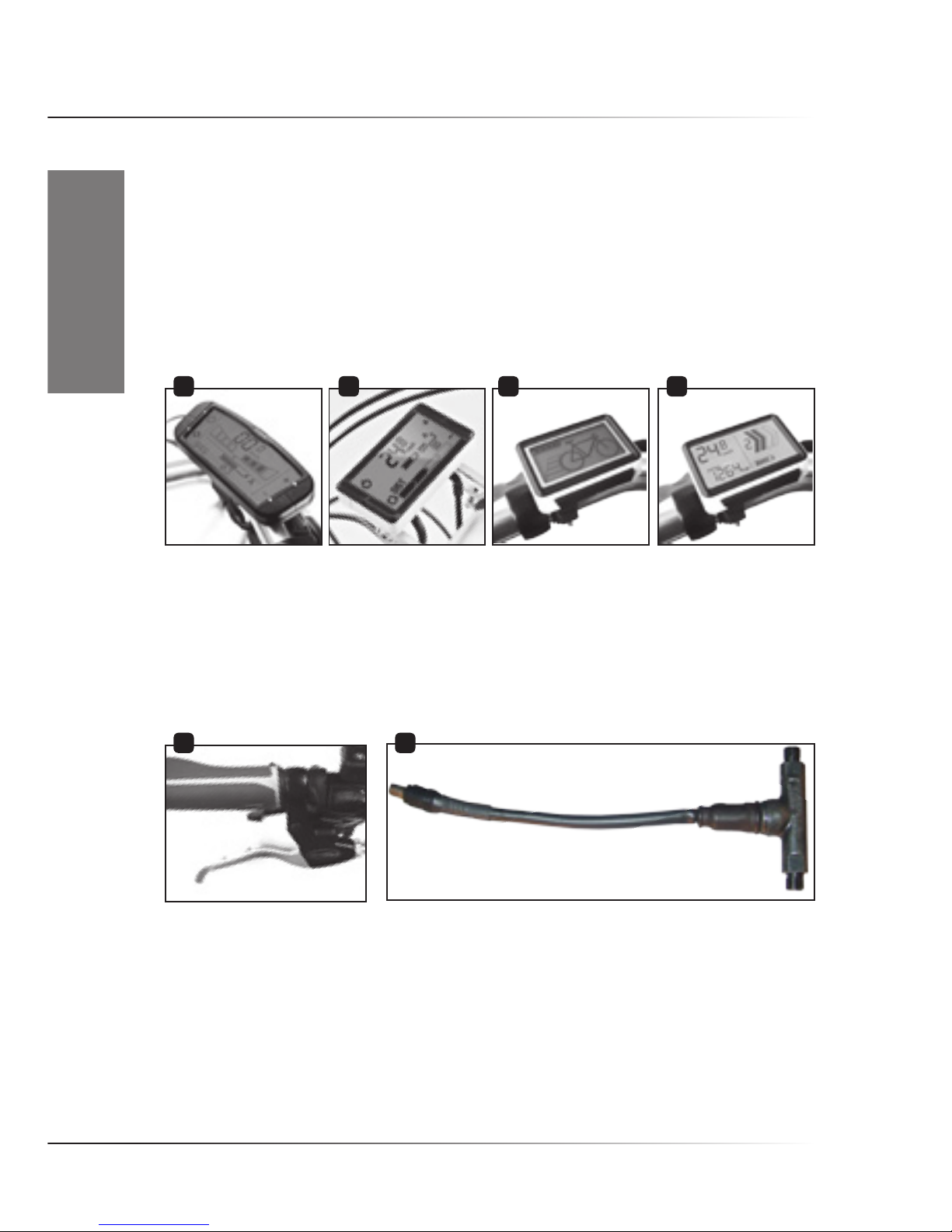

• Controllers
1. BionX G2 controller:controlsallfunctions:On/Off,thefourassistlevels,thefourregenerative
levelsandlightsOn/Off.Italsofunctionsasabicyclecomputer,measuringspeedanddistance,
and shows the battery charge level.
2.RIDE+ Pro controller:controlsallfunctions:On/Off,thefourassistlevels,thefourregenerative
levelsandlightsOn/Off.Italsofunctionsasabicyclecomputer,measuringspeedanddistance,
and shows the battery charge level. All the information can be provided in different languages
(see‘programming’)
3.RIDE+ Easy controller:controlsallfunctions:On/Off,thefourassistlevels,andLightsOn/Off.
4.RIDE+ Easy II controller:controlsallfunctions:On/Off,thefourassistlevels,LightsOn/Off,and
trip and total distance.
• Brake Switches
1.Theright-handbrakeleverofcable-activatedbrakescontainsaswitchthatcutsoffthepowerto
themotor,andswitchesthemotortogenerationmodeassoonastheright-handbrakeleveris
pulled.
2.Onbikeswithhydraulicbrakes(Magura),theswitchisalsolocatedintheright-handbrakelever,
ora(similar)switchisplacedinthehydraulicbrakeline(discbrakes).
• Wiring Harness
The wiring harness links controller, brake switch, battery pack and motor. It runs through the frame
and is linked to the battery pack via the docking station in the rear rack or via the docking station
on the down tube.

EN-12
ENGLISH
assistanCe – regeneration
2.2 Assistance/Regeneration
ThesystemswiththeBionX‘G2’controller,‘RIDE+Pro’controller,‘RIDE+EasyI’controllerand
‘RIDE+ Easy II’ controller have four levels of assistance. When the system is set to assistance,
the electric motor drives the rear wheel and assists you in your pedaling.
Additionally,thesystemswiththeBionX‘G2’controller,the‘RIDE+Pro’controllerandtheEasyII
controller have four levels of regeneration. The systems with the ‘RIDE+ Easy I’ controller do not
have regenerating by default. On systems with this controller, regenerating can be activated by the
dealer. When the system is set to regeneration, the electric motor is used as a dynamo and
generates electricity for charging the battery pack. Going downhill, you can reduce your speed by
regulating the amount level of regeneration as the created resistance acts as a motor brake.
Though, that generation mode is not a substitute for using brakes to control speed or stop.
The tables below give an indication of the effort that is compensated in the different assistance and
regeneration levels. The real percentages of compensated effort depend on the software settings of
the bike.
Assistance
Effort
Compensation
with Batt. R320,
C320 and C420
Effort
Compensation
with Batt. R250
Recharge Situation
125% 25% Flat ground
250% 50% Uphill slopes, headwind
3100% 80% Hill, strong headwind
4200% 150% Verysteephill
Regenerative
braking Recharge Verysteepdescent,
braking
Regeneration
Effort
Compensation
with Batt. R320,
C320 and C420s
Effort
Compensation
with Batt. R250
Recharge Situation
-1 -25% -25% Recharge Milddownhill,tailwind
-2 -50% -50% Recharge Downhill, tailwind
-3 -100% -100% Recharge Descent
-4 -200% -200% Recharge Steep descent

C
EN-13
ENGLISH
2.3 Bontrager Satellite Elite ForkLight*
The Bontrager Satellite Elite ForkLight comes in a RIDE+ and
non-RIDE+version.TheRIDE+versioncanbeoperatedviathe
controller on the handlebar. The energy that is needed to power the
RIDE+ lights comes from the battery pack. Both lights always work
simultaneously.
*Depending on model.
• Adjusting the beams
The height of the beams can be adjusted by turning knobs ‘C’(onboth
sidesofthefork).Bothbeamscanbeadjustedindependentlyby
turning knob ‘C’ with a
cross-headedscrewdriver.Both
beams at the same anlge gives
best performance.
Bontrager satellite elite Forklight*

EN-14
ENGLISH
40 km/h‘Fast eleCtriC Bike’
3. 40 km/h ‘Fast Electric Bike’*
The’40km/hfastelectricbike’isanelectricbicycleofwhichtheassistancedoesnotstopat
25km/hbutat40km/h.Thishigherassistspeedmakesittheperfectelectricbicycleforpeople
wholikeridingfasterthan25km/h.Note,though,thattheactualmaximumspeedthatyoucan
reach depends first and foremost on how strongly you pedal.
*Note: ‘Fast’ E-bicycles are only available in Germany, Austria and Switzerland.
3.1 Legal rules
Legally,the40km/hfastelectricbikeisnolongerconsideredbeinga‘bicycle’buta‘lightweight
moped’. It has type approval as such.
NOTE. For these bicycles third party insurance is mandatory.
In most countries, wearing a helmet is not mandatory. However, we strongly recommend to always
wear a helmet for your own safety.
Since40km/helectricbicyclesarelegallyconsideredtobelightweightmopeds,theydohave
athrottle,whichallowsridingthemupto20km/husingmotorpoweronly.Thismeans,thatup
to20km/hyourbikecanbeusedasanE-Bike,ratherthanasaPedelec.Abovethatspeed,
themotorwillassistpedalinguptoaspeedof40km/h.
Important. The maximum power of the motor on your bicycle is limited to 250 W.
Your 40 km/h electric bicycle is still a bicycle. It is therefore not recommended that you use it as a
moped or an E-bike without pedaling. Using battery power only will strongly limit your range.
3.2 Dierences in equipment
Thetechnicalequipmentofthese40km/hbikesisalmostidenticaltothatonPedelecs.
Thefollowingpartsareadditionaland/ordifferent:
•Rearviewmirror,
•Insuranceplateholder,
•Throttleonthecontroller,
•Extrareflectors,
•Slightlydifferentbrakelevers,
•Type-approvalplateontheframe.
Important: These are all part of the type approval. It is not allowed to remove or exchange them
for other (non-certified) equipment. This also applies to the handlebars, tires, seat post,
headlight, rear light, brakes, kickstand and controller.
3.3 Instructions for use
RidingisthesameasthePedelecbikes,exceptthattheassistancedoesnotstopat25km/h
butat40km/h.
Ride carefully. Other road users may not expect a bicycle to go this fast.
Maximum range on one battery charge depends very much on your style of use. Due to the higher
speed that can be reached, be prepared to find the range slightly shorter than on regular Pedelec
bikes that have a maximum assistance speed of 25 km/h.

9
9
310 1
76
4
5
2
EN-15
ENGLISH
instruCtions For use
4. Instructions for Use
There are four types of controllers: BionX ‘G2’, ‘RIDE+ Pro’, ‘RIDE+ Easy’ and ‘RIDE+ Easy II’.
4.1 BionX ‘G2’ controller
1•Speedindication2•ServiceIndication*3•Currentassistancelevel4•On/‘+’button5•‘-’ Button
6•Distance,Odometer,Chronometer,Averagespeed7•Batterychargelevel8•Mode-switch
button9•On/Off button10•Currentgenerationlevel.
*Warning. If the Service Indication (a steady or blinking wrench symbol) is visible on the display, refer
immediately to paragraph 7.1 for instructions.
• Switching system On/Off
Press any of the two top buttons briefly to switch the system
On. The battery pack will beep four times, the system will
performashortself-check(shownonthedisplayasa
countdowninthe‘speed’-field),andthesystemwillactivate
(switchto‘On’).Assoonasthesystemis‘On’,thescreenwill
display and each function will be shown next to its corresponding button.
To switch the system Off, press the button. The battery
packwillbeepfivetimes.Ridingwiththesystem‘On’inlevel0
is the same as riding with the system ‘Off’. If the bike is left
with the system On, it will automatically switch Off after
about10minutes.
• Changing the position of the buttons
Normally,theOn/Offbutton andthemode-switch
buttonareontheright,andthe‘+’and‘-’buttonsontheleft.
Thefunctionalityofthebuttonscanbeswappedright-to-left.
The code to access this is 2009.Moreinformationabout
programming via the controller can be found later in this
manual.
• Assistance
When the motor provides power, the bicycle is in assistance
mode. There are four levels of assistance. The level of
assistance is shown by the bar graph on the right, below the
digits for speed. The narrow graph on the display shows the
amount of energy delivered to the motor.

1
3
2
4
1
3
2
4
EN-16
ENGLISH
instruCtions For use
To increase assistance, press button ‘+’. For assistance level 1, press once. Press again for more
assistance.Forlessassistancepressbutton‘-’.Whenthereisnoassistancelevelshownandthe
bicycle icon is visible on the screen, there is no assistance. Pedaling is then the same as on a normal
bicycle. To switch from any level of regeneration to the first assist level, press and hold the ‘+‘ button.
Notice. It is strongly advised to ride away in a straight line when an assistance level is selected.
Never select assistance level 3 or 4 during maneuvering or riding away in a tight corner. The powerful
reaction of motor might take you unawares.
• Regeneration
When the bicycle generates electricity for the battery, the system is in generation mode. The motor
then works as a dynamo. There are four levels of regeneration. The level of assistance is shown by
the bar graph on the left, below the digits for speed. The narrow graph on the display shows the
amount of energy delivered to the battery.
Toincreasetheregenerationlevel,pressbutton‘-’.Forregenerativelevel1pressonce.Pressagain
to increase the regeneration level to a higher level. For a lower regeneration level press button ‘+’.
Toswitchfromanylevelofassistancetothefirstregenerativelevel,pressandholdthe‘-’button.
When the rear brake lever is pulled, the system always switches to generating. The arrow and ‘G’
will show in the display.
• Distance, Odometer, Chronometer, Average speed
The bottom of the display shows distance, odometer, chronometer, and average speed. Press the
button to switch modes. To reset distance, chronometer, or average speed, keep this button
pressedfor2seconds.

1
2
3
EN-17
ENGLISH
instruCtions For use
• Switching lights On/Off
Press the buttonfor2secondstoswitchOn/Offthecontroller
display light, and, if present, the front and rear lights. This switches
on the front light, the rear light, and the backlight in the display.
The lights will stay On even when you stop. To switch the lights Off,
holdthebuttonfor2seconds.Evenwhenthebatterygaugeshows
‘empty’, there is enough energy to run the lights for about two hours. If the battery pack is fully
drained, the lights will be powered by the system as it switches to generative mode automatically.
• Mountain mode
The“MountainMode”allowsforlongeruphillridingbeforethemotorshowspowerreductiondue
toso-called“temperature-derating”.As“MountainMode”limitsthemaximummotortorquethe
motorwillstaycoolerforalongerperiodoftime.Selectthisoptionbygoingtoassistancelevel4
andthenpress-and-holdthe‘+’buttonfor2seconds.Toreturntoassistancelevel4,pressthe‘-‘
button once.
• Removing and installing the BionX G2 controller
ToremovetheBionXG2controllerfromthebike,pressthecatchat
the back of the holder and slide the controller off towards the rear.
ToinstalltheBionXG2controllerontothehandlebar,alignthe
controller with its clamp and slide the controller forward until it
clicks. To prevent loss of riding information, please make sure that
the system is switched Off before the controller is removed from the
bike.
• Unintended removal of controller out of its dock
Ifthecontrollerismovedoffitsclampwhilethesystemisactive(‘On’),thesystemwillnolonger
assist, even when the controller is replaced into its clamp. Please select the correct level of
assistance again to reactivate the system.
• Using the BionX remote
MostbikeswiththeBionXG2controllerpositionedonthemiddleclampare
equipped(orcanbeequipped)withtheBionXremote.Thisdeviceismounted
either the right or left side of the handlebar and can be used to regulate the
following functions without moving your hands off the handlebar:
1. ‘+’ button Increaseassistlevel(ordecreaseregenerationlevel)
2. ‘-‘ button Decreaseassistlevel(orincreaseregenerationlevel)
3. Throttle button For Pedelecs: walkassistupto3or6km/h(pedalingnotneeded)
For fast E-bikes:assistupto25km/h(pedalingnotneeded)
• Installation of the BionX remote for non-equipped bikes
To connect the BionX remote to the system, the remote connector can be plugged into the receiver
connector of the controller docking. After that, the brake generator connector can be plugged into
the remote connector. The red throttle button on the BionX remote is a convenient help to move
thebikewithoutpedaling(upto4km/h)walkingnexttotheE-bike.
Caution. Beware of unintended use of the throttle button when the system is switched On.
