Biospace InBody170 User manual

InBody170 USER’S MANUAL
Thank you for purchasing the InBody170.
Please read manual prior to use and operate with care. Make sure to keep this manual for future reference.

.
ⓒ 1996- Biospace Co., Ltd. All rights reserved.
Notice
This user’s manual cannot be copied, translated or transformed into different media without
a prior written consent from Biospace Co., Ltd, according to the copyright laws. This user’s
manual and product pertinent to this manual may have misprints or technical flaws, which
can be modified without prior notice to the readers. Biospace is not liable for any damage
caused by a failure to meet the requirements in this user’s manual.
Biospace Co., Ltd. [Head office]
518-10 Dogok 2- dong, Gangnam-gu, Seoul 135-854 KOREA
TEL : [phone] FAX : [phone]
Homepage : http://www.inbody.com
E-mail : [e-mail]
Acknowledgements
Biospace, InBody, Lookin’ Body are the registered trademarks of Biospace Co., Ltd.
The names of the companies and products in this manual other than those of Biospace Co.,
Ltd. are the trademarks of the companies. Stating the products of other companies is strictly
for the purpose of providing information, and not to guarantee or recommend the products.
Biospace is not responsible for the performance or the use of those products.
Biospace reserves the right to modify the dimensions or exterior of the InBody170 to
improve the quality of the product, without consent of the customer.
BM-ENG1-C0-B-120903

Introducing the InBody170 - BODY COMPOSITION ANALYZER
Body Composition consists of 4 major components: Water, Protein, Minerals and Fat. These
four elements are the fundamental ingredients the body is comprised of, and it is important
for them to be in balance. Body composition analysis is expected to quantify and measure
these ingredients.
Until recently, diagnosing obesity has focused on appearance, without considering a
balanced body composition. For more reasonable health care, accurate body composition
analysis must be performed first, to achieve the balance of the four major body components.
Biospace has earned recognition in the international market for technical expertise
demonstrated through the InBody series. Based on the experience and technology over the
last 15 years, Biospace has released the body composition analyzer, the InBody170 .
With direct segmental measurement, the InBody170 guarantees high accuracy and
reproducibility. The InBody170 yields accurate results unique to the individual, regardless of
empirical estimations and reliably evaluates the effectiveness of diet control and exercise
prescription.
Biospace is committed to providing advanced equipment to promote good health and a long
life.
Kichul Cha, CEO

Contents
How to use this manual Ⅱ
Safety Information Ⅲ
Indicators & Safety Symbols Ⅶ
Workplace Requirements Ⅷ
Chapter 1 Installation & Maintenance
1. Contents of the Box 1
2. Exterior & Functions 2
3. Installation Instructions 8
4. Transportation 11
5. Repacking 12
6. Maintenance 14
Chapter 2 Management &Results Description
1. Cautions before Measurement 15
2. Function of Keypad 16
3. Home Screen 17
4. Personal Profile 18
5. Proper Posture 19
6. How to Measure 20
7. Results 23
Chapter 3 Setup Establishment
1. Setup 32
2. Setup Menu 34
Chapter 4 Problems & Solutions
1. Error Messages 38
2. Troubleshooting 39
3. Frequently Asked Question (FAQs) 41
Chapter 5 Consumables
1. Consumables 43
2. Options 44
Appendix
1. More about the InBody170 47
2. Specifications 50
3. Customer Service Information 51

II
How to use this manual
This user’s manual explains the functions of the InBody170.
Follow the instructions below for effective use.
1. Please read this manual thoroughly prior to InBody170 operation.
2. Take a few moments to review the manual of this product in order to understand
configuration.
3. If you have clinical issues while using the InBody170, please contact Biospace customer
service.
E-mail : [e-mail] TEL: [phone]
4. Read symbols carefully. The following represents these symbols.
Important information to warn of situations which might cause major injury and/or damage to property
if instructions are not carefully followed.
Important information to warn of situations which might cause minor injury and/or damage to property
if instructions are not carefully followed.
Important and helpful information for operation.

III
Safety Information
1. Do not use this equipment in combination with the following electronic medical devices.
- Medical devices, such as a pacemaker
- Electronic life support systems, such as an artificial heart/lung
- Portable electronic medical devices, such as an electrocardiograph.
2. This product should always be placed on the ground and plugged
into a secure electrical outlet.
3. Physically disabled persons or children should receive assistance when measuring on
the InBody170 in order to obtain accurate results and avoid injury.
4. Do not insert and remove the power cord with wet hands.
5. Do not jump or apply severe shock to the foot plate, this may cause incorrect
measurement or malfunction
6. To prevent damage, please use a socket connected to appropriate power supply(100-
240VAC). If the socket has several terminals, a socket or extension cable with enough
electric capacity should be used.
7. To avoid electric shock, be sure to avoid contact between this product and other devices.
8. Use caution when raising the stand body of the equipment to avoid injury. When the
body stand is raised, do not touch the joint part by hand or with any other part of the body.
There is a danger of such hand or part of the body getting jammed in between the joints.

IV
9. Do not dismantle the equipment or open the back cover. Internal parts are not for
customer use. If the equipment is dismantled, the warranty is void, and service costs will
be charged. If service is required, contact Biospace or the supplying agency.
10. Follow local governing ordinances and recycling plans regarding the disposal or
recycling of device components.
11. BIA device has no harm to human body as it flows small current through the body.
However, when measuring pregnant women, please consult with physicians or experts.
1. Cross Contamination
Individuals with any kind of contagious disease or infection must not use or come in
contact with the foot plate or this product. Please be sure to clean the foot plate with
appropriate disinfectant after each use. Never pour any liquid directly on the foot plate, as
it may cause internal damage. Use a soft cloth and appropriate ethyl alcohol to wipe off the
foot plate. Do not wipe the foot plate with strong chemicals.
2. Test result interpretation and prescription
Do not start weight control or exercise therapy without physician’s prescription or expert’s
advice. Misguided self-diagnosis may harm your health. If you are pregnant, please consult
with physician or expert before use.
3. Other equipment
Please block electromagnetic interferences from other equipments. It may lead to
inaccurate test result or error.

V
4. This product must be installed on a flat and stable floor. If the floor is not level, may
cause harm or incorrect measurement.
5. Make sure you use the AC adapter provided by Biospace. Using other AC adapter may
cause the malfunction of product.
6. Be careful not to spill or drop any residue(food or beverage) on this product. It may
cause serious damage to the electronic components.
7. Do not move during measurement for accurate test result.
8. The arm consists of a hand electrode. Do not force the arm in the wrong direction. The
resulting damage may affect the function of the internal cable and circuit board.
9. Be careful not to hurt your fingers on the edge of the foot plate when handling the
screws.
1. Wrong installation contrary to manual guidelines, or other equipment interference, may
cause error or inaccurate test results. To solve the interference problem, you should
-Separate power supply from the equipment that is causing interference.
-Isolate the equipment.
-Use a power supply committed only to device.
-Please contact Biospace if the problem continues.

VI
2. Excessively high or low temperatures, humidity and pressure may affect the equipment
operation and cause error. Please use the equipment within the suggested specification
range for equipment’s use.
3. While moving, installing, or using this product, be sure to protect against any physical
shock or damage. Always use the packing material and the original shipping box when
moving or transporting this product.
4. Use this equipment only for the purpose of body composition analysis.
5. Repair and examination should be conducted only by Biospace’s professional A/S staff.
Please contact Biospace if needed.
6. The InBody170 fulfills the Standards of IEC60601-1(EN60601-1), Safety of Electric
Medical Equipment. In addition, the InBody170 complies not only with Level A for Noise
Immunity, but also with Level A for Noise Emission by the Standard IEC60601-1-
2(EN60601-1-2), Electromagnetic Compatibility Requirements.
7. The InBody170 has been designed, manufactured, and inspected under the full quality
assurance system of Biospace. Biospace fulfills the international standardization system,
ISO 9001 and ISO 13485.

VII

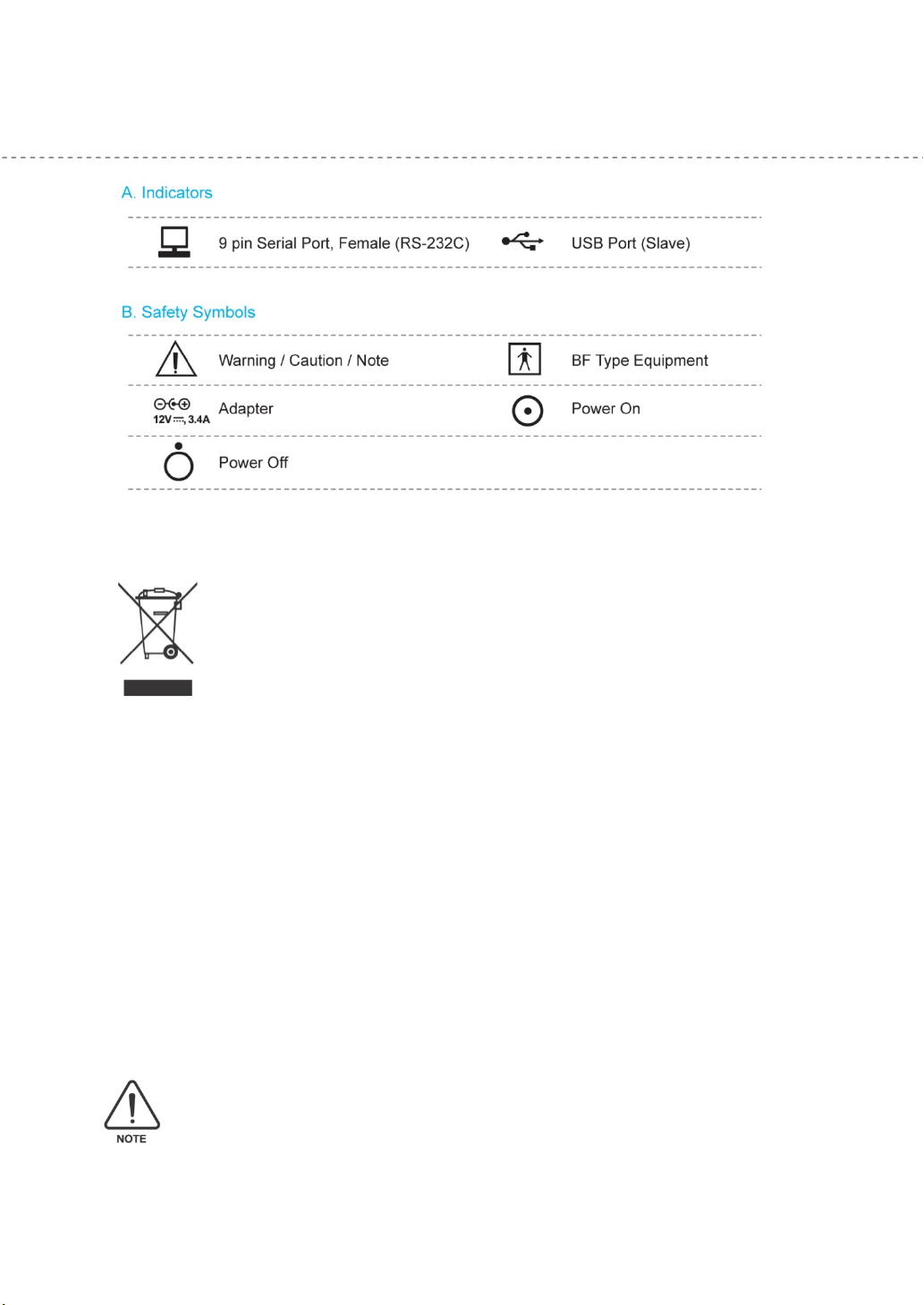

Indicators & Safety Symbols
Disposal of old Electrical & Electronic Equipment
(Application in the European Union and other European countries with separate collection system.)
This symbol indicates that this product shall not be treated as household waste. Instead, it shall be
handed over to the applicable collection point for the recycling of electrical and electronic equipment.
By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be caused by
inappropriate waste handling of this product. For more detailed information about recycling this
product, please refer to local governing ordinances and recycling plans.
Follow local government ordinances and recycling instructions regarding disposal or recycling of
device components, including batteries.

VIII
Workplace Requirements
Operation Environment
Temperature range 10 ~ 40 ℃(50 ~ 104 )℉
Relative humidity 30 ~ 75 %
Atmospheric pressure range 70 ~ 106 kPa
□ Transport and Storage Environment
Temperature range -20 ~ 70 ℃(-4 ~ 158 )℉
Relative humidity 10 ~ 95 % (No condensation)
Atmospheric pressure range 50 ~ 106 kPa
□ Adapter
Power Input AC 100 ~ 240V, 50/60Hz, 1.2A
Power Output DC 12V, 3.4A

II
Chapter1. Installation & Maintenance
1. Contents of the box
2. Exterior & Functions
3. Installation Instructions
4. Transportation
5. Repacking
6. Maintenance

1

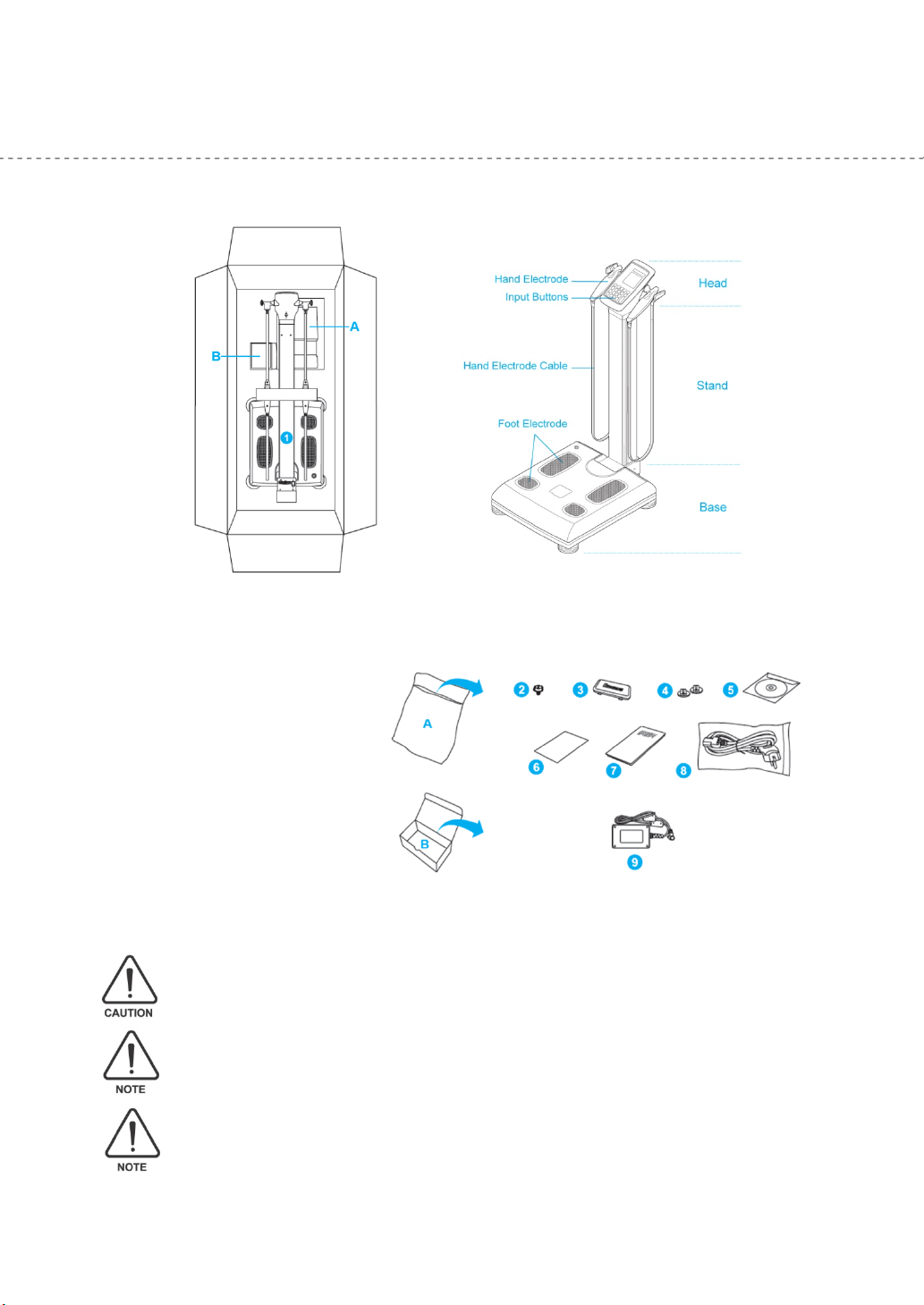

1. Contents of the box
When opening the box, make sure all of the following items are inside.
Included Items
① InBody170
② Joint Screw
③ Joint Cover
④ Cable Clips 2EA
⑤ User’s Manual CD
⑥ Warranty
⑦ Install Manual
⑧ Power Cord
⑨ Adapter (12V, 3.4A)
To prevent physical shock, use Biospace’s packing material when shipping or transporting the
equipment. Refer to this Chapter1, Section 4: “Transportation.”
Save the wrapping material after unpacking for the event of relocation.
Please refer to Chapter 5. Section2. “Options" for PT500 contents and installation guidance.

2
2. Exterior & Functions
Individual part identification and functions with schematic sketches are provided below.
Please inspect each component of the InBody170 to check any damage prior to installation.
A. Operation Part (Head)
B. Stand Part
C. Base Part
D. Rear Part
C. Base Part
B. Stand Part
D. Rear Part
A. Operation Part (Head)

3
A. Operation Part
(1) LCD
This displays the analysis procedure, messages and results.
(2) Key Pad (19 buttons)
The keypad is divisible into input buttons and function
buttons. These are used to input data required for body
composition analysis, to set up the operating environment
and to print out test results.
(3) Speaker
A signal sound informs users of status such as process or
completion of measurement.
B. Stand Part
(1) Hand Electrode Holder
Place hand electrode here when not in use
(2) Thumb Electrode
Activated by making contact with the thumb,
thus allowing current to flow through the body during
measurement.
(3) Palm Electrode
Activated by wrapping the palm around the electrode,
thus allowing current to flow through the body during measurement.
(4) Hand Electrode Cable
The hand electrode cable is connected to the circuit that transfers voltage and electric
current.
The cable connected to the electrode can be damaged when too much pressure is given to it.

4
C. Base Part
(1) Front Sole Electrode
Activated by placing the fore-foot directly on the front sole electrode. This allows the current
to flow through the body.
(2) Rear Sole Electrode
Activated by placing the heel of the foot directly on the rear sole electrode.
(3) Foot Plate
The loadcell, which measures body weight, is underneath the foot plate.
(4) Joint Cover
Remove joint cover on the foot plate and fold the stand. If the joint cover is not removed
before folding the stand, the product can be severely damaged.
(5) Joint Screw
This is the joint screw which fixes the upper part in such a way it does not move.
(6) Bubble Level Indicator
Used to level the InBody170 by means of a view glass and bubble alignment.
(7) Level Screws
There are 4 leveling screws that support the equipment. Leveling screws are designed to be
turned by hand, so you can easily adjust the balance of the equipment.

5
D. Rear Part
(1) Back Cover
Only qualified personnel are allowed to remove the back cover.
Do not dismantle the equipment. Internal parts are not for customer use and may cause electric shock.
If the equipment is dismantled, the warranty is void, and service costs will be charged. If you have any
problems with device quality or operation, please contact the manufacturer or the distributor.

6
(2) Control & Connection Unit
Connect to peripherals such as a PC or a printer for data transmission.
①USB Slave Port
② 9pin Serial Port, Female (RS-232C)
Use to connect optional devices i.e. thermal printer or blood pressure monitor provided by
Biospace.
③ Power Input Port
Use to connect the power adapter.
④ Power Switch
Power the InBody170 on/off.

7
Since the control and connection part is located below the rear part of the equipment, liquid or foreign
matter may flow into the equipment. The liquid or foreign matter which has flown into it could cause a
critical damage to any electronic parts.
Do not touch signal input, signal output or other connectors, and the patient simultaneously.
External equipment intended for connection to signal input, signal output or other connectors, shall
comply with relevant IEC Standard(e.g., IEC60950 for IT equipment and IEC60601-1 series for
medical electrical equipment). In addition, all such combination-
system-shall comply with the standard IEC60601-1 and/or IEC60601-1-1 harmonized
national standard or the combination. If, in doubt, contact qualified technician or your local
representative.
Use the adapter provided by Biospace only.
When using the adapter cable, insert the adapter cable tightly into the InBody170.
Including the optional equipment, only the peripherals provided by Biospace can be
connected to the InBody170. For any inquiry about peripherals, contact Biospace.

8
3. Installation Instructions
A. Unpacking & Installation
(1) Unpack the box and remove the top pad.
(2) Place the equipment horizontal to the ground.
(3) Raise the stand of the equipment carefully until it stands upright.
Use caution when raising the stand body of the equipment to avoid injury. When the body stand is
raised, do not touch the joint part by hand or with any other part of the body. There is a danger of such
hand or part of the body getting jammed in between the joints.
