DFI CB64-BX User manual

CB64-BX/ZX
Rev. A+
System Board
Users Manual
39700913

Copyright
This publication contains information that is protected by copyright. No
part of it may be reproduced in any form or by any means or used to
make any transformation/adaptation without the prior written permission
from the copyright holders.
This publication is provided for informational purposes only. The
manufacturer makes no representations or warranties with respect to
the contents or use of this manual and specifically disclaims any express
or implied warranties of merchantability or fitness for any particular purpose.
The user will assume the entire risk of the use or the results of the use of
this document.Further,the manufacturer reserves the right to revise this
publication and make changes to its contents at any time, without obligation
to notify any person or entity of such revisions or changes.
All Rights Reserved. © 1999
Trademarks
Microsoft®MS-DOS®,WindowsTM,Windows®95 andWindows®98 are
registered trademarks of Microsoft Corporation. Intel®and CeleronTM
are registered trademarks of Intel Corporation. Award is a registered
trademark of Award Software, Inc. Other trademarks and registered
trademarks of products appearing in this manual are the properties of
their respective holders.
Caution:
Danger of explosion if battery incorrectly replaced.
Replace only with the same or equivalent type recommended by the
manufacturer.
Dispose of used batteries according to the battery manufacturers
instructions.

FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and the receiver.
 Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
 Consult the dealer or an experienced radio TV technician for
help.
Notice:
1. The changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority
to operate the equipment.
2. Shielded interface cables must be used in order to comply with
the emission limits.

Table of Contents
Chapter 1 - Introduction
1.1 Features and Specifications..................................................................................
1.2 Package Checklist.........................................................................................................
Chapter 2 - Hardware Installation
2.1 System Board Layout .............................................................................................
2.2 System Memory.............................................................................................................
2.3 DIP Switch Settings for Processors............................................................
2.4 Jumper Settings for the CPUs Front Side Bus................................
2.5 Jumper Settings for Clearing CMOS Data..........................................
2.6 Jumper Settings for Wake-On-Keyboard/Wake-On-Mouse......
2.7 Connecting the Ribbon Cables and Wires of the Ports
and Connectors.............................................................................................................
Chapter 3 - Award BIOS Setup Utility
3.1 The Basic Input/Output System.....................................................................
3.1.1 Standard CMOS Setup....................................................................
3.1.2 BIOS Features Setup..........................................................................
3.1.3 Chipset Features Setup....................................................................
3.1.4 Power Management Setup............................................................
3.1.5 PNP/PCI Configuration....................................................................
3.1.6 Load Fail-Safe Settings......................................................................
3.1.7 Load Optimal Settings......................................................................
3.1.8 Integrated Peripherals.........................................................................
3.1.9 Supervisor Password..........................................................................
3.1.10 User Password.........................................................................................
3.1.11 IDE HDD Auto Detection...........................................................
3.1.12 Save & Exit Setup.................................................................................
3.1.13 Exit Without Saving..............................................................................
Chapter 4 - Supported Softwares
4.1 Desktop Management Interface.....................................................................
4.2 Hardware Doctor Utility........................................................................................
4.3 Drviers and Utility.......................................................................................................
6
11
33
33
36
39
43
48
50
50
51
55
56
56
57
57
12
14
15
16
17
18
19
58
61
63

64
64
66
Appendix A - System Error Messages
A.1 POST Beep.......................................................................................................................
A.2 Error Messages..............................................................................................................
Appendix B - Troubleshooting
B.1 Troubleshooting Checklist....................................................................................

6
1.1 Features and Specifications
1.1.1 Features
Chipset
CB64-BX
 Intel440BX AGPset
 ESS Solo-1 PCI AudioDrive
CB64-ZX
 Intel440ZX-100 AGPset
 ESS Solo-1 PCI AudioDrive
Processor
The system board is equipped with Intel®Socket 370 for installing
an Intel CeleronTM PPGA processor. The system board is also
equipped with a switching voltage regulator that supports 1.30V to
2.05V core voltage for various processors.
 300A/333/366/400/433/466MHz and future 100MHz FSB
CeleronTM processor (PPGA for Socket 370)
System Memory
 CB64-BX
-16MB to 384MB memory using unbuffered DIMMs
- 32MB to 768MB memory using registered DIMMs
- Three 168-pin DIMM sockets
- Uses x64 or x72 PC SDRAM, 3.3V
: PC-66 SDRAM DIMM for 66MHz FSB processors
: PC-100 SDRAM DIMM for 100MHz FSB processors
- ECC supported (uses x72 PC SDRAM DIMM)
Chapter 1 - Introduction

1
Introduction
7
Expansion Slots
The system board is equipped with 1 dedicated AGP slot. AGP is an
interface designed to support high performance 3D graphics cards. It
utilizes a dedicated pipeline to access system memory for texturing,
z-buffering and alpha blending; delivering up to 533MB/sec.
bandwidth for 3D graphics applications. AGP in this system board
will deliver faster and better graphics with your PC.
The system board is also equipped with 4 dedicated PCI slots, 2
dedicated 16-bit ISA slots. All PCI and ISA slots are bus masters
except PCI 4 in the CB64-ZX which is slave only.
Onboard Audio Features
 Sound Blaster, Sound Blaster Pro and WSS compatible
 Supports PC games and applications
 Sample rates from 4KHz up to 48KHz
 Full duplex operation for simultaneous record and playback
 ESS proprietary AudioRack application
*Supported only when CB64-BX
uses registered DIMMs.
DIMMs
2MBx64/x72
4MBx64/x72
8MBx64/x72
16MBx64/x72
32MBx64/x72
Memory Size
16MB
32MB
64MB
128MB
256MB*
DIMMs
2MBx64
4MBx64
8MBx64
16MBx64
Memory Size
16MB
32MB
64MB
128MB
CB64-ZXCB64-BX
 CB64-ZX
-16MB to 256MB memory using unbuffered DIMMs
- Two 168-pin DIMM sockets
- Uses x64 PC SDRAM, 3.3V
: PC-66 SDRAM DIMM for 66MHz FSB processors
: PC-100 SDRAM DIMM for 100MHz FSB processors

Introduction
1
8
Desktop Management Interface (DMI)
The system board comes with a DMI 2.0 built into the BIOS. The
DMI utility in the BIOS automatically records various information
about your system configuration and stores these information in the
DMI pool, which is a part of the system board's Plug and Play
BIOS. DMI, along with the appropriately networked software, is
designed to make inventory, maintenance and troubleshooting of
computer systems easier. Refer to Chapter 4 for instructions on
using the DMI utility.
ATX Double Deck Ports
 2 USB ports
 2 DB-9 serial ports
 1 DB-25 parallel port
 1 mini-DIN-6 PS/2 keyboard port
 1 mini-DIN-6 PS/2 mouse port
 1 game/MIDI port
 3 audio jacks: line-out, line-in and mic-in
Connectors
 1 connector for IrDA interface
 2 IDE connectors
 1 floppy connector
 1 20-pin ATX power supply connector
 1 3-pin WOL (Wake-On-LAN) connector
 3 CD audio-in connectors
 3 fan connectors for CPU, chassis and AGP fans
PCI Bus Master IDE Controller
 Two PCI IDE interfaces support up to four IDE devices
 Supports ATA/33 or ATA/66 hard dirves
 PIO Mode 3 and Mode 4 Enhanced IDE (data transfer rate up
to 16.6MB/sec.)
 Bus mastering reduces CPU utilization during disk transfer
 Supports ATAPI CD-ROM, LS-120 and ZIP and SCSI sequential
boot-up

1
Introduction
9
IrDA Interface
The system board is equipped with an IrDA connector for wireless
connectivity between your computer and peripheral devices. It
supports peripheral devices that meet the IrDA or ASKIR standard.
USB Ports
The system board is equipped with two USB ports. USB allows
data exchange between your computer and a wide range of
simultaneously accessible external Plug and Play peripherals.
BIOS
 Award BIOS, Windows95/98 Plug and Play compatible
 Flash EPROM for easy BIOS upgrades
 Includes NCR 810 SCSI BIOS
 2MB flash memory
1.1.2 System Health Monitor Functions
The system board is capable of monitoring the following system
health conditions.
 Monitors processor/system temperature and processor overheat
alarm
 Monitors 1.5V/3.3V/±5V/±12V/VCORE voltages and failure
alarm
 Monitors processor/chassis fan speed and failure alarm
 Automatic processor/chassis fan control
 Read back capability that displays accurate temperature, voltage
and fan speed

Introduction
1
10
1.1.3 Intelligence
Automatic CPU/Chassis Fan Off
The CPU and chassis fans will automatically turn off once the system
enters the Suspend mode.
Dual Function Power Button
Depending on the setting in the BIOS setup, this switch will allow
the system to enter the Soft-Off or Suspend mode.
External Modem Ring-on
The Modem Ring-on feature allows the system that is in the
Suspend mode or Soft Power Off mode to wake-up/power-on to
respond to incoming calls.
Note:
This feature supports external modem only.
RTC Timer to Power-on the System
The RTC installed on the system board allows your system to
automatically power-on on the set date and time.
Wake-On-LAN Ready
The Wake-On-LAN function allows the network to remotely wake
up a Soft Power Down (Soft-Off) PC.Your LAN card must support
the remote wakeup function.
Important:
The 5VSB power source of your power supply must support
≥ 720mA (minimum).
Wake-On-Keyboard/Wake-On-Mouse
This function allows you to use the keyboard or mouse to power-on
the system. Refer to Jumper Settings for Wake-On-Keyboard/Wake-
On-Mouse in Chapter 2 and Keyboard/Mouse Power On in the

1
Introduction
11
Integrated Peripherals setup of the Award BIOS in Chapter 3 for
more information.
Important:
 The power button will not function once a keyboard
password has been set in the KB Power On Password
field of the Integrated Peripherals setup. You must type the
correct password to power-on the system.
 The 5VSB power source of your power supply must
support ≥ 720mA (minimum).
ACPI
The system board is designed to meet the ACPI (Advanced
Configuration and Power Interface) specification. ACPI has energy
saving features that enables PCs to implement Power Management
and Plug-and-Play with operating systems that support OS Direct
Power Management.
Virus Protection
Most viruses today destroy data stored in hard drives. The system
board is designed to protect the boot sector and partition table of
your hard disk drive.
1.2 Package Checklist
The system board package contains the following items:
þThe system board
þA users manual
þOne 40-pin IDE hard disk cable
þOne 34-pin floppy disk drive cable
þOne CD
If any of these items are missing or damaged, please contact your
dealer or sales representative for assistance.

12
2.1 System Board Layout
Chapter 2 - Hardware Installation
CB64-BX

2
Hardware Installation
13
CB64-ZX
Note:
The illustrations on the following pages are based on the CB64-BX
system board, which is the board equipped with three DIMM sockets.
Warning:
Electrostatic discharge (ESD) can damage your system board, processor, disk
drives, add-in boards, and other components. Perform the upgrade instruction
procedures described at an ESD workstation only. If such a station is not
available, you can provide some ESD protection by wearing an antistatic wrist
strap and attaching it to a metal part of the system chassis. If a wrist strap is
unavailable, establish and maintain contact with the system chassis throughout
any procedures requiring ESD protection.

2
14
Hardware Installation

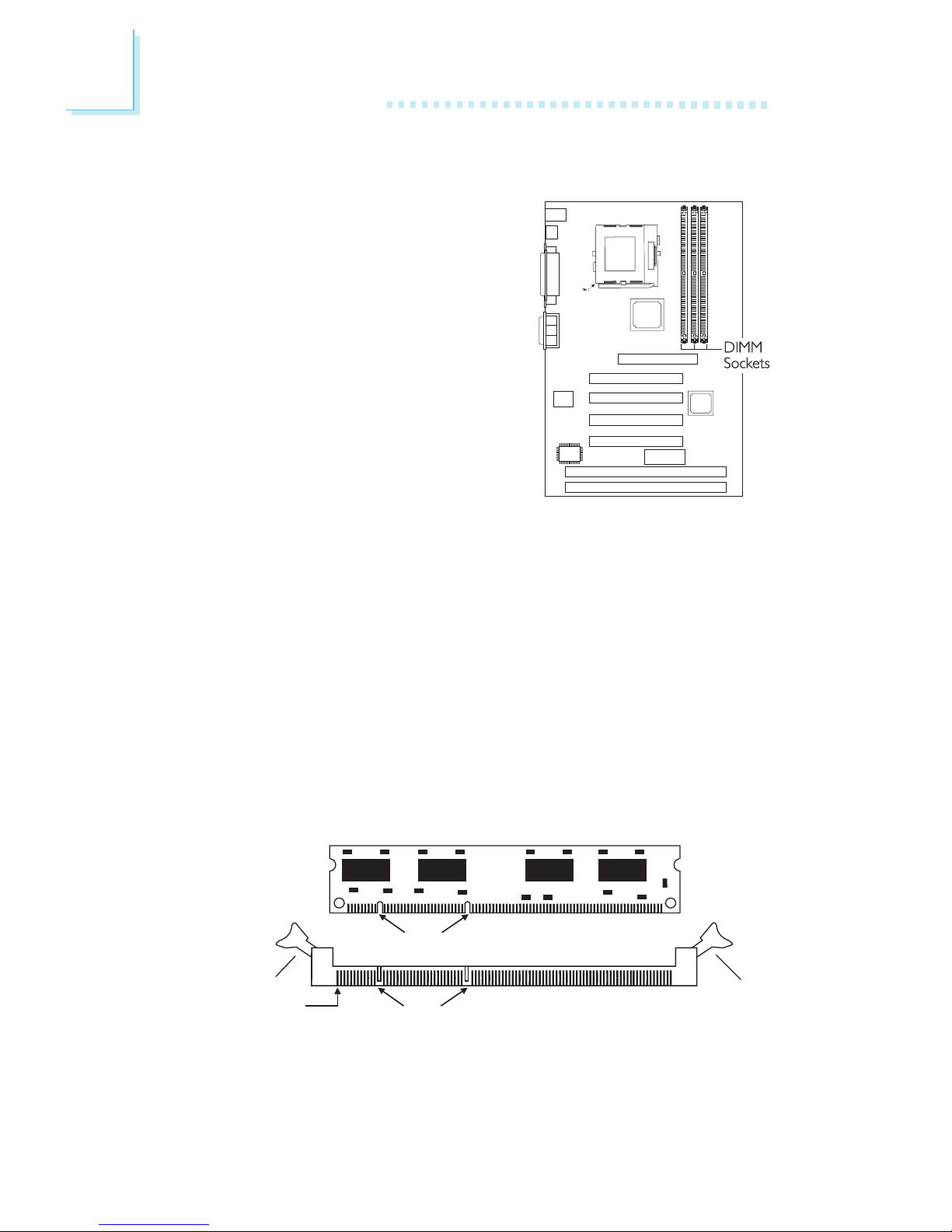

2.2 System Memory
The CB64-BX system board is
equipped with three 168-pin DIMM
(Dual In-line Memory Module)
sockets that support x64/x72
unbuffered or registered PC SDRAM
DIMM, 3.3V.
The CB64-ZX system board is
equipped with two 168-pin DIMM
(Dual In-line Memory Module)
sockets that support x64 unbuffered
PC SDRAM DIMM, 3.3V.
PC SDRAM (Synchronous Dynamic
Random Access Memory) uses a fast memory interface technology
that includes using the clock on the chip to synchronize with the
CPU clock so that the timing of the memory chips and the timing of
the CPU are synchronized. This saves time during transmission of
data, subsequently increasing system performance.
Pin 1
Notch
Key
Tab
Tab
2.2.1 Installing the DIM Module
A DIM module simply snaps into a DIMM socket on the system
board. Pin 1 of the DIM module must correspond with Pin 1 of the
socket.

2
Hardware Installation
15
1. Pull the tabs which are at the ends of the socket to the side.
2. Position the DIMM above the socket with the notches in the
module aligned with the keys on the socket.
3. Seat the module vertically into the socket. Make sure it is
completely seated. The tabs will hold the DIMM in place.
2.3 DIP Switch Settings for Processors
(For Factory Use Only)
You can not overclock an Intel Celeronprocessor (PPGA) because
its frequency ratio is fixed by the manufacturer. The table on the next
page is for factory use only.
In the example above:
Switch 1: Off
Switch 2: On
Switch 3: Off
Switch 4: On

2
16
Hardware Installation
Note:
Intel CeleronTM processors (PPGA) support VID (Voltage
Identification). The switching voltage regulator on the system
board will automatically set the voltage regulator according to
the voltage of the processor.
300MHz 4.5x
333MHz 5x
Processor SW1
66MHz 100MHz
Frequency
Ratio
Future
processor 5.5x
Processor SW1
66MHz 100MHz
Frequency
Ratio
400MHz Future
processor
433MHz Future
processor
466MHz Future
processor
Future
processor Future processor
6x
6.5x
7x
7.5x
8x
Future
processor Future processor
366MHz
Future
processor
Future
processor
2.4 Jumper Settings for the CPUs Front Side Bus
Jumper JP2
CPUs Front Side Bus Select
The default setting of jumper JP2 is
Auto - the system will automatically
run according to the FSB of the
processor.The 100MHz setting (1-
2-3 Off) is reserved for future
100MHz FSB processors. Refer to
the figure on the next page.
Warning:
If your system is installed with
a 66MHz FSB processor, do
not move the jumper cap from
its default setting which is pins
1 and 2 On; otherwise your
system will not boot.

2
Hardware Installation
17
2.5 Jumper Settings for Clearing CMOS Data
Jumper JP3
Clear CMOS Data
If, for some reason, the CMOS data
becomes corrupted or you forgot the
supervisor/user/keyboard password,
the system can be reconfigured with
the default values stored in the ROM
BIOS. To load the default values,
power off your system and unplug
the power cord. Set JP3 pins 2 and
3 to On. Wait for a few seconds and
set JP3 back to its default setting,
pins 1 and 2 On. You may now plug
the power cord and power-on your
system.
Jumper JP2s settings are shown below.
1
2
3
1
2
3
1
2
3
2-3 On: 66MHz
1-2 On: Auto
(default) 1-2-3 Off: 100MHz
2-3 On:
Clear CMOS Data
1-2 On: Normal
(default)
1
2
3
1
2
3

2
18
Hardware Installation
2.6 Jumper Settings for Wake-On-Keyboard/
Wake-On-Mouse
Jumper JP1
Wake-On-Keyboard/Wake-On-Mouse
The system board supports the Wake-
On-Keyboard/Wake-On-Mouse
function.This function allows you to use
the keyboard or mouse to power-on
the system. By default, JP1 is disabled.
To use this function, set JP1 to 2-3 On.
Keyboard/Mouse Power On in the
Integrated Peripherals setup of the
Award BIOS must be set accordingly.
Refer to chapter 3 for details.
Warning:
1. If JP1 was previously enabled
with a password set in the
KB Power On Password field, and now you wish to disable
the Wake-On-Keyboard (password) function, make sure to
set the Keyboard/Mouse Power On field to Disabled prior
to setting JP1 to disabled. You will not be able to boot up
the system if you fail to do so.
2. The power button will not function once a keyboard
password has been set in the KB Power On Password
field of the Integrated Peripherals setup. You must type the
correct password to power-on the system.
3. The 5VSB power source of your power supply must
support ≥ 720mA (minimum).
2-3 On: Enable1-2 On: Disable
(default)
123 123

2
Hardware Installation
19
2.7.2 PS/2 Mouse and Keyboard Ports
The PS/2 mouse port uses IRQ12. If a
mouse is not connected to this port, the
system will reserve IRQ12 for other
expansion cards.
Warning:
Make sure to turn off your
computer prior to connecting or
disconnecting a mouse or
keyboard. Failure to do so may
damage the system board.
2.7 Connecting the Ribbon Cables and Wires of
the Ports and Connectors
2.7.1 Serial Ports
The built-in serial ports are RS-232C
asynchronous communication ports with
16C550A-compatible UARTs that can
be used with modems, serial printers,
remote display terminals, and other
serial devices. You can set the serial
ports I/O address in the Integrated Pe-
ripherals setup of the Award BIOS.

2
20
Hardware Installation
2.7.3 Parallel Ports
The system board has a standard
printer port for interfacing your PC to
a parallel printer. It supports SPP, ECP
and EPP modes.You can set the ports
mode in the Integrated Peripherals
setup of the Award BIOS.
Setting
SPP
(Standard Parallel Port)
ECP
(Extended Capabilities Port)
EPP
(Enhanced Parallel Port)
Function
Allows normal speed operation but
in one direction only.
Allows parallel port to operate in
bidirectional mode and at a speed
faster than the SPPs data transfer
rate.
Allows bidirectional parallel port op-
eration at maximum speed.
