BIRD 4042E User manual

Channel Power Sensor
Model 4042E
Operation Manual
©Copyright 2022 by Bird Technologies, Inc.
Instruction Book Part Number 920-4042E Rev. A

Safety Precautions
ii
Safety Precautions
The following are general safety precautions that are not necessarily related to
any specific part or procedure, and do not necessarily appear elsewhere in this
publication. These precautions must be thoroughly understood and apply to all
phases of operation and maintenance.
WARNING
Keep Away From Live Circuits
Operating Personnel must at all times observe general safety precautions. Do
not replace components or make adjustments to the inside of the test
equipment with the high voltage supply turned on. To avoid casualties, always
remove power.
WARNING
Shock Hazard
Do not attempt to remove the RF transmission line while RF power is present.
WARNING
Do Not Service Or Adjust Alone
Under no circumstances should any person reach into an enclosure for the
purpose of service or adjustment of equipment except in the presence of
someone who is capable of rendering aid.
WARNING
Safety Earth Ground
An uninterruptible earth safety ground must be supplied from the main
power source to test instruments. Grounding one conductor of a two
conductor power cable is not sufficient protection. Serious injury or death can
occur if this grounding is not properly supplied.
WARNING
Resuscitation
Personnel working with or near high voltages should be familiar with modern
methods of resuscitation.
WARNING
Remove Power
Observe general safety precautions. Do not open the instrument with the
power applied.

Channel Power Sensor 4042E
iii
Safety Symbols
Note: Calls attention to supplemental information.
Warning Statements
The following safety warnings appear in the text where there is danger to
operating and maintenance personnel, and are repeated here for emphasis.
Refer to page 8.
WARNING
Warning notes call attention to a procedure, which if not correctly performed,
could result in personal injury.
CAUTION
Caution notes call attention to a procedure, which if not correctly performed,
could result in damage to the instrument.
WARNING
Leaking RF energy is a potential health hazard. Never attempt to connect or
disconnect equipment from the transmission line while RF power is being
applied. Severe burns, electrical shock, or death can occur.

Safety Precautions
iv
Safety Statements
USAGE
ANY USE OF THIS INSTRUMENT IN A MANNER NOT SPECIFIED BY
THE MANUFACTURER MAY IMPAIR THE INSTRUMENT’S SAFETY
PROTECTION.
USO
EL USO DE ESTE INSTRUMENTO DE MANERA NO ESPECIFICADA
POR EL FABRICANTE, PUEDE ANULAR LA PROTECCIÓN DE
SEGURIDAD DEL INSTRUMENTO.
BENUTZUNG
WIRD DAS GERÄT AUF ANDERE WEISE VERWENDET ALS VOM
HERSTELLER BESCHRIEBEN, KANN DIE GERÄTESICHERHEIT
BEEINTRÄCHTIGT WERDEN.
UTILISATION
TOUTE UTILISATION DE CET INSTRUMENT QUI N’EST PAS
EXPLICITEMENT PRÉVUE PAR LE FABRICANT PEUT
ENDOMMAGER LE DISPOSITIF DE PROTECTION DE
L’INSTRUMENT.
IMPIEGO
QUALORA QUESTO STRUMENTO VENISSE UTILIZZATO IN MODO
DIVERSO DA COME SPECIFICATO DAL PRODUTTORE LA
PROZIONE DI SICUREZZA POTREBBE VENIRNE COMPROMESSA.

Channel Power Sensor 4042E
v
SERVICE
SERVICING INSTRUCTIONS ARE FOR USE BY SERVICE - TRAINED
PERSONNEL ONLY. TO AVOID DANGEROUS ELECTRIC SHOCK, DO
NOT PERFORM ANY SERVICING UNLESS QUALIFIED TO DO SO.
SERVICIO
LAS INSTRUCCIONES DE SERVICIO SON PARA USO EXCLUSIVO
DEL PERSONAL DE SERVICIO CAPACITADO. PARA EVITAR EL
PELIGRO DE DESCARGAS ELÉCTRICAS, NO REALICE NINGÚN
SERVICIO A MENOS QUE ESTÉ CAPACITADO PARA HACERIO.
WARTUNG
ANWEISUNGEN FÜR DIE WARTUNG DES GERÄTES GELTEN NUR
FÜR GESCHULTES FACHPERSONAL. ZUR VERMEIDUNG
GEFÄHRLICHE, ELEKTRISCHE SCHOCKS, SIND
WARTUNGSARBEITEN AUSSCHLIEßLICH VON QUALIFIZIERTEM
SERVICEPERSONAL DURCHZUFÜHREN.
ENTRENTIEN
L’EMPLOI DES INSTRUCTIONS D’ENTRETIEN DOIT ÊTRE RÉSERVÉ
AU PERSONNEL FORMÉ AUX OPÉRATIONS D’ENTRETIEN. POUR
PRÉVENIR UN CHOC ÉLECTRIQUE DANGEREUX, NE PAS
EFFECTUER D’ENTRETIEN SI L’ON N’A PAS ÉTÉ QUALIFIÉ POUR
CE FAIRE.
ASSISTENZA TECNICA
LE ISTRUZIONI RELATIVE ALL’ASSISTENZA SONO PREVISTE
ESCLUSIVAMENTE PER IL PERSONALE OPPORTUNAMENTE
ADDESTRATO. PER EVITARE PERICOLOSE SCOSSE ELETTRICHE
NON EFFETTUARRE ALCUNA RIPARAZIONE A MENO CHE
QUALIFICATI A FARLA.

About This Manual
vi
About This Manual
This manual covers the operating and maintenance instructions for the
following models:
Changes to this Manual
We have made every effort to ensure this manual is accurate. If you discover any
errors, or if you have suggestions for improving this manual, please send your
comments to our Solon, Ohio factory. This manual may be periodically updated.
When inquiring about updates to this manual refer to the part number and
revision on the title page.
Chapter Layout
Introduction — Describes the features of the 4042E Channel Power Sensor.
Installation — Describes how to set up and prepare the 4042E Power Sensor
for use.
Maintenance — This section provides the specifications for the 4042E Power
Sensor as well as a model identification table.
4042E Series - Channel Power Sensors

vii
Table of Contents
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii
Safety Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii
Warning Statements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii
Safety Statements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv
About This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vi
Changes to this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vi
Chapter Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vi
Chapter 1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Purpose and Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Channel Sensor Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Ethernet Measurement Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Ethernet IP Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
PTT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Chapter 2 Power Sensor Installation. . . . . . . . . . . . . . . . . . . . . . . . . . 5
Ethernet Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Direct PC Ethernet Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
LAN Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
RF Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
PTT Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Chapter 3 Sensor Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
User Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
RF Measurement Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
PTT Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Channel Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Implement SNMP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Set IP Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
NTP Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Table of Contents
viii
Update Sensor Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Chapter 4 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Customer Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Model Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

1
Chapter 1 Introduction
Purpose and Function
The Bird 4042E Series Channel Power Sensors are digital power sensors. The
4042E Series Channel power sensors are typically used to measure forward and
reflected average power on a 50 ohm RF transmission line in a frequency band
with an overall range of 100 to 1000 MHz. There are two maximum forward
power measurement options 50 or 500 watts with reflected power max 10 dB
below the forward Power levels, the 4042E sensor also provides VSWR readings.
See "Model Identification" on page 21 .
Figure 1 Bird 4042E Sensor
The 4042E Power Sensor uses Ethernet communications for sensor control and
measurement data.
See
"Sensor Operation" on page 9 .
The 4042E Sensor is designed to transfer data over an Ethernet connection. The
power sensor requires an external power supply.
Each sensor is equipped with RF input and output connectors, one RJ-45
connector for Ethernet communications, a PTT connector, and a status indicator.
See
Figure 2 .

Introduction
2
Figure 2 Bird 4042E Series Channel Power Sensor
Features
RF Input N-Type (male) connector (shown), other connector types
available, see "Model Identification" on page 21
RF Output N-Type (female) connector (shown), other connector types
available, see "Model Identification" on page 21
DC Power Connector DC input connector for the included 15 VDC power supply.
Ethernet Port RJ-45 connector used to interface with the Sensor’s Web UI
and provide the measurement interface.
PTT Connector
Push-To-Talk terminal is used to prevent spurious alarms
during periods when the transmitter is not transmitting, see
"PTT" on page 4
.
Reset Button
This reset button is a hole under the Ethernet jack.
When short pressed (less than 5 seconds), the
button will cause the IP address to be reset to the
default of 192.168.3.200.
When long pressed (more than 5 seconds), all of
the 4042E settings are reset to the factory defaults.
Status LED
Solid green: Power applied during boot-up.
Blue flashing: Normal operation.
Red: Reset button pressed and released.
5)
,1387 5)
287387
(7+(51(73257
377
&211(&725
5(6(767$786
/('
'& 32:(5
&211(&725

Channel Power Sensor 4042E
3
Channel Sensor Operation
The 4042E Channel Sensor is a unique sensor that is able to measure the
forward power, reflected power and VSWR of a SINGLE CHANNEL in the
presence of multiple channels at the output of a frequency combiner (see
Figure 5 on page 6 ).
The sensor can also measure the forward power, reflected power and the VSWR
of the composite signal by scanning up to 16 individual channels and summing
their power, see
Figure 3 .

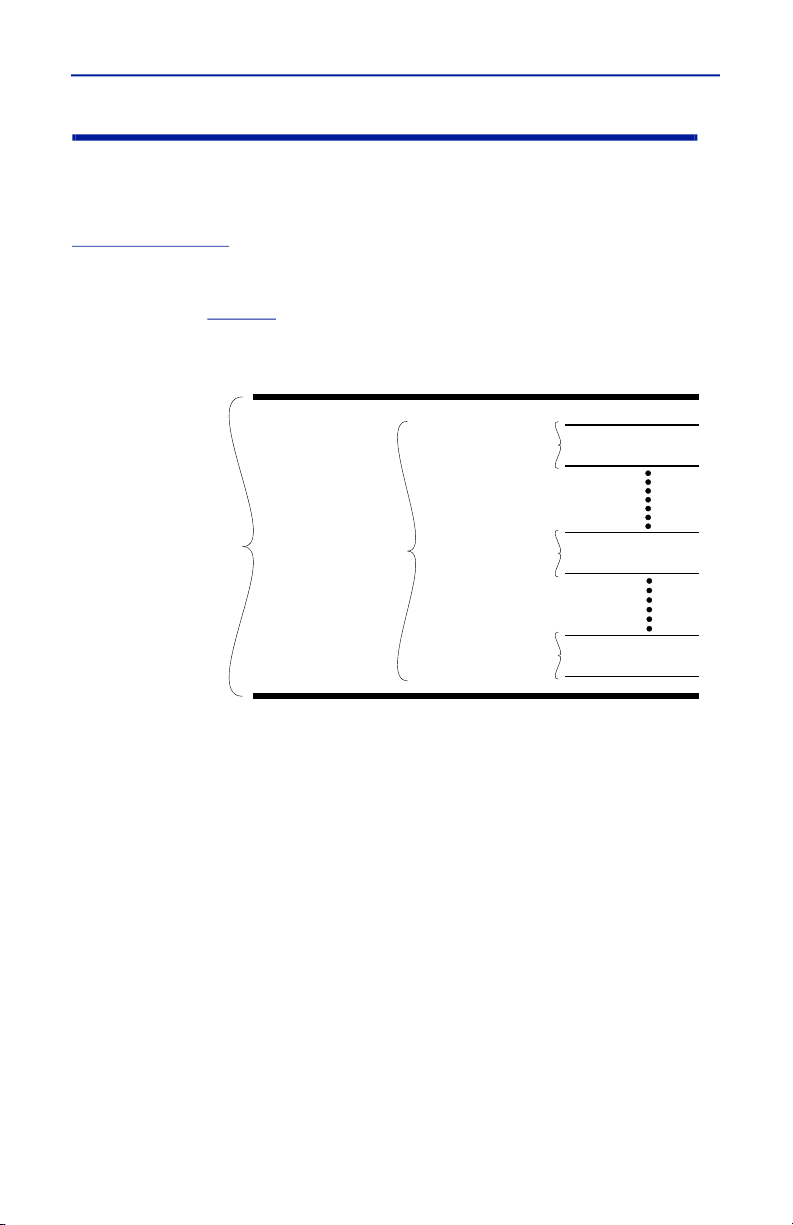

Figure 3 Channel Sensor Configuration
Once connected to an RF Transmission line, the sensor may be programmed to
measure power and VSWR for up to 16 frequencies or channels.
The bandwidth of each channel is selectable and may be set to one of the
following values:
6.25 kHz
12.5 kHz
25 kHz
The sensor can be setup to provide low power and VSWR alarms for all 16
channels monitored by the 4042E Sensor.
Composite Signal
Frequency
Range
100 to 1000 MHz
Up to 16
Channels
Selectable
Frequency
and
Bandwidth
for each
Channel
769.14375
770.64375
770.24375
25 kHz
12.5 kHz
6.25 kHz
Freq:
Freq:
Freq:
BW:
BW:
BW:

Introduction
4
Ethernet Measurement Interface
The 4042E sensor displays measurement information on a Web UI. Using a web
browser, enter the Ethernet IP Address for the 4042E to display the web page.
Table view displays the composite Forward, Reflected, and VSWR measurements
and the same measurements for each configured channel. See
Figure 4 .
Figure 4 Web UI, Table View Measurement Display
Ethernet IP Address
Each 4042E leaves the factory with the same default IP Address.
Default IP Address: 192.168.3.200
To change the IP address see
"Set IP Address" on page 17 .
PTT
PTT is used to prevent false alarms during periods when the transmitter is not
transmitting. PTT disables alarm detection when the transmitter is off. Alarm
functions will only be possible when the transmit button is engaged.
PTT may be set to normally open or normally closed logic. The PTT terminals
must be in the correct logic state for PTT to operate correctly.
Note: PTT input is a passive connection and requires a 5V TTL
signal to operate.

5
Chapter 2 Power Sensor Installation
The Bird 4042E Series Channel Power Sensors are designed to be used for
continuous power monitoring in multiple Land Mobile Radio (LMR) systems. The
4042E can provide real-time RF forward and reflected power and VSWR
measurements.
Ethernet Connection
The Ethernet connector is used to connect the 4042E to a PC or a network
router/switch. Measurement data is transported over the Ethernet connection
so the data can be viewed in a web browser. The configuration depicted in
Figure 5 is an example of one possible installation.
Since the 4042E is shipped with a static IP address, before more than one unit
can be added to a LAN, the IP address must be changed to a unique static IP
address or set to DHCP.
Direct PC Connection — A direct PC connection is a connection between a
PC and a single 4042E. This connection can be used to view the sensor’s
measurement data, however, if the sensor will be used with a LAN connection,
this type of connection must be used to change the IP address of the 4042E. See
"Direct PC Ethernet Connection" on page 6 .
LAN Connection — The 4042E may be connected to a router or switch so it
can provide measurement information through a LAN. A LAN connection can
provide the ability to monitor several 4042E sensors from a single PC.
Additionally, SNMP management software can be used to aggregate multiple
sensors and monitor their outputs. See
"LAN Connection" on page 7 .

Power Sensor Installation
6
Figure 5 4042E Connection Diagram
Direct PC Ethernet Connection
This connection can be used to view measurement information, manage the
sensor’s behavior, and change the default IP address.
1. Connect a power cable to 4042E power sensor.
2. Connect your laptop’s network port to the LAN connector on the 4042E
using a standard Ethernet cable.
3. Ensure that your laptop’s IP address is compatible with the default address
of the 4042E. This may require changes be made to the Ethernet adapter
address on your laptop.
Set laptop’s IP address to “192.168.3.1” and a subnet mask of
“255.255.255.0”.
4. Launch your web browser on the laptop.
5. In your web browsers address box type-in the 4042E’s IP address:
192.168.3.200. and press the ENTER key.
6. The web page interface to the unit should appear in your laptop’s browser
window.
7. Connect sensor to RF delivery system. See
"RF Connections" on page 8 .
8. If PTT will be used, see "PTT Connections" on page 8 .
9. See
"Sensor Operation" on page 9 for descriptions of the sensor’s User
Interface.
5$',26
5$',26
&20%,1(5






&20%,1(5
72
$17(11$
72
$17(11$



Channel Power Sensor 4042E
7
LAN Connection
A LAN connection is used to allow multiple sensors to be deployed then
monitored via a single PC or SNMP management software.
The 4042E sensor’s IP address should be set to a unique static IP address or set
to DHCP so the IP address can be assigned when the sensor is connected to the
network.
1. Connect a power cable to 4042E power sensor.
2. Change sensor’s IP Address.
a. Connect your laptop’s network port to the LAN connector on the
4042E using a standard Ethernet cable.
b. Ensure that your laptop’s IP address is compatible with the default
address of the 4042E. This may require changes be made to the
Ethernet adapter address on your laptop.
Set laptop’s IP address to “192.168.3.1” and a subnet mask of
“255.255.255.0”.
c. Launch your web browser on the laptop.
d. In your web browsers address box type-in the 4042E’s IP address:
192.168.3.200. and press the ENTER key.
The web page interface to the unit should appear in your laptop’s
browser window.
e. Click MENU in the top right of the display. See
Figure 6 on page 7 .
f. Select Static or DHCP.
If Static is selected, enter a unique IP address, Netmask,
Gateway.
If DHCP is selected, go to next step.
g. Click Submit.
h. Disconnect Ethernet cable from the 4042E.
Figure 6 IP Address Configuration
3. Connect a standard Ethernet cable to the LAN connector on the 4042E and
an open connector on a network switch or router.
$FFHVV
1HWZRUN
&RQ¿JXUDWLRQ
'+&3
(QWHU
$GGUHVV
IRU
6WDWLF
,3
6WDWLF

Power Sensor Installation
8
4. Launch your web browser on a PC connected to the same network as the
4042E.
5. Enter the sensor’s newly assigned IP address in the web browsers address
box.
6. Connect sensor to RF delivery system. See
"RF Connections" on page 8 .
7. If PTT will be used, see "PTT Connections" on page 8 .
8. See
"Sensor Operation" on page 9 for descriptions of the sensor’s User
Interface.
RF Connections
1. Disable RF power for transmission lines to be disconnected.
2. Connect combiner's RF output cable to the 4042E RF input.
3. Connect 4042E's RF output connector to the antenna cable.
4. Repeat step
1 through 3 for any additional 4042E power sensors.
PTT Connections
PTT may be set to normally open or normally closed logic. The PTT terminals
must be in the correct logic state for PTT to operate correctly.
Note: PTT input is a passive connection and requires a 5V TTL
signal to operate.
Figure 7 PTT Connections
The PTT settings in the User Interface must be enabled and set to correct logic to
match the PTT connection. See
"PTT Settings" on page 11 .
WARNING
Leaking RF energy is a potential health hazard. Never attempt to connect or
disconnect equipment from the transmission line while RF power is being
applied. Severe burns, electrical shock, or death can occur.

9
Chapter 3 Sensor Operation
User Interface
The User Interface provides a way to view the RF measurements made by the
4042E. Table view displays the current Forward, Reflected, and VSWR
measurements. See
Figure 8 .
Figure 8 Web UI, Table View Measurement Display
The User Interface also provides the following capabilities:
 RF Measurement Alarms
 PTT Settings
 Channel Configuration
 Implement SNMP
 Set IP Address
 Update Sensor Firmware

Sensor Operation
10
RF Measurement Alarms
The 4042E power sensor can be set to display an alarm, and send SNMP
messages, for exceeding forward power and VSWR limits set by the user.
Alarms are controlled on the settings page, see
Figure 9 . There are Composite
Signal Alarm Settings and alarm settings for each configured channel, see
"Channel Edit Pane" on page 12 .
Figure 9 4042E Alarm Settings
Composite Signal Alarm Settings
The alarm function may be enabled or disabled and alarms can be set to latched
or unlatched, see
Figure 10 .
When enabled, a measurement exceeding a threshold will display an alarm
message in the Table View, see
Figure 11 .
When disabled, alarms are not displayed and no SNMP traps will be generated.
When set to latched, alarm messages remain on the display until the Reset
Alarm button is clicked on the settings page.
When set to unlatched, alarm messages are only displayed while the threshold is
exceeded.
Figure 10 Composite Signal Alarm Settings
&RPSRVLWH6LJQDO
$ODUP6HWWLQJV
&KDQQHO
$ODUP6HWWLQJV

Channel Power Sensor 4042E
11
Figure 11 Alarm Display
PTT Settings
PTT is used to prevent spurious alarms during periods when the transmitter is
not transmitting because alarm functions for that channel will only be possible
when the transmit button is engaged.
PTT is controlled on the settings page, PTT may be set to normally open or
normally closed logic, or disabled, see
Figure 12 .
The PTT terminals on the 4042E must be connected to the transmitter in the
correct logic state for PTT to operate correctly.
Note: Currently only one channel may use the PTT terminal on the
4042E.
Figure 12 PTT Options
