Bitbrain Ring User manual
User Guide
Ring
FBR.A1
2RingEnglish
English
This is the user guide for the Ring device
from Bitbrain.
This guide contains all essential
information for you to make full use of
your product.
3User guide English
04 Safety information
06 Conditions of use
07 Disclaimer
08 Ring
09 Technical specications
10 Power-up
11 Placement
14 Signal acquisition
15 Maintenance
Contents
4RingEnglish
Careful use and handling
•Do not handle the device with
damp hands, as this could
cause a short-circuit.
•Do not use the device for
other applications than its
intended purpose.
•Do not hit, throw, bite, open or
burn the device.
•Keep the device in a dry place,
between the temperatures
of 5ºC and 40ºC.
Prolonged exposure to high
temperatures can affect the
stability of the battery.
•Disconnect the charger
once the device battery is
completely charged to avoid a
decrease in battery life cycle.
•Use the provided cable or
other similar connected
directly to a USB 5V output to
charge the device (the power
supply must be covered by
the UNE-EN60950-1:2007
normative). Using other kind
of power supply may damage
the device.
Safety information
Please, read carefully the safety information, the conditions of use
and the instructions before using the device. Failure to comply with
the recommendations of use will entail the guarantee cancellation.
5User guide English
Precautions
•DO NOT use the device
while it is charging.
•DO NOT open the device.
Contact the support team at
Bitbrain if your device does
not work.
•DO NOT place this device
close to life support
electronic and electrical
equipment.
•If you notice that the device
emits strange smells or
noises or its temperature
is excessive, leave it in a
secluded place and call the
support team at Bitbrain.
Safety information
Disposal of the device
Do not throw electric or
electronic devices in the trash!
According to the European
Directive 2012/19/UE on
waste electrical and electronic
equipment, computer
and telecommunication
equipment must be disposed
of separately for ecological
recycling.
Conformance and CE marking
This device complies with the
EU safety requirements (UNE-
EN 60950-1: 2007, EN55032
and EN55024). The CE mark
indicates compliance with the
corresponding directives of
the EU Council, which includes
EMC Directive 2004/108/EC.
7User guide English
Disclaimer
The Hardware devices included in the Products (EEG, biosensors,
indoor GPS, eye-tracking, etc) are not medical devices, they have
not been designed or manufactured to provide health services,
neither are they intended for medical diagnosis, cure, mitigation,
treatment, advice or prevention of disease, but for research
purposes.
Read our “Terms & Conditions of Sale for Bitbrain Products”
before buying, for a complete understanding, in this link Link.
8RingEnglish
MicroSD
slot
B. Cardiovascular
activity sensor
MicroSD
LED
Ring
A wearable and wireless device that measures, with high reliability,
skin conductivity (electrodermal activity), blood pulse volume
(cardiovascular activity), and movement.
These physiological signals provide information on the emotional
intensity and impact generated by different stimuli, which are
utilized in publicity, branding, product testing, packaging, UX, CX
studies.
Power LED
Bluetooth connection LED
Power button
Battery indicator LED
Micro USB charging port
A. Electrodermal
response
sensors
9User guide English
Technical specifications
Nominal voltage 3.7V
Nominal power 260mW
Autonomy >10h (online mode)
Charging time 3 hours (with USB 2.0 or superior)
Sampling frequency 32Hz
Wireless technology Bluetooth 2.1 + EDR
Data backup Yes (Removable MicroSD memory card)
Dimensions 71x43x32mm
Weight 60g
Charging connection Micro USB type B (Included)
Certications EN 60950, EN 55032, EN 55024
10 RingEnglish
1
Turn the device on by pressing
the power button ( ) for a few
seconds, until the light blinks.
The wireless connection LED
will ash until the connection is
established with the software.
The LED will then be steady on.
When the battery device is low,
the battery indicator LED ( )
will turn on.
IMPORTANT: Do not use the
device while charging. It is
not recommended to start a
recording with low battery.
This can affect the quality of
the recorded signal.
Pairing
Be sure the computer has
a Bluetooth adapter. It is
necessary to carry out a
pairing procedure with the
computer before using it for
the rst time. This procedure
can be accomplished from the
Windows Control Panel.
The name of the device
corresponds to its serial
number, indicated
Power-up
11User guide English
Placement
Follow the steps described below to set up the device.
2
Disconnect the charging cable
from the device.
3
Unfasten the band at the back
of the device.
12 RingEnglish
4
Place the device upwards, so
that the sensors face up, as
shown in the picture.
5
Place the index ngertip on the
cardiovascular activity sensor
(B), completely covering it.
Placement
13User guide English
Placement

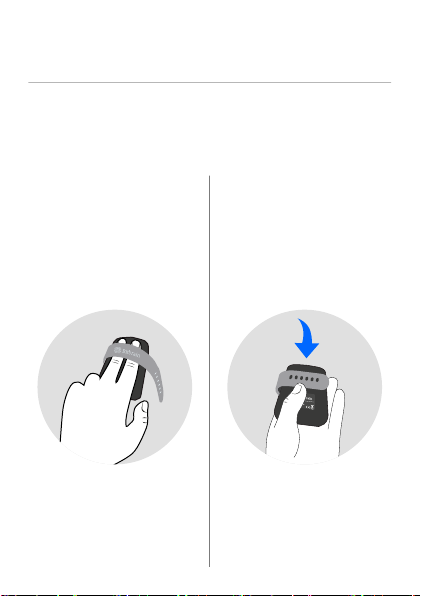

6
Place the index and middle
ngers on the device. Ensure
that the ngers touch the
electrodermal activity
sensors (A).
7
Fasten the band. The device
must be comfortably fastened
to the user’s ngers.
Make sure that the ngers
are apart from each other, as
shown in the picture.
14 RingEnglish
Signal acquisition
8
The software screen depicts
the physiological signal
acquired by the device in real
time.
The color of the sensors
indicates the quality of the
contact with the skin. Quality
depends directly on the
placement.
(B)
(A)
15User guide English
Maintenance
Please remember to clean the device after each use.
Conservation
•Keep the product in its
original packaging while not
in use.
•If you are storing the device
for long period of time
(several months or weeks),
it is recommended that the
battery is not 100% charged.
This can degrade the battery
and result in capacity loss,
which causes a decrease in
the autonomy of the device.
Cleaning the device
•Clean and dry the device
frequently, especially the
sensors.
•We recommend to dampen
a cloth with water or a small
amount of alcohol, and gently
wipe the device.
Very important
•Do not use strong or abrasive
disinfectants to clean the
product.
•Read carefully the
instructions on the use of a
disinfectant solution. When
selecting a cleaning product,
conrm its effectiveness
and compatibility with the
material.
V-FBR- 0319
