INSTRUCTION MANUAL
DustBuster®
Thank you for choosing Black & Decker!
PLEASE READ BEFORE RETURNING THIS PRODUCT FOR ANY REASON.
SAVE THIS MANUAL FOR FUTURE REFERENCE.
CATALOG NUMBERS
BDH7200M
BDH7200CHV
BDH9600CHV
BDH1000CHV

2
SAFETY GUIDELINES - DEFINITIONS
It is important for you to read and understand this manual. The information it contains
relates to protecting YOUR SAFETY and PREVENTING PROBLEMS. The symbols
below are used to help you recognize this information.
DANGER: Indicates an imminently hazardous situation which, if not avoided,
will result in death or serious injury.
WARNING: Indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injury.
CAUTION: Indicates a potentially hazardous situation which, if not avoided,
may result in minor or moderate injury.
NOTICE: Used without the safety alert symbol indicates potentially hazardous
situation which, if not avoided, may result in property damage.
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliances, basic precautions should always be followed,
including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE.
WARNING: Read all safety warnings and all instructions. Failure to follow
the warnings and instructions listed below may result in electric shock, fire and/or
serious injury.
WARNING: Some household dust contains chemicals known to the State of
California to cause cancer, birth defects or other reproductive harm such as asbestos
and lead in lead based paint.
WARNING: To reduce the risk of fire, electrical shock or injury:
• WARNING: To reduce the risk of electric shock – Do not
use outdoors or on wet surfaces.
• Do not allow to be used as a toy. Close attention is necessary when used by or near
children.
• Use only as described in this manual. Use only manufacturer’s recommended
attachments.
• Do not use with damaged cord or plug. If appliance is not working as it should, has been
dropped, damaged, left outdoors, or dropped into water, return it to a service center.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord
around sharp edges or corners. Do not run appliance over cord. Keep cord away from
heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle charger, including charger plug, and charger terminals with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep free of
dust,lint, hair, and anything that may reduce air flow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving
parts.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in
areas where they may be present.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or
hot ashes.
• Do not use without dust bag and/or filters in place.
• Do not charge the unit outdoors.
• Use only the charger supplied by the manufacturer to recharge.
• Do not incinerate the appliance even if it is severely damaged. The batteries can
explode in a fire.

3
• This appliance is intended for household use only and not for commercial or industrial use.
• Shock Hazard. To protect against risk of electrical shock, do not put unit or charging
base in water or other liquid.
• Do not allow the cord to hang over the edge of a table or counter or touch hot surfaces. The
unit should be placed or mounted away from sinks and hot surfaces.
• Plug the charger directly into an electrical outlet.
• Use the charger only in a standard electrical outlet (120V/60Hz).
• Unplug the charger from outlet before any routine cleaning or maintenance.
• This product includes rechargeable nickel cadmium batteries. Do not incinerate
batteries as they will explode at high temperatures.
• Leaks from battery cells can occur under extreme conditions. If the liquid, which is a
20-35% solution of potassium hydroxide, gets on the skin (1) wash quickly with soap
and water or (2) neutralize with a mild acid such as lemon juice or vinegar. If the
liquid gets into the eyes, flush them immediately with clean water for a minimum of 10
minutes. Seek medical attention.
• Do not look into the air vents when the unit is switched on, as sometimes
there is a possibility of small debris being discharged from the air vents, especially
after cleaning / replacement of the filters as debris inside the unit can be disturbed.
SAVE THESE INSTRUCTIONS
Symbols
• The label on your tool may include the following symbols. The symbols and their
definitions are as follows:
V..................volts A...................amperes
Hz................hertz W..................watts
min ..............minutes or AC.......alternating current
or DC ..direct current no.................no load speed
................Class I Construction ..................earthing terminal
(grounded) ................safety alert symbol
................Class II Construction .../min or rpm...revolutions or reciprocation
(double insulated) per minute
FUCTIONAL DESCRIPTION
1. On/off switch
2. Bowl release button
3. Dust bowl
4. Charger
5. Charging bracket
6. Dry pick up cloth lter
7. Pre-lter
BDH7200M / BDH9600CHV Only
8. Brush tool
9. Crevice tool
1
2
3
78 9 6
4
5

4

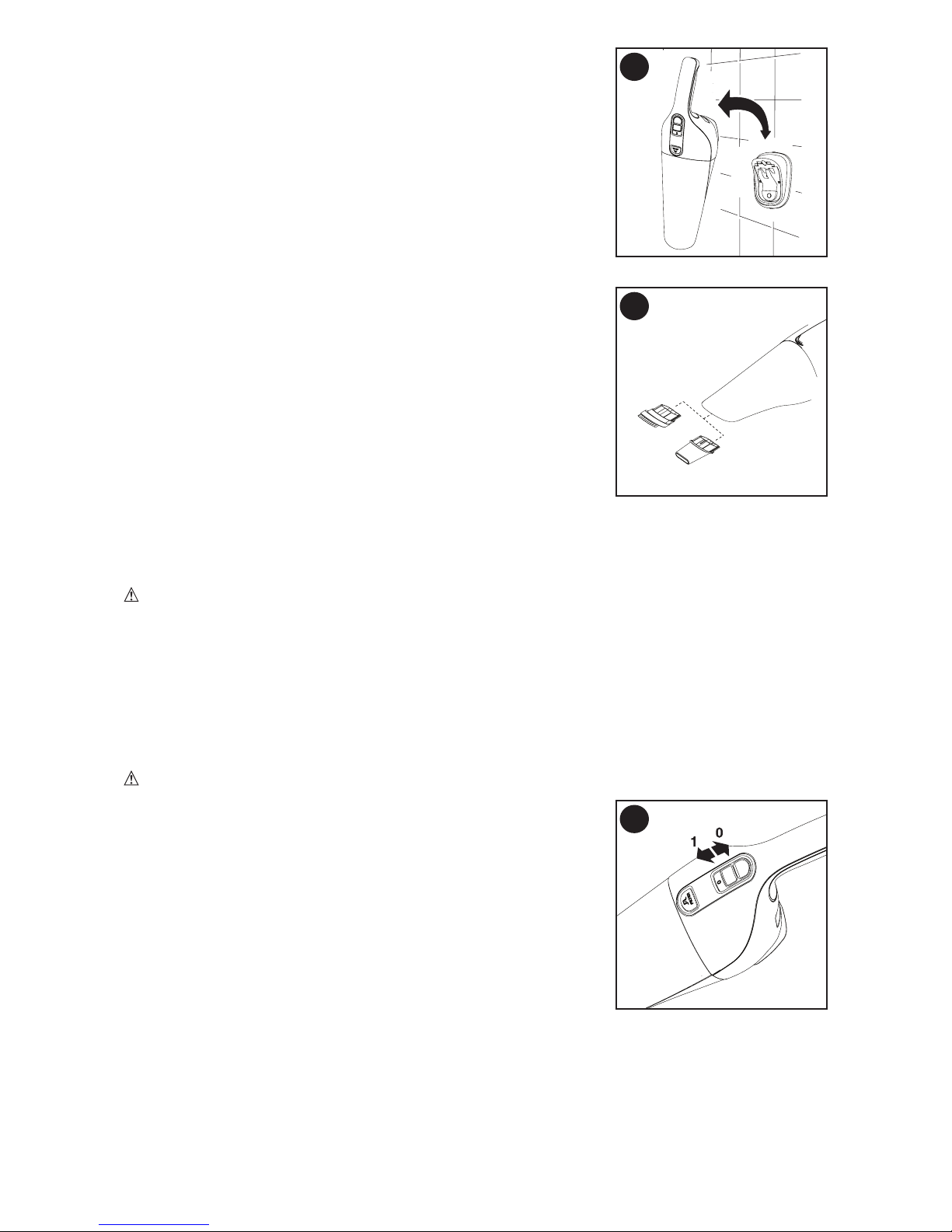

Wall Mounting - Figure A
The product can be attached to a wall to provide a convenient
storage and charging point for the appliance. When
mounting to a wall, make sure the mounting method is
suitable for the wall type and is appropriate to the weight of
the appliance.
• Mark the location of the charger (5) screw holes on the wall
(within reach of an electrical outlet for charging the vacuum
while it is on the wall bracket).
• Fix the mounting bracket to the wall using appropriate screws
and plugs for the type of wall, and weight of the appliance.
• Hang the appliance by placing the opening of the vacuum
base over the hooks in the wall mount charging bracket.
Assembly Accessories - Figure B
Model BDH7200M / BDH9600CHV is supplied with some of
the following accessories:
• A brush tool (8) for furniture and stairs.
• A crevice tool (9) for conned spaces.
Fitting
• Insert the appropriate accessory into the front of the
appliance as show in Figure B.
• Make sure the accessory is fully pushed in.
Charging the battery
• Before rst use, the battery must be charged for at least 10 hours.
• Place the appliance on the charging bracket whenever it is not in use.
WARNING: Before charging, be sure to empty all contents and dry thoroughly if
needed to avoid damage to your appliance.
• Make sure the appliance is switched off. The battery will not be charged when the on/
off switch (1) is in the on position.
• Place the appliance on the charging bracket (5).
• Plug in the charger.
• Leave the appliance to charge for at least 9 hours.
While charging, the charger may become warm. This is normal and does not indicate a
problem. The appliance can be left connected to the charger indenitely.
WARNING: Do not charge the battery at ambient temperatures below 50 °F or
above 104 °F.
Switching on and off - Figure C
• To switch the appliance on, slide the on/off switch (1)
forward to position 1.
• To switch the appliance off, slide the on/off switch (1) back
to position 0.
Dry pick up
• For everyday spills of dry material.
• Do not ll the dust bowl (3) beyond the end of the intake
chute.
Optimizing the suction force
In order to keep the suction force optimised, the lters must be cleared regularly during use.
2
A
2
B
2
C

5
Emptying and cleaning the product.

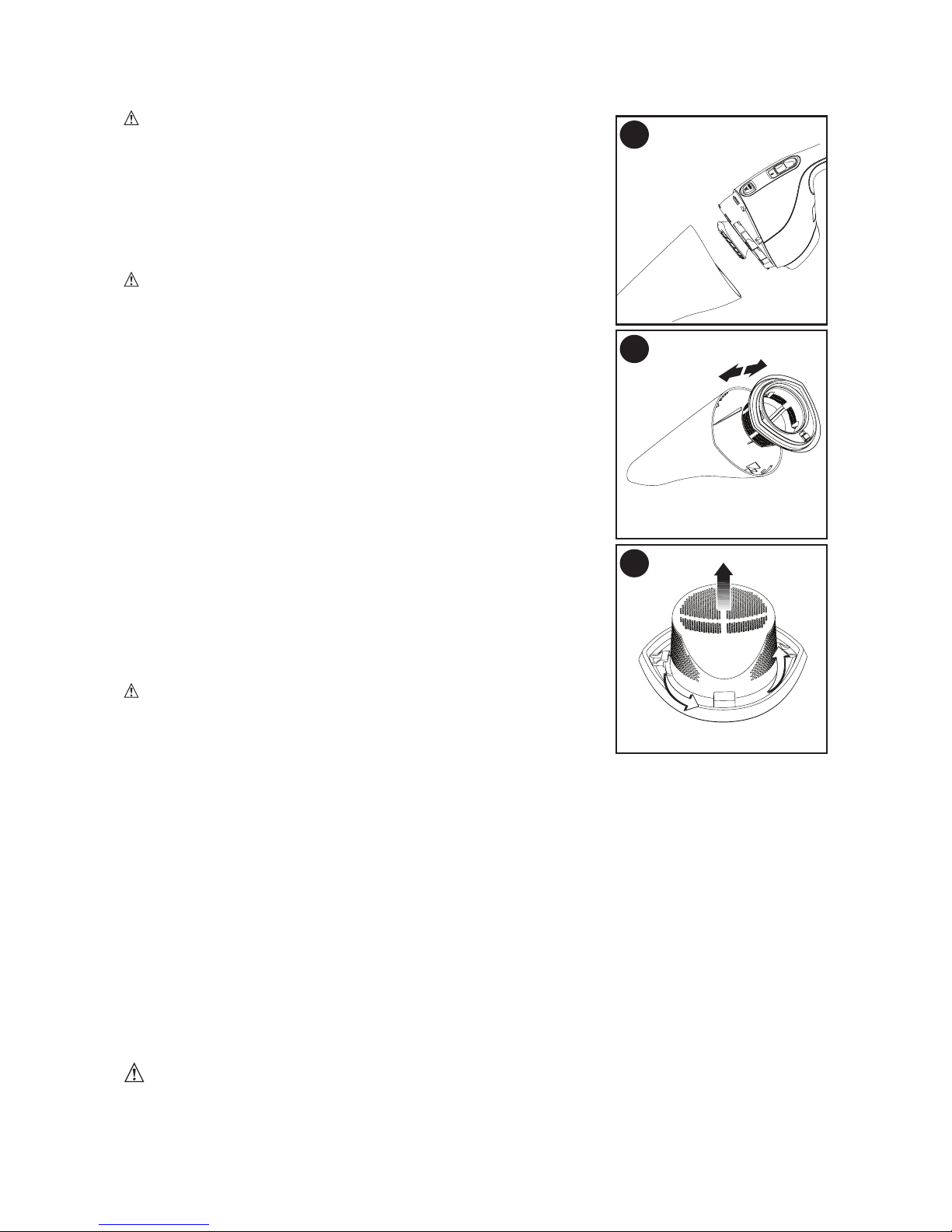

Removing the dust bowl and filters - Figures D & E
WARNING: The lters are reusable and should be
cleaned regularly.
• Press the bowl release button (2) and pull the dust bowl (3)
straight off as shown in Figure D.
• While holding the dust bowl over a bin or sink, pull out the
lter to empty the contents as shown in Figure E.
• To replace the dust bowl, push it back onto the handle until
it clicks rmly into place.
WARNING: Never use the appliance without the lters.
Optimum dust collection will only be achieved with clean lters.
Pre-filter - Figure F
The lter and pre-lter must be separated to clean ne debris
from the lter. Dirt between the lter and pre-lter must be
cleaned out regularly for optimum performance.
• Twist the pre-lter (7) counterclockwise and lift the lter (6).
Cleaning the dust bowls and filters
• The dust bowls and lters can be washed in warm soapy water.
• Make sure the lters and the dust bowl are dry before re-tting.
Replacing the filters
The lters should be replaced every 6 to 9 months and whenever
worn or damaged. Replacement lters (catalog number EVF100)
are available from your Black & Decker dealer.
MAINTENANCE
Use only mild soap and damp cloth to clean the vac. Never
let any liquid get inside the vac; never immerse any part of
the vac into a liquid.
WARNING: Make sure the vacuum is completely dry
before using it.
IMPORTANT: To assure product SAFETY and RELIABILITY,
repairs, maintenance and adjustment (other than those listed
in this manual) should be performed by authorized service centers or other qualified
service organizations, always using identical replacement parts.
THE RBRC™ SEAL
The RBRC™ (Rechargeable Battery Recycling Corporation)
Seal on the nickel-cadmium battery (or battery pack) indicates that the
costs to recycle the battery (or battery pack) at the end of its useful life have
already been paid by Black & Decker. In some areas, it is illegal to place
spent nickel-cadmium batteries in the trash or municipal solid waste stream and the RBRC
program provides an environmentally conscious alternative. RBRC in cooperation with
Black & Decker and other battery users, has established programs in the United States
and Canada to facilitate the collection of spent nickel-cadmium batteries. Help protect our
environment and conserve natural resources by returning the spent nickel-cadmium
battery to an authorized Black & Decker service center or to your local retailer for recycling.
Accessories
Recommended accessories for use with your appliance are available from your local
dealer or authorized service center.
WARNING: The use of any accessory not recommended for use with this
appliance could be hazardous.
2
D
E
F
