Jet DC-1100VX Series Service manual

Operating Instructions and Parts Manual

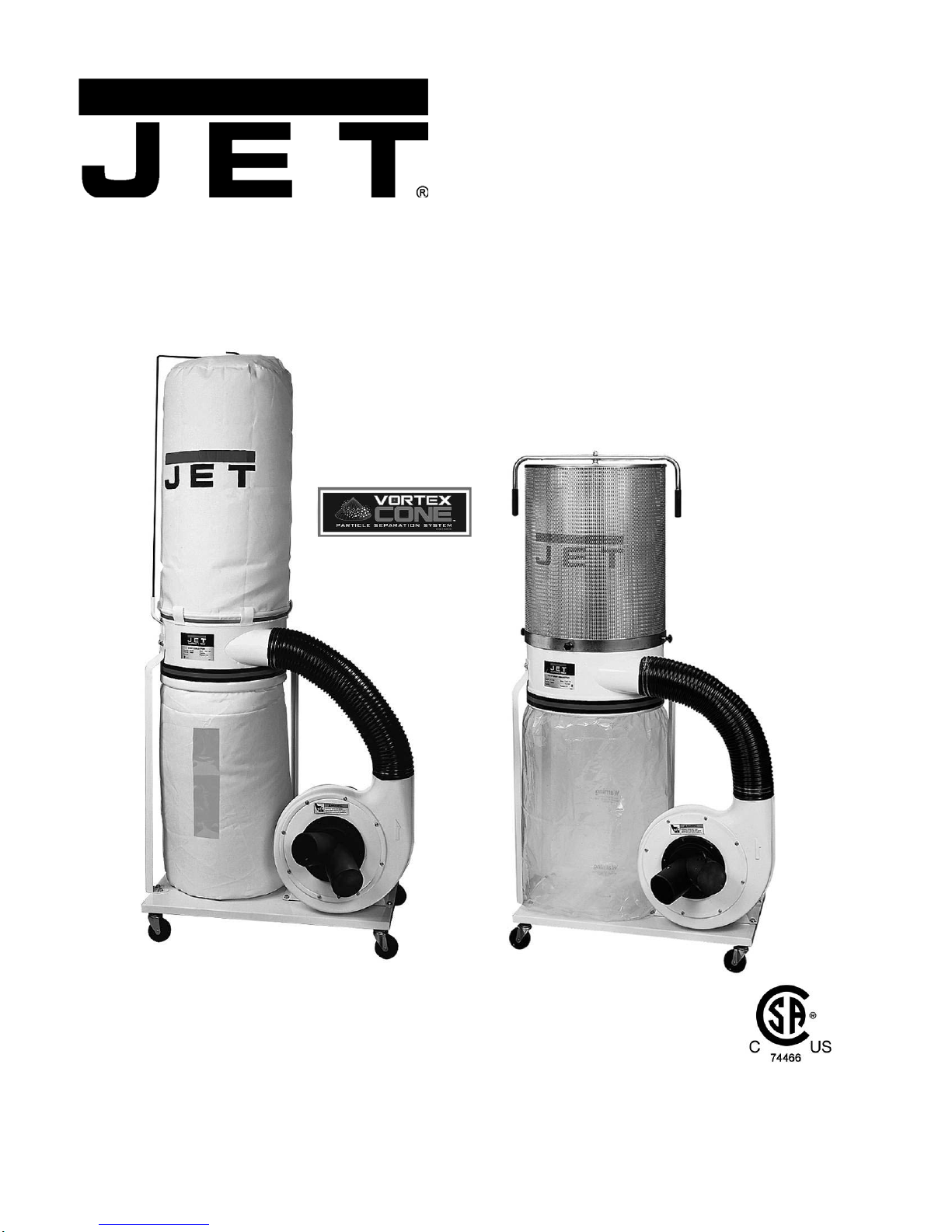

DC-1100VX Series Dust Collectors
DC-1100VX with Bag Filter Kit DC-1100VX with Canister Kit
WALTER MEIER (Manufacturing) Inc.
427 New Sanford Road
LaVergne, Tennessee 37086 Part No. M-708657
Ph.: 800-274-6848 Revision A 03/2011
www.waltermeier.com Copyright © 2011 Walter Meier (Manufacturing) Inc.
Now with

2
Warranty and Service
Walter Meier (Manufacturing) Inc., warrants every product it sells. If one of our tools needs service or repair, one of our
Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these
Walter Meier Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine
maintenance and major repair on your JET
® tools. For the name of an Authorized Service Center in your area call
1-800-274-6848.
MORE INFORMATION
Walter Meier is consistently adding new products to the line. For complete, up-to-date product information, check with your
local Walter Meier distributor, or visit waltermeier.com.
WARRANTY
JET products carry a limited warranty which varies in duration based upon the product (MW = Metalworking, WW =
Woodworking).
WHAT IS COVERED?
This warranty covers any defects in workmanship or materials subject to the exceptions stated below. Cutting tools,
abrasives and other consumables are excluded from warranty coverage.
WHO IS COVERED?
This warranty covers only the initial purchaser of the product.
WHAT IS THE PERIOD OF COVERAGE?
The general JET warranty lasts for the time period specified in the product literature of each product.
WHAT IS NOT COVERED?
Five Year Warranties do not cover woodworking (WW) products used for commercial, industrial or educational purposes.
Woodworking products with Five Year Warranties that are used for commercial, industrial or education purposes revert to a
One Year Warranty. This warranty does not cover defects due directly or indirectly to misuse, abuse, negligence or
accidents, normal wear-and-tear, improper repair or alterations, or lack of maintenance.
HOW TO GET SERVICE
The product or part must be returned for examination, postage prepaid, to a location designated by us. For the name of the
location nearest you, please call 1-800-274-6848.
You must provide proof of initial purchase date and an explanation of the complaint must accompany the merchandise. If
our inspection discloses a defect, we will repair or replace the product, or refund the purchase price, at our option. We will
return the repaired product or replacement at our expense unless it is determined by us that there is no defect, or that the
defect resulted from causes not within the scope of our warranty in which case we will, at your direction, dispose of or
return the product. In the event you choose to have the product returned, you will be responsible for the shipping and
handling costs of the return.
HOW STATE LAW APPLIES
This warranty gives you specific legal rights; you may also have other rights which vary from state to state.
LIMITATIONS ON THIS WARRANTY
WALTER MEIER (MANUFACTURING) INC., LIMITS ALL IMPLIED WARRANTIES TO THE PERIOD OF THE LIMITED
WARRANTY FOR EACH PRODUCT. EXCEPT AS STATED HEREIN, ANY IMPLIED WARRANTIES OR
MERCHANTABILITY AND FITNESS ARE EXCLUDED. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG
THE IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
WALTER MEIER SHALL IN NO EVENT BE LIABLE FOR DEATH, INJURIES TO PERSONS OR PROPERTY, OR FOR
INCIDENTAL, CONTINGENT, SPECIAL, OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OF OUR
PRODUCTS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
Walter Meier sells through distributors only. The specifications in Walter Meier catalogs are given as general information
and are not binding. Members of Walter Meier reserve the right to effect at any time, without prior notice, those alterations
to parts, fittings, and accessory equipment which they may deem necessary for any reason whatsoever. JET
® branded
products are not sold in Canada by Walter Meier.

3
Table of Contents
Warranty and Service.................................................................................................................................2
Table of Contents ......................................................................................................................................3
Warnings...................................................................................................................................................4
Introduction ...............................................................................................................................................5
Specifications ............................................................................................................................................6
Unpacking.................................................................................................................................................7
Shipping Content .......................................................................................................................................7

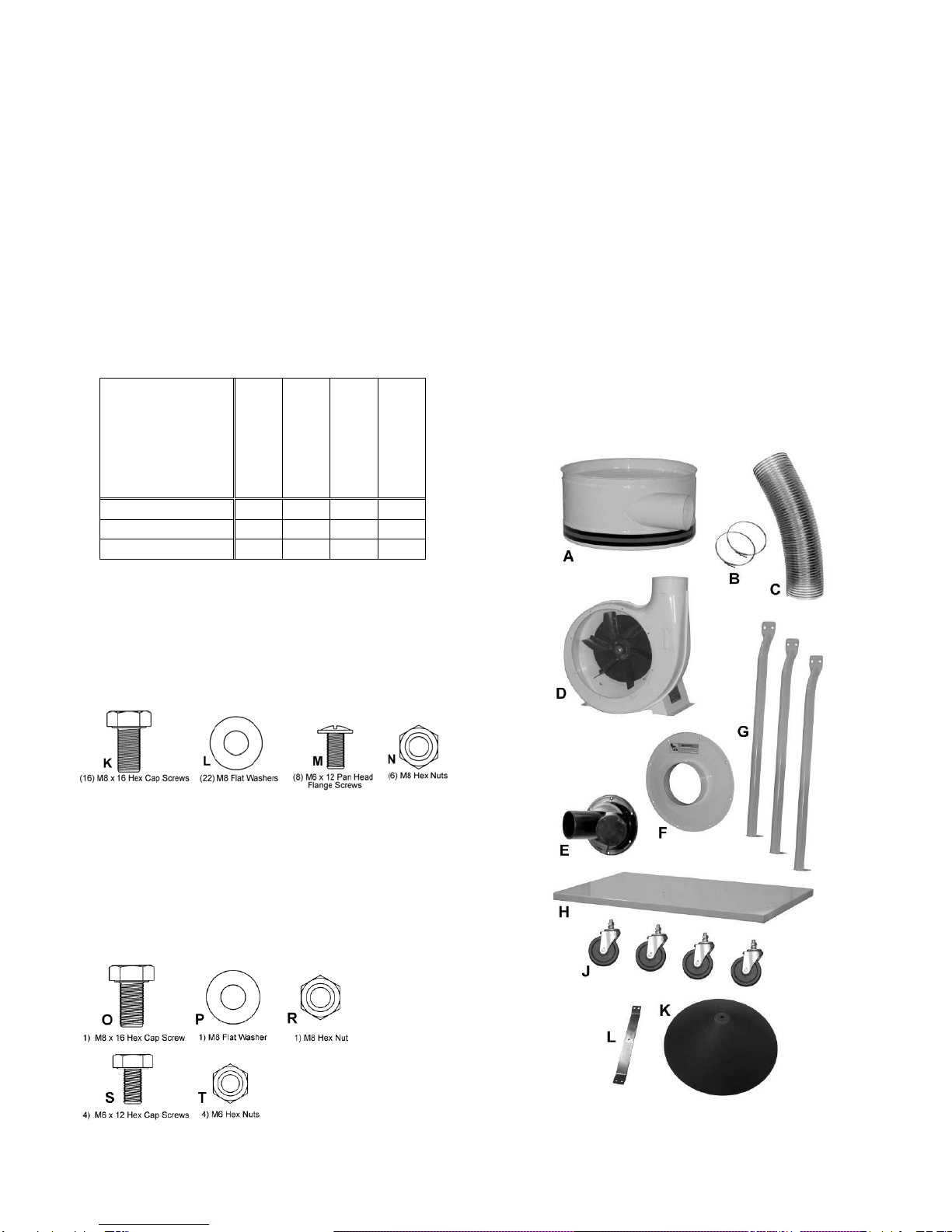

Base Unit...............................................................................................................................................7

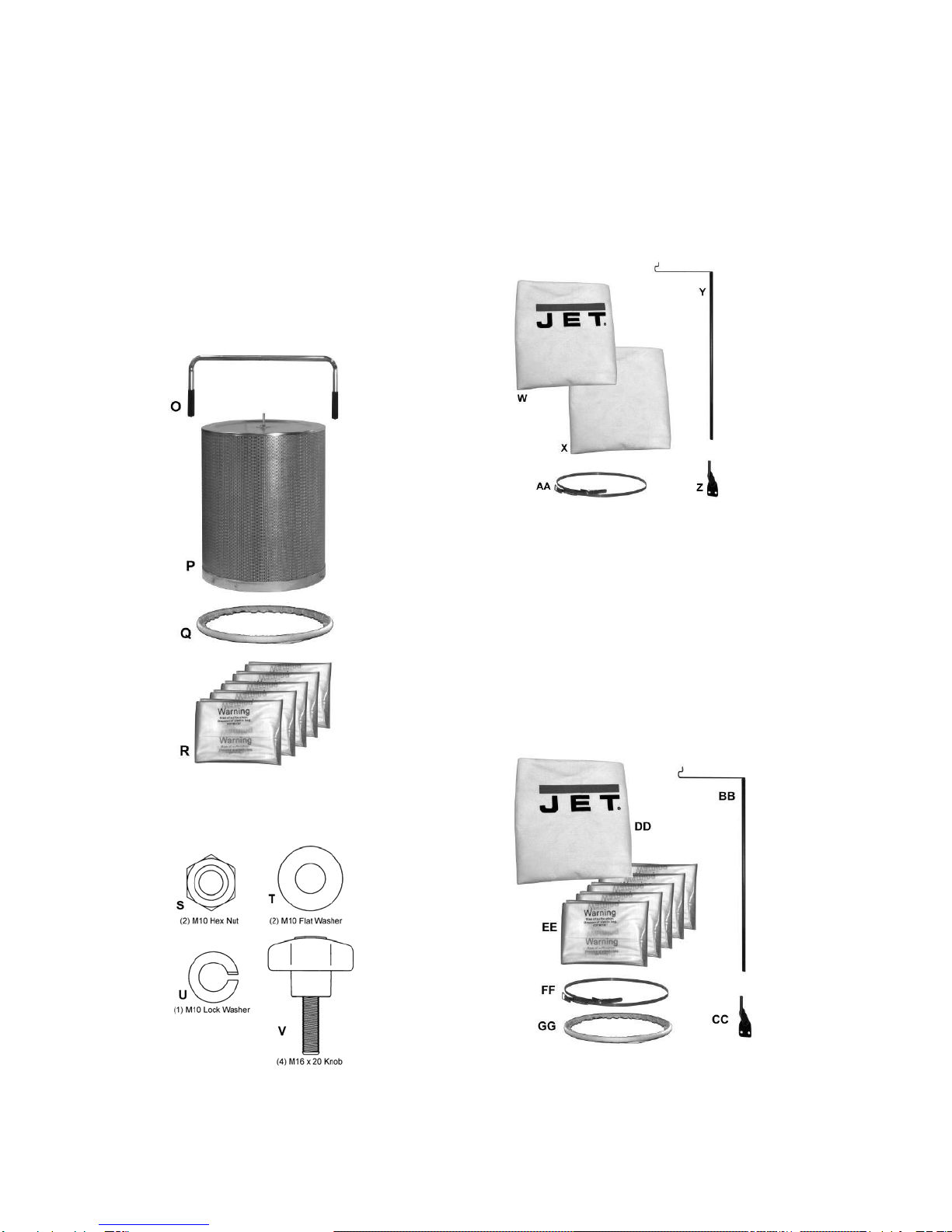

Canister Filter Kit....................................................................................................................................8
30-Micron Bag Filter Kit...........................................................................................................................8
5-Micron Bag Filter Kit ............................................................................................................................8

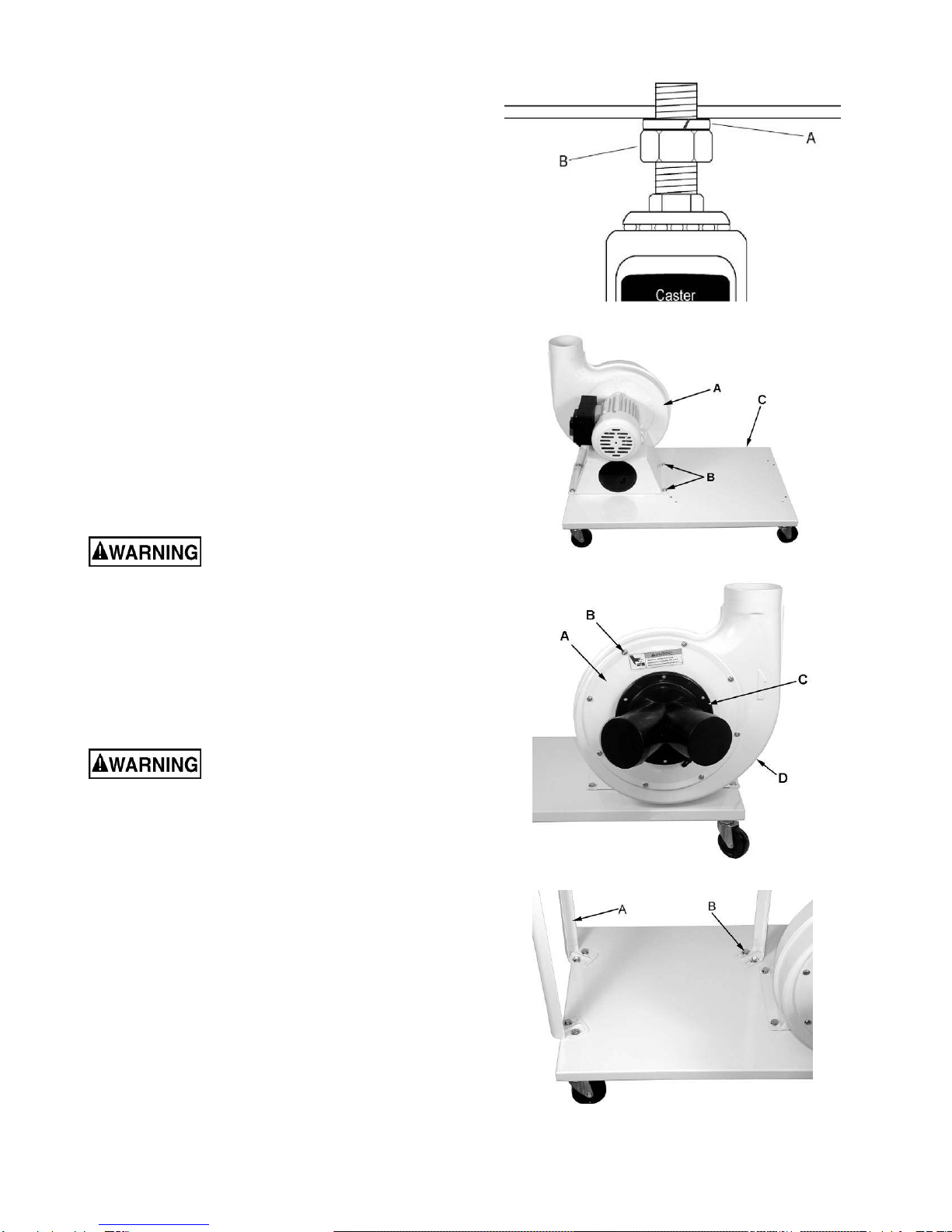

Base Unit Assembly...................................................................................................................................9
Base......................................................................................................................................................9
Motor and Fan Assembly ........................................................................................................................9
Connector Housing.................................................................................................................................9
Cone Assembly....................................................................................................................................10
Hose....................................................................................................................................................10
Filter Bag Kit Assembly ............................................................................................................................11

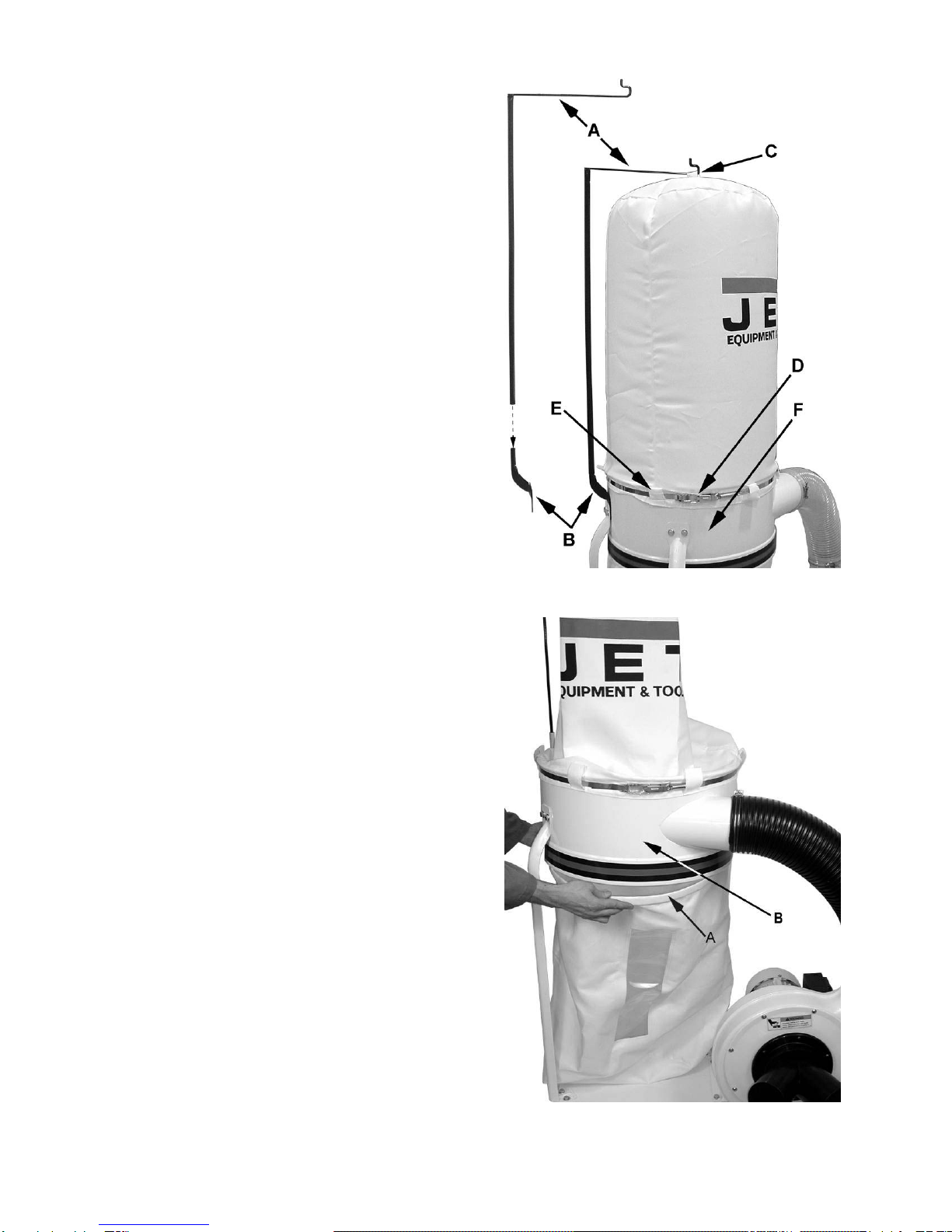

Filter Bag Installation............................................................................................................................11
Collector Bag Installation (30 Micron Kit)................................................................................................11
Collector Bag Installation (5 Micron Kit)..................................................................................................11
Canister Kit Assembly..............................................................................................................................12
Canister Filter.......................................................................................................................................12
Collector Bag .......................................................................................................................................12
Electrical Connections..............................................................................................................................13
Turning the Machine On & Off..................................................................................................................13
All Models ............................................................................................................................................13
Remote Control (Optional Accessory)....................................................................................................13
Dust Collector RF Remote Power Control (Optional)..................................................................................13
Turning the DC-RC On& Off.................................................................................................................13
Changing Operating Frequency.............................................................................................................14
Installing the DC-RC Remote Power Control (Optional Accessory)...........................................................14
Maintenance............................................................................................................................................15
Cleaning the Filter Bag: DC-1100VX-BK and DC-1100VX-5M .................................................................15
Removing the Collector Bag: DC-1100VX-BK.........................................................................................15
Cleaning the Filter: DC-1100VX-CK.......................................................................................................15
Removing the Collector Bag: DC-1100VX-CK and DC-1100VX-5M..........................................................15
Motor...................................................................................................................................................15
Connecting the Dust Collector to a Machine...........................................................................................15
Grounding the Dust Collection System...................................................................................................15
Parts.......................................................................................................................................................16
Parts Breakdown – DC-1100VX Dust Collectors.....................................................................................16
Parts List – DC-1100VX Dust Collectors.................................................................................................17

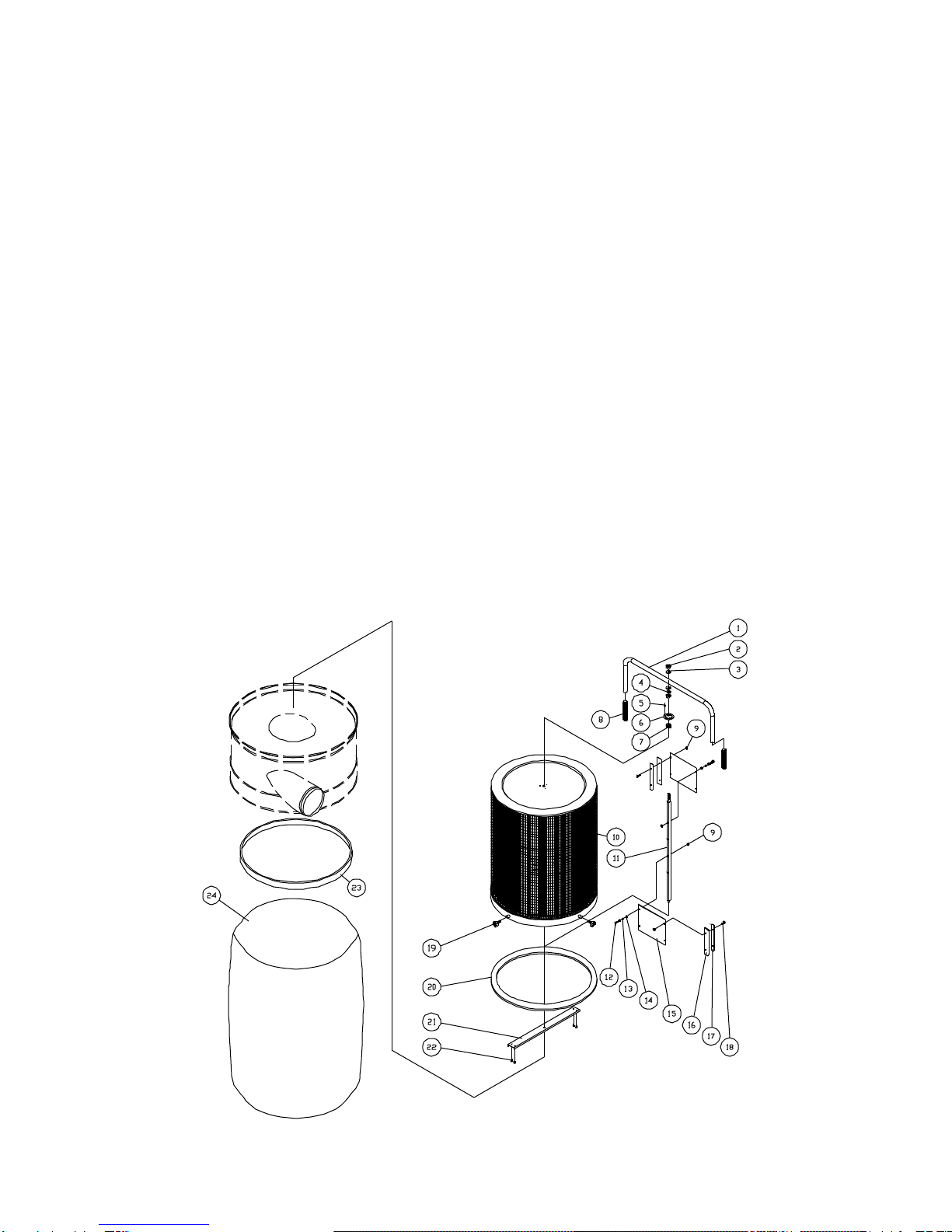

Canister Filter Assembly (708639B).......................................................................................................19

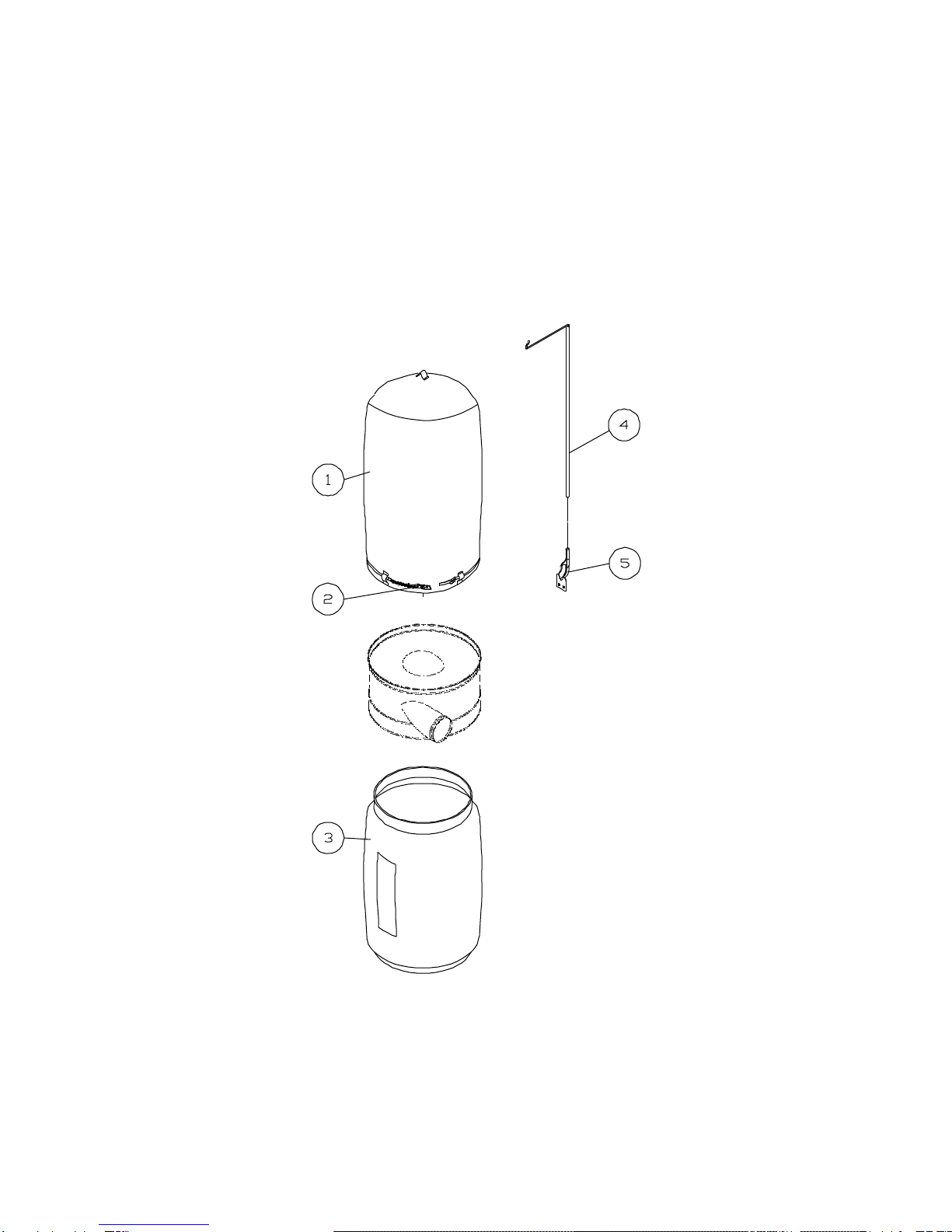

30-Micron Filter Bag Assembly (708636F)..............................................................................................20
5-Micron Filter Bag Assembly (708636F)................................................................................................21
Wiring Diagram – DC-1100VX Dust Collectors...........................................................................................22

4
Warnings
1. Read and understand the entire owner's manual before attempting assembly or operation.
2. Read and understand the warnings posted on the machine and in this manual. Failure to comply with all of
these warnings may cause serious injury.
3. Replace the warning labels if they become obscured or removed.
4. This dust collector is designed and intended for use by properly trained and experienced personnel only. If
you are not familiar with the proper and safe operation of a dust collector, do not use until proper training
and knowledge have been obtained.
5. Do not use this dust collector for other than its intended use. If used for other purposes, Walter Meier
(Manufacturing) Inc., disclaims any real or implied warranty and holds itself harmless from any injury that
may result from that use.
6. Always wear approved safety glasses/face shields while using this dust collector. Everyday eyeglasses
only have impact resistant lenses; they are not safety glasses.
7. Before operating this dust collector, remove tie, rings, watches and other jewelry, and roll sleeves up past
the elbows. Remove all loose clothing and confine long hair. Non-slip footwear or anti-skid floor strips are
recommended. Do not wear gloves.
8. Wear ear protectors (plugs or muffs) during extended periods of operation.
9. Some dust created by power sanding, sawing, grinding, drilling and other construction activities contain
chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these
chemicals are:
•Lead from lead based paint.
•Crystalline silica from bricks, cement and other masonry products.
•Arsenic and chromium from chemically treated lumber.
Your risk of exposure varies, depending on how often you do this type of work. To reduce your exposure
to these chemicals, work in a well-ventilated area and work with approved safety equipment, such as face
or dust masks that are specifically designed to filter out microscopic particles.
10. Do not operate this machine while tired or under the influence of drugs, alcohol or any medication.
11. Make certain the switch is in the OFF position before connecting the machine to the power supply.
12. Make certain the machine is properly grounded.
13. Make all machine adjustments or maintenance with the machine unplugged from the power source.
14. Remove adjusting keys and wrenches. Form a habit of checking to see that keys and adjusting wrenches
are removed from the machine before turning it on.
15. Keep safety guards in place at all times when the machine is in use. If removed for maintenance purposes,
use extreme caution and replace the guards immediately.
16. Check damaged parts. Before further use of the machine, a guard or other part that is damaged should be
carefully checked to determine that it will operate properly and perform its intended function. Check for
alignment of moving parts, binding of moving parts, breakage of parts, mounting and any other conditions
that may affect its operation. A guard or other part that is damaged should be properly repaired or
replaced.
17. Provide for adequate space surrounding work area and non-glare, overhead lighting.
18. Keep the floor around the machine clean and free of scrap material, oil and grease.
19. Keep visitors a safe distance from the work area. Keep children away.

5
20. Make your workshop child proof with padlocks, master switches or by removing starter keys.
21. Give your work undivided attention. Looking around, carrying on a conversation and “horse-play” are
careless acts that can result in serious injury.
22. Do not use the dust collector for anything except wood dust. Materials such as liquids, metal shavings,
metal dust, screws, glass, plastic or rock can cause sparks and/or damage when coming into contact with
any part of the dust collector.
23. Use recommended accessories; improper accessories may be hazardous.
24. Maintain tools with care. Follow instructions for lubricating and changing accessories.
25. Turn off the machine before cleaning. Use a brush or compressed air to remove chips or debris — do not
use your hands.
26. Do not stand on the machine. Serious injury could occur if the machine tips over.
27. Never leave the machine running unattended. Turn the power off and do not leave the machine until it
comes to a complete stop.
28. Remove loose items and unnecessary work pieces from the area before starting the machine.
29. Never place hands near the inlet of the machine.
30. Always make certain machine is off and unplugged when making any connections to the inlet.
Familiarize yourself with the following safety notices used in this manual:
This means that if precautions are not heeded, it may result in minor injury and/or possible
machine damage.
This means that if precautions are not heeded, it may result in serious injury or possibly even
death.
- - SAVE THESE INSTRUCTIONS - -
Introduction
This manual is provided by Walter Meier (Manufacturing) Inc., covering the safe operation and maintenance
procedures for model DC-1100VX Series Dust Collectors. This manual contains instructions on installation,
safety precautions, general operating procedures, maintenance instructions and parts breakdown. This
machine has been designed and constructed to provide years of trouble free operation if used in accordance
with instructions set forth in this manual. If there are any questions or comments, please contact either your
local supplier or Walter Meier. Walter Meier can also be reached at our website: www.waltermeier.com.

6
Specifications
DC-1100VX-BK (Base Machine with 30 Micron Filter Bag Kit).........................................................708657K
DC-1100VX-5M (Base Machine with 5 Micron Filter Bag Kit) ..........................................................708658K
DC-1100VX-CK (Base Machine with Canister Filter Kit)..................................................................708659K
Base Machine (All Models)
Model................................................................................................................................DC-1100VX
Stock Number for Base Machine only .........................................................................................708657
Impeller Diameter.............................................................................................................................11
Sound Rating at 3 foot distance................................................................................................70-80 db
1-Hose Connection Diameter (in.)........................................................................................................6
2-Hose Connection Diameter (in.)........................................................................................................4
Air Flow (CFM).............................................................................................................................1,100
Velocity at 4” (FPM)......................................................................................................................8,464
Static Pressure (inch of water)........................................................................................................ 10.5
Overall Dimensions, approx. (with filter kit installed) (in.)............................................... 37L x 28W x 79H
Motor...................................................TEFC, 1-1/2 HP, 1PH, 115/230V, Prewired 115V, 11/5.5 A, 60Hz
Net Weight, approximate (lbs) ......................................................................................................... 103
30 Micron Filter Bag Kit
Stock Number.........................................................................................................................708636F
Filter Bag Efficiency.......................................................................................96% of 30 micronparticles
Filter Bag Length, installed (in.).........................................................................................................32
Filter and Collector Bag Diameter (in.) ...............................................................................................20
Collector Bag Capacity (cu. ft.).........................................................................................................5.3
Collector Bag Length (in.) .................................................................................................................29
5 Micron Filter Bag Kit
Stock Number......................................................................................................................708636MF
Filter Bag Efficiency.....................................98% of 5 micron particles; 92% of 3 micron; 74% of 1 micron
Filter Bag Length, installed (in.).........................................................................................................32
Filter and Collector Bag Diameter (in.) ...............................................................................................20
Collector Bag Capacity (cu. ft.).........................................................................................................5.3
Collector Bag Length, installed (in.) ................................................................................................... 29
Canister Filter Kit
Stock Number.........................................................................................................................708639B
Canister Length (in.)......................................................................................................................... 25
Canister Efficiency................................................... 86% of 1 micron particles; 98% of 2 micron particles
Collector Bag Diameter (in.)..............................................................................................................20
Collector Bag Capacity (cu. ft.).........................................................................................................5.3
Collector Bag Length, installed (in.) ................................................................................................... 29
IR Remote Control Unit (Optional Accessory)
Stock Number (main unit and remote control switch) (115V only)............................................... 708636C
Stock Number (Remote Control Switch only).............................................................................708636T
The above specifications were current at the time this manual was published, but because of our policy of
continuous improvement, Walter Meier (Manufacturing) Inc., reserves the right to change specifications at any
time and without prior notice, without incurring obligations.
Read and understand the entire contents of this manual before attempting set-up or
operation! Failure to comply may cause serious injury.

7
Unpacking
The table below lists the shipping cartons that are
included with the models of the DC-1100VX Dust
Collector.
1. Locate your particular model and verify that you
have received all of the correct cartons.
2. Check contents of each carton against the ship-
ping content listings on this and the following
page.
3. Report any damage to your distributor.
4. Do not discard any shipping material until after
the dust collector has been assembled and is
running properly.
Base Unit
(SN 708657)
30M Filter Bag Kit
(SN 708636F)
5M Filter Bag Kit
(SN 708636MF)
Canister Filter Kit
(SN 708639B)
DC-1100VX-BK x x
DC-1100VX-CK xx
DC-1100VX-5M x x
Table – DC-1100VX Dust Collector cartons
Hardware Bag for Base Unit (SN DC1100-HP)
16 – M8 x 16 Hex Cap Screws (K)
22 – M8 Flat Washers (L)
08 – M6 x 12 Pan Head Flange Screws (M)
06 – M8 Hex Nuts (N)
Base Unit Hardware
Hardware Bag for Cone Assembly (SN DC1100-HP2)
1 – M8 x 16 Hex Cap Screw (O)
1 – M8 Flat Washer (P)
1 – M8 Hex Nut (R)
4 – M6 x 12 Hex Cap Screws (S)
4 – M6 Hex Nuts (T)
Cone Assembly Hardware
Shipping Content
Base Unit
(SN 708657)
1 – Housing (A)
2 – Hose Clamps (B)
1 – Hose (C)
1 – Impeller (Motor/Fan Assembly) (D)
1 – Inlet Port (E)
1 – Impeller Cover (F)
3 – Support Legs (G)
1 – Base (H)
4 – Casters (J)
1 – Cone (K)
1 – Support Bracket (L)
1 – Owner's Manual (not shown)
1 – Warranty Card (not shown)
1 – Hardware Bag, Base Unit (SN DC1100-HP)
1 – Hardware Bag, Cone Assly. (SN DC1100-HP2)
Base Machine Shipping Contents

8
Canister Filter Kit
(SN 708639B)
1 – Handle (O)
1 – Canister Filter (P)
1 – Snap Ring (Q)
5 – Collector Bags (R)
1 – Canister Filter Hardware Bag (SN DC1100-CHP)
Contains:
(2) M10 Hex Nuts (S)
(2) M10 Flat Washers (T)
(1) M10 Lock Washer (U)
(4) Knobs (V)
Canister Filter Kit Contents
Canister Filter Hardware
(SN DC1100-CHP)
Canister Filter Hardware
30-Micron Bag Filter Kit
(SN 708636F)
1 – Upper Bag Hanger (Y)
1 – Hanger Bracket (Z)
1 – Collector Bag (X)
1 – Filter Bag (W)
1 – Retainer Strap (AA)
Filter Bag Kit Contents
5-Micron Bag Filter Kit
(SN 708636MF)
1 – Upper Bag Hanger (BB)
1 – Hanger Bracket (CC)
1 – Filter Bag (DD)
5 – Collector Bags (EE)
1 – Retainer Strap (FF)
1 – Snap Ring (GG)

9
Base Unit Assembl
y
Base
1. Install four casters to the underside of the base as
pictured in Fig. 2.
Referring to Figure 1:
2. Thread the hex nut (B) onto the caster shaft. Then
slide the lock washer (A) over the caster shaft.
Thread the caster shaft into the threaded hole on
the underside of the base, turn until snug. Tighten
the nut (B) against the base with a 14mm wrench.
This will give the caster proper clearance.
Motor and Fan Assembly
Referring to Figure 2:
3. Place the base (C) with casters on the ground.
Attach the motor and fan assembly (A) to the base
using four each M8 x 16 hex cap screws, and M8
flat washers (B). Tighten with a 13mm wrench.
The dust collector must not be
connected to the power source during assembly.
Failure to comply may result in serious injury!
Referring to Figure 3:
4. Attach impeller cover (A) to impeller housing (D)
using eight M6 x 12 pan head screws (B). Press
the inlet ports (C) onto the inlet guard until it snaps
into place.
To reduce the risk of injury from
moving parts, always keep inlet port covered with
the caps provided, if they are not connected to a
hose. Failure to comply may result in serious
injury!
Connector Housing
5. Attach three support legs (A, Fig. 4) to the base
using six M8 x 16 hex cap bolts and six M8 flat
washers (B, Fig. 4). Hand-tightenonly at this time.
Figure 1
Figure 2
Figure 3
Figure 4

10
6. Install the housing (A, Fig. 5) to two support
legs (B, Fig. 5) using four M8 x 16 hex cap bolts,
eight M8 flat washers, and four M8 hex nuts (C,
Fig. 5). Be sure hose opening faces fan housing.
Note: For filter bag models only – Before attaching
third support bracket place the hanger bracket (D,
Fig.5) between the support bracket and the
housing. This action is not necessary for canister
filter units.
7. Tighten all nuts and bolts at this time with a 13mm
wrench.
Cone Assembly
Referring to Figure 6:
8. Mount the cone support bracket (E) to the housing
with four M6x12 hex cap screws (F), and tighten
from beneath with four M6 hex nuts (G).
9. Install the cone (H) from beneath using the M8x16
hex cap screw (J), M8 flat washer (K), and M8 hex
nut (L), and tighten.
Hose
Referring to Figure 7:
10. Attach the hose (B) between the collector housing
(A) and the impeller housing (D) with two clamps
(C). Tighten the clamps to secure the hose.
This completes the Base Unit assembly. If you
purchased the DC-1100VX-BK or DC-1100VX-5M
Dust Collector (filter bag versions), continue on the
following page. If you purchased the DC-1100VX-CK
Dust Collector (canister filter version), proceed to
Canister Kit Assembly section on page 12.
Figure 5
Figure 6
Figure 7
