Black & Decker BDPC750AU User manual

8 1
Cat. # BDPC750AU September 2016
RD091216 Printed in China
800 WATT POWER INVERTER
WITH USB CHARGING PORT
INSTRUCTION MANUAL
BDPC750AU_Manual_091216.indd 8-1 9/12/2016 11:56:47 AM

32
INSTRUCTION MANUAL
INTENDED USE
Your Black & Decker power inverter is designed to
convert direct current (dc) to alternating current
(AC). It allows the 12V dc current in an automobile to
supply ac power to operate equipment that is normally
supplied from a mains power source. This product is
intended for household, consumer use only.
SAFETY INSTRUCTIONS
Warning! When using battery-powered appliances,
basic safety precautions, including the following,
should always be followed to reduce the risk of fire,
leaking batteries, personal injury and material damage.
•Read all of this manual carefully before using the
appliance.
•The intended use is described in this manual.
The use of any accessory or attachment or the
performance of any operation with this appliance
other than those recommended in this instruction
manual may present a risk of personal injury.
•Retain this manual for future reference.
Using your inverter
Always take care when using the inverter.
•For indoor or in-car use only.
•This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
•Children should be supervised to ensure that they do
not play with the appliance.
•Use in a dry location only. Do not allow the appliance
to become wet. Do not immerse the appliance in water.
•Do not open body casing. There are no user-
serviceable parts inside.
•Do not operate the appliance in explosive
atmospheres, such as in the presence of flammable
liquids, gases or dust.
•To reduce the risk of damage to plugs and cords
never pull the cable to remove the plug from a
socket.
After use
•When not in use, the appliance should be stored in a
dry, well ventilated place out of the reach of children.
•Children should not have access to stored appliances.
•When the appliance is stored or transported in a
vehicle it should be placed in the boot or restrained
to prevent movement following sudden changes in
speed or direction.
•The appliance should be protected from direct
sunlight, heat and moisture.
Inspection and repairs
•Before use, check the appliance for damaged or
defective parts. Check for breakage of parts, damage
to switches and any other conditions that may affect
its operation.
•Do not use the appliance if any part is damaged or
defective.
•Have any damaged or defective parts repaired or
replaced by manufacturer.
•Never attempt to remove or replace any parts other
than those specified in this manual.
Specific safety instructions for power
inverters
Warning! This appliance converts power from a 12V
dc battery to mains supply voltage. Take precautions,
including the following, to avoid the risk of electric
shock.
•Only connect a plug fitted to the supply cord of an
appliance to the inverter.
•Never connect an appliance by modifying the plug or
by using an adapter unless otherwise instructed by
this instruction manual.
•The length of an appliance power cord to the inverter
must not exceed two metres unless otherwise
instructed by this instruction manual.
•Never connect an appliance that is damaged or
incomplete.
•Never connect the inverter to the mains supply or to
the output of another inverter.
– The inverter cannot convert the mains supply
to dc voltage.
– The inverter cannot be used to supplement
the mains supply.
•Do not cover the inverter. Only use in well ventilated
areas.
•Do not open the inverter, there are no serviceable
parts inside. Do not probe the inverter.
•Check that connections to the dc supply are clean
and secure. Loose connectors may cause overheated
wires and melted insulation.
•Check to make sure you have not reversed the polarity.
•Do not install in engine compartments.
•Do not use the inverter to supply any medical devices.
Warning! A reverse polarity connection will result in a
blown fuse and may cause permanent damage to the
power inverter. Damage due to reversed polarity is not
covered by the warranty.
Warning! Do not use with positive ground electrical
systems, (i.e. older vehicles).
The power inverter output waveform
The ac output waveform of this inverter is known
as a “modified sine wave.” This type of waveform
is suitable for most ac loads, including linear
and switching power supplies used in electronic
equipment, transformers, and small motors.
1
2
7
345
68
9
10
6
11
BDPC750AU_Manual_091216.indd 2-3 9/12/2016 11:56:48 AM

4 5
Warning! Rechargeable devices: Some
rechargeable devices do not operate well from a
modified sine wave inverter. They only operate
correctly from a standard household outlet
which provides a pure sine wave. Therefore, the
manufacturer recommends that you operate these
types of devices from a standard household outlet
only, not from the inverter.
This problem does not occur with the majority of
battery-operated equipment. Most of these devices use
a separate charger or transformer that is plugged into
an ac mains socket. The inverter is easily capable of
running most chargers and transformers.
Caution! Incompatible products: Certain products
contain power supplies or circuits that are not
compatible with an inverter using a modified sine wave
output (such as this inverter) and may be damaged by
using this inverter.
Some products must be powered from a pure sine
wave power source, such as standard household
power, or a “pure sine wave” inverter in order to
function properly. If your product requires pure
sine wave ac input power to function properly, the
instruction manual for your product could state
this. If in doubt, you should contact your product
manufacturer PRIOR TO USE.
Your product could be damaged by this inverter if it
contains:
•Microwave ovens
•Transformerless battery chargers
•Capacitive coupled power supplies
If an incompatible product is used with this inverter:
•The product might not operate at all, with no
indication of failure. The product fuse might open as
a result of trying to use it with the inverter.
•The product might exhibit unusual operation (such
as, intermittent operation, buzzing, and the like.)
Warning! This appliance will not operate high wattage
appliances or equipment that produce heat, such as
coffee makers, hair dryers, microwave ovens, and
toasters.
Note: Some laptop computers may not operate with
this inverter.
Rated versus actual power
requirements of equipment
Most electrical tools, appliances and audio/video
equipment have labels that indicate the power
consumption in amps or watts. Be sure that the power
consumption of the item you wish to operate is rated
at 800 watts or less.
The power inverter is fitted with overload protection
and will shutdown if a load in excess of 800W is
applied. Resistive loads (i.e incandescent lights) are
the easiest for the power inverter to run.
Specific safety instructions for the
USB power port
•Do not insert foreign objects into the USB power
port.
•Do not attach USB hubs or more than one personal
electronic device to the USB power port.
•Some USB-powered household electronics may not
operate with this USB power port. Check the manual
of the corresponding electronic device to confirm
that it can be used with this type of USB power port.
FEATURES
1. Battery clamps with cables and ring terminals
2. Ventilation slots
3. Black (negative) plastic protective cap
4. Connection screws (PM6x10)
5. Red (positive) plastic protective cap
6. Mounting brackets (total of 4, 2 in front, 2 in
back)
7. Cooling fans
8. LCD Display
9. On/Off button
10. USB power port
11. Mains socket
OPERATING INSTRUCTIONS
Power source requirements
The power source must provide 12V dc and must be
able to supply the necessary current to operate the
load.
Warning! The power inverter must be connected only
to batteries with a nominal output voltage of 12 volts.
The appliance will not operate from a 6 volt battery
and will sustain permanent damage if connected to a
24 volt battery.
Connecting to a power source
Tools Required: a Philips head screwdriver (NOT
supplied).
Use the provided battery clips to connect the inverter
directly to the 12 volt power source as follows:
1. Check to make sure the inverter’s On/Off switch
has been turned off and that no flammable fumes
are present in the installation area.
2. Open the red (positive) plastic protective cap
(downward). Using a Philips head screwdriver,
unscrew the PM6x10 connection screw
(counterclockwise) and remove it.
3. Attach the positive ring terminal at the end of the
red battery clip cable to the positive connection
post. Replace the connection screw and screw it
clockwise to secure. Do not over-tighten.
4. Open the black (negative) plastic protective cap
(downward). Using a Philips head screwdriver,
unscrew the PM6x10 connection screw
(counterclockwise) and remove it.
5. Attach the negative ring terminal at the end of the
black battery clip cable to the negative connection
post. Replace the connection screw and screw it
clockwise to secure. Do not over-tighten.
6. Make sure that all connections between cables
and terminals are secure.
Warning! Connect the ring terminals to the terminals
of the power inverter before connecting the battery
clips to the battery.
Warning! Loose connectors may cause overheated
wires and melted insulation.
Warning! Check to make sure you have not reversed
the polarity. Damage due to reversed polarity is not
covered by our warranty.

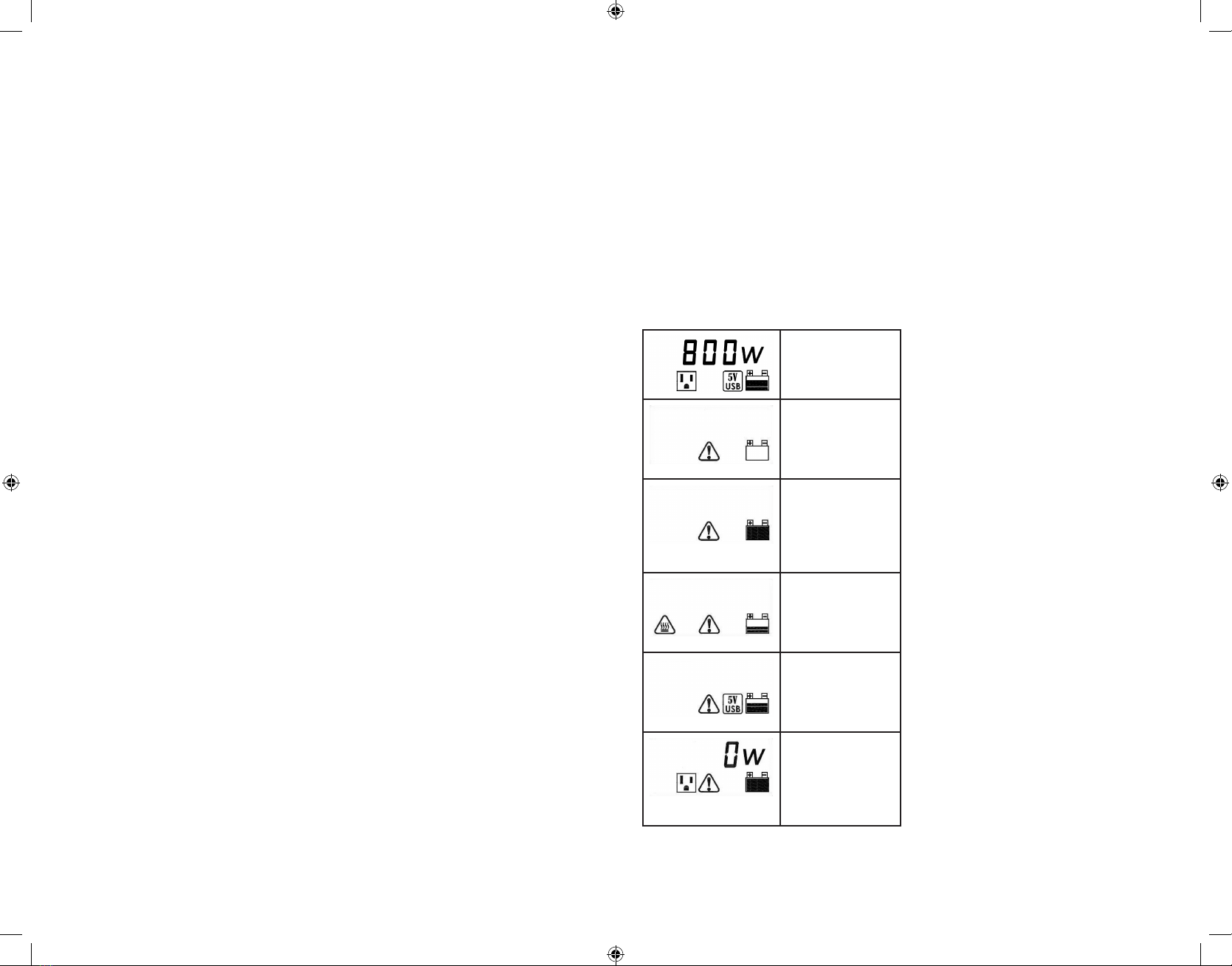

Power and fault indicators on the LCD
display
This indicates that
the unit is connected
properly and
functioning normally.
This indicates an input
voltage too low fault
condition. Refer to the
following section for
an explanation.
This indicates an
input voltage too
high fault condition.
Refer to the Protective
Features section for an
explanation.
This indicates a
thermal fault condition.
Refer to the Protective
Features section for an
explanation.
This indicates a
USB fault condition,
and displays when
the USB load exceeds
capacity.
This indicates an
overload or short
circuit fault condition.
Refer to the Protective
Features section for an
explanation.
Operation of the mains socket and
USB power port
Refer to “Power and Fault Indicators on the LCD
Display” for an explanation of the operating and
fault icons. If a fault icon appears, refer to the
“Troubleshooting” section.
The USB port is ready to use whenever the converter
is properly connected to a power source. To use the
mains socket, however, the inverter must be properly
connected to a power source and the on/off button
must be turned on.
Caution! To reduce the risk of property damage:
Always connect the converter to the 12 volt dc power
source before plugging any devices into the unit.
The standard mains socket and USB power port allow
simultaneous operation of multiple devices. Simply
plug the ac appliance into the inverter’s mains socket
and/or plug the USB-powered device into the inverter’s
USB power port and operate normally.
Notes:
•Ensure that the wattage of all equipment
simultaneously plugged into the inverter does not
exceed 800 watts continuous.
•The inverter will not operate appliances and
equipment that generate heat, such as hair dryers,
electric blankets, microwave ovens and toasters.
•This inverter’s USB Power Port does not support
data communication. It only provides 5 volts/500mA
dc power to an external USB-powered device.
•Remember to turn the unit off and disconnect from
any power source when it is not in use.
Connection to load
The power inverter is equipped with a standard mains
socket. Plug the cord from the equipment you wish
to operate into the mains socket and/or USB power
port. Make sure that the load requirement of your
equipment does not exceed 800 watts.
The appliance is engineered to be connected directly
to standard electrical and electronic equipment in the
manner described above. Do not connect the inverter
to household ac wiring. Do not connect the inverter to
any ac load circuit in which the neutral conductor is
connected to ground (earth) or to the negative of the
dc (battery) source.
Warning! Do not connect to ac wiring.
PROTECTIVE FEATURES OF THE
POWER INVERTER
Your appliance monitors the following potentially
hazardous conditions:
Low battery voltage. This condition is not harmful
to the appliance but could damage the power source.
The appliance automatically shuts down when input
voltage drops to 10,5 ± 0,5 volts. When the condition
is corrected, turn the appliance off and then on.
Over voltage. The power inverter will automatically
shutdown when the input voltage exceeds 15,5 ± 0,5
volts dc.
BDPC750AU_Manual_091216.indd 4-5 9/12/2016 11:56:48 AM

6 7
Short circuit. A reverse polarity or short circuit
condition may cause external or internal fuses to open
and may cause irreversible damage to the appliance.
Take extra care to insure a correct polarity connection.
Overload. The power inverter will automatically shut
down when the continuous load exceeds 800 watts.
When the overload is removed, reset the appliance by
turning it off and then on again.
Over temperature. If the temperature inside the
appliance is too high, the appliance will automatically
shut down. Allow the appliance to cool for at least
15 minutes before restarting after a heat-related
shutdown. Unplug the appliance while cooling.
HINTS FOR OPTIMUM USE
For best operating results, the inverter should be
placed on a flat and/or solid surface. The inverter
should only be used in locations that meet the
following criteria:
DRY – Do not allow water or other liquids to come
into contact with the inverter.
COOL – The surrounding air temperature should be
between 5°C and 40°C. Keep the inverter away from
direct sunlight, when possible.
WELL VENTILATED – Keep the area surrounding
the inverter clear to ensure free air circulation. Do not
place items on or over the inverter during operation.
The inverter will shut down if the internal temperature
gets too hot. Refer to the Protective features section of
this instruction manual for more information.
SAFE – Do not use the inverter near flammable
materials or in any location that may accumulate
flammable fumes or gases. This is an electrical
appliance that can briefly spark when electrical
connections are made or broken.
TROUBLESHOOTING
Common Audio/Visual Problems
Buzzing Sound In
Audio Systems
Some inexpensive stereo
systems make a buzzing
sound when operated from
an inverter because the
power supply in the electronic
device does not properly filter
the modified sine wave. The
only solution to this problem
is to use a sound system that
has a higher quality power
supply.
Television
Interference
The inverter is shielded to
minimize interference with
television signals. However, in
some instances, interference
may still occur, particularly
where television signals
are weak. Try the following
corrective measures:
•Place the inverter as far as
possible from the television,
the aerial or cables. Use
an extension cable, if
necessary.
•Readjust the orientation of
the inverter, the aerial or
cables and the television
power cord to minimize
interference.
•Make sure the aerial or
cable feeding the television
provides an adequate
(“snow free”) signal and
that high quality, shielded
aerial or cable is used.
•Do not use the inverter
to operate high-power
appliances or tools at the
same time you are using it
to operate the television.
Common Power Output Problems
Input voltage
below 10,5 volts
Recharge auto battery or
check dc power supply.
Equipment being
operated draws
too much power
Reduce load to maximum
800 watts.
Common Power Output Problems
Inverter in
thermal shutdown
condition
Allow inverter to cool down.
Ensure there is adequate
ventilation around the unit
and that the load is no
more than 800 watts for
continuous operation.
AC output is
shorted
Unplug the ac appliance. Turn
off the inverter. Disconnect
the unit from any 12 volt
dc power source. Check the
appliance cord.
MAINTENANCE
From time to time wipe the outside casing of the
inverter with a damp cloth. Do not use any abrasive
or solvent-based cleaner. Do not immerse the inverter
in water.
Warning! Before performing any maintenance or
cleaning on the inverter, disconnect it from any power
source.
PROTECTING THE ENVIRONMENT
Correct disposal of this product
This marking indicates that this product
should not be disposed with other
household waste throughout the EU. To
prevent possible harm to the environment
or human health from uncontrolled
waste disposal, recycle it responsibly to promote the
sustainable reuse of material resources. To return
your used device, please use the return and collection
systems or contact the retailer where the product
was purchased. They can take this product for
environmentally safe recycling.
Separate collection of used products and packaging
allows materials to be recycled and used again.
Re-use of recycled materials helps prevent
environmental pollution and reduces the
demand for raw materials.
Local regulations may provide for separate collection
of electrical products from the household, at municipal
waste sites or by the retailer when you purchase a
new product.
TECHNICAL DATA
Input voltage 12V dc, 78A
Output voltage 230-240V ac, 50 Hz
Power output 800 W continuous
USB 5V dc, 500mA
Output waveform Modified sine wave
WARRANTY
Our goods come with guarantees that cannot be
excluded under the Australian & New Zealand
Consumer Law. You are entitled to a replacement
or refund for a major failure and compensation
for any other reasonably foreseeable loss or
damage. You are also entitled to have the goods
repaired or replaced if the goods fail to be of
acceptable quality and the failure does not
amount to a major failure.
Baccus Worldwide LLC is confident of the quality of
its products and offers an outstanding warranty. This
warranty statement is in addition to and in no way
prejudices your statutory rights under the Australian &
New Zealand Consumer Law.
If a Baccus Worldwide LLC product becomes
defective due to faulty materials, workmanship or
lack of conformity, within 24 months from the date
of purchase, Baccus Worldwide LLC guarantees to
replace defective parts, repair products subjected to
fair wear and tear or replace such products to make
sure of the minimum inconvenience to the customer
unless:
•The product has been used for trade, professional or
hire purposes;
•The product has been subjected to misuse or
neglect;
•The product has sustained damage through foreign
objects, substances or accidents;
•Repairs have been attempted by persons other than
Baccus Worldwide LLC service staff.
To claim on this warranty, you will need to submit
proof of purchase and return the allegedly defective
product to Baccus Worldwide LLC’s local market
distributor, at your expense.
Please visit our website www.baccusworldwide.com
to register your new Baccus Worldwide LLC product
and to be kept up to date on new products and special
offers. Further information on the Baccus Worldwide
LLC brand and our range of products is available at
www.baccusworldwide.com.
Distributed by: Directed Electronics
Address: 44 Translink Drive, Keilor Park Victoria Australia 3042
PH: + 61 03 8331 4800 Email: [email protected]
Baccus Worldwide LLC
Weena 290, 3012 NJ Rotterdam or
Postbus 819, 3000 AV Rotterdam
[phone]
BDPC750AU_Manual_091216.indd 6-7 9/12/2016 11:56:48 AM
