Black Box UCCSW-11-33H User manual

UCCSW SERIES
USER MANUAL
DELUXE
WIRELESS
CHARGING
CARTS
24/7 TECHNICAL SUPPORT AT 1.877.877.2269 OR VISIT BLACKBOX.COM

2
TABLE OF CONTENTS
NEED HELP?
LE AVE THE TECH TO US
LIVE 24/7
TECHNICAL
SUPPORT
1. 8 7 7.8 7 7. 2 2 6 9
1. 8 7 7. 8 7 7. 2 2 6 9 BLACKBOX.COM
SAFETY INFORMATION/ELECTRICAL PRECAUTIONS ................................................................................................................. 3
Important Safety Information........................................................................................................................................................................3
Electrical Precautions....................................................................................................................................................................................3
1. SPECIFICATIONS........................................................................................................................................................................... 4
1.1 Deluxe Wireless Charging Carts General Specifications......................................................................................................................4
1.2 Deluxe Wireless Charging Carts Specifications for Hinged or Sliding Door.......................................................................................5
2. OVERVIEW...................................................................................................................................................................................... 6
2.1 Introduction...............................................................................................................................................................................................6
2.2 What’s Included........................................................................................................................................................................................6
3. CONFIGURATION AND SETUP..................................................................................................................................................... 7
3.1 Unpacking .................................................................................................................................................................................................7
3.2 GDS™ Wireless Charging .........................................................................................................................................................................7
3.3 Plugging In and Turning On the Cart.......................................................................................................................................................8
3.4 Syncing the Cart .......................................................................................................................................................................................8
3.5 Moving the Cart ........................................................................................................................................................................................8
APPENDIX A. REGULATORY INFORMATION .................................................................................................................................. 9
A.1 FCC Statement .........................................................................................................................................................................................9
A.2 NOM Statement (Electrical Safety)........................................................................................................................................................9
TRADEMARKS USED IN THIS MANUAL........................................................................................................................................ 11

3
1. 8 7 7. 8 7 7. 2 2 6 9 BLACKBOX.COM
NEED HELP?
LE AVE THE TECH TO US
LIVE 24/7
TECHNICAL
SUPPORT
1. 8 7 7.8 7 7. 2 2 6 9
SAFETY INFORMATION/ELECTRICAL PRECAUTIONS
IMPORTANT SAFETY INFORMATION
WARNING! Death or serious injury may occur when children climb on the Cart. The cart can tip over onto the child.
WARNING! Avoid uneven loading of equipment onto the cart. Uneven weight distribution could cause the cart to tip when the cart
is moving. Ensure devices are distributed evenly within the cart. Excess weight on sides of cart could cause the cart to tip while in
motion.
Only adults should move the cart.
Do not leave the cart unattended in areas where children have access.
Do not block the air vent openings.
The Cart can be very heavy when fully loaded with laptops and should be moved about by persons physically able to do so.
The Cart should only be used for the storage and transport of tablets, laptops, and other similar devices.
Misuse, incorrect operation, or inadequate repair of the Cart will void the warranty.
ELECTRICAL PRECAUTIONS
DANGER! Failure to observe the following electrical safety precautions can result in fire or death by electric shock.
The power switch must be in the “OFF” position before plugging the Cart into a wall receptacle.
The Cart must ONLY be connected to a 110–120-volt AC, 15-amp power supply.
The Cart must only be used by adults or with adult supervision.
Never pull the Cart by the power cord.
Do not plug the Cart in if the switch, receptacle(s), or power cord has been damaged. All electrical components on this product
must be repaired by a qualified electrician.
Do not use an extension cord in conjunction with the Cart.
Do not use liquids in or around the Cart environment.
Inadequate repair or modifications can create significant hazards to users and are not covered by warranty.
For your safety, we recommend that a qualified electrician test the circuit you will be plugging the Cart into. The circuit should be
checked for ground integrity and appropriate branch circuit protection.
The Cart ground prong must be present for safe operation. If the plug is damaged or if the ground prong has been removed, it
should be replaced by a qualified electrician.
The use of the Cart, including plugging or unplugging laptops, plugging or unplugging the Cart, operating the control switch, and
engaging or releasing the directional and locked casters, must be done with adult supervision.

41. 8 7 7. 8 7 7. 2 2 6 9 BLACKBOX.COM
NEED HELP?
LE AVE THE TECH TO US
LIVE 24/7
TECHNICAL
SUPPORT
1. 8 7 7.8 7 7. 2 2 6 9
1.1 DELUXE WIRELESS CHARGING CARTS GENERAL SPECIFICATIONS
TABLE 1-1. GENERAL SPECIFICATIONS
SPECIFICATION DESCRIPTION
General
Approvals UL®60950 Approved; UL 1678 - Tip Test Compliant, CE, RoHS2
Use Indoor office and mobile use only
Assembled Yes
Material 18 ga (1.2 mm) minimum thick steel
Construction Fully welded box frame, riveted and bolted panels
Finish Powder Coat
Color Gray
Electrical
Input Power 120 VAC, 15 A, 50-60 Hz, 1 Ph
Input Power Cord NEMA 5-15P plug, min. 6-ft. (1.8-m) cord
Input Data Cord USB 3.0 Type A, 6-ft. (1.8-m) cord
Power/Data Cord Access (2) 1.3" (3.3 cm) DIA holes (Left and Right rear bottom corner)
On/Off Switch No
Device Charging Type (33) GDS™ Wireless Charging Technology Docks, (33) IntelliSkin™cases, (2) USB PDUs with (40) USB 3.0 Type A outlets
Auxiliary Power (3) NEMA5-15R and (2) USB 2.0 Type A outlets (external power option only)
Dimensions
Unit Height 49.3" (125.2 cm)
Unit Width 25.6" (65.0 cm) w/o handle, 29.1" (73.9 cm) w/ handle
Unit Depth 23.6" (59.9 cm)
Unit Weight 150 lb. (68.2 kg)
Shipping Height 55" (139.7 cm)
Shipping Width 35" (88.9 cm)
Shipping Depth 32" (81.3 cm)
Shipping Weight 175 lb. (79.5 kg)
Top Weight Capacity 150 lb. (68.2 kg)
Frame
Ventilation Min. 75% high flow steel mesh, (2) places per shelf
Top Molded ABS plastic top with recessed work area
Casters
Type (2) Fixed, (2) Swiveling and Locking
Diameter 5" (12.7 cm)
Wheel Polyurethane tread
Frame Nickel Plated Steel
Warranty
Cart Lifetime
Electronics 3 Years
CHAPTER 1: SPECIFICATIONS

5
1. 8 7 7. 8 7 7. 2 2 6 9 BLACKBOX.COM
NEED HELP?
LE AVE THE TECH TO US
LIVE 24/7
TECHNICAL
SUPPORT
1. 8 7 7.8 7 7. 2 2 6 9
CHAPTER 1: SPECIFICATIONS
1.2 DELUXE WIRELESS CHARGING CARTS SPECIFICATIONS FOR HINGED OR SLIDING DOOR
TABLE 1-2. DELUXE WIRELESS CHARGING CARTS SPECIFICATIONS FOR HINGED OR SLIDING DOOR
PART NUMBER TYPICAL DEVICE DEVICE QUANTITY EXTERNAL POWER DOOR TYPE LOCK TYPE
UCCSW-11-33H Tablet 33 No Hinged Key lock
UCCSW-11-33H-HASP Tablet 33 No Hinged Padlock
UCCSW-11-33HP Tablet 33 Yes Hinged Key lock
UCCSW-11-33HP-HASP Tablet 33 Yes Hinged Padlock
UCCSW-11-33T Tablet 33 No Sliding Key lock
UCCSW-11-33T-HASP Tablet 33 No Sliding Padlock
UCCSW-11-33TP Tablet 33 Yes Sliding Key lock
UCCSW-11-33TP-HASP Tablet 33 Yes Sliding Padlock

6
CHAPTER 1: HEADLINE
1. 8 7 7. 8 7 7. 2 2 6 9 BLACKBOX.COM
NEED HELP?
LE AVE THE TECH TO US
LIVE 24/7
TECHNICAL
SUPPORT
1. 8 7 7.8 7 7. 2 2 6 9
CHAPTER 2: OVERVIEW
2.1 INTRODUCTION
The Deluxe Wireless Charging Cart is designed to store, charge and transport tablets and other similar devices. No wiring is
needed. GDS™ Wireless Technology eliminates the need to unplug power cables, making device distribution faster than ever. Carts
arrive ready to go. Devices are also protected with IntelliSkin™cases. LEDs indicate charging status. Each cart plugs into a typical
120-V, 15-A outlet.
The Deluxe Wireless Charging cart can be equipped in various configurations according to the following standard options.
33 stored devices
Split hinged steel front door or split sliding plastic front door
Keyed front and back lock or padlock front and back lock
External power outlets
In addition to the standard options, the Deluxe Wireless Charging cart can be equipped with non-standard (custom) options. The
following are typical custom options or accessories that can be configured.
19" Rackmount Equipment
Caster size & type
Lock type
Exterior color
Exterior artwork
All deluxe charging carts feature a heavy-duty, fully welded steel frame, molded plastic top work surface, heavy duty, 5" casters
and 19"/23" EIA-310 rackmount rails for mounting of equipment.
Please know and understand the configuration of your cart and read these operating instructions carefully. The manual contains
important information concerning the use and safety of your cart and the operators. This cart must be used for its intended
purpose only and in accordance with these operating instructions.
2.2 WHAT’S INCLUDED
Your package should contain the following items. If anything is missing or damaged, contact Black Box Technical Support
at 877-877-2269 or [e-mail].
(1) Cart
(2) sets of keys
(33) IntelliSkin™cases, device-specific

7
1. 8 7 7. 8 7 7. 2 2 6 9 BLACKBOX.COM
NEED HELP?
LE AVE THE TECH TO US
LIVE 24/7
TECHNICAL
SUPPORT
1. 8 7 7.8 7 7. 2 2 6 9
CHAPTER 3: CONFIGURATION AND SETUP
3.1 UNPACKING
Remove and discard all packaging materials and lock the lockable casters.
Open and inspect the cart to verify all doors, locks, and casters are working properly.
Do not plug the cart into a wall outlet until all configurations and setup are complete.
3.2 GDS™ WIRELESS CHARGING

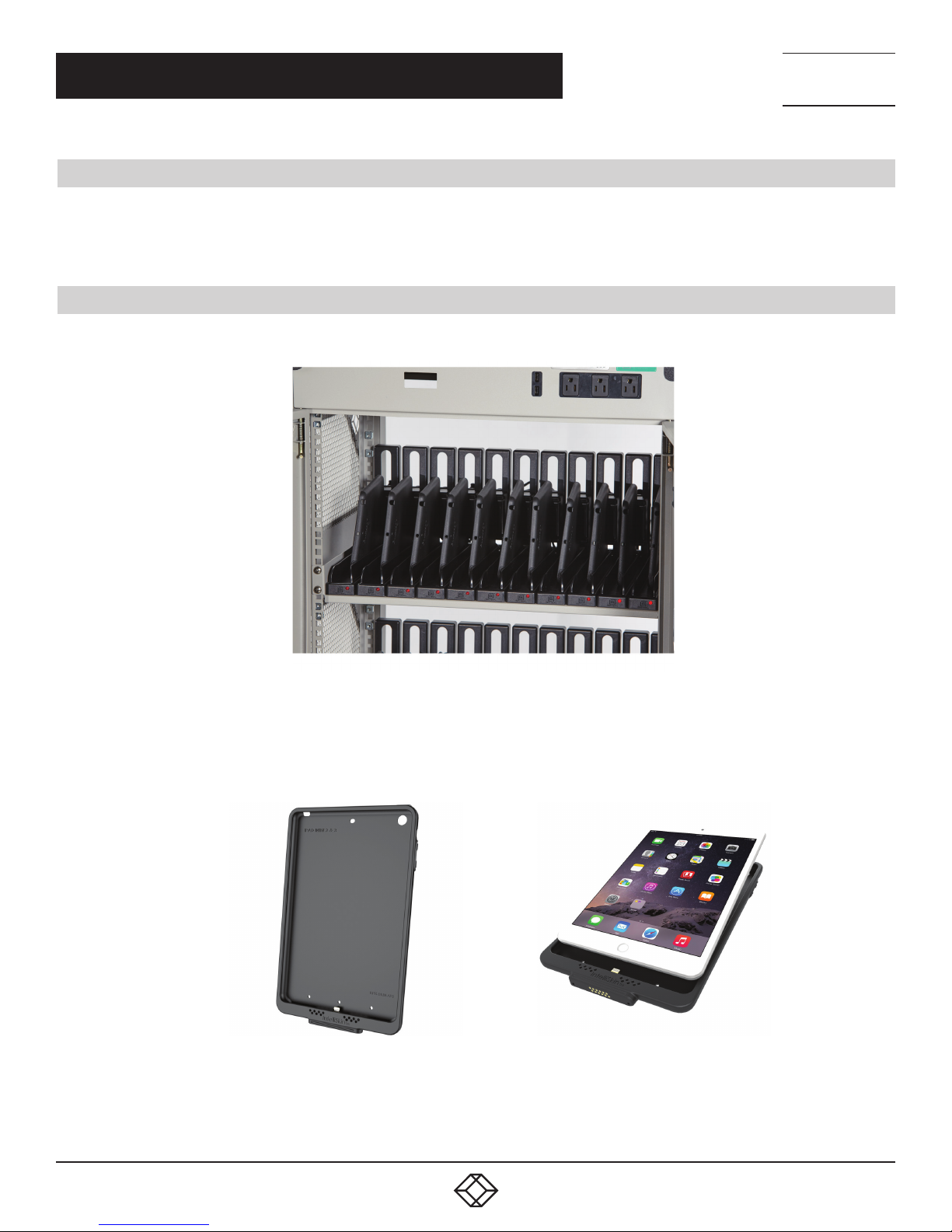

The GDS wireless charging system is shown in the diagram below.
FIGURE 3-1. CART WITH GDS WIRELESS CHARGING SYSTEM INSTALLED
Devices in the cart are protected with IntelliSkin™device cases as shown in the diagram below.
FIGURE 3-2. INTELLISKIN™DEVICE CASES

81. 8 7 7. 8 7 7. 2 2 6 9 BLACKBOX.COM
NEED HELP?
LE AVE THE TECH TO US
LIVE 24/7
TECHNICAL
SUPPORT
1. 8 7 7.8 7 7. 2 2 6 9
3.3 PLUGGING IN AND TURNING ON THE CART
After the devices have been loaded into the Cart, plug the power cord of the Cart into a typical wall outlet.
3.4 SYNCING THE CART
To sync the tablets in the cart, plug the USB data cord into your computer. The devices will be automatically recognized. Follow your
on-screen instructions.
3.5 MOVING THE CART
Remove the Cart plug from the wall receptacle and wrap the cord around the cord wrap or handle.
Close and lock the hinged or sliding doors.
Unlock the locking and swiveling casters before moving the cart to a new location.
When you reach your destination, lock the casters to prevent the cart from moving and plug the cart into a wall receptacle.
CHAPTER 3: CONFIGURATION AND SETUP

9
1. 8 7 7. 8 7 7. 2 2 6 9 BLACKBOX.COM
NEED HELP?
LE AVE THE TECH TO US
LIVE 24/7
TECHNICAL
SUPPORT
1. 8 7 7.8 7 7. 2 2 6 9
A.1 FCC STATEMENT
This equipment generates, uses, and can radiate radio-frequency energy, and if not installed and used properly, that is, in strict
accordance with the manufacturer’s instructions, may cause interference to radio communication. It has been tested and found
to comply with the limits for a Class A computing device in accordance with the specifications in Subpart B of Part 15 of FCC rules,
which are designed to provide reasonable protection against such interference when the equipment is operated in a commercial
environment. Operation of this equipment in a residential area is likely to cause interference, in which case the user at his own
expense will be required to take whatever measures may be necessary to correct the interference.
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to
operate the equipment.
This digital apparatus does not exceed the Class A limits for radio noise emission from digital apparatus set out in the Radio
Interference Regulation of Industry Canada.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques
de la classe A prescrites dans le Règlement sur le brouillage radioélectrique publié par Industrie Canada.
A.2 NOM STATEMENT (ELECTRICAL SAFETY)
INSTRUCCIONES DE SEGURIDAD
1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de que el aparato eléctrico sea operado.
2. Las instrucciones de seguridad y operación deberán ser guardadas para referencia futura.
3. Todas las advertencias en el aparato eléctrico y en sus instrucciones de operación deben ser respetadas.
4. Todas las instrucciones de operación y uso deben ser seguidas.
5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo, cerca de la tina de baño, lavabo, sótano mojado o cerca
de una alberca, etc.
6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales que sean recomendados por el fabricante.
7. El aparato eléctrico debe ser montado a la pared o al techo sólo como sea recomendado por el fabricante.
8. Servicio—El usuario no debe intentar dar servicio al equipo eléctrico más allá lo descrito en las instrucciones de operación. Todo
otro servicio deberá ser referido a personal de servicio calificado.
9. El aparato eléctrico debe ser situado de tal manera que su posición no interfiera su uso. La colocación del aparato eléctrico
sobre una cama, sofá, alfombra o superficie similar puede bloquea la ventilación, no se debe colocar en libreros o gabinetes que
impidan el flujo de aire por los orificios de ventilación.
10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de calor como radiadores, registros de calor, estufas u otros
aparatos (incluyendo amplificadores) que producen calor.
11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo del tipo descrito en el instructivo de operación, o como
se indique en el aparato.
12. Precaución debe ser tomada de tal manera que la tierra fisica y la polarización del equipo no sea eliminada.
13. Los cables de la fuente de poder deben ser guiados de tal manera que no sean pisados ni pellizcados por objetos colocados
sobre o contra ellos, poniendo particular atención a los contactos y receptáculos donde salen del aparato.
14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las recomendaciones del fabricante.
15. En caso de existir, una antena externa deberá ser localizada lejos de las lineas de energia.
16. El cable de corriente deberá ser desconectado del cuando el equipo no sea usado por un largo periodo de tiempo.
17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean derramados sobre la cubierta u orificios de ventilación.
APPENDIX A: REGULATORY INFORMATION

10 1. 8 7 7. 8 7 7. 2 2 6 9 BLACKBOX.COM
NEED HELP?
LE AVE THE TECH TO US
LIVE 24/7
TECHNICAL
SUPPORT
1. 8 7 7.8 7 7. 2 2 6 9
18. Servicio por personal calificado deberá ser provisto cuando:
A: El cable de poder o el contacto ha sido dañado; u
B: Objectos han caído o líquido ha sido derramado dentro del aparato;o
C: El aparato ha sido expuesto a la lluvia; o
D: El aparato parece no operar normalmente o muestra un cambio en su desempeño; o
E: El aparato ha sido tirado o su cubierta ha sido dañada.
APPENDIX A: REGULATORY INFORMATION

11
1. 8 7 7. 8 7 7. 2 2 6 9 BLACKBOX.COM
NEED HELP?
LE AVE THE TECH TO US
LIVE 24/7
TECHNICAL
SUPPORT
1. 8 7 7.8 7 7. 2 2 6 9
Black Box®and the Double Diamond logo are registered trademarks of BB Technologies, Inc.
UL®is a registered trademark of Underwriters’ Laboratories.
GDS™and IntelliSkin™are trademarks of RAM Mounts.
Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners.
TRADEMARKS USED IN THIS MANUAL

NEED HELP?
LEAVE THE TECH TO US
LIVE 24/7
TECHNICAL
SUPPORT
1. 87 7. 87 7. 2 269
© COPYRIGHT 2017 BLACK BOX CORPORATION. ALL RIGHTS RESERVED.
