BL A C K B O X®
Mobile, secure, and powered storage for
five or eight laptop computers.
The perfect storage solution for institutional laptop computers.
Laptop Depot
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)
FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax
724-746-0746 • Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence,
PA 15055-1018 • Web site: www.blackbox.com • E-mail: [e-mail]
Customer
Support
Information
LTD5 LTD5B
LTD8 LTD8B

724-746-5500 | blackbox.com
Page 2
Trademarks
Trademarks Used In This Manual
Black Box and the Double Diamond logo are registered trademarks of
BB Technologies, Inc.
The Laptop Depot design is patent pending.
Any other trademarks mentioned in this manual are acknowledged to be
the property of the trademark owners.
LTD5

Page 3
724-746-5500 | blackbox.com
Table of Contents
Table of Contents
1.0 Specifications..................................................................................................... 4
1.1 Overview ............................................................................................. 4
2.0 What’s Included................................................................................................. 5
2.1 Front and Rear Views........................................................................... 6
3.0 Precautions........................................................................................................ 7
4.0 Configuration and Setup ................................................................................... 8
4.1 Installing Power Bricks on the Dividers ................................................. 8
4.2 Installing the Dividers......................................................................... 13
LTD5

Page 4 724-746-5500 | blackbox.com
Chapter 1: Specifications
1.0 Specifications
Capacity — Holds five or eight laptop computers
Standards — UL
Power Strip — LTD5: (1) 5-outlet power strip, 0.75 amps per outlet max.;
LTD8: (1) 8-outlet power strip, 0.75 amps per outlet max.
Size — LTD5 : Top: 1.3"H x 14.8"W x 22.8"D (3.3 x 37.6 x 57.9 cm) ;
Body: 17 "H x 13.8"W x 21.9"D (43.2 x 35 x 55.6 cm);
Base : 7.6"H x 13.8"W x 21.9"D (19.3 x 35 x 55.6 cm) ;
Casters: 3.9"H (9.9 cm) ;
Drawer: 5.4"H x 9.2"W x 16"D (13.7 x 23.4 x 40.6 cm)
Door opening: 14"H x 11"W (35.6 x 27.9 cm)
LTD8 : Top: 1.3"H x 20.8"W x 22.8"D (3.3 x 52.8 x 57.9 cm) ;
Body: 17 "H x 20"W x 22"D (43.2 x 50.8 x 55.9 cm);
Base : 7.6"H x 20"W x 22"D (19.3 x 50.8 x 55.9 cm) ;
Casters: 3.9"H (9.9 cm) ;
Drawer: 5.4"H x 15.8"W x 16"D (13.7 x 40.1 x 40.6 cm)
Door opening: 14"H x 17"W (35.6 x 27.9 cm)
Both: Netbook Slot: 12.5"H x 2"W x 17"D ( 31.8 x 5 x 27.9 cm)
Weight — LTD5 : Shipping: 35 lb. (15.9 kg);
LTD8 : Shipping: 45 lb. (20.4 kg);
LTD5B : Shipping: 49 lb. (22.2 kg);
LTD8B : Shipping: 59 lb. (26.8 kg)
1.1 Overview
The Laptop Depot (LTD) and Laptop Depot with Pedestal (LTDB) are designed to store,
transport, and charge laptop computers and other similar devices. Units are available
with capacities for five or eight separate storage bays. Each unit plugs into a typical
120-volt 15-amp outlet.
LTD5

Page 5
724-746-5500 | blackbox.com
Chapter 2: What‘s Included
2.0 What‘s Included
Laptop Depot (LTD5 and LTD8)
• Laptop Depot: five laptop capacity (LTD5) or eight laptop capacity (LTD8)
• Power Strip: 5-outlet (LTD5) or 8-outlet (LTD8)
• Power management dividers: 6 (LTD5) or 9 (LTD8)
• User’s manual
• Pair of keys
Laptop Depot Base (LTD5B and LTD8B)
• Caster base with locking drawer
• Laminate top
• (6) 10 x 3/4" black particle board screws
• (4) 10-24 x 1.5" steel screws
• (4) 10-24 flange nuts
• User’s manual
• Pair of keys
LTD5

Page 6 724-746-5500 | blackbox.com
Chapter 2: What‘s Included

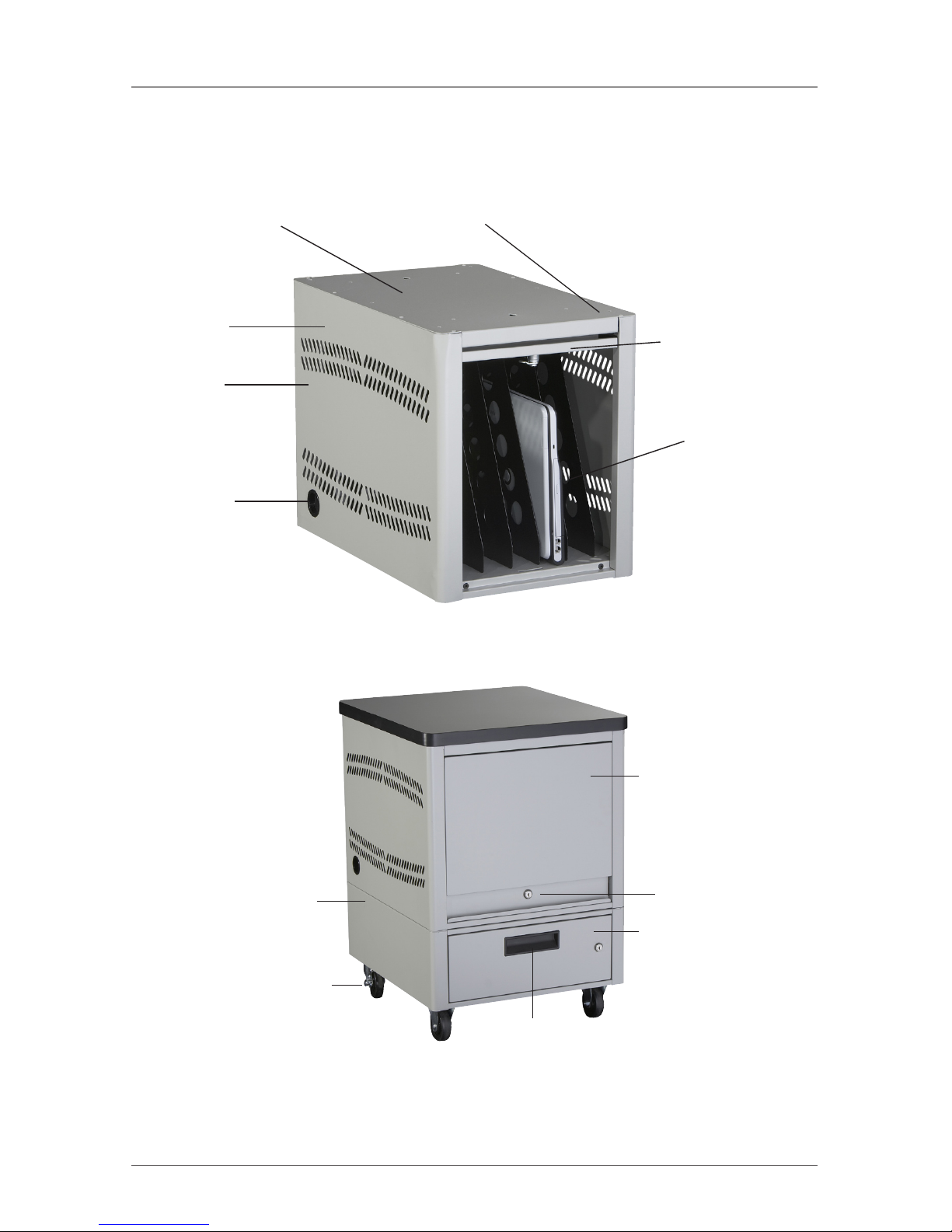

2.1 Front and Rear Views of the Laptop Depot
Side Panel
Reinforced Bottom
Ventilation
Wire Grommet
Reinforced Top Mounting Holes
Stowed Door
Power Management
Divider (PMD)
Figure 2-1. LTD.
Closed locking door
Drawer Handle
Locking Drawer
Door Lock
Casters
Bottom Drawer Chassis
Figure 2-2. LTDB.
LTD5

Page 7
724-746-5500 | blackbox.com
Chapter 3: Precautions
3.0 Precautions
• The LTD and LTDB must ONLY be connected to a 120 volt AC 15- or-20 amp power
supply.
• The LTD and LTDB must always be used by adults or with adult supervision.
• The LTD and LTDB are not designed for outdoor use. Indoor use only.
• Always stow the power cord around the unit when transporting.
• Never pull the LTD by the power cord.
• Do not plug the LTD in if the switch, receptacle(s), or power cord have been
damaged. All electrical components on this product must be repaired by a qualified
technician.
• Do not use an extension cord in conjunction with the LTD.
• NO LIQUIDS in or around the LTD and LTDB environment.
• Inadequate repair can create significant hazards to users and is not covered by the
warranty.
• For your safety, it is recommended that a qualified electrician test the circuit you
will be plugging the LTD into. The circuit should be checked for ground integrity
and appropriate branch circuit protection.
• The LTD ground prong must be present for safe operation. If the plug is damaged
or if the ground prong has been removed, it should be replaced by a qualified
technician.
• The use of the LTD including: plugging in or unplugging laptop computers,
plugging in or unplugging the LTD and LTDB, and engaging or releasing the
directional and total lock casters must be done with adult supervision.
• The LTD can be very heavy when fully loaded with laptop computers and should be
moved about by persons physically able to do so.
• The LTD should only be used for storage, transport (LTDB), and charging of laptop
computers, tablet PCs, ultra mobile PCs, and other similar devices.
• Misuse, incorrect operation, or inadequate repair of the LTD will void the warranty.
LTD5

Page 8 724-746-5500 | blackbox.com
Chapter 4: Configuration and Setup
4.0 Configuration and Setup
Remove and discard all packaging materials. Open and inspect the LTD or LTDB to
verify all doors, drawers, and locks are working properly.
For the LTDB, lock the casters prior to setting up, loading, or unloading laptop
computers to prevent the LTDB from moving.
Feed the power strip cord through the grommet hole located on the side of the LTD.
Do not plug the LTD into the wall outlet until all configurations and setup are
complete.
Attach power bricks to the dividers to create separate slots for the laptop computers.
4.1 Installing Power Bricks on the Dividers
Remove a divider to install a power brick on it. Follow these steps to install the power
bricks on each divider:

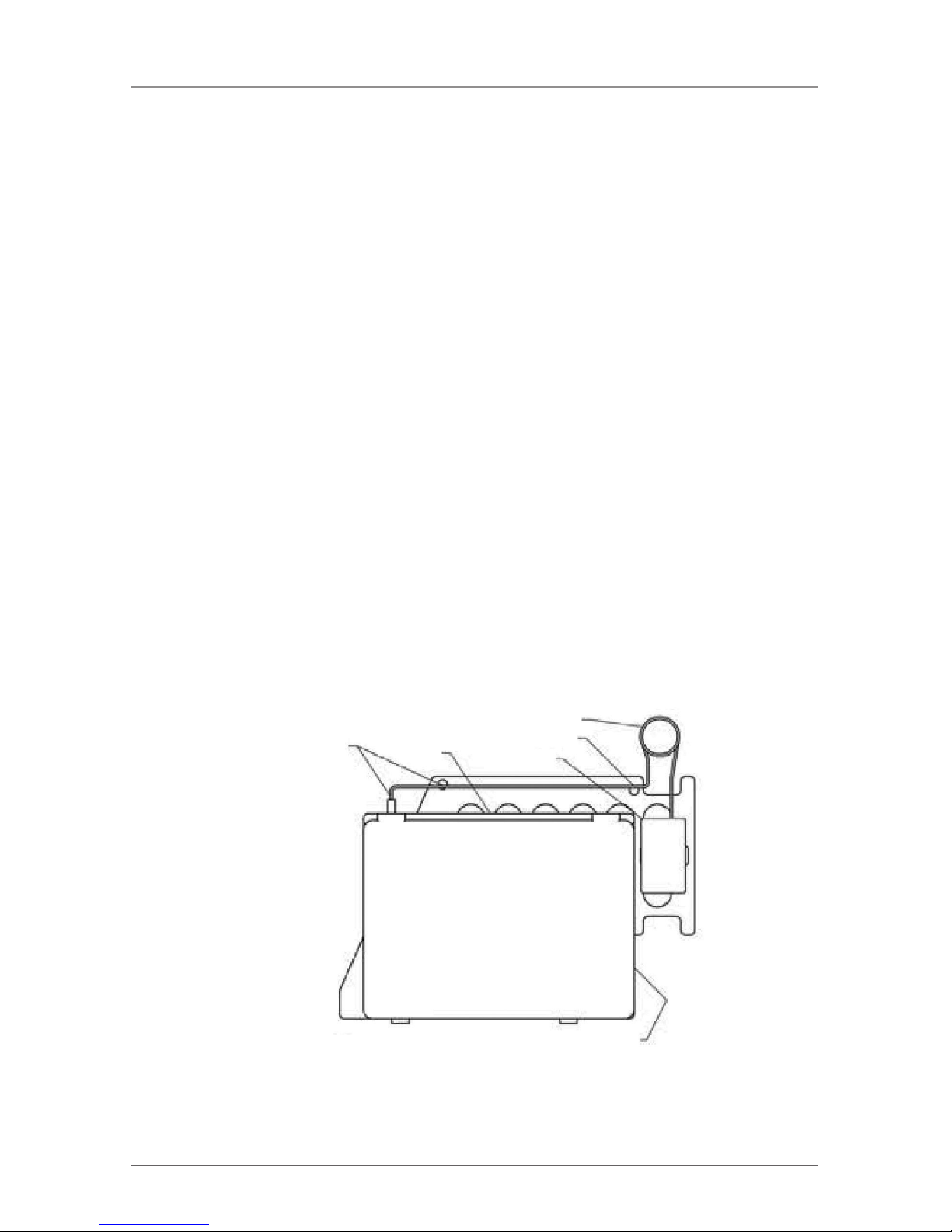

Step 1. Lay the divider flat on the work surface. Lay a laptop computer and a power
brick on top of the divider, with the computer end of the power wire toward the top
of the divider. Plug the power brick into the laptop computer. Lay the wire across the
two holes at the top of the divider. Make sure that there is some slack between the
front hole and the plug.
Make sure there
is slack at these
two points
Netbook
Cord slack
Note this point
Power Brick
Align the back of the notebook
with the back of the divider
Figure 4-1. How to thread the electrical cable through the dividers.
LTD5

Page 9
724-746-5500 | blackbox.com
Chapter 4: Configuration and Setup
Step 2. Note the point where the power wire meets the rear hole in the divider.
Measure back 6" toward the power brick and fold the wire in half to create a loop in
the center of the wire. This loop will be used in Step 3, below. Unplug the power
wire from the netbook and remove the netbook from the divider.
Figure 4-2. Loop the electrical cord and push it through the circular hole at the top
rear of the divider.
Step 3. Insert the loop created in Step 2 through the rear small hole at the top of the
divider (Figure 4-2). Then, place the plug end of the wire through the loop (Figure
4-3). Make sure that the loop is on the side of the divider (not on top of it—see
Figure 4-4). This will ensure that the divider will slide back into the cart. Then, tighten
the loop down to the divider, tightening the knot.
Figure 4-3. Insert the plug end of the wire through the loop.
Keep the loop here
Power brick end
Figure 4-4. Make sure the loop is on the side of the divider, not on top of it.
Step 4. Run the wire along the top of the divider and repeat the process of creating
a loop in the power cord. Place this loop through the small hole at the front of the
divider (Figure 4-5). Now place the plug end of the wire through the loop (Figure
4-6). Pull the end of the cable, tightening the loop (Figure 4-7).
LTD5

Page 10 724-746-5500 | blackbox.com
Chapter 4: Configuration and Setup

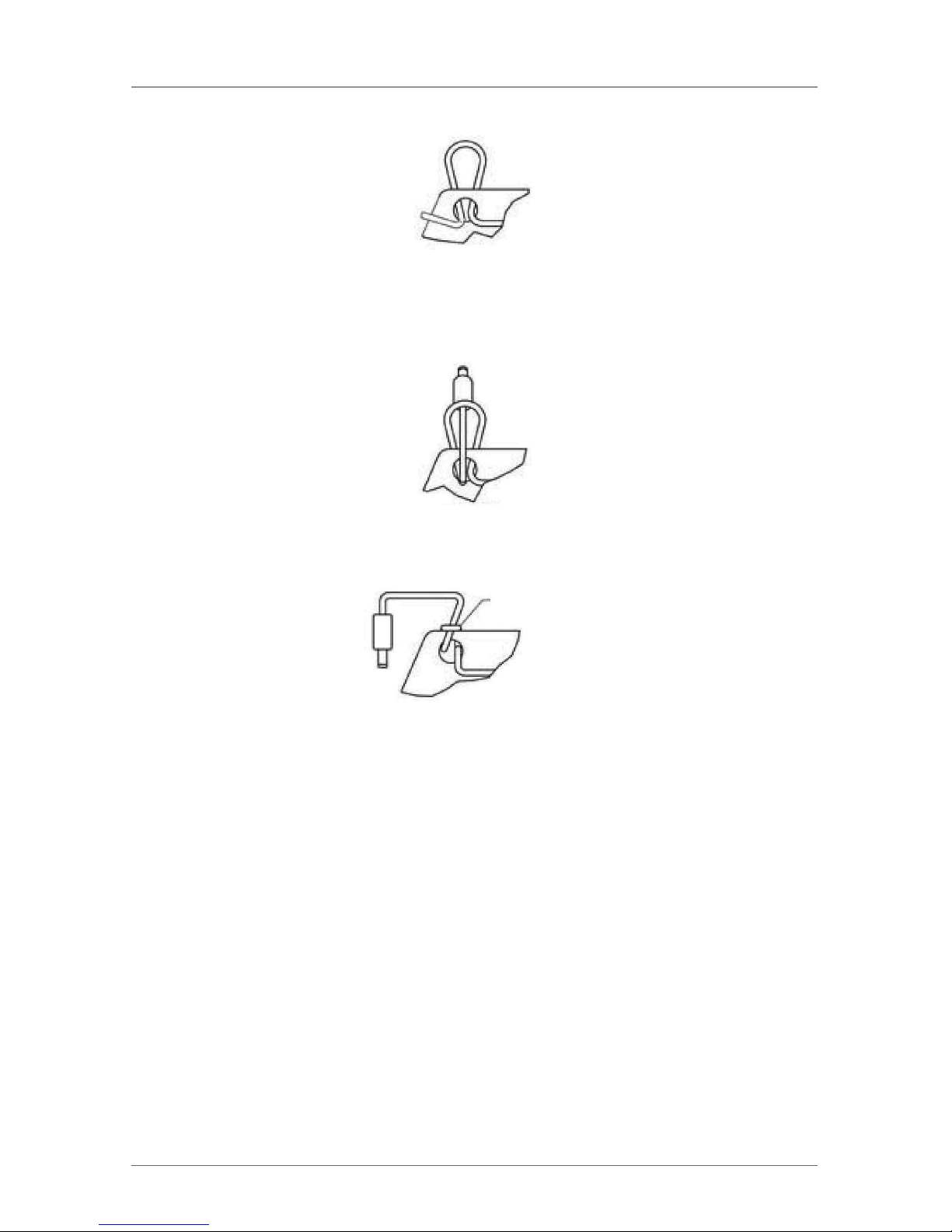

Figure 4-5. Create a loop from the power cable and feed it through the hole at the
top front of the divider.
Figure 4-6. Insert the plug end of the wire through the loop.
Keep the loop
on top
Figure 4-7. Pull the cable taught to secure the loop.
Step 5. Wrap the remaining length of power cord around the power brick (see Figure
4-10, page 12).
LTD5

Page 11
724-746-5500 | blackbox.com
Chapter 4: Configuration and Setup

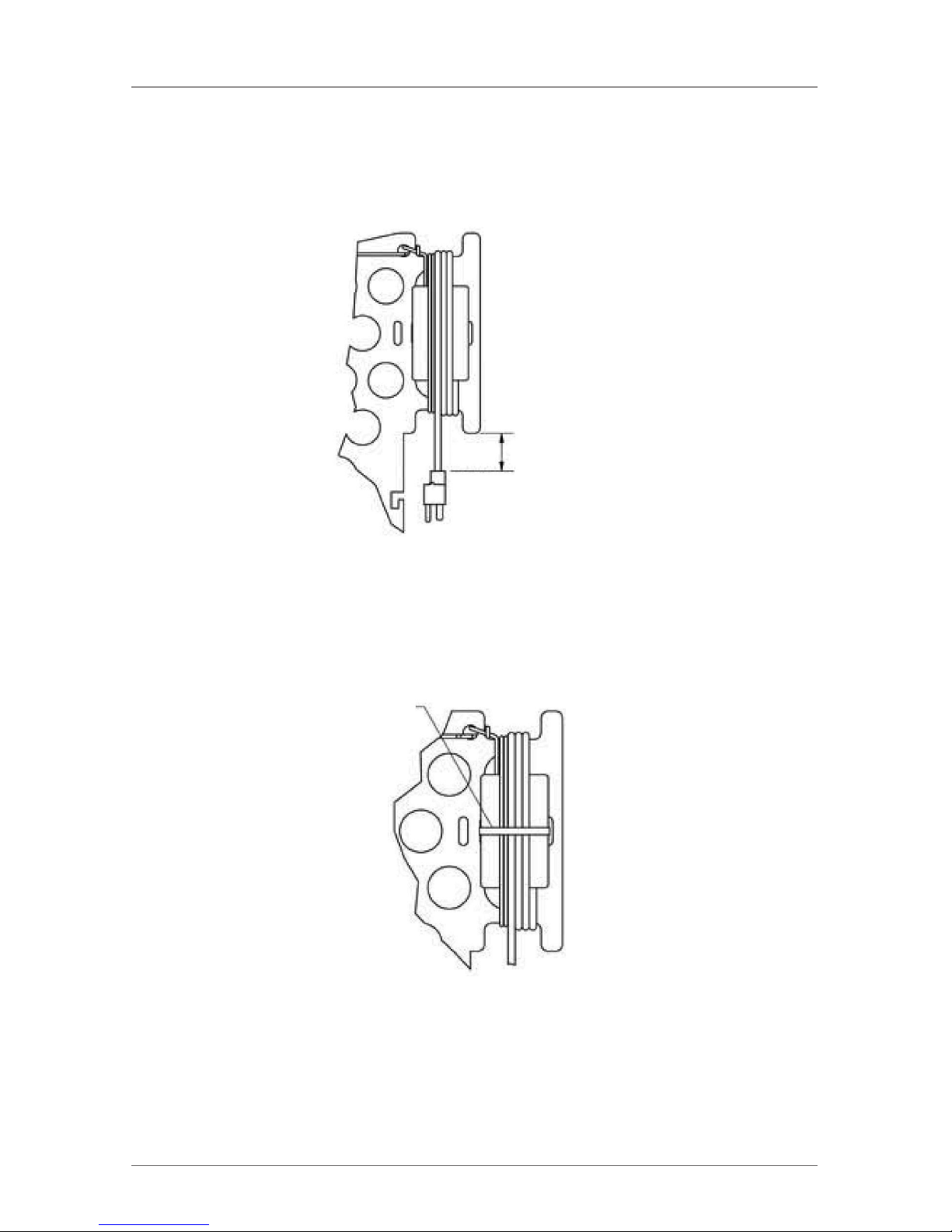

Step 6. Wrap the plug wire around the brick. Leave at least 7" of extra cable if the
divider will be inserted into the bottom shelf, or at least 21" of extra cable if the
divider will be inserted into the top shelf.
Lower shelf: 7"
Upper shelf: 21"
Figure 4-8. Wrap the remaining electrical cable around the power brick.
Step 7. Hold the brick and cords in place by strapping them down using a zip tie or a
hook-and-loop tie.
Strap
Figure 4-9. Strap the brick and cord in place using a zip tie or
hook-and-loop tie (not included).
LTD5

Page 12 724-746-5500 | blackbox.com
Chapter 4: Configuration and Setup
Step 8. Install the assembled divider into the cart using the following steps.

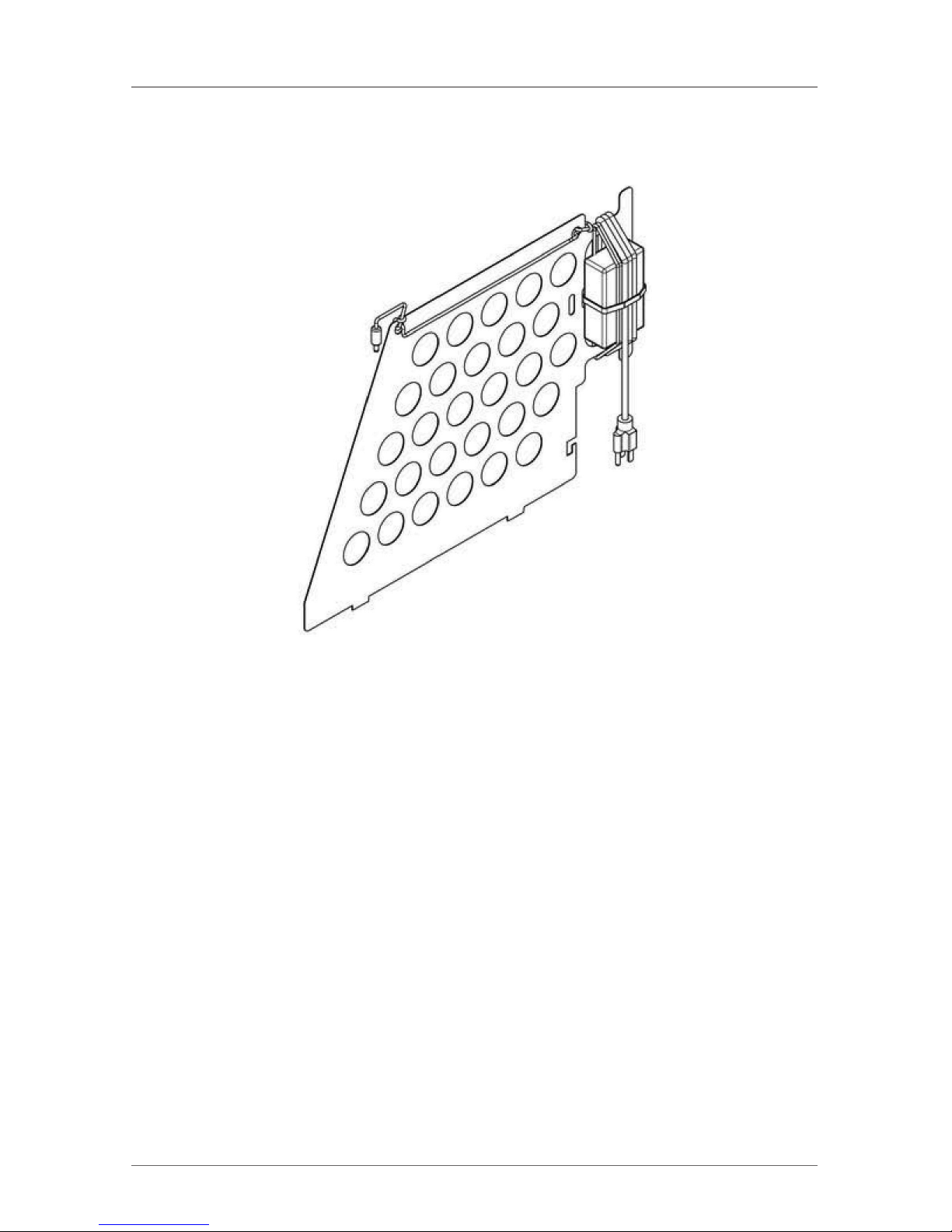

Figure 4-10. A divider with a power brick properly attached.
NOTE: For proper installation, make certain that all power bricks are installed on the
same side of every divider.
LTD5

Page 13
724-746-5500 | blackbox.com
Chapter 4: Configuration and Setup
4.2 Installing the Dividers
Step 1. Working from left to right, insert the power cord of a laptop power brick
that is mounted on a divider into the farthest left open outlet and then insert the
divider into the LTD.
Figure 4-11 Begin to insert dividers into the top row of the cart.
Step 2. Repeat until all dividers are installed.
Figure 4-12. Netbook Cart dividers with attached power bricks.
Step 3. Load one laptop computer into each storage bay.
LTD5

Page 14 724-746-5500 | blackbox.com
Notes
LTD5

Page 15
724-746-5500 | blackbox.com
Notes
LTD5
