Black Box ServShield RM470A User manual

1000 Park Drive • Lawrence, PA 15055-1018 • 724-746-5500 • Fax [phone]
© Copyright 2000. Black Box Corporation. All rights reserved.

Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)
FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax [phone]
Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018
Web site: www.blackbox.com • E-mail: [email protected]
CUSTOMER
SUPPORT
INFORMATION
FEBRUARY 2000
RM470A
RM471
RM475
RM476
ServShield

SERVSHIELD
1
TRADEMARKS USED IN THIS MANUAL
Plexiglas®is a registered trademark of Rohm & Haas Company.
Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners.
CONTENTS
1. Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2. Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.1 Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.2 Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3.1 Leveling the Cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3.2 Removing the Doors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3.3 Removing the Side Panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3.4 Power Strip Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3.5 Fan Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3.6 Door Filter Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3.7 Mounting Rails . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

1. Specifications
Frame—12-AWG side panels
Color—Black
Size—72"H x 26"W x 26"D (182.9 x 66 x 66 cm)
Weight—300 lb. (136.1 kg)
Figure 1-1. Front Dimensions.
NOTE
The front door has been removed for clarity.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
2
19" EIA
mounting rails
17.876"
opening
18.312"
centers
19" EIA mounting
rails—31"H
30.439"
opening
17.876" opening
26"
38.606"
18.312" centers
Front View
25.187"
opening
SERVSHIELD

3
Figure 1-2. Side Dimensions.
NOTE
The side panel has been removed for clarity.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
• • • • • • • • • • • • • • • • • • • •
• • • • • • • • • • • • • • • • • • • •
• • • • • • • • • • • • • • • • • • • •
• • • • • • • • • • • • • • • • • • • •
• • • •
•
•
•
•
•
•
•
•
Side View
21.563"
14.248"
26.814"
4.687"
26"
45.875" 72"
SERVSHIELD

SERVSHIELD
4
2. Introduction
2.1 Description
The ServShield protects your computer hardware in manufacturing environments and other industrial areas
subject to harsh conditions.
The cabinet is constructed of 16-gauge steel and it holds 600 lb. (272 kg)of equipment. The cabinet is
preassembled, so it’s easy to set up and use. Cabinet components include: upper, clear Plexiglas®door; isolated
steel middle keyboard drawer; steel perforated lower front door with dust filter; steel rear door furnished with
fan assembly and dust filters; solid pair of side panels, removable from the inside; two 1.5" (3.8-cm) diameter
cable-access provisions on the top and bottom of the enclosure; one vented stationary shelf for mounting the
monitor (200-lb. [90.8-kg] weight capacity); rubber feet and leveling glides. All doors have compression latches
and locks. Cabinet dimensions are 72"H x 26"W x 26"D (182.9 x 66 x 66 cm).
The top Plexiglas door and the middle keyboard door are keyed alike. The bottom front door and the rear
door are also keyed alike; however, they’re different from the top Plexglas door and the keyboard door.
2.2 Options
You may also need the following options:

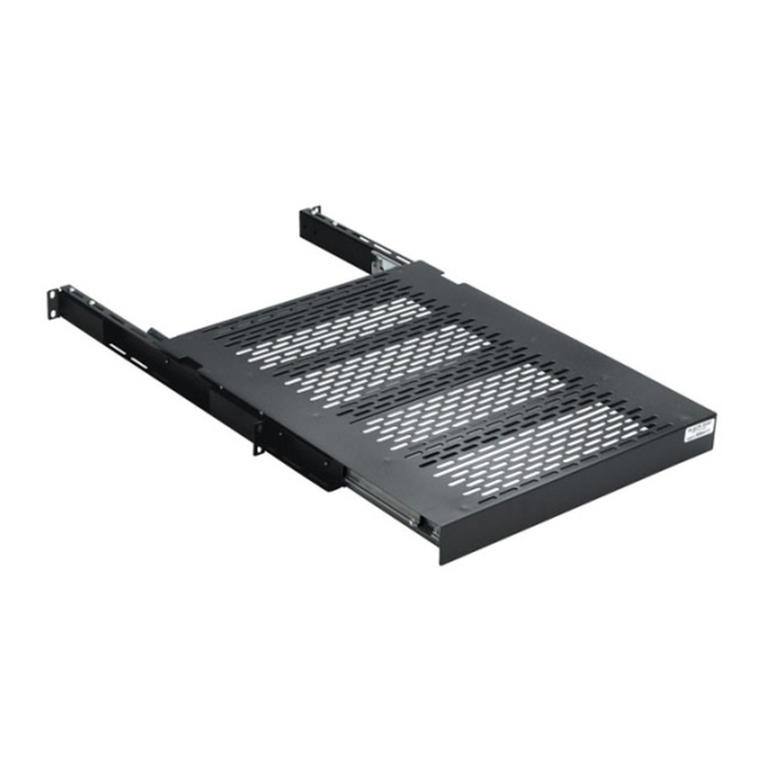

• 19" (48.3 cm) Sliding, Adjustable Tower Shelf (RM471)—At 19" (48.3 cm) high and 22" (55.9 cm) deep,
this shelf holds network hardware weighing up to 110 lb. (49.9 kg).
• Rear fan filter (RM475)
• Front door filter (RM476)

SERVSHIELD
5
3. Installation
3.1 Leveling the Cabinet
The ServShield cabinets are shipped with both casters and leveling glides for your convenience. Two casters
have brakes that you can activate by turning the brake level located on the side of the wheel. You can lower the
leveling legs by turning the leveling glide to the proper height using a 3⁄4" open-ended wrench.
3.2 Removing the Doors
The top and bottom front doors and the rear door are removable. To remove a door, open the door beyond 90
degrees. Then grasp the door with both hands, and carefully lift upward. When the door is free of the hinge
pins, pull the door away from the enclosure. To attach the door, align all of the hinges (two on the front doors
and three on the rear door) and slowly slide the door down until seated.
3.3 Removing the Side Panels
The side panels are secured to the enclosure frame with eight #10-32 Phillips head screws per side panel. To
remove the side panels, remove the eight #10-32 screws from the inside of the cabinet. The side panel should
separate enough to pull it away from the frame. If it doesn’t, lightly push from the inside of the cabinet to
separate it from the frame. Reverse the process to re-install the side panel.
3.4 Power Strip Mounting
Mounting brackets are located in the left and right rear corners of the enclosure for mounting a vertical power
strip. The slots on the rear of the power strip will slide onto the brackets. Once seated against the screw head in
the bracket, bend one of the bracket’s fingers to secure the power strip to the frame (see Figure 3-1).
Figure 3-1. Mounting the Power Strip.
• • • • • • • • • • • • • • • • • •
• • • • • • • • • • • • • • • • • • • • • • • • •
• • • • • • • • • • • • • • • • • • • • • • • •
• • • • • • • • • • • • • • • • • •
• • • • • • • • • • • • • • • • • • • • • • • • •
• • • •
Bend this finger
to secure the
power strip to
the frame
Bracket for
power strip
Power strip

SERVSHIELD
6
3.5 Fan Assembly
The fan assembly is already installed in the rear door. The part number for the rear fan filter is RM475. If you
need to replace a filter, follow these steps:
1. Replace one filter at a time. The twelve screws, which hold the filters in place, are the only thing holding
the fan assembly on. If you replace one filter at a time, you won’t have to remove the fan assembly.
2. Remove the fan filter cover—it snaps off.
3. Remove the four #8-32 x 3⁄4" screws holding the filter on the door.
4. Replace the filter, using the same four #8-32 x 3⁄4" screws.
5. Replace the fan filter cover.
6. Repeat steps 2 through 5 for the remaining two filters.
Figure 3-2. Replacing a Fan Filter.
3.6 Replacing the Door Filter
You can easily remove the filter on the front door to clean or replace it. The part number for the front door
filter is RM476. To remove the filter, remove the two wing nuts on the top of the filter, swing the filter bracket
down and remove the filter.
The life of the filter depends on the environment the ServShield is installed in. You can vacuum the filters or
wash them in warm water with mild detergent. We recommend vacuuming the filter to keep it in peak
condition. If you choose to wash the filter, do so only once and replace it with a new filter when it gets dirty
again.
Rear Door
Fan Filter Cover
Fan Assembly
Fan Grill (3)
#8-32 x 3⁄4" self-drilling
and tapping screws (12)

SERVSHIELD
7

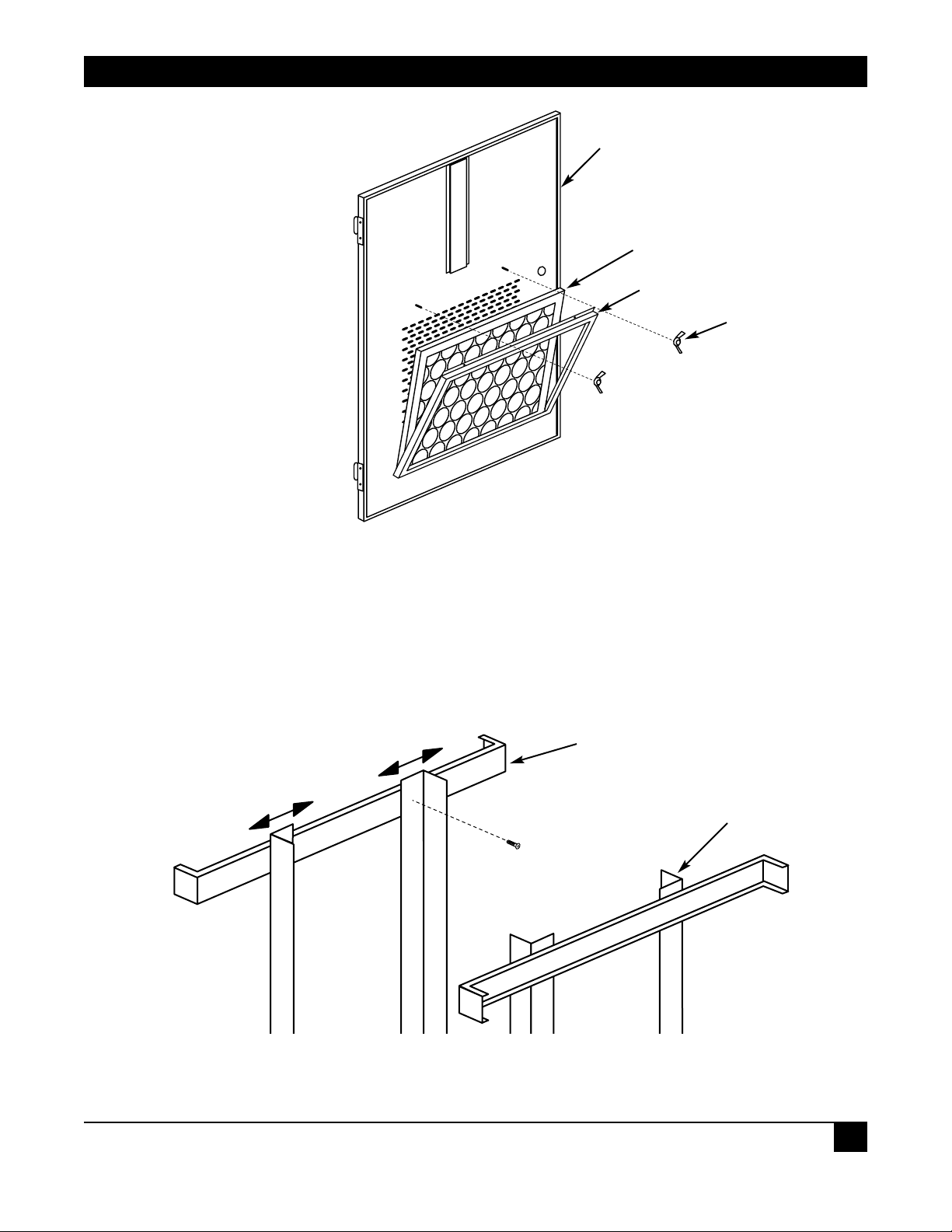

Figure 3-3. Replacing the Door Filter.
3.7 Mounting Rails
Two pairs of vertical mounting rails (zinc-plated, 12-gauge steel) are in the top and bottom of the ServShield
enclosure. The upper rails have 14U (24.5") of rack mounting space and the bottom rails have 17U (29.75") of
rack mounting space. The rails are tapped with #10-32 threads. The rails adjust front to rear in 1" (2.54-cm)
increments.
Figure 3-4. Mounting Rails.
••••••••••••••••••••••
•••••••••••••
••••••••••••••••
•••••••••••
• • • • • • • • • • • • • • • • • • • • •
• • • • • • • • • • • • • • • • • • • • •
• ••
••••••••••••••••••••••••
•••••••••••••••••••••
•
••••••••••••••••••••••••••••••
• ••
• ••
Bottom
Front Door
Filter
Filter Bracket
Wing Nut
Horizontal Bracket
Position EIA rail in
desired location
(can be located on
1" increments) and
secure to horizontal
brackets using
#10-32 screws
EIA Rail
