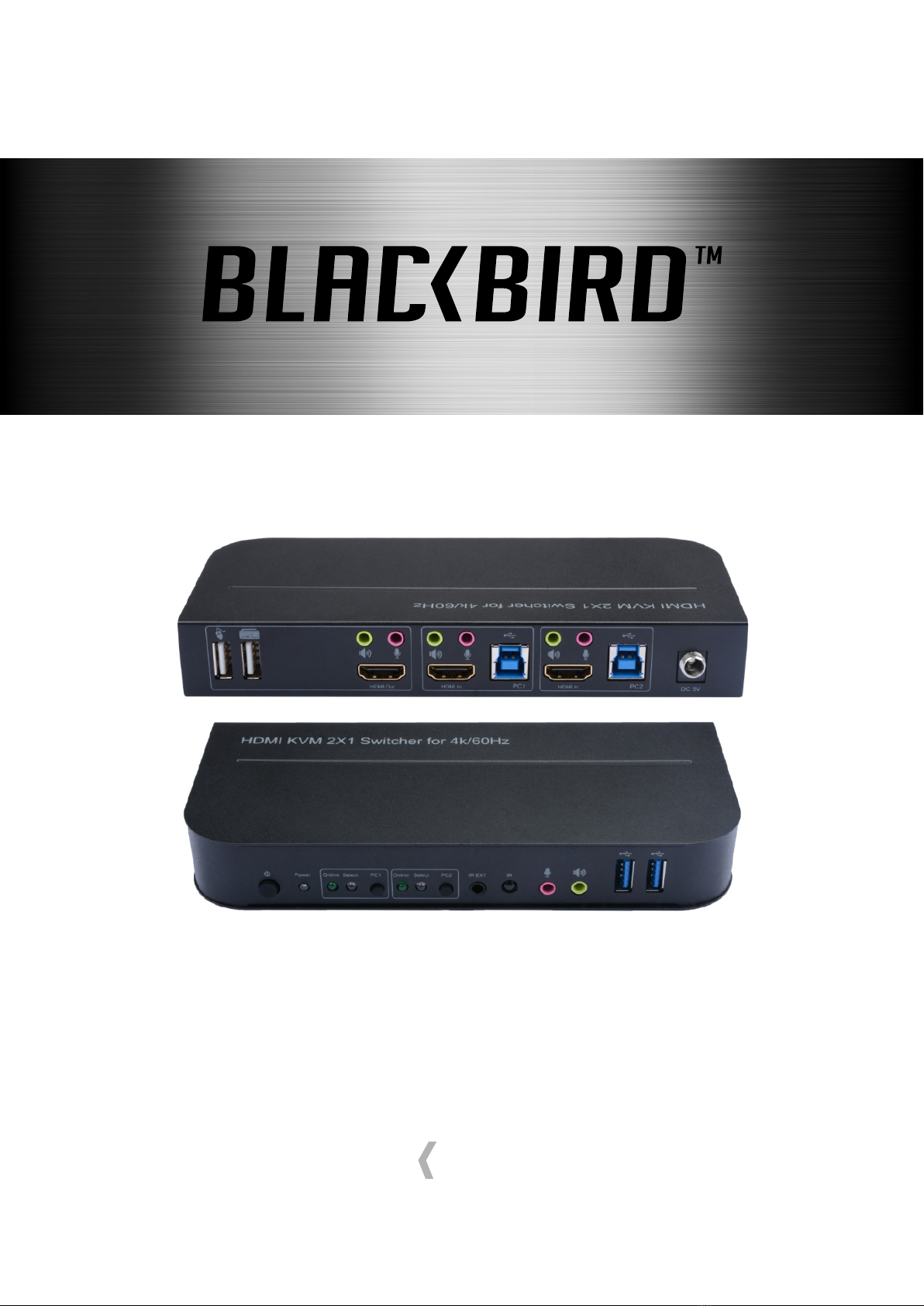

Blackbird 4K HDMI 2.0 User manual

4K HDMI®2.0
2x1 USB 3.0 KVM Switch
PN 42643 USER'S MANUAL

2
SAFETY WARNINGS AND GUIDELINES
Please read this entire manual before using this device, paying extra attention to these
safety warnings and guidelines. Please keep this manual in a safe place for future
reference.
•This device is intended for indoor use only.
•Do not expose this device to water or moisture of any kind. Do not place drinks
or other containers with moisture on or near the device. If moisture does get in
or on the device, immediately remove it from its power source and allow it to
fully dry before reapplying power.
•Do not touch the device, the power cord, or any other connected cables with
wet hands.
•Do not expose this device to excessive vibration, extreme force, shock, or
fluctuations in temperature or humidity.
•Do not expose this device to excessively high temperatures. Do not place it in,
on, or near a heat source, such as a fireplace, stove, radiator, etc. Do not leave it
in direct sunlight.
•Do not place or install this device in an area where it can be exposed to
excessive amounts of dust, humidity, oil, smoke, or combustible vapors.
•Use only in a well-ventilated area. Do not use in close, confined spaces.
•Prior to operation, check the unit and power cord for physical damage. Do not
use if physical damage has occurred.
•Before plugging the unit into a power outlet, ensure that the outlet provides the
same type and level of power required by the device.
•Unplug this device from the power source when not in use.
•Take care to prevent damage to the power cord. Do not allow it to become
crimped, pinched, walked on, or become tangled with other cords. Ensure that
the power cord does not present a tripping hazard.
•Never unplug the unit by pulling on the power cord. Always grasp the connector
head or adapter body.
•Remove the batteries from the controller if it will go unused for a lengthy period
of time.

3
•Clean using a soft, dry cloth only. Do not use chemical cleaners, solvents, or
detergents. For stubborn deposits, moisten the cloth with warm water.
•This device has no user serviceable parts. Do not attempt to open, service, or
modify this device.
INTRODUCTION
This Blackbird™ 4K HDMI® 2.0 2x1 KVM Switch allows you to control up to two
computers using a single keyboard, mouse, and video display. It is compliant with the
HDMI 2.0 specification, provides up to 18Gbps bandwidth, and supports resolutions up
to 4K@60Hz with the YCbCr 4:4:4 color space. It is compatible with computers running
Windows® 2000 and later, Mac® OS X®, and Linux® operating systems.
FEATURES
•Allows control of up to two computers using a single keyboard, video display,
and mouse
•Supports resolutions up to 4K@60Hz, including 3840x2160, 4096x2160, and all 3D
video modes
•Compliant with the HDMI® 2.0 and HDCP™ 2.2/1.4 standards
•Delivers up to 18Gbps bandwidth
•Supports the RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, and YCbCr 4:2:0 color spaces
•Includes an IR remote control
•Supports HDR and Deep Color with 12-bits/channel (36-bit total)
•Compatible with Windows® 2000 / XP / Vista® / 7 / 8 / 10, Mac® OS X®, and
Linux® operating systems
•Supports multiple switching methods

4
CUSTOMER SERVICE
The Monoprice Customer Service department is dedicated to ensuring that your
ordering, purchasing, and delivery experience is second to none. If you have any
problem with your order, please give us an opportunity to make it right. You can
contact a Monoprice Customer Service representative through the Live Chat link on our
website www.monoprice.com or via email at sup[email protected]. Check the
website for support times and links.
PACKAGE CONTENTS
Please take an inventory of the package contents to ensure you have all the items listed
below. If anything is missing or damaged, please contact Monoprice Customer Service
for a replacement.
1x 2x1 KVM Switch
1x AC Power Adapter (5 VDC, 3A)
1x IR Remote Control
1x IR Receiver
2x USB 3.0 Cables (Type-A to Type-B)
2x Rackmount Ears
1x User's Manual
PRODUCT OVERVIEW

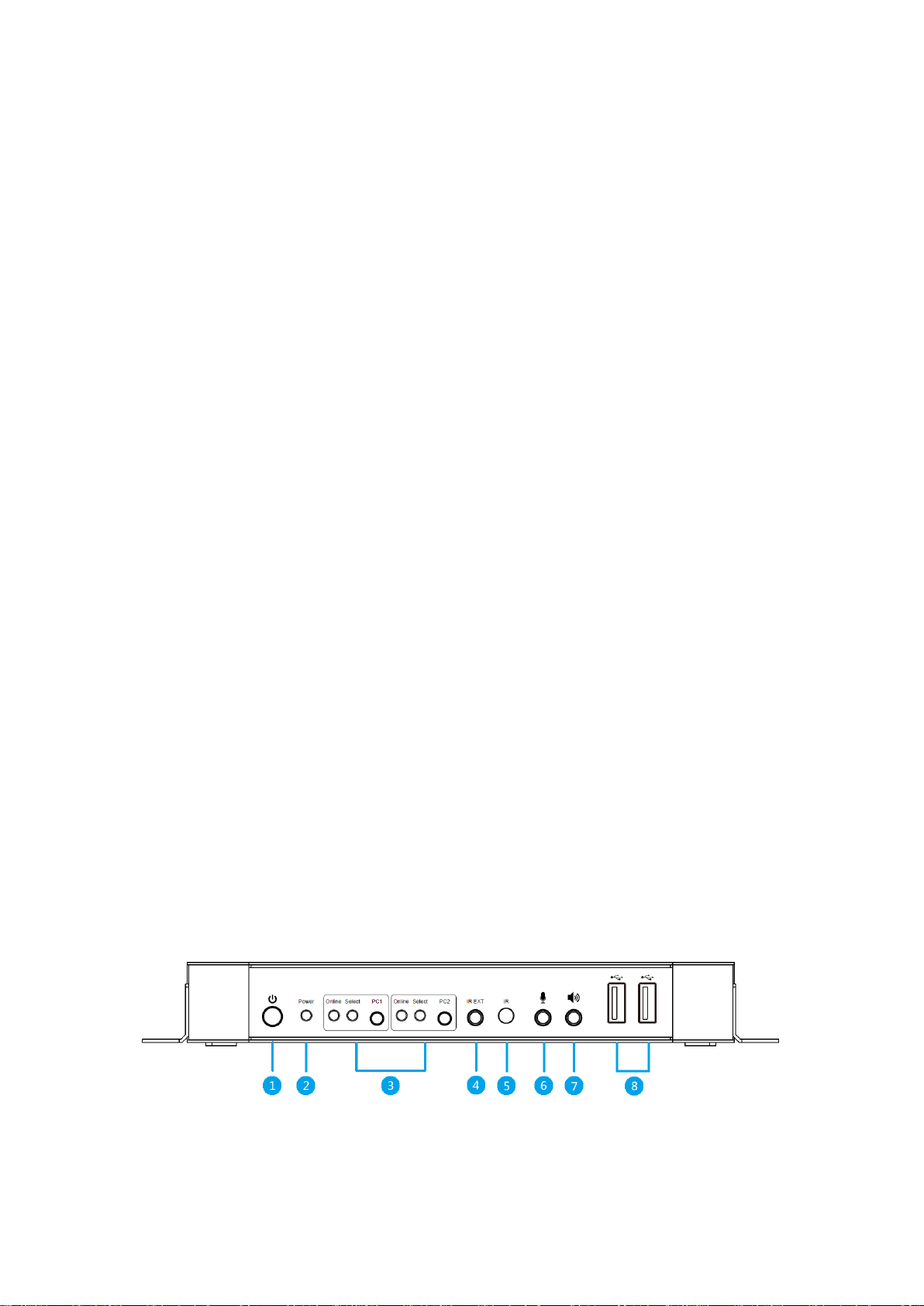

Front Panel
1. Power Button: Press the power button to power the unit on or off.
2. Power LED: The LED illuminates when power is applied.

5
3. INPUT SELECT: Each of the two sections includes a Connect LED, a Select LED,
and a PC# button for direct selection of that input. When a PC is powered on
and connected to one of the USB ports on the rear panel, the corresponding
Connect LED will illuminate. When one of the inputs is selected, the
corresponding Select LED will illuminate. When Automatic Switching Mode is
enabled, the Select LED corresponding to the currently displayed input flashes.
4. IR EXT: 3.5mm jack for connecting the included IR receiver.
5. IR: IR "eye" for receiving signals from the included IR remote control.
6. MICROPHONE: 3.5mm jack for connecting a microphone. Note that this jack is
identical to the MICROPHONE jack above the HDMI® Out port on the rear panel.
Connect a single microphone to either jack, but not both.
7. SPEAKERS: 3.5mm jack for connecting headphones, powered speakers, or an
external amplifier. Note that this jack is identical to the SPEAKERS jack above the
HDMI Out port on the rear panel. Connect a single pair of headphones, powered
speakers, or external amplifier to either jack, but not both.
8. USB: Two USB 3.0 ports for connecting external USB devices, such as printers,
scanners, flash drives, external hard drives, etc.

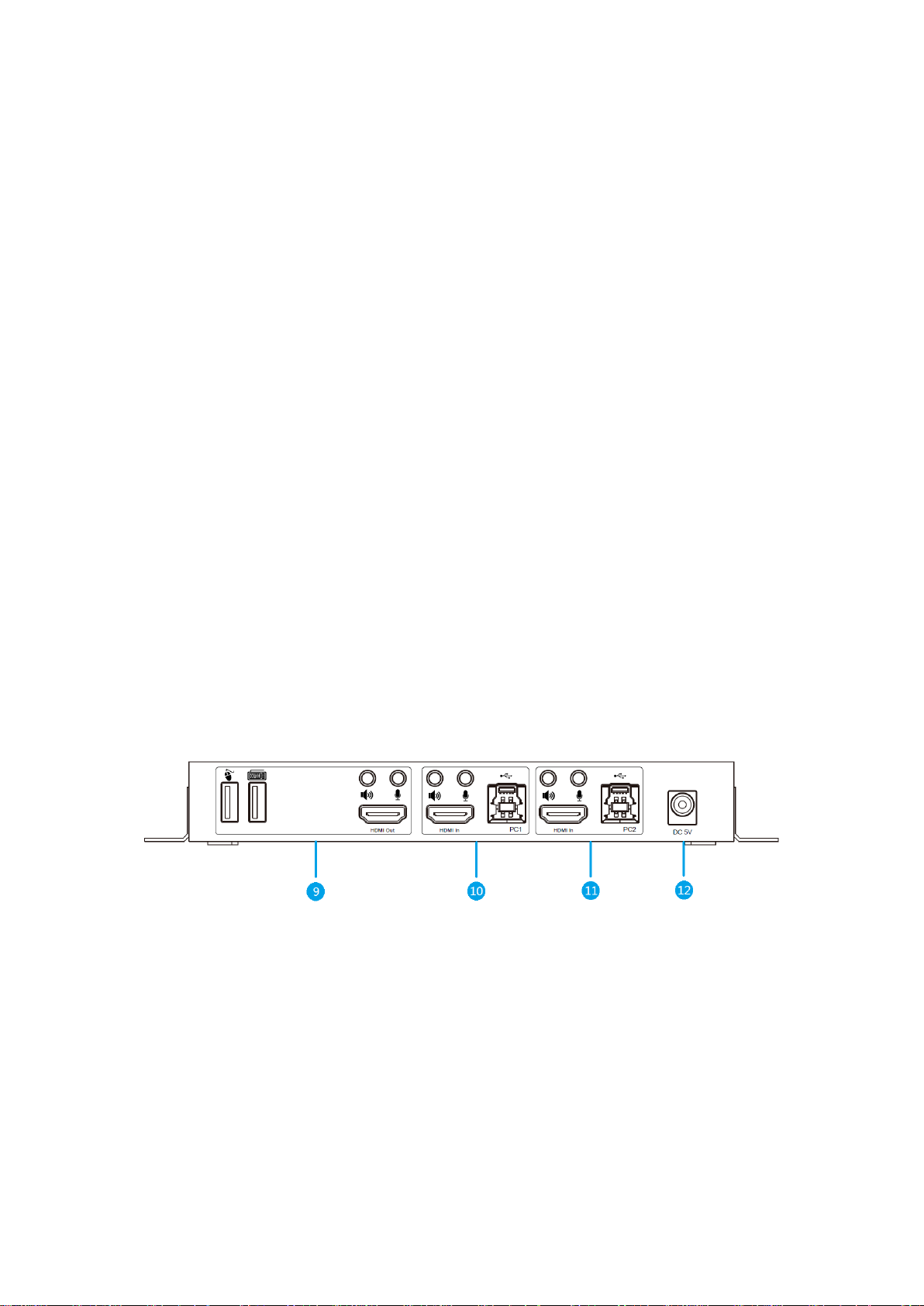

Rear Panel
9. LOCAL: The LOCAL section includes connections for the local keyboard, video
display, and mouse, as well as MICROPHONE and SPEAKERS jacks. Note that the
MICROPHONE and SPEAKERS jacks are identical to the same jacks on the front
panel. Connect to one set of jacks or the other, not both.
10. PC1: This section contains HDMI® and USB input ports from the first PC, as well as
MICROPHONE and SPEAKERS jacks for connecting the microphone input and the
audio output on the first PC.

6
11. PC2: This section contains HDMI® and USB input ports from the second PC, as
well as MICROPHONE and SPEAKERS jacks for connecting the microphone input
and the audio output on the second PC.
12. DC 5V: DC barrel connector for connecting the included AC power adapter.
Remote Control
13. 1, 2: Press one of the buttons to directly select the
corresponding PC.
14. ◄►: Use the ◄button to cycle backward through the
connected PCs. Use the ►button to cycle forward
through the connected PCs. The forward cycle order is
PC1 > PC2 > PC1 > etc.

7
SAMPLE CONNECTION DIAGRAM
INSTALLATION
Perform the following steps to install this KVM into your computer system.
1. Ensure that all equipment to be connected is powered off and disconnected
from its power source.
2. Using a Premium High Speed HDMI® Cable (available separately), plug one end
into the input port on your local display, then plug the other end into the HDMI
Out port in the LOCAL section on the rear panel.
3. Plug a USB keyboard into the KEYBOARD port in the LOCAL section on the rear
panel.

8
4. Plug a USB mouse into the MOUSE port in the LOCAL section on the rear panel.
5. Plug a microphone into either the MICROPHONE jack in the LOCAL section on
the rear panel or the MICROPHONE jack on the front panel.
6. Plug a pair of headphones, powered speakers, or an external amplifier into the
SPEAKERS jack in the LOCAL section on the rear panel or the SPEAKERS jack on
the front panel.
7. Using a Premium High Speed HDMI Cable (available separately), plug one end
into the HDMI In port in the PC1 section on the rear panel, then plug the other
end into the HDMI® output on the first PC.
8. Using one of the included USB 3.0 cables, plug one end into the USB port in the
PC1 section on the rear panel, then plug the other end into an available USB port
on the first PC.
9. Using a 3.5mm audio cable (available separately), plug on end into the
MICROPHONE jack in the PC1 section on the rear panel, then plug the other end
into the microphone input on the first PC.
10. Using a 3.5mm audio cable (available separately), plug one end into the
SPEAKERS jack in the PC1 section on the rear panel, then plug the other end into
the audio output on the first PC.
11. Repeat steps 7-10 for the PC2 section on the rear panel and the second PC.
12. Plug one end of the included AC power adapter in the DC 5V jack on the rear
panel, then plug the other end into a nearby AC power outlet.
13. Plug in and power on all PCs and any connected power speakers or external
amplifier.
14. Press the Power Button on the front panel to power the KVM on. The Power LED
will illuminate to indicate that power is applied.
15. For each connected PC, the Connect LED should illuminate, indicating a valid
connection. Additionally, the Select LED for one of the connected PCs should be
illuminated, indicating that it is the currently selected PC.
16. Verify that you can control the selected PC using the keyboard and mouse and
that you can see video on the display.

9
17. Press each of the PC# buttons on the front panel to select each PC in turn. Verify
that you can control each PC using the keyboard and mouse and that you can
see video on the display.
Congratulations, your KVM is installed and ready for use!
OPERATION
This KVM supports several different methods for switching focus from one PC to
another.
Manual Front Panel
The most basic method is to press one of the PC# buttons on the front panel to directly
select the corresponding PC.
IR Remote Control
The remote control offers two ways to select a PC.
•Press one of the numbered buttons to directly select the corresponding PC.
•Press the ◄button to cycle backward through the connected PCs. Press the ►
button to cycle forward through the connected PCs. The forward cycle order is
PC1 > PC2 > PC1 > etc.
Mouse Traverse
Put the mouse cursor on the right side of the screen, then move it to the right for about
2 seconds. The KVM will automatically cycle forward to the next connected PC. The
forward cycle order is PC1 > PC2 > PC1 > etc.

10
USB Port Detection
The KVM monitors the USB ports to each PC to detect the presence of a signal and will
switch the selected PC in one of the following ways.
•If the currently selected PC is powered off or the USB connection is broken, the
KVM will cycle forward to the next available PC. While search for an available
connection, the Select LEDs on the front panel will flash sequentially in a loop.
Once a PC connection is found and the PC connection established, the
corresponding Select LED on the front panel will illuminate. The forward cycle
order is PC1 > PC2 > PC1 > etc.
•If a PC is powered on or a USB connection is established, the KVM will
automatically switch focus to that PC.
Hotkey Selection
Use one of the hotkey sequences on the keyboard connected to one of the USB ports
on the rear panel to activate various functions. A keyboard plugged into one of the
front panel USB ports cannot be used to issue hotkey sequences.
Each hotkey command begins with pressing the Scroll Lock (SL) key twice, followed by
one or more other keys, all of which must occur within 5 seconds, from beginning to
end. This will be represented in the following table with SL+SL+X, where X is the one or
more keys that constitute the actual command. If more than 5 seconds elapse without
issuing a valid command, the existing command elements will be discarded.
Refer to the following table for the various hotkey commands and an explanation of
what they do. Note that the commands are not case sensitive and that the case used in
the commands are mixed to for clarity.
Hotkey
Function
SL+SL+↑or SL+SL+→
Cycle forward to the next PC.
SL+SL+←or SL+SL+↓
Cycle backward to the previous PC.
SL+SL+#
Direct selection of a PC, where # is 1 or 2.

11
SL+SL+s
Enable Automatic Switching Mode. The KVM will
automatically switch the HDMI®, MICROPHONE, and
SPEAKERS inputs from one to another without changing
the USB connection, staying on each input for the
interval amount of time (default 15 seconds). Press the
SPACE BAR when an input is displayed to select that
input. Press any other key to return to the input that was
selected before Automatic Switching Mode was
enabled. When Automatic Switching Mode is enabled,
the Select LED corresponding to the currently displayed
input will flash.
SL+SL+i+#+ENTER
Set the Automatic Switching Mode Interval, where # is
5-999 seconds (default 15 seconds).
SL+SL+b+#
Enables or disables the buzzer that sounds when
switching to PC1 or PC2, where # is 1 (on) or 0 (off)
(default on).
SL+SL+f+L+a+s+h+ENTER
Resumes normal operation and restores the default
settings.
TECHNICAL SUPPORT
Monoprice is pleased to provide free, live, online technical support to assist you with
any questions you may have about installation, setup, troubleshooting, or product
recommendations. If you ever need assistance with your new product, please come
online to talk to one of our friendly and knowledgeable Tech Support Associates.
Technical support is available through the online chat button on our website
www.monoprice.com or through email by sending a message to [email protected]om.
Check the website for support times and links.
To download the latest drivers, firmware, manuals, etc., go to www.monoprice.com and
type the P/N into the search bar. If available, support files are linked at the bottom of
the product page.

12
SPECIFICATIONS
P/N
42643
Video Connections
HDMI®
Number of Connected PCs
2
Supported Operating Systems
Windows® 2000 / XP / Vista® / 7 / 8 / 10,
Mac® OS X®, Linux®
Maximum Video Resolution
4K@60Hz (3840/4096 x 2160p @60Hz)
Video Bandwidth
18Gbps
USB Version
3.0
USB Connections
1x keyboard, 1x mouse, 2x USB hub ports
Input Power
5 VDC, 3A
AC Adapter Input Power
100 ~ 240 VAC, 50/60 Hz
Maximum Power Consumption
12 watts
Operating Temperature
+32 ~ +113°F (0 ~ +45°C)
Operating Humidity
10 ~ 85% RH, noncondensing
Storage Temperature
+14 ~ +176°F (-10 ~ +80°C)
Storage Humidity
5 ~ 90% RH, noncondensing
Dimensions
7.0" x 3.0" x 1.0" (178 x 75 x 26 mm)
Weight
12.9 oz. (366g)
Certifications
FCC, CE

13
REGULATORY COMPLIANCE
Notice for FCC
This device complies with Part 15 of the FCC rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
Modifying the equipment without Monoprice's authorization may result in the
equipment no longer complying with FCC requirements for Class B digital devices. In
that event, your right to use the equipment may be limited by FCC regulations, and you
may be required to correct any interference to radio or television communications at
your own expense.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the
following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.

14
Notice for Industry Canada
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Monoprice™, Blackbird™, the Blackbird logo, and all Monoprice logos are trademarks of
Monoprice Inc.
HDMI®, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing LLC in the United States and other countries.
HDCP™ is a trademark of Digital Content Protection LLC.
Microsoft®, Windows®, and Vista® are either registered trademarks or trademarks of
Microsoft Corporation in the United States and/or other countries.
Mac® and OS X® are trademarks of Apple Inc., registered in the U.S. and other countries.
Linux® is the registered trademark of Linus Torvalds in the U.S. and other countries.

TECHNOLOGY AT PRICES THAT MAKE SENSE
Need Help? We’re here for you!
Contact us www.monoprice.com/contactus
Product pictures are for reference only.
Specifications described herein are subject to change without prior notification.
All trademarks are the sole property of their respective companies.
Blackbird™ is a Sub-brand of Monoprice Inc.
Copyright © 2021 Monoprice, Inc. All rights reserved.
www.monoprice.com
