BlastKing V2P-12 User manual

1
blastking.com
USER MANUAL
V2P-12
V2P-12 LINK
LED POSTER, PITCH 2.5MM 5.77’ X 2.09’
NOVASTAR WIRELESS CONTROLLER
blastking.com

2
Thank you for the purchase of your BLASTKING LED Poster.
We know you have a world full of choices and we thank you for selecting us.
Please read this entire user manual before operating thi humedad s unit
For your own personal safety, please read and understand this manual completely before you attempt to install or operate this unit!
• To reduce the risk of electrical shock or fire, do not expose this unit rain or moisture
• Do not spill water or other liquids into or on to your unit.
• Be sure that the local power outlet match that of the required voltage for your unit.
• Do not attempt to operate this unit if the power cord has been frayed or broken.
• Do not attempt to remove or break off the ground prong from the electrical cord. This prong is used to reduce the risk of electrical shock and fire in case of an
internal short.
• Disconnect from main power before making any type of connection.
• Do not remove the cover under any conditions. There are no user serviceable parts inside.
• Never operate this unit when it’s cover is removed.
• Do not attempt to operate this unit, if it becomes damaged.
• This unit is intended for indoor use only, use of this product outdoors voids all warranties.
• Always mount this unit in safe and stable matter.
• Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to
cords at plugs, convenience receptacles, and the point where they exit from the appliance.
• Heat -This fixture should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.
• The fixture should be serviced by qualified service personnel when:
A. Objects have fallen, or liquid has been spilled into the appliance.
B. The appliance has been exposed to rain or water.
C. The appliance does not appear to operate normally or exhibits a marked change in performance.
All BlastKing® products purchased in the USA are protected under the regular manufacturer’s three year warranty.
This warranty is intended to protect customers from any and all manufacturer defects from three years of purchase.
The product will be replaced or repaired at the manufacturer’s discretion upon receipt of the warranted unit along with a dated proof of purchase from an authorized
dealer or distributor. This warranty becomes null and void under situations including but not limited to misusage, normal wear and tear, shipping damage and abuse.
For international purchases, please contact your local dealer or sales associate for further warranty information.
For manufacture warranty please register this product online at
http://blastking.com/product-registration/
This manual does not contain all the information about the design, production and changes of the equipment, and does not cover all the conditions that may occur
during installation, use and maintenance.
The information provided in this manual is accurate at the time of delivery. It may have changed due to product updates.

3
blastking.com
V2P-12 / V2P-12 LINK
Pixel Pitch 2.5 mm
Screen Size 640 x 1760 mm
Resolution 256 x 768 px
Power Consumption 990 / 390 W
Contrast Ratio 8000:1
Viewing Angle (H/V) 160° / 160°
Brightness (Nits/m²) >1000
LED’s Nationstar
Protection IP40
Operating Temperature -10°C + 45° / 10 - 90% Humidity
Refresh Rate >3840 Hz
Power 110-220V AC / 50-60 Hz
Lighting Lifespan +100,000 hours
Physical Specifications +100,000 hours
Height 72.58” / 1843.6mm
Width 25.73”/ 653.6mm
Depth 1.97” / 50mm
Weight 104 lb / 47.2 kg
Package +100,000 hours
Height 76.93” /1954mm
Width 30.67 / 784mm
Depth 8 98” / 228mm
Weight 132 lb / 59.8 kg
SPECIFICATIONS

4
TAURUS SERIES MULTIMEDIA PLAYER TB2-4G / V2P-12
FEATURES
• Loading capacity up to 650,000 pixels with a maximum width of 1920 pixels and a maximum height of 1080
pixels
• 1x Gigabit Ethernet output
• 1x Stereo audio output
• 1x HDMI 1.3 input, accepting HDMI input and allowing content to auto fit to screen
• 1x USB 2.0, capable of playing solutions imported from a USB drive
• 1x USB Type B, capable of connecting to a PC
Connecting this port to a PC allows users to configure screens, publish solutions, etc. with
NovaLCT and ViPlex Express.
• Powerful processing capacity
4 core 1.2 GHz processor
Hardware decoding of 1080P videos
1 GB of RAM
32 GB of internal storage
• All-round control plans
Solution publishing and screen control via user terminal devices such as PC, mobile phones and tablets
Remote cluster solution publishing and screen control
Remote cluster screen status monitoring
• Synchronous and asynchronous modes
When the internal video source is used, the TB2-4G (Optional 4G) works in asynchronous mode.
When the HDMI video source is used, the TB2-4G (Optional 4G) works in synchronous mode.
• Built-in Wi-Fi AP
User terminal devices can connect to the built-in Wi-Fi hotspot of the TB2-4G (Optional 4G).
The default SSID is “AP+Last 8 digits of SN” and the default password is “12345678”.
• Support for 4G modules
The TB2-4G (Optional 4G) ships without a 4G module. Users have to purchase 4G modules separately if
needed.
Wired network is prior to 4G network. When both of the networks are available, the TB2-4G
(Optional 4G) will choose signals automatically according to the priority.

5
blastking.com
Electrical Parameters Input voltage DC 5 V 12V
Maximum power consumption 15 W
Storage Capacity RAM 1 GB
Internal storage 32 GB (28 GB available)
Storage Environment Temperature –40°C to +80°C
Humidity 0% RH to 80% RH, non-condensing
Operating Environment Temperature –20ºC to +60ºC
Humidity 0% RH to 80% RH, non-condensing
IP Rating IP20
Please prevent the product from water intrusion and do not wet or wash the product.
System Software • Android operating system software
• Android terminal application software
• FPGA program
Note: Third-party applications are not supported.
SPECIFICATIONS

6

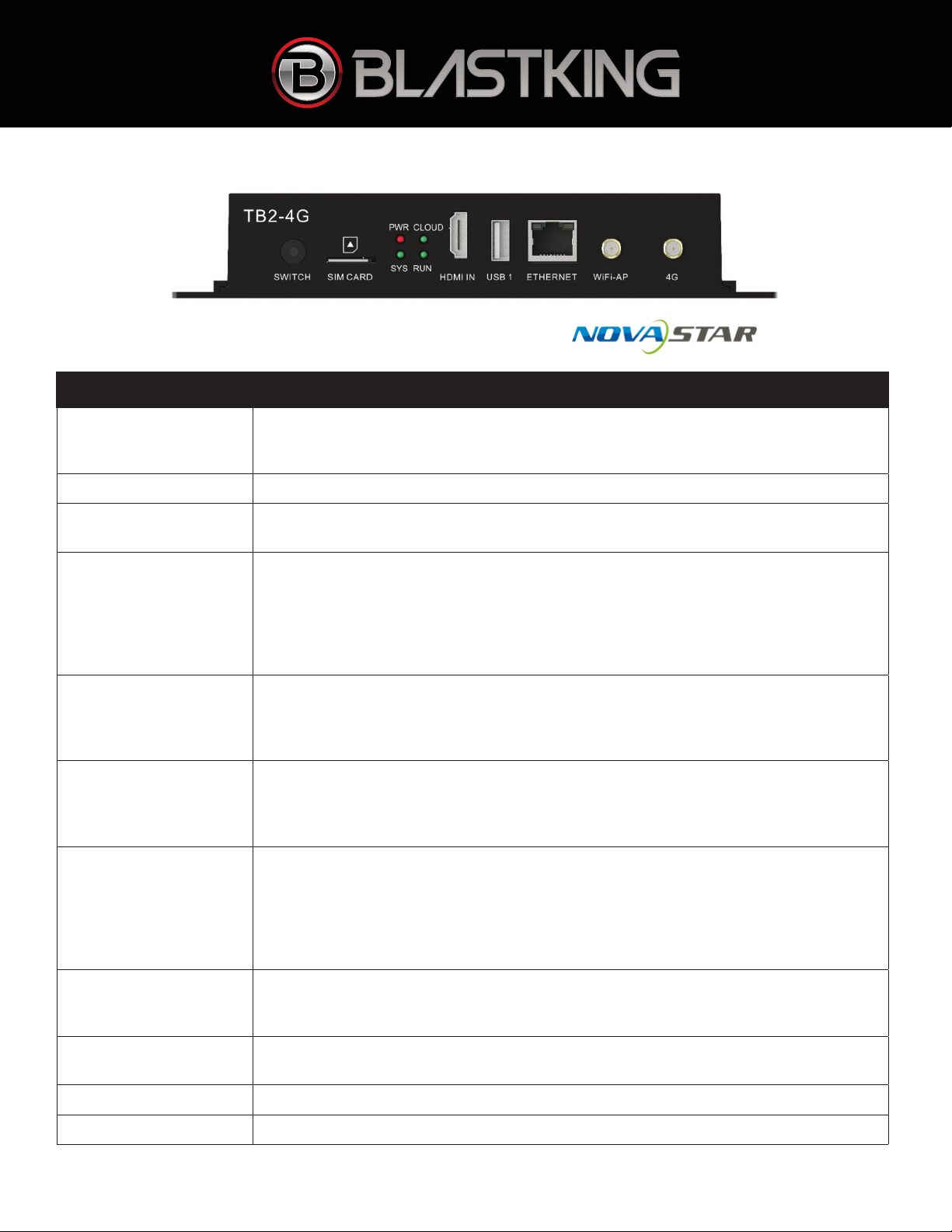

Description
SWITCH Dual-mode switching button
• Green staying on: Synchronous mode
• Off: Asynchronous mode
SIM CARD SIM card slot
PWR Power indicator
Staying on: The power supply is working properly.
SYS System indicator
• Flashing once every 2 seconds: The Taurus is functioning normally.
• Flashing once every second: The Taurus is installing the upgrade package.
• Flashing once every 0.5 second: The Taurus is downloading data from the Internet or
copying the upgrade package.
• Staying on/off: The Taurus is abnormal.
CLOUD Internet connection indicator
• Staying on: The Taurus is connected to the Internet and the connection is available.
• Flashing once every 2 seconds: The Taurus is connected to VNNOX and the connection
is available.
RUN FPGA indicator
• Flashing once every second: No video signal
• Flashing once every 0.5 second: The FPGA is functioning normally.
• Staying on/off: The FPGA is abnormal.
HDMI IN 1x HDMI 1.3
Video input connector in synchronous mode
Content can be scaled and displayed to fit the screen size automatically in synchronous
mode.Requirements of full screen zoom in synchronous mode:
• 64 pixels ≤ Video source width ≤ 2048 pixels
• Allows images to be zoomed in only
USB 1 1x USB 2.0
Imports solutions from a USB drive for playback
Only the FAT32 file system is supported and the maximum size of a single file is 4 GB.
ETHERNET Fast Ethernet port
Connects to the network or control PC.
WiFi-AP Wi-Fi antenna connector
4G 4G antenna connector

7
blastking.com
Category Codec Supported Image Size File Format Remarks
JPEG JFIF file
format 1.02
48×48 pixels~8176×8176
pixels
JPG, JPEG No support for non-interlaced scan
Support for SRGB JPEG
Support for Adobe RGB JPEG
BMP BMP No Restriction BMP N/A
GIF GIF No Restriction GIF N/A
PNG PNG No Restriction PNG N/A
WEBP WEBP No Restriction WEBP N/A
AUDIO AND VIDEO DECODER SPECIFICATIONS
Category Codec Channel Bit Rate Sampling
Rate
File Format Remarks
MPEG MPEG1/2/2.5 Audio
Layer1/2/3
2 8Kbps~320Kbps CBR
and VBR
8KHz~48KHz MP1,MP2,
MP3
N/A
Windows
Media Audio
WMA Version
4/4.1/7/8/9, wma-
pro
2 8Kbps~320Kbps 8KHz~48KHz WMA No support for
WMA Pro, loss-
less and MBR
WAV MS-ADPCM,
IMA-ADPCM, PCM
2 N/A 8KHz~48KHz WAV Support for 4bit
MS-ADPCM
and IMA-AD-
PCM
OGG Q1~Q10 2 N/A 8KHz~48KHz OGG, OGA N/A
FLAC Compress Level
0~8
2 N/A 8KHz~48KHz FLAC N/A
AAC ADIF, ATDS Header
AAC-LC and AAC-
HE, AAC-ELD
5.1 N/A 8KHz~48KHz AAC, M4A N/A
AMR AMR-NB, AMR-WB 1 AMR-NB 4.75~12.2kbps
@8kHz
AMR-WB
6.60~23.85Kbps @16KHz
8KHz, 16KHz 3GP N/A
MIDI MIDI Type 0/1, DLS
version 1/2, XMF
and Mobile XMF,
RTTTL/RTX, OTA,
iMelody
2 N/A N/A XMF, MXMF,
RTTTL, RTX,
OTA, IMY
N/A
Audio

8
Video
Category Codec Supported
Resolution
Maximum
Frame Rate
Maximum
Bit Rate
(Ideal Case)
File Format Remarks
MPEG-1/2 MPEG-1/2 48×48 pixels ~
1920×1080 pixels
30fps 80Mbps DAT, MPG,
VOB, TS
Support for field coding
MPEG-4 MPEG4 48×48 pixels ~
1920×1080 pixels
30fps 38.4Mbps AVI, MKV,
MP4, MOV,
3GP
No support for MS
MPEG4 v1/v2/v3, GMC,
and
DivX3/4/5/6/7…/10
H.264/AVC H.264 48×48 pixels ~
1920×1080 pixels
1080P@60fps 57.2Mbps AVI, MKV,
MP4, MOV,
3GP, TS, FLV
Support for field coding
and MBAFF
MVC H.264 MVC 48×48 pixels ~
1920×1080 pixels
60fps 38.4Mbps MKV, TS Support for Stereo High
Profile only
H.265/HEVC H.265/HEVC 64×64 pixels ~
1920×1080 pixels
1080P@60fps 57.2Mbps MKV, MP4,
MOV, TS
Support for Main Profile,
Tile & Slice
GOOGLE VP8 VP8 48×48 pixels ~
1920×1080 pixels
30fps 38.4Mbps WEBM, MKV N/A
H.263 H.263 SQCIF (128×96),
QCIF (176×144),
CIF (352×288),
4CIF (704×576)
30fps 38.4Mbps 3GP, MOV,
MP4
No support for H.263+
VC-1 VC-1 48×48 pixels ~
1920×1080 pixels
30fps 45Mbps WMV, ASF, TS,
MKV, AVI
N/A
MOTION
JPEG
MJPEG 48×48 pixels ~
1920×1080 pixels
30fps 38.4Mbps AVI N/A

9
blastking.com
TAURUS SERIES MULTIMEDIA PLAYER TB4 / V2P-12 LINK
FEATURES
• Loading capacity up to 1,300,000 pixels with a maximum width of 3840 pixels and a maximum height of 4080
pixels
• 2x Gigabit Ethernet output
• 1x HDMI 1.3 output, allowing for HDMI Loop
• 1x HDMI 1.3 input, accepting HDMI input and allowing content to auto fit to screen
• 2x USB 2.0, capable of playing solutions imported from a USB drive
• On-board brightness sensor connector, allowing for automatic and scheduled smart brightness adjustment
• Synchronous playback across multiple screens
• Powerful processing capacity
4 core 1.6 GHz processor
Hardware decoding and playback of H.265 4K HD videos
Hardware decoding of 1080P videos
2 GB of RAM
32 GB of internal storage
• All-round control plans
Solution publishing and screen control via user terminal devices such as PC, mobile phones and tablets
Remote cluster solution publishing and screen control
Remote cluster screen status monitoring
• Synchronous and asynchronous modes
When the internal video source is used, the TB4 works in asynchronous mode.
When the HDMI video source is used, the TB4 works in synchronous mode.
• Built-in Wi-Fi AP
User terminal devices can connect to the built-in Wi-Fi hotspot of the TB4.
The default SSID is “AP+Last 8 digits of SN” and the default password is “12345678”.
• Support for 4G modules
The TB4 ships without a 4G module. Users have to purchase 4G modules separately if
needed.
Wired network is prior to 4G network. When both of the networks are available, the TB4
will choose signals automatically according to the priority.

10
Electrical Parameters Input voltage AC 100 V~240 V
Maximum power consumption 18 W
Storage Capacity RAM 2 GB
Internal storage 32 GB (28 GB available)
Storage Environment Temperature –40°C to +80°C
Humidity 0% RH to 80% RH, non-condensing
Operating Environment Temperature –20ºC to +60ºC
Humidity 0% RH to 80% RH, non-condensing
IP Rating IP20
Please prevent the product from water intrusion and do not wet or wash the product.
System Software • Android operating system software
• Android terminal application software
• FPGA program
Note: Third-party applications are not supported.
SPECIFICATIONS

11
blastking.com

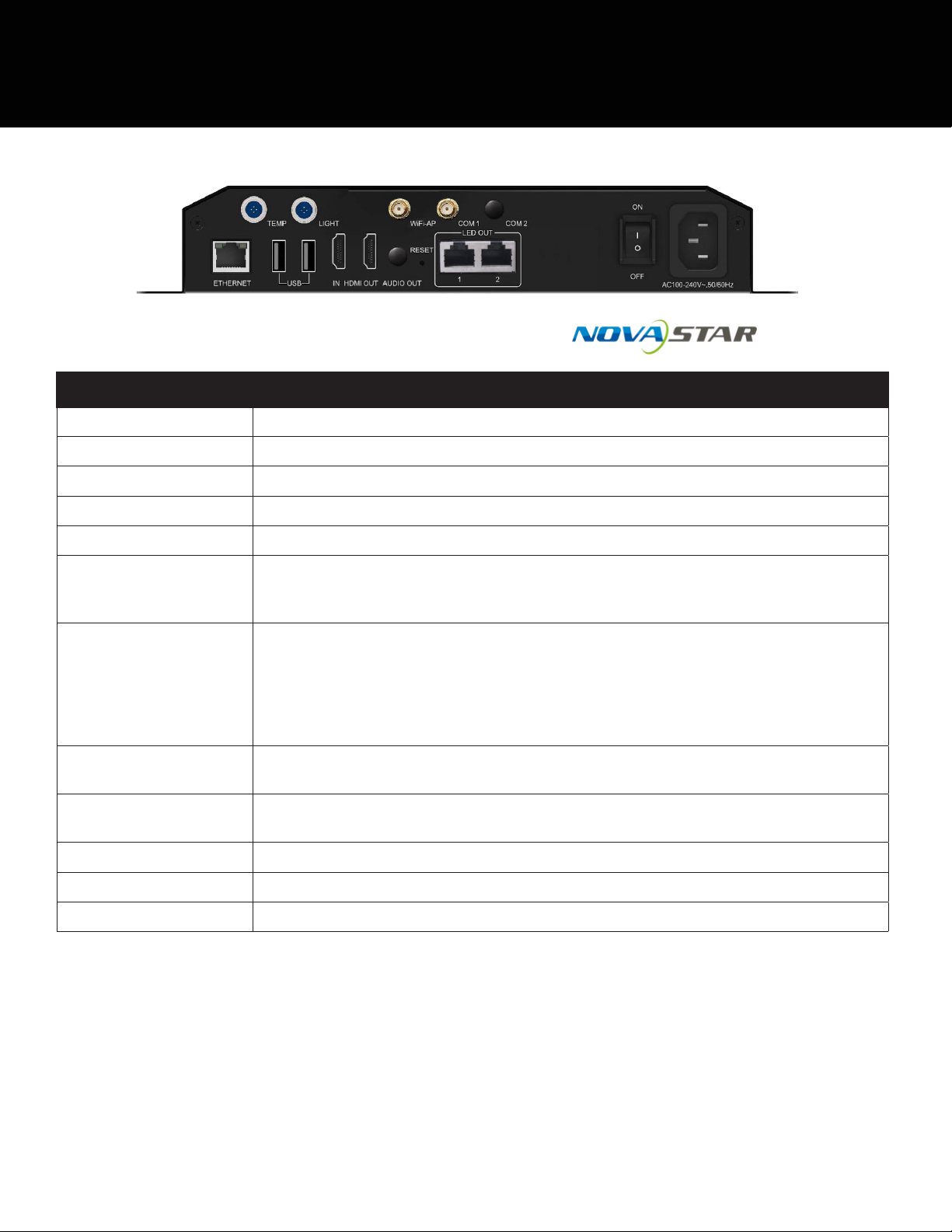

Description
TEMP Temperature sensor connector
LIGHT Light sensor connector
WiFi-AP Wi-Fi antenna connector
COM1 A reserved connector
COM2 A reserved connector
USB 2x USB 2.0
Imports solutions from a USB drive for playback
Only the FAT32 file system is supported and the maximum size of a single file is 4 GB.
HDMI IN 1x HDMI 1.3
Video input connector in synchronous mode
Content can be scaled and displayed to fit the screen size automatically in synchronous
mode. Requirements of full screen zoom in synchronous mode:
• 64 pixels ≤ Video source width ≤ 2048 pixels
• Allows images to be zoomed in only
HDMI OUT 1x HDMI 1.3
HDMI 1.3 output, allowing for HDMI Loop
RESET Factory reset button
Press and hold this button for 5 seconds to reset the product to its factory settings.
LED OUT 2x Gigabit Ethernet output ports
ON/OFF Power switch
100-240V~,50/60Hz Power input connector

12
Category Codec Supported Image Size File Format Remarks
JPEG JFIF file
format 1.02
48×48 pixels~8176×8176
pixels
JPG, JPEG No support for non-interlaced scan
Support for SRGB JPEG
Support for Adobe RGB JPEG
BMP BMP No Restriction BMP N/A
GIF GIF No Restriction GIF N/A
PNG PNG No Restriction PNG N/A
WEBP WEBP No Restriction WEBP N/A
VIDEO DECODER SPECIFICATIONS
Video
Category Codec Supported
Resolution
Maximum
Frame Rate
Maximum
Bit Rate
(Ideal Case)
File Format Remarks
MPEG-1/2 MPEG-1/2 48×48 pixels ~
1920×1080 pixels
30fps 80Mbps DAT, MPG,
VOB, TS
Support for field coding
MPEG-4 MPEG4 48×48 pixels ~
1920×1080 pixels
30fps 38.4Mbps AVI, MKV,
MP4, MOV,
3GP
No support for MS
MPEG4 v1/v2/v3, GMC,
and
DivX3/4/5/6/7…/10
H.264/AVC H.264 48×48 pixels ~
4096×2304 pixels
4K@25fps,
1080P@60fps
100Mbps AVI, MKV,
MP4, MOV,
3GP, TS, FLV
Support for field coding
and MBAFF
MVC H.264 MVC 48×48 pixels ~
1920×1080 pixels
60fps 38.4Mbps MKV, TS Support for Stereo High
Profile only
H.265/HEVC H.265/HEVC 64×64 pixels ~
4096×2304 pixels
4K@60fps,
1080P@60fps
100Mbps MKV, MP4,
MOV, TS
Support for Main Profile,
Tile & Slice
GOOGLE VP8 VP8 48×48 pixels ~
1920×1080 pixels
30fps 38.4Mbps WEBM, MKV N/A
H.263 H.263 SQCIF (128×96),
QCIF (176×144),
CIF (352×288),
4CIF (704×576)
30fps 38.4Mbps 3GP, MOV,
MP4
No support for H.263+
VC-1 VC-1 48×48 pixels ~
1920×1080 pixels
30fps 45Mbps WMV, ASF, TS,
MKV, AVI
N/A
MOTION
JPEG
MJPEG 48×48 pixels ~
1920×1080 pixels
30fps 38.4Mbps AVI N/A

13
blastking.com

blastking.com
2980 NW 74th Ave.
Miami, FL 33122
Phone: [phone]
