Blastrac BS-110 II User manual

OPERATING MANUAL BS-110 II
VERSION 2.0

2
EC DECLARATION OF CONFORMITY
in accordance with Appendix II sub A of Directive 2006/42/EC
BLASTRAC B.V.
Utrechthaven 12
NL - 3433 PN NIEUWEGEIN
Tel: [phone]
Fax: [phone]
[e-mail]
The Netherlands
Declare under our sole responsibility that the machine as described below conforms with the Health and Safety
requirements of the European Directive of the machine Safety.
In case of changes to the machine without our written authorization this declaration loses its validity.
Model: BLASTRAC BS-110 II
Serial number: XXXXXXX-XX-20XX
1. satisfies the conditions set out in the Machine Directive (Directive 2006/42/EC); EMC directive
2004/108/EC, as last amended)
2. satisfies the following harmonized standards:
EN 12100-1, EN 12100-2, EN60335-1 and EN55014-1
Nieuwegein 12-01-2011

3
Table of contents
EC Declaration of Conformity 02
1 Rules for Save Operation
1.1 Electric Connection 04
1.2 Personal / Staff 05
1.3 Usage 05
2 Product Information
2.1 Technical Description 06
2.2 Technical Specifications 06
2.3 Accessory / Components 06
3 Transportation
3.1 Transport Wheel Assembly 07
3.2 Loading/Unloading 08
3.3 Wheels engaging or disengaging 09
4 Setup / Adjustment
4.1 Hydraulic Fluid Level 10
4.2 Speed Control 10
4.3 Blade 11
5 Operation
5.1 Actuators 13
5.2 Initial Operation Phase 13
5.3 Types of Tear outs 14
5.4 Subfloor Surfaces 15
6 Maintenance
6.1 Inspection Procedure Hydraulic 16
6.2 Wheel Cleaner Adjustment 16
6.3 Adding or Changing Hydraulic Fluid 16

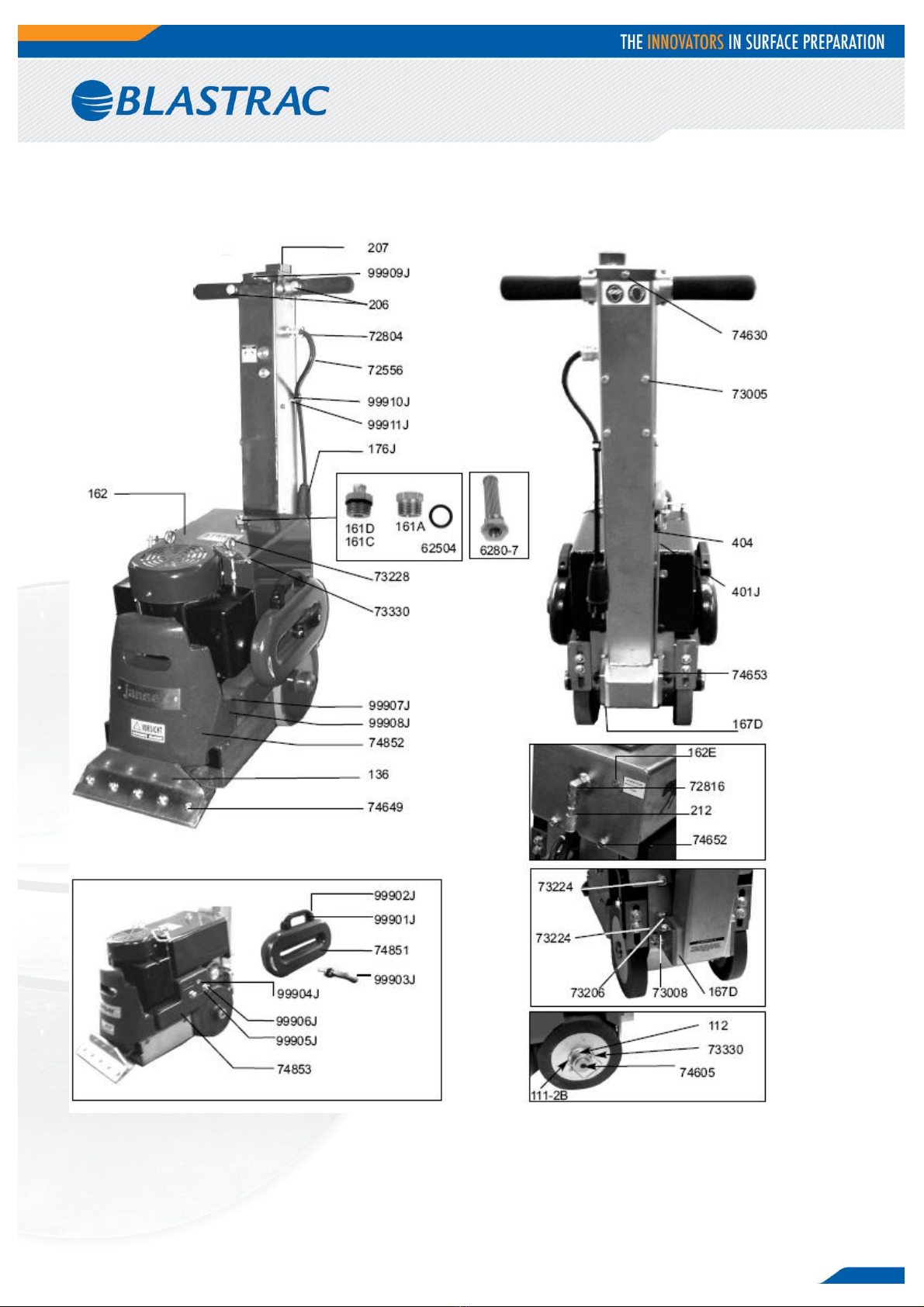

7 Spare Parts 17
Contact 26

4
1 RULES FOR SAVE OPERATION
Non observance of the symbols, which you can see in the instruction manual or on the machine, may
result in serious injury or death for the user and other persons.
Read, understand and follow all the clues / hints, which are situated in the machine or in the instruction
manual.
1.1 Electric Connection
Always disconnect power plug before servicing.
Maintenance, replacement or adjustment of hydraulic fluid or other parts can cause serious injury or
death to the user or other persons, if the machine is connected to the power supply system.
Keep the cable away from the blade to avoid damage of the cable.
Run over or damage of the cable can cause an electric shock.
The machine is constructed for inside-usage only.
Danger of electric shock. Do not expose the machine to water or rain.
Connection: power supply system –machine
Only to the given ranges on the type plate.
Check before usage.
Connection: cable –machine only with authorized cable.
Europe Cable –Type: HAR HO5VV-3x2,5 mm²
Connector / Plug –Type: 2P+T16A-250V
Using cables with to little average or excessive length can cause damage to persons and objects.
Electrical equipment like cables or plugs must be controlled / renewed by an authorized
electrician.
Risk of injuries or fatalities by wrong electrical connection
Never operate with a damaged cable or connector.
Replacement of worn or damaged cables or connectors has to be effected by a specialist or a similar
qualified person.
Improperly connecting the grounding wire can result in risk of electric shock.
Check with a qualified electrician if your in doubt as to whether the outlet is properly grounded. Do
not modify the plug provided with the tool. Never remove the grounding prong from the plug. Do not
use the tool if the cord or plug is damaged. If the plug will not fit the outlet, have a proper outlet installed
by a qualified electrician.
Do not use machine when cable is damaged
Don't move the machine by dragging the cable. Utilization with a damaged cable can cause an electric
shock.

5
1.2 Staff
The operator has to be instructed to the use of the machine before operating.
Non observance of the instruction manual before commissioning, adjustment or maintenance could
cause serious injury to personal or objects.
Read unexceptionally all security statements. Be sure that type plate, security symbols as
commandments, warnings, precautions and the directives are mounted / fixe to the machine.
Non observance of the directives inside this manual may cause serious injury or damage.
Always wear eye-protection, protective suit, dust-mouthguard / dust respirator and ear-protection
during the usage of the machine. The noise that appears while removing flooring can be so
intense that at long term use it may cause injury of the auditory tube. Working without appropriate
security equipment, as for instance a protective suit, can injure eyes and body. Arising airborne dust
may be inhaled when wearing no mouthguard.
Keep arms, feet and clothes away from the operating machine parts.
Moving parts of the machine can cause serious injury or damage.
1.3 Usage
Fluid under pressure is dangerous and can cause serious injury.
Leaking hydraulic fluid is not only unsightly, it's hazardous. In addition to making workplace floors slippery and
dangerous, leaks also contaminate the environment. Our system runs at or below 83 bar. Never look for a leak
when unit is under pressure. Only check and service when not under pressure.
Fluids under pressure can cause serious injury. If fluid punctures the skin, even if no pain is felt, a serious emergency
exists. Obtain medical assistance immediately. Failure to do so can result in loss of the injured part or
death.
Escape of hydraulic fluid
Pinhole: It can be almost invisible escaping from a pinhole, and it can pierce the skin into the body. Do not touch
a pressurized hydraulic hose assembly with any part of your body. Leak: Keep hoses and fittings tight. Only
check and service when not under pressure.
Never check for leaks over hose or hydraulic connections with any part of your body. Instead, use a piece of
cardboard to locate a pressurized leak. For drips (low pressure leaks), use a rag to clean the area and determine
where the leak originates.
Flammability of hydraulic fluids
With the exception of those compromised primarily of water, all hydraulic fluids are flammable when
exposed to the proper conditions (including many "fire-resistant" hydraulic fluids). Leaking pressurized
hydraulic fluids may develop a mist or fine spray that can flash or explode upon contact with a cause
of ignition. These explosions can be very severe and could result in serious injury or death.
Precautions should be taken to eliminate all ignition sources from contact with escaping fluids, sprays
or mists resulting from hydraulic failures. Sources of ignition could be electrical discharges (sparks),
open flames, extremely high temperatures, sparks caused by metal-to-metal contact.

6
2 PRODUKT INFORMATION
2.1 Technical Description
Hydraulic-Technology applied on the tried and tested Stripper-Features:
- Compared with other Strippers the "Strato Mobil Hydraulic" works extremely quietly,
allowing use in "working" environments
- Very easy operation achieved through automatic drive with forward and backward function
- Removeable weights for easier transport
- Virtually maintenance-free hydraulic components
2.2 Technical Specifications

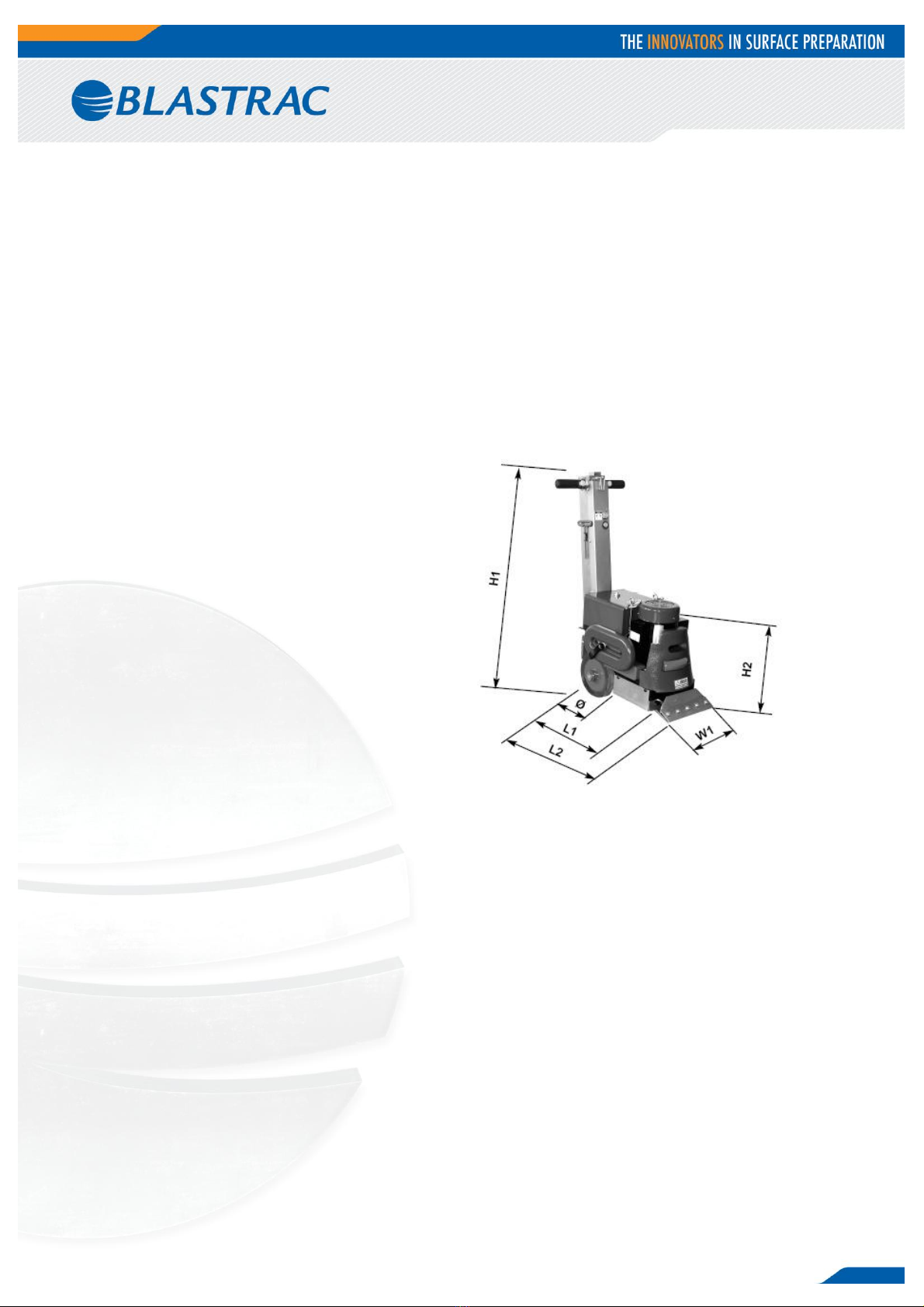

Dimensions
Height H1 104 cm
H2 50 cm
Length L1 80 cm
L2 62 cm
Wheel Ø 22 cm
Width W1 30 cm
Weight
Machine 113 kg (249,12 lbs)
Counterweight - front 20 kg (44,09 lbs)
Counterweight - side 18 kg (39,68 lbs)
Motor
Power Supply 230V/50Hz
Motor Power 1,1 kW
Voltage 8 Amp
2.3 Accessory
1. Counterweights
It is not necessary to have counterweights on to use machine. Use only as needed.
Each counterweight is attached with two bolts. Remove bolts with supplied blade wrench.
Weights are heavy, use caution when removing or remounting.
2. Blades

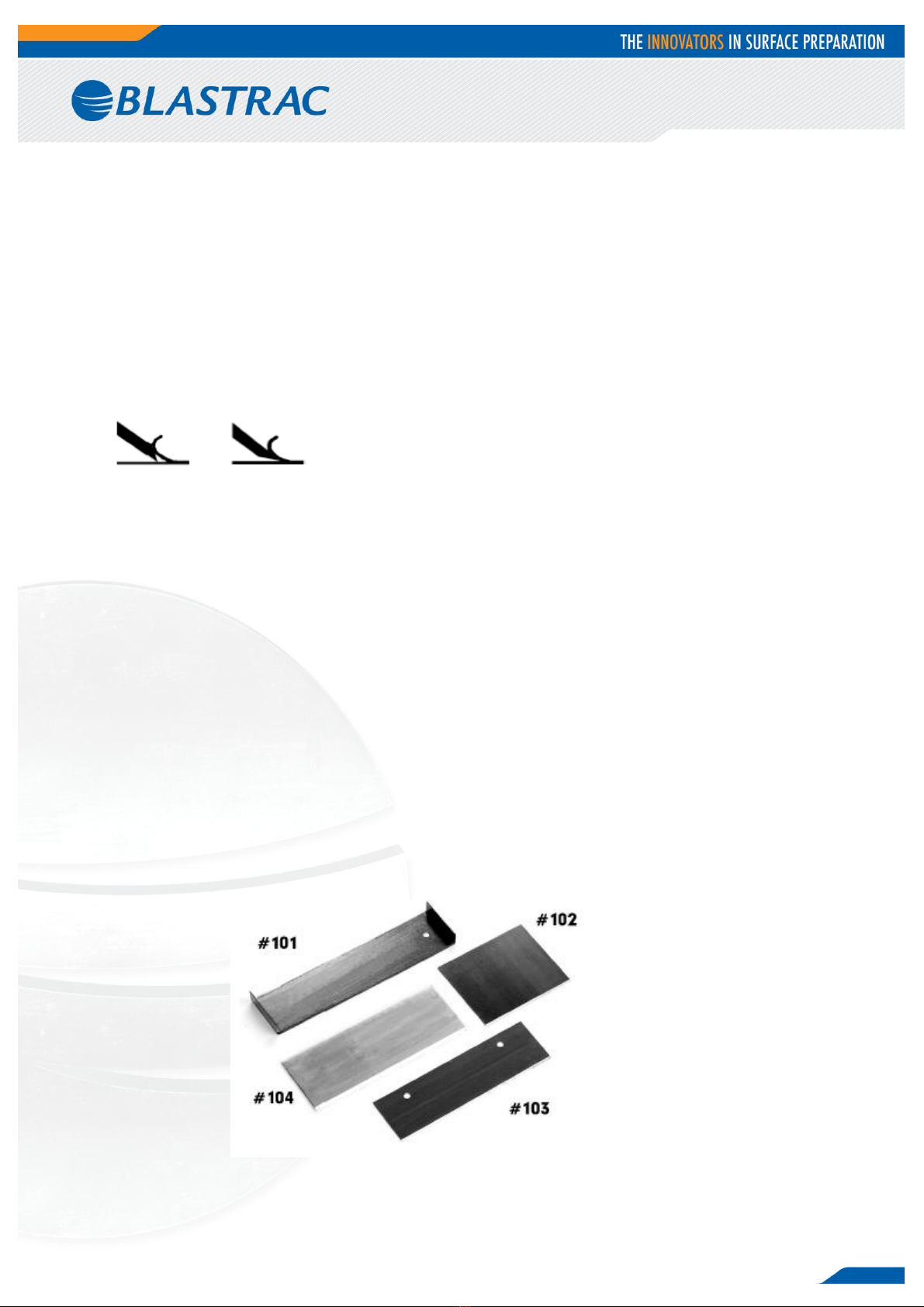

Blade 111 700 101 - 305 x 76 x 1,6 mm
Blade 111 700 102 - 152 x 127 x 1,6 mm
Blade 111 700 103 - 254 x 76 x 1,6 mm
Blade 111 700 104 - 254 x 76 x 3,0 mm
3. Extension Cable 10,0 m
4. Assembly tools
5. Transport Wheels

7
3 TRANSPORTATION
3.1 Transport Wheel Assembly
Transport wheels help to eliminate damage to flooring
and make movement of unit easier.
1. Remove two outside blade cover bolts.
See figure 3.1 - A
Make sure machine is stable and secure on blocks.
2. Tip machine back and block front of machine so that the
cutting head has enough clearance for front wheel
assembly to fit under.
See figure 3.1 - B
or lay unit on side and block up
See figure 3.1 - C
3. Mount front wheel assembly over blade cover.
Replace two outside blade cover bolts.
See figure 3.1 - A
4. Remove blocks.
Do not leave machine in transport mode while in transit in vehicle without
machine being secured.
To remove the transport wheels reverse procedure from above.

8
3.2 Loading / Unloading
Always remove all counterweights and blades before loading or unloading.
See figure 3.2 –A
3.21 Lifting bail
See figure 3.2 - A
Easy loading when not driving or using a ramp. Location on lifting
bails centrally locates the balance of the machine to safely pick-up the
machine.
1. Use a rope, a hook system or a chain through the eyelets
which are located on top of the machine.
2. Raise machine with a fork lift or a winch.
Keep hands and feet out from under machine.
3.21 Loading Ramp
See figures 3.2 - B and 3.2 - C.
Make sure the ramp is clean and dry, free of grease or oil.
1. Attach ramp securely to back of vehicle, making sure there is
good contact.
2. Position machine at back of ramp, respectively at head of
ramp.
3. Engage power switch and drive onto vehicle, respectively
drive out of vehicle.
Lowering handle may be necessary for proper clearance into the back
of smaller cars.
Make sure ramp is secure before using. Failure to do so could cause
ramp to fall away from truck, causing damage to the machine and/or
injury to the operator.
The Loading Ramp can fold up on the half for easier transport
See figure 3.2 - D

9
3.3 Wheels engaging or disengaging
Engage Mode
Wheels engage and disengage for easier maneuverability.
Wheels in the "engage mode" are secured with
the axle pins. This engages the wheels for the machine
to be self-propelled.
See Figure 3.3 - A
Disengage Mode
When wheels are in the "disengage mode" Machine
can be moved around freely when the machine IS
NOT under power.
See Figure 3.3 - B
Disengaging wheels
Move machine so pin is vertical. Pull up on end of pin
to release. Slide pin out. Repeat on second wheel.
See Figure 3.3 - C
Keeping axle pin facing straight up will make re-engaging
easier.
re-engaging wheels
Line up wheel hub hole and axle hole. Insert axle pin
and secure pin end. Repeat on second wheel.
See Figure D
Never load or unload machine on a ramp or incline
when wheels are in the disengage mode. Failure to
do so could cause machine runaway, damage to
machine, damage to property or cause serious injury.
Never have transport wheel assembly mounted onto
machine when wheels are in the disengaged mode.

10
4 SETUP
4.1 Hydraulic fluid
Keep hydraulic fluid clean and on specified definite level. Only use a ISO32 compatible light fluid.
Non-compatible fluids could cause damage to unit or serious injury.

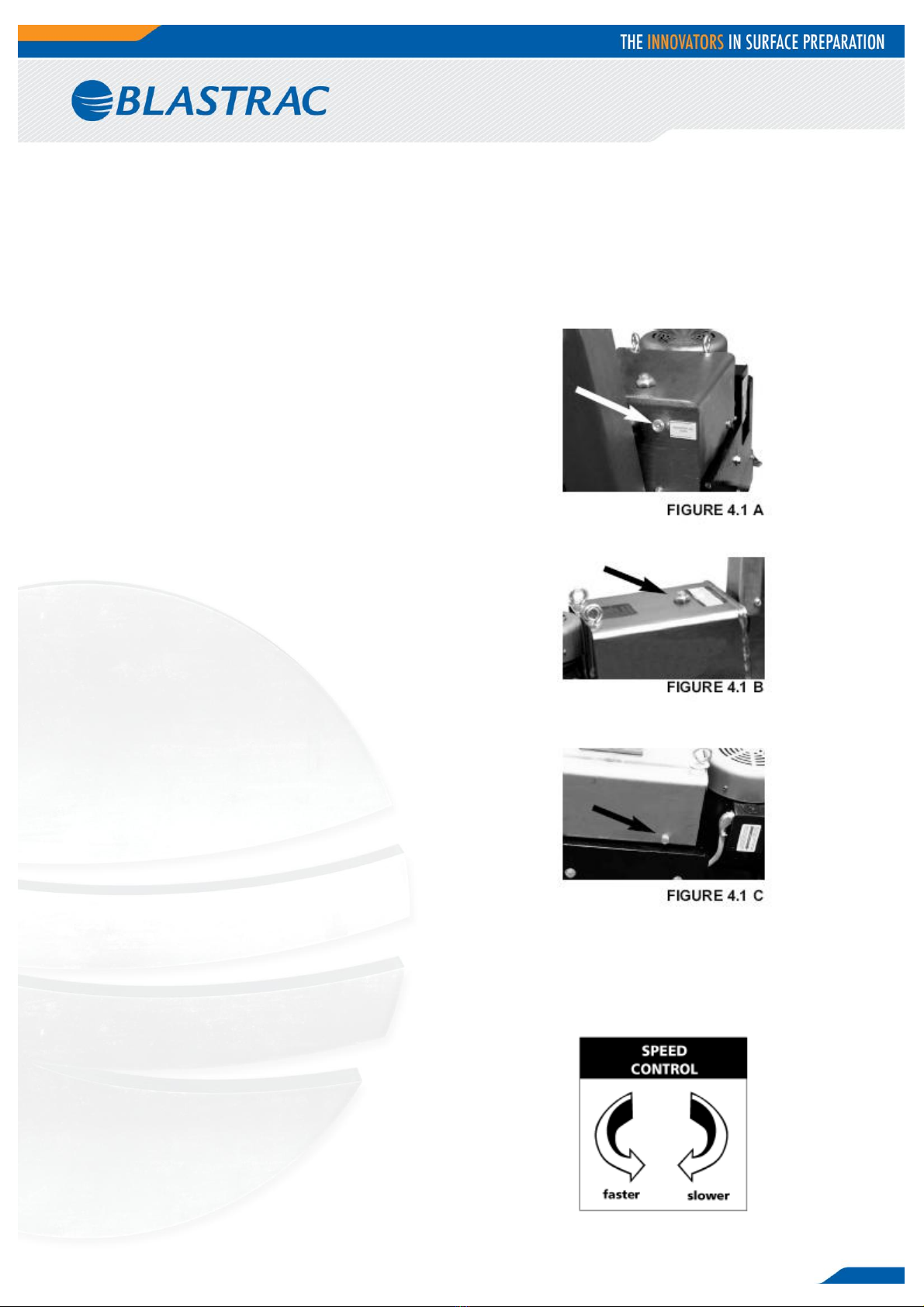

4.1.1 Hydraulic fluid level
See figure 4.1 –A
The machine has a fluid level sight window. The fluid should be
in the middle to the top of the window when the machine is sitting
in a normal operating position without a blade. If your machine
does not have a sight window, fluid should be ca. 2,5 cm (1")
from the top of the tank.
Check fluid level if there has been a leak, damaged or ruptured
hose or a loose fitting.
Change the complete fluid once a year
.
4.1.2 Adding or changing hydraulic fluid
To add fluid, unscrew the filler port cap from top of the machine.
See figure 4.1 - B
To change fluid, remove the filler port cap. Remove drain plug
from side of machine.
See figure 4.1 - B and 4.1. C
A container approximately ca. 9 litres (two gallons) in size will be
needed to drain fluid into.
Machine has a straining system, but add fluid through a filter or
funnel with a screen to keep fluid clean.
4.2 Speed control
Speed control knob can be adjusted while the machine
is running
Turning speed control knob counter clockwise
will make the machine run faster.
Turning speed control knob clockwise
will make the machine run slower.

11

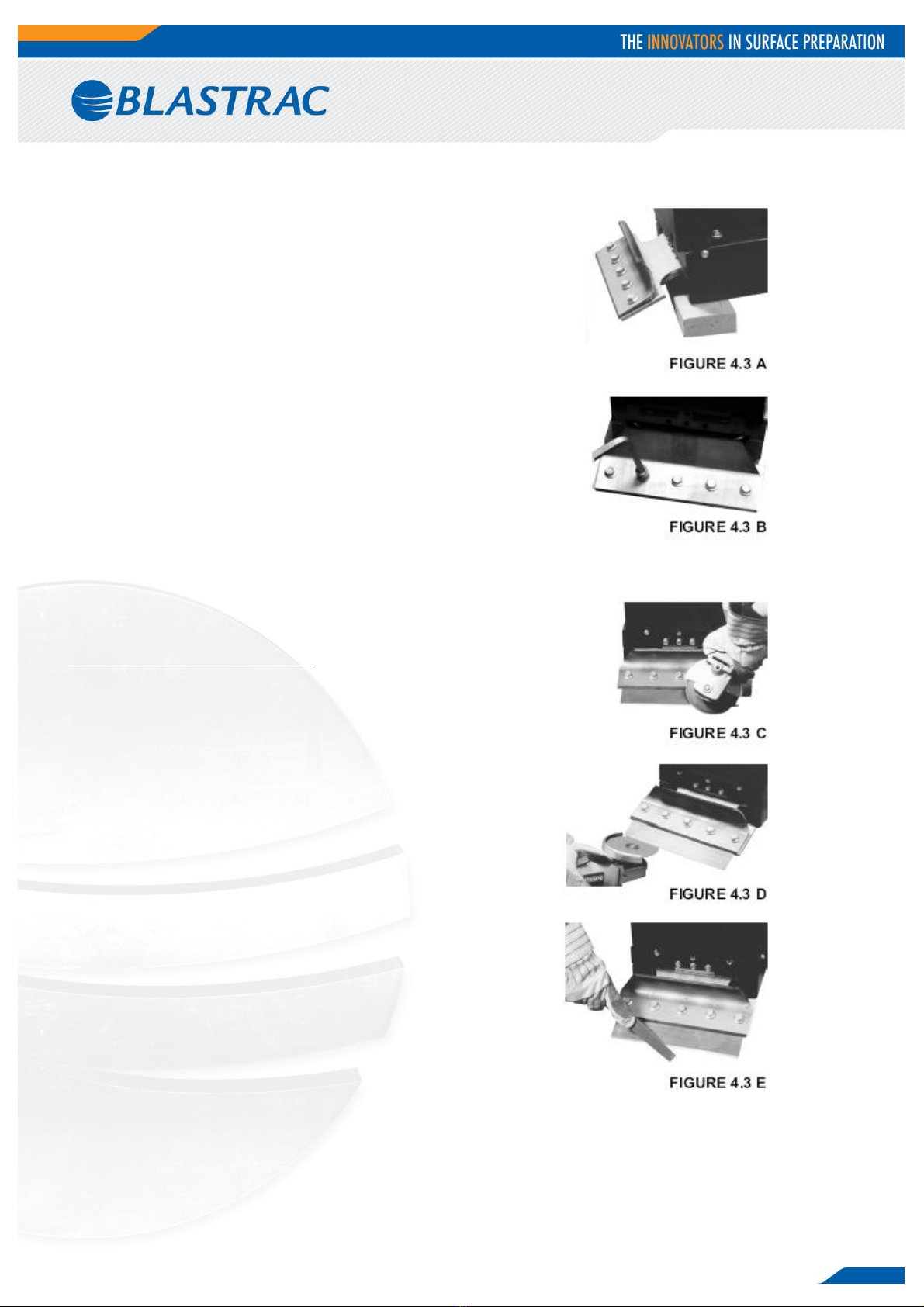

4.3 Blade
4.3.1 Blade Choice
Proper blade size and placement, depending on material and sub-floor type,
affects performance.
- The harder a job comes up, for best results, use a smaller blade.
- Start with a narrow blade, then increase the blade size to optimize the cutting pass.
- Narrower blades work easier than wider blades.
- Narrower blades usually clean the floor better.
- Normally bevel on blade is up for concrete. Bevel down for wood or soft sub-floors.
4.3.2 Blade Versions
Blade #101 - 30,5 x 7,6 cm, thickness 1,6 mm
self-scoring blade, bevel up, carpet, soft (PVC, linoleum, rubber)
Blade #102 - 15,2 x 12,7 cm, thickness 1,6 mm
tile or linoleum on wood floors, difficult surfaces (ceramic, hardwood, heavy tile, etc.)
Blade #103 - 25,4 x 7,6 cm, thickness 1,6 mm
carpet, tile or resilient on wood & concrete floors
Blade #104 - 25,4 x 7,6 cm, thickness 3,0 mm
carpet, tile, PVC, Vct, tough coatings, hardwood & cork

12
4.3.3 Blade Changing
Dull blades greatly reduce cutting ability. Re-sharpen or replace as
needed
Always wear gloves when changing blades. Use supplied extended
wrench to keep hand safely away from the edge of the blade.
1. Place a bock under the front of the machine.
See figure 4.3 - A
2. Loosen the five hex head bolts with the extended bolt
wrench and replace the blade.
See figure 4.3 - B
It is not necessary to remove the bolts.
Be sure that the blade is far enough under the blade-holder,
to insure a secure hold.
4.3.4 Blade Sharpening
Always wear gloves and safety glasses.
It is not necessary to remove the bolts.
1. Sharpen the blademounted to the machine.
Using hand grinder, block up front of machine
so blade is off the floor.
Sharpen the blade with a 10 cm diameter disk with
120 or finer grit.
Be careful not to catch disk on edge or corner of blade.
Blade bevel up, see figure 4.3 - C
Blade bevel down, see figure 4.3 - D
Using a good quality fine tooth hand file,
use same procedure as above, see figure 4.3 - C
2. Sharpen the blade separately at a vice.
Furthermore there is the opportunity to remove the blade
from the machine and to sharpen the blade at a vice,
obeying the same procedure as shown in "1.".

13
5 OPERATION
5.1 Actuators
5.2 Initial Operation Phase
The machine must be off before plugging the machine into power source.
1. Plug machine into outlet.
2. Turn speed control to slowest position.
3. Turn the machine on.
4. Engage forward or reserve switch.
5. Increase speed control to desired speed.
The pressure valve has been factory set and should not be tampered with.
Do not lock the wheel drive into a permanent position. If the operator would lose control or be disabled,
the machine continues to operate.
On / Off - Switch
Forward - Switch
Backward - Switch
Speed control cartridge
Pressure cartridge valve

14
5.3 Types of tear outs
Keep blades sharp! Keep your work area clean and clear of debris.
Always wear eye- and ear- protection when working with the machine.
5.3.1 VCT - Tile
Never use a blade wider than the size of the tile being removed.
If goods being removed still do not come up clean or the machine
jumps on top of goods, reduce blade size to a smaller blade until proper
blade size is found or use a smaller portion of the blade.

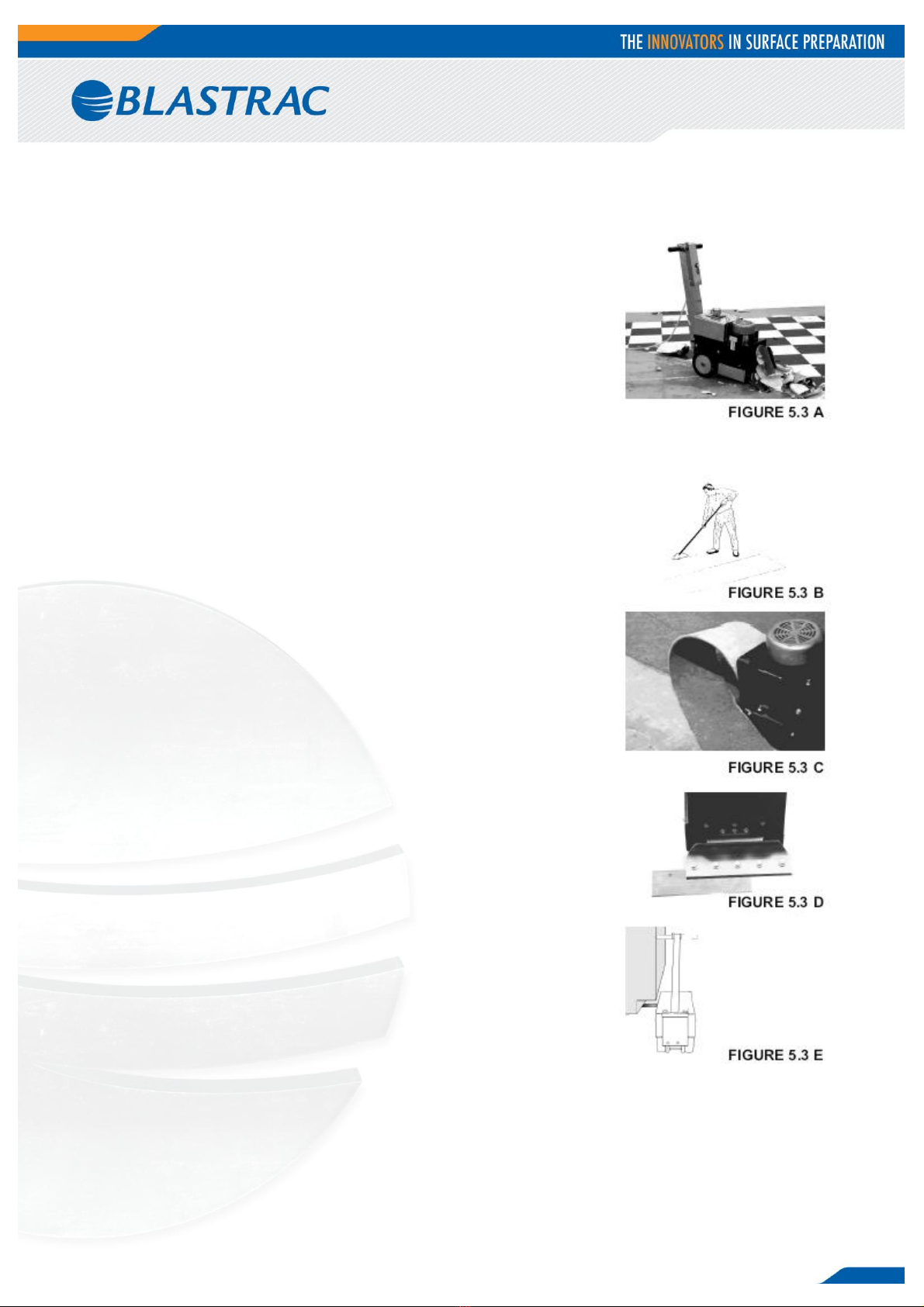

See figure 5.3 - A
5.3.2 Vinyl-, Rubber, PVC, Direct Glued Carpet
Goods will need to be scored downto 10 to 12 inches for proper
removal.
Pre-scored carpet makes machine easier to control and blades stay
sharper longer. Blades up to 16" wide can be used. Normally 12" to
14" blades are used on direct glued carpet, secondary backed, unitary,
double glued, vinyl foam, urethane foam. Latex foams come
up easily with a 16" blade.
Self scoring blades can be used with some materials. A 10" blade is
recommended for this product, but determine what size blade
works best.
See figure 5.3 - B and 5.3 –C
For best results use the scoring machine "JAMAS"
5.3.3 CERAMIC (Glued with Double Duty or Mud sets):
Before removing ceramic tile, tiles will have to be pre-broke with a
mallet or large hammer. On small random block styles of tile, pre-breaking may not be
necessary.
Open an area large enough for machine or blade to fit in, or start
from a doorway.
Keep work area clean to keep good wheel contact with floor. Use
slow speed and small blades.
Blades can be offset in cutting head for easier access
to toe kicks or removal along the wall.
See figure 5.3 - D and 5.3 - E

15
5.4 Subfloor Surfaces
5.4.1 Wood and Wood like floors
Pound down or remove any nails or metal obstruction to avoid blade
damage.
Glued hard wood flooring
A 25 cm blade is recommended for regular adhesive, a 15 cm blade
for epoxy.
For proper removal of hardwoodflooring (plank solid, plank laminated,
parkay, parquetry laminated)flooring must be scored to blade width.
This is done by using a circular saw set at a depth of 99% of the
thickness of the board, just missing the subfloor surface when on concrete
A chalk line for scoring lines can be used across the floor the width of
the blade

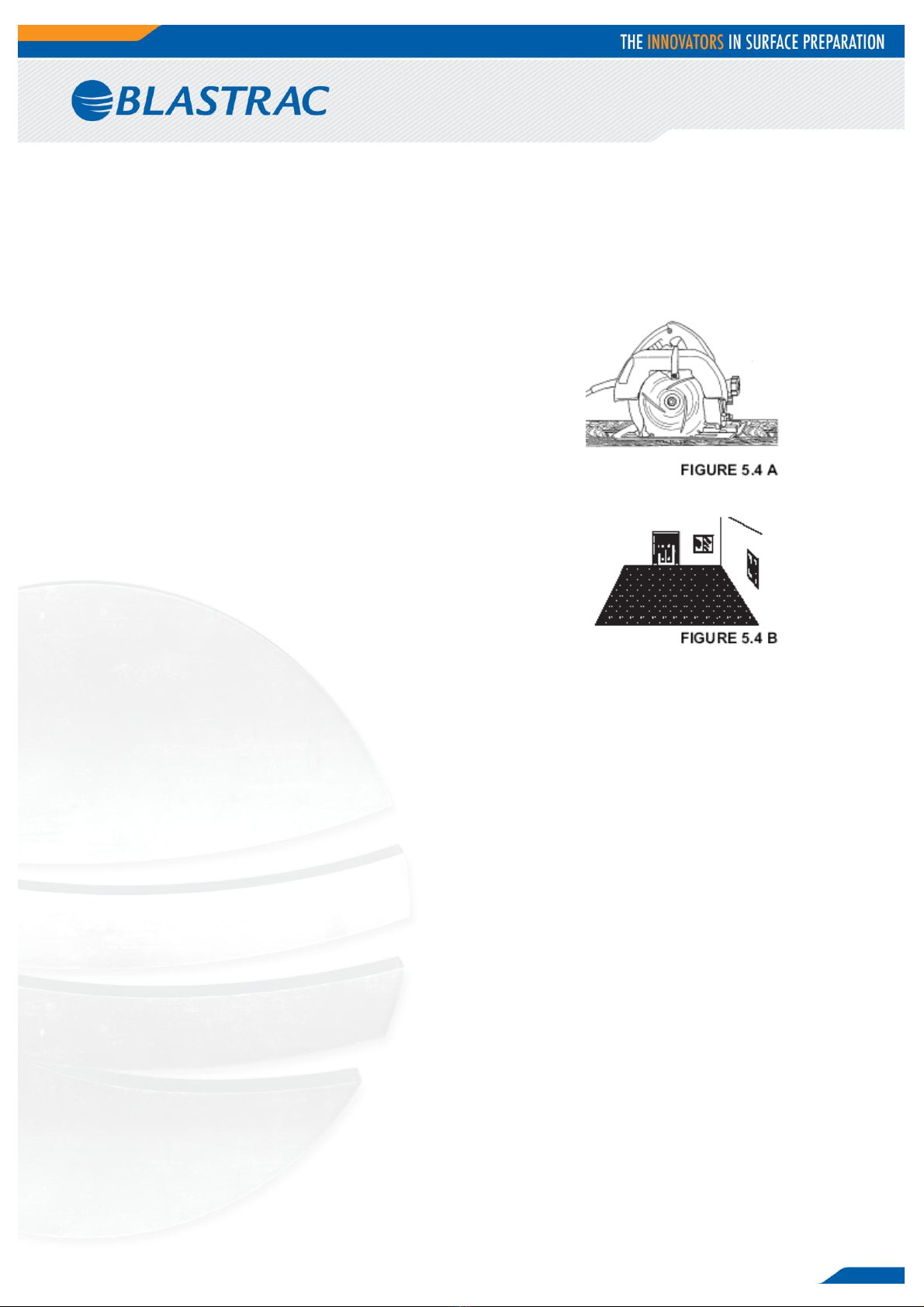

See figure 5.4 - A and 5.4 - B
True parkay flooring scoring is not necessary.
It will come up in small pieces.
When working over plywood sub-flooring, try to run machine in the same direction
as
the grain in the wood. Blade in most cases bevel down.
On solid wood floors like plank, run in the same direction as the plank, not cross grain
or cross plank.
Removing the front counterweight will help on all soft surfaces.
5.4.2 Concrete
When working on concrete slab, normal blade position is bevel up for best performance,
especially when cleaning adhesive. On occasion, bevel down gives better
blade life.
5.4.3 Gibcrete and Soft Poured Flooring
Usually require blade level down to create a better wearing surface, although bevel
up may work if front counterweight is removed.
Beware of expansion joints and floor mounted receptacles or other obstacles
in the floor.

16
6 MAINTENANCE
6.1 Inspection Procedure Hydraulic
Always turn off and unplug electrical source before servicing.
Place equipment and components in a safe and neutral position.
6.2 Wheel Cleaner Adjustment
Keep wheels clean from dirt/debris.
Unplug machine.
Loosen wheel cleaner with the included accessory- wrench.

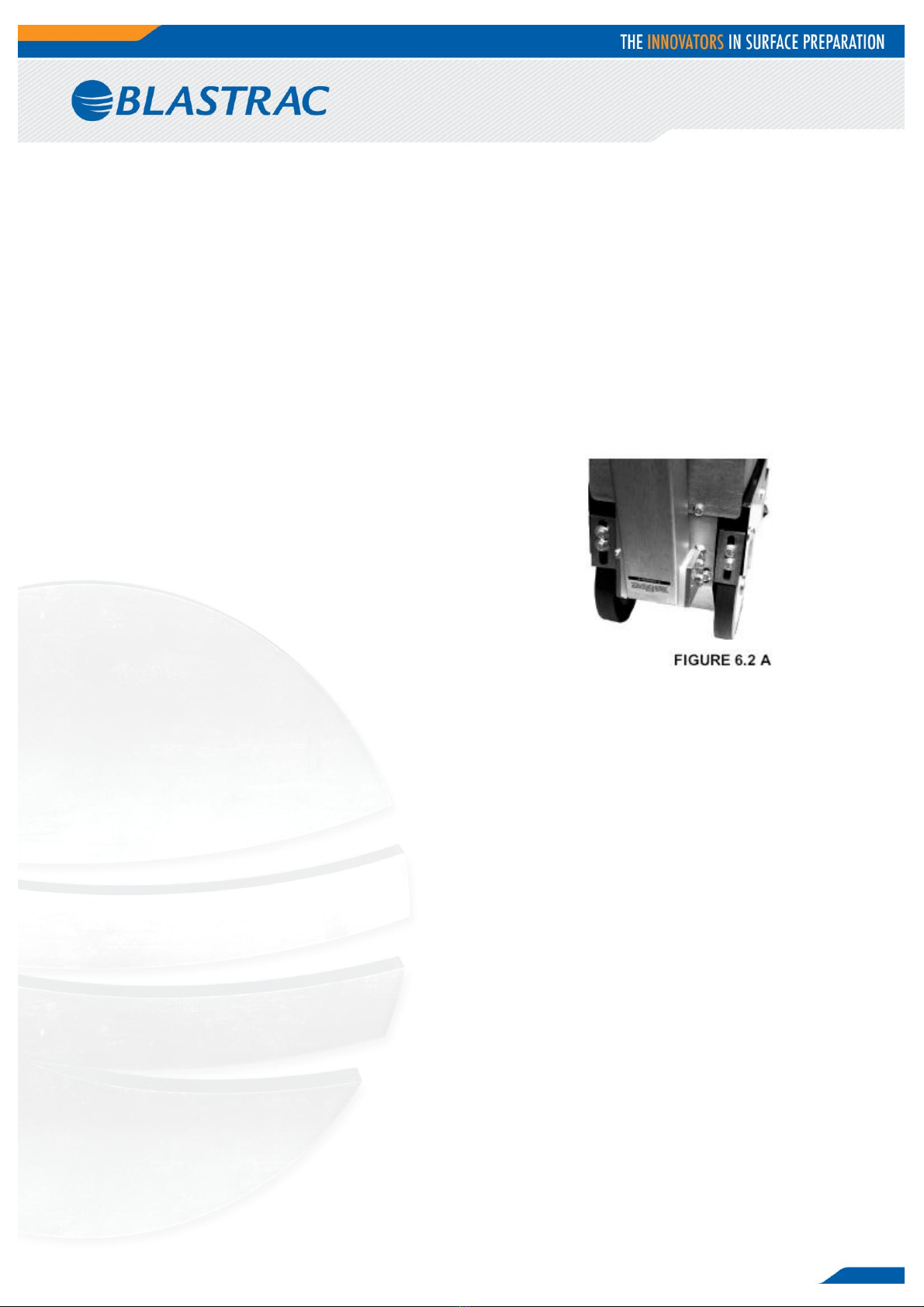

See figure 6.2 - A
Slide cleaner up to face wheel until it touches but does not
dig into wheel surface.
Retighten firmly.
Over tightening wheel cleaner could cause damageto wheel.
6.3 Adding or Changing Hydraulic Fluid
Occasionally blow out the Filler Port Cap filter to remove debris.
Add fluid only when needed, see fluid level sight window.
See chapter 4.1.1 / 4.1.2 - page 9
Change fluid at least once a year.
See chapter 4.1.2 - page 9

17

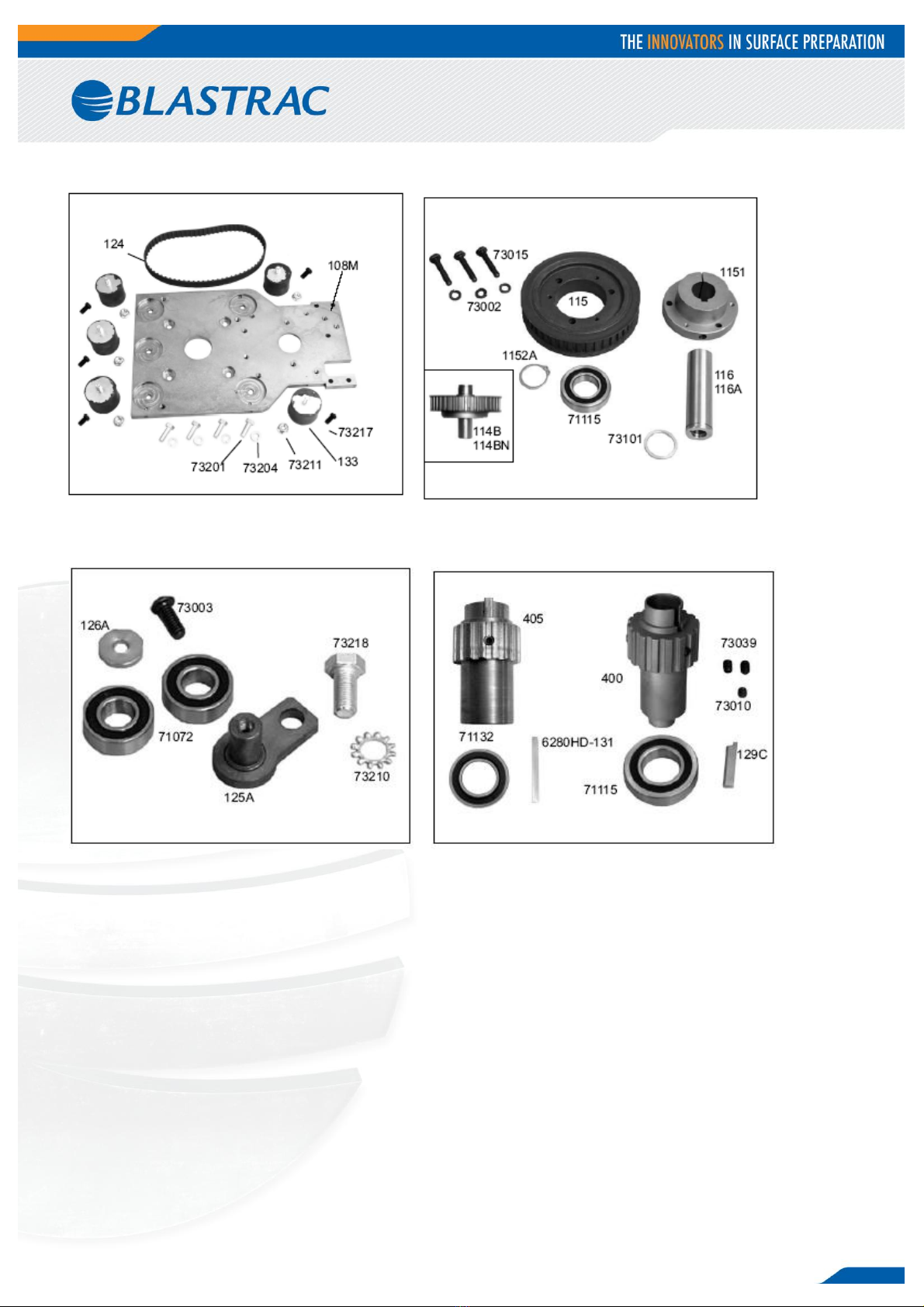

7 PARTS PARTS
EXTERNAL PARTS

18
Ground plate
Pump drive assembly parts
Idler assembly parts
Eccentric assembly parts

19
Axle assembly parts
Bearing & bottom cover parts
Cutting head parts

20
Handle parts
Hose parts
Internal handle parts
Switch parts
