Blaupunkt Boston RCC 45 User manual

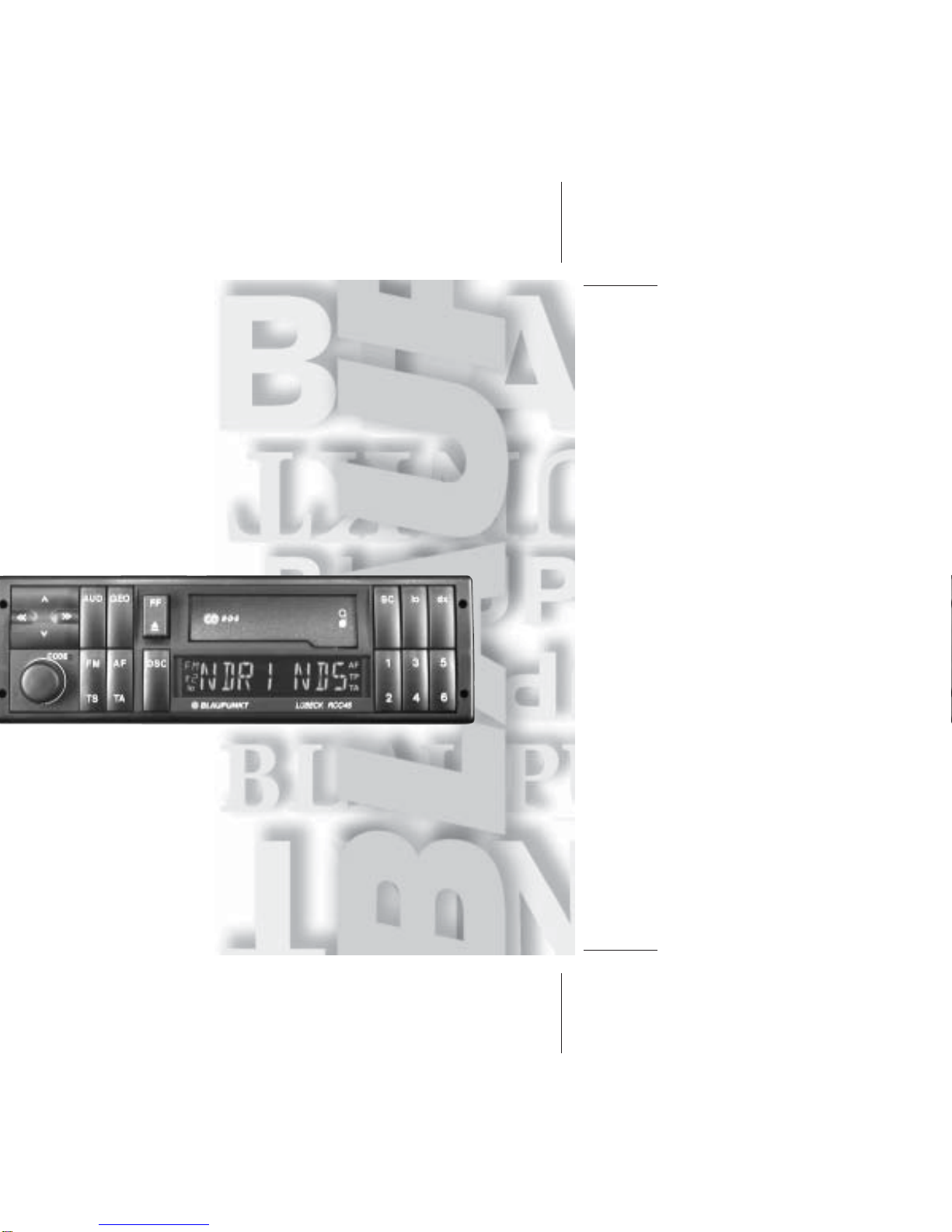

Lübeck
RCC 45
Radio / Cassette
Operating instructions

3
Lübeck RCC 45
ENGLISH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKA
ESPAÑOL
PORTUGUÊS
52
12 11 8910
6 73 4
14 1315
1

Lübeck RCC 45
14
Contents
Short instructions .......................... 4
Important notes ............................ 17
Precautions ........................................... 17
Traffic safety ......................................... 17
Installation/Connection.......................... 17
Anti-theft coding........................... 18
Switching on anti-theft coding ............... 18
Switching off anti-theft coding ............... 18
Re-start following an interruption of the
power supply ......................................... 18
Entry of a wrong code number.............. 18
Optical indication for extra security ....... 19
Radio operation with RDS ........... 19
AF - Alternative frequency .................... 19
REG - regional programme................... 19
Selecting a station................................. 20
Automatic tuning................................ 20
Manual tuning .................................... 20
Selecting the seek tuning sensitivity ..... 20
Switching from stereo to mono ............. 20
Changing the memory bank .................. 20
Storing stations ..................................... 20
Automatically storing the strongest
stations with Travelstore ....................... 21
Recalling stored stations ....................... 21
Scanning stations with Radio-Scan ...... 21
Receiving traffic programme stati-
ons with RDS-EON ....................... 22
Traffic announcement priority on/off ..... 22
Warning beep........................................ 22
Switching the warning beep off.......... 22
Automatic seek tuning start................... 22
Adjusting the volume for traffic
announcements and the warning beep. 22
Tape operation.............................. 23
Inserting a tape ..................................... 23
Tape care.............................................. 23
DSC programming........................ 23
Overview of the DSC factory settings ... 24
Appendix ....................................... 24
Specifications........................................ 24

15
Lübeck RCC 45
ENGLISH DEUTSCH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKA
ESPAÑOL
PORTUGUÊS
3AUD/GEO
AUD –
To adjust the treble and bass frequen-
cies with the rocker switch.
Treble +
Treble –
Bass –
Bass +
GEO –
To adjust the balance (left/right) and
fader (front/rear) with the rocker switch.
Fader front
Fader rear
Balance left
Balance right
To alter a setting,
• press AUD or GEO and then chan-
ge the value with the rocker switch.

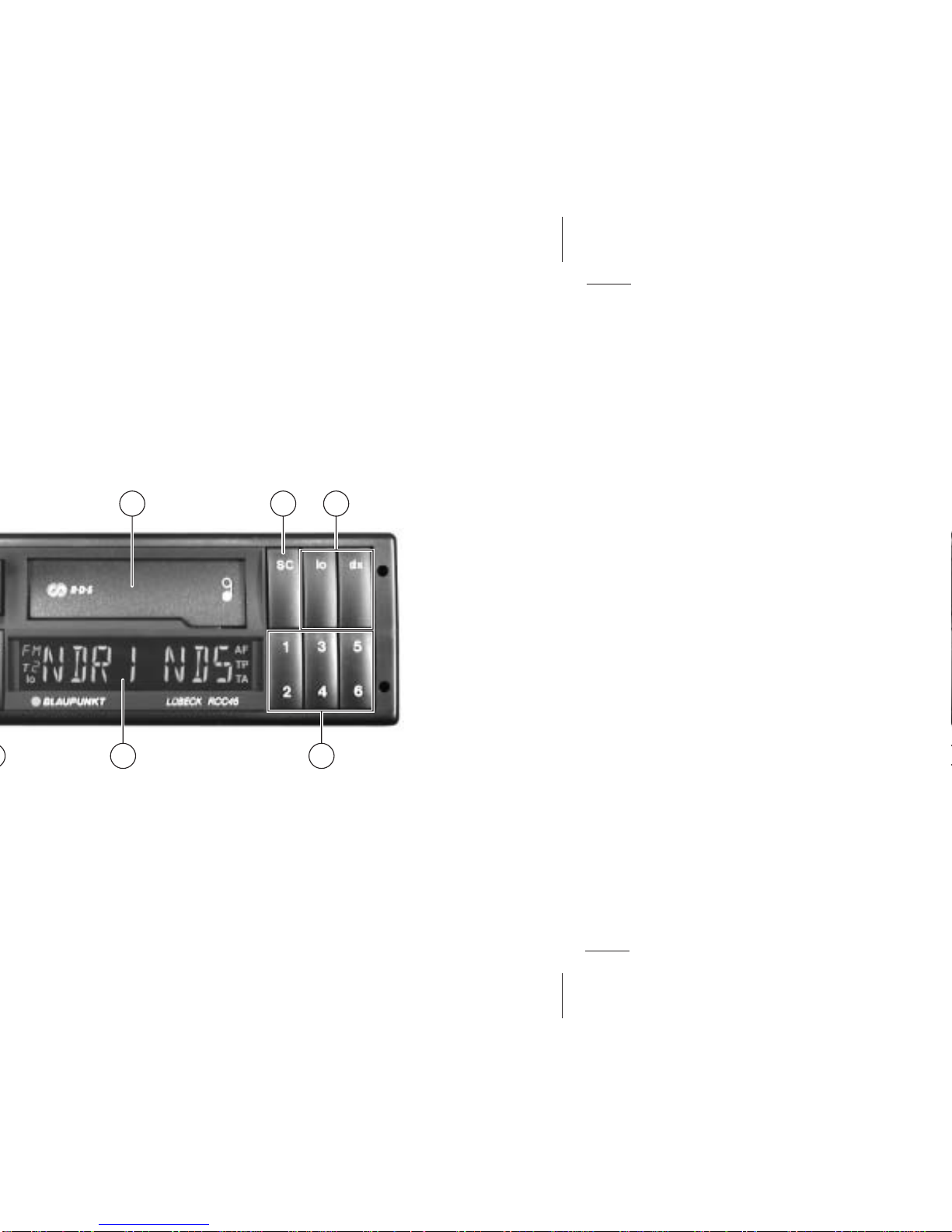

Short instructions
1On Off
Volume
If “CODE” appears in the display, read
chapter “Anti-theft coding” first.
2Rocker switch
Seek tuning
Up
Down
Down in short intervals
Up in short intervals
Extra functions:
In the DSC mode:
Select and program-
me DSC functions.
Coding: Enter code and con-
firm with .
The adjusted value is indicated in the
display.
The last setting will be stored automati-
cally.
If the setting remains unchanged within
8 seconds, the display will switch back
to the previous condition.
4FF
FF – Fast Forward
To start/stop: Press button slightly.
– Push button firmly to eject the
tape.
5Cassette loading slot
Insert tape (empty reel first; the open
side facing to the right).
6SC (Scan)
You can briefly scan all of the stations
in your reception range.
To switch the scan function on and off:
Press button.
7lo / dx
To change the seek tuning sensitivity.
Press lo to adjust the tuner to normal
seek tuning sensitivity; press dx to
switch to high sensitivity.

Lübeck RCC 45
16
81, 2, 3, 4, 5, 6 - preset buttons
You can store six stations on each FM
memory bank (I, II, T).
To store a station: Press button during
radio operation and hold down until the
radio resumes play.
To recall a station: Select the desired
memory bank (press FM button as
many times as required) and then press
the corresponding preset button briefly.
Extra function:
Coding: Read chapter “Anti-theft co-
ding” first.
Buttons 1, 2, 3, 4 - To enter the four-
digit code.
Press each of the buttons as many
times as required until the code number
given in the car radio passport stands
in the display.
9Display
Radio operation:
AF = Alternative RDS frequency
FM = Waveband
lo = Seek tuning sensitivity
NDR1 NDS= Station abbreviation or fre-
quency
TA = Priority for traffic programme
stations
TP = Traffic programme identifier
T=Memory bank (I, II or T)
2=Preset button (1 - 6)
Cassette operation:
When playing a tape, the display shows
“TAPE”.
:DSC (Direct Software Control)
Use the DSC function to customise
certain programmable, basic settings to
suit your personal needs and prefe-
rences. See chapter “DSC pro-
gramming” for more information.
;AF - Alternative frequency during radio
operation with RDS
When “AF” lights up in the display, the
radio will automatically search for a
frequency offering better reception of
the same RDS programme.
To switch AF on/off: Press AF briefly.
Extra function:
REG ON / REG OFF - With REG ON
the system will only switch to an alter-
native frequency if the latter belongs to
a linked station offering the same regio-
nal programme (see “REG - regional
programme).
<TA (priority for traffic announcements)
If “TA” is displayed, the system will play
traffic stations only.
TA on/off: Press button.
=FM
To switch between the FM memory
banks I, II and T.
To switch over:
Press FM as many times until the desi-
red bank is indicated in the display.

17
Lübeck RCC 45
ENGLISH DEUTSCH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKA
ESPAÑOL
PORTUGUÊS
>TS (Travelstore)
To store the six most powerful stations
automatically with Travelstore.
Store: Press TS; seek tuning starts.
Recall: Press FM as many times until
the display shows “T”. Then briefly
press one of the preset buttons 1, 2, 3,
4, 5, or 6.
?Code LED
May flash for additional theft protection
when the car radio is switched off (see
DSC CODE-LED).
Important notes
Precautions
Before starting to use your new car radio,
please read the information on “Traffic safe-
ty” and “Anti-theft coding” carefully.
Traffic safety
As the driver of a motor vehicle, it is your
responsibility to pay attention to the traffic
situationatalltimes.Neveruseyourcarradio
in a way that could distract you.
Please keep in mind that you travel a di-
stanceof14mpersecondat a speed of only
50 km/h.
Should the traffic situation become particu-
larlydemanding,weadviseyounottousethe
radio.
Always make sure that you are still able to
hear any warning signals coming from outsi-
deofthevehicle,suchaspoliceorfireengine
sirens, so that you can react accordingly.
Alwaysselectamoderatevolumeforplaying
your car radio while you are driving.
Installation/Connection
Your new car radio is equipped with security
coding.Toswitchtheanti-theftprotectionon
oroffitisnecessarythattheset isconnected
to permanent 12 V supply.
If you would like to install this equipment
yourselforaddanynewcomponents,please
read the enclosed installation and connec-
tion instructions carefully.
Do not connect the loudspeaker outputs to
ground!
Use only the accessory and replacement
parts approved by Blaupunkt.

Lübeck RCC 45
18
Re-start following an interrupti-
on of the power supply
(coding system is activated)
•Turn on the radio.
The display shows “CODE”.
•Now enter the code number of the
Blaupunkt car radio passport and con-
firm: See example under “Switching on
anti-theft coding”.
The unit is ready for use.
If the display shows “CODE ERR”, you have
entered a wrong code. Re-enter the correct
code after the waiting time (“CODE” will ap-
pear in the display).
Ifyouswitchoffthesetwhileitisblocked,the
waiting time will start anew as soon as the
radio is turned on again.
Entry of a wrong code number
Itshouldnotbepossibleforathieftofindout
the correct code number by trial and error.
Thisiswhythesetwillbeblockedforacertain
period of time if a wrong code number has
been entered. The display will then show
“CODE ERR”.
After the first three unsuccessful attempts,
the system will lock for 8 seconds; after
further attempts, the waiting time extends to
one hour.
-Press preset button 2five times; the
display shows “2500”.
-Press preset button 3twice; the dis-
play shows “2520”.
-Press preset button 4once; the dis-
play shows “2521”.
•To confirm the code number:
Press the rocker button .
Now the security coding system is active.
Afterhavingturnedontheset,thedisplaywill
briefly show a “C” before “REG ON” or
“REG OFF”.
Switching off anti-theft coding
•Turn off the radio.
•Press preset buttons 1and 4simulta-
neously, hold down and
•turn the set on again.
The display shows “CODE”.
• Now enter the code number to be found
in the car radio passport and confirm
(see example under “Switching on anti-
theft coding”.
Security coding is now switched off.
When switching on the unit, the “C” before
“REG” will not be displayed.
Anti-theft coding
This car radio is supplied with inactive code
protection. In order to switch the anti-theft
coding system on, proceed as described in
the following.
Ifthecodingsystemisactivewhilethepower
supplytothesystemisinterrupted(e.g.theft,
disconnection of the car battery), the set will
be electronically blocked. In such a case it
canonlybemadeoperableagainbyentering
the correct code number given in the car
radio passport.
Switching on anti-theft coding
Precondition:
The set must be connected to permanent
12 V supply.
To activate the coding system:
•Turn off the radio.
•Press preset buttons 1and 4simulta-
neously, hold down and
•turn the set on again.
The display shows “CODE”.
•Briefly press preset button 1; the dis-
play shows “0000”.
•Enter the code number given in the car
radio passport:
Example: The code number is 2521.
-Press preset button 1twice; the dis-
play shows “2000”.

19
Lübeck RCC 45
ENGLISH DEUTSCH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKA
ESPAÑOL
PORTUGUÊS
Radio operation with RDS (Radio Data System)
After 19 unsuccessful attempts, the display
willshow“SERVICE”.Inthiscaseyoucanno
longer re-start the unit.
Notice:
Keep your car radio passport with the code
number in a safe place in order to avoid
“unauthorised access” to your car radio.
When the security code system is activated,
the unique code must be entered each time
the power to the unit was interrupted.
The radio will function again as soon as you
have entered the correct code.
If you have lost your radio passport and
forgotten the code number, your radio can
only be made operable again by one of our
authorised service workshops (subject to
payment).
Optical indication for extra
security
When the car is stationary you may let an
LED flash for extra security to indicate that
your unit is equipped with security coding.
This feature can be turned on and off using
DSC.
Read “DSC programming - CODE-LED”.
REG - regional programme
Certain radio programmes are split up at
times into regional programmes offering lo-
cal information. The 1st programme broad-
cast by NDR, for example, offers program-
mes with different contents in the northern
statesofGermanySchleswig-Holstein,Ham-
burg and Lower Saxony at certain times of
the day. If you are listening to one program-
me and move to an area where another
linked regional programme becomes stron-
ger, the unit will switch to that programme.
If you wish to continue listening to the first
station,
•press the AF button for approximately
2 seconds.
“REG ON” appears in the display.
If you leave the service area of the regional
programme tuned into, or if you would like to
takeadvantageofthefullRDSservice,switch
to “REG OFF”.
•Press the AF button for approximately
2 seconds until “REG OFF” appears.
“REG ON” or “REG OFF” will be briefly dis-
played each time the radio is switched on.
The Radio Data System offers you more
convenience when listening to FM radio sta-
tions.
More and more radio stations have begun to
broadcast RDS information alongside their
programmes.
Assoonasaprogrammehasbeenidentified,
the station name including a regional identi-
fier, if applicable, will appear in the display,
for example, NDR1 NDS (regional program-
me in Lower Saxony, Germany).
When RDS is activated, the station buttons
becomeprogrammebuttons.Younowknow
exactly which programme you have tuned
into,makingiteasytofindthedesiredstation
quickly.
But RDS offers you further advantages:
AF - Alternative frequency
The AF (Alternative Frequency) function
makes sure that the strongest frequency of
the currently selected programme is always
tuned in automatically.
Thisfunctionisactivatedwhen“AF”appears
in the display.
In order to switch this function on or off,
•press the AF button briefly.
While searching for the strongest reception
signal,theradiomayswitchtomutebriefly.In
this case, “SEARCH” will appear in the dis-
play.

Lübeck RCC 45
20
•Press the FM button as many times
until the desired memory bank lights up
in the display.
Storing stations
You can store six FM stations on the preset
buttons 1 to 6 for each of the memory banks
I, II and T.
•Select the memory bank.
•Tune in a station with the rocker switch
(either automatically or manually).
•Press the desired preset button until
you hear a beep.
Now the station has been stored.
Theactivatedpresetbuttonisindicatedinthe
display.
Notice:
Shouldyoutuneinastation whichhasalrea-
dy been stored before, the corresponding
presetbuttonandthememorybankwillbriefly
flash in the display if you have selected
another memory bank.
Selecting a station
With this car radio you can receive FM sta-
tions between 87.5 and 108 MHz.
Automatic tuning /
• Press / ; the car radio will automati-
cally search for the next station.
Whenkeepingthe orthe buttondepres-
sed, seek tuning will speed up in upwards or
downwards direction.
Up
Down
Down in short intervals
Up in short intervals
Manual tuning << >>
• Press << >>; the frequency will change
in short intervals in downwards or up-
wards direction.
When holding the right or left part of the
rocker switch pressed down, the frequency
scan is speeded up.
Selecting the seek tuning sensi-
tivity
You can alter the automatic seek tuning
sensitivity.
If “lo” is displayed, the radio will only pick up
strong, local stations (low sensitivity).
If“lo”doesnotlightup,theradiowillalsopick
upweaker,distantstations(highsensitivity).
To switch over,
• Press lo or dx.
Switching from stereo to mono
Ifreceptionispoor,youmaygetbettersound
quality by switching to mono:
•Press the lo button for approximately
2 seconds until you hear a beep.
Each time the radio is switched on, stereo
playback is activated.
The unit will automatically switch to mono if
the received signal is not strong enough for
stereo playback.
Changing the memory bank
YoucanshiftbetweenthememorybanksI,II
and T in order to store stations and recall
them later.
The currently selected memory bank is indi-
cated in the display.

21
Lübeck RCC 45
ENGLISH DEUTSCH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKA
ESPAÑOL
PORTUGUÊS
Automatically storing the stron-
gest stations with Travelstore
You can automatically store the six most
powerful FM stations of your current recepti-
on area sorted according to their signal
strength. This function is particularly conve-
nient on longer trips.
•Press the TS button.
The radio will search for the strongest FM
stationsandstorethem onthememorybank
T(Travelstore).When thisprocesshas been
completed,theradiowillplaythefirststation.
Ifdesired, stations can also be stored manu-
ally on the Travelstore bank (see “Storing
stations”).
Recalling stored stations
Youcanrecallanystoredstationatthetouch
of a button.
•Select the desired memory bank by
pressing FM repeatedly until the desi-
red level is indicated in the display.
•Press the corresponding preset button
briefly to recall the station.
Scanning stations
with Radio-Scan
Beginningwiththestationcurrentlytunedin,
you can scan the waveband. The radio will
play each station for 8 seconds.
To start the scan:
• Press SC.
The scanned frequency or the station
name will start flashing in the display.
During the actual scanning process
“SCAN” will be displayed.
To select a station currently being scan-
ned and switch off the scan function:
• Press SC.

Lübeck RCC 45
22
Automatic seek tuning start
(tape operation)
Whenleavingthereceptionareaofthetuned
intrafficprogrammestationwhilelistening to
a tape, the system will automatically start
searching for a new TA programme.
If no such station is found within approxima-
tely 30 seconds, a warning beep will sound.
To switch the warning beep off, proceed as
described above.
Adjusting the volume for traffic
announcements and the warning
beep
This volume was preset at the factory.
YoucanalterthevalueusingtheDSCfunction
(see “DSC programming, TA VOL”).
Receiving traffic programme stations with RDS-EON
WhenpressingTA whilea message is being
broadcast, the priority will be cancelled only
for this announcement. The unit will then
switch back to the previous condition. The
priority for other traffic messages remains
active.
Warning beep
If you leave the reception area of the traffic
programme station currently tuned into, you
will hear a warning beep after approximately
30 seconds.
This alarm tone will also be released when
pressing a preset button which has no traffic
programme allocated to it.
Switching the warning beep off
a) Tune into another station offering traffic
information:
•Press the rocker switch or
•apreset button which has a traffic
programme station allocated to it.
Alternatively:
b) Switch off the priority for traffic an-
nouncements:
• Press TA.
“TA” will disappear from the display.
Many FM broadcasters offer traffic messa-
gesfortheirserviceareaatregularintervals.
Alltrafficprogrammestationstransmitaspe-
cial carrier signal alongside their program-
mes, which is decoded by your car radio. If
thissignalisidentified,“TP”willappearinthe
display (Traffic Programme).
In addition to these, there are also stations
which do not actually transmit traffic pro-
grammesthemselves,suchasNDR3,butby
using RDS-EON they offer the possibility to
receive the traffic messages broadcast by
anothertrafficprogrammestationinthesame
radio network. If you listen to one of these
stations,“TP”willappearinthedisplayprovi-
dedthepriorityfortrafficprogrammestations
hasbeenactivated,i.e.“TA”mustbedisplay-
ed.
If a traffic announcement is broadcast, the
radio will automatically switch to the linked
trafficprogrammestation(inthiscase,NDR2)
forthedurationofthemessageandreturnto
the original programme (NDR3) afterwards.
Traffic announcement priority
on/off
If the priority for traffic announcement pro-
grammesisactivated,“TA” will lightupinthe
display.
To switch the priority on or off:
•Press the TA button.

23
Lübeck RCC 45
ENGLISH DEUTSCH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKA
ESPAÑOL
PORTUGUÊS
Tape operation
Inserting a tape
•Turn on the set.
•Insert a tape.
Insert the tape with the empty reel first, the
open side facing to the right.
FF = Fast Forward
To start/stop: Press button slightly.
=To eject the tape.
Press button firmly.
When listening to a cassette, the display
shows “TAPE”.
Attheendofthetapeside,theradiowillcome
on automatically.
Tape care
To avoid possible problems, you should not
use cassette tapes longer than 60 or 90
minutes (C60/C90). Store your tapes in a
coolplaceawayfromdirt,dustandtempera-
turesexceeding50°Celsius.Allowverycold
tapes to warm up before playing them in
order to avoid uneven tape transport. After
approximately 100 hours of use, tape run
problems and sound distortions caused by
dust particles adhering to the rubber roller
and the audio head may be produced.
Use a head cleaning tape to remove normal
dirtbuild-up.Fortoughercases, useacotton
swab (Q-Tip) soaked with alcohol. Do not
attempt to clean by inserting a hard object
into the player!
DSC programming
DSC (Direct Software Control) allows you to
customise certain programmable, basic set-
tings to suit your personal needs and prefe-
rences and then store them.
The basic settings for this audio equipment
weremadeatthefactory.Inthefollowingyou
canfindanoverviewofthesesettings,sothat
you can always reset to these if desired.
If you wish to alter any of the programming,
• press DSC.
Usetherockerswitchtoselectandadjustthe
functionsdescribedinthe following.Thedis-
play shows you the adjusted condition.
/ Select function
Adjust value –
Adjust value +

Lübeck RCC 45
24
TA VOL Use this function to adjust the
traffic announcement and
warning beep volume from
between 1 to 9.
The messages and the alarm
tone will then be output at this
volume.
LED You can adjust the LED ?to
flash for extra anti-theft pro-
tection.
LED +1 - The diode will flash
when the unit is
switched off.
LED 0 - The diode is
deactivated.
LOUD Loudness - When listening at
a low level, the Loudness
function will create a more
natural sound by boosting the
low frequency range.
LOUD +1 - No boost / off
LOUD 0 - Max. boost
To quit the DSC programming mode and
store the adjustment:
• Press DSC.
Overview of the DSC factory
settings
TA VOL : 5
LED : +1
LOUD : +1
Appendix
Specifications
Amplifier
Output power: 4 x 6 watts RMS power
acc. to DIN 45324/3.1
into 4 Ω
4 x 8 watts max. power
acc. to DIN 45324/3.2
FM waveband:
Sensitivity: 1.0µVat26 dBsignal-to-
noise ratio
Frequency
response: 35 - 15 000 Hz
Tape player:
Frequency
response: 40 - 14 000 Hz
Subject to modifications!

Lübeck RCC 45
14
Blaupunkt-Werke GmbH
Bosch Gruppe
6/95 Pf K7/VKD 3 D95 162 005 PM
