Blaupunkt IVDP-01 User manual

In Car Video
IVDP-01
Operating and installation instructions
http://www.blaupunkt.com

35
ENGLISH DEUTSCH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKA
ESPAÑOL
PORTUGUÊS
DANSK
TABLE OF CONTENTS
Safety instructions ................. 36
Functions ............................... 38
About discs ............................ 38
Fitting ..................................... 40
DIN front fitting
(Method A) .................................... 41
DIN rear fitting
(Method B) .................................... 42
Removable front cover ........... 43
Electrical connections ............ 45
Remote control ...................... 46
Main functions........................ 48
Inserting a DVD/VCD/CD .............. 48
Removing a disc ............................ 48
The RESET button......................... 50
Flashing LED ................................. 50
On-screen display function ............ 51
Multiple language audio function .... 52
MENU function .............................. 52
Multilingual subtitles (DVD only) ..... 52
Multi-angle function (DVD only) ...... 53
MP3 disc replay ............................ 53
Special functions ........................... 53
Initial setup ............................ 55
Setup - main screen ...................... 55
General setup ........................ 56
Loudspeaker setup ........................ 60
Dolby setup ................................... 60
Recommended settings ................. 62
Technical Data ....................... 67

36
Thank you for deciding to use a Blau-
punktproduct.Wehopeyouenjoyusing
this new piece of equipment.
Please read these operating
instructions before using the
equipment for the first time.
The Blaupunkt editors are constantly
working on making the operating
instructions clearer and easier to und-
erstand. However, if you still have any
questions on how to operate the
equipment, please contact your dealer
orthetelephonehotlineforyourcountry.
You will find the hotline telephone
numbers printed at the back of this
booklet.
We provide a manufacturer guarantee
for our products bought within the
European Union. You can view the
guarantee conditions at
www.blaupunkt.de or ask for them
directly at:
Blaupunkt GmbH
Hotline CM/PSS 6
Robert Bosch Str. 200
D-31139 Hildesheim
Germany
In traffic
Adjust the volume to a level that does
notdistractyourattentionfromtheroad.
Car washing
Never expose the product to water or
very damp conditions, as this can re-
sult in short circuits, fire or other dam-
age.
Parking
Avoid leaving your car exposed to
strongsunshine,asthiscancausevery
high temperatures to develop inside.
Allowtheinsideofyourcartocooldown
before switching the equipment on.
Correct power supply
This equipment is designed for opera-
tion from a 12 Volt DC battery system
with a negative ground connection (the
usual system in US vehicles).
Protecting the disc mechanism
Neverinsertanyforeignobjectsintothe
player’sopening,asthiscaneasilydam-
agethedelicatemechanicalpartsinside
the equipment.
SAFETY INSTRUCTIONS

37
ENGLISH DEUTSCH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKA
ESPAÑOL
PORTUGUÊS
DANSK
SAFETY INSTRUCTIONS
Warning:
•Minimise the risk of fire or the dan-
ger of electrical shock by never ex-
posing this equipment to water or
moisture.
•Only use recommended accesso-
ries. This will again reduce the risk
of fire or the danger of electrical
shock, and will avoid interference.
•The equipment is designed for con-
tinuous operation. The product con-
tains components and uses tech-
niquesprotected by specific US pat-
ents. The intellectual property is
owned by the Macrovision Corpora-
tion and other patent holders. The
useofthisprotectedtechnologymust
be approved by the Macrovision
Corporation. It is licensed only for
private use, or for showing under
other limited circumstances, unless
approvalforotheruseshasfirstbeen
granted by the Macrovision Corpo-
ration. Reverse engineering or dis-
mantling the equipment are not per-
mitted.
Servicing by an authorised
Service Centre
Do not attempt to dismantle this preci-
sion equipment or to repair it yourself.
Please have the equipment serviced at
one of the Service Centres on the list
included with this product.
Fitting
Mount the equipment so that it has a
horizontalorientation.Forconvenience,
the front may be tilted upwards at an
angle of at most 30°.
WARNING:
The mobile DVD player is a Class I
laser product generating a visible or
invisible laser beam of a potentially
hazardous type. The mobile DVD
player must only be operated in ac-
cordance with the specified instruc-
tions.Theuseofoperatingelements,
adjustment options or functions that
are not described in this handbook
can result in exposure to hazardous
radiation.
Never open the housing, and do not
attempt to perform repairs yourself.
Any servicing should be carried out
by trained personnel.

38
ABOUT DISCS
Compatible with PAL DVD
(Video CD) and NTSC DVD
(Video CD)
You can use this equipment to replay
discs that were recorded in either PAL
or NTSC-TV format.
All the functions that are important for
DVD replay, including an MPEG2 de-
coder, video D/A converter and audio
decoderhavebeenintegratedintoasin-
gle LSI chip designed for this equip-
ment.
There is an analog L/R (RCA) stereo
output for connecting existing
headphone amplifier inputs. The video
output is a mixed video signal (RCA).
Software is included for the multi-func-
tion remote control (multilingual audio
function/subtitles,multi-anglefunction),
as well as for all the basic functions.
Note:
Horizontal picture interference may
occur in connection with 16:9 monitors
with NTSC timing.
Region Management
Information
Region Management Information: This
mobile DVD player has been designed
insuchawaythatRegionManagement
Information stored on a DVD can be
used. If the region number assigned to
a DVD does not match the region
number of the mobile DVD player, the
disc cannot be played on this equip-
ment.
The regional code for this product is
printedonthelabelattachedtotheunit.
Disc formats supported by this
player:
DVD
12 cm disc / 8 cm disc
(only discs written on
one side)
Video CD
12 cm disc / 8 cm disc
CD
12 cm disc / 8 cm disc
The following discs are not
supported by this player:
•DVD-ROM
•DVD-R / DVD-RAM
•CD-RAM
•CDV
•CD-G
•Photo CD
•DVDs with a different regional
code.
Handling and cleaning
•Dirt, dust, scratches or warped
discs can cause incorrect func-
tion.
•Donotputanyadhesivelabelson
discs,andavoidscratchingthem.
•Discs must not be bent.
•Minimise damage by always
keepingyourdiscsintheirprotec-
tive envelopes.
DIGITAL VIDEO
FUNCTIONS

39
ENGLISH DEUTSCH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKA
ESPAÑOL
PORTUGUÊS
DANSK
•Do not keep discs in any of the
following places:
1. Wherethereexposedtodirect
sunshine.
2. Dirty,dustyor damp locations.
3. Close to the vehicle’s heating
system.
4. Onthe seats ortheinstrument
panel.
Disc cleaning
Wipe the surface with a soft cloth. If the
discisverydirty, useasoftclothslightly
dampenedwithisopropylalcohol.Never
usecleaningagentssuchaspetrol,thin-
ner or conventional record cleaner, as
thesematerialscandamagethesurface
of the disc.
Note:
Dependingonhowandunderwhatcon-
ditionsitishandled,thesurfaceofadisc
can easily be scratched, although this
does not make the disc unusable.
Please note that such scratches do not
indicate a problem with the player.
.
ABOUT DISCS
Label on the
top
Do not bend.
Do not touch the
bottom of the disc.
Always clean the disc from
the inside to the outside.

40
FITTING
Handling new discs with uneven
edges
•The inner and outer edges of a new
disc may not be perfectly smooth.
•When a disc with uneven edges is
inserted, it may not locate correctly,
making it impossible to play.
•Correct these uneven locations be-
fore inserting the disc using a pencil
or ballpoint pen, as shown here, by
running the implement over the in-
ner and outer edges of the disc.
Note:
•
Choosealocationtofittheequipment
where it will not interfere with the
driver’s
ability to control the vehicle.
•Before fitting the equipment into the
vehicle, temporarily connect the ca-
bles and check that all the connec-
torsmateproperlyandthattheequip-
ment and the system operate cor-
rectly.
•Toensurecorrectfitting,onlyusethe
parts supplied with the equipment.
The use of non-approved parts can
cause incorrect function.
•If fitting requires holes to be drilled
or other modifications to be made to
thevehicle,takeittoaqualifiedwork-
shop near you.
•Fit the equipment in a location that
will not interfere with the driver, and
where the occupants of the vehicle
will not be put at risk by an abrupt
stop, such as hard emergency brak-
ing.
•If the equipment is fitted as an angle
more than 30°to the horizontal per-
formance may deteriorate.
30
•Avoid fitting the equipment at loca-
tionswheretheambienttemperature
is raised by, for instance, direct sun-
shine or the car’s heating system.
Avoidlocationswheretheequipment
would be exposed to dust, dirt or
heavy vibration.
Rough points on
the outer edge
Ballpoint pen
or pencil
Rough points on
the inner edge
ABOUT DISCS

41
ENGLISH DEUTSCH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKA
ESPAÑOL
PORTUGUÊS
DANSK
FITTING
DIN front/rear fitting
DIN front/rear fitting of this equipment
can either be carried out from the front
(normalDINfrontmounting)orfromthe
rear (DIN rear mounting, using the
threaded screw holes in the side of the
housing). The exact procedure can be
understood from the following assem-
bly diagrams.
DIN front fitting
(Method A)
Fitting the equipment
182
93
12
3
1. Instrument panel
2. Bracket
Whenyouhave inserted the bracket
intotheinstrumentpanel,choosethe
appropriate metal jointing bar, ac-
cordingtothethicknessoftheinstru-
ment panel material, and bend it in-
wards so that it can be fixed to the
bracket.
3. Bolt
1
23
7
4
5
6
1. Instrument panel
2. Nut (5 mm)
3. Lock washer
4. Bolt (5 x 25 mm)
5. Bolt
6. Fixing angle
Use the fixing angle piece to fix the
rear of the equipment at the correct
location.Theanglepiececanbebent
to the desired form by hand.
7. Washer
Fig. 2
Fig. 1

42
FITTING
Removing the equipment
1
2
3
1. Frame
2. Reach with your fingers into the slot
at the front of the frame, and pull the
frame off. (To replace the frame, put
thesidethathastheslotdownwards,
and insert it.)
3. Lever
Push the levers supplied with the
equipment as shown in the diagram
into the slots at both sides of the
equipment until they latch. The
equipmentcanbe removedfromthe
instrument panel by pulling the le-
vers.
DIN rear fitting
(Method B)
Assembly using the threaded holes in
the side of the equipment.
1
3
25
2
5
4
Fixing the equipment to the standard
radio mounting clip.
1. Locate the main unit in such a way
that the screw holes in the clip and
threaded holes in the main unit are
aligned with one another, and fix the
screws at two places on each side.
Use either mushroom-headed
screws (5 x 6 mm) or countersunk
screws (4 x 6 mm), according to the
shape of the screw holes in the clip.

43
ENGLISH DEUTSCH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKA
ESPAÑOL
PORTUGUÊS
DANSK
REMOVABLE FRONT COVER
2. Bolt
3. Standard radio mounting clip
4. Instrument panel or fascia
5. Hook (remove this part)
Note:
The fitting housing, the outer cladding
and the collar are not used for fitting by
method B.

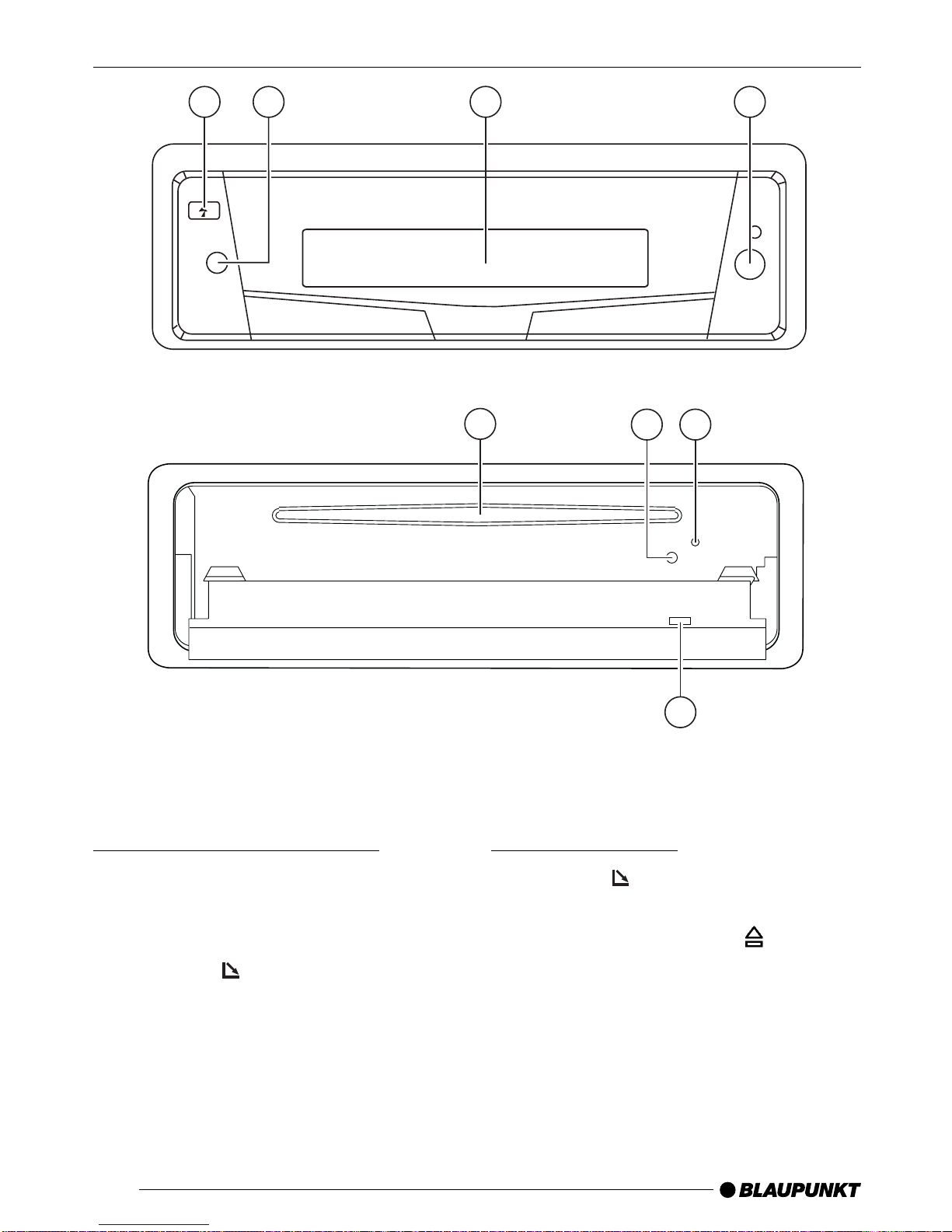

The front cover is removed as
follows:
1. Press the OPEN button, so that the
front cover opens.
2. Pull off the front cover towards the
frontof the unit bypressing down on
the release zone.
3. Put the front cover in the supplied
caseforsafekeepingassoonasyou
have removed it.
Open
FITTING
Front cover
2.
1.
