(175)
6 7/8
(124)
4 7/8
(79)
3 1/8
(127)
5
(105)
4 1/8
(324)
12 3/4
(527)
20 3/4
(57)
2 1/4 (552)
21 3/4
(349)
13 3/4
(149)
5 7/8
(159)
6 1/4
(248)
9 3/4 (44)
1 3/4
PRODUCT DIMENSIONS
CLEARANCES
ELECTRICAL
4 1/86 3/411
FRONTBOTTOMSIDEBACK
MINIMUM CLEARANCE REQUIRED FROM
(105)(171)(25)(25)
MOD-100T 1650240 6.9 SINGLE 12 AWB Cu
MOD-100T 1240
208 6.0 SINGLE 12 AWB Cu
MOD-100T 1650120 13.8 SINGLE 14 AWB Cu
MOD-100 1200
240 5.0 SINGLE 12 AWB Cu
PHASEMODELS WATTSVOLTS AMPS
MOD-100 1200
120 10.0 SINGLE
MOD-100 900208 4.3 SINGLE
14 AWB Cu
12 AWB Cu
MOD-100 SERIES (T, TD)
BUILT-IN MODULAR WARMERS

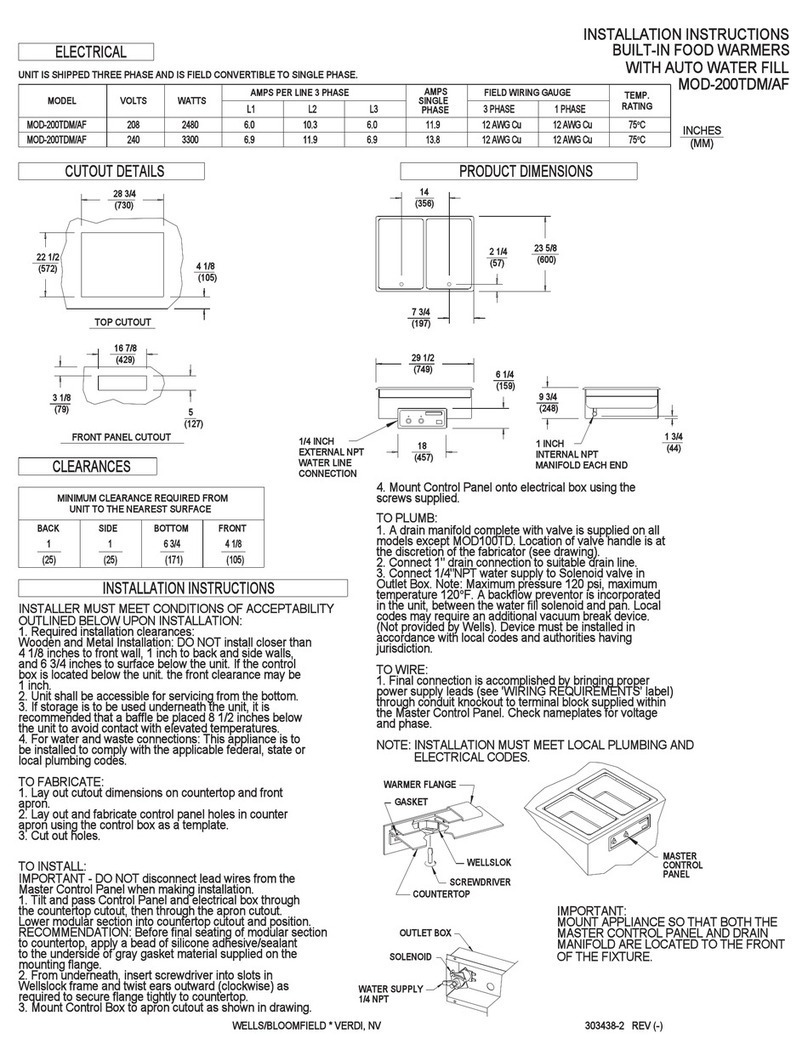

INSTALLATION INSTRUCTIONS
37099-1 REV (-)
INSTALLATION INSTRUCTIONS
CUTOUT DETAILS
drawing.
3. Mount Control Box to apron cutout as shown in
required to secure flange tightly to countertop.
Wellslok frame and twist "ears" outward (clockwise) as
2. From underneath, insert screwdriver into "slots" in
mounting flange.
to underside of gray gasket material supplied on the
to countertop, apply a bead of silicone adhesive/sealant
RECOMMENDATION: Before final seating of modular section
Lower modular section into countertop cutout and position.
the countertop cutout, then through the apron cutout.
1. Tilt and pass Control Panel and electrical box through
Master Control Panel when making installation.
IMPORTANT - DO NOT disconnect "lead wires" from the
TO INSTALL:
4. Unit shall be accessible for servicing from the bottom.
3. Cut out holes.
apron using the control box as a template.
2. Layout and fabricate control panel holes in counter
apron.
1. Layout "cutout" dimensions on countertop and front
TO FABRICATE:
the unit to avoid contact with elevated temperatures.
recommended that a baffle be placed 8 1/2 inches below
3. If storage is to be used underneath the unit, it is
2. Unit shall be accessible for servicing from the bottom.
may be 1 inch.
control box is located below the unit, the front clearance
and 6 3/4 inches to a surface below the unit. If the
4 1/8 inches to front wall, 1 inch to back and side walls,
Wooden and Metal Installation: DO NOT install closer than
1. Required Installation Clearances:
OUTLINED BELOW UPON INSTALLATION:
INSTALLER MUST MEET CONDITIONS OF ACCEPTABILITY
THE FRONT OF THE FIXTURE.
CONTROL PANEL IS LOCATED TO
MOUNT APPLIANCE SO THAT THE
IMPORTANT:
WARMER FLANGE
GASKET
WELLSLOK
COUNTERTOP
SCREWDRIVER
TOP CUTOUT FRONT PANEL CUTOUT
'D' MODELS ONLY
INTERNAL N.P.T.
1/2 INCH
ELECTRICAL CODES.
NOTE: INSTALLATION MUST MEET LOCAL PLUMBING AND
volts to ground. (240 volt models only).
2. Do not connect to a circuit operating at more than 150
Panel. Check nameplates for voltage and phase.
knockout to wire leads supplied within the Master Control
supply leads (see 'wiring requirements' label) through conduit
1. Final connection is accomplished by bringing proper power
TO WIRE:
2. Connect to suitable drain line.
female N.P.T. drains.
1. Warmers with a 'D' suffix are supplied with individual 1/2''
TO PLUMB:
supplied.
4. Mount Control Panel onto electrical box using the screws
PANEL
CONTROL
MASTER
WELLS/BLOOMFIELD * VERDI, NV
UNIT TO THE NEAREST SURFACE.
MOD-100EUT 220-240 1650 6.9 SINGLE 1.5 mm
FIELD
WIRING
GAUGE
TEMP.
RATING
75°C
75°C
90°C
75°C
90°C
75°C
90°C
2
ALL MODELS WITH A "D" SUFFIX HAVE THE SAME ELECTRICAL SPECIFICATIONS AS THE STANDARD MOD-100 AND MOD-100T MODELS
INCHES
(MM)
