Blue-White CHEM-FEED MD1 Series User manual

Multi-Diaphragm Metering Pump
Series MD1
®
CHEM-FEED

Page 2 Page 3
READ THE INSTRUCTION MANUAL PRIOR TO INSTALLATION AND USE.
®
CHEM-FEED MD1
®
CHEM-FEED MD1
+1 (714) 893 - 8529
[email protected]
[email protected]
5300 Business Drive
Huntington Beach, CA 92649
1.0
Introduction
4
1.1 Available Models
4
1.2 What’s in the Box
4
2.0
Engineering Specifications
5
3.0
Materials of Construction
6
3.1 Wetted Components
6
3.2 Non-Wetted Components
6
4.0
Features
7
4.1 Agency Listings
7
5.0
Installation
8
5.1 Mounting Location
8
5.2 Pump Dimensions
8
5.3 Wall Mounting
9
5.4 Power Connections
10
5.5 Input / Output Connections
12
5.6 M12 Connections
13
6.0
Touchpad Layout
14
7.0
Set-Up, Programming, and Inputs
15
7.1 Remote Start / Stop
15
7.2 Programming FVS (Flow Verification Sensor)
16
7.3 Pump Lockout
17
7.4 4-20ma Input
18
8.0
Pump Operation
19
8.1 Priming the Pump
19
8.2 Manual Speed/Flow Adjust
20
8.3 4-20ma Speed/Flow Control
21
9.0
Outputs
22
9.1 Motor ON
22
9.2 Relay (FVS and TFD)
22
10.0
Tube Failure Detection (TFD+)
22
10.1 Confirming Chemical Detection
22
11.0
Pump Maintenance
23
11.1 Routine Inspection and Maintenance
23
11.2 Cleaning and Lubricating the Pump
23
12.0
Firmware Update
24
13.0
Replacement Parts List
26
14.1 Exploded View
27
14.0
Accessories
28
15.0
Troubleshooting
30
16.0
Warranty
31
APPENDIX A: ACRONYMS
32
APPENDIX B: MODEL NUMBER MATRIX
33

Page 2 Page 3
READ THE INSTRUCTION MANUAL PRIOR TO INSTALLATION AND USE.
®
CHEM-FEED MD1
®
CHEM-FEED MD1
+1 (714) 893 - 8529
[email protected]
[email protected]
5300 Business Drive
Huntington Beach, CA 92649
1.0
Introduction
4
1.1 Available Models
4
1.2 What’s in the Box
4
2.0
Engineering Specifications
5
3.0
Materials of Construction
6
3.1 Wetted Components
6
3.2 Non-Wetted Components
6
4.0
Features
7
4.1 Agency Listings
7
5.0
Installation
8
5.1 Mounting Location
8
5.2 Pump Dimensions
8
5.3 Wall Mounting
9
5.4 Power Connections
10
5.5 Input / Output Connections
12
5.6 M12 Connections
13
6.0
Touchpad Layout
14
7.0
Set-Up, Programming, and Inputs
15
7.1 Remote Start / Stop
15
7.2 Programming FVS (Flow Verification Sensor)
16
7.3 Pump Lockout
17
7.4 4-20ma Input
18
8.0
Pump Operation
19
8.1 Priming the Pump
19
8.2 Manual Speed/Flow Adjust
20
8.3 4-20ma Speed/Flow Control
21
9.0
Outputs
22
9.1 Motor ON
22
9.2 Relay (FVS and TFD)
22
10.0
Tube Failure Detection (TFD+)
22
10.1 Confirming Chemical Detection
22
11.0
Pump Maintenance
23
11.1 Routine Inspection and Maintenance
23
11.2 Cleaning and Lubricating the Pump
23
12.0
Firmware Update
24
13.0
Replacement Parts List
26
14.1 Exploded View
27
14.0
Accessories
28
15.0
Troubleshooting
30
16.0
Warranty
31
APPENDIX A: ACRONYMS
32
APPENDIX B: MODEL NUMBER MATRIX
33

Feed Rate 2
Maximum
Pressure
PSI (bar) 3
Maximum
Temperature
°F (°C) 3
Model Numbers
GPH
LPH
0.0007 - 7.70
0.0029 - 29.2
150 (10.3)
185 (85)
All MD1 Models
®
Chem-Feed MD1 Multi Diaphragm Metering Pump
1.1 Available Models
1.0 INTRODUCTION
Congratulations on purchasing the 1 variable speed Multi Diaphragm Metering Pump. MD -
Please Note: Your new pump has been pressure tested at the factory with clean water before shipping.
This is part of our stringent quality assurance program at Blue-White.
Page 4

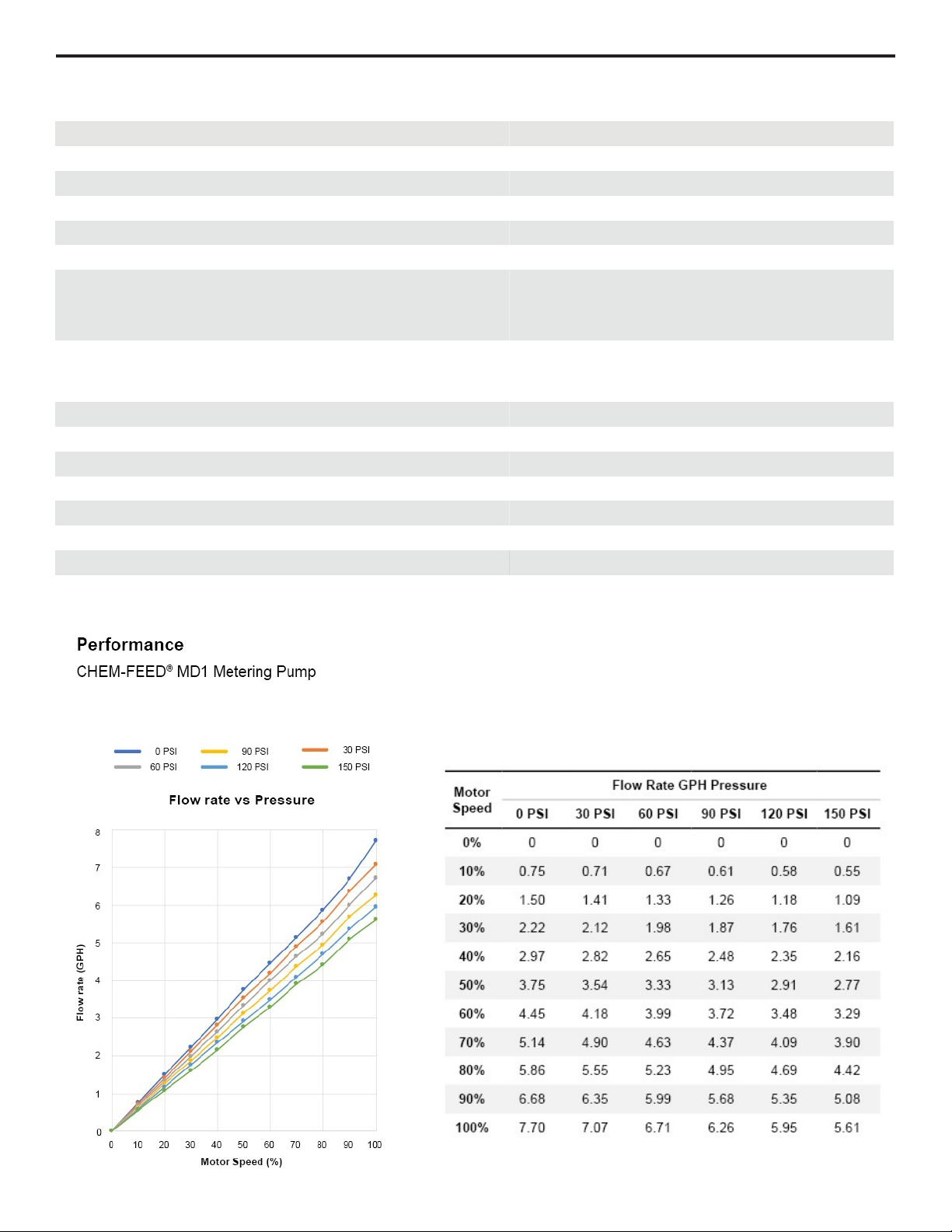

2.0 ENGINEERING SPECIFICATIONS
1
Maximum Working Pressure (Excluding pump tubes)
Up to 150 PSI (10.3 bar)
Maximum Fluid Temperature
O O
Up to 185 F (85 C)
Maximum Viscosity
1000 centipoise
Maximum Suction Lift
20 ft. at 0 PSI
Ambient Operating Temperature
O O O O
14 F to 115 F (-10 C to 46 C)
Ambient Storage Temperature
O O O O
-40 F to 158 F (-40 C to 70 C)
Operating Voltage
115V60Hz 1 PH (0.6A max.)
220V50Hz 1 PH (0.3A max.)
230V60Hz 1 PH (0.3A max.)
230V50Hz 1 PH (0.3A max.)
240V50Hz 1 PH (0.3A max.)
Power Cord Options
115V50/60Hz = NEMA 5/15 (USA)
230V50/60Hz = NEMA 6/15 (USA)
220V50/60Hz = CEE 7/VII (EU)
240V50/60Hz = AS 3112 (Australia/New Zealand)
230V50/60Hz = BS 1363/A (UK)
Motor
Brushless DC, 50W
Duty Cycle
Continuous
Motor Speed Adjustment Range
10,000:1 (0.01% - 100%) Max rpm = 100 rpm
Enclosure
®
NEMA 4X (IP66), Valox (PBT) & PA12
Maximum Overall Dimensions
9.5” W x 9.5” H x 10.40” D (21.4 W x 21.4 H x 26.4 D cm)
Product Weight
8.5 lb. (3.8 Kg)
Approximate Shipping Weight
15.5 lb. (5.9 Kg)
Approximate Shipping Dimensions
10.5” W x 11.75” H x 13” D (26.7 W x 29.8 H x 33 D cm)
Page 5
®
CHEM-FEED MD1
®
CHEM-FEED MD1
1.2 What’s In The Box
MD1 Multi-Diaphragm Pump with Cover
Instruction Manual
Wall Mounting Bracket
Parts Kit
·Injection Fitting
·Foot Valve
·Screws
·Ceramic Weight
·Tube Nuts
Note: The MD1 Pump does not ship with suction
or discharge tubing (per NSF61 requirements).
Order these separately. See Accessories pages
for details.

Feed Rate 2
Maximum
Pressure
PSI (bar) 3
Maximum
Temperature
°F (°C) 3
Model Numbers
GPH
LPH
0.0007 - 7.70
0.0029 - 29.2
150 (10.3)
185 (85)
All MD1 Models
®
Chem-Feed MD1 Multi Diaphragm Metering Pump
1.1 Available Models
1.0 INTRODUCTION
Congratulations on purchasing the 1 variable speed Multi Diaphragm Metering Pump. MD -
Please Note: Your new pump has been pressure tested at the factory with clean water before shipping.
This is part of our stringent quality assurance program at Blue-White.
Page 4
2.0 ENGINEERING SPECIFICATIONS
1
Maximum Working Pressure (Excluding pump tubes)
Up to 150 PSI (10.3 bar)
Maximum Fluid Temperature
O O
Up to 185 F (85 C)
Maximum Viscosity
1000 centipoise
Maximum Suction Lift
20 ft. at 0 PSI
Ambient Operating Temperature
O O O O
14 F to 115 F (-10 C to 46 C)
Ambient Storage Temperature
O O O O
-40 F to 158 F (-40 C to 70 C)
Operating Voltage
115V60Hz 1 PH (0.6A max.)
220V50Hz 1 PH (0.3A max.)
230V60Hz 1 PH (0.3A max.)
230V50Hz 1 PH (0.3A max.)
240V50Hz 1 PH (0.3A max.)
Power Cord Options
115V50/60Hz = NEMA 5/15 (USA)
230V50/60Hz = NEMA 6/15 (USA)
220V50/60Hz = CEE 7/VII (EU)
240V50/60Hz = AS 3112 (Australia/New Zealand)
230V50/60Hz = BS 1363/A (UK)
Motor
Brushless DC, 50W
Duty Cycle
Continuous
Motor Speed Adjustment Range
10,000:1 (0.01% - 100%) Max rpm = 100 rpm
Enclosure
®
NEMA 4X (IP66), Valox (PBT) & PA12
Maximum Overall Dimensions
9.5” W x 9.5” H x 10.40” D (21.4 W x 21.4 H x 26.4 D cm)
Product Weight
8.5 lb. (3.8 Kg)
Approximate Shipping Weight
15.5 lb. (5.9 Kg)
Approximate Shipping Dimensions
10.5” W x 11.75” H x 13” D (26.7 W x 29.8 H x 33 D cm)
Page 5
®
CHEM-FEED MD1
®
CHEM-FEED MD1
1.2 What’s In The Box
MD1 Multi-Diaphragm Pump with Cover
Instruction Manual
Wall Mounting Bracket
Parts Kit
·Injection Fitting
·Foot Valve
·Screws
·Ceramic Weight
·Tube Nuts
Note: The MD1 Pump does not ship with suction
or discharge tubing (per NSF61 requirements).
Order these separately. See Accessories pages
for details.

Page 6
4.1 Agency Listings
This pump is ETL listed to conforms to the following: UL Standard 778 as a motor operated water
pump. CSA Standard C22.2 as process control equipment
R
Certified to
NSF/ANSI Standard 61
This pump is certified to NSF/ANSI Standard 61- Drinking Water System Components - Health
Effects
Symbol
Description
Warning (Risk of electric shock)
Caution (Refer to the user’s guide)
Ground, Protective Conductor Terminal
!
Page 7
This pump complies to the Machinery Directive 2006/42/EC, BS, EN 60204-1, Low Voltage Directive
2014/35/EU BS EN 61010-1, EMC Directive 2014/30/EU, BS EN 50081-1/BS EN 50082-1.
®
CHEM-FEED MD1
®
CHEM-FEED MD1
Pump Head Assembly
Pump Head
PVDF
Adapter Connections
PVDF
Valve Cartridge
PVDF
Valve Balls
Ceramic
O-Ring Seals
TFE/P (optional EP)
Diaphragm
® ®
DiaFlex (optional Flex-A-Prene )
Injection / Back-Flow Check Valve
Body & Insert
PVDF
Check Ball
Ceramic
Spring
Hastelloy C-276
Ball Seat & Static Seal O-Ring
TFE/P (optional EP)
Foot Valve / Strainer
Body & Adapter
PVDF
Check Ball
Ceramic
Spring
Hastelloy C-276
O-Ring Seal
TFE/P (optional EP)
Filter Screen
PVDF
Enclosure
®
Valox (PBT)
Drive Enclosure
Pa12
Pump Head Cover
Polycarbonate
Cover Screws
Stainless steel, polypropylene cap
DFD System Sensor Pins
Hastelloy C-276
Power Cord
3 conductor, SJTW-A water-resistant
Mounting Brackets and Hardware
3/16” stainless steel screws
GF nylon bracket
3.0 CONSTRUCTION MATERIALS
3.1 Wetted Components
3.2 Non-wetted Components
>Smooth chemical dosing, no pulsation dampener needed.
>Diaphragm Failure Detection (DFD) system which senses diaphragm failure.
>Rated for continuous duty.
>Compatible with Blue-White Industries, Flow Verification Sensor (FVS) system.
>Remote Start/Stop - One non-powered dry contact closure.
>Speed Control: Manual Speed Adjust and Scalable 4-20ma Input
>Outputs include a single 250V/3A (FVS, DFD), and a solid state “motor on” (0-60 VDC sinking)
>Multi diaphragm metering with industry best turndown at 10,000:1
>Built for long life at high pressures up to 150 PSI (10.3 bar)
>Output rates up to 7.70 GPH (29.2 LPH).
>Brushless DC motor.
4.0 FEATURES
ENCLOSURE RATING
NEMA 4X Constructed for either indoor or outdoor use to provide a degree of protection to personnel against incidental
contact with enclosed equipment; to provide a degree of protection against falling dirt, rain, sleet, snow,
windblown dust, splashing water, and hose-directed water; and that will be undamaged by external formation
of ice on enclosure.
IP66 No ingress of dust; complete protection against contact. Water projected in powerful jets against enclosure
from any direction shall have no harmful effects.

Page 6
4.1 Agency Listings
This pump is ETL listed to conforms to the following: UL Standard 778 as a motor operated water
pump. CSA Standard C22.2 as process control equipment
R
Certified to
NSF/ANSI Standard 61
This pump is certified to NSF/ANSI Standard 61- Drinking Water System Components - Health
Effects
Symbol
Description
Warning (Risk of electric shock)
Caution (Refer to the user’s guide)
Ground, Protective Conductor Terminal
!
Page 7
This pump complies to the Machinery Directive 2006/42/EC, BS, EN 60204-1, Low Voltage Directive
2014/35/EU BS EN 61010-1, EMC Directive 2014/30/EU, BS EN 50081-1/BS EN 50082-1.
®
CHEM-FEED MD1
®
CHEM-FEED MD1
Pump Head Assembly
Pump Head
PVDF
Adapter Connections
PVDF
Valve Cartridge
PVDF
Valve Balls
Ceramic
O-Ring Seals
TFE/P (optional EP)
Diaphragm
® ®
DiaFlex (optional Flex-A-Prene )
Injection / Back-Flow Check Valve
Body & Insert
PVDF
Check Ball
Ceramic
Spring
Hastelloy C-276
Ball Seat & Static Seal O-Ring
TFE/P (optional EP)
Foot Valve / Strainer
Body & Adapter
PVDF
Check Ball
Ceramic
Spring
Hastelloy C-276
O-Ring Seal
TFE/P (optional EP)
Filter Screen
PVDF
Enclosure
®
Valox (PBT)
Drive Enclosure
Pa12
Pump Head Cover
Polycarbonate
Cover Screws
Stainless steel, polypropylene cap
DFD System Sensor Pins
Hastelloy C-276
Power Cord
3 conductor, SJTW-A water-resistant
Mounting Brackets and Hardware
3/16” stainless steel screws
GF nylon bracket
3.0 CONSTRUCTION MATERIALS
3.1 Wetted Components
3.2 Non-wetted Components
>Smooth chemical dosing, no pulsation dampener needed.
>Diaphragm Failure Detection (DFD) system which senses diaphragm failure.
>Rated for continuous duty.
>Compatible with Blue-White Industries, Flow Verification Sensor (FVS) system.
>Remote Start/Stop - One non-powered dry contact closure.
>Speed Control: Manual Speed Adjust and Scalable 4-20ma Input
>Outputs include a single 250V/3A (FVS, DFD), and a solid state “motor on” (0-60 VDC sinking)
>Multi diaphragm metering with industry best turndown at 10,000:1
>Built for long life at high pressures up to 150 PSI (10.3 bar)
>Output rates up to 7.70 GPH (29.2 LPH).
>Brushless DC motor.
4.0 FEATURES
ENCLOSURE RATING
NEMA 4X Constructed for either indoor or outdoor use to provide a degree of protection to personnel against incidental
contact with enclosed equipment; to provide a degree of protection against falling dirt, rain, sleet, snow,
windblown dust, splashing water, and hose-directed water; and that will be undamaged by external formation
of ice on enclosure.
IP66 No ingress of dust; complete protection against contact. Water projected in powerful jets against enclosure
from any direction shall have no harmful effects.

Page 8 Page 9
®
CHEM-FEED MD1
®
CHEM-FEED MD1
5.1 Mounting Location
1. Choose an area located near the chemical supply tank, chemical injection point, and electrical supply. Also,
choose an area where the pump can be easily serviced.
2. Finding a secure surface and using the provided mounting hardware, mount the pump close to the injection
point. Keep the inlet (suction) and outlet (discharge) tubing as short as possible. Longer discharge tubing
increases back pressure at pump head.
NOTE: Mounting the pump lower than the chemical container will gravity-feed chemical into it. This “flooded
suction” installation will reduce output error due to increased suction lift. A shut-off valve, pinch-clamp, or
other means to halt gravity-feed to the pump must be installed during servicing.
NOTE: Install a back flow prevention check valve at the discharge side of the pump to prevent the system fluid
from flowing back through pump during maintenance.
NOTE: It is recommended to have a pressure relief valve at the discharge side of the of pump to prevent
premature wear and damage to the pump, in the event that the discharge line becomes blocked.
NOTE: The does not require back pressure. Back-pressure valve may be desired to maintain consistent pump
flow into inconsistent system pressure.
5.0 INSTALLATION
All diagrams are strictly for guideline purposes only. Always consult an expert before installing
metering pump on specialized systems. Metering pump should be serviced by qualified persons
only.
Always wear protective clothing, face shield, safety glasses and gloves when working on or near
your metering pump. Additional precautions should be taken depending on solution being
pumped. Refer to MSDS precautions from your solution supplier.
!
CAUTION
!
CAUTION
Check system pressure and piping pressure limits before installation.
The pump should be serviced by qualified persons only. If equipment is used in a manner not
specified in this manual, the protection provided by the equipment may be impaired.
The pump should be supplied by an isolating transformer or RCD (operating current less or
equal 30 mA).
!
CAUTION
!
CAUTION
!
CAUTION

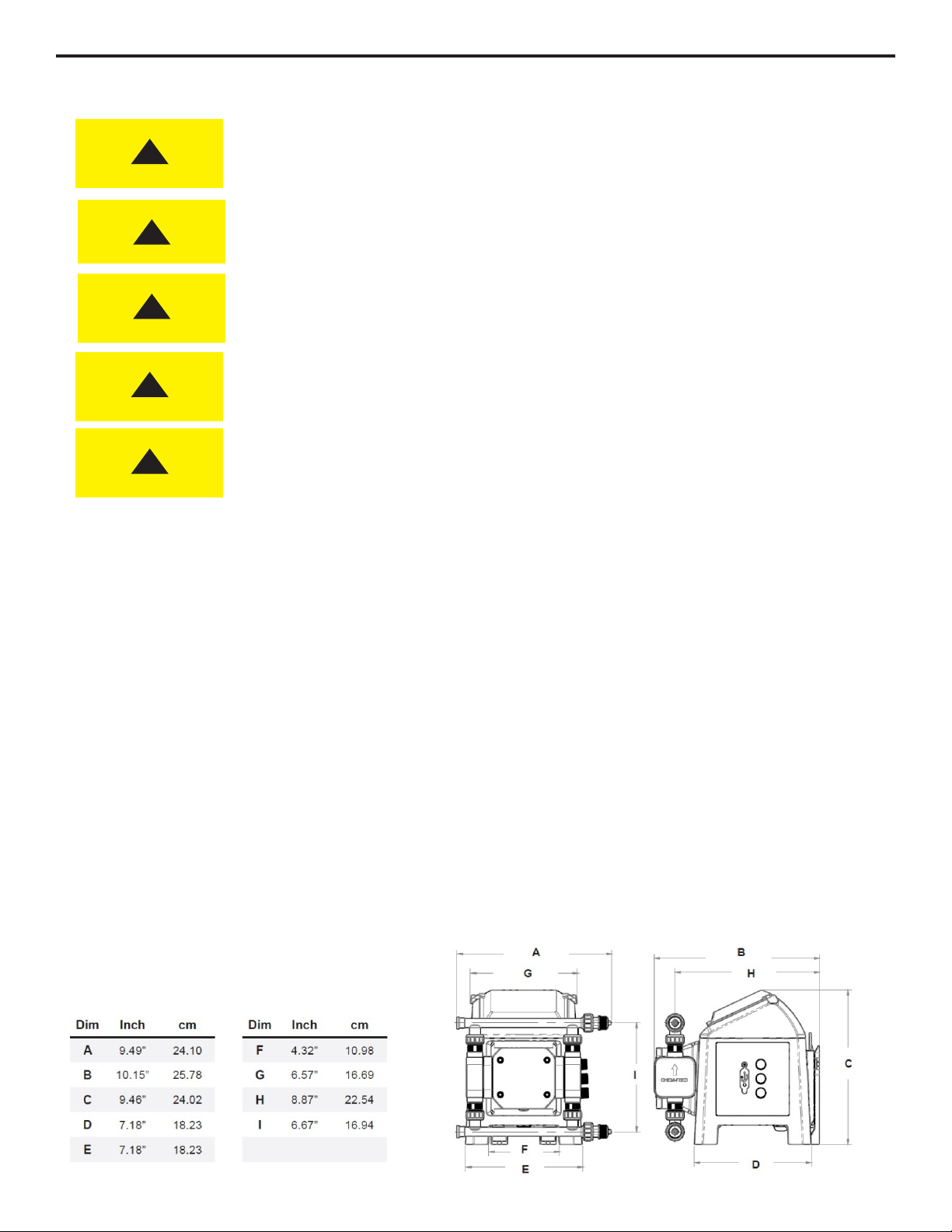

5.2 Pump Dimensions

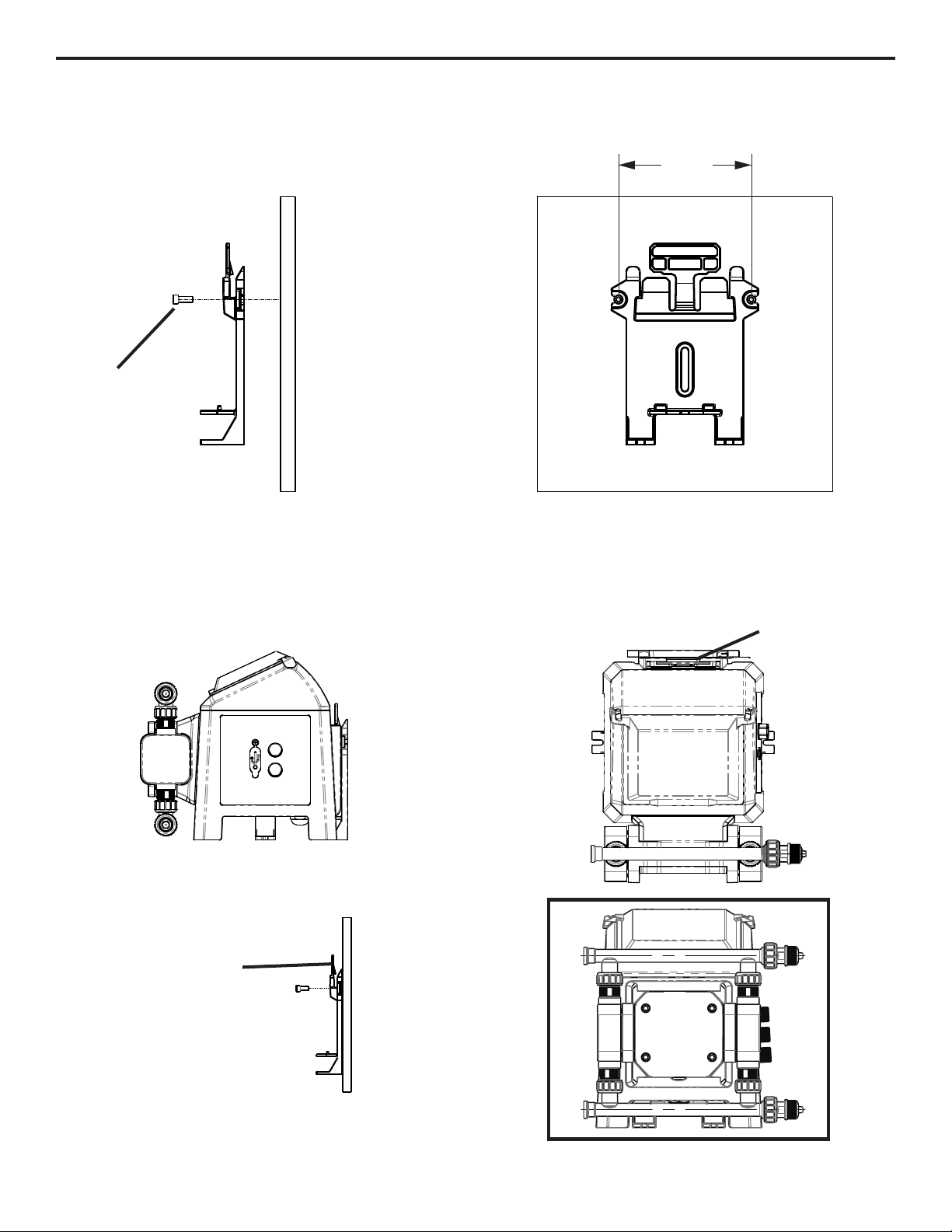

5.3 Wall Mounting
1. Using the provided #10 self-tapping screws, mount the bracket to a secure wall that is located where it can be
easily serviced.
#10 Self-Tap
(2 X)
4.50 in.
[11.43 cm]
Wall Mount Bracket (Side View) Mounted Pump (Front View)
2. Lower the pump so that the tab on the wall mount is inserted into the slot located on the back of the pump. The
pump will now be secured to the wall mount bracket.
Wall Mount Tab
Wall Mount (Side View)
Wall mount slot
Mounted Pump

Page 8 Page 9
®
CHEM-FEED MD1
®
CHEM-FEED MD1
5.1 Mounting Location
1. Choose an area located near the chemical supply tank, chemical injection point, and electrical supply. Also,
choose an area where the pump can be easily serviced.
2. Finding a secure surface and using the provided mounting hardware, mount the pump close to the injection
point. Keep the inlet (suction) and outlet (discharge) tubing as short as possible. Longer discharge tubing
increases back pressure at pump head.
NOTE: Mounting the pump lower than the chemical container will gravity-feed chemical into it. This “flooded
suction” installation will reduce output error due to increased suction lift. A shut-off valve, pinch-clamp, or
other means to halt gravity-feed to the pump must be installed during servicing.
NOTE: Install a back flow prevention check valve at the discharge side of the pump to prevent the system fluid
from flowing back through pump during maintenance.
NOTE: It is recommended to have a pressure relief valve at the discharge side of the of pump to prevent
premature wear and damage to the pump, in the event that the discharge line becomes blocked.
NOTE: The does not require back pressure. Back-pressure valve may be desired to maintain consistent pump
flow into inconsistent system pressure.
5.0 INSTALLATION
All diagrams are strictly for guideline purposes only. Always consult an expert before installing
metering pump on specialized systems. Metering pump should be serviced by qualified persons
only.
Always wear protective clothing, face shield, safety glasses and gloves when working on or near
your metering pump. Additional precautions should be taken depending on solution being
pumped. Refer to MSDS precautions from your solution supplier.
!
CAUTION
!
CAUTION
Check system pressure and piping pressure limits before installation.
The pump should be serviced by qualified persons only. If equipment is used in a manner not
specified in this manual, the protection provided by the equipment may be impaired.
The pump should be supplied by an isolating transformer or RCD (operating current less or
equal 30 mA).
!
CAUTION
!
CAUTION
!
CAUTION
5.2 Pump Dimensions
5.3 Wall Mounting
1. Using the provided #10 self-tapping screws, mount the bracket to a secure wall that is located where it can be
easily serviced.
#10 Self-Tap
(2 X)
4.50 in.
[11.43 cm]
Wall Mount Bracket (Side View) Mounted Pump (Front View)
2. Lower the pump so that the tab on the wall mount is inserted into the slot located on the back of the pump. The
pump will now be secured to the wall mount bracket.
Wall Mount Tab
Wall Mount (Side View)
Wall mount slot
Mounted Pump

Page 10 Page 11
®
CHEM-FEED MD1
®
CHEM-FEED MD1
Risk of electric shock – cord connected models are supplied with a grounding conductor and
grounding-type attachment plug. To reduce risk of electric shock, be certain that it is connected only
to a properly grounded, grounding-type receptacle.
>Use the voltage for which the power cord is rated.
>Do not strap together control (input/output) cables and power cables.
>When there is a power interruption, the pump, which has an auto-restart feature, will restore the pump to the
operating state it was in when the power was lost.
>POWER: 115V60Hz (0.6A max.), 220V50Hz (0.3A max.), 230V60Hz (0.3A max.), 230V50Hz (0.3A max.),
240V50Hz (0.3A max.)
NOTE: Contact a licensed electrician when there is doubt regarding the electrical installation.
Electrical connections and grounding (earthing) must conform to local wiring codes.
Risk of electric shock - Disconnect electricity before removing wiring compartment cover.
5.4 POWER CONNECTIONS
WARNING
Ensure to connect the pump to the proper supply voltage. Using the incorrect voltage will damage
the pump and may result in injury. The voltage requirements is printed on the pump serial label.
WARNING
WARNING
WARNING
Pump (Right Side Panel)

Page 10 Page 11
®
CHEM-FEED MD1
®
CHEM-FEED MD1
Risk of electric shock – cord connected models are supplied with a grounding conductor and
grounding-type attachment plug. To reduce risk of electric shock, be certain that it is connected only
to a properly grounded, grounding-type receptacle.
>Use the voltage for which the power cord is rated.
>Do not strap together control (input/output) cables and power cables.
>When there is a power interruption, the pump, which has an auto-restart feature, will restore the pump to the
operating state it was in when the power was lost.
>POWER: 115V60Hz (0.6A max.), 220V50Hz (0.3A max.), 230V60Hz (0.3A max.), 230V50Hz (0.3A max.),
240V50Hz (0.3A max.)
NOTE: Contact a licensed electrician when there is doubt regarding the electrical installation.
Electrical connections and grounding (earthing) must conform to local wiring codes.
Risk of electric shock - Disconnect electricity before removing wiring compartment cover.
5.4 POWER CONNECTIONS
WARNING
Ensure to connect the pump to the proper supply voltage. Using the incorrect voltage will damage
the pump and may result in injury. The voltage requirements is printed on the pump serial label.
WARNING
WARNING
WARNING
Pump (Right Side Panel)

Page 12 Page 13
®
CHEM-FEED MD1
®
CHEM-FEED MD1
5.5 IO Connection
Risk of electric shock - All wiring must be insulated and rated 60V minimum.
Pump (Right Side Panel)
Item Number
Item
1
USB-C Connector
2
M12 Input Connector I/O 1
3
M12 Input Connector I/O 2
4
M12 Output Connector I/O 3
2
4
3
WARNING
M12 connectors not included with product.
Blue-White requires any A-Type M12 connector with 5 position female sockets
1
PIN
Function
Specifications
Reference
P1
4-20mA Input (+)
120 Ohm Impedance, Non powered
loop
(+) Positive
P2
4-20mA Input (-)
120 Ohm Impedance, Non powered
loop
(-) Negative
P3
Not Used
P4
Not Used
P5
Not Used
P4
P1
P2
P3
P5
PIN
Function
Specifications
Reference
P1
Remote Start / Stop
Dry Contact Closure
(Do Not add voltage)
Green Light = Normally Open
Red Light = Normally Closed
P2
Ground
DC Ground
0 VDC
P3
FVS (+)
15 VDC @ 60 mA
To power FVS sensor
P4
FVS (-)
DC Ground (0 VDC)
FVS Ground Input
P5
FVS (Signal)
Input Signal
Input for FVS Signal
M12 Input Connector I/O 1
M12 Input Connector I/O 2
M12 Output Connector I/O 3
PIN
Function
Specifications
P1
Pump Motor Running (+)
0-60VDC sinking output (+)
Solid State Contact Closure
P2
Pump Motor Running (-)
0-60VDC sinking output (-)
Solid StateContact Closure
P3
N.O. (closes with DFD or FVS alarm)
Relay Out, N.O. Contact
3 Amp @ 250 VAC
P4
COM
Relay Out, COM Contact
P5
N.C. (opens with DFD or FVS alarm)
Relay Out, N.C. Contact
3 Amp @ 250 VAC
Blue-White M12 Cable Wiring
DIAGRAM
PIN #
WIRE
PIN 1
BROWN
PIN 2
WHITE
PIN 3
BLUE
PIN 4
BLACK
PIN 5
GRAY
P4
P1
P2
P3
P5
5.6 M12 Connections

Page 12 Page 13
®
CHEM-FEED MD1
®
CHEM-FEED MD1
5.5 IO Connection
Risk of electric shock - All wiring must be insulated and rated 60V minimum.
Pump (Right Side Panel)
Item Number
Item
1
USB-C Connector
2
M12 Input Connector I/O 1
3
M12 Input Connector I/O 2
4
M12 Output Connector I/O 3
2
4
3
WARNING
M12 connectors not included with product.
Blue-White requires any A-Type M12 connector with 5 position female sockets
1
PIN
Function
Specifications
Reference
P1
4-20mA Input (+)
120 Ohm Impedance, Non powered
loop
(+) Positive
P2
4-20mA Input (-)
120 Ohm Impedance, Non powered
loop
(-) Negative
P3
Not Used
P4
Not Used
P5
Not Used
P4
P1
P2
P3
P5
PIN
Function
Specifications
Reference
P1
Remote Start / Stop
Dry Contact Closure
(Do Not add voltage)
Green Light = Normally Open
Red Light = Normally Closed
P2
Ground
DC Ground
0 VDC
P3
FVS (+)
15 VDC @ 60 mA
To power FVS sensor
P4
FVS (-)
DC Ground (0 VDC)
FVS Ground Input
P5
FVS (Signal)
Input Signal
Input for FVS Signal
M12 Input Connector I/O 1
M12 Input Connector I/O 2
M12 Output Connector I/O 3
PIN
Function
Specifications
P1
Pump Motor Running (+)
0-60VDC sinking output (+)
Solid State Contact Closure
P2
Pump Motor Running (-)
0-60VDC sinking output (-)
Solid StateContact Closure
P3
N.O. (closes with DFD or FVS alarm)
Relay Out, N.O. Contact
3 Amp @ 250 VAC
P4
COM
Relay Out, COM Contact
P5
N.C. (opens with DFD or FVS alarm)
Relay Out, N.C. Contact
3 Amp @ 250 VAC
Blue-White M12 Cable Wiring
DIAGRAM
PIN #
WIRE
PIN 1
BROWN
PIN 2
WHITE
PIN 3
BLUE
PIN 4
BLACK
PIN 5
GRAY
P4
P1
P2
P3
P5
5.6 M12 Connections

Page 14 Page 15
®
CHEM-FEED MD1
®
CHEM-FEED MD1

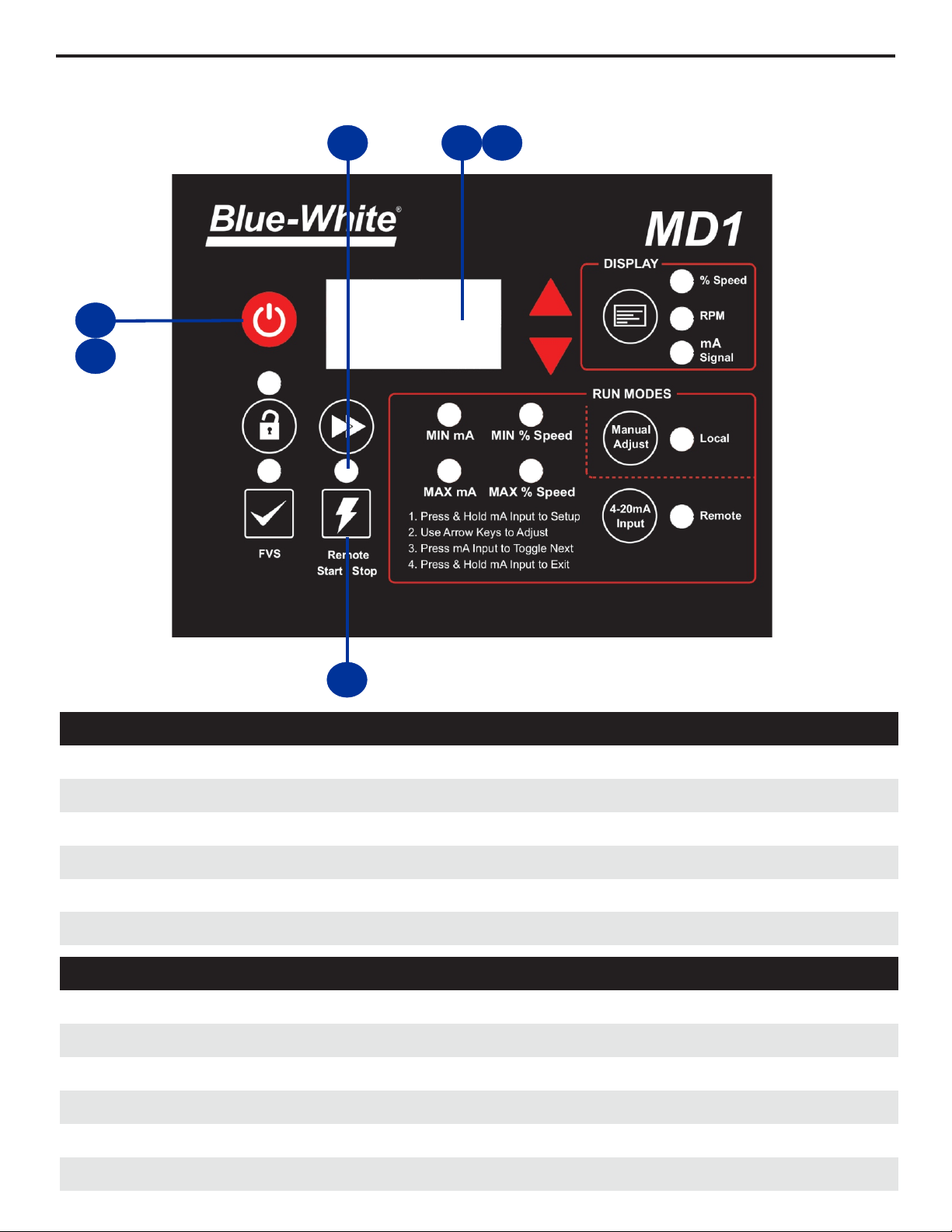

6.0 TOUCHPAD LAYOUT
Item Number
Item
1
LED/LCD Readout
2
Up Key
3
Rate Display Key
4
Down Key
5
Manual Adjust Control
6
4-20mA Input Control
7
Remote Start/Stop Key
8
Flow Verification Sensor (FVS) Key
9
Lock-Out Key
10
Start & Stop Key
11
Prime Key
1
87
9
11
10 3
2
5
6
4
7.0 SET-UP AND PROGRAMMING
2
3
1
7.1 Remote Start/Stop
Item Number
Directions for Normally Open Operation
1
Confirm that pump is in the OFF position
2
Press Remote Start/Stop button to activate
3
Light will turn green for “Normally Open” Operation
4
To put pump is Ready state, press Start/Stop button
5
Display will show “SIG” when waiting for contact closure signal
6
Display will show pump speed (or RPM, 4-20ma) when signal is closed
Item Number
Directions for Normally Open Operation
1
Confirm that pump is in the OFF position
2
Press Remote Start/Stop button to activate
3
Light will turn Green for “Normally Open” Operation
4
To put pump is Ready state, press Start/Stop button
5
Display will show “SIG” when waiting for contact closure signal
6
Display will show pump speed (or RPM, 4-20ma) when signal is closed
Item Number
Directions for Normally Closed Operation
1
Confirm that pump is in the OFF position, and Remote Start/Stop light is off
2
Press and hold Remote Start/Stop button for 5-7 seconds
3
Light will turn Red for “Normally Closed” Operation
4
To put pump is Ready state, press Start/Stop button
5
Display will show “SIG” when waiting for contact closure to Open
6
Display will show pump speed (or RPM, 4-20mA) when signal is Open
5 6
4

Page 14 Page 15
®
CHEM-FEED MD1
®
CHEM-FEED MD1
6.0 TOUCHPAD LAYOUT
Item Number
Item
1
LED/LCD Readout
2
Up Key
3
Rate Display Key
4
Down Key
5
Manual Adjust Control
6
4-20mA Input Control
7
Remote Start/Stop Key
8
Flow Verification Sensor (FVS) Key
9
Lock-Out Key
10
Start & Stop Key
11
Prime Key
1
87
9
11
10 3
2
5
6
4
7.0 SET-UP AND PROGRAMMING
2
3
1
7.1 Remote Start/Stop
Item Number
Directions for Normally Open Operation
1
Confirm that pump is in the OFF position
2
Press Remote Start/Stop button to activate
3
Light will turn green for “Normally Open” Operation
4
To put pump is Ready state, press Start/Stop button
5
Display will show “SIG” when waiting for contact closure signal
6
Display will show pump speed (or RPM, 4-20ma) when signal is closed
Item Number
Directions for Normally Open Operation
1
Confirm that pump is in the OFF position
2
Press Remote Start/Stop button to activate
3
Light will turn Green for “Normally Open” Operation
4
To put pump is Ready state, press Start/Stop button
5
Display will show “SIG” when waiting for contact closure signal
6
Display will show pump speed (or RPM, 4-20ma) when signal is closed
Item Number
Directions for Normally Closed Operation
1
Confirm that pump is in the OFF position, and Remote Start/Stop light is off
2
Press and hold Remote Start/Stop button for 5-7 seconds
3
Light will turn Red for “Normally Closed” Operation
4
To put pump is Ready state, press Start/Stop button
5
Display will show “SIG” when waiting for contact closure to Open
6
Display will show pump speed (or RPM, 4-20mA) when signal is Open
5 6
4

Page 16 Page 17
®
CHEM-FEED MD1
®
CHEM-FEED MD1
7.2 Programming FVS (Flow Verification Sensor)
Flow Verification System (FVS) uses a pulse signal from flow meter/sensor. When the FVS feature is activated, if
running pump does not receive signal/pulse in the programmed delay time, the pump will stop and activate
Alarm Output Relay. Display will read “FuS”. (Contact Blue-White for FVS sensor options. )
Item Number
Directions for Programming FVS
1
Confirm that pump is in the OFF position
2
Press and hold FVS button (5-7 seconds)
3
Toggle up/down arrow to set Delay Time
4
Press and hold FVS button (5-7 seconds)
NOTE: Alarm Delay Time range 1-20 seconds
Activate by pressing FVS button once. Light On indicates activation. Press again to de-activate.
1
2
4
3
7.3 Pump Lockout
Item Number
Directions
1
Pump can be running or in the OFF position
2
Press and hold Lockout button (5-7 seconds)
3
Light will activate
4
To de-activate, press and hold Lockout button (5-7 seconds)
1
Pump Lockout feature allows the user to “lock out” the ability to change pump controls, such as Pump Speed,
Prime, FVS, Remote Start/Stop, Manual/4-20ma Modes. User will still be able to start and stop the pump.
3
2
4

Page 16 Page 17
®
CHEM-FEED MD1
®
CHEM-FEED MD1
7.2 Programming FVS (Flow Verification Sensor)
Flow Verification System (FVS) uses a pulse signal from flow meter/sensor. When the FVS feature is activated, if
running pump does not receive signal/pulse in the programmed delay time, the pump will stop and activate
Alarm Output Relay. Display will read “FuS”. (Contact Blue-White for FVS sensor options. )
Item Number
Directions for Programming FVS
1
Confirm that pump is in the OFF position
2
Press and hold FVS button (5-7 seconds)
3
Toggle up/down arrow to set Delay Time
4
Press and hold FVS button (5-7 seconds)
NOTE: Alarm Delay Time range 1-20 seconds
Activate by pressing FVS button once. Light On indicates activation. Press again to de-activate.
1
2
4
3
7.3 Pump Lockout
Item Number
Directions
1
Pump can be running or in the OFF position
2
Press and hold Lockout button (5-7 seconds)
3
Light will activate
4
To de-activate, press and hold Lockout button (5-7 seconds)
1
Pump Lockout feature allows the user to “lock out” the ability to change pump controls, such as Pump Speed,
Prime, FVS, Remote Start/Stop, Manual/4-20ma Modes. User will still be able to start and stop the pump.
3
2
4

Page 18 Page 19
®
CHEM-FEED MD1
®
CHEM-FEED MD1
7.0 4-20MA INPUT
Directions
1
Confirm that pump is in the OFF position
2
Press 4-20mA Input button
1
7.1 Selecting 4-20mA input mode
Directions
1
Confirm that pump is in the OFF position.
2
Press and hold 4-20mA Input button.
3
MIN mA light will illuminate. Use arrow
keys to toggle min mA value for the pump
to operate at
4
Press 4-20mA Input button for MIN %
Speed light to illuminate
5
Use arrow keys to toggle MIN % Speed
value for the pump to operate.
6
Press 4-20mA Input button for MAX mA
light to illuminate.
7
Use arrow keys to toggle MAX mA value
for the pump to operate.
8
Press 4-20mA Input button for MAX %
Speed light to illuminate.
9
Use arrow keys to toggle MAX % Speed
value for the pump to operate.
10
Press and hold 4-20mA Input button to exit
programming mode.
13
7.2 Programming 4-20mA input mode
2
2
8.0 PUMP OPERATION
2
1
3
8.1 Priming The Pump
Item Number
Directions
1
Pump can be running or in the OFF position
2
Press Prime button
3
Pumps will run at 100% speed and Display will count down from 60 seconds
4
Press Start/Stop button at any time to Stop pump
4
Need help calibrating your pump?
Click on ... or scan the QR code.

Page 18 Page 19
®
CHEM-FEED MD1
®
CHEM-FEED MD1
7.0 4-20MA INPUT
Directions
1
Confirm that pump is in the OFF position
2
Press 4-20mA Input button
1
7.1 Selecting 4-20mA input mode
Directions
1
Confirm that pump is in the OFF position.
2
Press and hold 4-20mA Input button.
3
MIN mA light will illuminate. Use arrow
keys to toggle min mA value for the pump
to operate at
4
Press 4-20mA Input button for MIN %
Speed light to illuminate
5
Use arrow keys to toggle MIN % Speed
value for the pump to operate.
6
Press 4-20mA Input button for MAX mA
light to illuminate.
7
Use arrow keys to toggle MAX mA value
for the pump to operate.
8
Press 4-20mA Input button for MAX %
Speed light to illuminate.
9
Use arrow keys to toggle MAX % Speed
value for the pump to operate.
10
Press and hold 4-20mA Input button to exit
programming mode.
13
7.2 Programming 4-20mA input mode
2
2
8.0 PUMP OPERATION
2
1
3
8.1 Priming The Pump
Item Number
Directions
1
Pump can be running or in the OFF position
2
Press Prime button
3
Pumps will run at 100% speed and Display will count down from 60 seconds
4
Press Start/Stop button at any time to Stop pump
4
Need help calibrating your pump?
Click on ... or scan the QR code.

Page 20 Page 21
®
CHEM-FEED MD1
®
CHEM-FEED MD1

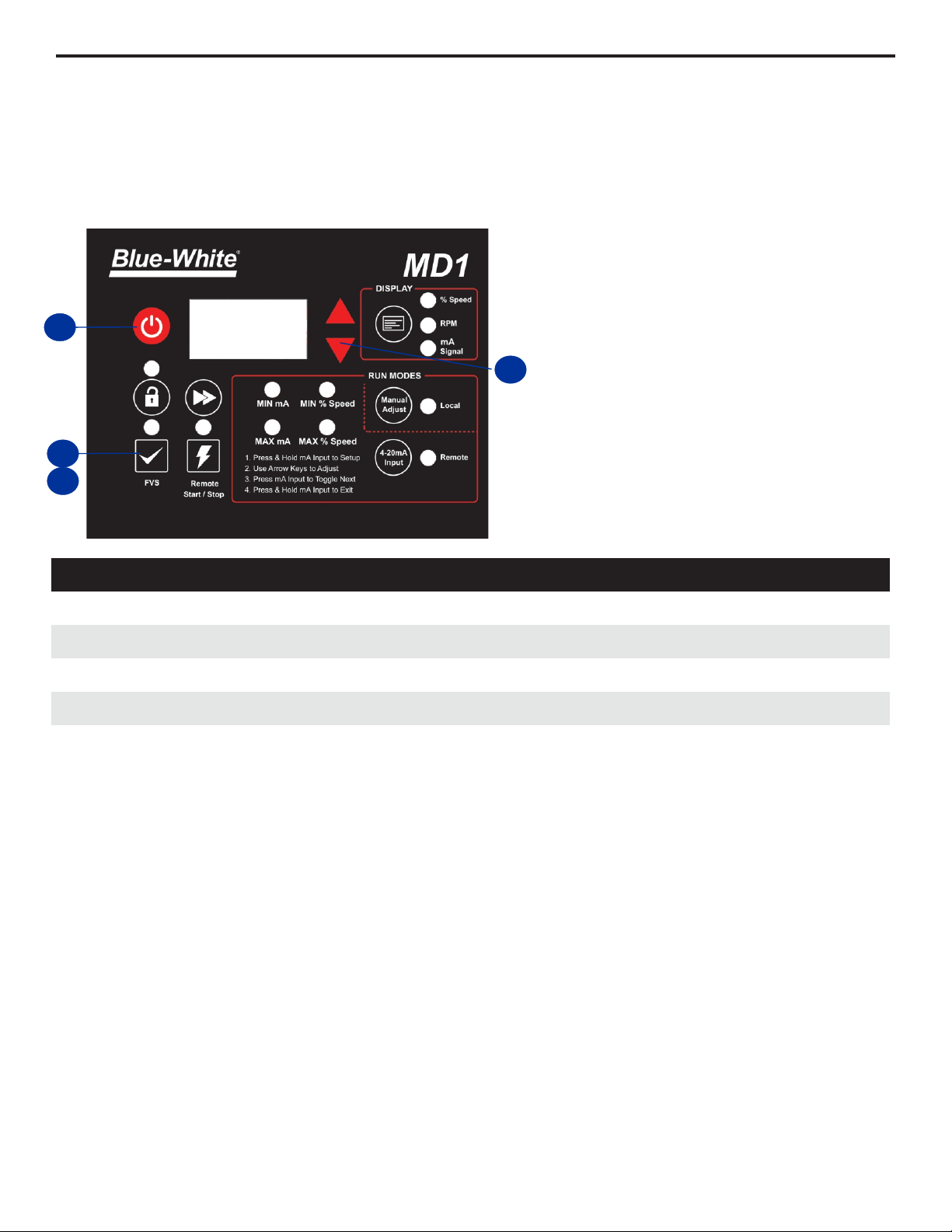

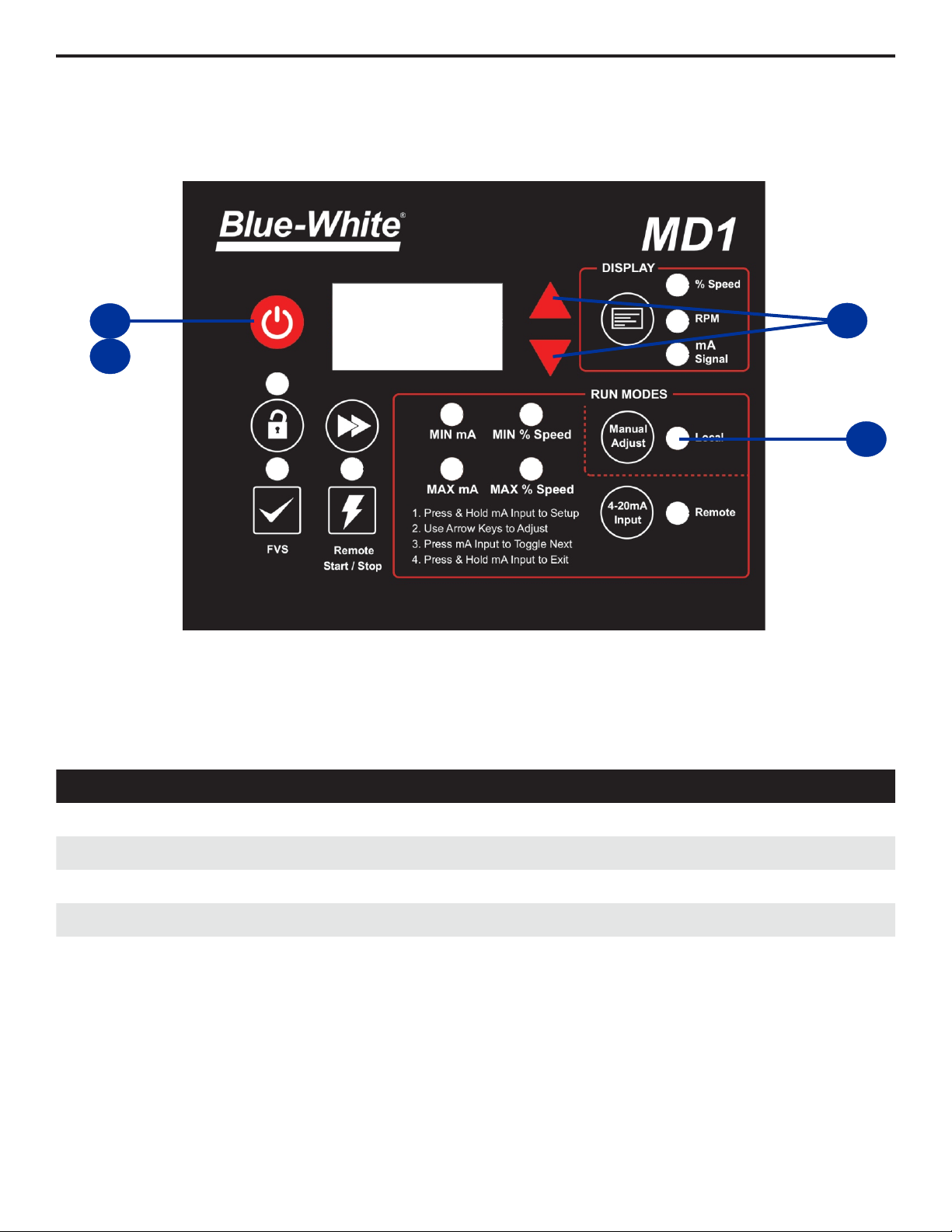

8.2 Manual Speed/Flow Adjust
2
4
Item Number
Directions
1
Confirm that pump is in the OFF position
2
Press “Manual Adjust” button. Local light will activate.
3
Press Start/Stop button.
4
Adjust pump speed using up and down arrows
1
Pump speed can be adjusted manually using “Manual Adjust” Run Mode.
8.3 4-20 Input Speed/Flow Control
4
Item Number
Directions
1
Confirm that pump is in the OFF position
2
Press “4-20ma Input” button. Remote light will activate.
3
Press Start/Stop button.
4
Pump speed will be adjusted by 4-20ma input signal
5
Adjust up and down arrows to display % speed, RPM, or 4-20mA input signal
1
Pump speed can be adjusted remotely using “4-20ma Input” Run Mode.
2
33
