Blue-white Flexflo a-100nv User manual

MODEL A-100NV

Variable Speed

Peristaltic Injector Pump

Operating Manual

5300 Business Drive

Huntington Beach, CA 92649

USA

Phone: 714-893-8529 FAX: 714-894-9492

E mail: [email protected] or [email protected]

Website: www.blue-white.com

A-100NVPage 2

TABLE OF CONTENTS

1.....Introduction....................................................................................2

2.....Specifications...................................................... ............................3

3.....Features .................................. .......................................... ..............3

4.....Unpacking ................ .......................................... ............................3

5.....Installation.............................. ............................ .............. ..............4

5.1..Mounting location ........................... ..........................................4

5.2..Input power connections ................. ..........................................5

5.3..External Input signal connections ............................... ..............6

5.4..How to install the tubing and fittings........................... ..............8

6.....How to operate the A-100N ................. ..........................................9

6.1..Description of Pump Output Adjustment Controls ....................9

6.2..Mode 1 - Manually Adjusting the output....... ............................10

6.3..Mode 2 - 4-20 mA input................................ ............................10

6.4..Mode 3 - 0-10 VDC input .......................................... ..............12

6.5..Mode 4 - Frequency/Pulse (Hz) input.......................... ..............14

7.....Alarms ...................... .......................................... ............................16

7.1..TFD - Tube Failure Detection system............ ............................16

7.2..FVS - Flow verification System ................................................17

8.....How to maintain the pump.... ............................ ............................18

8.1..Routine inspection and cleaning.................................. ..............18

8.2..How to clean and lubricate the Pump .......................... ..............18

8.3..500 hour service warning timer ................................... ..............18

8.4..How to replace the pump tube..................................... ..............19

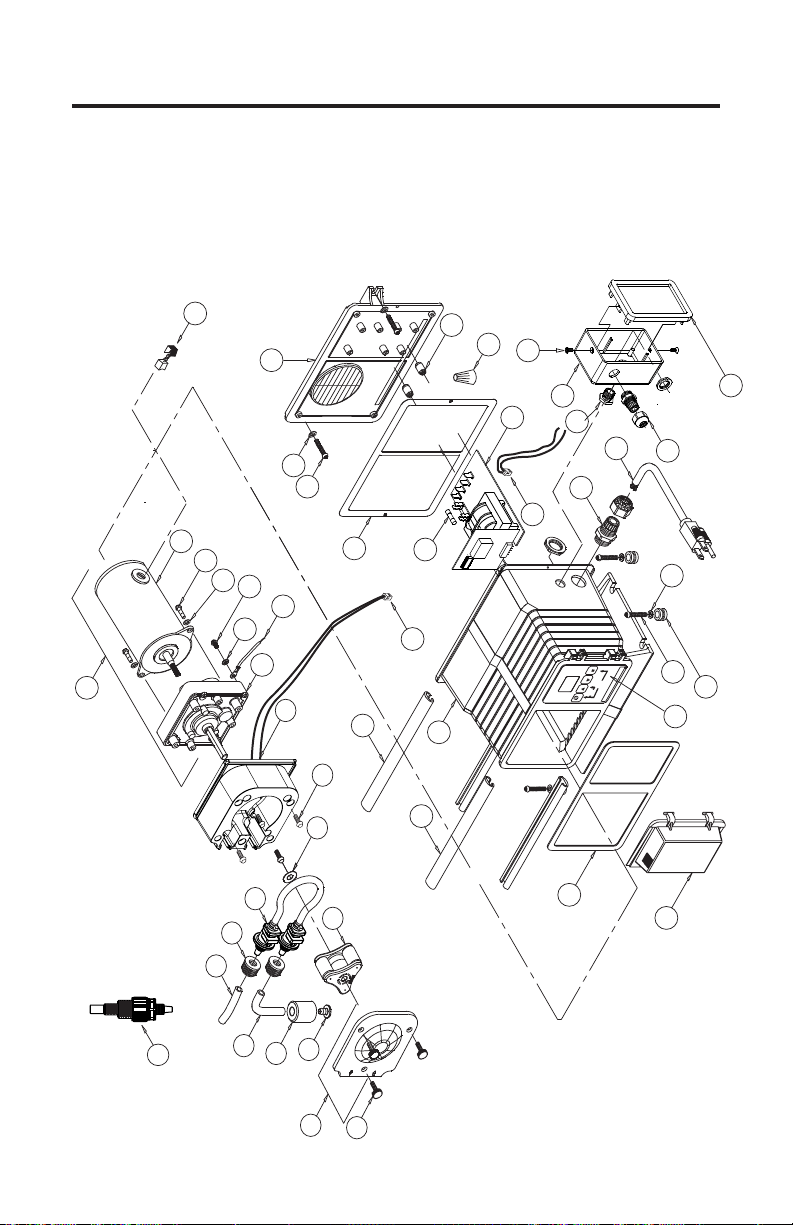

Replacement parts drawing... .......................................... ..............20

Replacement parts list............ .......................................... ..............21

1.0 Introduction

Congratulations on purchasing the A-100NV variable speed Peristaltic

Metering Pump. The A-100NV is designed to inject chemicals into piping

systems. The pump has been tested by NSF International for use with 12

½% Sodium Hypochlorite. The A-100NV is equipped with external input

control circuitry which allows the pumps output to be externally controlled

by either a 4-20mA input signal, a 0-10V DC input signal or a pulsed

frequency input signal.

A-100NV Page 3

2.0 Specifications

Maximum Working Pressure 100 psig / 6.9 bar (most models)

o o

Maximum Fluid Temperature 130 F / 54 C

o o

Ambient Temperature Range 14 to 110 F / -10 to 43 C

Duty Cycle Continuous

Adjustment Range 5-100% of speed

Maximum Solids 50% by volume

Maximum Viscosity 5,000 Centipoise

Maximum Suction Lift up to 30 ft. water

Power Requirements 115V60Hz (0.35A max.)

220V50Hz (0.175A max.)

230V60Hz (0.173A max.)

240V50Hz (0.193A max.)

Dimensions 6-1/8” H x 10-1/8” W x 9” D

Weight 12 lb.

3.0 Features

!Peristaltic Pump Tube does not require valves.

!Self priming under maximum pressure. Cannot vapor lock.

!High outlet pressure capability of 100 psig (most models).

!High inlet suction lift capability of 30 feet.

!Patented Tube Failure Detection (TFD) system.

!Patented pump tube assembly design.

!Includes Flow Verification System (FVS) - sensor sold separately.

!1 amp alarm relay (dry contact).

!Alarm and Service alert icon displays.

!Corrosion proof Valox housing.

!Tamper resistant electronic control panel cover.

4.0 Unpacking

Your pump package should contain the following:

1 - Injector pump with 2 pump tube assemblies

1 - suction tube strainer

1 - ceramic tubing weight

1 - 5’ Length of clear PVC suction tubing

1 - 5’ Length of opaque LLDPE discharge tubing

1 - Injection fitting with internal back-flow check valve

1 - Mounting hardware kit

1 - Shroud (weather proof cover see page 16)
