Blue-White FLEXFLO A3 Series User manual

Peristaltic Metering Pump
®
Series A3

Page 2 ®
FLEXFLO A3 Page 3
®
FLEXFLO A3
READ THE ENTIRE
OPERATING MANUAL PRIOR
TO INSTALLATION AND USE.
+1 (714) 893 - 8529
[email protected]
[email protected]
5300 Business Drive
Huntington Beach, CA 92649
1.0
Introduction
4
1.1 What’s in the box
5
2.0
Engineering Specifications
6
2.1 Output vs fluid viscosity
7
3.0
Materials of Construction
8
3.1 Wetted Components
8
3.2 Non-Wetted Components
8
4.0
Features
9
4.1 Agency Listings
9
5.0
Installation
10
5.1 Mounting Location
10
5.2 Mounting Dimensions
11
5.3 Input Power Connections
12
5.4 Wiring Terminals and I/O Schematics
13
6.0
Layout
14
6.1 Home Screen Layout
14
6.2 App Screen Layout
14
6.3 M12 Connectors (A3V Only)
15
6.4 IO Connectors
15
6.5 M12 Connectors Description (A3V Only)
16
7.0
Startup
18
7.1 Powering On/Off the pump
18
7.2 Welcome Screen
19
8.0
Input Setup
20
8.1 Manual Input
20
8.2 4-20 mA Input
21
8.3 Frequency Input
22
8.4 Pulse Input
23
8.5 Remote Start/Stop
24
8.6 Flow Verification Sensor (FVS)
25
8.7 Prime the Pump
26
8.8 Manual Cycle Adjust
27
8.9 Dispensing
28
9.0
Output Setup
30
9.1 Frequency Output
30
9.2 Relay & Contact Output
31
9.3 4-20mA Output
32
10.0
Industrial Protocols
33
10.1 Control and Status Mapping for Profibus
and EtherNet/IP
33
10.2 Control and Status Mapping for Modbus
TCP
34
10.3 EtherNet/IP
35
10.4 Modbus TCP
36
10.5 Profibus
37
11.0 Tubing
38
11.1 Tube Information
38
11.2 Tube Calibration
39
12.0
Settings
40
12.1 Pump Name
40
12.2 Unit of Volume
41
12.3 Unit of Time
42
12.4 Chemical Name
43
12.5 Language
44
12.6 Pump Rotation Direction
45
12.7 System Time
46
12.8 Passcode
47
12.9 Factory Reset
48
13.0
System
49
13.1 System Information
49
13.2 Firmware Update
50
14.0
Pump Maintenance
51
14.1 Routine Inspection and Maintenance
51
14.2 How to Clean and Lubricate the Pump
52
14.3 Removing Pump Head and Tubing
53
14.4 Pump Head Exploded View
53
14.5 Tube Replacement
54
14.6 TFD (Tube Failure Detection)
55
15.0
Replacement Parts
56
15.1 Replacement Parts
56
15.2 Tube Selection Matrix
57
16.0
Accessories
58
17.0
Warranty
61
APPENDIX A: ACRONYMS
62
APPENDIX B: MODEL NUMBER MATRIX
63

Page 2 ®
FLEXFLO A3 Page 3
®
FLEXFLO A3
READ THE ENTIRE
OPERATING MANUAL PRIOR
TO INSTALLATION AND USE.
+1 (714) 893 - 8529
[email protected]
[email protected]
5300 Business Drive
Huntington Beach, CA 92649
1.0
Introduction
4
1.1 What’s in the box
5
2.0
Engineering Specifications
6
2.1 Output vs fluid viscosity
7
3.0
Materials of Construction
8
3.1 Wetted Components
8
3.2 Non-Wetted Components
8
4.0
Features
9
4.1 Agency Listings
9
5.0
Installation
10
5.1 Mounting Location
10
5.2 Mounting Dimensions
11
5.3 Input Power Connections
12
5.4 Wiring Terminals and I/O Schematics
13
6.0
Layout
14
6.1 Home Screen Layout
14
6.2 App Screen Layout
14
6.3 M12 Connectors (A3V Only)
15
6.4 IO Connectors
15
6.5 M12 Connectors Description (A3V Only)
16
7.0
Startup
18
7.1 Powering On/Off the pump
18
7.2 Welcome Screen
19
8.0
Input Setup
20
8.1 Manual Input
20
8.2 4-20 mA Input
21
8.3 Frequency Input
22
8.4 Pulse Input
23
8.5 Remote Start/Stop
24
8.6 Flow Verification Sensor (FVS)
25
8.7 Prime the Pump
26
8.8 Manual Cycle Adjust
27
8.9 Dispensing
28
9.0
Output Setup
30
9.1 Frequency Output
30
9.2 Relay & Contact Output
31
9.3 4-20mA Output
32
10.0
Industrial Protocols
33
10.1 Control and Status Mapping for Profibus
and EtherNet/IP
33
10.2 Control and Status Mapping for Modbus
TCP
34
10.3 EtherNet/IP
35
10.4 Modbus TCP
36
10.5 Profibus
37
11.0 Tubing
38
11.1 Tube Information
38
11.2 Tube Calibration
39
12.0
Settings
40
12.1 Pump Name
40
12.2 Unit of Volume
41
12.3 Unit of Time
42
12.4 Chemical Name
43
12.5 Language
44
12.6 Pump Rotation Direction
45
12.7 System Time
46
12.8 Passcode
47
12.9 Factory Reset
48
13.0
System
49
13.1 System Information
49
13.2 Firmware Update
50
14.0
Pump Maintenance
51
14.1 Routine Inspection and Maintenance
51
14.2 How to Clean and Lubricate the Pump
52
14.3 Removing Pump Head and Tubing
53
14.4 Pump Head Exploded View
53
14.5 Tube Replacement
54
14.6 TFD (Tube Failure Detection)
55
15.0
Replacement Parts
56
15.1 Replacement Parts
56
15.2 Tube Selection Matrix
57
16.0
Accessories
58
17.0
Warranty
61
APPENDIX A: ACRONYMS
62
APPENDIX B: MODEL NUMBER MATRIX
63

®
Congratulations on purchasing the A3 FLEXFLO variable speed Peristaltic
Metering Pump.
®
Your FLEXFLO A3 pump is pre-configured for the tubing that shipped with your
metering pump. The tubing assembly has an Identification number printed for
easy re-order.
Please Note: Your new pump has been pressure tested at the factory with
clean water before shipping. You may notice trace amounts of clean water in the
pre-installed tube assembly. This is part of our stringent quality assurance pro-
gram at Blue-White Industries.
For more information please visit us at: ww.blue-white.com
For videos and tutorials please visit as at:
https://www.blue-white.com/resources/videos
Page 4 ®
FLEXFLO A3
1.0 Introduction
1.1 What’s In The Box

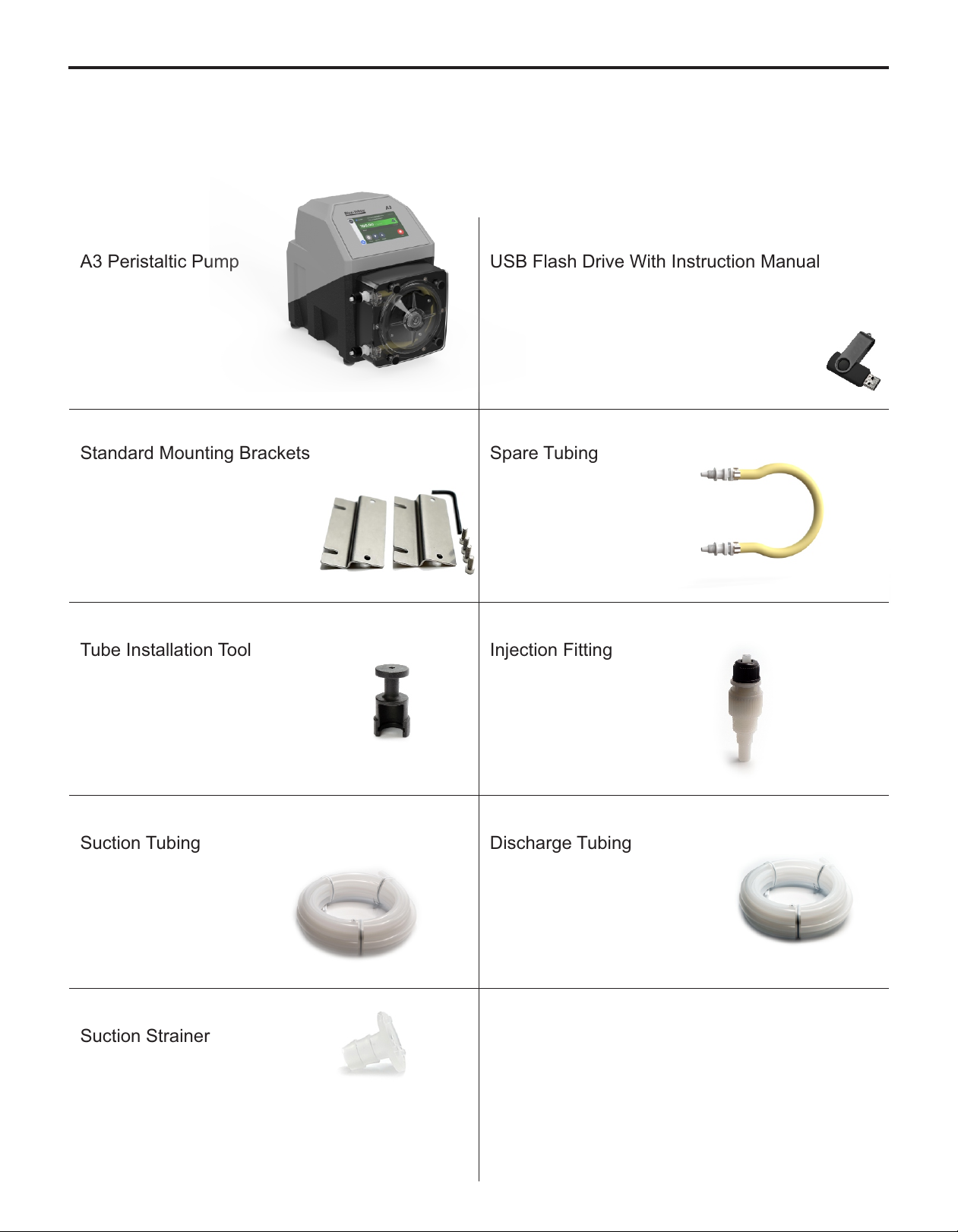

The following items are included with every A3 peristaltic metering pump:
Page 5
®
FLEXFLO A3 1.0 Introduction
A3 Peristaltic Pump
USB Flash Drive With Instruction Manual
Standard Mounting Brackets
Spare Tubing
Tube Installation Tool
Injection Fitting
Suction Tubing
Discharge Tubing
Suction Strainer

®
Congratulations on purchasing the A3 FLEXFLO variable speed Peristaltic
Metering Pump.
®
Your FLEXFLO A3 pump is pre-configured for the tubing that shipped with your
metering pump. The tubing assembly has an Identification number printed for
easy re-order.
Please Note: Your new pump has been pressure tested at the factory with
clean water before shipping. You may notice trace amounts of clean water in the
pre-installed tube assembly. This is part of our stringent quality assurance pro-
gram at Blue-White Industries.
For more information please visit us at: ww.blue-white.com
For videos and tutorials please visit as at:
https://www.blue-white.com/resources/videos
Page 4 ®
FLEXFLO A3
1.0 Introduction
1.1 What’s In The Box
The following items are included with every A3 peristaltic metering pump:
Page 5
®
FLEXFLO A3 1.0 Introduction
A3 Peristaltic Pump
USB Flash Drive With Instruction Manual
Standard Mounting Brackets
Spare Tubing
Tube Installation Tool
Injection Fitting
Suction Tubing
Discharge Tubing
Suction Strainer

2.0 Engineering Specifications
2.1 OUTPUT VERSUS FLUID VISCOSITY
Fluid viscosity and motor RPM both have an effect on fluid output. For your reference the
charts below display the various tubes we offer and their output at different viscosities and
different motor RPM. All testing was conducted with a three foot suction lift.
Tube Material
2.0 Engineering Specifications Page 7
®
FLEXFLO A3
Page 6 ®
FLEXFLO A3
Flow Rate (ml/min)
Flow Rate (ml/min)
0
200
400
600
800
1000
1200
1400
0 30 60 90 125
Motor RPM

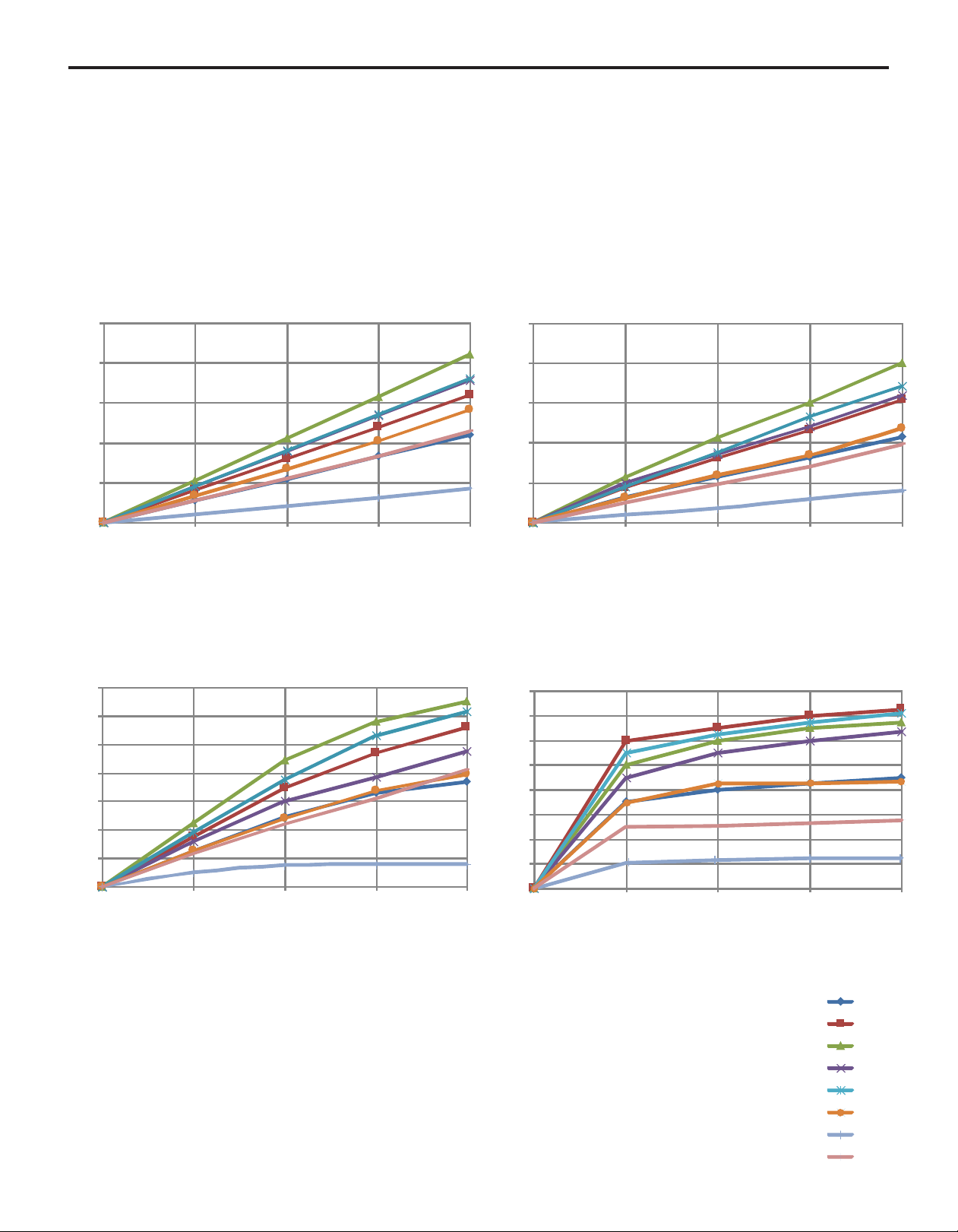

output of 1,700 cP fluid vs. motor rpm
0
500
1000
1500
2000
2500
0 30 60 90 125
Motor RPM
output of water vs. motor rpm
MNH
MNJ
MNK
MTK
MGK
MNGG
MNEE
MG2G
0
20
40
60
80
100
120
140
160
0 30 60 90 125
Motor RPM
output of 12,000 cP fluid vs. motor rpm
0
500
1000
1500
2000
2500
0 30 60 90 125
Motor RPM
output of 200 cP fluid vs. motor rpm
Maximum Working Pressure (excluding pump tubes)
125 psig (8.6 bar)
NOTE: see individual pump tube assembly max. pressure ratings.
Maximum Fluid Temperature (excluding pump tubes)
185 °F (85 °C)
NOTE: see individual pump tube assembly max. temperature ratings.
Ambient Operating Temperature 14 °F to 115 °F (-10 °C to 46 °C)
Ambient Storage Temperature -40 °F to 158 °F (-40 °C to 70 °C)
Maximum Viscosity 12,000 Centipoise
Maximum Suction Lift 30 ft. Water, 0 psig (9.14 m, 0 bar)
Operating Voltage
115VAC/60Hz, 1ph (2.0 Amp Maximum)
230VAC/60Hz, 1ph (1.0 Amp Maximum)
220VAC/50Hz, 1ph (1.0 Amp Maximum)
240VAC/50Hz, 1ph (1.0 Amp Maximum)
230VAC/50Hz, 1ph (1.0 Amp Maximum)
Power Cord Options
115V60Hz = NEMA 5/15 (USA)
230V60Hz = NEMA 6/15 (USA)
220V50Hz = CEE 7/VII (EU)
240V50Hz = AS 3112 (Australia/New Zealand)
230V50Hz = BS 1363/A (UK)
Motor Brushless DC
Motor Speed Adjustment Range 2,500:1 (0.04% – 100%) Max rpm = 125 rpm
Motor Speed Adjustment Resolution
0.01% increments > 1% motor speed and < 100%
0.04% increments < 1% motor speed
Display 5” touchscreen color LCD, UV resistent
Display Languages English, Spanish, French, German, and Portuguese selectable
Security Programmable 6-digit password
Maximum Overall Dimensions 8-1/4”W x 11-3/4”H x 13-1/4”D (20.9W x 29.8H x 34.5D cm)
Product Weight 25.4lb. (11.5 Kg)
Approximate Shipping Weight 30 lb. (13.6 Kg)
Enclosure NEMA 4X (IP66), Polyester powder coated aluminum & Noryl
RoHS Compliant Yes
Standards cETLus, CE

2.0 Engineering Specifications
2.1 OUTPUT VERSUS FLUID VISCOSITY
Fluid viscosity and motor RPM both have an effect on fluid output. For your reference the
charts below display the various tubes we offer and their output at different viscosities and
different motor RPM. All testing was conducted with a three foot suction lift.
Tube Material
2.0 Engineering Specifications Page 7
®
FLEXFLO A3
Page 6 ®
FLEXFLO A3
Flow Rate (ml/min)
Flow Rate (ml/min)
0
200
400
600
800
1000
1200
1400
0 30 60 90 125
Motor RPM
output of 1,700 cP fluid vs. motor rpm
0
500
1000
1500
2000
2500
0 30 60 90 125
Motor RPM
output of water vs. motor rpm
MNH
MNJ
MNK
MTK
MGK
MNGG
MNEE
MG2G
0
20
40
60
80
100
120
140
160
0 30 60 90 125
Motor RPM
output of 12,000 cP fluid vs. motor rpm
0
500
1000
1500
2000
2500
0 30 60 90 125
Motor RPM
output of 200 cP fluid vs. motor rpm
Maximum Working Pressure (excluding pump tubes)
125 psig (8.6 bar)
NOTE: see individual pump tube assembly max. pressure ratings.
Maximum Fluid Temperature (excluding pump tubes)
185 °F (85 °C)
NOTE: see individual pump tube assembly max. temperature ratings.
Ambient Operating Temperature 14 °F to 115 °F (-10 °C to 46 °C)
Ambient Storage Temperature -40 °F to 158 °F (-40 °C to 70 °C)
Maximum Viscosity 12,000 Centipoise
Maximum Suction Lift 30 ft. Water, 0 psig (9.14 m, 0 bar)
Operating Voltage
115VAC/60Hz, 1ph (2.0 Amp Maximum)
230VAC/60Hz, 1ph (1.0 Amp Maximum)
220VAC/50Hz, 1ph (1.0 Amp Maximum)
240VAC/50Hz, 1ph (1.0 Amp Maximum)
230VAC/50Hz, 1ph (1.0 Amp Maximum)
Power Cord Options
115V60Hz = NEMA 5/15 (USA)
230V60Hz = NEMA 6/15 (USA)
220V50Hz = CEE 7/VII (EU)
240V50Hz = AS 3112 (Australia/New Zealand)
230V50Hz = BS 1363/A (UK)
Motor Brushless DC
Motor Speed Adjustment Range 2,500:1 (0.04% – 100%) Max rpm = 125 rpm
Motor Speed Adjustment Resolution
0.01% increments > 1% motor speed and < 100%
0.04% increments < 1% motor speed
Display 5” touchscreen color LCD, UV resistent
Display Languages English, Spanish, French, German, and Portuguese selectable
Security Programmable 6-digit password
Maximum Overall Dimensions 8-1/4”W x 11-3/4”H x 13-1/4”D (20.9W x 29.8H x 34.5D cm)
Product Weight 25.4lb. (11.5 Kg)
Approximate Shipping Weight 30 lb. (13.6 Kg)
Enclosure NEMA 4X (IP66), Polyester powder coated aluminum & Noryl
RoHS Compliant Yes
Standards cETLus, CE

4.1 Agency Listings
Symbol
Description
Warning (Risk of electric shock)
Caution (Refer to the user’s guide)
Ground, Protective Conductor Terminal
ENCLOSURE RATING
NEMA 4X Constructed for either indoor or outdoor use to provide a degree of protection to personnel against incidental
contact with enclosed equipment; to provide a degree of protection against falling dirt, rain, sleet, snow,
windblown dust, splashing water, and hose-directed water; and that will be undamaged by external formation
of ice on enclosure.
IP66 No ingress of dust; complete protection against contact. Water projected in powerful jets against enclosure
from any direction shall have no harmful effects.
!
This pump is ETL listed to conforms to the following: UL Standard 778 as a motor operated water pump.
CSA Standard C22.2 as process control equipment
This pump complies to the Machinery Directive 2006/42/EC, BS, EN 60204-1, Low Voltage
Directive 2014/35/EU BS EN 61010-1, EMC Directive 2014/30/EU, BS EN 50081-1/BS EN
50082-1.
Page 9
®
FLEXFLO A3 4.0 Features
3.1 Non-Wetted Components 3.2 Wetted Components
Page 8 ®
FLEXFLO A3

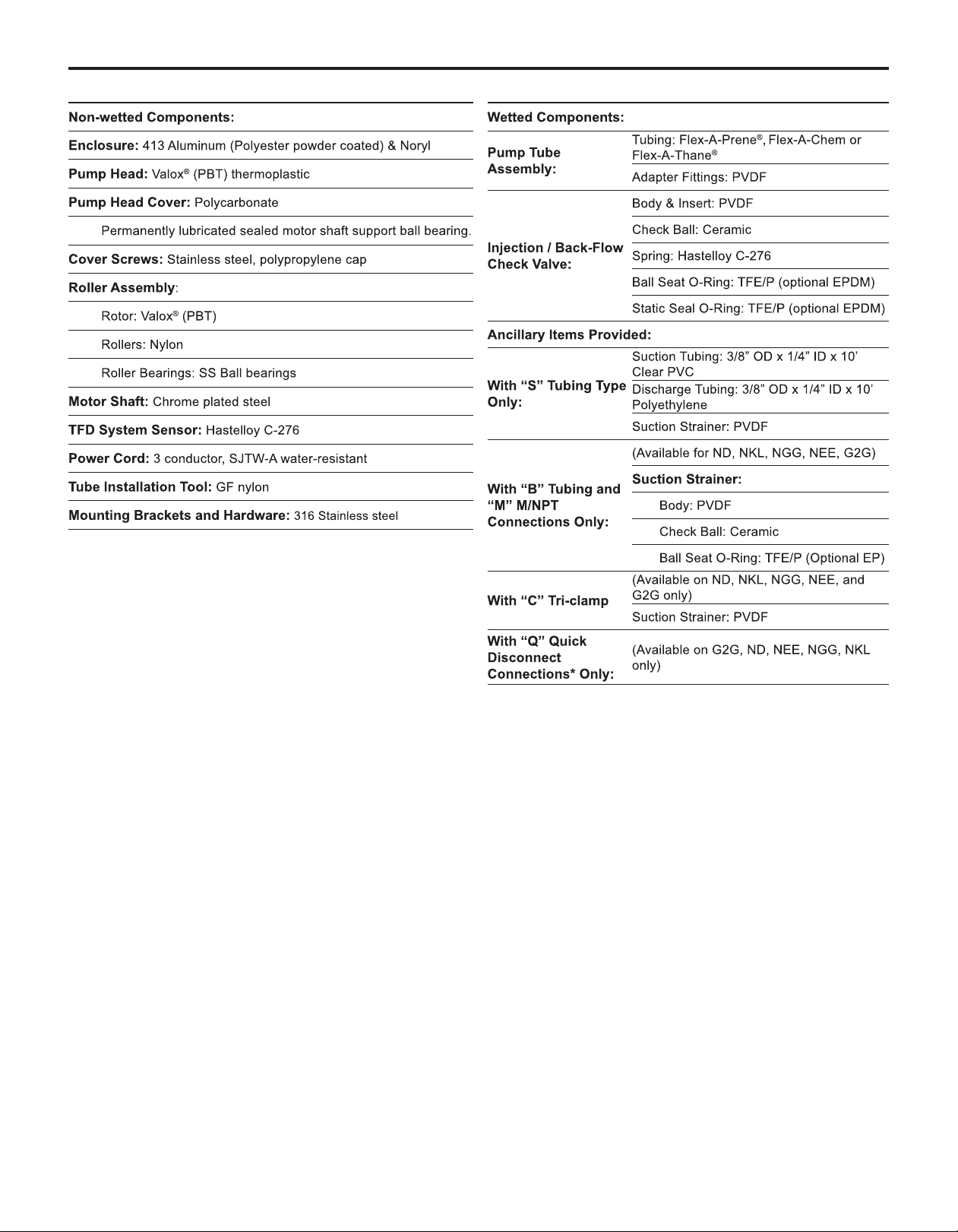

3.0 Materials of Construction

4.1 Agency Listings
Symbol
Description
Warning (Risk of electric shock)
Caution (Refer to the user’s guide)
Ground, Protective Conductor Terminal
ENCLOSURE RATING
NEMA 4X Constructed for either indoor or outdoor use to provide a degree of protection to personnel against incidental
contact with enclosed equipment; to provide a degree of protection against falling dirt, rain, sleet, snow,
windblown dust, splashing water, and hose-directed water; and that will be undamaged by external formation
of ice on enclosure.
IP66 No ingress of dust; complete protection against contact. Water projected in powerful jets against enclosure
from any direction shall have no harmful effects.
!
This pump is ETL listed to conforms to the following: UL Standard 778 as a motor operated water pump.
CSA Standard C22.2 as process control equipment
This pump complies to the Machinery Directive 2006/42/EC, BS, EN 60204-1, Low Voltage
Directive 2014/35/EU BS EN 61010-1, EMC Directive 2014/30/EU, BS EN 50081-1/BS EN
50082-1.
Page 9
®
FLEXFLO A3 4.0 Features
3.1 Non-Wetted Components 3.2 Wetted Components
Page 8 ®
FLEXFLO A3
3.0 Materials of Construction

nRaise metering pump 4-1/2 inches (11.43 cm) off ground or a surface.
nMade out of tough Stainless Steel.
nProvides a stable mounting surface.
Stainless Steel extended brackets allow the pump to be securely mounted to
most any surface; floor, shelf, or skid. Brackets lift the pump up 4-1/2 inches
(11.43 cm), for easy pump access in hard to reach areas.
Extended Brackets
Front View
Bottom View
Mounting Hole Spacings
(for standard and extended type brackets)
A3 Series
8.25” (20.9 cm)
2.5” (6.35 cm)
Maximum bolt hole size
0.200” diameter (4 places)
Side View
Page 11
®
FLEXFLO A3 5.0 Installation
5.1 Mounting Location
1. Choose an area located near the chemical supply tank, chemical injection point, and electrical supply. Also,
choose an area where the pump can be easily serviced.
2. Finding a secure surface and using the provided mounting hardware, mount the pump close to the injection
point. Keep the inlet (suction) and outlet (discharge) tubing as short as possible. Longer discharge tubing
increases back pressure at pump head.
NOTE: Mounting the pump lower than the chemical container will gravity-feed chemical into it. This “flooded
suction” installation will reduce output error due to increased suction lift. A shut-off valve, pinch-clamp, or
other means to halt gravity-feed to the pump must be installed during servicing.
NOTE: Install a back flow prevention check valve at the discharge side of the pump to prevent the system fluid
from flowing back through pump during tube replacement or during tube rupture.
NOTE: It is recommended to have a pressure relief valve at the discharge side of the of pump to prevent
premature wear and damage to the pump tube, in the event that the discharge line becomes blocked.
NOTE: The does not require back pressure. Keep the discharge pressure as low as possible to maximize pump
the tube life.
All diagrams are strictly for guideline purposes only. Always consult an expert before installing
metering pump on specialized systems. Metering pump should be serviced by qualified persons
only.
Always wear protective clothing, face shield, safety glasses and gloves when working on or near
your metering pump. Additional precautions should be taken depending on solution being
pumped. Refer to MSDS precautions from your solution supplier.
Risk of chemical overdose. Be certain pump does not overdose chemical during backwash and
periods of no flow in circulation system.
Be sure that installation does not constitute a cross connection with drinking water supply.
Check your local plumbing codes.
The pump should be serviced by qualified persons only. If equipment is used in a manner not
specified in this manual, the protection provided by the equipment may be impaired.
The pump should be supplied by an isolating transformer or RCD (operating current less or
equal 30 mA).
!
CAUTION
!
CAUTION
!
CAUTION
!
CAUTION
!
CAUTION
!
CAUTION
Page 10 ®
FLEXFLO A3
5.0 Installation
5.2 Pump Dimensions

nRaise metering pump 4-1/2 inches (11.43 cm) off ground or a surface.
nMade out of tough Stainless Steel.
nProvides a stable mounting surface.
Stainless Steel extended brackets allow the pump to be securely mounted to
most any surface; floor, shelf, or skid. Brackets lift the pump up 4-1/2 inches
(11.43 cm), for easy pump access in hard to reach areas.
Extended Brackets
Front View
Bottom View
Mounting Hole Spacings
(for standard and extended type brackets)
A3 Series
8.25” (20.9 cm)
2.5” (6.35 cm)
Maximum bolt hole size
0.200” diameter (4 places)
Side View
Page 11
®
FLEXFLO A3 5.0 Installation
5.1 Mounting Location
1. Choose an area located near the chemical supply tank, chemical injection point, and electrical supply. Also,
choose an area where the pump can be easily serviced.
2. Finding a secure surface and using the provided mounting hardware, mount the pump close to the injection
point. Keep the inlet (suction) and outlet (discharge) tubing as short as possible. Longer discharge tubing
increases back pressure at pump head.
NOTE: Mounting the pump lower than the chemical container will gravity-feed chemical into it. This “flooded
suction” installation will reduce output error due to increased suction lift. A shut-off valve, pinch-clamp, or
other means to halt gravity-feed to the pump must be installed during servicing.
NOTE: Install a back flow prevention check valve at the discharge side of the pump to prevent the system fluid
from flowing back through pump during tube replacement or during tube rupture.
NOTE: It is recommended to have a pressure relief valve at the discharge side of the of pump to prevent
premature wear and damage to the pump tube, in the event that the discharge line becomes blocked.
NOTE: The does not require back pressure. Keep the discharge pressure as low as possible to maximize pump
the tube life.
All diagrams are strictly for guideline purposes only. Always consult an expert before installing
metering pump on specialized systems. Metering pump should be serviced by qualified persons
only.
Always wear protective clothing, face shield, safety glasses and gloves when working on or near
your metering pump. Additional precautions should be taken depending on solution being
pumped. Refer to MSDS precautions from your solution supplier.
Risk of chemical overdose. Be certain pump does not overdose chemical during backwash and
periods of no flow in circulation system.
Be sure that installation does not constitute a cross connection with drinking water supply.
Check your local plumbing codes.
The pump should be serviced by qualified persons only. If equipment is used in a manner not
specified in this manual, the protection provided by the equipment may be impaired.
The pump should be supplied by an isolating transformer or RCD (operating current less or
equal 30 mA).
!
CAUTION
!
CAUTION
!
CAUTION
!
CAUTION
!
CAUTION
!
CAUTION
Page 10 ®
FLEXFLO A3
5.0 Installation
5.2 Pump Dimensions

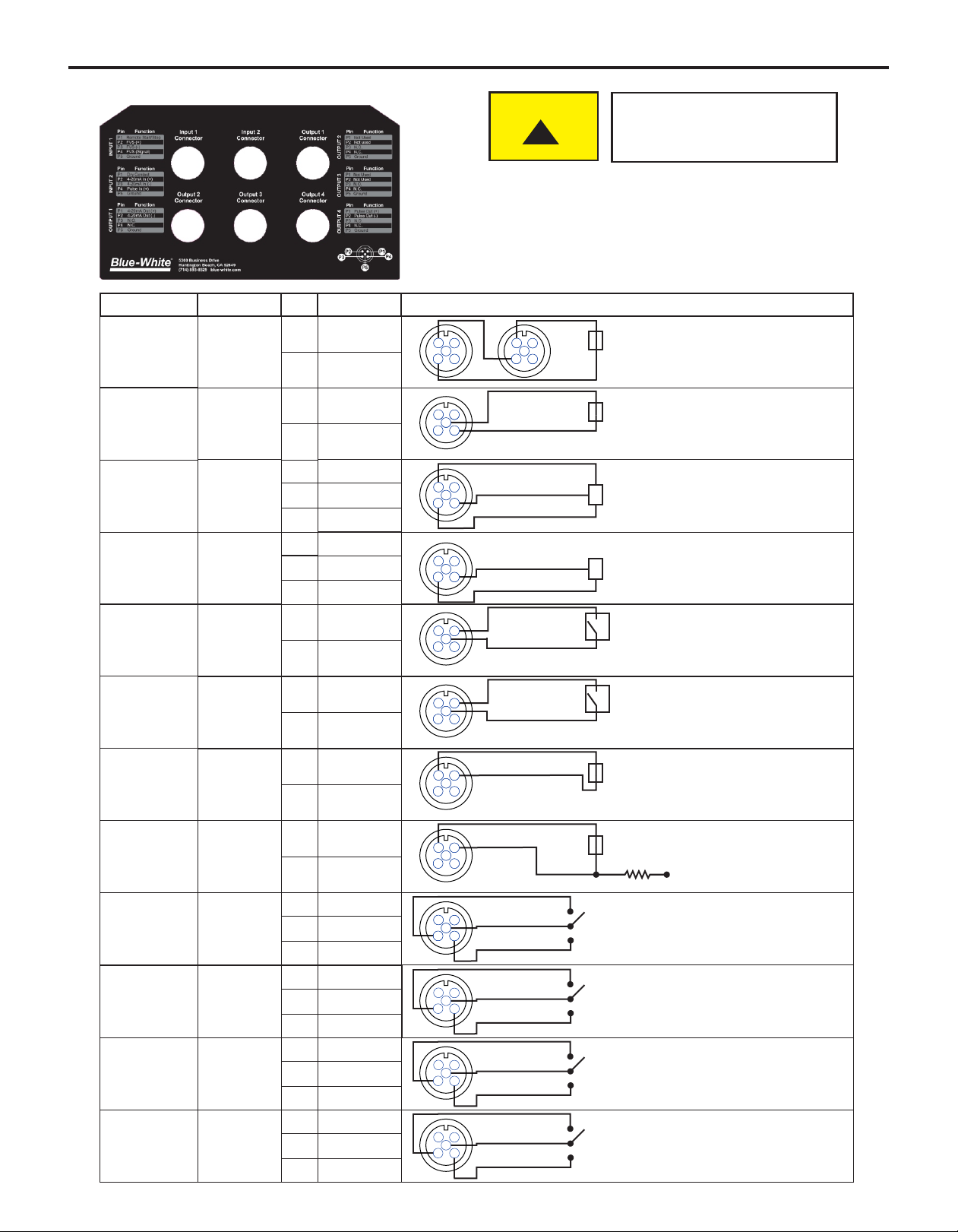

5.4 Wiring Terminals and I/O Schematics
Page 13
®
FLEXFLO A3
Risk of electric shock - All
wiring must be insulated
and rated 300V minimum.
!
WARNING
Shielded cables should be used on all input signal wires.
5.0 Installation
5.3 Input Power Connections
Risk of electric shock – cord connected models are supplied with a grounding
conductor and grounding-type attachment plug. To reduce risk of electric shock, be
certain that it is connected only to a properly grounded, grounding-type receptacle.
WARNING
!Be certain to connect pump to proper supply voltage. Using incorrect voltage will damage
pump and may result in injury. Voltage requirement is printed on pump serial label.
!Input power range is 96VAC to 264VAC 50/60 Hz.
!Voltage Selection is automatically detected and adjusted by power supply. No mechanical
switch necessary.
!Use voltage your power cord is rated for.
!Power cord models are supplied with a ground wire conductor and a grounding type attach-
ment plug (power cord). To reduce risk of electric shock, be certain that power cord is con-
nected only to a properly grounded, grounding type receptacle.
!Be sure all M12 wiring cable glands are properly installed and sealed.
!Never strap control (input / output) cables and power cables together.
!Power Interruption: This pump has a user programmable auto-restart feature which will can
either restore the pump to the operating state it was in when power was lost or require a user
action to restart.
Note: When in doubt regarding your electrical installation, contact a licensed electrician.
Electrical connections and grounding (earthing) must conform to local wiring codes.
WARNING
Risk of electric shock - Disconnect electricity before removing the wiring
compartment cover.
WARNING
Page 12 ®
FLEXFLO A3
5.0 Installation

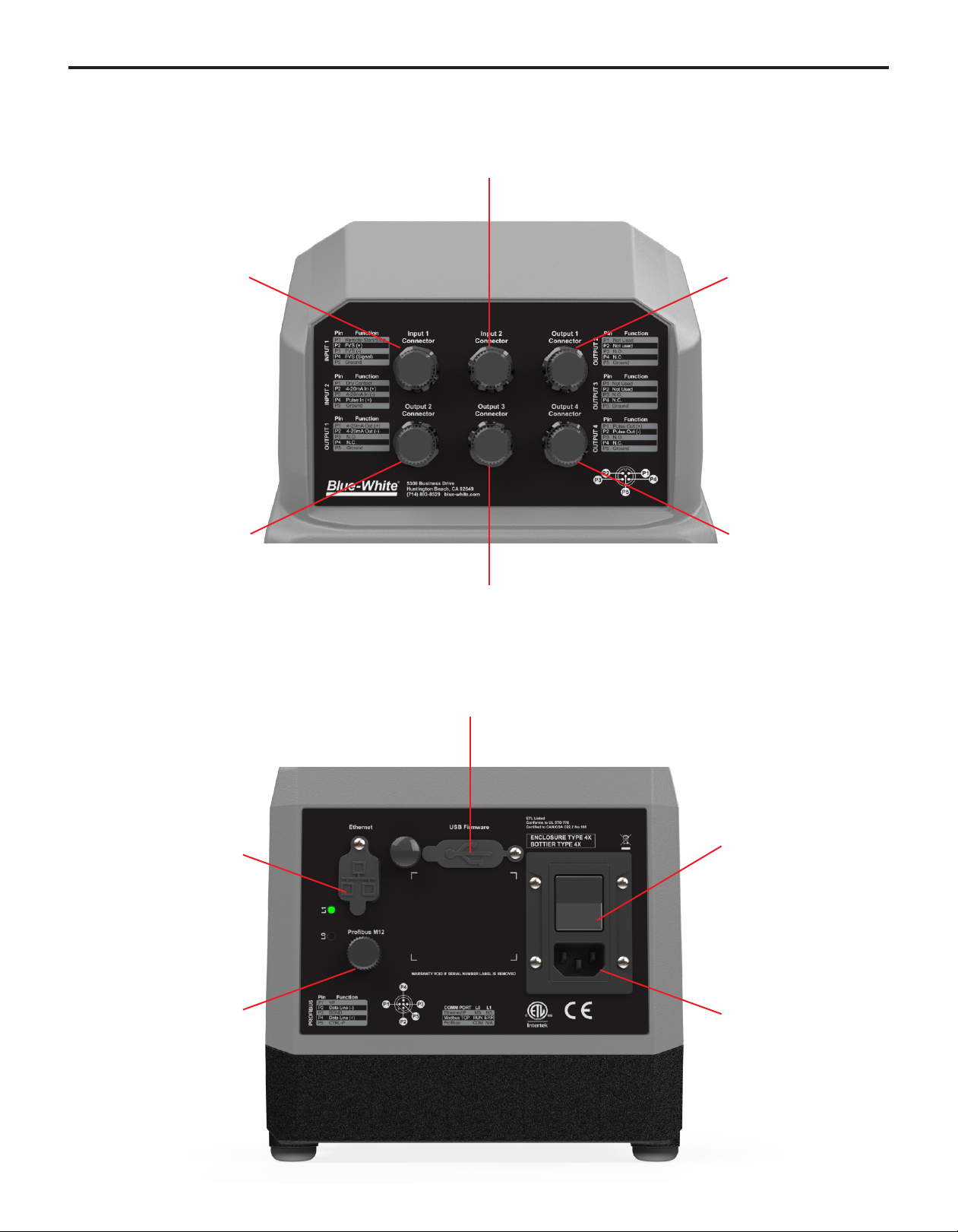

INPUT:
4-20 mA
FUNCTION PIN # RATING BLOCK DIAGRAM
(+) POSITIVE
2
3(-) NEGATIVE
(+)
(-)
ACTIVE 4-20mA
TRANSMITTER
SOURCE
(OPTIONAL PUMP #2)
Single or dual pump (series)
input. Loop voltage must not
exceed 24 Volts.
P4
P1
P2
P3
P5
P4
P1
P2
P3
P5
M12 Connector
INPUT #2
INPUT:
FVS SYSTEM
(FLOW VERIFICATION
SENSOR)
FV SENSOR ONLY
(+) POSITIVE
2
3(-) NEGATIVE
P4
P1
P2
P3
P5
INPUT #1
RED (+)
BARE
BLACK (-)
BLUE-WHITE
FVS SENSOR
4SIGNAL
INPUT:
FREQUENCY, AC
SINE WAVE, TTL,
CMOS
(+) POSITIVE
4
5(-) NEGATIVE
(-)
(+)
FREQUENCY TRANSMITTER
SOURCE
P4
P1
P2
P3
P5
INPUT #2
INPUT:
FVS SYSTEM
(FLOW VERIFICATION
SENSOR)
FS or FP MICRO-FLO
FLOWMETER ONLY
INPUT #1
BLUE-WHITE
MICRO-FLO
FLOWMETER
PULSE OUTPUT
P4
P1
P2
P3
P5
SIGNAL
BLACK (-)
(+) POSITIVE
2
3(-) NEGATIVE
4SIGNAL
INPUT:
REMOTE
START/STOP
DRY CONTACT C
PRIMARY
(+) POSITIVE
1
5(-) NEGATIVE
P4
P1
P2
P3
P5
INPUT #1
(+)
(-)
OPEN CIRCUIT
IMPEDANCE MUST
BE GREATER THAN
50K OHM
OUTPUT:
4-20 mA (+) POSITIVE
1
2(-) NEGATIVE
(-)
(+)
P4
P1
P2
P3
P5
OUTPUT #1
4-20mA RECEIVER
600 OHM LOAD MAX.
DIGITAL PULSE
RECEIVER CIRCUIT
1.5K OHM
EXTERNAL SOURCE
6-30V DC
OUTPUT:
FREQUENCY-
OPEN COLLECTOR
(+) POSITIVE
1
2(-) NEGATIVE
(-)
(+)
P4
P1
P2
P3
P5
OUTPUT #4
OUTPUT:
CONTACT
CLOSURE
#1
NORMALLY
OPEN
3
4
P4
P1
P2
P3
P5
OUTPUT #1
NC
C
NO
5COMMON
(GROUND)
SWITCH LOAD
1 AMP MAX @ 125V AC
0.8 AMP MAX @ 30V DC
NORMALLY
CLOSED
OUTPUT:
CONTACT
CLOSURE
#2
NORMALLY
OPEN
3
4
P4
P1
P2
P3
P5
OUTPUT #3
NC
C
NO
5COMMON
(GROUND)
SWITCH LOAD
1 AMP MAX @ 125V AC
0.8 AMP MAX @ 30V DC
NORMALLY
CLOSED
OUTPUT:
CONTACT
CLOSURE
#3
NORMALLY
OPEN
3
4
P4
P1
P2
P3
P5
OUTPUT #4
NC
C
NO
5COMMON
(GROUND)
SWITCH LOAD
1 AMP MAX @ 125V AC
0.8 AMP MAX @ 30V DC
NORMALLY
CLOSED
OUTPUT:
RELAY
6 AMP
NORMALLY
OPEN
3
4
P4
P1
P2
P3
P5
OUTPUT #2
NC
C
NO
5COMMON
(GROUND)
NORMALLY
CLOSED
SWITCH LOAD
6 AMP MAX @ 250V AC
5 AMP MAX @ 30V DC
INPUT:
AUTO-PRIME/
DRY CONTACT C
SECONDARY
(+) POSITIVE
1
5(-) NEGATIVE
P4
P1
P2
P3
P5
INPUT #2
(+)
(-)
OPEN CIRCUIT
IMPEDANCE MUST
BE GREATER THAN
50K OHM
P4
P1
P2
P3
P5
P4
P1
P2
P3
P5
P4
P1
P2
P3
P5
P4
P1
P2
P3
P5
P4
P1
P2
P3
P5
P4
P1
P2
P3
P5
P4
P1
P2
P3
P5
P4
P1
P2
P3
P5
P4
P1
P2
P3
P5
P4
P1
P2
P3
P5

5.4 Wiring Terminals and I/O Schematics
Page 13
®
FLEXFLO A3
Risk of electric shock - All
wiring must be insulated
and rated 300V minimum.
!
WARNING
Shielded cables should be used on all input signal wires.
5.0 Installation
5.3 Input Power Connections
Risk of electric shock – cord connected models are supplied with a grounding
conductor and grounding-type attachment plug. To reduce risk of electric shock, be
certain that it is connected only to a properly grounded, grounding-type receptacle.
WARNING
!Be certain to connect pump to proper supply voltage. Using incorrect voltage will damage
pump and may result in injury. Voltage requirement is printed on pump serial label.
!Input power range is 96VAC to 264VAC 50/60 Hz.
!Voltage Selection is automatically detected and adjusted by power supply. No mechanical
switch necessary.
!Use voltage your power cord is rated for.
!Power cord models are supplied with a ground wire conductor and a grounding type attach-
ment plug (power cord). To reduce risk of electric shock, be certain that power cord is con-
nected only to a properly grounded, grounding type receptacle.
!Be sure all M12 wiring cable glands are properly installed and sealed.
!Never strap control (input / output) cables and power cables together.
!Power Interruption: This pump has a user programmable auto-restart feature which will can
either restore the pump to the operating state it was in when power was lost or require a user
action to restart.
Note: When in doubt regarding your electrical installation, contact a licensed electrician.
Electrical connections and grounding (earthing) must conform to local wiring codes.
WARNING
Risk of electric shock - Disconnect electricity before removing the wiring
compartment cover.
WARNING
Page 12 ®
FLEXFLO A3
5.0 Installation
INPUT:
4-20 mA
FUNCTION PIN # RATING BLOCK DIAGRAM
(+) POSITIVE
2
3(-) NEGATIVE
(+)
(-)
ACTIVE 4-20mA
TRANSMITTER
SOURCE
(OPTIONAL PUMP #2)
Single or dual pump (series)
input. Loop voltage must not
exceed 24 Volts.
P4
P1
P2
P3
P5
P4
P1
P2
P3
P5
M12 Connector
INPUT #2
INPUT:
FVS SYSTEM
(FLOW VERIFICATION
SENSOR)
FV SENSOR ONLY
(+) POSITIVE
2
3(-) NEGATIVE
P4
P1
P2
P3
P5
INPUT #1
RED (+)
BARE
BLACK (-)
BLUE-WHITE
FVS SENSOR
4SIGNAL
INPUT:
FREQUENCY, AC
SINE WAVE, TTL,
CMOS
(+) POSITIVE
4
5(-) NEGATIVE
(-)
(+)
FREQUENCY TRANSMITTER
SOURCE
P4
P1
P2
P3
P5
INPUT #2
INPUT:
FVS SYSTEM
(FLOW VERIFICATION
SENSOR)
FS or FP MICRO-FLO
FLOWMETER ONLY
INPUT #1
BLUE-WHITE
MICRO-FLO
FLOWMETER
PULSE OUTPUT
P4
P1
P2
P3
P5
SIGNAL
BLACK (-)
(+) POSITIVE
2
3(-) NEGATIVE
4SIGNAL
INPUT:
REMOTE
START/STOP
DRY CONTACT C
PRIMARY
(+) POSITIVE
1
5(-) NEGATIVE
P4
P1
P2
P3
P5
INPUT #1
(+)
(-)
OPEN CIRCUIT
IMPEDANCE MUST
BE GREATER THAN
50K OHM
OUTPUT:
4-20 mA (+) POSITIVE
1
2(-) NEGATIVE
(-)
(+)
P4
P1
P2
P3
P5
OUTPUT #1
4-20mA RECEIVER
600 OHM LOAD MAX.
DIGITAL PULSE
RECEIVER CIRCUIT
1.5K OHM
EXTERNAL SOURCE
6-30V DC
OUTPUT:
FREQUENCY-
OPEN COLLECTOR
(+) POSITIVE
1
2(-) NEGATIVE
(-)
(+)
P4
P1
P2
P3
P5
OUTPUT #4
OUTPUT:
CONTACT
CLOSURE
#1
NORMALLY
OPEN
3
4
P4
P1
P2
P3
P5
OUTPUT #1
NC
C
NO
5COMMON
(GROUND)
SWITCH LOAD
1 AMP MAX @ 125V AC
0.8 AMP MAX @ 30V DC
NORMALLY
CLOSED
OUTPUT:
CONTACT
CLOSURE
#2
NORMALLY
OPEN
3
4
P4
P1
P2
P3
P5
OUTPUT #3
NC
C
NO
5COMMON
(GROUND)
SWITCH LOAD
1 AMP MAX @ 125V AC
0.8 AMP MAX @ 30V DC
NORMALLY
CLOSED
OUTPUT:
CONTACT
CLOSURE
#3
NORMALLY
OPEN
3
4
P4
P1
P2
P3
P5
OUTPUT #4
NC
C
NO
5COMMON
(GROUND)
SWITCH LOAD
1 AMP MAX @ 125V AC
0.8 AMP MAX @ 30V DC
NORMALLY
CLOSED
OUTPUT:
RELAY
6 AMP
NORMALLY
OPEN
3
4
P4
P1
P2
P3
P5
OUTPUT #2
NC
C
NO
5COMMON
(GROUND)
NORMALLY
CLOSED
SWITCH LOAD
6 AMP MAX @ 250V AC
5 AMP MAX @ 30V DC
INPUT:
AUTO-PRIME/
DRY CONTACT C
SECONDARY
(+) POSITIVE
1
5(-) NEGATIVE
P4
P1
P2
P3
P5
INPUT #2
(+)
(-)
OPEN CIRCUIT
IMPEDANCE MUST
BE GREATER THAN
50K OHM
P4
P1
P2
P3
P5
P4
P1
P2
P3
P5
P4
P1
P2
P3
P5
P4
P1
P2
P3
P5
P4
P1
P2
P3
P5
P4
P1
P2
P3
P5
P4
P1
P2
P3
P5
P4
P1
P2
P3
P5
P4
P1
P2
P3
P5
P4
P1
P2
P3
P5

6.3 M12 Connector
Pump (Rear Upper Panel)
M12
Input Connector 2
M12
Input Connector 1
M12
Output Connector 4
M12
Output Connector 3
M12
Output Connector 2
M12
Output Connector 1
6.4 IO Connection
USB-C
Power Supply
ON/OFF
M12
Profibus
Ethernet

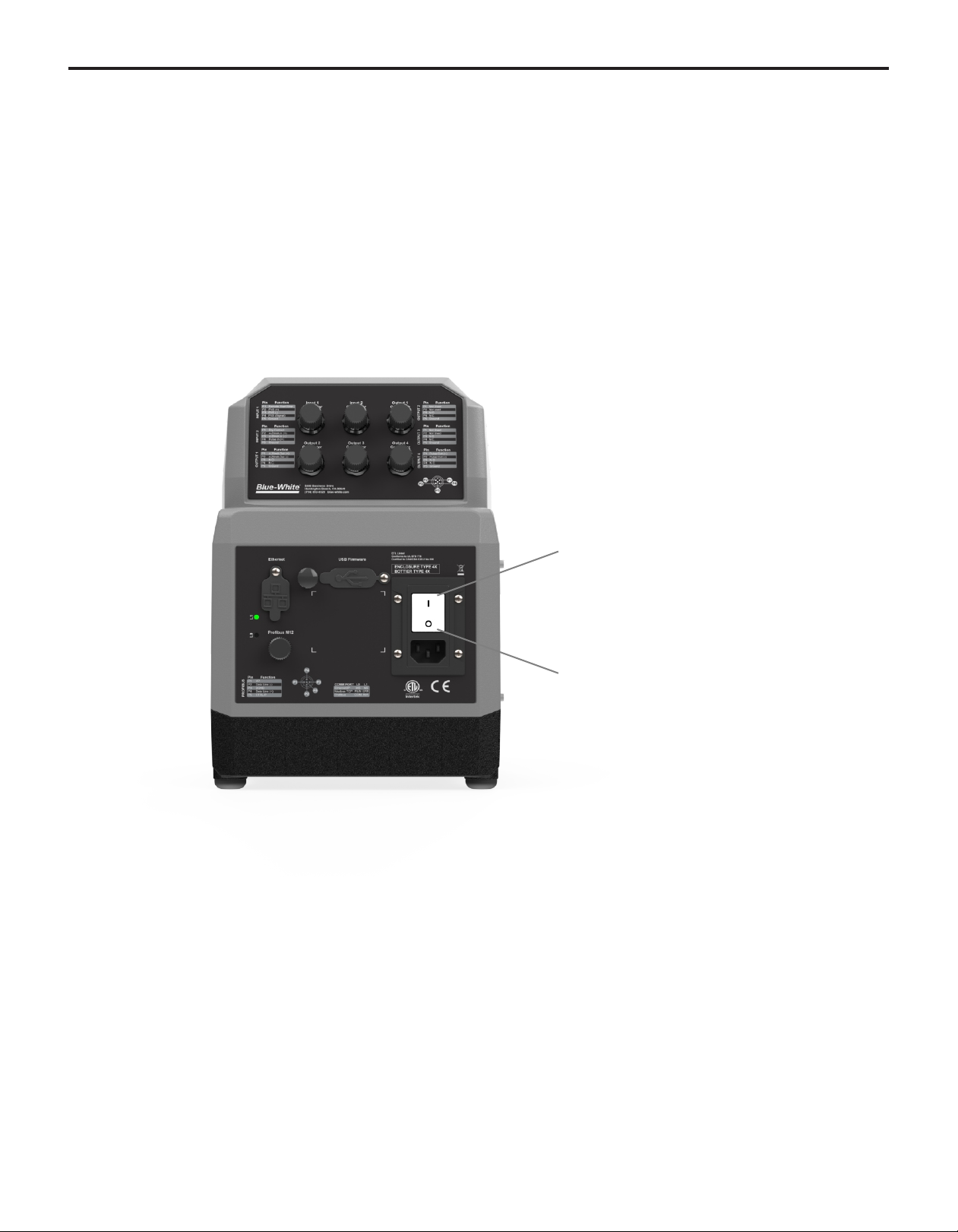

Pump (Rear Lower Panel)
Page 15
®
FLEXFLO A3 6.0 Layout
6.1 HOME SCREEN LAYOUT
6.2 APP SCREEN LAYOUT
System Time
Page Indicator (1 of 2)
Tube Info
Blue-White Icon
Home Screen
Start/Stop
Tube Info
Blue-White Icon
Pump Status
Chemical Name
App Drawer
Run Status Settings Tube Calibration
System TimePump Name Run Mode
Run Time /
Revolution Counter
Rotation Direction
Page 14 ®
FLEXFLO A3
6.0 Layout

6.3 M12 Connector
Pump (Rear Upper Panel)
M12
Input Connector 2
M12
Input Connector 1
M12
Output Connector 4
M12
Output Connector 3
M12
Output Connector 2
M12
Output Connector 1
6.4 IO Connection
USB-C
Power Supply
ON/OFF
M12
Profibus
Ethernet
Pump (Rear Lower Panel)
Page 15
®
FLEXFLO A3 6.0 Layout
6.1 HOME SCREEN LAYOUT
6.2 APP SCREEN LAYOUT
System Time
Page Indicator (1 of 2)
Tube Info
Blue-White Icon
Home Screen
Start/Stop
Tube Info
Blue-White Icon
Pump Status
Chemical Name
App Drawer
Run Status Settings Tube Calibration
System TimePump Name Run Mode
Run Time /
Revolution Counter
Rotation Direction
Page 14 ®
FLEXFLO A3
6.0 Layout

M12 Output Connector 2
PIN
Function
Specifications
Reference
P1
Not Used
P2
Not Used
P3
N.O.
Relay Out, N.O. Contact
6 Amp Max @ 250VAC,
5 Amp MAX @ 30VDC
P4
N.C.
Relay Out, N.C. Contact
6 Amp Max @ 250VAC,
5 Amp MAX @ 30VDC
P5
Ground
Relay Out, COM Contact
M12 Output Connector 3
PIN
Function
Specifications
Reference
P1
Not Used
P2
Not Used
P3
N.O.
Relay Out, N.O. Contact
.8 Amp Max @ 30VDC
1 Amp @ 125 VAC
P4
N.C.
Relay Out, N.C. Contact
P5
Ground
Relay Out, COM Contact
Page 17
®
FLEXFLO A3 6.0 Layout
6.5 M12 Connector
M12 Input Connector 1
PIN
Function
Specifications
Reference
P1
Remote Start/Stop
No Voltage
P2
FVS (+)
15 VDC @ 60 mA Supply
Power FVS Sensor
P3
FVS (-)
DC GND (0 VDC)
FVS Ground Input
P4
FVS (Signal)
Input Signal
FVS Input Signal
P5
Ground
DC Ground
0 VDC
P4
P1
P2
P5
M12 Input Connector 2
PIN
Function
Specifications
Reference
P1
Dry Contact
N.O. Dry Contact Closure
Open= Stop Gnd= Run
P2
4-20mA In (+)
120Ω Impedance Loop Ref. to Ground
P3
4-20mA In (-)
DC GND (0 VDC)
P4
Pulse In (+)
0-1000 Hz (AC. Square Wave) Ref. to Ground
FVS Input Signal
P5
Ground
DC GND (0 VDC)
M12 Output Connector 1
PIN
Function
Specifications
Reference
P1
4-20mA Out (+)
250Ohm max load
P2
4-20mA Out (-)
DC GND (0 VDC)
P3
N.O.
Relay Out, N.O. Contact 1 Amp @ 125 VAC
.8 Amp Max @ 30VDC
1 Amp @ 125 VAC
P4
N.C.
Relay Out, N.C. Contact
.8 Amp Max @ 30VDC
1 Amp @ 125 VAC
P5
Ground
Relay Out, COM Contact
P1
P4
P5
P3
P2
P3
M12 Input/Output Connector M12 Profibus Connector
Page 16 ®
FLEXFLO A3
6.0 Layout
M12 Output Connector 4
PIN
Function
Specifications
Reference
P1
Pulse Out (+)
0-1000 Hz (AC. Square Wave) Ref. to Ground
P2
Pulse Out (-)
DC GND (0 VDC)
P3
N.O.
Relay Out, N.O. Contact
.8 Amp Max @ 30VDC
1 Amp @ 125 VAC
P4
N.C.
Relay Out, N.C. Contact
.8 Amp Max @ 30VDC
1 Amp @ 125 VAC
P5
Ground
Relay Out, COM Contact
M12 Profibus Connector
PIN
Function
Specifications
Reference
P1
VP
+5V supply for terminating resisters
P2
RxD/TxD-N
Data line minus (A-line)
P3
DGND
Data ground
P4
RxD/TxD-P
Data line plus (B-line)
P5
Shield
Ground connection
Note:
M12 connectors not included with product.
Input/Output Connectors requires any A-Type M12 connector with 5 position female sockets
Profibus Connectors requires any B-Type M12 connector with 5 position female sockets
If the pump is the last bus device connected to the PROFIBUS cable it must be terminated using terminating resistor
(PROFIBUS standard EN 50170).

M12 Output Connector 2
PIN
Function
Specifications
Reference
P1
Not Used
P2
Not Used
P3
N.O.
Relay Out, N.O. Contact
6 Amp Max @ 250VAC,
5 Amp MAX @ 30VDC
P4
N.C.
Relay Out, N.C. Contact
6 Amp Max @ 250VAC,
5 Amp MAX @ 30VDC
P5
Ground
Relay Out, COM Contact
M12 Output Connector 3
PIN
Function
Specifications
Reference
P1
Not Used
P2
Not Used
P3
N.O.
Relay Out, N.O. Contact
.8 Amp Max @ 30VDC
1 Amp @ 125 VAC
P4
N.C.
Relay Out, N.C. Contact
P5
Ground
Relay Out, COM Contact
Page 17
®
FLEXFLO A3 6.0 Layout
6.5 M12 Connector
M12 Input Connector 1
PIN
Function
Specifications
Reference
P1
Remote Start/Stop
No Voltage
P2
FVS (+)
15 VDC @ 60 mA Supply
Power FVS Sensor
P3
FVS (-)
DC GND (0 VDC)
FVS Ground Input
P4
FVS (Signal)
Input Signal
FVS Input Signal
P5
Ground
DC Ground
0 VDC
P4
P1
P2
P5
M12 Input Connector 2
PIN
Function
Specifications
Reference
P1
Dry Contact
N.O. Dry Contact Closure
Open= Stop Gnd= Run
P2
4-20mA In (+)
120Ω Impedance Loop Ref. to Ground
P3
4-20mA In (-)
DC GND (0 VDC)
P4
Pulse In (+)
0-1000 Hz (AC. Square Wave) Ref. to Ground
FVS Input Signal
P5
Ground
DC GND (0 VDC)
M12 Output Connector 1
PIN
Function
Specifications
Reference
P1
4-20mA Out (+)
250Ohm max load
P2
4-20mA Out (-)
DC GND (0 VDC)
P3
N.O.
Relay Out, N.O. Contact 1 Amp @ 125 VAC
.8 Amp Max @ 30VDC
1 Amp @ 125 VAC
P4
N.C.
Relay Out, N.C. Contact
.8 Amp Max @ 30VDC
1 Amp @ 125 VAC
P5
Ground
Relay Out, COM Contact
P1
P4
P5
P3
P2
P3
M12 Input/Output Connector M12 Profibus Connector
Page 16 ®
FLEXFLO A3
6.0 Layout
M12 Output Connector 4
PIN
Function
Specifications
Reference
P1
Pulse Out (+)
0-1000 Hz (AC. Square Wave) Ref. to Ground
P2
Pulse Out (-)
DC GND (0 VDC)
P3
N.O.
Relay Out, N.O. Contact
.8 Amp Max @ 30VDC
1 Amp @ 125 VAC
P4
N.C.
Relay Out, N.C. Contact
.8 Amp Max @ 30VDC
1 Amp @ 125 VAC
P5
Ground
Relay Out, COM Contact
M12 Profibus Connector
PIN
Function
Specifications
Reference
P1
VP
+5V supply for terminating resisters
P2
RxD/TxD-N
Data line minus (A-line)
P3
DGND
Data ground
P4
RxD/TxD-P
Data line plus (B-line)
P5
Shield
Ground connection
Note:
M12 connectors not included with product.
Input/Output Connectors requires any A-Type M12 connector with 5 position female sockets
Profibus Connectors requires any B-Type M12 connector with 5 position female sockets
If the pump is the last bus device connected to the PROFIBUS cable it must be terminated using terminating resistor
(PROFIBUS standard EN 50170).

7.2 Welcome Screen
The first time the pump is powered on, or after a factory reset, the pump will boot up to the
Welcome Screen. Follow the onscreen instructions to configure your A3 pump. Refer to
section 11 of this manual to change any of these options after you have finished the initial
configuration.
Welcome Screen Configuration
1
Local Language
2
Set Time
& Local Date
& Local Time Zone
& Local Time
3
Set Name
& Pump Name
& Chemical Name
4
Set Units
& Unit of Volume
& Unit of Time
5
Set Tube Type
6
Set User Password
Page 19
®
FLEXFLO A3 7.0 Startup
7.1 Powering On The Pump
The A3 is equipped with a rocker switch to power ON/OFF the pump. Ensure that the power
cord is securely plugged into the corresponding power source before powering on the pump.
“I” is pressed to turn on the pump
“O” is pressed to turn off the pump
Page 18 ®
FLEXFLO A3
7.0 Startup

7.2 Welcome Screen
The first time the pump is powered on, or after a factory reset, the pump will boot up to the
Welcome Screen. Follow the onscreen instructions to configure your A3 pump. Refer to
section 11 of this manual to change any of these options after you have finished the initial
configuration.
Welcome Screen Configuration
1
Local Language
2
Set Time
& Local Date
& Local Time Zone
& Local Time
3
Set Name
& Pump Name
& Chemical Name
4
Set Units
& Unit of Volume
& Unit of Time
5
Set Tube Type
6
Set User Password
Page 19
®
FLEXFLO A3 7.0 Startup
7.1 Powering On The Pump
The A3 is equipped with a rocker switch to power ON/OFF the pump. Ensure that the power
cord is securely plugged into the corresponding power source before powering on the pump.
“I” is pressed to turn on the pump
“O” is pressed to turn off the pump
Page 18 ®
FLEXFLO A3
7.0 Startup

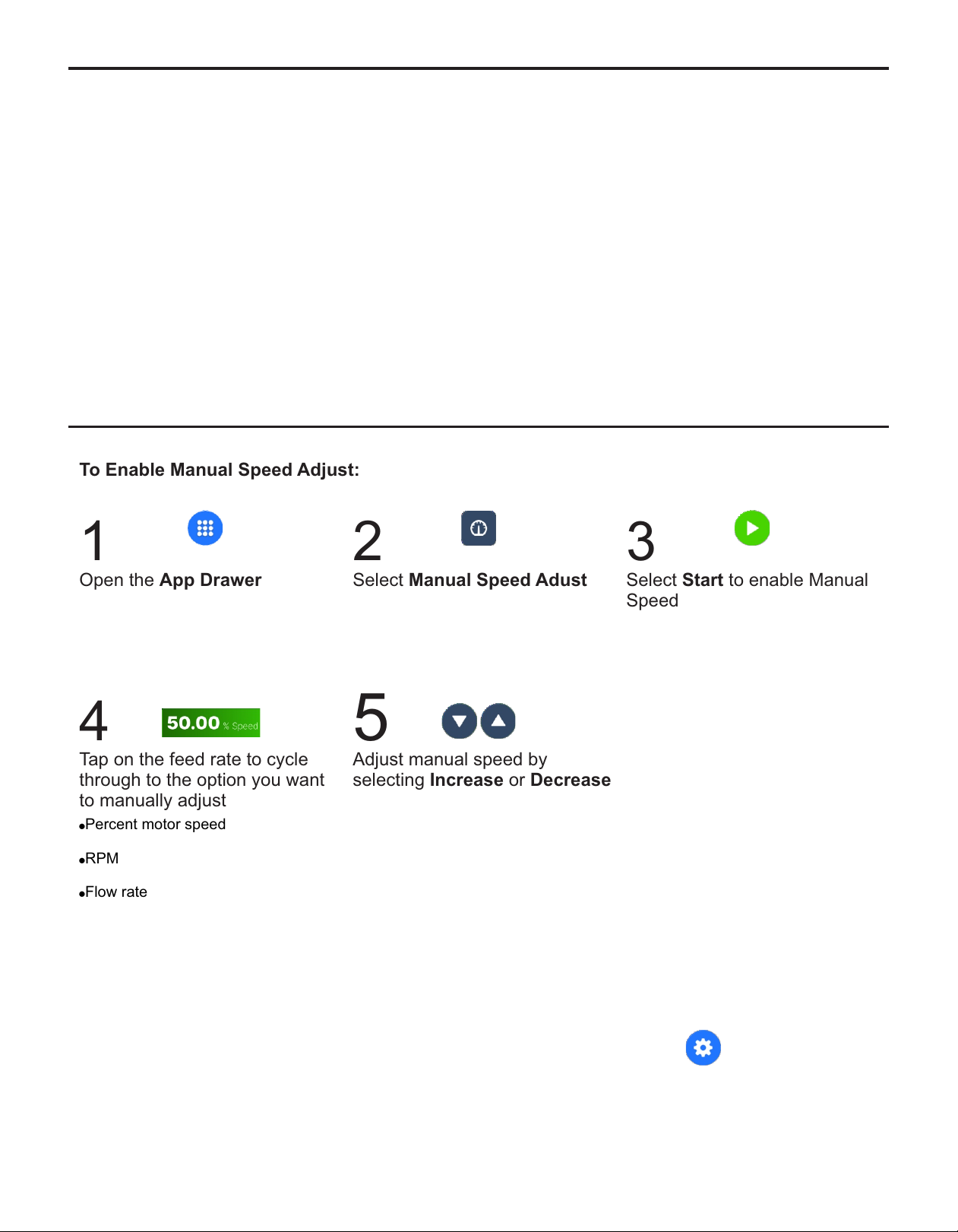

To Enable Manual Speed Adjust:
1
Open the App Drawer
2
Select Manual Speed Adust
3
Select Start to enable Manual
Speed
4
Tap on the feed rate to cycle
through to the option you want
to manually adjust
!Percent motor speed
!RPM
!Flow rate
5
Adjust manual speed by
selecting Increase or Decrease
8.1 Manual Speed Adjust
This input mode allows the user to set a specific speed and the pump will run at that speed
until stopped. There are up and down arrows on the home screen to incrementally adjust the
speed of the motor.
Default: Percent motor speed.
Also Available: RPM
Flow rate
Option: Stop pump and select settings to input desired motor speed.
Confirm by pressing “Save”
Page 20 ®
FLEXFLO A3
8.0 Input Setup Page 21
®
FLEXFLO A3 8.0 Input Setup
To Enable 4-20mA Input:
1
Open the App Drawer
2
Select 4-20mA Input
3
Select Settings to adjust
4-20mA input values
4
Confirm by selecting Save
5
Select Start to enable 4-20mA
Input
8.2 4-20mA Input
This input mode allows the user to set a range of mA input signals to a given motor speed, flow
rate or rpm. Used to remotely control the pump with an incoming 4-20mA signal.
Four points on the slope must be defined:
1) a low mA value
2) an output rate at the low mA value
3) a high mA value
4) an output rate at the high mA value
Default settings: 4mA = 0% motor speed
20mA = 100% motor speed
Option: Stop the pump and select the graph icon to easily adjust sliders to desired settings
Confirm by pressing “Save”
