Blue-White CHEM-FEED MD3 User manual

Multi-Diaphragm Metering Pump
MD3
®
CHEM-FEED

Page 2 Page 3
READ THE ENTIRE
OPERATING MANUAL PRIOR
TO INSTALLATION AND USE.
+1 (714) 893 - 8529
[email protected]
[email protected]
5300 Business Drive
Huntington Beach, CA 92649
1.0
Introduction
4
1.1 What’s in the box
4
1.2 Features
5
2.0
Engineering Specifications
6
2.1 Performance / Flow Curve
7
3.0

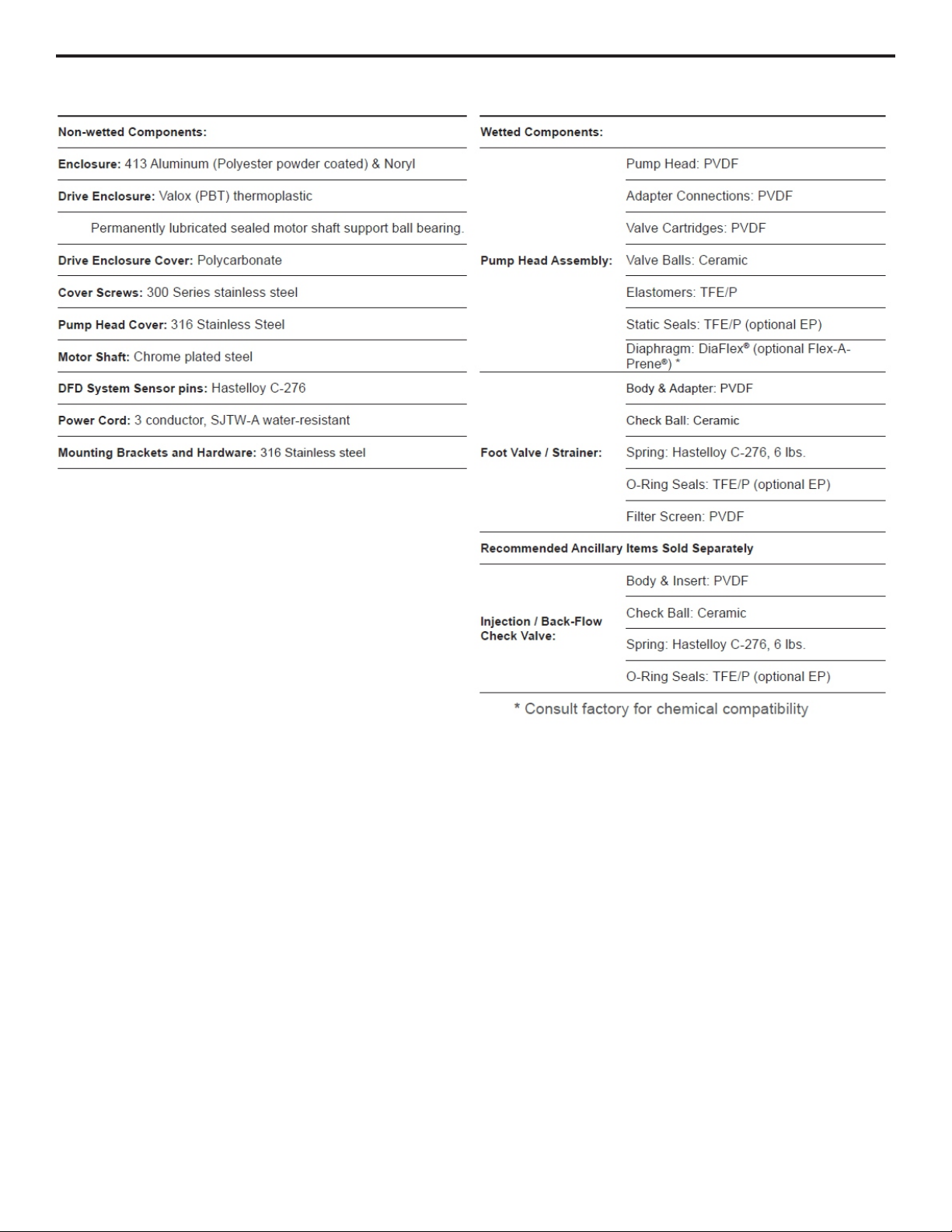

Materials of Construction
8
3.1 Non-Wetted Components
8
3.2 Wetted Components
8
4.0
Features
9
4.1 Agency Listings
9
5.0
Installation
10
5.1 Pump Manifold and Fitting Options
10
5.2 Mounting Location
11
5.3 Mounting Dimensions
11
5.4 Input Power Connections
12
5.5 Wiring Terminals and I/O Schematics
13
6.0
Layout
14
6.1 Home Screen Layout
14
6.2 App Screen Layout
14
6.3 M12 Connectors
15
6.4 IO Connectors
15
6.5 M12 Connectors Description
16
7.0
Startup
18
7.1 Powering On/Off the pump
18
7.2 Welcome Screen
19
8.0
Input Setup
20
8.1 Manual Input
20
8.2 4-20 mA Input
21
8.3 Frequency Input
22
8.4 Pulse Input
23
8.5 Remote Start/Stop (Quick Setting Option)
24
8.6 Flow Verification (FVS) (Quick Setting Opt)
25
8.7 Prime the Pump
26
8.8 Auto Prime the Pump
27
8.9 Time of Day
28
8.10 Passcode
29
8.11 Local Only Mode (via Quick Start Tab)
30
9.0
Output Setup
32
9.1 4-20 mA Output
32
9.2 Frequency Output
33
9.3 Relay & Contact Output
34
10.0 Industrial Protocols
35
10.1 Control and Status Mapping for Profibus
and EtherNet/IP
35
10.2 Control and Status Mapping for
Modbus TCP
36
10.3 Ethernet/IP
37
10.4 Modbus TCP
38
10.5 Profibus
39
11.0 Diaphragm
40
11.1 Diaphragm Information
40
11.2 Calibration
41
12.0
Settings
42
12.1 Pump Name
42
12.2 Unit of Volume
43
12.3 Unit of Time
44
12.4 Chemical Name
45
12.5 Language
46
12.6 System Time
48
12.7 Resume Operation upon Start-Up
49
12.8 Factory Reset
50
13.0
System
51
13.1 System Information
51
13.2 Firmware Update
52
14.0
Pump Maintenance
53
14.1 Routine Inspection and Maintenance
53
14.2 Cleaning the Pump
53
14.3 Replacing Diaphragm and Ball Check Cart.
54
14.4 Pump Head and Diaphragm Exploded
55
14.5 DFD (Diaphragm Failure Detection)
56
15.0
Replacement Parts
58
15.1 Pump Exploded View
58
15.2 Replacement Parts
59
16.0
Accessories
60
17.0
Warranty
63
APPENDIX A: ACRONYMS
64
APPENDIX B: MODEL NUMBER MATRIX
65

Page 2 Page 3
READ THE ENTIRE
OPERATING MANUAL PRIOR
TO INSTALLATION AND USE.
+1 (714) 893 - 8529
[email protected]
[email protected]
5300 Business Drive
Huntington Beach, CA 92649
1.0
Introduction
4
1.1 What’s in the box
4
1.2 Features
5
2.0
Engineering Specifications
6
2.1 Performance / Flow Curve
7
3.0
Materials of Construction
8
3.1 Non-Wetted Components
8
3.2 Wetted Components
8
4.0
Features
9
4.1 Agency Listings
9
5.0
Installation
10
5.1 Pump Manifold and Fitting Options
10
5.2 Mounting Location
11
5.3 Mounting Dimensions
11
5.4 Input Power Connections
12
5.5 Wiring Terminals and I/O Schematics
13
6.0
Layout
14
6.1 Home Screen Layout
14
6.2 App Screen Layout
14
6.3 M12 Connectors
15
6.4 IO Connectors
15
6.5 M12 Connectors Description
16
7.0
Startup
18
7.1 Powering On/Off the pump
18
7.2 Welcome Screen
19
8.0
Input Setup
20
8.1 Manual Input
20
8.2 4-20 mA Input
21
8.3 Frequency Input
22
8.4 Pulse Input
23
8.5 Remote Start/Stop (Quick Setting Option)
24
8.6 Flow Verification (FVS) (Quick Setting Opt)
25
8.7 Prime the Pump
26
8.8 Auto Prime the Pump
27
8.9 Time of Day
28
8.10 Passcode
29
8.11 Local Only Mode (via Quick Start Tab)
30
9.0
Output Setup
32
9.1 4-20 mA Output
32
9.2 Frequency Output
33
9.3 Relay & Contact Output
34
10.0 Industrial Protocols
35
10.1 Control and Status Mapping for Profibus
and EtherNet/IP
35
10.2 Control and Status Mapping for
Modbus TCP
36
10.3 Ethernet/IP
37
10.4 Modbus TCP
38
10.5 Profibus
39
11.0 Diaphragm
40
11.1 Diaphragm Information
40
11.2 Calibration
41
12.0
Settings
42
12.1 Pump Name
42
12.2 Unit of Volume
43
12.3 Unit of Time
44
12.4 Chemical Name
45
12.5 Language
46
12.6 System Time
48
12.7 Resume Operation upon Start-Up
49
12.8 Factory Reset
50
13.0
System
51
13.1 System Information
51
13.2 Firmware Update
52
14.0
Pump Maintenance
53
14.1 Routine Inspection and Maintenance
53
14.2 Cleaning the Pump
53
14.3 Replacing Diaphragm and Ball Check Cart.
54
14.4 Pump Head and Diaphragm Exploded
55
14.5 DFD (Diaphragm Failure Detection)
56
15.0
Replacement Parts
58
15.1 Pump Exploded View
58
15.2 Replacement Parts
59
16.0
Accessories
60
17.0
Warranty
63
APPENDIX A: ACRONYMS
64
APPENDIX B: MODEL NUMBER MATRIX
65

MD3 Peristaltic Pump
With 6ft (1.8m) power cord
USB Flash Drive With Instruction Manual
Fittings Kit
1/2" Barb Fittings (Straight & Elbow Adapters),
1/2" MPT Fittings (Straight and Elbow Adapters)
& 1/2" MPT Footvalve
Mounting Brackets
(2) Stainless Steel brackets with hardware to
mount to pump. Hardware to mount brackets to
surface provided by others.
®
Congratulations on purchasing the MD3 CHEM-FEED variable speed Multi-
Diaphragm Metering Pump.
®
Your CHEM-FEED MD3 pump is shipped with all fitting connections for easy
installation. Configured flow rate on pump display is set for the maximum flow
rate. Your flow rate may vary depending on discharge pressure. Calibration is
recommended during initial set-up of the pump.
Please Note: Your new pump has been pressure tested at the factory with
clean water before shipping. You may notice trace amounts of clean water in the
pump head assembly. This is part of our stringent quality assurance program at
Blue-White Industries.
For more information please visit us at: www.blue-white.com
For videos and tutorials please visit as at:
https://www.blue-white.com/resources/videos
Page 4 ®
CHEM-FEED MD3
1.0 Introduction
1.1 What’s In The Box
The following items are included with every MD3 diaphragm metering pump:
Page 5
®
CHEM-FEED MD3 1.0 Introduction
1.2 Features
The following items are included with every MD3 diaphragm metering pump:
!Motor driven diaphragm pump offers smooth and quiet chemical dosing. No hard pulses as
seen with solenoid driven pumps.
!2,000:1 turndown ratio.
!Full stroke every time avoids vapor lock.
!Brushless DC motor.
!Rated for continuous duty (24/7).
!Exclusive DIAFLEX® Diaphragm guaranteed to last the life of the pump.
!PVDF / Ceramic pump head components.
!Diaphragm Failure Detection (DFD) system. Senses diaphragm failure by detecting
chemical in pump head.
!Intuitive 5” touchscreen color display and user interface.
!Controls and I/O include:
Manual Speed Control, 4-20 mA input, Pulse and frequency input, Remote Start/Stop,
Communications options = Ethernet IP, Modbus TCP, Profibus, Scalable 4-20mA output
or frequency output, one 250V/6A relay and three 115V/1A contact closures assignable to
monitor various pump functions including DFD, FVS, stroke counter, remote/local, input
signals, output signals, motor on, motor fault, operating mode setting, and others.
!CNC precision machined cam and piston for optimum efficiency, unparalleled accuracy, and
linearity.
!Heavy duty PVDF pump head and valves are standard.
!Compatible with Blue-White’s output Flow Verification Sensor (FVS) system.
!Includes stainless steel extended mounting brackets. Lifts pump 4-1/2” (11.43 cm), for easy
access in hard to reach areas.

MD3 Peristaltic Pump
With 6ft (1.8m) power cord
USB Flash Drive With Instruction Manual
Fittings Kit
1/2" Barb Fittings (Straight & Elbow Adapters),
1/2" MPT Fittings (Straight and Elbow Adapters)
& 1/2" MPT Footvalve
Mounting Brackets
(2) Stainless Steel brackets with hardware to
mount to pump. Hardware to mount brackets to
surface provided by others.
®
Congratulations on purchasing the MD3 CHEM-FEED variable speed Multi-
Diaphragm Metering Pump.
®
Your CHEM-FEED MD3 pump is shipped with all fitting connections for easy
installation. Configured flow rate on pump display is set for the maximum flow
rate. Your flow rate may vary depending on discharge pressure. Calibration is
recommended during initial set-up of the pump.
Please Note: Your new pump has been pressure tested at the factory with
clean water before shipping. You may notice trace amounts of clean water in the
pump head assembly. This is part of our stringent quality assurance program at
Blue-White Industries.
For more information please visit us at: www.blue-white.com
For videos and tutorials please visit as at:
https://www.blue-white.com/resources/videos
Page 4 ®
CHEM-FEED MD3
1.0 Introduction
1.1 What’s In The Box
The following items are included with every MD3 diaphragm metering pump:
Page 5
®
CHEM-FEED MD3 1.0 Introduction
1.2 Features
The following items are included with every MD3 diaphragm metering pump:
!Motor driven diaphragm pump offers smooth and quiet chemical dosing. No hard pulses as
seen with solenoid driven pumps.
!2,000:1 turndown ratio.
!Full stroke every time avoids vapor lock.
!Brushless DC motor.
!Rated for continuous duty (24/7).
!Exclusive DIAFLEX® Diaphragm guaranteed to last the life of the pump.
!PVDF / Ceramic pump head components.
!Diaphragm Failure Detection (DFD) system. Senses diaphragm failure by detecting
chemical in pump head.
!Intuitive 5” touchscreen color display and user interface.
!Controls and I/O include:
Manual Speed Control, 4-20 mA input, Pulse and frequency input, Remote Start/Stop,
Communications options = Ethernet IP, Modbus TCP, Profibus, Scalable 4-20mA output
or frequency output, one 250V/6A relay and three 115V/1A contact closures assignable to
monitor various pump functions including DFD, FVS, stroke counter, remote/local, input
signals, output signals, motor on, motor fault, operating mode setting, and others.
!CNC precision machined cam and piston for optimum efficiency, unparalleled accuracy, and
linearity.
!Heavy duty PVDF pump head and valves are standard.
!Compatible with Blue-White’s output Flow Verification Sensor (FVS) system.
!Includes stainless steel extended mounting brackets. Lifts pump 4-1/2” (11.43 cm), for easy
access in hard to reach areas.

2.0 Engineering Specifications
2.1 PERFORMANCE / FLOW CURVE
Discharge pressure and motor RPM both have an effect on fluid output. For your reference the
charts below display the various pressures and their output at different motor RPM/SPM. All
testing was conducted with water at a three foot suction lift.
2.0 Engineering Specifications Page 7Page 6
Maximum Working Pressure
145 psig (10 bar)
NOTE: See pump curve details.
Maximum Fluid Temperature
185 °F (85 °C)
NOTE: Tested with water. Some chemicals may affect pump at higher temp
Maximum Viscosity 1,000 Centipoise
Maximum Suction Lift 23 ft. Water, 0 psig (7 m, 0 bar)
Ambient Operating Temperature 14 °F to 115 °F (-10 °C to 46 °C)
Ambient Storage Temperature -40 °F to 158 °F (-40 °C to 70 °C)
Operating Voltage
115VAC/60Hz, 1ph (2.0 Amp Maximum)
230VAC/60Hz, 1ph (1.0 Amp Maximum)
220VAC/50Hz, 1ph (1.0 Amp Maximum)
240VAC/50Hz, 1ph (1.0 Amp Maximum)
230VAC/50Hz, 1ph (1.0 Amp Maximum)
Power Cord Options
115V60Hz = NEMA 5/15 (USA)
230V60Hz = NEMA 6/15 (USA)
220V50Hz = CEE 7/VII (EU)
240V50Hz = AS 3112 (Australia/New Zealand)
230V50Hz = BS 1363/A (UK)
Motor Brushless DC, 1/4 hp
Motor Speed Adjustment Range 2,000:1 (0.05% - 100% motor speed) Max RPM = 95, SPM = 190
Motor Speed Adjustment Resolution
0.1% increments > 1% motor speed and < 100%
0.01% increments < 1% motor speed
Display 5” touchscreen color LCD, UV resistant.
Display Languages English, Spanish, French, German, and Portuguese selectable
Maximum Overall Dimensions 16-1/8”W x 15-1/4”H x 15-5/16”D (40.9W x 37.8H x 38.9D cm)
Product Weight 50lb. (11.5 Kg)
Security Programmable 6-digit password
Approximate Shipping Weight 30 lb. (22.7 Kg)
Enclosure NEMA 4X (IP66), Polyester powder coated aluminum & Noryl
RoHS Compliant Yes
Standards cETLus, CE, NSF61
®
CHEM-FEED MD3 ®
CHEM-FEED MD3

2.0 Engineering Specifications
2.1 PERFORMANCE / FLOW CURVE
Discharge pressure and motor RPM both have an effect on fluid output. For your reference the
charts below display the various pressures and their output at different motor RPM/SPM. All
testing was conducted with water at a three foot suction lift.
2.0 Engineering Specifications Page 7Page 6
Maximum Working Pressure
145 psig (10 bar)
NOTE: See pump curve details.
Maximum Fluid Temperature
185 °F (85 °C)
NOTE: Tested with water. Some chemicals may affect pump at higher temp
Maximum Viscosity 1,000 Centipoise
Maximum Suction Lift 23 ft. Water, 0 psig (7 m, 0 bar)
Ambient Operating Temperature 14 °F to 115 °F (-10 °C to 46 °C)
Ambient Storage Temperature -40 °F to 158 °F (-40 °C to 70 °C)
Operating Voltage
115VAC/60Hz, 1ph (2.0 Amp Maximum)
230VAC/60Hz, 1ph (1.0 Amp Maximum)
220VAC/50Hz, 1ph (1.0 Amp Maximum)
240VAC/50Hz, 1ph (1.0 Amp Maximum)
230VAC/50Hz, 1ph (1.0 Amp Maximum)
Power Cord Options
115V60Hz = NEMA 5/15 (USA)
230V60Hz = NEMA 6/15 (USA)
220V50Hz = CEE 7/VII (EU)
240V50Hz = AS 3112 (Australia/New Zealand)
230V50Hz = BS 1363/A (UK)
Motor Brushless DC, 1/4 hp
Motor Speed Adjustment Range 2,000:1 (0.05% - 100% motor speed) Max RPM = 95, SPM = 190
Motor Speed Adjustment Resolution
0.1% increments > 1% motor speed and < 100%
0.01% increments < 1% motor speed
Display 5” touchscreen color LCD, UV resistant.
Display Languages English, Spanish, French, German, and Portuguese selectable
Maximum Overall Dimensions 16-1/8”W x 15-1/4”H x 15-5/16”D (40.9W x 37.8H x 38.9D cm)
Product Weight 50lb. (11.5 Kg)
Security Programmable 6-digit password
Approximate Shipping Weight 30 lb. (22.7 Kg)
Enclosure NEMA 4X (IP66), Polyester powder coated aluminum & Noryl
RoHS Compliant Yes
Standards cETLus, CE, NSF61
®
CHEM-FEED MD3 ®
CHEM-FEED MD3

4.1 Agency Listings
Symbol
Description
Warning (Risk of electric shock)
Caution (Refer to the user’s guide)
Ground, Protective Conductor Terminal
ENCLOSURE RATING
NEMA 4X Constructed for either indoor or outdoor use to provide a degree of protection to personnel against incidental
contact with enclosed equipment; to provide a degree of protection against falling dirt, rain, sleet, snow,
windblown dust, splashing water, and hose-directed water; and that will be undamaged by external formation
of ice on enclosure.
IP66 No ingress of dust; complete protection against contact. Water projected in powerful jets against enclosure
from any direction shall have no harmful effects.
!
This pump is ETL listed to conforms to the following: UL Standard 778 as a motor operated water pump.
CSA Standard C22.2 as process control equipment
R
Certified to
NSF/ANSI Standard 61
This pump is certified to NSF/ANSI Standard 61- Drinking Water System Components - Health Effects
This pump complies to the Machinery Directive 2006/42/EC, BS, EN 60204-1, Low Voltage Directive
2014/35/EU BS EN 61010-1, EMC Directive 2014/30/EU, BS EN 50081-1/BS EN 50082-1.
Page 9
4.0 Features
3.1 Non-Wetted Components 3.2 Wetted Components
Page 8 3.0 Materials of Construction ®
CHEM-FEED MD3 ®
CHEM-FEED MD3

4.1 Agency Listings
Symbol
Description
Warning (Risk of electric shock)
Caution (Refer to the user’s guide)
Ground, Protective Conductor Terminal
ENCLOSURE RATING
NEMA 4X Constructed for either indoor or outdoor use to provide a degree of protection to personnel against incidental
contact with enclosed equipment; to provide a degree of protection against falling dirt, rain, sleet, snow,
windblown dust, splashing water, and hose-directed water; and that will be undamaged by external formation
of ice on enclosure.
IP66 No ingress of dust; complete protection against contact. Water projected in powerful jets against enclosure
from any direction shall have no harmful effects.
!
This pump is ETL listed to conforms to the following: UL Standard 778 as a motor operated water pump.
CSA Standard C22.2 as process control equipment
R
Certified to
NSF/ANSI Standard 61
This pump is certified to NSF/ANSI Standard 61- Drinking Water System Components - Health Effects
This pump complies to the Machinery Directive 2006/42/EC, BS, EN 60204-1, Low Voltage Directive
2014/35/EU BS EN 61010-1, EMC Directive 2014/30/EU, BS EN 50081-1/BS EN 50082-1.
Page 9
4.0 Features
3.1 Non-Wetted Components 3.2 Wetted Components
Page 8 3.0 Materials of Construction ®
CHEM-FEED MD3 ®
CHEM-FEED MD3

Page 11
5.0 Installation
Mounting Hole Spacings
(for standard and extended type brackets)
8.25” (20.9 cm)
2.5” (6.35 cm)
Maximum bolt hole size
0.200” diameter (4 places)
5.2 Mounting Location
1. Choose an area located near the chemical supply tank, chemical injection point, and electrical supply. Also,
choose an area where the pump can be easily serviced.
2. Finding a secure surface and using the provided mounting hardware, mount the pump close to the injection
point. Keep the inlet (suction) and outlet (discharge) tubing as short as possible. Longer discharge tubing
increases back pressure at pump head.
NOTE: Mount the pump securely using the provided mounting bracket and hardware.
NOTE: It is recommended to have a pressure relief valve at the discharge side of the of pump to prevent
premature wear and damage to the pump, in the event that the discharge line becomes blocked.
NOTE: The does not require back pressure. Back-pressure may be desire to maintain consistent flow when pump
pressure varies at discharge/injection point.
NOTE: Install a back flow prevention check valve at discharge side of pump to prevent system fluid from flowing
back through pump during pump maintenance.
All diagrams are strictly for guideline purposes only. Always consult an expert before installing
metering pump on specialized systems. Metering pump should be serviced by qualified persons
only.
Always wear protective clothing, face shield, safety glasses and gloves when working on or near
your metering pump. Additional precautions should be taken depending on solution being
pumped. Refer to MSDS precautions from your solution supplier.
The pump should be serviced by qualified persons only. If equipment is used in a manner not
specified in this manual, the protection provided by the equipment may be impaired.
The pump should be supplied by an isolating transformer or RCD (operating current less or
equal 30 mA).
!
CAUTION
!
CAUTION
!
CAUTION
!
CAUTION
Page 10 5.0 Installation
5.3 Pump Dimensions
Discharge Manifold
Flow
Flow - OR -
- OR - Flow
Flow
Suction Manifold
Fittings
1/2” NPT 1/2” barb
Front View Side View Bottom View

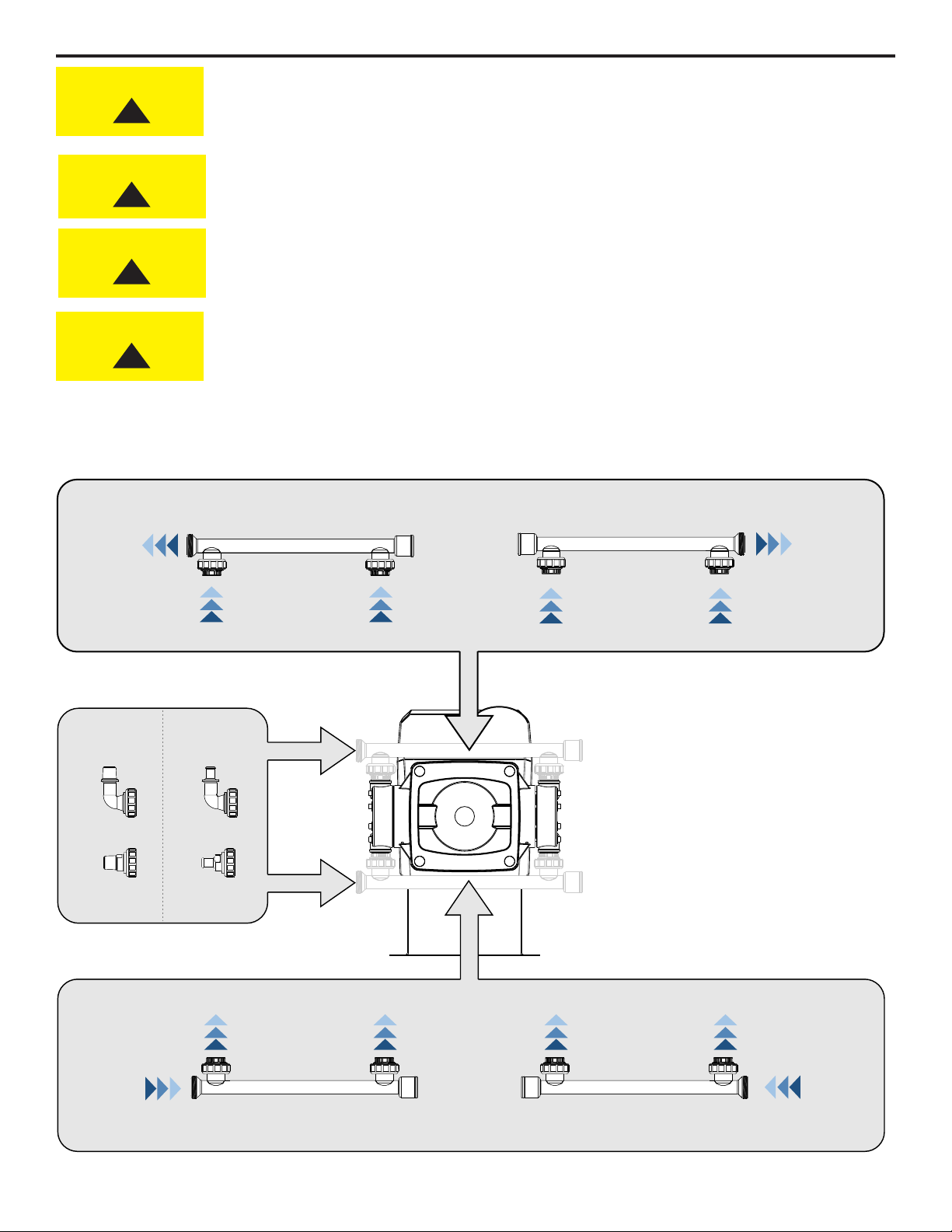

5.1 Pump Manifold and Fitting Configuration
®
CHEM-FEED MD3 ®
CHEM-FEED MD3

Page 11
5.0 Installation
Mounting Hole Spacings
(for standard and extended type brackets)
8.25” (20.9 cm)
2.5” (6.35 cm)
Maximum bolt hole size
0.200” diameter (4 places)
5.2 Mounting Location
1. Choose an area located near the chemical supply tank, chemical injection point, and electrical supply. Also,
choose an area where the pump can be easily serviced.
2. Finding a secure surface and using the provided mounting hardware, mount the pump close to the injection
point. Keep the inlet (suction) and outlet (discharge) tubing as short as possible. Longer discharge tubing
increases back pressure at pump head.
NOTE: Mount the pump securely using the provided mounting bracket and hardware.
NOTE: It is recommended to have a pressure relief valve at the discharge side of the of pump to prevent
premature wear and damage to the pump, in the event that the discharge line becomes blocked.
NOTE: The does not require back pressure. Back-pressure may be desire to maintain consistent flow when pump
pressure varies at discharge/injection point.
NOTE: Install a back flow prevention check valve at discharge side of pump to prevent system fluid from flowing
back through pump during pump maintenance.
All diagrams are strictly for guideline purposes only. Always consult an expert before installing
metering pump on specialized systems. Metering pump should be serviced by qualified persons
only.
Always wear protective clothing, face shield, safety glasses and gloves when working on or near
your metering pump. Additional precautions should be taken depending on solution being
pumped. Refer to MSDS precautions from your solution supplier.
The pump should be serviced by qualified persons only. If equipment is used in a manner not
specified in this manual, the protection provided by the equipment may be impaired.
The pump should be supplied by an isolating transformer or RCD (operating current less or
equal 30 mA).
!
CAUTION
!
CAUTION
!
CAUTION
!
CAUTION
Page 10 5.0 Installation
5.3 Pump Dimensions
Discharge Manifold
Flow
Flow - OR -
- OR - Flow
Flow
Suction Manifold
Fittings
1/2” NPT 1/2” barb
Front View Side View Bottom View
5.1 Pump Manifold and Fitting Configuration
®
CHEM-FEED MD3 ®
CHEM-FEED MD3

®
CHEM-FEED MD3 ®
CHEM-FEED MD3 Page 13
5.0 Installation
5.4 Input Power Connections
Risk of electric shock – cord connected models are supplied with a grounding
conductor and grounding-type attachment plug. To reduce risk of electric shock, be
certain that it is connected only to a properly grounded, grounding-type receptacle.
WARNING
· Be certain to connect pump to proper supply voltage. Using incorrect voltage will damage
pump and may result in injury. Voltage requirement is printed on pump serial label.
· Input power range is 96VAC to 264VAC 50/60 Hz.
· Voltage Selection is automatically detected and adjusted by power supply. No mechanical
switch necessary.
· Use power cord which is rated for your voltage.
· Power cord models are supplied with a ground wire conductor and a grounding type attach-
ment plug (power cord). To reduce risk of electric shock, be certain that power cord is con-
nected only to a properly grounded, grounding type receptacle.
· Be sure all M12 wiring cable glands are properly installed and sealed.
· Never strap control (input / output) cables and power cables together.
·Power Interruption: This pump has a user programmable auto-restart feature which will can
either restore the pump to the operating state it was in when power was lost or require a user
action to restart.
!Note: When in doubt regarding your electrical installation, contact a licensed electrician.
Electrical connections and grounding (earthing) must conform to local wiring codes.
WARNING
Risk of electric shock - Disconnect electricity before removing the wiring
compartment cover.
WARNING
Page 12 5.0 Installation

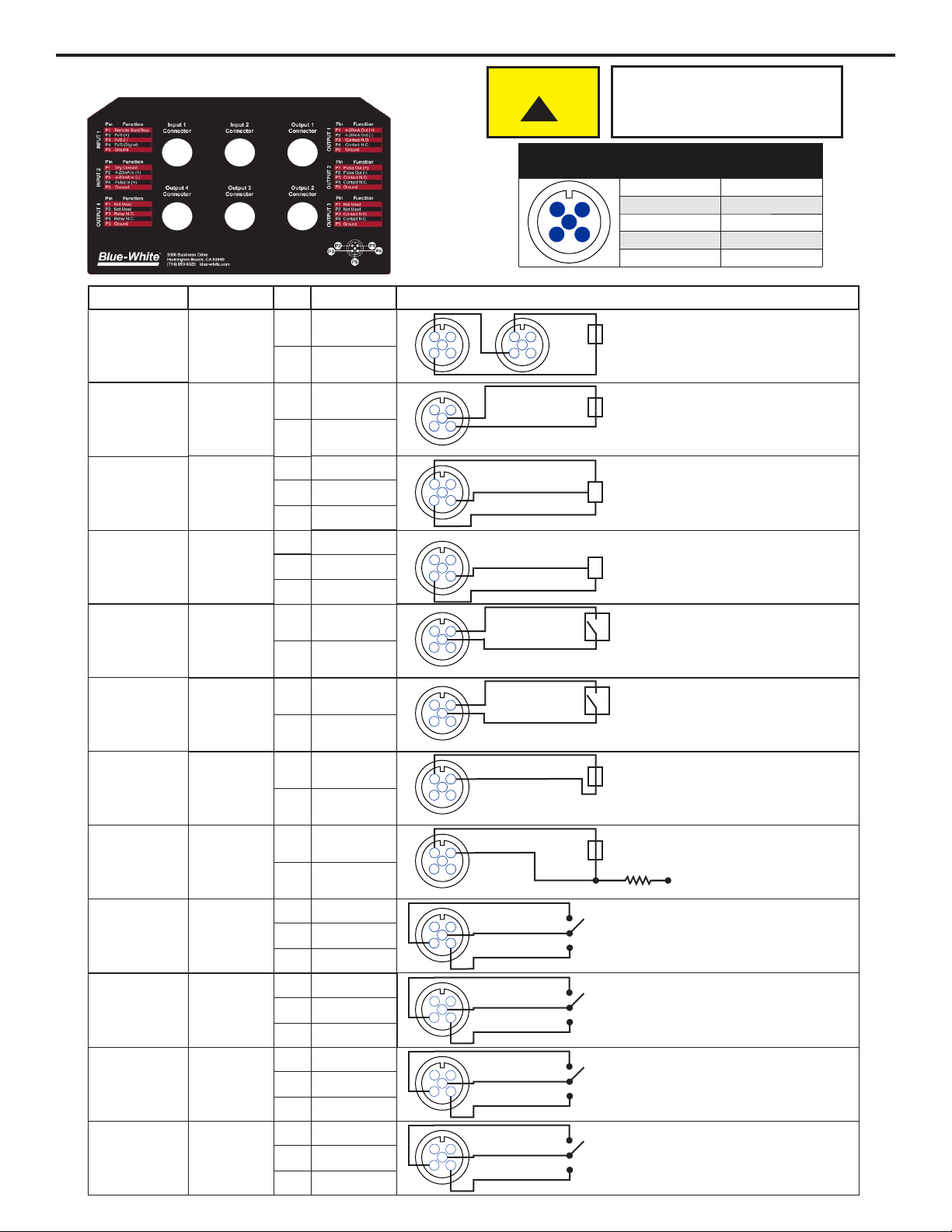

5.5 Wiring Terminals and I/O Schematics Risk of electric shock - All
wiring must be insulated
and rated 300V minimum.
!
WARNING
Shielded cables should be used on all input signal wires.
INPUT:
4-20 mA
FUNCTION PIN # RATING BLOCK DIAGRAM
(+) POSITIVE
2
3(-) NEGATIVE
(+)
(-)
ACTIVE 4-20mA
TRANSMITTER
SOURCE
(OPTIONAL PUMP #2)
Single or dual pump (series)
input. Loop voltage must not
exceed 24 Volts.
P4
P1
P2
P3
P5
P4
P1
P2
P3
P5
M12 Connector
INPUT #2
INPUT:
FVS SYSTEM
(FLOW VERIFICATION
SENSOR)
FV SENSOR ONLY
(+) POSITIVE
2
3(-) NEGATIVE
P4
P1
P2
P3
P5
INPUT #1
RED (+)
BARE
BLACK (-)
BLUE-WHITE
FVS SENSOR
4SIGNAL
INPUT:
FREQUENCY, AC
SINE WAVE, TTL,
CMOS
(+) POSITIVE
4
5(-) NEGATIVE
(-)
(+)
FREQUENCY TRANSMITTER
SOURCE
P4
P1
P2
P3
P5
INPUT #2
INPUT:
FVS SYSTEM
(FLOW VERIFICATION
SENSOR)
FS or FP MICRO-FLO
FLOWMETER ONLY
INPUT #1
BLUE-WHITE
MICRO-FLO
FLOWMETER
PULSE OUTPUT
P4
P1
P2
P3
P5
SIGNAL
BLACK (-)
(+) POSITIVE
2
3(-) NEGATIVE
4SIGNAL
INPUT:
REMOTE
START/STOP
DRY CONTACT C
PRIMARY
(+) POSITIVE
1
5(-) NEGATIVE
P4
P1
P2
P3
P5
INPUT #1
(+)
(-)
OPEN CIRCUIT
IMPEDANCE MUST
BE GREATER THAN
50K OHM
OUTPUT:
4-20 mA (+) POSITIVE
1
2(-) NEGATIVE
(-)
(+)
P4
P1
P2
P3
P5
OUTPUT #1
4-20mA RECEIVER
600 OHM LOAD MAX.
DIGITAL PULSE
RECEIVER CIRCUIT
1.5K OHM
EXTERNAL SOURCE
6-30V DC
OUTPUT:
FREQUENCY-
OPEN COLLECTOR
(+) POSITIVE
1
2(-) NEGATIVE
(-)
(+)
P4
P1
P2
P3
P5
OUTPUT #2
OUTPUT:
CONTACT
CLOSURE
#1
NORMALLY
OPEN
3
4
P4
P1
P2
P3
P5
OUTPUT #1
NC
C
NO
5COMMON
(GROUND)
SWITCH LOAD
1 AMP MAX @ 125V AC
0.8 AMP MAX @ 30V DC
NORMALLY
CLOSED
OUTPUT:
CONTACT
CLOSURE
#2
NORMALLY
OPEN
3
4
P4
P1
P2
P3
P5
OUTPUT #2
NC
C
NO
5COMMON
(GROUND)
SWITCH LOAD
1 AMP MAX @ 125V AC
0.8 AMP MAX @ 30V DC
NORMALLY
CLOSED
OUTPUT:
CONTACT
CLOSURE
#3
NORMALLY
OPEN
3
4
P4
P1
P2
P3
P5
OUTPUT #3
NC
C
NO
5COMMON
(GROUND)
SWITCH LOAD
1 AMP MAX @ 125V AC
0.8 AMP MAX @ 30V DC
NORMALLY
CLOSED
OUTPUT:
RELAY
6 AMP
NORMALLY
OPEN
3
4
P4
P1
P2
P3
P5
OUTPUT #4
NC
C
NO
5COMMON
(GROUND)
NORMALLY
CLOSED
SWITCH LOAD
6 AMP MAX @ 250V AC
5 AMP MAX @ 30V DC
INPUT:
AUTO-PRIME/
DRY CONTACT C
SECONDARY
(+) POSITIVE
1
5(-) NEGATIVE
P4
P1
P2
P3
P5
INPUT #2
(+)
(-)
OPEN CIRCUIT
IMPEDANCE MUST
BE GREATER THAN
50K OHM
P4
P1
P2
P3
P5
P4
P1
P2
P3
P5
P4
P1
P2
P3
P5
P4
P1
P2
P3
P5
P4
P1
P2
P3
P5
P4
P1
P2
P3
P5
P4
P1
P2
P3
P5
P4
P1
P2
P3
P5
P4
P1
P2
P3
P5
P4
P1
P2
P3
P5
KIT-M12 WIRING INSTRUCTIONS
DIAGRAM
PIN #
WIRE
PIN 1
BROWN
PIN 2
WHITE
PIN 3
BLUE
PIN 4
BLACK
PIN 5
GRAY
P4
P1
P2
P3
P5
Excitation voltage = 15V

®
CHEM-FEED MD3 ®
CHEM-FEED MD3 Page 13
5.0 Installation
5.4 Input Power Connections
Risk of electric shock – cord connected models are supplied with a grounding
conductor and grounding-type attachment plug. To reduce risk of electric shock, be
certain that it is connected only to a properly grounded, grounding-type receptacle.
WARNING
· Be certain to connect pump to proper supply voltage. Using incorrect voltage will damage
pump and may result in injury. Voltage requirement is printed on pump serial label.
· Input power range is 96VAC to 264VAC 50/60 Hz.
· Voltage Selection is automatically detected and adjusted by power supply. No mechanical
switch necessary.
· Use power cord which is rated for your voltage.
· Power cord models are supplied with a ground wire conductor and a grounding type attach-
ment plug (power cord). To reduce risk of electric shock, be certain that power cord is con-
nected only to a properly grounded, grounding type receptacle.
· Be sure all M12 wiring cable glands are properly installed and sealed.
· Never strap control (input / output) cables and power cables together.
·Power Interruption: This pump has a user programmable auto-restart feature which will can
either restore the pump to the operating state it was in when power was lost or require a user
action to restart.
!Note: When in doubt regarding your electrical installation, contact a licensed electrician.
Electrical connections and grounding (earthing) must conform to local wiring codes.
WARNING
Risk of electric shock - Disconnect electricity before removing the wiring
compartment cover.
WARNING
Page 12 5.0 Installation
5.5 Wiring Terminals and I/O Schematics Risk of electric shock - All
wiring must be insulated
and rated 300V minimum.
!
WARNING
Shielded cables should be used on all input signal wires.
INPUT:
4-20 mA
FUNCTION PIN # RATING BLOCK DIAGRAM
(+) POSITIVE
2
3(-) NEGATIVE
(+)
(-)
ACTIVE 4-20mA
TRANSMITTER
SOURCE
(OPTIONAL PUMP #2)
Single or dual pump (series)
input. Loop voltage must not
exceed 24 Volts.
P4
P1
P2
P3
P5
P4
P1
P2
P3
P5
M12 Connector
INPUT #2
INPUT:
FVS SYSTEM
(FLOW VERIFICATION
SENSOR)
FV SENSOR ONLY
(+) POSITIVE
2
3(-) NEGATIVE
P4
P1
P2
P3
P5
INPUT #1
RED (+)
BARE
BLACK (-)
BLUE-WHITE
FVS SENSOR
4SIGNAL
INPUT:
FREQUENCY, AC
SINE WAVE, TTL,
CMOS
(+) POSITIVE
4
5(-) NEGATIVE
(-)
(+)
FREQUENCY TRANSMITTER
SOURCE
P4
P1
P2
P3
P5
INPUT #2
INPUT:
FVS SYSTEM
(FLOW VERIFICATION
SENSOR)
FS or FP MICRO-FLO
FLOWMETER ONLY
INPUT #1
BLUE-WHITE
MICRO-FLO
FLOWMETER
PULSE OUTPUT
P4
P1
P2
P3
P5
SIGNAL
BLACK (-)
(+) POSITIVE
2
3(-) NEGATIVE
4SIGNAL
INPUT:
REMOTE
START/STOP
DRY CONTACT C
PRIMARY
(+) POSITIVE
1
5(-) NEGATIVE
P4
P1
P2
P3
P5
INPUT #1
(+)
(-)
OPEN CIRCUIT
IMPEDANCE MUST
BE GREATER THAN
50K OHM
OUTPUT:
4-20 mA (+) POSITIVE
1
2(-) NEGATIVE
(-)
(+)
P4
P1
P2
P3
P5
OUTPUT #1
4-20mA RECEIVER
600 OHM LOAD MAX.
DIGITAL PULSE
RECEIVER CIRCUIT
1.5K OHM
EXTERNAL SOURCE
6-30V DC
OUTPUT:
FREQUENCY-
OPEN COLLECTOR
(+) POSITIVE
1
2(-) NEGATIVE
(-)
(+)
P4
P1
P2
P3
P5
OUTPUT #2
OUTPUT:
CONTACT
CLOSURE
#1
NORMALLY
OPEN
3
4
P4
P1
P2
P3
P5
OUTPUT #1
NC
C
NO
5COMMON
(GROUND)
SWITCH LOAD
1 AMP MAX @ 125V AC
0.8 AMP MAX @ 30V DC
NORMALLY
CLOSED
OUTPUT:
CONTACT
CLOSURE
#2
NORMALLY
OPEN
3
4
P4
P1
P2
P3
P5
OUTPUT #2
NC
C
NO
5COMMON
(GROUND)
SWITCH LOAD
1 AMP MAX @ 125V AC
0.8 AMP MAX @ 30V DC
NORMALLY
CLOSED
OUTPUT:
CONTACT
CLOSURE
#3
NORMALLY
OPEN
3
4
P4
P1
P2
P3
P5
OUTPUT #3
NC
C
NO
5COMMON
(GROUND)
SWITCH LOAD
1 AMP MAX @ 125V AC
0.8 AMP MAX @ 30V DC
NORMALLY
CLOSED
OUTPUT:
RELAY
6 AMP
NORMALLY
OPEN
3
4
P4
P1
P2
P3
P5
OUTPUT #4
NC
C
NO
5COMMON
(GROUND)
NORMALLY
CLOSED
SWITCH LOAD
6 AMP MAX @ 250V AC
5 AMP MAX @ 30V DC
INPUT:
AUTO-PRIME/
DRY CONTACT C
SECONDARY
(+) POSITIVE
1
5(-) NEGATIVE
P4
P1
P2
P3
P5
INPUT #2
(+)
(-)
OPEN CIRCUIT
IMPEDANCE MUST
BE GREATER THAN
50K OHM
P4
P1
P2
P3
P5
P4
P1
P2
P3
P5
P4
P1
P2
P3
P5
P4
P1
P2
P3
P5
P4
P1
P2
P3
P5
P4
P1
P2
P3
P5
P4
P1
P2
P3
P5
P4
P1
P2
P3
P5
P4
P1
P2
P3
P5
P4
P1
P2
P3
P5
KIT-M12 WIRING INSTRUCTIONS
DIAGRAM
PIN #
WIRE
PIN 1
BROWN
PIN 2
WHITE
PIN 3
BLUE
PIN 4
BLACK
PIN 5
GRAY
P4
P1
P2
P3
P5
Excitation voltage = 15V

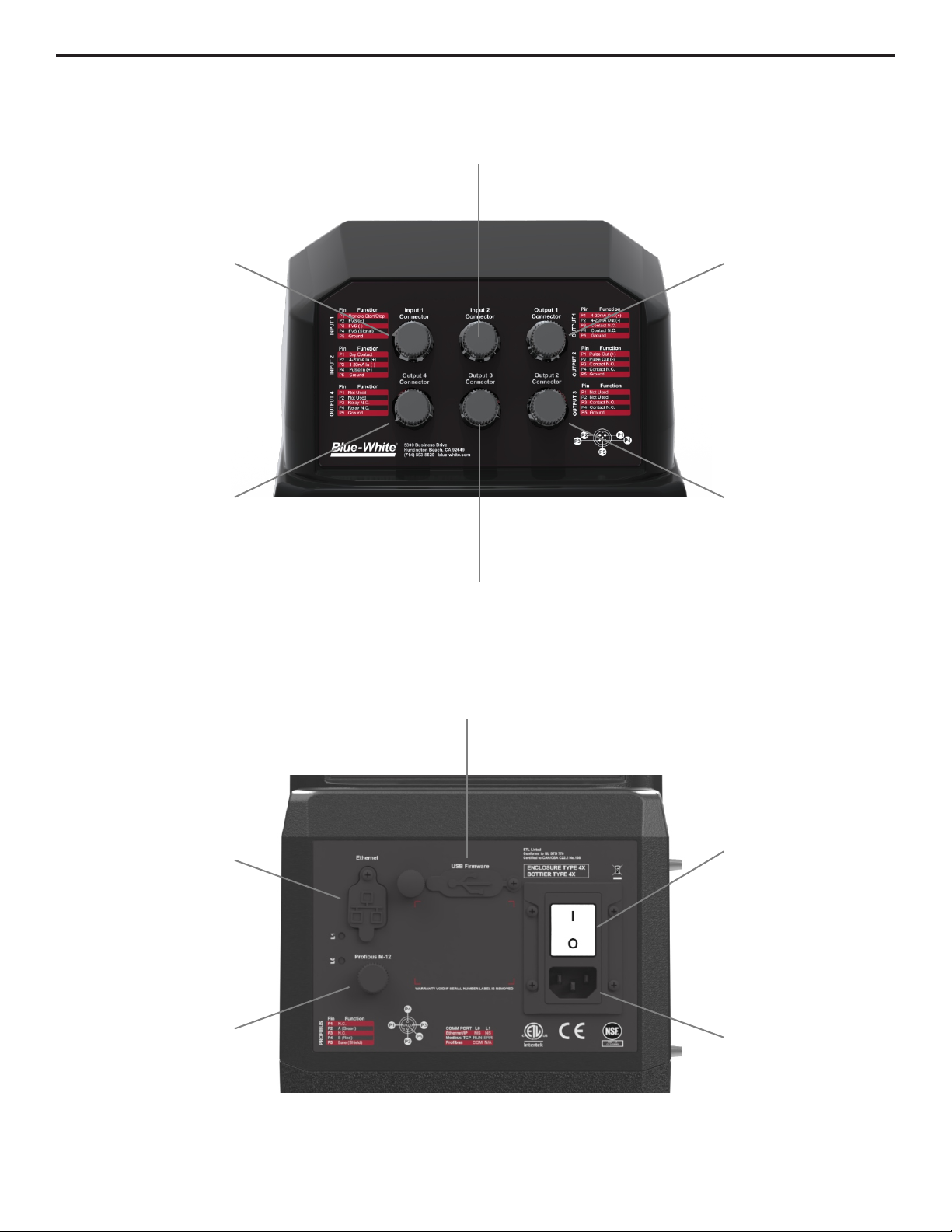

6.3 M12 Connector
Pump (Rear Upper Panel)
M12
Input Connector 2
M12
Input Connector 1
M12
Output Connector 2
M12
Output Connector 3
M12
Output Connector 4
M12
Output Connector 1
6.4 IO Connection
USB-C
Power Supply
ON/OFF
M12
Profibus
Ethernet /
Modbus TCP
Pump (Rear Lower Panel)
Page 15
6.0 Layout
6.1 HOME SCREEN LAYOUT
6.2 APP SCREEN LAYOUT
System Time
Page Indicator (1 of 2) - Swipe right for page 2
Diaphragm Info
Quick Setting Tab
Home Screen
Page 14 6.0 Layout
Start/Stop
Diaphragm
Quick Setting Tab
Pump Status
Chemical Name
App Drawer
Run Status Settings Calibration
System TimePump Name Run Mode
Run Time /
Stroke Counter
Pump Run Indicator
Quick Setting Tab - Allow users to quickly
!Turn On/Off Light
!Activate/Deactivate/Modify FVS Function
!Activate/Deactivate/Modify Remote Start/Stop function
!Active/Deactivate Local mode
FVS (Flow Verification Settings)
Remote Start/Stop Settings
Local Only Mode
Programmed I/O
®
CHEM-FEED MD3 ®
CHEM-FEED MD3

6.3 M12 Connector
Pump (Rear Upper Panel)
M12
Input Connector 2
M12
Input Connector 1
M12
Output Connector 2
M12
Output Connector 3
M12
Output Connector 4
M12
Output Connector 1
6.4 IO Connection
USB-C
Power Supply
ON/OFF
M12
Profibus
Ethernet /
Modbus TCP
Pump (Rear Lower Panel)
Page 15
6.0 Layout
6.1 HOME SCREEN LAYOUT
6.2 APP SCREEN LAYOUT
System Time
Page Indicator (1 of 2) - Swipe right for page 2
Diaphragm Info
Quick Setting Tab
Home Screen
Page 14 6.0 Layout
Start/Stop
Diaphragm
Quick Setting Tab
Pump Status
Chemical Name
App Drawer
Run Status Settings Calibration
System TimePump Name Run Mode
Run Time /
Stroke Counter
Pump Run Indicator
Quick Setting Tab - Allow users to quickly
!Turn On/Off Light
!Activate/Deactivate/Modify FVS Function
!Activate/Deactivate/Modify Remote Start/Stop function
!Active/Deactivate Local mode
FVS (Flow Verification Settings)
Remote Start/Stop Settings
Local Only Mode
Programmed I/O
®
CHEM-FEED MD3 ®
CHEM-FEED MD3

Page 17
6.0 Layout
Page 16 6.0 Layout
6.5 M12 Connector
P4
P1
P2
P5
P1
P4
P5
P3
P2
P3
M12 Input/Output Connector M12 Profibus Connector
M12 Input Connector 1
PIN
Function
Specifications
Reference
P1
Remote Start/Stop
No Voltage
P2
FVS (+)
15 VDC @ 60 mA Supply
Power FVS Sensor
P3
FVS (-)
DC GND (0 VDC)
FVS Ground Input
P4
FVS (Signal)
Input Signal
FVS Input Signal
P5
Ground
DC Ground
0 VDC
M12 Input Connector 2
PIN
Function
Specifications
Reference
P1
Auto Prime
N.O. Dry Contact Closure
Open= Stop Gnd= Run
P2
4-20mA In (+)
120Ω Impedance Loop Ref. to Ground
Voltage = 15VDC to 24VDC
P3
4-20mA In (-)
DC GND (0 VDC)
P4
Pulse In (+)
0-1000 Hz (AC. Square Wave) Ref. to Ground
FVS Input Signal
P5
Ground
DC GND (0 VDC)
M12 Profibus Connector
PIN
Function
Specifications
Reference
P1
VP
+5V supply for terminating resisters
P2
RxD/TxD-N
Data line minus (A-line)
P3
DGND
Data ground
P4
RxD/TxD-P
Data line plus (B-line)
P5
Shield
Ground connection
Note:
M12 connectors not included with product.
Input/Output Connectors requires any A-Type M12 connector with 5 position female sockets
Profibus Connectors requires any B-Type M12 connector with 5 position female sockets
If the pump is the last bus device connected to the PROFIBUS cable it must be terminated using terminating resistor
(PROFIBUS standard EN 50170).
M12 Output Connector 4
PIN
Function
Specifications
Reference
P1
Not Used
P2
Not Used
P3
N.O.
Relay Out, N.O. Contact
6 Amp Max @ 250VAC,
5 Amp MAX @ 30VDC
P4
N.C.
Relay Out, N.C. Contact
6 Amp Max @ 250VAC,
5 Amp MAX @ 30VDC
P5
Ground
Relay Out, COM Contact
M12 Output Connector 3
PIN
Function
Specifications
Reference
P1
Not Used
P2
Not Used
P3
N.O.
Contact closure output #3
N.O. Contact
.8 Amp Max @ 30VDC
1 Amp @ 125 VAC
P4
N.C.
Contact closure output #3
N.C. Contact
.8 Amp Max @ 30VDC
1 Amp @ 125 VAC
P5
Ground
Contact closure output #3
COM Contact
M12 Output Connector 1
PIN
Function
Specifications
Reference
P1
4-20mA Out (+)
250Ohm max load
P2
4-20mA Out (-)
DC GND (0 VDC)
P3
N.O.
Contact closure output #1
N.O. Contact 1 Amp @ 125 VAC
.8 Amp Max @ 30VDC
1 Amp @ 125 VAC
P4
N.C.
Contact closure output #1
N.C. Contact
.8 Amp Max @ 30VDC
1 Amp @ 125 VAC
P5
Ground
Contact closure output #1
COM Contact
M12 Output Connector 2
PIN
Function
Specifications
Reference
P1
Pulse Out (+)
0-1000 Hz (AC. Square Wave) Ref. to Ground
P2
Pulse Out (-)
DC GND (0 VDC)
P3
N.O.
Contact closure output #2
N.O. Contact
.8 Amp Max @ 30VDC
1 Amp @ 125 VAC
P4
N.C.
Contact closure output #2
N.C. Contact
.8 Amp Max @ 30VDC
1 Amp @ 125 VAC
P5
Ground
Contact closure output #2
COM Contact
®
CHEM-FEED MD3 ®
CHEM-FEED MD3

Page 17
6.0 Layout
Page 16 6.0 Layout
6.5 M12 Connector
P4
P1
P2
P5
P1
P4
P5
P3
P2
P3
M12 Input/Output Connector M12 Profibus Connector
M12 Input Connector 1
PIN
Function
Specifications
Reference
P1
Remote Start/Stop
No Voltage
P2
FVS (+)
15 VDC @ 60 mA Supply
Power FVS Sensor
P3
FVS (-)
DC GND (0 VDC)
FVS Ground Input
P4
FVS (Signal)
Input Signal
FVS Input Signal
P5
Ground
DC Ground
0 VDC
M12 Input Connector 2
PIN
Function
Specifications
Reference
P1
Auto Prime
N.O. Dry Contact Closure
Open= Stop Gnd= Run
P2
4-20mA In (+)
120Ω Impedance Loop Ref. to Ground
Voltage = 15VDC to 24VDC
P3
4-20mA In (-)
DC GND (0 VDC)
P4
Pulse In (+)
0-1000 Hz (AC. Square Wave) Ref. to Ground
FVS Input Signal
P5
Ground
DC GND (0 VDC)
M12 Profibus Connector
PIN
Function
Specifications
Reference
P1
VP
+5V supply for terminating resisters
P2
RxD/TxD-N
Data line minus (A-line)
P3
DGND
Data ground
P4
RxD/TxD-P
Data line plus (B-line)
P5
Shield
Ground connection
Note:
M12 connectors not included with product.
Input/Output Connectors requires any A-Type M12 connector with 5 position female sockets
Profibus Connectors requires any B-Type M12 connector with 5 position female sockets
If the pump is the last bus device connected to the PROFIBUS cable it must be terminated using terminating resistor
(PROFIBUS standard EN 50170).
M12 Output Connector 4
PIN
Function
Specifications
Reference
P1
Not Used
P2
Not Used
P3
N.O.
Relay Out, N.O. Contact
6 Amp Max @ 250VAC,
5 Amp MAX @ 30VDC
P4
N.C.
Relay Out, N.C. Contact
6 Amp Max @ 250VAC,
5 Amp MAX @ 30VDC
P5
Ground
Relay Out, COM Contact
M12 Output Connector 3
PIN
Function
Specifications
Reference
P1
Not Used
P2
Not Used
P3
N.O.
Contact closure output #3
N.O. Contact
.8 Amp Max @ 30VDC
1 Amp @ 125 VAC
P4
N.C.
Contact closure output #3
N.C. Contact
.8 Amp Max @ 30VDC
1 Amp @ 125 VAC
P5
Ground
Contact closure output #3
COM Contact
M12 Output Connector 1
PIN
Function
Specifications
Reference
P1
4-20mA Out (+)
250Ohm max load
P2
4-20mA Out (-)
DC GND (0 VDC)
P3
N.O.
Contact closure output #1
N.O. Contact 1 Amp @ 125 VAC
.8 Amp Max @ 30VDC
1 Amp @ 125 VAC
P4
N.C.
Contact closure output #1
N.C. Contact
.8 Amp Max @ 30VDC
1 Amp @ 125 VAC
P5
Ground
Contact closure output #1
COM Contact
M12 Output Connector 2
PIN
Function
Specifications
Reference
P1
Pulse Out (+)
0-1000 Hz (AC. Square Wave) Ref. to Ground
P2
Pulse Out (-)
DC GND (0 VDC)
P3
N.O.
Contact closure output #2
N.O. Contact
.8 Amp Max @ 30VDC
1 Amp @ 125 VAC
P4
N.C.
Contact closure output #2
N.C. Contact
.8 Amp Max @ 30VDC
1 Amp @ 125 VAC
P5
Ground
Contact closure output #2
COM Contact
®
CHEM-FEED MD3 ®
CHEM-FEED MD3

7.2 Welcome Screen
The first time the pump is powered on, or after a factory reset, the pump will boot up to the
Welcome Screen. Follow the onscreen instructions to configure your MD3 pump. Refer to
section 11 of this manual to change any of these options after you have finished the initial
configuration.

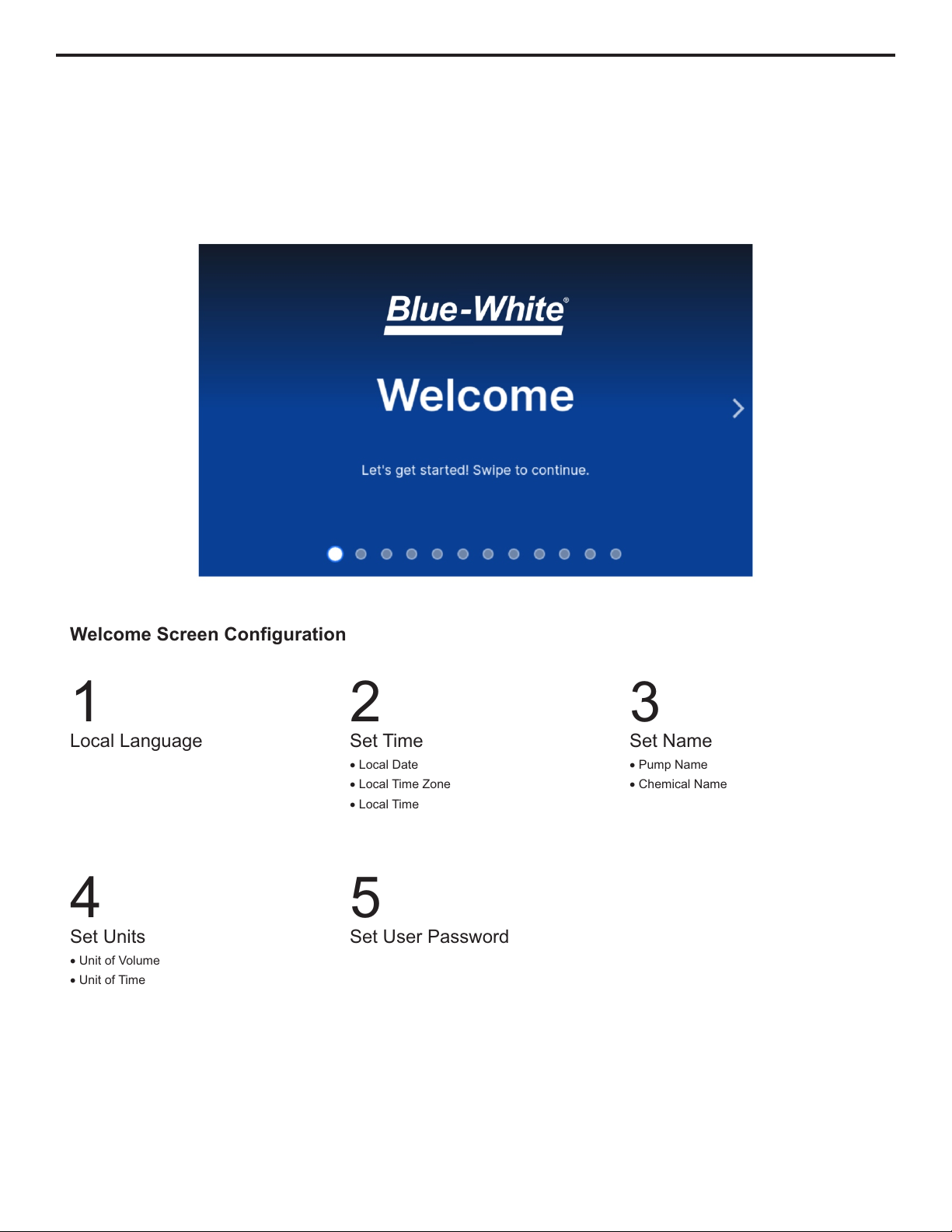

Welcome Screen Configuration
1
Local Language
2
Set Time
· Local Date
· Local Time Zone
· Local Time
3
Set Name
· Pump Name
· Chemical Name
4
Set Units
· Unit of Volume
· Unit of Time
5
Set User Password
Page 19
7.0 Startup
®
CHEM-FEED MD3 ®
CHEM-FEED MD3
7.1 Powering On The Pump
The MD3 is equipped with a rocker switch to power ON/OFF the pump. Ensure that the power
cord is securely plugged into the corresponding power source before powering on the pump.
“I” is pressed to turn on the pump
“O” is pressed to turn off the pump
Page 18 7.0 Startup

7.2 Welcome Screen
The first time the pump is powered on, or after a factory reset, the pump will boot up to the
Welcome Screen. Follow the onscreen instructions to configure your MD3 pump. Refer to
section 11 of this manual to change any of these options after you have finished the initial
configuration.
Welcome Screen Configuration
1
Local Language
2
Set Time
· Local Date
· Local Time Zone
· Local Time
3
Set Name
· Pump Name
· Chemical Name
4
Set Units
· Unit of Volume
· Unit of Time
5
Set User Password
Page 19
7.0 Startup
®
CHEM-FEED MD3 ®
CHEM-FEED MD3
7.1 Powering On The Pump
The MD3 is equipped with a rocker switch to power ON/OFF the pump. Ensure that the power
cord is securely plugged into the corresponding power source before powering on the pump.
“I” is pressed to turn on the pump
“O” is pressed to turn off the pump
Page 18 7.0 Startup

To Enable 4-20mA Input:
1
Open the App Drawer
2
Select 4-20mA Input
3
Select Settings to adjust
4-20mA input values
4
Confirm by selecting Save
5
Select Start to enable 4-20mA
Input
8.2 4-20mA Input
This input mode allows the user to set a range of mA input signals to a given motor speed, flow
rate or rpm. Used to remotely control the pump with an incoming 4-20mA signal.
Four points on the slope must be defined:
1) a low mA value
2) an output rate at the low mA value
3) a high mA value
4) an output rate at the high mA value
Default settings: 4mA = 0% motor speed
20mA = 100% motor speed
Option: Stop the pump and select the graph icon to easily adjust sliders to desired settings
Confirm by pressing “Save”
Page 21
8.0 Input Setup
To Enable Manual Speed Adjust:
1
Open the App Drawer
2
Select Manual Speed Adust
3
Select Start to enable Manual
Speed
4
Tap on the feed rate to cycle
through to the option you want
to manually adjust
·Percent motor speed
·SPM (Strokes per Minute)
·Flow rate
5
Adjust manual speed by
selecting Increase or Decrease
8.1 Manual Speed Adjust
This input mode allows the user to set a specific speed and the pump will run at that speed
until stopped. There are up and down arrows on the home screen to incrementally adjust the
speed of the motor.
Default: Percent motor speed.
Also Available: Percent motor speed
SPM (Strokes per Minute)
Flow rate
Option: Stop pump and select settings to input desired motor speed.
Confirm by pressing “Save”
Page 20 8.0 Input Setup ®
CHEM-FEED MD3 ®
CHEM-FEED MD3
