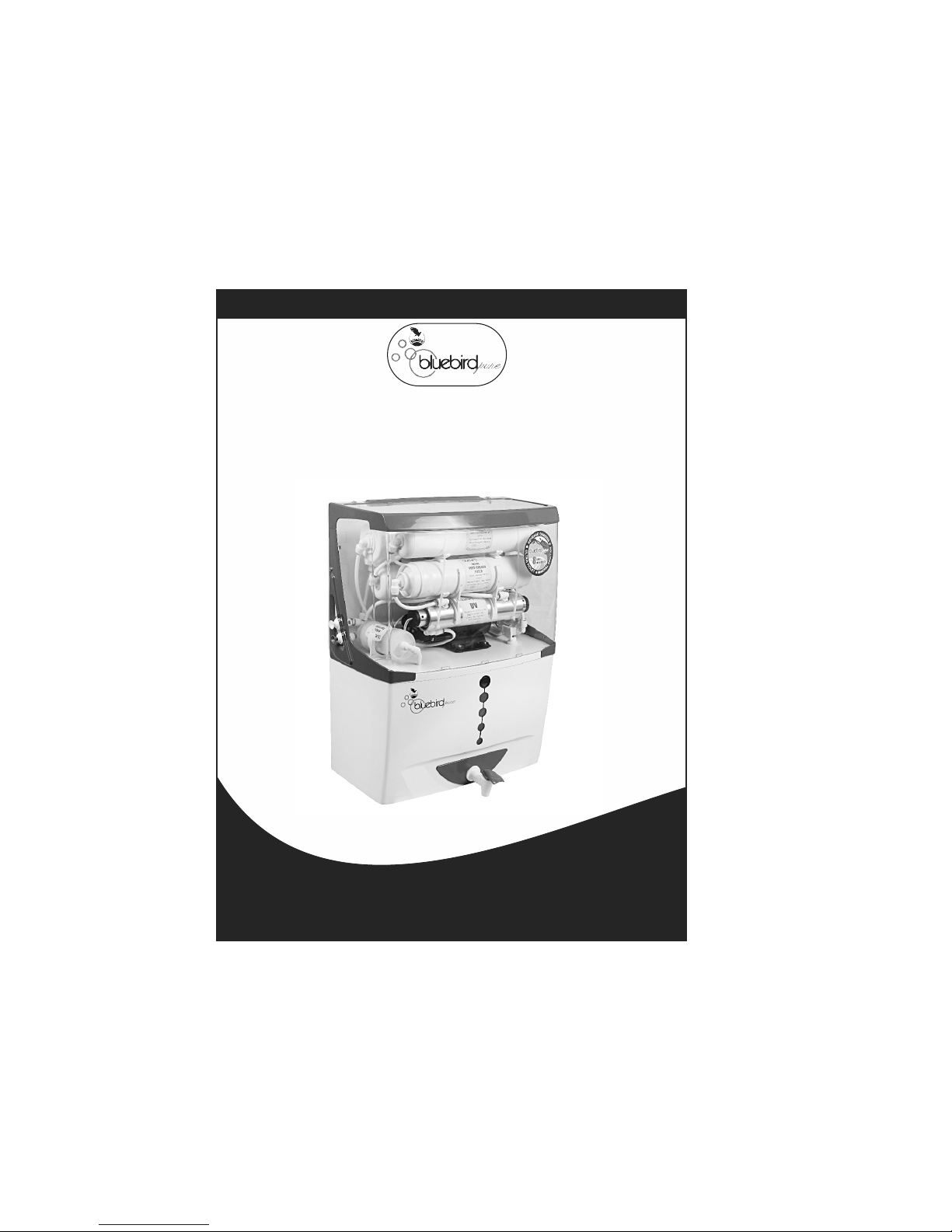

Bluebird Bluemoon RO+UV User manual

RO+UV
USER MANUAL
Bluemoon
(Upto 15 Litres per hour)

Dear Valued Customers,
Thanks for selecting the Bluebird brand products. For more
than 3 decades Bluebird is a trusted brand in stabilizer for its
quality products and Services.
We assure you to provide the best quality products in water
purifier products too which will match the international
standard and also assure for the quality services.
Please read this manual carefully to know about the product
function, operation and safety measures.
Thank you again for selecting Bluebird brand of Water
Purifiers.
Best Wishes,
Team Bluebird Water Purifiers.

1
Contents
1). Know your Product ----------------------------------------- 1
2). How it Functions---------------------------------------------2
3). Installation Instructions------------------------------------3,4
4). FAQ’s----------------------------------------------------------5,6
5). Important Instructions--------------------------------------7
6). Technical Specifications----------------------------------- 8
7:. Warranty Card------------------------------------------------9
8). Warranty Terms & Conditions------------------------------10,11
9). Key Features-------------------------------------------------12

Know Your Product
1
RO Water Tap
Transparent Front
Cover
Water Level
Indicator
Raw Water Inlet
Reject Water Outlet

1.Pre Filter: It is 8 micron sediment filter which filters all big size
of suspended particles from water and helps in preventing
sedimentation inside machine.
2. Inline Sediment Filter: It is having 5 micron pore size which
filters the small size of suspended particles to further increase
the life of machine.
3.Granule Activated Carbon: It removes organic chemicals,
benzene odor color problems, chlorine.
4. RO Membrane: It removes all dissolve salts, heavy metals like
lead arsenic etc. Also eliminates bacteria viruses and other
micro organism.
5. Post Carbon: It polishes the water, makes water more tastier
and crystal clear.
6.UV Treatment: The water is simultaneously passed through UV
process from UF membrane and deactivates virus and Bacteria
present in water. The water from RO membrane is also passed through
UV for double purification.
7.Mineral cartridge: After UV treatment water goes to 3 stage
mineral cartridge which enhance the essential mineral
composition in water.
How it Functions
2

The Bluebird RO Water Purifier is having most advanced
technology to provide pure drinking water. Bluebird RO water
purifier is easy to install, use and convenient to service.
Recommended Site Preparations
!220 V single phase AC connection not more than 3 meters away
from the point of installation of machine.
Space as per dimensions of the machine & operating space to
install.
Drain for rejected water should not be more than 2 meters away .
Specific Instructions
Bluebird RO Water Purifier is a wall mountable machine.
For optimum performance and minimum inlet pressure required
for machine, please ensure that the raw water supply tank is at
least 10ft above the level at which the machine is installed.
It is preferable to install the machine near the water sink so that
inlet water lines is easily available & reject water can be drained.
Installation Procedure
1.Carefully fix the machine with the help of drill guide provided in
kit. mark hole dimension as indicated in the drill guide and then
drill on the wall with the help of drilling machine.Then carefully
hang the machine with the help of slots provided at the back side
of L plate.
2. Fix the SS ball valve to the 3-way connector.
3. Connect the 3-way connector to the raw water supply . The
threaded end of the 3- way connector is fitted in line with the raw
water supply. The other end can be connected to a tap or can be
plugged off if not required.
Installation Instructions
3

4.Now connect one end of the white pipe to the SS ball valve and
other end to the push fit on the hand side of the outer filter
labelled as water in. (Note: White pipe is for raw water supply)
5.Take one meter of white pipe and Connect one end of the pipe
with in outer filter push fit where water out is marked and connect
another end of the white pipe with machine where water- in is
marked.
6. Similarly, connect one end of the blue pipe to the connector
labeled as REJECT WATER in machine and leave the other end
in the drain. (Note: Blue pipe is for rejected water)
7.Before connecting the power supply, it is important that
you perform the following functions:
i) Open the SS ball valve (Handle parallel to the ball valve) to
start the flow of water into the purifier.
ii) Wait for 2-3 minutes to ensure that the filters are soaked in
water.
Starting Up The Purifier
Switch on the power supply to get the purified water. Run the
machine at least for one hour .
.
Switch off the power supply.
Drain the first time purified water stored in tank to remove any
dust particles present in the pipes and storage tank.
Switch on the power supply.
Now Bluebird Bluemoon RO Water Purifier is ready to use.
Recommended Uses Of Reject Water
Although the rejected water has high concentration of salts, it is
absolutely clean and free of impurities like chlorine, dirt, sand,
etc. which are present in raw water. This rejected water usually
goes down the drain but if required, can be used for cleaning /
mopping purposes after disinfection.
Installation Instructions
4

1) What does TDS (total dissolved solids) means?
Total Dissolved Solids is a measure of dissolved inorganic
substances in water.
2) How does Bluebird RO Purifiers works?
Bluebird Bluemoon Brand has a 6 stage+3 Mineralization
stage purification process which ensures water you get is pure,
safe and it also reduces excess salts (TDS) to make your water
sweeter and tastier.
3) How much time it takes to purify water by Bluemoon RO?
Bluebird Bluemoon can purify water upto 15 liters per hour.
However, the time taken to purify depends on the impurities
present in water, input water pressure, TDS level, hardness level
in water and life of filters.
4) What is the storage capacity of Bluebird Bluemoon?
Bluebird Bluemoon is compatible with storage tank (14 liters Per
Hour Approx)
5) Is water from first purification cycle fit to drink?
No. it is recommended to drain the first cycle of water that is filled
in the storage tank when the new Bluebird RO is installed, and
also whenever cartridges are changed.
6) What should I do if there is no water in the storage tank?
In case there is no water in the storage tank we suggest following
preliminary checks by customer.
a) Check if there is water supply
b) Check if there is power supply
If answers to both cases are true, please call Bluebird customer
support center.
FAQ’S
5

7) Can I service on my own?
It is not recommended to open your Bluebird RO water purifier
and service it by individual. Call our Bluebird customer support
center for any issues related to service & opening the machine.
8) What should I do with reject water?
Although rejected water has high concentration of salts, it is
absolutely clean and free of impurities like chlorine, dirt and
sand. This rejected water can be used for cleaning and mopping
purposes.
9) What should I do if there is a leakage from the purifier?
In case of leakage from the purifier switch off the purifier. Check
for any visual improper fitment like tap or connection to purifier.
Call our Bluebird customer support number and register for a
service request.
10) How long the water in Bluebird RO can be used for
drinking?
You can use stored water for upto 48 hrs. if it is not used for 48
hours we advise you to discard that water refill and consume.
FAQ’S
6

Important Instructions
7
Avoid exposure to direct sunlight and
installation in damp areas
Make sure that the purifier is connected
to cold water supply only.
Geyser
------------------------------
-----------
Reject source
Make sure that the reject water pipe is
not placed at a level higher from the
purifier, otherwise reject water may flow
backwards into the purifier
water in
water source
3 m
The maximum distance between the
water source and the purifier should
not be more than 3 meters
-----------
Avoid sharp bends in the pipe. Do not
bend or block the reject water pipe.
Do not confine the purifier in a closed
cabinet.
--------------------
--------------------
To keep the storage tank clean, it should
be drained once in 15 days.
In case of not using the purifier for more
than two days, kindly switch of the power
supply and drain the storage tank.

Purification stage-------------------8 Stage + Outer Filter
Purification Capacity-------------15 litres/Hour (Max).
Duty Cycle ---------------------------5 Hours/90 ltrs. per day
RO Membrane ----------------------80 GPD
UV-------------------------------------11 Watt (Philips)
Filter Cartridge----------------------Pre Filter, Sediment, Carbon
Granual, Post Carbon, UF
Mineral Cartridge-------------------3 Stage
Display------------------------------- LED Display with filter
Membrane Life display
Input voltage------------------------ 220V AC 50 Hz
Operating Voltage ------------------24V DC
Min Inlet Water Pressure --------- 0.3 kg/cm
Max. Inlet Water Pressure --------3.0 kg/cm
Technical Specifications
8
Bluemoon Ro Purifier
2
2

9
Warranty Card
Product Serial No.:
Customer Details
Customer’s Name____________________________
Customer’s Address__________________________
__________________________________________
Customer’s Ph.No.___________________________
Warranty Details
Name of the Dealer with Address_________________
___________________________________________
Invoice No.& Date_____________________________
Bluemoon
RO Purifier
Dealer’s Signature with Stamp

Bluebird water purifiers (BWP) warrants all new products
manufactured by it to be free from defects in material and
workmanship under normal usage and service from the date of
installation as under below mentioned terms & condition:-
1. No warranty on Outer filter.
2. Warranty on all inline filter cartridge is for six months or 13750
(Thirteen Thousand Seven Hundred Fifty) Litres purification of
water (Max), whichever come first.
3.The warranty on RO membrane is for one year or 27500
(Twenty Seven Thousand Five Hundred) Litres of purified water
(Max) if the hardness of input water in machine is not more than
400 PPM, whichever come first.
4. No any warranty on plastic part of body.
5.The warranty will be void if the machine has been opened by
any person other than the authorised company technician.
6.Warranty is void on electrical parts if it is burnt due to high
voltage.
7.The BWP responsibility under this warranty will confine to the
first purchaser only and will not apply or extend to any
subsequent sale of the product by the customer.
8.The BWP liability under this warranty shall remain valid if and
only if the product is duly installed by the company, its authorized
dealer/s service provider at the address specified in the invoice or
where the installation is at a place other than specified in the
invoice. Such installation is undertaking with the consent in
writing of and by the company confined to cities where company
has service network.
9.Inspection & test report of the BWP office/service center will be
treated as final & binding under the warranty for determining
defects, repairs/alterations required or carried out, or certifying
working of the goods thereafter.
10.The BWP liability under the warranty will be limited only to
defect which occur under condition normal operation and under
proper use as defined in manual. It excludes defects occurring
because of abuse, faulty care or maintenance
repairs/ alterations to goods or parts by others.
10
Warranty Terms & Conditions

11.The consumer shall have no claim under this warranty in
respect of death/injury to any person or loss/damage to any
property caused as a result of equipment failure, breakdown or
accident on utilization of goods not in accordance with the
inflections in this user's manual or any other circumstance
beyond the control of the BWP.
12. The BWP shall be entitled to retain any defective part
replaced under warranty.
13. Product returned to BWP or its authorized service provider
for warrant y examination must be shipped freight pre-paid.
14.BWP reserves the right to make design and product changes
or change specifications at anytime without any contingent
obligations to prospective buyers or owners or products
previously sold.
15.Under no circumstances the terms mentioned above are
negotiable and no employee of BWP or its authorized
service provider has the authority to supersede the terms
mentioned above.
16.BWP or its authorized service provider assures no warranty
liability in connection with this water purifier other than that
specified herein. This warranty is in lieu of all other warranties of
fitness for a particular purpose. BWP or its authorized service
provider does not authorized any person or representative to
assume for it any other obligations on the sale of goods. This
warranty becomes effective when the system is installed
correctly and successfully.
17. Any disagreement and obligations based upon purchase of
BWP products and thereby imposed on BWP or its authorized
service providers shall be governed and construed according to
the laws of India and subject to jurisdiction of Delhi courts only.
11
Warranty Terms & Conditions

1. 8 stage filtration.
2. 80 GPD Membrane
3. 80 GPD pump.
4. Membrane capacity to handle Upto 2000 TDS
12
Key Features
*
(*2000 TDS with maximum 400 PPM hardness )

Marketed by
Bluebird Water Purifiers
70, Rajasthani Udyog Nagar
G.T. Karnal Road, Delhi-110033
www.bluebirdwaterpurifiers.com
Toll Free No. : 1800113911
