Bluesky Eliptig-S A00-1515 1 A User manual

S15-1006_1_A
UVC Disinfection System
User Manual
•Model A00-1515_1_A (50Hz / 60Hz)

S15-1006_1_A
2
1Safety Warnings____________________________________________________________3
2Labelling__________________________________________________________________5
2.1 Labelling_____________________________________________________________ 5
3Technical Specification ______________________________________________________6
4Transportation and Installation. _______________________________________________7
4.1 Transport Damage. ____________________________________________________ 7
4.2 Environmental Transport & Storage Conditions. ____________________________ 7
5System Operation.___________________________________________________________8
6General Maintenance_______________________________________________________11
6.1 Cleaning the Equipment _______________________________________________ 11
6.2 Visual Inspection_____________________________________________________ 11
6.3 Lamp Renewal_______________________________________________________ 11
6.4 Servicing and Maintenance Schedule ____________________________________ 11
6.5 Safe Disposal________________________________________________________ 12

S15-1006_1_A
3
1Safety Warnings
The Eliptig-S is designed to emit UVC radiation at 254nm which has been proven to be highly effective at
killing bacteria and viruses by destroying the molecular bonds that hold their DNA together.
The Eliptig-S must only be operated in a secure environment. DO NOT operate the device while people are
in the area.
Persons operating the unit must wear the safety glasses provided along with appropriate PPE.
The User Manual must always remain legible and kept with the Eliptig-S.
DO NOT use the power cable to manoeuvre the device.
WARNING –MERCURY HAZARD: Do not break the UVC lamps. Each UVC lamp contains small amounts
of mercury that can have harmful effects if exposed or ingested.
•Exposure to mercury may cause redness or irritation.
•In the case of a broken UVC lamp, sweep up all the broken glass and debris into a plastic bag and
secure it with a seal.
•Dispose of broken or UVC lamp debris at a local recycling center.
•Do not use a vacuum cleaner or incinerator to collect or dispose of any lamp debris.
WARNING - UVC LIGHT HAZARD: Use of controls, adjustments or performance of procedures
other than those specified herein may result in hazardous radiation exposure. No attempt to
operate this UV system until the User Manual has been read and fully understood. In addition, a
clear understanding of the biological effects of the interaction of UV light with tissue / eyes
should be prerequisite to the use of this UV system. When not in use the UV equipment should
be protected from unqualified use. UVC radiation can cause severe burns (of the skin) and eye
injuries (photokeratitis). Avoid direct skin exposure to UVC radiation and never look directly into
a UVC light source, even briefly.

S15-1006_1_A
4
WARNING: Do not modify this equipment without authorization of the manufacturer.
The manufacturer of the Eliptig-S has made every effort to provide as many safety features as possible to
assure personal safety. To be effective, these safety features must be utilised and not ignored.
Electrical Safety
WARNING: To avoid risk of electric shock, this equipment must only be connected to a supply mains with
protective earth.
HIGH VOLTAGE WARNING: There are no user serviceable parts inside the unit, only manufacturer spares
and accessories should be used with the system, non-standard cables, components and accessories may
degrade performance, create safety hazards or affect EMC performance. NO ATTEMPT SHOULD BE
MADE TO REMOVE THE OUTER COVER
WARNING: Use of this equipment adjacent to or stacked with other equipment should be avoided because
it could result in improper operation. If such use is necessary, this equipment and the other equipment
should be observed to verify that they are operating normally.

S15-1006_1_A
5

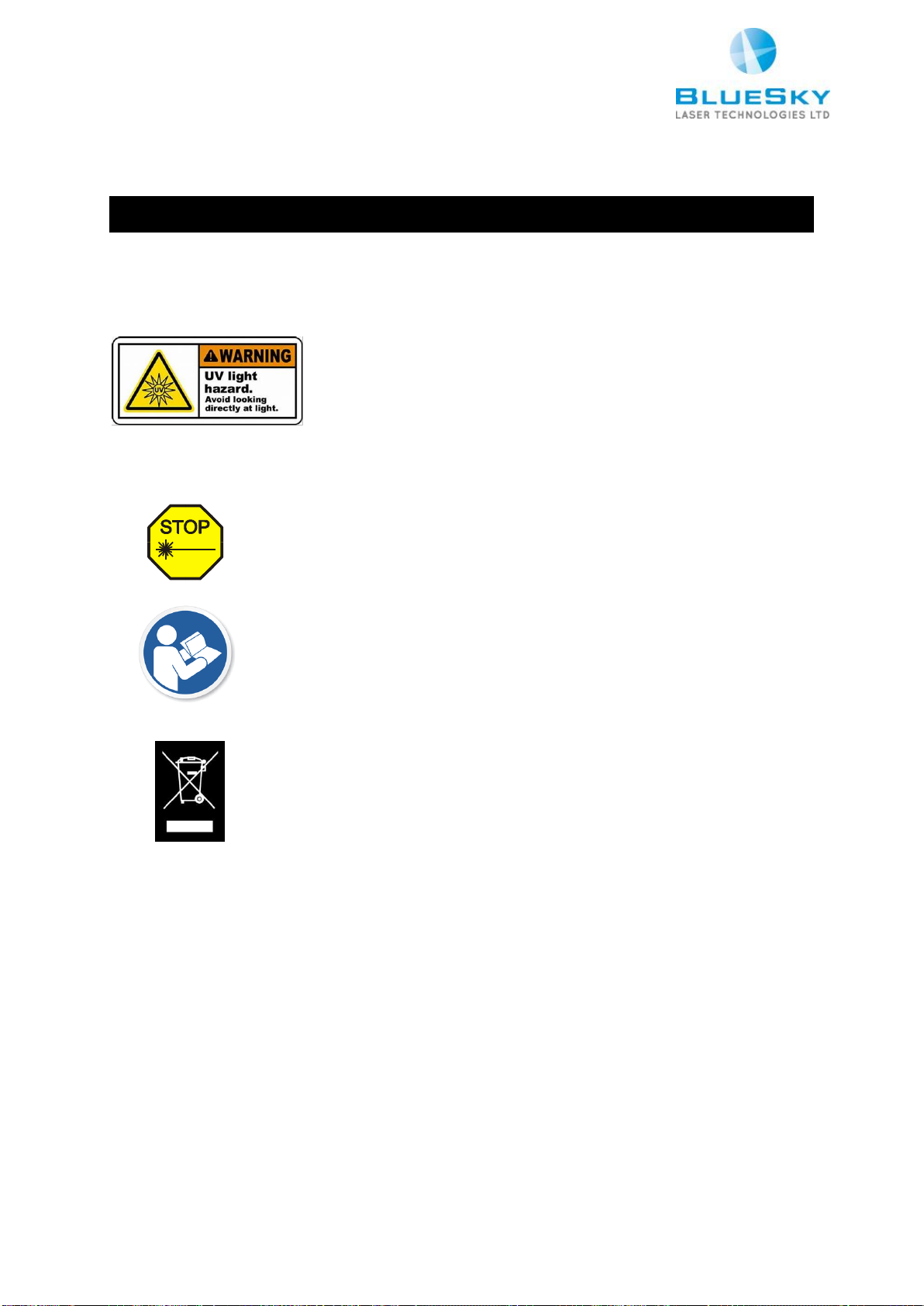

2Labelling
2.1 Labelling
UV Hazard Warning (located on base top)
Emergency Stop (located on base rear)
Consult Accompanying Documents (located on base front)
Waste Electronic & Electrical Equipment (WEEE) (located on base rear)
Manufacturers Label (located on Rear)

S15-1006_1_A
6
3Technical Specification
Electrical Class:
Class 1
Voltage (V):
100-240Vac
Current (I):
100Vac, 6.5 Amps
240Vac, 3 Amps
Frequency (Hz):
50/60Hz
Input Power (W):
640 Watts
Output UV Radiation:
140 Watts
Wavelength (nm)
254nm
Useful Lamp Life (Hrs)
8000 Hours
User Interface:
7” Touch Screen
4 button key fob module, 433MHz, 100m range
Ingress Protection
IPX0
Mains Fuses (I)
T10AH 250Vac
Motion Detection:
4 x Passive Infrared Sensors
Conditions of Use
100C to 300C Non-condensing humidities below 75% RH
Dimensions: (mm)
800mm x 400mm x 1345mm
Weight: (kg)
25 kg
Standards:
Electrical Safety: EN 61010-1:2010. EN 61010-2-040:2015,
EMC: EN 61326-2-1:2013 FCC CFR 47 Parts 15.107 & 15.109;
ICES-003 Issue 6.

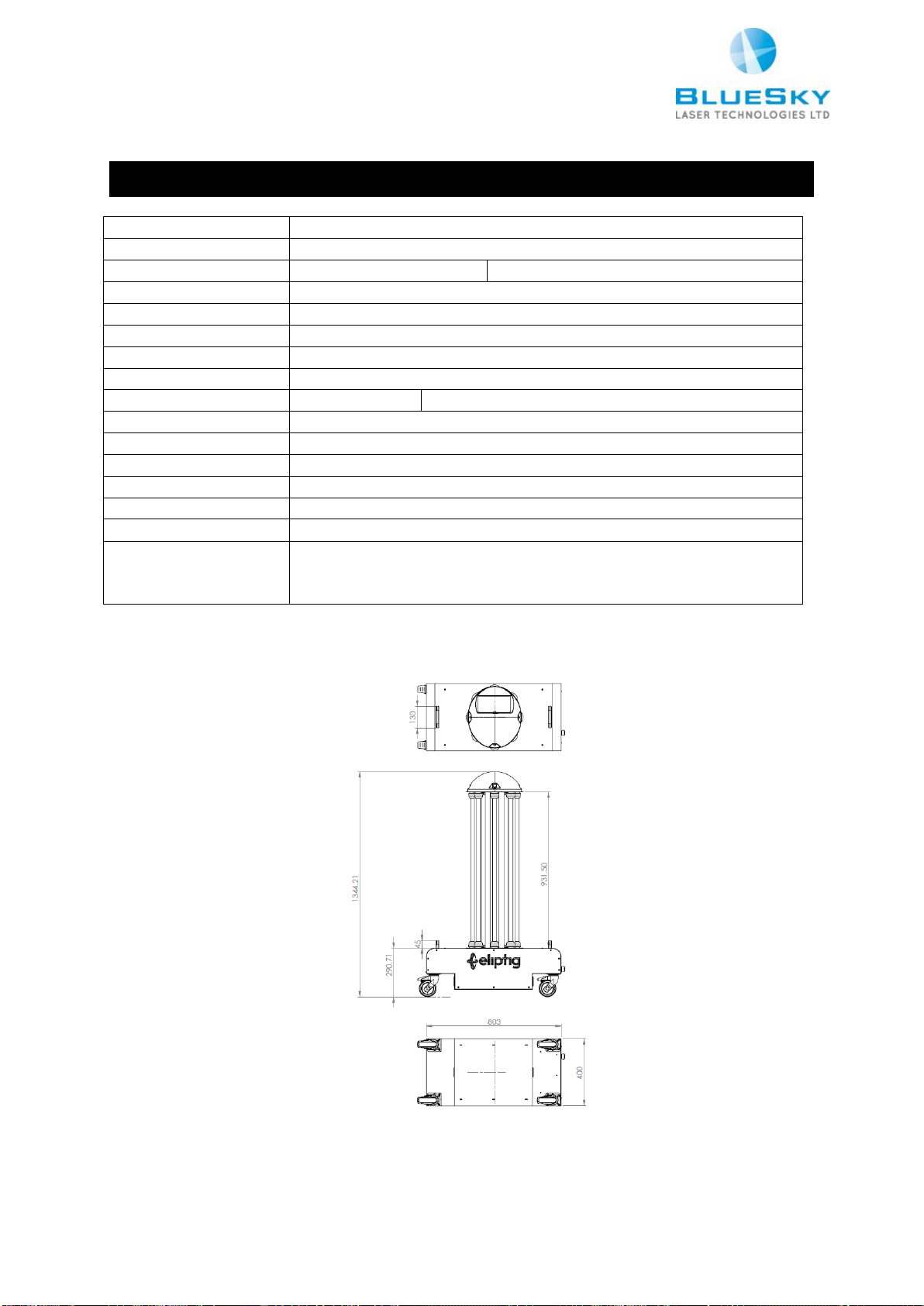

•Figure 1 Dimensions

S15-1006_1_A
7
4Transportation and Installation.
4.1 Transport Damage.
The Eliptig-S has been carefully packed and should arrive at its destination in perfect condition. Upon
delivery, please check that the external packaging is not damaged. If signs of damage are present, or the
shock detector labels have been activated, please report them to the shipping carrier and the Customer
Service Department within 24 Hrs.
4.2 Environmental Transport & Storage Conditions.
The transport & storage conditions for the Eliptig-S were determined from specifications set by the
manufacturers of critical components as follows: -
Temperature +5C to +40C
Relative Humidity 35% to 65% Non-Condensing.
Atmospheric Pressure 500 –1060 hPa

S15-1006_1_A
8
5System Operation.
AC Input
•IEC C14 Switched Mains
Input Module
•Fuses T10AH
Emergency Stop Switch
•Twist to unlock clockwise
Motion Detection
•4 x Passive Infrared
Sensors
User Interface
•7” Touch Screen Display

S15-1006_1_A
9

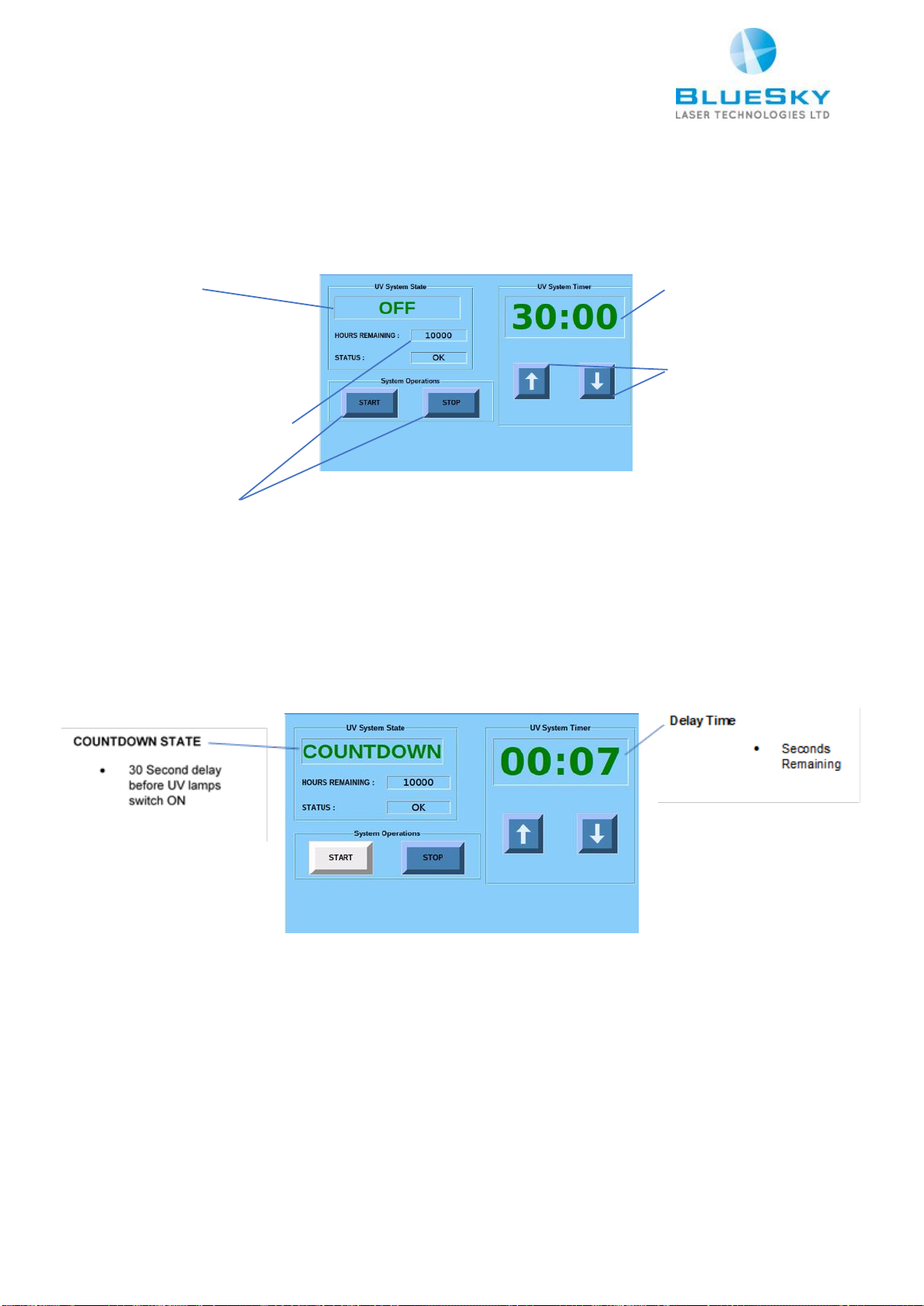

Figure 1 UV Lamps OFF State
System State
•OFF
•COUNTDOWN
•ON
•HALTED
UV Lamp Hours Remaining
•8000 Hour Lamp Life
System Operation
•Start / Pause
•Stop / Reset
System Timer
•Adjustable in 10
Minute Intervals
Disinfection Time
•Increase
•Decrease
Figure 2 30 Second Delay Timer Countdown

S15-1006_1_A
10

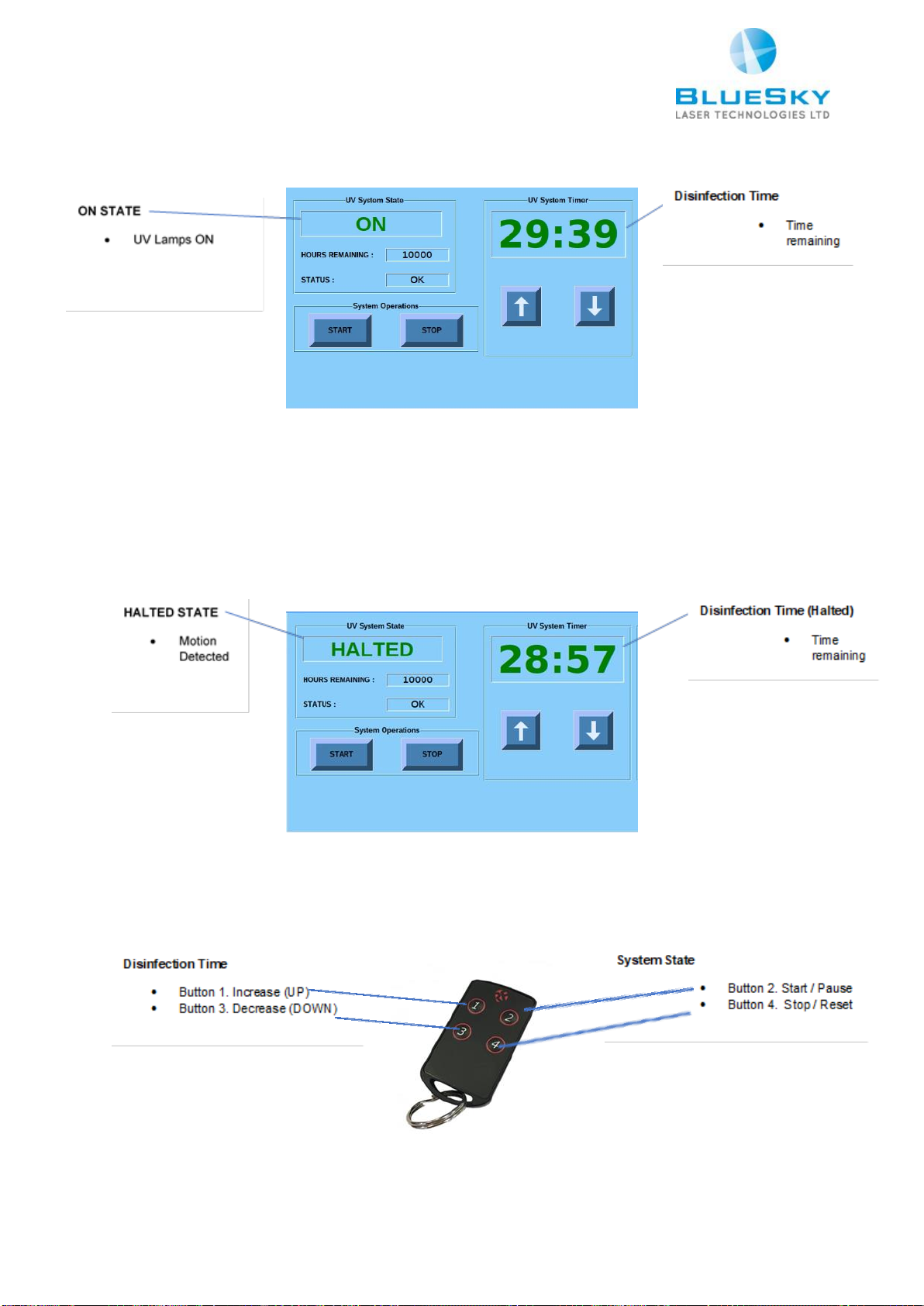

Figure 3 UV Lamps ON State
Figure 4 UV Lamp Operation Halted Motion Detected (Lamps OFF)
Figure 5 Remote Control Module

S15-1006_1_A
11
6General Maintenance
6.1 Cleaning the Equipment
Before cleaning maintenance is carried out, please ensure the unit is disconnected from the mains supply.
The Eliptig-S system should be cleaned by wiping with a soft, lint free cloth.
6.2 Visual Inspection
Before each use, inspect the lamps and mains cable for possible wear, cracks or breaks before each use.
Do not use the system if the lamps or cable appear to be damaged.
6.3 Lamp Renewal
The Eliptig-S lamps should be renewed every 8,000 hours.
WARNING –MERCURY HAZARD: Do not break the UVC lamps. Each UVC lamp contains small amounts
of mercury that can have harmful effects if exposed or ingested.
•Disconnect the system from the AC mains.
•Loosen the waterproof end caps by hand.
•Rotate the tube until the prongs at either end are facing outwards and slide the tube out of
the fixture.
•Fit the new tube by fitting the waterproof end caps and lining up the prongs with the slots at
both ends of the socket. Push the tube into the socket and twist it 900 until it locks into
place.
•Tighten the waterproof end caps by hand.
•Exposure to mercury may cause redness or irritation.
•In the case of a broken UVC lamp, sweep up all the broken glass and debris into a plastic bag and
secure it with a seal.
•Dispose of broken or UVC lamp debris at a local recycling center.
•Do not use a vacuum cleaner or incinerator to collect or dispose of any lamp debris.
6.4 Servicing and Maintenance Schedule
For details of the Service and Maintenance Schedule for your Eliptig-S device please refer to your Warranty
Statement.
Blue Sky will make available upon request, circuit diagrams, component part lists, descriptions or other
information that will assist service personnel to repair those parts ofthe Eliptig S that aredesignated by Blue
Sky as repairable by service personnel.
Maintenance contracts are availablefrom Blue Sky or your Distributor after year one.

S15-1006_1_A
12
6.5 Safe Disposal
For safe disposal of the unit please contact your Distributor.
Obligation to the End User
WEEE Compliance Statement
Introduction
The Producer of this EEE passes all obligations to the ‘B2B End User’ when this EEE is subsequently discarded
as WEEE. The B2B End User, in accordance with the WEEE Collections Policy outlined in our General Terms
and Conditions of Sale, must finance collection, treatment, recycling, recovery and environmentally sound
disposal of this EEE when it is discarded as WEEE in the UK.
The Producer has paid no charge to its PCS (Producer Compliance Scheme) for its eventual recovery. However,
the PCS’s disposal contractor is able to provide cost effective and environmentally sound disposal of all 13
categories of WEEE.
For disposal please contact 0845 257 7024 or [email protected] for a free no obligation quote for the removal
of WEEE items from a B2B End User of WEEE
Producer ID Number: WEE/BD0498UR
Producer:
E Mail:
Telephone:
Blue Sky Laser Technologies Ltd
[e-mail]
[phone]
Address:
Unit 48a-49, Crofty Industrial
Estate,
Penclawdd, Swansea,
South Wales
SA4 3RS
UK
B2B End User
Defined as the business, organisation or institution who is the legal owner of the EEE when it is discarded as
WEEE
Declaration
The Purchaser, in accordance with the WEEE Collections Policy outlined in our General Terms and
Conditions of Sale, accepts that the B2B End User must finance collection, treatment, recycling, recovery
and environmentally sound disposal of this EEE when it is discarded as B2B WEEE in the UK
The Purchaser agrees to ensure that this document is passed with the EEE item should it be resold to a B2B

S15-1006_1_A
13
End User
Definitions:
Producer means, the Manufacturer, UK Importer and/or Re Brander
EEE means, Electrical Electronic Equipment
WEEE means, Waste Electrical Electronic Equipment
B2B means, business organisation and/or institution
PCS means, Producer Compliance Scheme
End User means, legal owner
Purchaser means, the business, organisation and/or institution who purchased the EEE
Distributed by:

S15-1006_1_A
14
Manufactured by:
Blue Sky Laser Technologies Ltd.
Unit 48a-49 Crofty Industrial Estate,
Penclawdd,
Swansea
South Wales,
UK
Tel [phone]
