Bluestream HEX70CS-KIT User manual

HEX70CS-KIT
User Manual
RevA3 HEX70CS-KIT User Manual

HEX70CS-KIT USER MANUAL
Introduction 03
Features 03
Panel Descriptions 04
Terminating HDBaseT™ CAT Cables 05
Understanding HDBaseT™ Status Lights 05
EDID Control 06
Mode Dip-Switch (RX RS-232 Function) 06
Infrared (IR) Control 07
Application Diagram 08
Specifications 09
Package Contents 09
Maintenance 09
Contents
Surge protection device
recommended
This product contains sensitive
electrical components that may be
damaged by electrical spikes, surges,
electric shock, lightning strikes, etc.
Use of surge protection systems is
highly recommended in order to
protect and extend the life of your
equipment.
Safety And
Performance Notice
The transmission distances of HDMI
over UTP cables are measured using TE
CONNECTIVITY 1427071-6
EIA/TIA-568-B termination (T568B) of
cables is recommended for optimal
performance.
To minimise interference of the
unshielded twisted pairs in the
CAT5e/6 cable do not run the HDBaseT/
Cat5e/6/6a cabling with or in close
parallel proximity to mains power
cables.
Do not substitute or use any other
power supply other than the enclosed
unit, or a Blustream approved
replacement.
Do not disassemble either the
Transmission or Receiver units for
any reason. Doing so will void the
manufacturer’s warranty.
Thank you for purchasing
this product.
For optimum performance and safety,
please read these instructions carefully
before connecting, operating or
adjusting this product. Please keep this
manual for future reference.
02

HEX70CS-KIT USER MANUAL
FEATURES:
• Advanced HDBaseT™ technology oering distribution of video and audio over a single CAT cable
• Advanced Color Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR
• Supports 4K 60Hz 4:4:4 UHD video up to 40m
• Extends HDMI 1080P video up to 70m
• Features 1 x HDMI loop-out on HEX70CS-TX for integrating local displays or cascading to multiple devices
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
• HDMI re-clocking on the HDBaseT™ Receiver to help solve HDMI HDCP, compatibility and handshaking issues
• HDMI audio breakout to analogue L/R audio and coaxial digital outputs concurrently
• Supports bi-directional RS-232 pass through
• Supports bi-directional IR pass through
• Supplied with Blustream 5V IR receiver and emitter
• Advanced EDID management
• HDCP 2.2 support
Our HEX70CS-KIT HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) HDCP 2.2 HDBaseT™
extender set offers market leading features and outstanding value utilising
CSC technology. The product extends HDMI,Bi-directional IR & RS-232 and
Bi-directional PoC (PoE) up to lengths of 70m (4K 40m).The Transmitter
includes a HDMI loop-out for integrating local displays or cascading to
multiple devices. The Receiver features simultaneous analogue stereo and
digital coax audio breakout.
Introduction
03

HEX70CS-KIT USER MANUAL

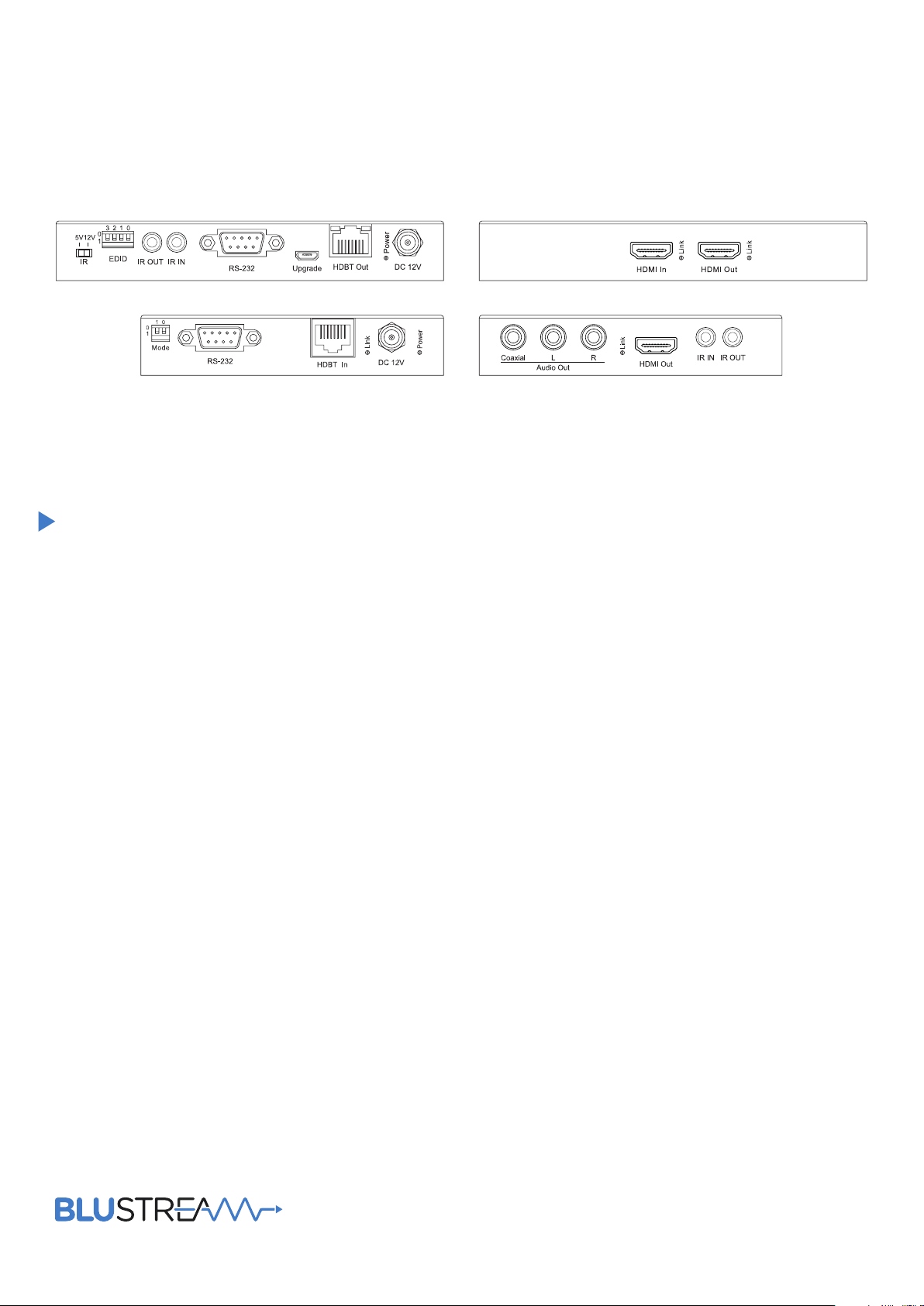

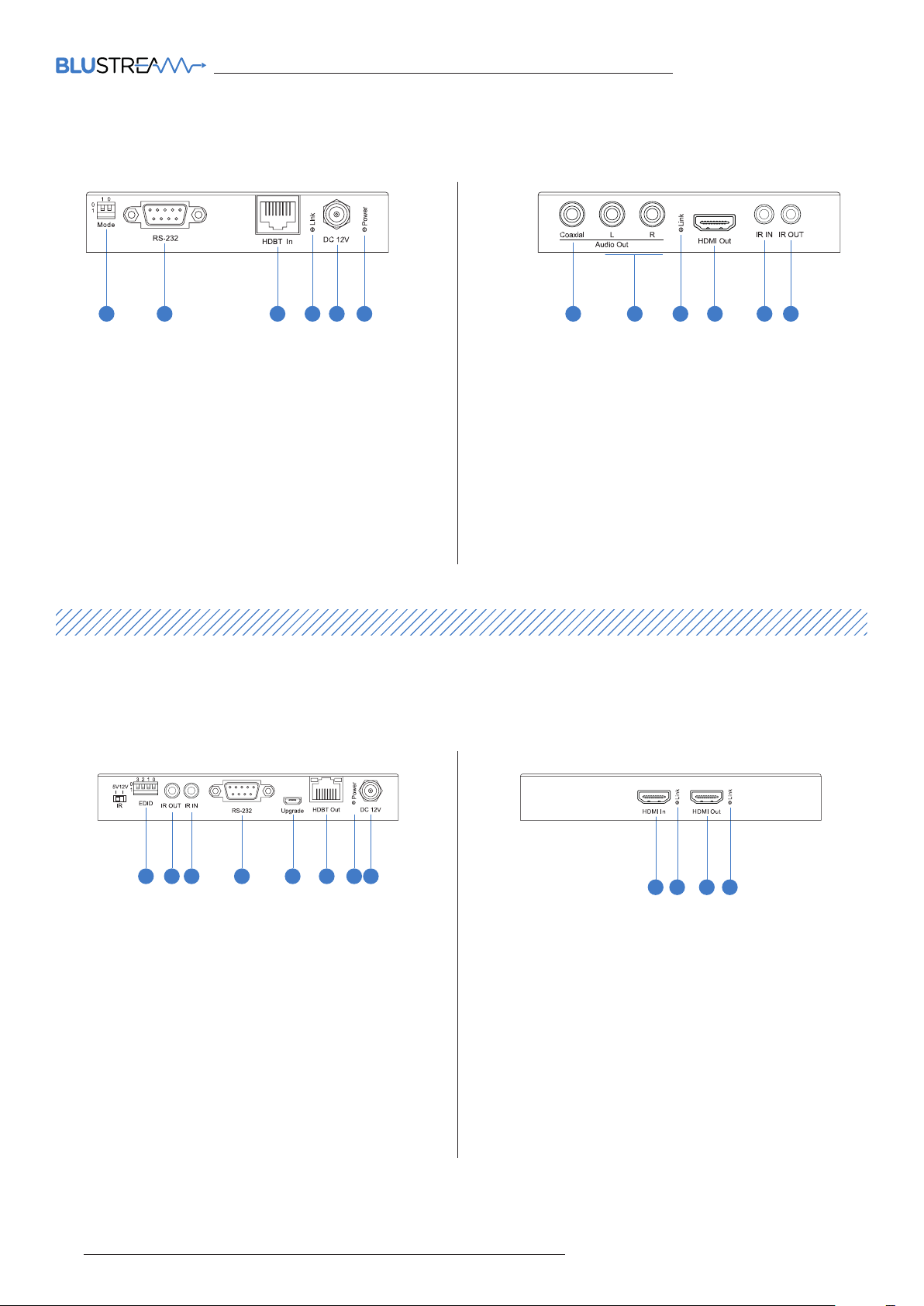

Panel Description HEX70CS-RX
Panel Description HEX70CS-TX
1 2
1Mode dip-switch - To switch RS-232 serial port
between pass-through and firmware update mode
2RS-232 / serial connector
3HDBaseT™ input
4HDBaseT™ signal link indicator
5DC 12V screw type connector
6Power status indicator
9HDMI input
qHDMI link indicator
wHDMI output
eHDMI link indicator
7Coaxial digital output - de-embedded from HDMI input
8Analogue audio le / right output (3.5mm stereo jack
de-embedded from HDMI input. Supports stereo 2ch
PCM audio only
9HDMI signal link indicator
qHDMI Output
wIR IN (to Blustream 5V 3.5mm IR receiver)
eIR OUT (to Blustream 5V 3.5mm IR emitter)
3 4 5 6 7
1EDID DIP switch (UP=0, DOWN=1)
2IR OUT (to Blustream 5V 3.5mm IR emitter)
3IR IN (to Blustream 5V 3.5mm IR receiver)
4RS-232 / Serial connector
5USB Upgrade port - For future use
6HDBaseT output
7Power status indicator
8DC 12V screw type connector
910 11 12
1 2 3 4 5 7 8 9 10 11612
8
04

HEX70CS-KIT USER MANUAL
05
Understanding the Transmitter / Receiver Status Lights
The Blustream HEX70CS-KIT extender solutions include status LED indicators on both the Transmitter and Receiver
products to show all connections are active and to help diagnose possible problems.
Receiver:
• The HDMI signal link light will be o when there is no connection with a display / sink
• The HDMI link light will be on when there is an active connection with a display
• The HDBaseT™ link light will be o when there is no CAT cable / active HDBaseT™ connection on the RJ45
HDBaseT™ input
• The HDBaseT™ link light will blink if there is an unstable connection between the Transmitter and Receiver
• The HDBaseT™ link light will be lit when a CAT cable is connected to the HDBaseT™ RJ45 output on the Transmitter
and an active connection is achieved with the Receiver.
Transmitter :
• The Input HDMI signal link light will be o when there is no connection with a source device
• The Output HDMI signal link light will be o when there is no connection with a display / sink
• The Input HDMI link light will be on when there is an active connection with a source device
• The Output HDMI link light will be on when there is an active connection with a display / sink
• The HDBaseT™ link light will be o when there is no CAT cable / active HDBaseT™ connection on the RJ45
HDBaseT™ output
• The HDBaseT™ link light will blink if there is an unstable connection between the Transmitter and Receiver
• The HDBaseT™ link light will be lit when a CAT cable is connected to the HDBaseT™ RJ45 output on the Transmitter
and an active connection is achieved with the Receiver
Terminating the Interconnecting HDBaseT™ CAT Cable
It is important that the interconnecting CAT cable between the Blustream HDBaseT™ products is terminated using the
correct RJ45 pin configuration. The link CAT cable MUST be a ‘straight’ (pin-to-pin) CAT cable and it is advised that this
is wired to the T568B wiring standard as this format is less prone to EMI (Electro-Magnetic Interference).
When installing CAT cables it is advised that you use the best possible CAT cable quality possible. HDMI distribution
products will only work if used with CAT5e standard cable or above. Blustream recommends using a CAT6 cable for
your installations, especially when running over longer distances, in areas of high EMI, or with 4K signal distribution.
RJ45 Pin-Out
T568B
1 2 3 4 5 6 7 8

HEX70CS-KIT USER MANUAL
06

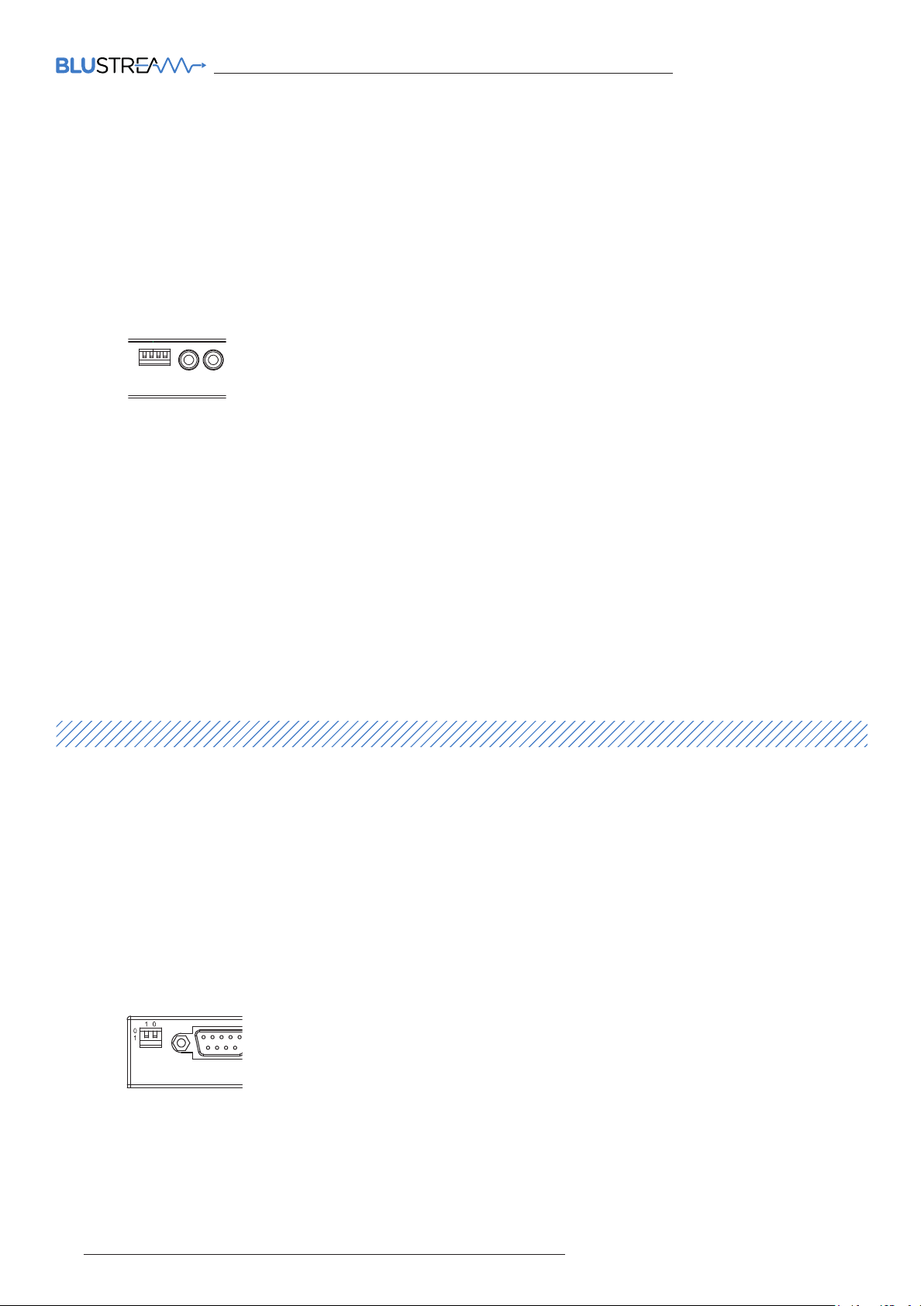

EDID (Extended Display Identification Data) is a data structure that is used between a display and a source. This data is
used by the source to find out what audio and video resolutions are supported by the display. By pre-determining the video
resolution and audio format of the source and display device you can reduce the time needed for EDID hand shaking thus
making switching quicker and more reliable.
Configuration of extender EDID settings can be achieved using the product dip-switches on the end of the HEX70CS-TX. EDID
dip-switch settings are shown below.
EDID Control
Global EDID settings
Dip-switch position ‘0’ = O
Dip-switch position ‘1’ = On
EDID Dip-switches
[DIP]=0000: HDMI 1080p@60Hz, Audio 2ch PCM
[DIP]=0001: HDMI 1080p@60Hz, Audio 5.1ch PCM/DTS/DOLBY
[DIP]=0010: HDMI 1080p@60Hz, Audio 7.1ch PCM/DTS/DOLBY/HD
[DIP]=0011: HDMI 1080i@60Hz, Audio 2ch PCM
[DIP]=0100: HDMI 1080i@60Hz, Audio 5.1ch PCM/DTS/DOLBY
[DIP]=0101: HDMI 1080i@60Hz, Audio 7.1ch PCM/DTS/DOLBY/HD
[DIP]=0110: HDMI 4K@60Hz 4:2:0+4K@30Hz 4:4:4, Audio 2ch PCM
[DIP]=0111: HDMI 4K@60Hz 4:2:0+4K@30Hz 4:4:4, Audio 5.1ch PCM/DTS/DOLBY
[DIP]=1000: HDMI 4K@60Hz 4:2:0+4K@30Hz 4:4:4, Audio 7.1ch PCM/DTS/DOLBY/HD
[DIP]=1001: HDMI 4K@60Hz 4:4:4, Audio 2ch PCM
[DIP]=1010: HDMI 4K@60Hz 4:4:4, Audio 5.1ch PCM/DTS/DOLBY
[DIP]=1011: HDMI 4K@60Hz 4:4:4, Audio 7.1ch PCM/DTS/DOLBY/HD
[DIP]=1100: DVI 1280x1024@60Hz, Audio None
[DIP]=1101: DVI 1920x1080@60Hz, Audio None
[DIP]=1110: DVI 1920x1200@60Hz, Audio None
[DIP]=1111: Copy EDID of output
HDMI In HDMI Out
Link
Link
DC 12V
Power
HDBT Out
Upgrade
EDID
0
3210
1
IR Out IR In
RS-232
Mode dip-switch settings are used to alter the use of the RS-232 connection of the HDBaseT Receiver. The RS-232 connection
can be used as bi-directional pass-through of serial commands between HDBaseT Transmitter and Receiver or for updating
product firmware.
Configuration of Mode settings can be achieved using the product dip-switches on the end of the HEX70CS-RX. Mode dip-switch
settings are shown below.
Mode Dip-switches (Receiver RS-232 Function)
Mode settings (RS-232)
Dip-switch position ‘0’ = O
Dip-switch position ‘1’ = On
MODE Dip-switches
[DIP]=00: Serial pass-through
[DIP]=01: Update HDBaseT™ firmware
[DIP]=10: Update MCU firmware
[DIP]=11: Dual mode - Serial pass-though and MCU firmware update
IR OUTIR IN
Mode
RS-232

HEX70CS-KIT USER MANUAL
07

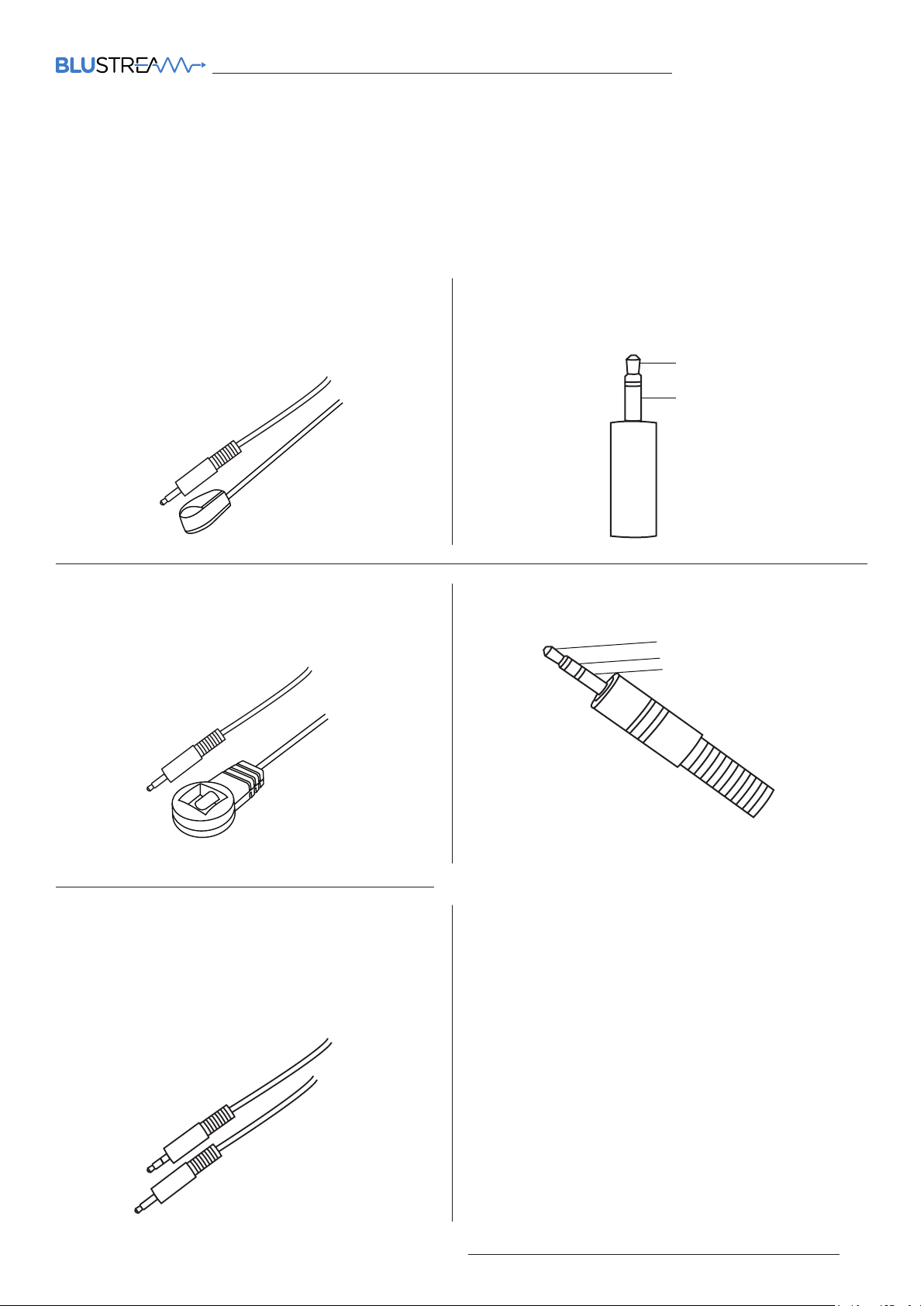

Infrared (IR) Distribution
The Blustream range of HDBaseT™ products include multiple options for control and routing of IR.
IMPORTANT: Blustream Infrared products are all 5v and NOT compatible with alternative manufacturers Infrared
solutions. When using third party 12v IR control solutions please use the optional Blustream IRCAB cable for IR
conversion.
Each Blustream Matrix and HDBaseT™ Receiver is supplied with necessary IR hardware required and includes:
IR Emitter - IR1 & IR2 (IR2 sold separately)
Blustream 5V IR Emitter designed for discrete IR control
of hardware
IR Receiver - IRR
Blustream 5V IR receiver to receive IR signal and
distribute through Blustream products
IR Control Cable - IRCAB (sold separately)
Blustream IR Control cable 3.5mm Mono to 3.5mm
Stereo for linking third party control solutions to
Blustream products.
Compatible with 12v IR third party products.
Note: Cable is directional as indicated
Infrared 3.5mm Pin-Out
IR Emitter - Mono 3.5mm
IR Receiver - Stereo 3.5mm
Signal
Ground
Signal
5V
Ground

HEX70CS-KIT USER MANUAL
08

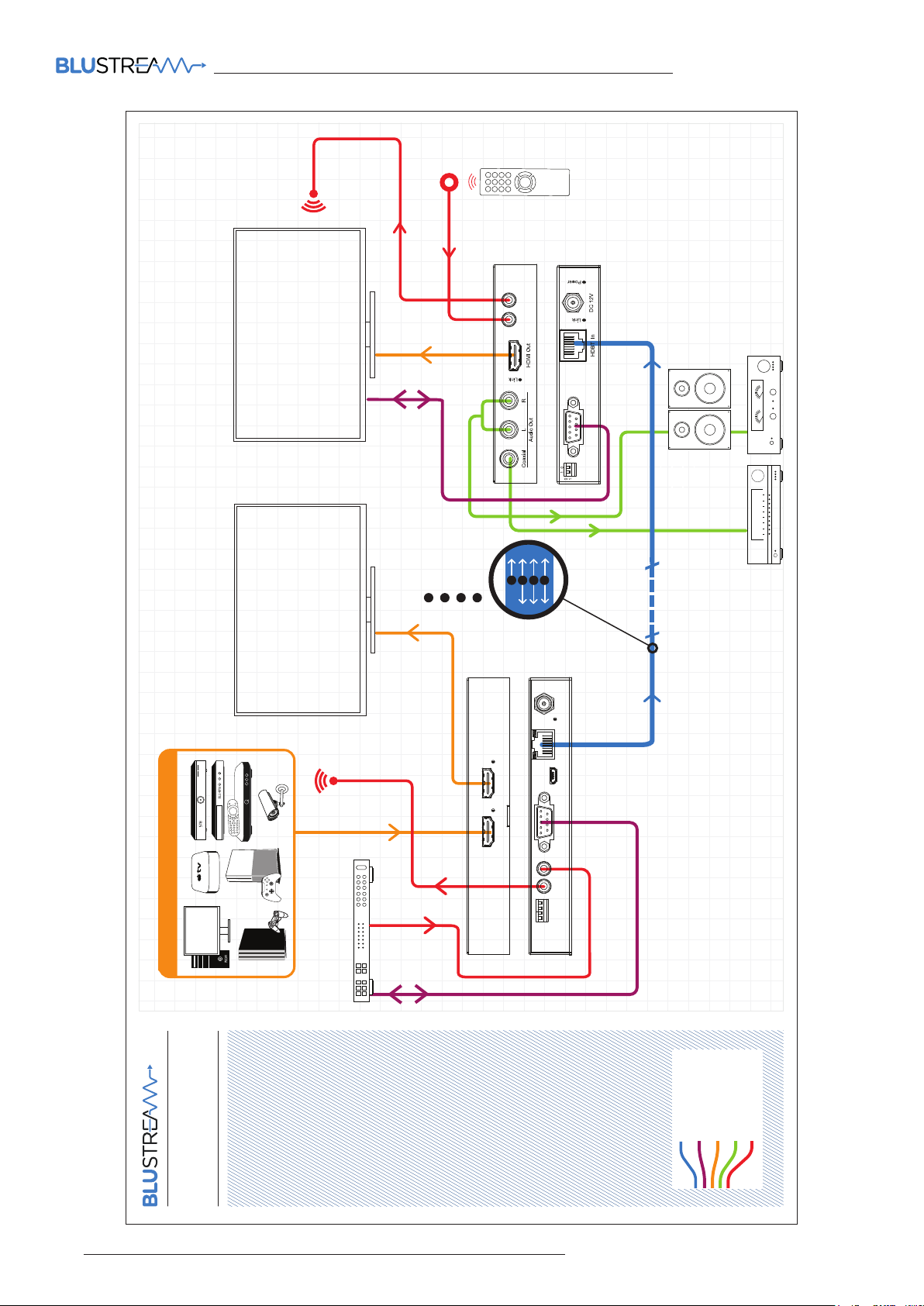

Cat5e/6/7 IR Cable Audio RS232 HDMI
1 x 4K SOURCE
Example Schematic HEX70CS-KIT
4K LOCAL DISPLAY
Control Processor
40m max (4K)
70m max (1080p)
4K DISPLAY
A
C
D
B
HDMI RS232 IR POH
A
B
C
D
IR OutIR In
Mode
RS-232
HDMI In HDMI Out
Link
Link
0
RS-232 DC 12V
Power
HDBT Out
Upgrade
EDID
3210
1
IR Out IR In

HEX70CS-KIT USER MANUAL
09
Package Contents
Specifications
Maintenance
HEX70CS-KIT
• 1 x HEX70CS-TX and 1 x HEX70CS-RX
• 1 x 12V/2A DC Power Supply
• 1 x IR Emitter (IRE)
• 1 x IR Receiver (IRR)
• 2 x Mounting Bracket Sets
• 1 x Quick Reference Guide
Clean this unit with a so, dry cloth. Never use alcohol, paint thinner or benzene to clean this unit.
NOTE: Specifications are subject to change without notice. Weights and dimensions are approximate.
HEX70CS-RX (when sold individually)
• 1 x HEX70CS-RX
• 1 x Mounting Bracket Set
HEX70CS -TX
• Video input: 1 x HDMI Type A, female
• Video output: 1 x HDBaseT™ RJ45 connector
• 1 x HDMI Type A, female
• RS-232 serial port: 1 x DB9 female connector
• IR input: 1 x 3.5mm stereo jack
• IR output: 1 x 3.5mm mono jack
• EDID DIP switch: 4-pin
• Mounting kit included
• Dimensions excl connections (W x D x H):
143mm x 134mm x 22mm
• Shipping weight (Kit): 0.5 kg
• Power: 12V/2A DC, screw type connector
• Operating temperature: 32°F to 104°F (0°C to 40°C)
• Storage temperature: -4°F to 140°F (-20°C to 60°C)
HEX70CS-RX
• Video input: 1 x HDBaseT™ RJ45 connector
• Video output: 1 x HDMI Type A, female
• Audio output: 1 x 3.5mm L/R analogue audio & 1 x
digital coaxial (RCA)
• RS-232 serial port: 1 x DB9 female connector
• IR input: 1 x 3.5mm stereo jack
• IR output: 1 x 3.5mm mono jack
• Mounting kit included
• Dimensions excl connections (W x D x H):
113mm x 124mm x 22mm
• Shipping weight (Kit): 0.4 kg
• Power: 12V/2A DC, screw type connector
• Operating temperature: 32°F to 104°F (0°C to 40°C)
• Storage temperature: -4°F to 140°F (-20°C to 60°C)
