BlueTrek Tattoo User manual

EC - Declaration of Conformity
We, ModeLabs Technologies Ltd of
31/F China Online Centre,
333 Lockhart Road,
Wan Chai, Hong Kong
declare under our sole responsibility that our product
BLUETREK TATTOO
to which this declaration refers is in conformity with the appropriate standards
EN300 328-02
EN301 489-17
EN301 489-01
EN50371
EN60950
Following the provisions of Radio and Telecommunications Terminal Equipment directive
1999/5/EC.
February 2007
Guillaume Ponticelli, Director of Development

FCC/ Industry Canada Notice
This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference. (2) This device must accept
any interference received, including interference that may cause undesired operation.
In compliance with Industry Canada regulations, technical specifications have been
provided in a declaration of conformity.This does not imply that Industry Canada approved
the equipment.
Caution: Changes or modifications to this Bluetooth® headset not expressly approved by
the party responsible for compliance could void the user’s authority to operate it.
Bluetooth® is a trademark owned by Bluetooth SIG, Inc. and is used by the manufacturer
under license.

Before using your headset for the first time
-You must charge it continuously for about 4 hours, until the red indicator light turns off.
Please refer to the “Charging the BLUETREK® TATTOO”section of this manual.
-Pair the headset with a mobile phone. Please refer to the “Pairing the BLUETREK® TATTOO”
section of this manual.
Introduction
The BLUETREK® TATTOO headset is a wireless headset based on the Bluetooth® technology. It
complies with Bluetooth® 2.0 protocol, supporting Headset and Hands-free profile.
The BLUETREK® TATTOO headset has 2 buttons:
·“TALK”button (main button)
· 1“VOL+/-“ button
1 I BLUETREK TATTOO

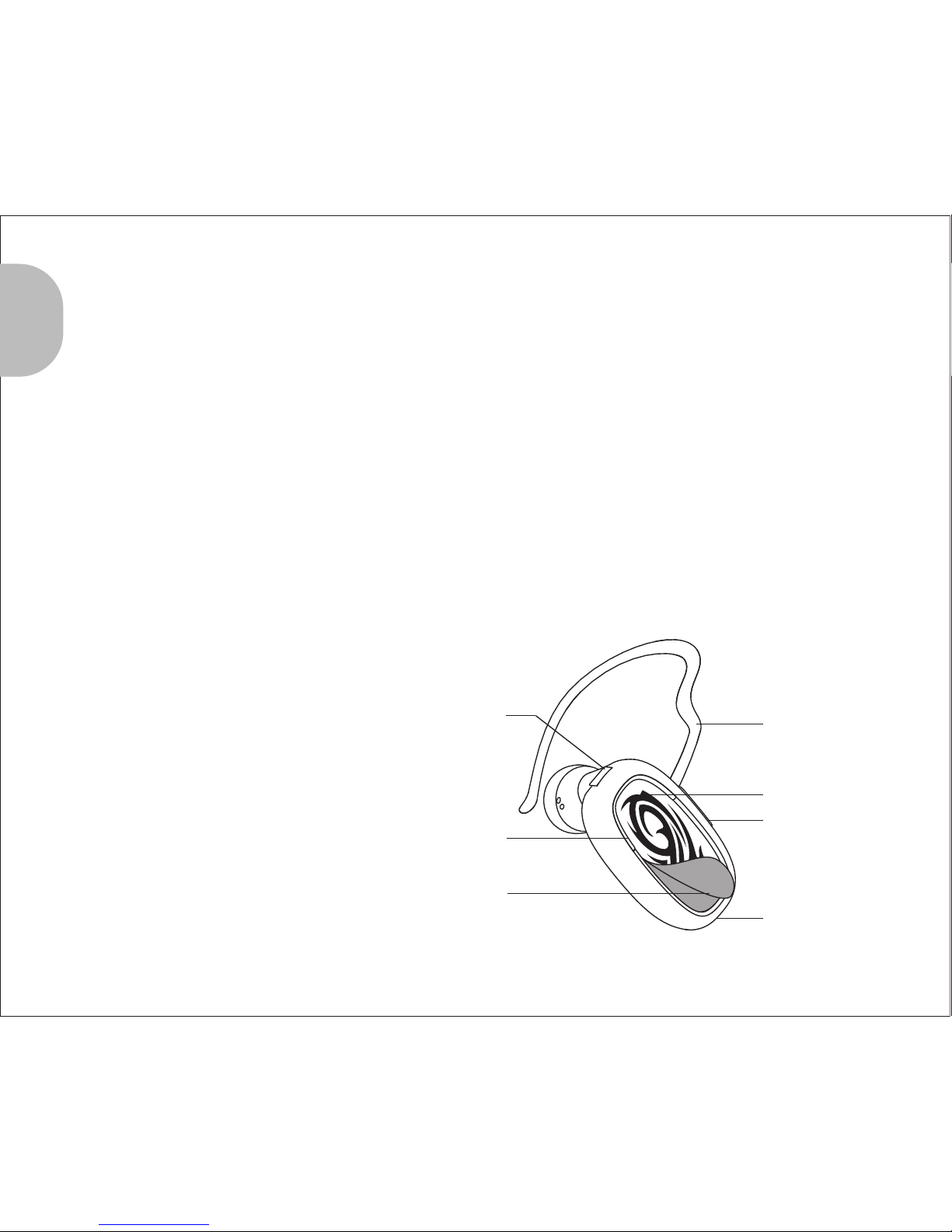

Removable
earhook
TALK button
VOL+/- button
Microphone
Charging socket
Indicator light
Replaceable“skin”
English

Charging the BLUETREK® TATTOO
Please connect the charger to the headset and to the main. During the charge, the
indicator light is red. The indicator light will turn off when the charge is complete. During
subsequent charges, the charging should take approximately 3 hours.
When you hear a low-tone beep in your headset at regular intervals, your headset needs
to be recharged.
Important:
· If your headset is fully charged, the red indicator light will not turn on when plugging
into the charger.
(To check whether your headset is fully charged, press the talk button for approx.
2 seconds, once released, the red indicator light will turn on for approx. 3 seconds.)
· To maximize battery lifetime, it is recommended to recharge your headset to full capacity
only when the battery is low, since a battery has a lifetime of about 500 charging cycles.
· If you leave your headset battery empty for an extended period of time, it could
excessively discharge the battery. In this case, charge your headset for 3 hours or more
until the battery recovers and recharges completely.When you first charge the headset
after prolonged storage, it may take few minutes for the red indicator light to turn on.
· Do not charge your headset for more than 10 hours.
· The use of any other charger will automatically suspend the warranty. It is strictly
forbidden and can be very dangerous.
BLUETREK TATTOO I 2
English

Pairing the BLUETREK® TATTOO
Before using the BLUETREK® TATTOO headset, you must pair it with your Bluetooth® mobile
phone. Pairing is the process of linking 2 Bluetooth® devices, so that they can communicate.
To initiate pairing:
Place the BLUETREK® TATTOO and your mobile phone within 0.3 meter (1 foot) from each
other.
3 I BLUETREK TATTOO
English
1
2
3

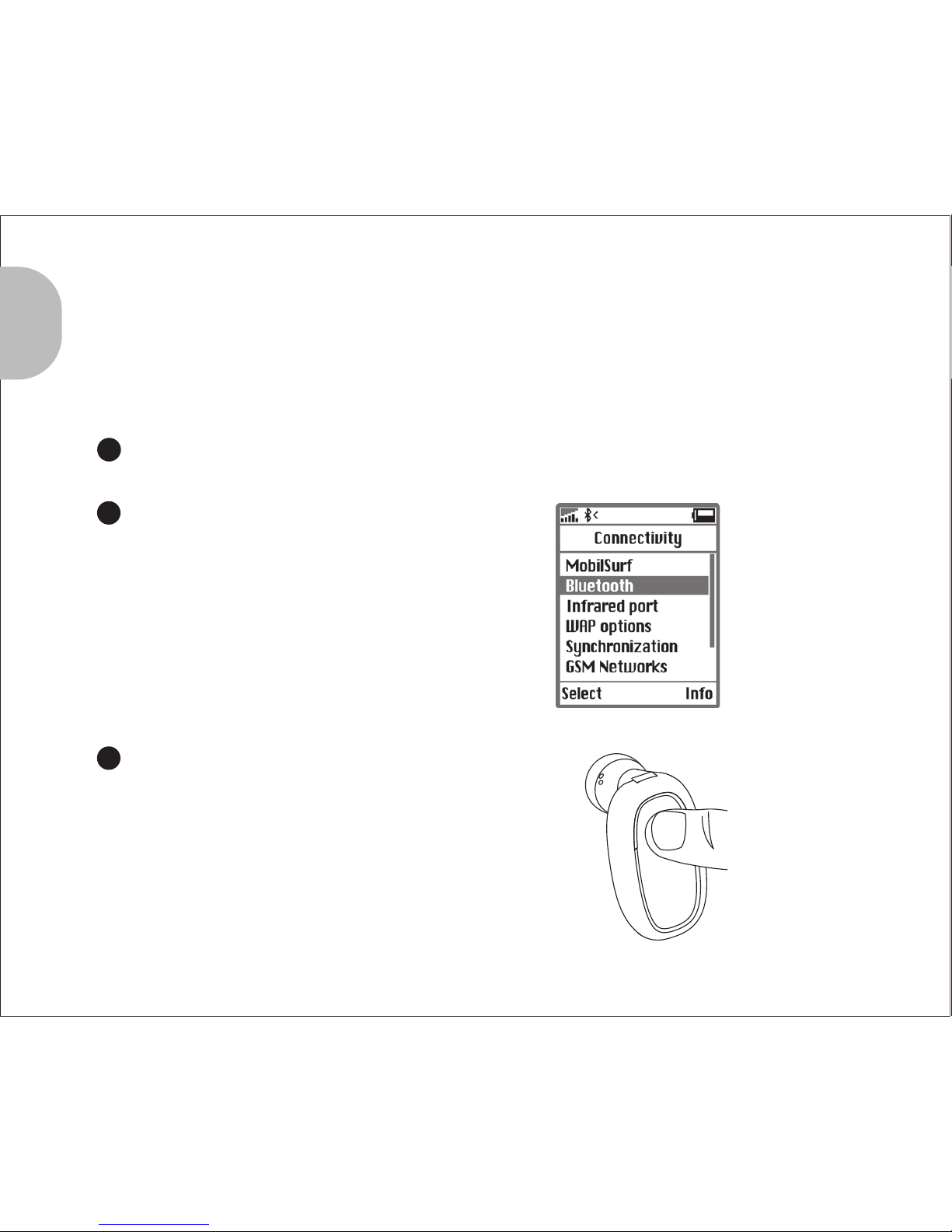

Switch on your phone and select its
Bluetooth® discover mode (refer to the
Bluetooth® mobile phone user manual).
When the BLUETREK® TATTOO is switched
off, press and hold the TALK button for
about 7 seconds until the indicator light
flashes red and green alternately. And a
sound can be heard in the speaker.

BLUETREK TATTOO
“0000”
4
BLUETREK TATTOO
BLUETREK TATTOO
5
BLUETREK TATTOO
Connect
Assign short name
Set as unauthorised
Delete
Select Cancel
If pairing was successful, the indicator light will switch to green and flashes slowly.
If you haven’t started the discovery mode within 5 minutes, the headset will go to the
standby mode. You must then switch off your headset and start the pairing again.
English

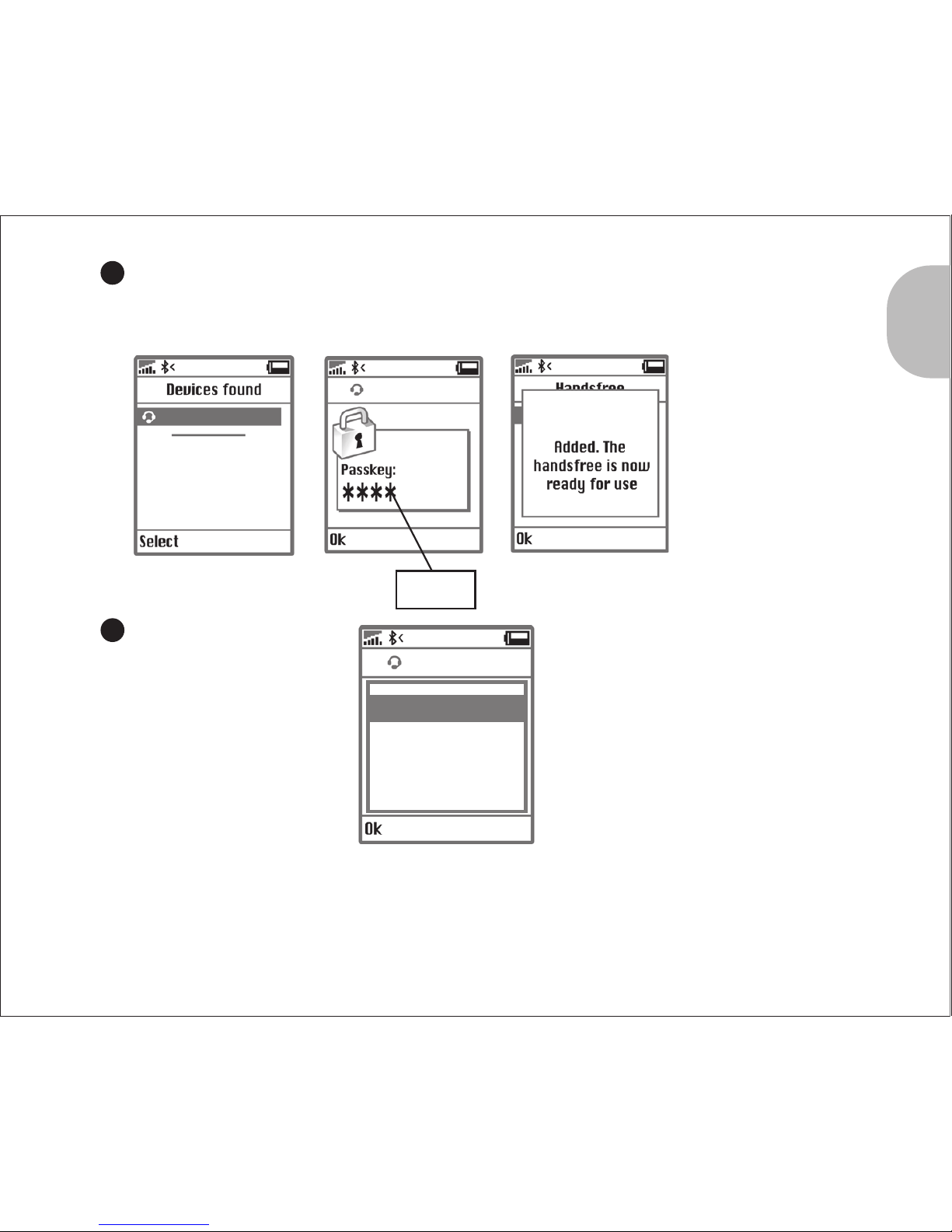

Once the mobile phone detects the headset, a “BLUETREK TATTOO” message
will be displayed. Follow the phone instructions to accept the pairing.The PIN
code (or passkey) is 0000, then press “yes” or“ok”.
For some phones, you
may need to select
“Connect”
BLUETREK TATTOO I 4

Wearing the BLUETREK® TATTOO
Two different sizes of ear hooks are included in the pack to suit your ear size.
The ear hook may be attached to the headset to improve stability.

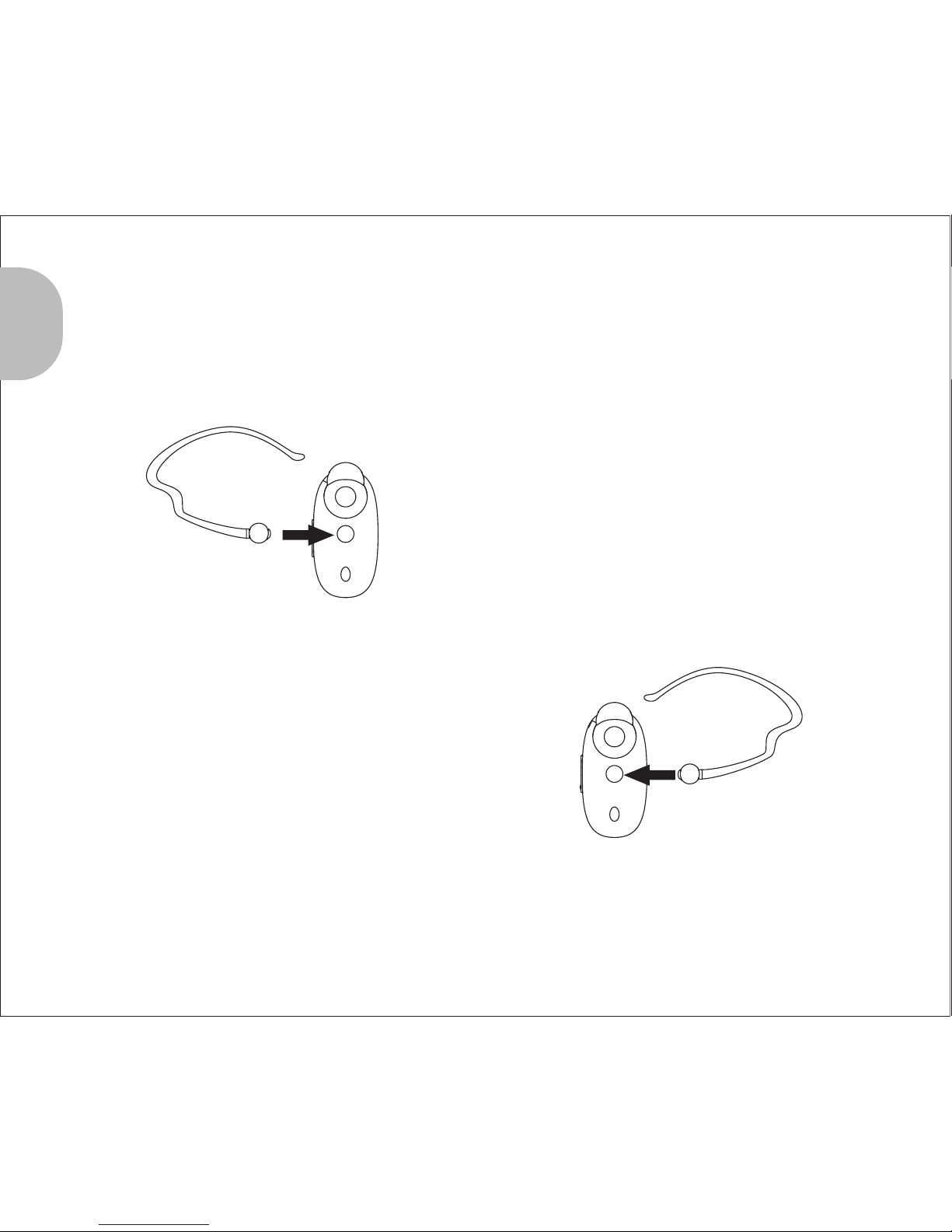

To attach the ear hook, simply insert the
ear hook ring to the back of the headset
as shown in the diagram.
For left ear wearing, the ear hook should
be inserted from the right hand side.
5 I BLUETREK TATTOO
English

Switching the BLUETREK® TATTOO ON and OFF
Switching BLUETREK® TATTOO ON
When your headset is off, press and hold the TALK button for about 3 seconds until the
green indicator light is on. A beep (2 tones) can be heard in the speaker. Release the
TALK button.
Switching BLUETREK® TATTOO OFF
When your headset is on, press and hold the TALK button for about 7 seconds until the red
indicator light is on. A beep (2 tones) can be heard in the speaker then release the TALK
button.
Making a call
Mobile phone with voice recognition
. Make sure the voice recognition function on your mobile is activated and your voice tags
have been recorded with the phone.To enter these, please refer to your phone’s manual
.When there is no incoming or active call, press once on the TALK button
.Wait for the audio signal sent by the mobile phone (generally a short tone).
. Speak the name of person you wish to call.
English
BLUETREK TATTOO I 6

Mobile without voice recognition
. Make sure both the headset and the mobile phone are ON and in stand-by mode.
. Dial the number on the phone keypad, after approximately 2 seconds the audio
connection will be established.
This function may not be available on some phones, please refer to the trouble shooting
frequent asked questions in our website: www.bluetrek.com. to find out more.
Answering a call
When the headset rings, press once on the TALK button to take the call.
Ending a call
Press once on the TALK button to end an active call.
Adjusting the volume
To increase the volume during an active call, press the“VOL+”button on the headset.
To decrease the volume during an active call, press the“VOL-“ button on the headset.
7 I BLUETREK TATTOO
English

Muting the microphone
To mute the microphone during an active call
During an active call, press and hold the VOL+ button for approximately 2 seconds. A
periodic tone can be heard in the speaker when the microphone is muted.
To end the mute function
When the microphone is muted, quickly press the VOL+ button on the BLUETREK® TATTOO.
The periodic tone will end.
Transferring a call from BLUETREK® TATTOO to the mobile phone
During an active call, press the TALK button for about 2 seconds.
This function only works in the Hands-Free Profile.
In the Headset profile, you can simply turn off your headset.
Transferring a call from the mobile phone to the BLUETREK® TATTOO
During an active call on the mobile phone, press once on the TALK button to transfer the call.
This function may not be available depending on your phone.
English
BLUETREK TATTOO I 8

Fitting the Ergobud*
To replace the Ergobud*,
remove the speaker cover by
pulling gently out from the
speaker.
Place the Ergobud* back onto the
speaker by inserting the bottom
part first.
4 different sizes of Ergobud* are included in the pack to suit your ear size. You can adjust
the Ergobud position that you feel the most comfortable.
* Registered trademark pending
9 I BLUETREK TATTOO
English
S M L
XS

Replacing the“skin”

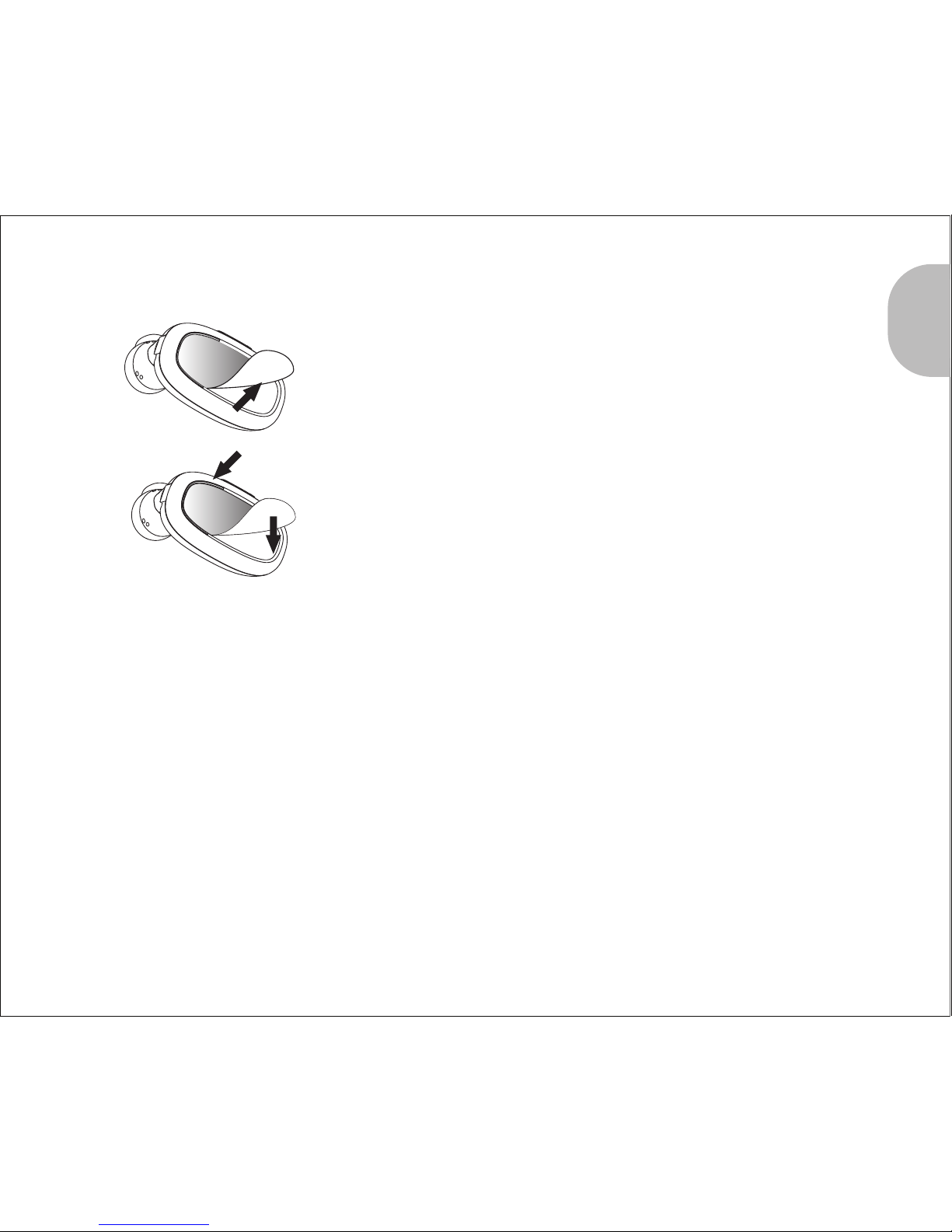

To replace the“skin”, simply peel off the sticker
from the edge of the sticker as shown in the diagram.
Stick the new“skin” back to the headset slowly along
the edge as shown in the diagram. Press the“skin”
to ensure it is firmly adhered.
Call waiting
When you hear a call waiting alert while you are on a call, press approx. 3 seconds
on the TALK button to accept the second call and place the current call on hold.
To switch between an active call and a hold call, press approx. 3 seconds on the
TALK button.
To end the active call and take the hold call, press once on the TALK button.
This function may not be available, depending on your phone. However, you can always
answer the second call from your phone keypad.
English
BLUETREK TATTOO I 10

Additional features with some phones
Rejecting a call
Press the TALK button for about 2 seconds to reject a call.
Redial the last number
When there is no incoming or active call, press the TALK button for about 3 seconds until
you hear a beep.
Troubleshooting guide
The first thing you should do when encountering a problem that you cannot solve with this
manual, is to switch off your headset and your mobile phone, and switch them on again.
To find out more, please refer to the trouble shooting frequent asked questions in our
website: www.bluetrek.com.
11 I BLUETREK TATTOO
English

Guidelines for safe use
Read those guidelines before using your headset.
- The volume level of the Bluetooth® headset may vary, depending on your mobile phone.
Before using your headset for the first time, adjust the headset volume to the lowest, then
increase the volume gradually until you reach to an acceptable level.
High levels of volume may result in hearing loss, avoid using the headset at high volume
continuously. If you experience ringing in your ears or muffled speech, consult your doctor
immediately and stop using the headset.
- Do not drop or try to alter the shape of your headset.
- Do not expose your headset to liquid or moisture.
- Do not expose your headset to extreme temperatures.Temperature range : 0-40C.
- Do not expose your headset to fire or open flames.
- Do not try to disassemble your headset. Service and Maintenance can only be performed
by authorized BLUETREK® dealers.
- Keep your headset away from dust and dirt.
- Do not let children play with your headset, since it contains small parts that could become
detached and create a choking hazard.
- Check the regulation in your area if you plan to use your headset while driving.
- Turn off your headset before boarding an airplane.
CAUTION : Danger of explosion if battery is incorrectly replaced. Dispose of batteries
according to local regulations. Do not dispose as household waste.
English
BLUETREK TATTOO I 12

Note on environmental protection:
After the implementation of the European Directive 2002/96/EU in the national legal system, the following
applies:
Electrical and electronic devices may not be disposed of with domestic waste.
Consumers are obliged by law to return electrical and electronic devices at the end of their service lives to
the public collecting points set up for this purpose or point of sale. Details to this are defined by the
national law of the respective country.This symbol on the product, the instruction manual or the package
indicates that a product is subject to these regulations. By recycling, reusing the materials or other forms of
utilising old devices, you are making an important contribution to protecting our environment.
GB
