Bluetti PV380 User manual

Solar Panel
User Guide
Model: PV380
Contact Us:
www.bluettipower.com
[e-mail]
User Guide User GuideUser Guide
What is in the box
How to use
Solar Panel
❷ Adjust the kickstand
❶ Unfold
MC4 Cable
Frequently asked questions
Is the solar panel waterproof ?
What will affect the final conversion efficiency of solar panels ?
No. The solar panel is IP65 water-resistant that provides protection against
water splash. Please do not leave it in the rain or water for a long time.
The actual solar panel efficiency may be affected by several factors, like weather,
sun intensity, shading, panel orientation, temperature, location, dust and dirt.
For example, if you live in a place without much sunlight or your panels are
covered by shade, you'll get a very low output or none at all.
Is the BLUETTI' s solar panel compatible with the third party' s power station ?
Yes. Make sure BLUETTI solar panels' voltage is compatible with your power
stations' voltage limit, while you're using the same connector. Please feel
free to contact us for compatibility with other power stations.
User Manual &
Warranty Card
Note:
Whether connected in series or parallel, make sure the total voltage of
solar panels is under the power station's input voltage limit.
Technical details
PV380
Maximum Power(Pm)
Open circuit voltage
Short circuit current
Cell efficiency
Cell lamination
Cell type
Operating temperature
380W*
45.5V
11.3A
Up to 23.4%
ETFE
Monocrystalline silicon
14-149°F/-10-65°C
Weight
Dimensions Unfolded
29.9Ibs / 13.6Kg
93.7*36.6in / 2380*930mm
36.6*23.4*1.7in / 930*595*45mm
Folded
General
Warranty
12 Months
Attention
Regular inspection and maintenance are required to prolong the lifespan of
solar panels.
Warning:
Do not use solar panels in extreme weather conditions like thunderstorms,
floods, typhoons, etc.
Always use solar panels within the specified temperature range
(14-149°F/-10-65°C).
No bend No shadingNo fall No soak No scratch
❹ Connect to power station
AC300
132
MC4 Connectors Solar Charging Cable
4
Open the kickstand, adjust the angle, stabilize the panel, fold the kickstand.
Pull out Unbuckle Buckle up
❸ How to use the kickstand
Fix Buckle up Press to fix
How to use
35°
45°
55°
* STC: Irradiation 1000W/m2, cell temperature 25°C, atmospheric mass
number AM 1.5, measurement tolerance ±3 % (Pm).

AC200MAX Portable Power Station
Please read this manual before use and follow its guidance. Keep this manual for future reference.

User Manual
Please read this manual before use and follow its guidance. Keep this manual for future reference.

Contents
01. BRIEF INTRODUCTION ...................... ..... 01
02. ABBREVIATION ...................................... 01
03. SAFETY INSTRUCTION............................. 01
04. BLUETTI APP ......................................... 02
05. IN THE BOX ........................................... 03

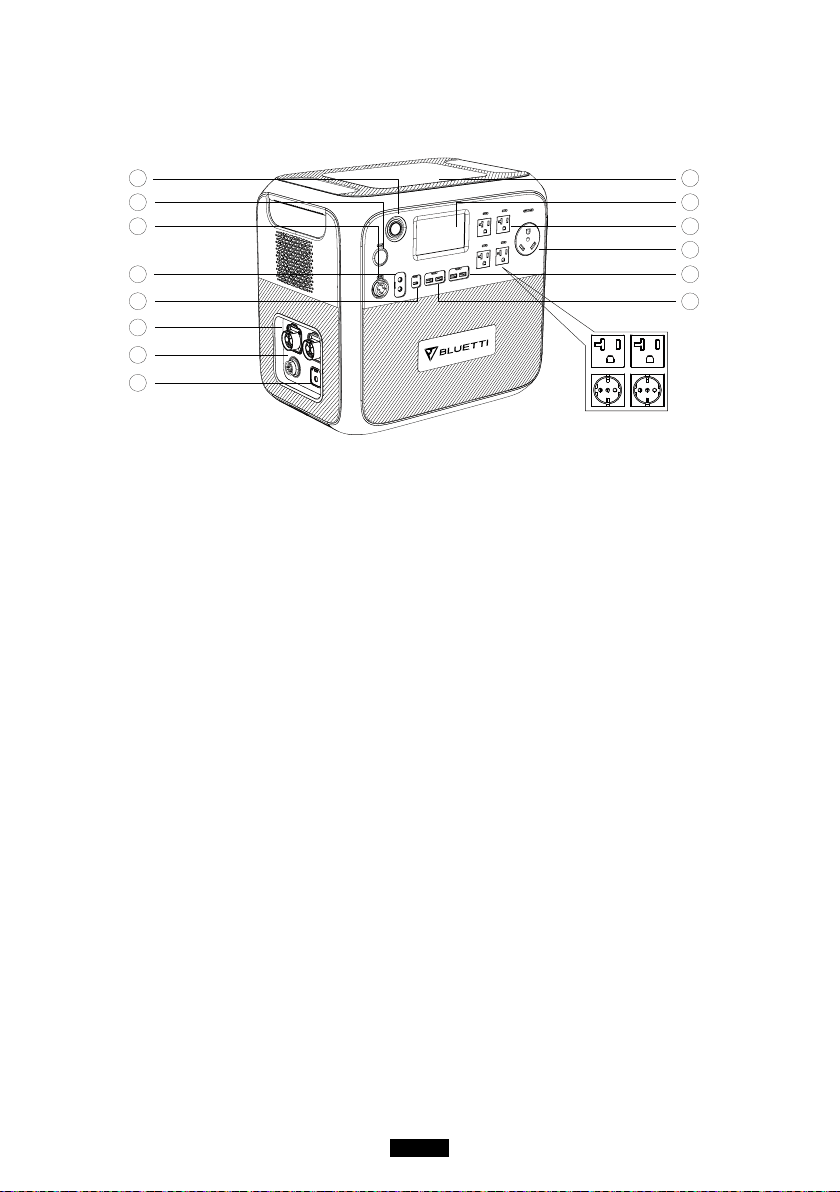

06. FEATURES ............................................ 07
07. LET`S GET STARTED .............................. 08

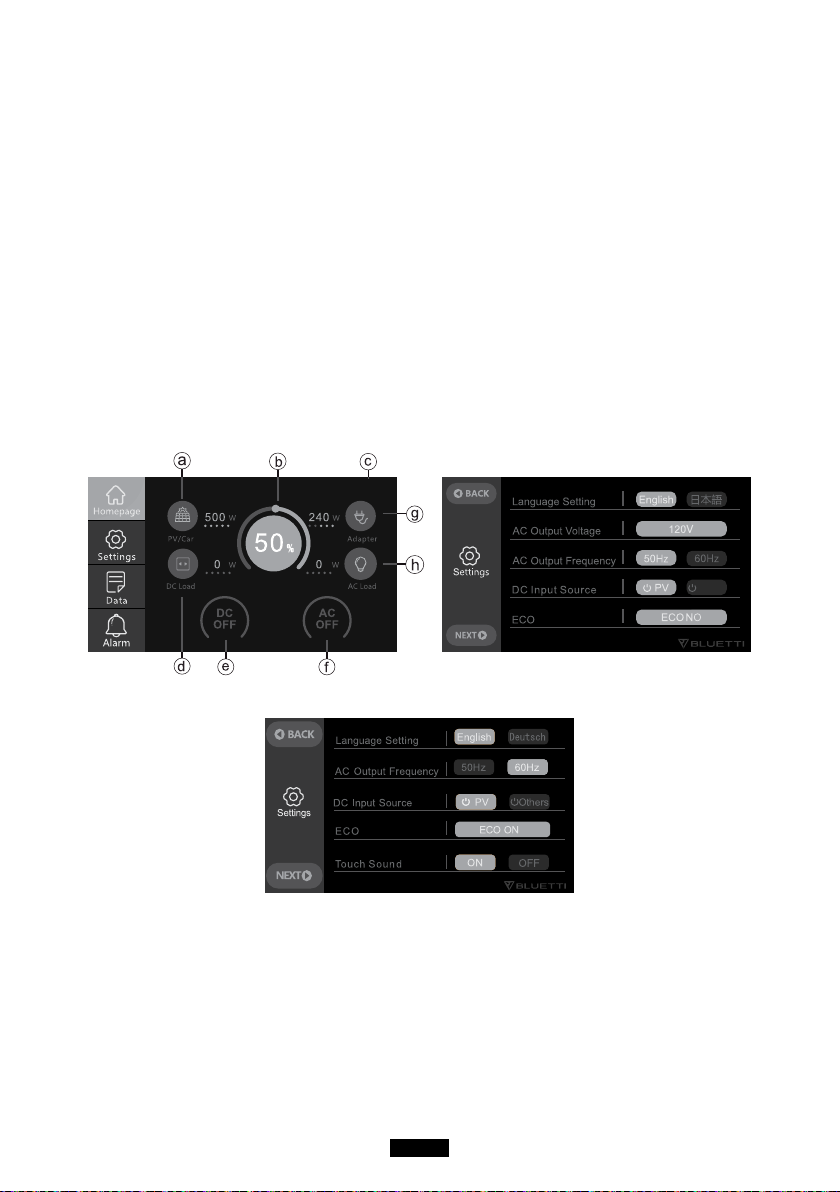

08. TOUCHSCREEN ...................................... 08

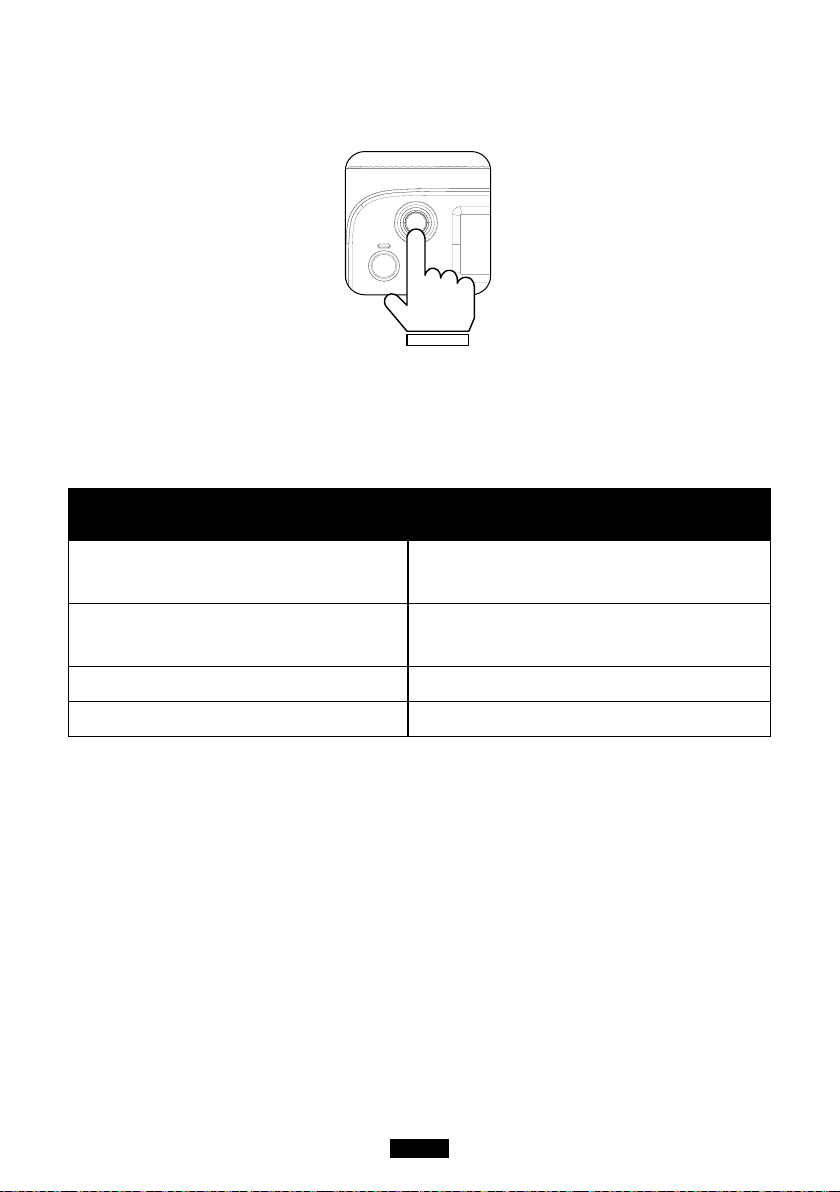

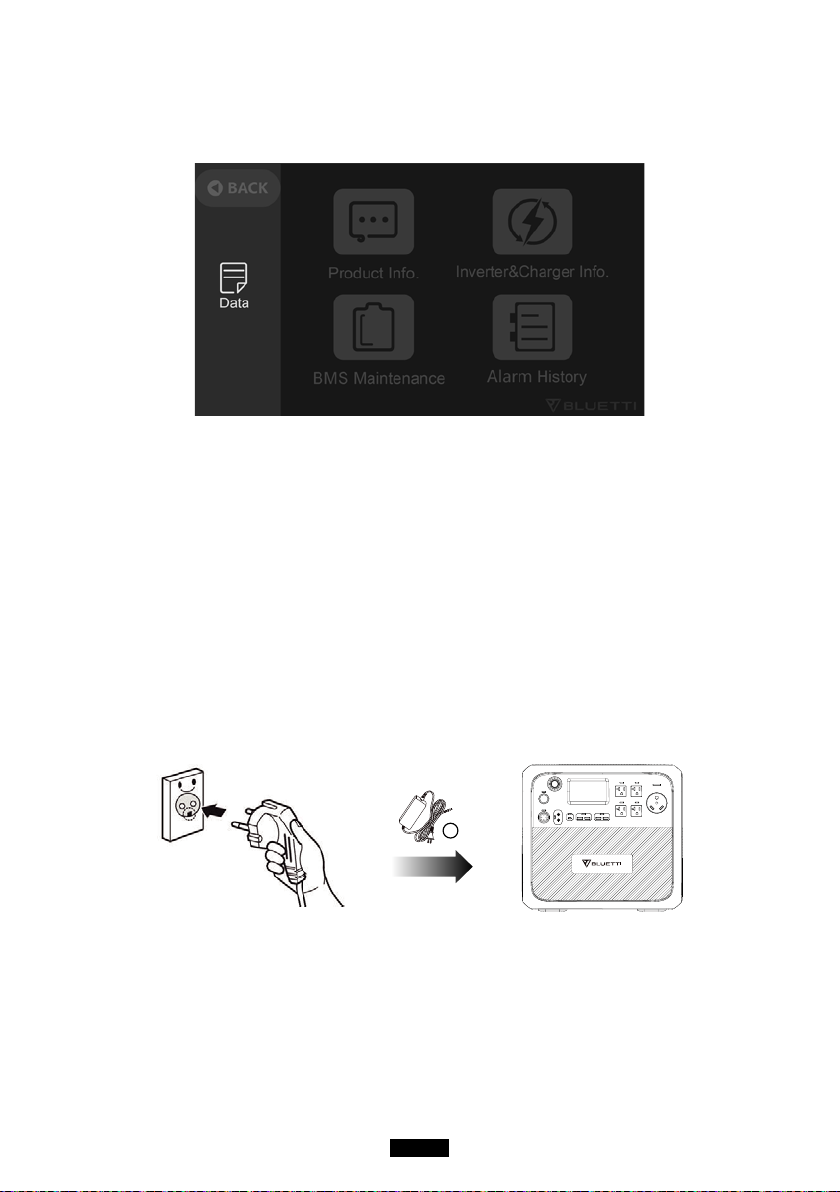

09. TOUCHSCREEN OPERATION .................... 09

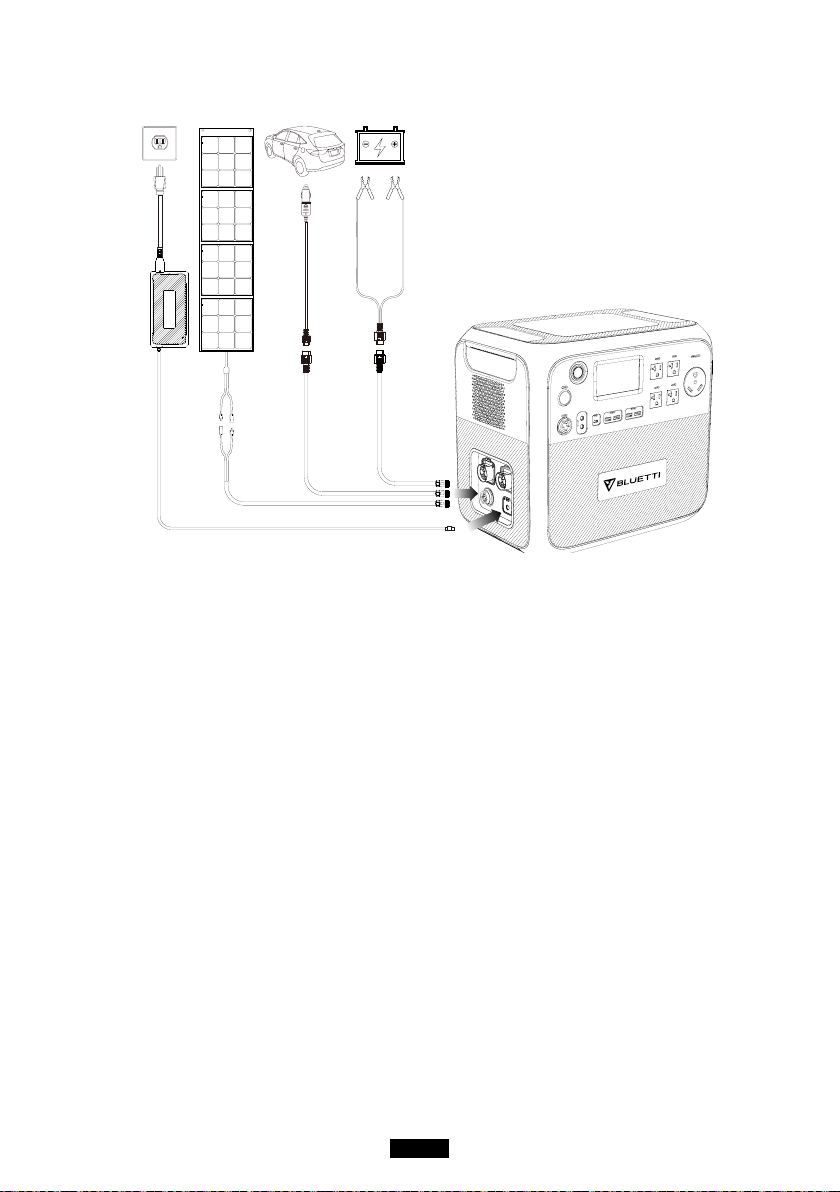

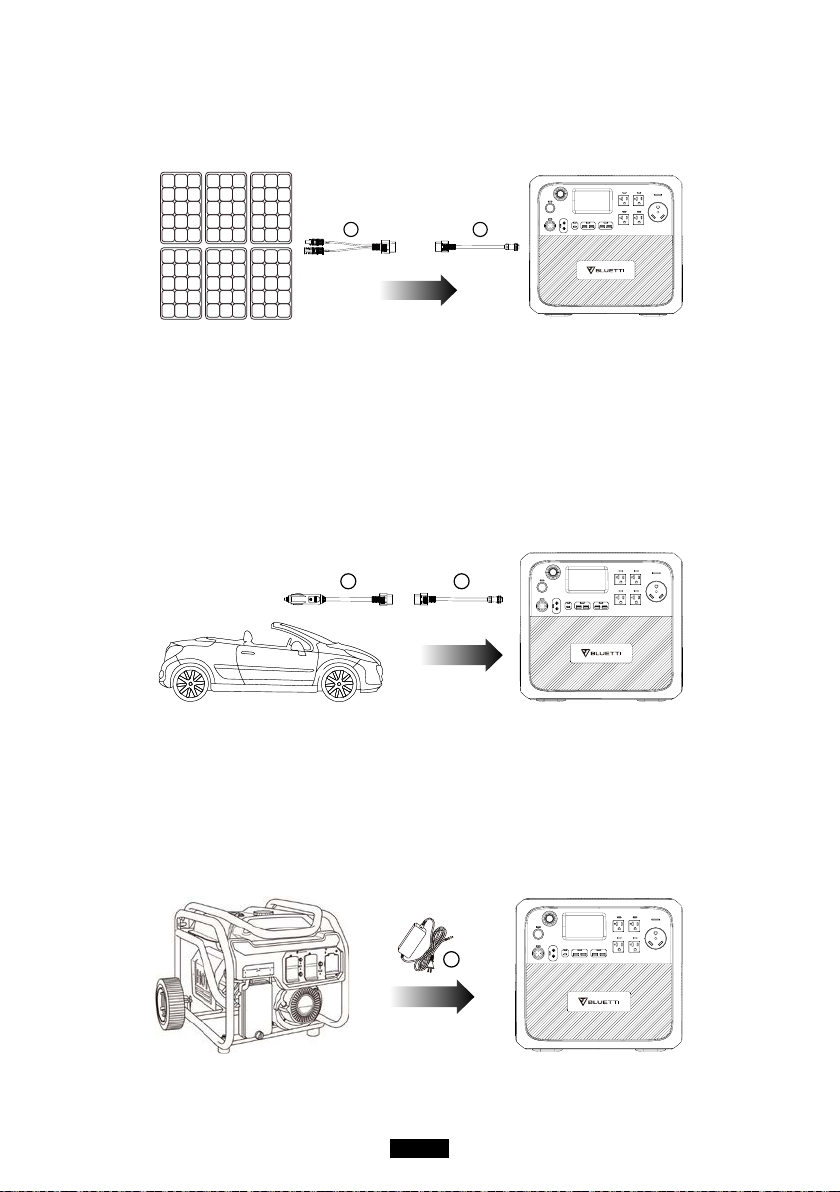

10. CHARGING ........................................... 11
11. DISCHARGING ....................................... 14
12. APPLICATION SCENARIO ......................... 14
13. EXAMPLES OF LOADS ............................ 15

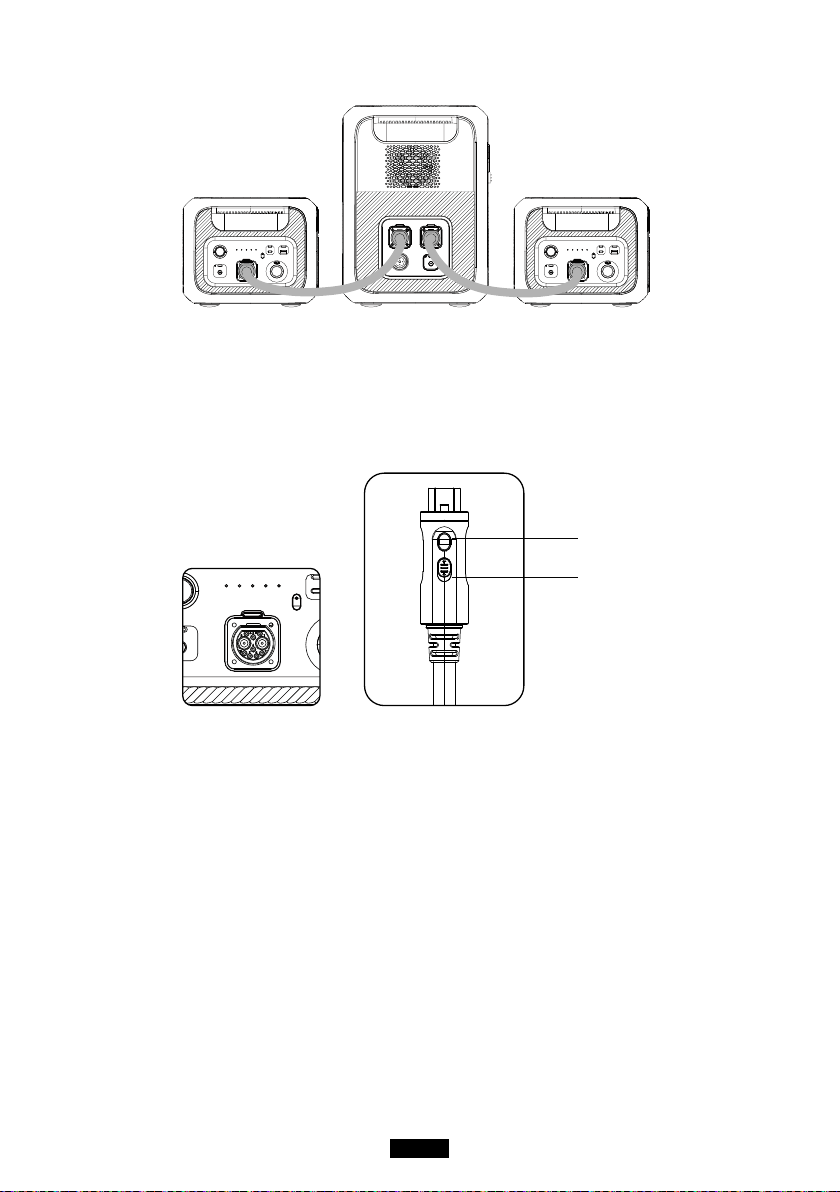

14. AC200MAX + B230 CONNECTION ........... 15
15. ESTIMATION OF OPERRTING TIME ............ 18
16. TECHNICAL SPECIFICATIONS .................. 18
17. TROUBLE SHOOTINGS ............................ 21
18. FAQ (Frequently Asked Questions) ............ 23
19. DECLARATION ....................................... 23
20. FCC WARNING ....................................... 24

01
Just Power On
1.BRIEF INTRODUCTION
For I/O capability, the AC200MAX features higher continuous output power
at 2,200W from its pure sine wave inverter, a 100W PD3.0 USB-C port, an
upgraded MPPT controller which now handles up to 900W of solar input and
a built-in 30A NEMA TT-30 outlet designed especially for the RV crowds. And
most importantly of all after feedback and listening to our customers, finally,
the BLUETTI AC200MAX supports Bluetooth connection and can be controlled
by the new BLUETTI Smartphone App (iOS & Android). And it too, also
supports expandable battery packs.
The AC200MAX supports up to two additional battery packs, using either the
BLUETTI B230 or B300. With two BLUETTI B300 you can easily expand your
AC200MAX to a massive 8192Wh of capacity to run all of your essential needs
at home or on-the-go for hours, days, or even more than a week!
2.ABBREVIATION
● BMS: Battery Management System
● MPPT: Maximum Power Point Tracking
● SOC: State of Charge
● AC: Alternating Current
● DC: Direct Current
● PV: Solar Panel(s) Charging (Photovoltaic)
● Grid: Home Power Supplied by Utility
● T500: 500W Adapter
● DOD: Depth of Discharge
● ECO: A power-saving setting for the AC200MAX. While it`s on, the AC output
ports will be automatically turned o if the load on it is less than 50W over a
span of 4 hours.
3.SAFETY INSTRUCTION
● DO NOT place the power station near heat sources. It is prohibited to place
the equipment in an environment with flammable, explosive gas, or smoke. It
is also prohibited to operate the equipment in this environment.
● DO NOT attempt to replace the internal battery or any other component of

02
BLUETTI
the equipment by anyone other than authorized personnel.
● DO NOT operate in wet conditions. If the equipment becomes wet, please let
the unit dry completely before using.
● Please ensure proper ventilation while in use and do not obstruct fan
openings. Inadequate ventilation may cause permanent damage to the
equipment.
● DO NOT move the unit while operating as vibrations and sudden impacts
may lead to poor connections to the hardware inside.
●Warning: DO NOT insert foreign objects into any ports of the AC200MAX (both
AC & DC & ventilation holes). The power station generates the same potentially
lethal AC power as a household wall outlet. Please use it carefully and keep
children away from it.
● In the case of fire, only a dry powder fire extinguisher is suitable for the
product.
● For safety purposes, please use only the original charger and cables designed
for the equipment. We are not liable for damage caused by third-party
equipment and may render your warranty invalid.
4.BLUETTI APP

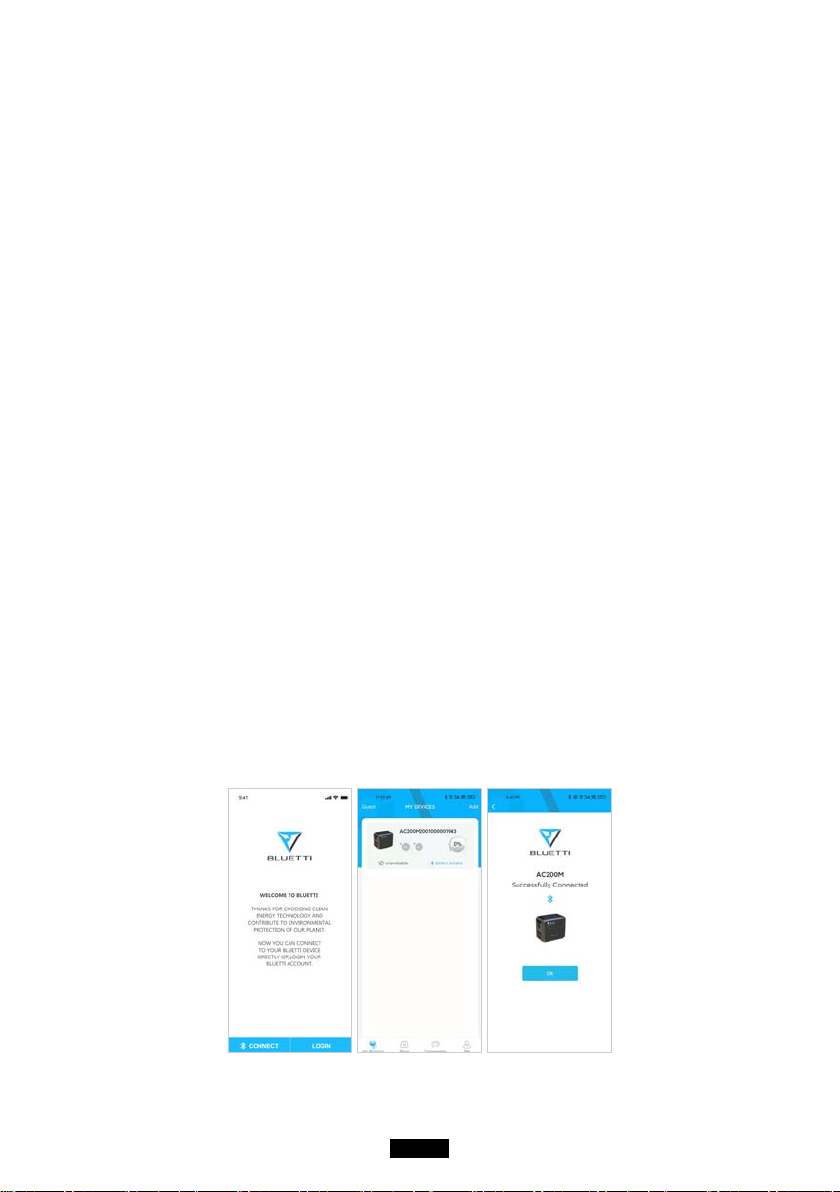

Search for “BLUETTI” in the App Store (for iOS devices) or Google Play (for
Android devices) to download the BLUETTI App to remotely control your
AC200MAX.
The AC200MAX can be controlled via Bluetooth. In order to access the
AC200MAX, please launch the BLUETTI App once downloaded and installed,
and tap the “Bluetooth CONNECT” icon to register your BLUETTI AC200MAX.
The basic information of your AC200MAX can be viewed after the unit has

03
Just Power On
connected with the App successfully. Press the ‘’gear icon’’ to customize the
current working mode and parameters of your AC200MAX under “Settings”.
NOTE: Please keep your phone within 5m/16.4ft of the AC200MAX in order to
reduce connectivity issues during update.
5.IN THE BOX
Standard Accessories
No. Category Quantity
1
AC200MAX Portable Power Station
AC200MAX Power Station
1
2
AC200MAX Portable Power Station
T500 500W Adapter
For AC charging
1

04
BLUETTI
3
AC200MAX Portable Power Station
PV Charging Cable (XT90 - MC4)
For solar charging, up to 15A,900W.
1
4
AC200MAX Portable Power Station
Car Charging Cable
(XT90 - Cigarette Lighter Port)
Charge AC200MAX by car.
1
5
AC200MAX Portable Power Station
Multi-functional Aviation Cable (XT90 -
Aviation)
Expand the charging methods via PV input
port.
1
6
AC200MAX Portable Power Station
User Manual
Please read the manual before use and
follow its guidance, keep this manual for
future reference.
1
7
AC200MAX Portable Power Station
Warranty Card
Please keep this Warranty Card properly.
1

05
Just Power On
8
AC200MAX Portable Power Station
Certicate of QC PASS
1
Optional Accessories
No. Category Type
9Lead-acid Battery Charging Clamp
Charging AC200MAX through lead-acid
battery only. DO NOT charge the lead-acid
battery via this cable. Optional
Input
Cable
10 Multi-functional Input Cable
(XT90 - DC7909)
Expand the charging methods via AC input
port.
11
12V/30A Output Bundle
(Aviation - XT60, XT60 - SPC45)
Perfect for RV.
Optional
Output
Accessories
12
D300S PV Step Down Module
Step down the voltage of solar
panels(especially rigid panels) to adapt to
AC200MAX solar input limit range.
Optional
Accessories

06
BLUETTI
13 B230 Battery Module
Extra 2048Wh capacity, up to * 2 B230
can be connected to AC200MAX.
Optional
Accessories
14 B300 Battery Module
Extra 3072Wh capacity, up to * 2 B300 can
be connected to AC200MAX.
Optional
Accessories
