SERVO-DRIVE uno
Instruction leaflet

About these instructions
Thank you for your purchase. SERVO-DRIVE uno, the electrical mo-
tion support system from
Julius Blum GmbH is a high-quality product that simplifies everyday
kitchen tasks.
To safely enjoy the comfort of SERVO-DRIVE uno, please note the
following:
➢Carefully read the instruction leaflet before use.
➢Please retain the instruction leaflet for the service life of SERVO-
DRIVE uno.
➢Please pass on this instruction leaflet to each subsequent owner
or user of SERVO-DRIVE uno.
Validity and target group
This instruction leaflet is intended for all users of SERVO-DRIVE uno.
Installation, setup, initial operation, maintenance and removal may
only be carried out according to the separate installation instructions.
2

EN
Safety
Principle
SERVO-DRIVE uno complies with current safety standards. Neverthe-
less, there are certain risk factors if the information in the instruction
leaflet/installation instructions is not followed. Please be aware that
Julius Blum GmbH is not responsible for incidental or consequential
damages that may arise due to non-compliance with the instruction
leaflet/installation instructions.
Safety information
▀The mains plug and the Blum transformer must be easily accessib-
le.
▀Neither the Blum transformer nor any cabling should come into
contact with moving parts.
▀This device should not be used by persons (including children) with
limited physical, sensory or mental abilities, or those with a lack of
experience and/or knowledge. Unless they are supervised
by a person responsible for their safety or they receive instruction
on how to operate the device.
To ensure that drawers cannot be activated unintentionally, we recom-
mended connecting the Blum transformer to a switched outlet.
For more information, please consult an electrician.
NOTE
3

Children
Opening drawers may pose a risk of injury to children.
➢Children should be properly supervised when in the room so that
they do not play with the device.
➢To ensure that SERVO-DRIVE uno is not triggered unintentional-
ly, the switched outlet should be turned off.
Intended use
SERVO-DRIVE uno supports the opening of drawers and may only be
used under
the following conditions:
▀In dry, enclosed rooms.
▀In combination with pull-out systems from Julius Blum GmbH within
permitted technical specifications.
▀In combination with a Blum transformer.
Julius Blum GmbH is not liable for any other use.
WARNING
4

EN
Structural changes and spare parts
Structural changes and replacement parts not approved by the manu-
facturer affect the safety and functionality of SERVO-DRIVE uno and
are, therefore, not allowed.
▀The condition as supplied to customer may not be changed.
▀Only use original spare parts from Julius Blum GmbH.
▀Blum components are the only devices that should be connected to
the Blum transformer.
▀A max. of 2 drive units may be used per Blum transformer.
▀Please make sure that the Blum distance bumper is attached.
5

Assembly
▀All national standards must be followed for SERVO-DRIVE uno as-
sembly. This includes, in particular, those related to the mechanical
safety of moving parts and electrical cabling.
▀The device may only be connected to a power supply that corre-
sponds to the type and frequency listed on the serial tag (see Blum
transformer).
▀No damaged parts should be used.
▀Sharp edges may damage the cable.
▀The total length of the cable should not exceed 2 m.
Danger of electric shock!
➢Never open a Blum transformer.
WARNING
▀Never take apart a drive unit.
▀Make sure that moisture cannot penetrate the Blum transformer
and drive unit.
▀Before the installation of SERVO-DRIVE uno make sure that there
is enough space (min 44 mm) behind the pull-out back in the cabi-
net. By cutting out the cabinet back panel you may win
additional space in the cabinet.
6

EN
Cabinet care and cleaning
Danger of electric shock!
There is a danger of electric shock if fluids penetrate the Blum trans-
former.
➢Before cleaning the drive unit and/or Blum transformer, discon-
nect the Blum transformer from the power.
➢Disconnect the mains plug before conducting any repair.
➢Never open a Blum transformer or drive unit.
WARNING
▀Make sure that no water or aggressive cleaning material comes in
contact with the drive unit or Blum transformer – use a moist cloth.
▀If the cabling is damaged, the Blum transformer should be replaced
according to the separate installation instructions.
▀Do not cover the Blum transformer with towels or other items –
Danger of overheating.
Troubleshooting
For information about trouble shooting, please go to:
www.blum.com/sd/troubleshooting
7

SERVO-DRIVE unit pre-mounted:
Attachment bracket
Drive unit
Transport protection
Protection against dripping water
Blum transformer including cable
Assembly device
Blum-Distance bumper

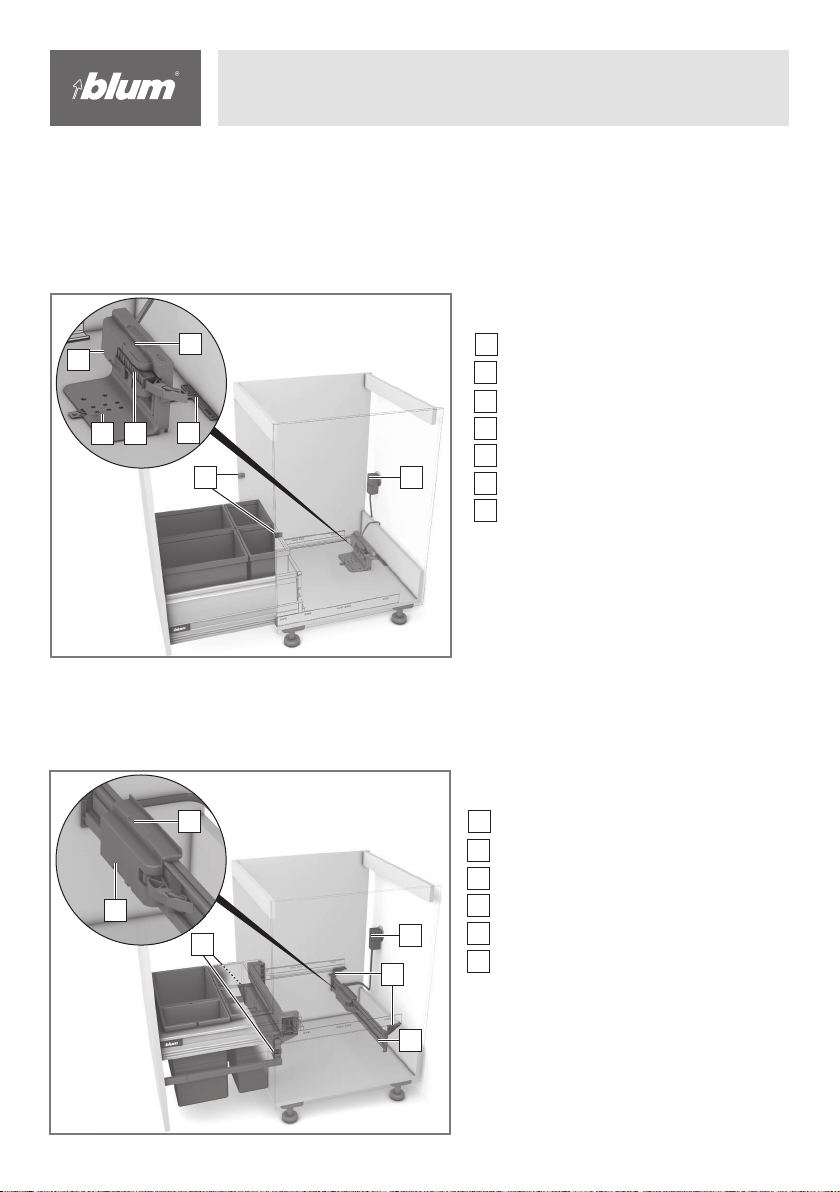

Orientation diagram: bottom mount waste bin solutions
SERVO-DRIVE unit pre-mounted:
Bracket profile horizontal
Bracket profile adapter
Drive unit
Protection against dripping water
Blum transformer including cable
Blum-Distance bumper
Orientation diagram: top mount waste bin solutions
SERVO-DRIVE uno supports the opening of drawers.
SERVO-DRIVEuno for LEGRABOX / TANDEM / TANDEMBOX
SERVO-DRIVEuno for TANDEMBOX
1
1
2
2
3
3
4
4
5
5
6
6
7
8
31
4
2
5
6
7
3
1
4
5
2
6

EN
Electrical motion support system
When the front and/or handle of the drawer
(A) is pulled or pressed, the eject lever
of the drive unit (B) swivels forward and
opens the drawer a short distance.
The electrical opening support function
is only triggered by a brief touch or pull.
Leaning on the drawer, for example, will not
open it.
Leaning protection
SERVO-DRIVEuno for LEGRABOX / TANDEM / TANDEMBOX
The Blum transformer provides power to the drive unit. Blum transformer function can be checked via
the operating mode display (LED).
Blum transformer
Operating mode display (LED)
Premature wear of SERVO-DRIVE uno due to improper use.
➢Do not press/pull with force against the movement direction when opening or closing
the drawer.
NOTE
1
9
1

SERVO-DRIVE uno will neither
work by pulling nor pushing.
SERVO-DRIVE uno will only
work when pulling – not when
pushing.
Blum transformer is not
connected to the outlet.
Power supply interupted.
Blum transformer is defective.
Cabling is defective.
Object is obstructing path.
Blum distance bumper is
missing or defective.
Max. fill height of drawer has
been exceeded.
SERVO-DRIVE uno is defective.
➢Plug in the Blum
transformer to the outlet.
➢Check the circuit
breaker/fuse box.
➢If necessary, contact an
authorised electrician.
➢Replace the Blum
transformer.
➢Remove the obstruction.
➢Attach or replace the Blum
distance bumper.
➢Open the drawer manually.
➢Remove the items that are
too high from the drawer.
➢Replace the drive unit.
Problems Possible cause Remedy
10

EN
Input voltage: ................................................................................................. 100–240 VAC/50–60Hz
Input voltage Japan: ............................................................................... 100 VAC ±10%/50 and 60 Hz
Input current: ................................................................................................................................. 0.3 A
Output voltage: .......................................................................................................................... 24VDC
Nominal output current (max. 2 drive units): .................................................................................0.5 A
Ambient temperature: ......................................................................................................... 0 to +40°C
Protection category: ....................................................................................................................... IP40
Power consumption in standby mode (without load): ........................................................... <0.075 W
Supply voltage: .......................................................................................................................... 24VDC
Rated current: ................................................................................................................................. 2.0A
Power consumption in standby mode: ....................................................................................... 0.12 W
Ambient temperature: ........................................................................................................... 0 to +50°C
Protection category: ........................................................................................................................ IP20
Technical data
Should only be used in dry, enclosed rooms.
Blum transformer Z10NA300.xx
SERVO-DRIVEuno for TANDEM / TANDEMBOX drive unit
Spare parts
Spare parts can be ordered from your distributor or furniture supplier.
Disposal
SERVO-DRIVE uno removal may only be carried out according to the separate installation instruc-
tions. All SERVO-DRIVE uno electronic components should be disposed of in a separate collection for
electrical appliances as per local regulations.
11

Name of kitchen distributor/carpenter:
Address:

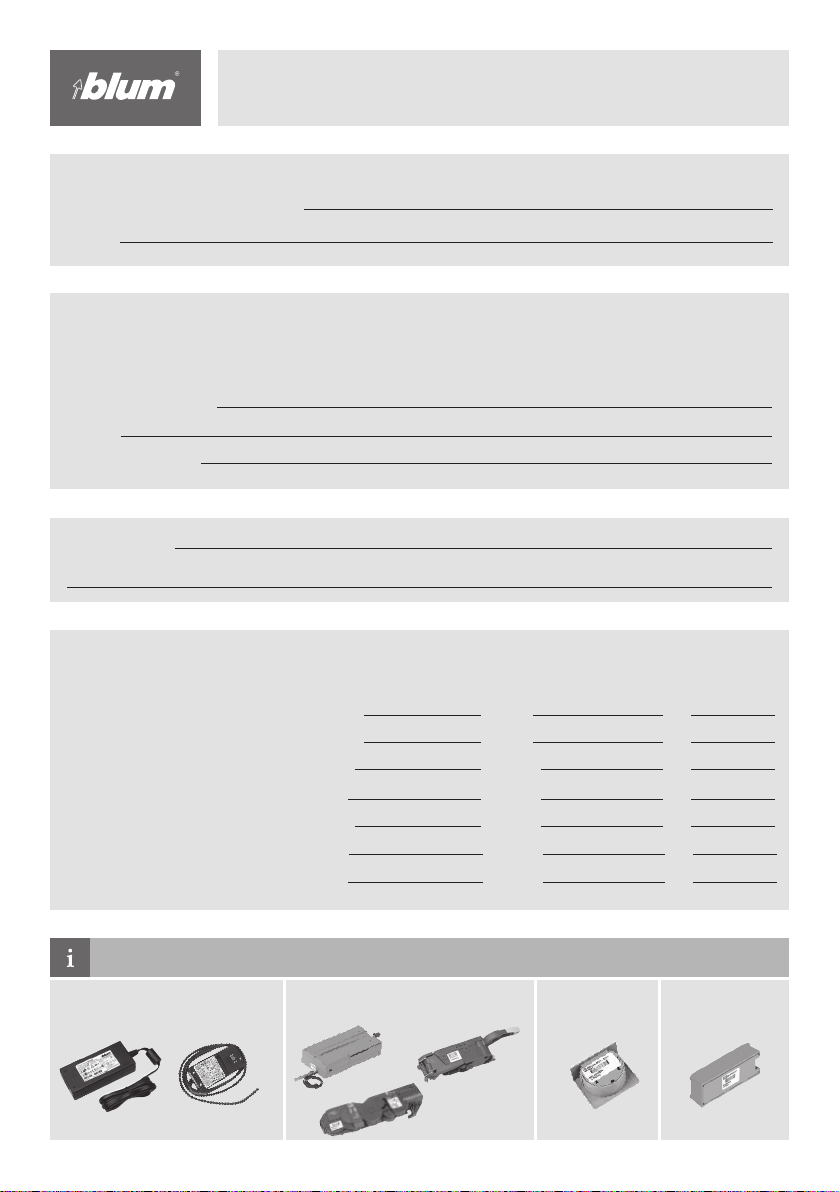

Spare parts form
In order to receive your SERVO-DRIVE spare parts as quickly as possible, your SERVO-DRIVE
and/or kitchen distributor requires the following data:
The part number and the batch number can be found here
Name of kitchen owner:
Address:
Commission number:
Fault description:
Part number and batch number of the defective SERVO-DRIVE component:
Blum transformer:
Blum-Plug-in transformer:
Drive unit:
Drive unit:
Drive unit:
SERVO-DRIVE switch:
Wireless receiver:
Quantity
Blum transformer Drive unit SERVO-DRIVE switch Wireless receiver
Part number Batch number
Blum-Plug-in
transformer:
12
Z10N
Z10N
Z10
21
Z10
21
21
BN
BN
BAU
BAU
BAU
BAU
BAU

EN
13

Declaration of Conformity
Issuer's name: Julius Blum GmbH
Issuer's address: Industriestraße 1, 6973 HÖCHST, AUSTRIA
Object of the declaration:
Name / Brand: Blum
Products: SERVO-DRIVE
Types: Z10NE020, Z10NA200,
Z10NE030, Z10NA300,
Z10A3000.xx, Z10ZE000,
Z10ZC000, 21xA0x1,
Z10C5000.xx, Z10C5007,
21P5020, 21.A00L33.xx
The object of the declaration described above is in conformity with the requirements of the following docu-
ments:
Document-Nr Title Date of issue
2014/35/EU Low Voltage Directive (LVD) 2014-02-26
2014/30/EU EMC-Directive 2014-02-26
2011/65/EU RoHS-Directive 2011-06-08
2014/53/EU Radio Equipment Directive (RED) 2014-04-16
Additional information:
The following harmonized standards were consulted for the appropriate implementation of the directives require-
ments listed above for all the product types mentioned as object of the declaration:
Document-Nr Title Date of issue
EN 55014-1:2006
+ A1:2009
+ A2:2011
Electromagnetic compatibility - Requirements for household app-
liances, electric tools and similar apparatus
– Part 1: Emission
2012-05-01
EN 55014-2:2015 Electromagnetic compatibility - Requirements for household app-
liances, electric tools and similar apparatus
– Part 2: Immunity - Product family standard
2016-01-01
EN 61000-3-2:2014 Electromagnetic compatibility (EMC)
– Part 3-2: Limits - Limits for harmonic current emissions (equipment
input current <= 16 A per phase)
2015-03-01
EN 61000-3-3:2013 Electromagnetic compatibility (EMC)
– Part 3-3: Limits - Limitation of voltage changes, voltage fluctuati-
ons and flicker in public low-voltage supply systems, for equip¬ment
with rated current <= 16 A per phase and not subject to conditional
connection
2014-03-01
14

EN
Document-Nr Title Date of issue
EN 60335-1:2012
+A11:2014
Household and similar electrical appliances – Safety
– Part 1: General requirements
2012-10-01
EN 50581:2012 Technical documentation for the assessment of electrical and
electronic products with respect to the restriction of hazardous
substances
2013-02-01
In addition the following standards for the product types Z10NA200, Z10NA300, Z10NE020 and Z10NE030 were
used
EN 60950-1:
2014-08
Information technology equipment - Safety
– Part 1: General requirements
2014-08-01
In addition the following standards for the product type 21xA0x1 and modules 21P5020, 21.A00L33.xx plus
Z10C5007 were used
ETSI EN 300 440-2 V1.4.1 Electromagnetic compatibility and Radio spectrum Matters (ERM)
- Short range devices
- Radio equipment to be used in the 1 GHz to 40 GHz frequency
range
– Part 2: Harmonized EN covering the essential requirements of
article 3.2 of the R&TTE Directive
2010-12-29
EN 301 489-3 V1.6.1 Electromagnetic compatibility and Radio spectrum Matters (ERM)
Electromagnetic compatibility (EMC) standard for radio equipment
and services
– Part 3: Specific conditions for Short-Range Devices (SRD) opera-
ting on frequencies between 9 kHz and 246 GHz
2013-10-12
EN 301 489-1 V1.9.2 Electromagnetic compatibility and Radio spectrum Matters (ERM)
- Electromagnetic compatibility (EMC) standard for radio equipment
and services
– Part 1: Common technical requirements
2012-04-11
The CE marking was affixed in 09.
For the commercial use of SERVO-DRIVE for AVENTOS the conformity of the furniture with the Machinery Directive
2006/42/EU should be confirmed prior to commissioning.
Signed for and on behalf of:
Julius Blum GmbH
Hoechst, 2016-04-26
Graduate engineer (FH) Hermann Weissenhorn, Head of Engineering
http://www.blum.com/compliance/
15

Julius Blum GmbH
Beschlägefabrik
6973 Höchst, Austria
Tel.: [phone]
Fax: [phone]
E-Mail: [email protected]
www.blum.com
BA-140/3EN · 11.16 · © Copyright by Blum
